Transporto priemonė: OF 1730; VIN numerio dalis: 384063

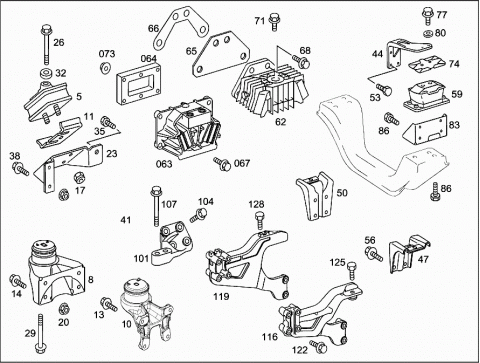

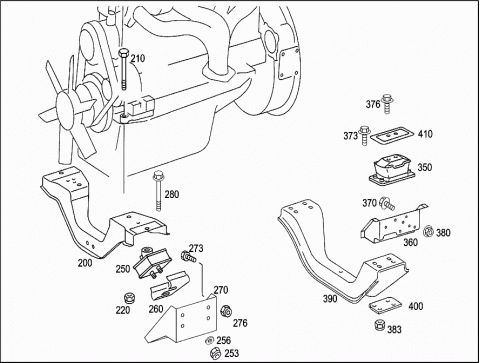

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6952407017 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 008 | A 9702400317 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 008 | A 9792400017 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 008 | A 9792400217 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 008 | A 9702400417 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 008 | A 6952400217 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 008 | A 6932400217 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| Repalced by: A 3682400217 | ||
| 008 | A 6952400417 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 008 | A 9732400317 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| Repalced by: A 3682400217 | ||
| 008 | A 6932400517 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| Repalced by: A 3682400217 | ||
| 010 | A 3682400217 | ENGINE SUPPORT |
| ENGINE FRONT SUSPENSION | ||
| 011 | A 3522420509 | ENGINE STAY |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 013 | N 910105012021 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M12X1.5X50 | ||
| 014 | N 910105012020 | SCREW |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M 12X1.5X35 | ||
| 014 | N 910105012020 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M 12X1.5X35 | ||
| 014 | N 910105012010 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| M 12X1.5X40 | ||
| 017 | N 913004012003 | NUT |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 020 | N 913023012002 | NUT |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 020 | N 913023012002 | NUT |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 020 | N 913023012002 | NUT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| 023 | A 3843118663 | CONSOLE |
| FRONT LEFT,ENGINE SUSPENSION | ||
| 023 | A 3843118763 | CONSOLE |
| FRONT RIGHT,ENGINE SUSPENSION | ||
| 026 | N 910105016012 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| M16X1.5X50 | ||
| 029 | N 910105016005 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| M 16X1.5X60 | ||
| 032 | A 3529902440 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 035 | N 000961020049 | SCREW |
| ENGINE SUPPORT TO FRAME | ||
| 20X1,5X40 | ||
| 038 | N 910105014005 | SCREW |
| ENGINE SUPPORT TO FRAME | ||
| M 14X1,5X40 | ||
| 041 | N 913023014003 | NUT |
| ENGINE SUPPORT TO FRAME | ||
| 041 | N 913023014003 | NUT |
| ENGINE SUPPORT TO FRAME | ||
| 044 | A 3842427105 | SUPPORTING ARM |
| REAR LEFT | ||
| 044 | A 3842427205 | SUPPORTING ARM |
| REAR RIGHT | ||
| 047 | A 3842400005 | SUPPORTING ARM |
| REAR LEFT | ||
| 050 | A 3842400105 | SUPPORTING ARM |
| REAR RIGHT | ||
| 053 | N 000933012122 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M12X1,75X30 | ||
| 056 | N 910105016013 | SCREW |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| 059 | A 3862407218 | RUBBER MOUNTING |
| Repalced by: A 3842407018 | ||
| 059 | A 3842407018 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 062 | A 9702400418 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| Repalced by: A 3822400018 | ||
| 062 | A 9702400418 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 062 | A 3842400018 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| Repalced by: A 3822400018 | ||
| 062 | A 3822400018 | ENGINE SUPPORT |
| ENGINE REAR SUSPENSION | ||
| 062 | A 3842400018 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 062 | A 9732400418 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 062 | A 9732400418 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| Repalced by: A 3822400118 | ||
| 062 | A 6932400218 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| Repalced by: A 3822400118 | ||
| 062 | A 3822400118 | ENGINE SUPPORT |
| ENGINE REAR SUSPENSION | ||
| 062 | A 3822400118 | ENGINE SUPPORT |
| ENGINE REAR SUSPENSION | ||
| 063 | A 6342410213 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 063 | A 6342410013 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 063 | A 3822410113 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 063 | A 3822410213 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 063 | A 6342410413 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 063 | A 6342410813 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 064 | A 3842410384 | SHIM |
| ENGINE MOUNTING SUPPORT TO SIDE MEMBER | ||
| 43 MM | ||
| 064 | A 3842410284 | SHIM |
| ENGINE MOUNTING SUPPORT TO SIDE MEMBER | ||
| 13 MM | ||
| 064 | A 3822410084 | SHIM |
| ENGINE MOUNTING SUPPORT TO SIDE MEMBER | ||
| 5 MM | ||
| 064 | A 3822410084 | SHIM |
| ENGINE MOUNTING SUPPORT TO SIDE MEMBER | ||
| 5 MM | ||
| 065 | A 3823120084 | SHIM |
| ENGINE REAR SUSPENSION | ||
| 5 MM | ||
| 065 | A 3823120084 | SHIM |
| ENGINE REAR SUSPENSION | ||
| 5 MM | ||
| 065 | A 3823120084 | SHIM |
| ENGINE REAR SUSPENSION | ||
| 5 MM | ||
| 066 | A 3842410184 | SHIM |
| ENGINE REAR SUSPENSION | ||
| 067 | N 910105014005 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M14X1,5X40 MM | ||
| 067 | N 910105014019 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M14X1,5X60 MM | ||
| 067 | N 910105014017 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M14X1,5X80 MM | ||
| 067 | N 910105014016 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M14X1,5X90 MM | ||
| 068 | N 910105016013 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO CONSOLE | ||
| M 16X1.5X30 | ||
| 068 | N 910105016013 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO CONSOLE | ||
| M 16X1.5X30 | ||
| 068 | N 910105016013 | SCREW |
| ENGINE REAR MOUNTING, AT FRAME | ||
| M 16X1.5X30 | ||
| 068 | N 910105016004 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M 16X1.5X40 | ||
| 068 | N 910105016004 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M 16X1.5X40 | ||
| 068 | N 910105016007 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M 16X1.5X45 | ||
| 071 | N 910105018021 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO CONSOLE | ||
| M18X1.5X40 | ||
| 073 | N 913023014003 | NUT |
| ENGINE MOUNTING TO CONSOLE | ||
| 074 | A 3812420034 | SCREENING PLATE |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 077 | N 910105014011 | SCREW |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| M 14X1,5X50 | ||
| 080 | A 3459907340 | WASHER |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 083 | A 3843119163 | CONSOLE |
| ENGINE LEFT REAR MOUNTING | ||
| 083 | A 3843119263 | CONSOLE |
| ENGINE RIGHT REAR MOUNTING | ||
| 086 | N 000961014106 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X1.5X35 | ||
| 086 | N 000961012160 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M12X1.5X25 | ||
| 101 | A 3822410101 | ENGINE SUPPORT |
| LEFT | ||
| 101 | A 3822410201 | ENGINE SUPPORT |
| RIGHT | ||
| 101 | A 6342420001 | ENGINE SUPPORT |
| REAR LEFT | ||
| 101 | A 6342420101 | ENGINE SUPPORT |
| REAR RIGHT | ||
| 104 | N 304017016010 | HEXAGON HEAD BOLT |
| ENGINE SUPPORT TO AUTOMATIC TRANSMISSION | ||
| M 16X50 MM | ||
| 104 | N 000960022015 | SCREW |
| ENGINE REAR SUPPORT TO BELL HOUSING | ||
| M 22X1,5X60 MM | ||
| 107 | N 910105016005 | HEXAGON HEAD BOLT |
| ENGINE SUPPORT TO ENGINE FRONT MOUNTING | ||
| M16X1,5X60 MM | ||
| 107 | N 910105018024 | HEXAGON HEAD BOLT |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| M18X1.5X60 | ||
| 107 | N 910105018026 | HEXAGON HEAD BOLT |
| ENGINE FRONT MOUNTING TO ENGINE SUPPORT | ||
| M18X1.5X70 | ||
| 107 | N 910105018021 | HEXAGON HEAD BOLT |
| ENGINE FRONT MOUNTING TO ENGINE SUPPORT | ||
| M18X1.5X40 | ||
| 107 | N 910105016009 | SCREW |
| ENGINE FRONT MOUNTING TO ENGINE SUPPORT | ||
| M 16X1,5X100 MM | ||
| 107 | N 910105016015 | SCREW |
| ENGINE FRONT MOUNTING TO ENGINE SUPPORT | ||
| M 16 X 1,5 X 100 MM | ||
| 107 | N 910105016004 | SCREW |
| ENGINE FRONT MOUNTING TO ENGINE SUPPORT | ||
| M 16 X 1,5 X 40 MM | ||
| 116 | A 3842660106 | SUPPORTING PLATE |
| REAR LEFT | ||
| 116 | A 3842660306 | SUPPORTING PLATE |
| REAR LEFT | ||
| 119 | A 3842660206 | SUPPORTING PLATE |
| REAR RIGHT | ||
| 119 | A 3842660406 | SUPPORTING PLATE |
| REAR RIGHT | ||
| 119 | A 3822660106 | SUPPORTING PLATE |
| REAR RIGHT | ||
| SUPORTE TRANSMISSÃO LADO ESQ. | ||
| 119 | A 3822660206 | SUPPORTING PLATE |
| REAR RIGHT | ||
| SUPORTE TRANSMISSÃO LADO DIR. | ||
| 122 | N 910105016009 | SCREW |
| BRACKET AT TRANSMISSION REAR | ||
| M 16X1.5X100 | ||
| 125 | A 6959907201 | SCREW |
| BRACKET AT TRANSMISSION REAR | ||
| LINKS | ||
| 128 | A 3849900000 | SCREW |
| BRACKET AT TRANSMISSION REAR | ||
| RECHTS | ||
| 200 | A 3842407101 | ENGINE SUPPORT |
| FRONT | ||
| 210 | N 910105016006 | SCREW |
| RUBBER MOUNTING TO CONSOLES | ||
| M 16X1,5X80 MM | ||
| 220 | N 913023016001 | NUT |
| RUBBER MOUNTING TO CONSOLES | ||
| 250 | A 6952400017 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 253 | N 913004012003 | NUT |
| ENGINE FRONT SUSPENSION | ||
| 256 | N 000125013012 | WASHER |
| ENGINE FRONT SUSPENSION | ||
| 260 | A 3522420509 | ENGINE STAY |
| ENGINE FRONT SUSPENSION | ||
| 270 | A 3843107863 | CONSOLE |
| ENGINE FRONT SUSPENSION | ||
| 273 | N 910105014005 | SCREW |
| ENGINE SUPPORT TO FRAME | ||
| M 14X1,5X40 MM | ||
| 273 | N 910105014010 | SCREW |
| ENGINE SUPPORT TO FRAME | ||
| M 14X1,5X45 MM | ||
| 276 | N 000000005662 | NUT |
| ENGINE SUPPORT TO FRAME | ||
| M14X1,5 | ||
| 280 | N 910105014005 | HEXAGON HEAD BOLT |
| ENGINE SUPPORT TO FRAME | ||
| M14X1.5X40 | ||
| 350 | A 3842407018 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 350 | A 3862407218 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 360 | A 3843117663 | CONSOLE |
| ENGINE LEFT REAR MOUNTING | ||
| 360 | A 3843117963 | CONSOLE |
| ENGINE LEFT REAR MOUNTING | ||
| 360 | A 3843117763 | CONSOLE |
| ENGINE RIGHT REAR MOUNTING | ||
| 360 | A 3843118063 | CONSOLE |
| ENGINE RIGHT REAR MOUNTING | ||
| 370 | N 910105014011 | SCREW |
| ENGINE MOUNTING SUPPORT TO SIDE MEMBER | ||
| M 14X1,5X50 MM | ||
| 373 | N 910105012015 | SCREW |
| REAR ENGINE CROSS MEMBER TO STAYS | ||
| M 12X1,5X45 MM | ||
| 373 | N 910105012020 | SCREW |
| REAR ENGINE CROSS MEMBER TO STAYS | ||
| M 12X1,5X35 MM | ||
| 376 | N 910105014010 | SCREW |
| SCREENING PLATE TO ENGINE MOUNTING | ||
| M 14X1,5X45 MM | ||
| 380 | N 000000005662 | NUT |
| ENGINE MOUNTING SUPPORT TO SIDE MEMBER | ||
| M 14X1,5 | ||
| 383 | N 913023012002 | NUT |
| ENGINE MOUNTING SUPPORT TO SIDE MEMBER | ||
| 390 | A 3453127107 | ENGINE CROSS MEMBER |
| REAR | ||
| 400 | A 3843128660 | REINFORCEMENT |
| REAR ENGINE CROSS MEMBER TO STAYS | ||
| 410 | A 3812420034 | SCREENING PLATE |
| REAR ENGINE CROSS MEMBER TO STAYS | ||
