Transporto priemonė: OF 1730; VIN numerio dalis: 384063

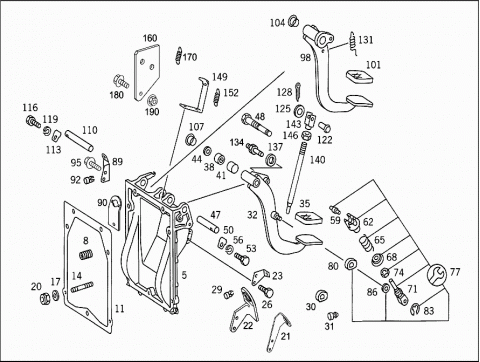

Grupė: 29 PEDALS - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6732903119 | BEARING BRACKET |
| Repalced by: A 6342900419 | ||
| 005 | A 6342900419 | BEARING BRACKET |
| (PEDAL BEARING BRACKET) | ||
| 005 | A 6342900419 | BEARING BRACKET |
| (PEDAL BEARING BRACKET) | ||
| 005 | A 6342900419 | BEARING BRACKET |
| (PEDAL BEARING BRACKET) | ||
| 005 | A 6342900419 | BEARING BRACKET |
| (PEDAL BEARING BRACKET) | ||
| 008 | N 900421008002 | THREADED INSERT |
| 008 | N 900421008002 | THREADED INSERT |
| 008 | N 900421008002 | THREADED INSERT |
| 011 | A 6732940180 | GASKET |
| BEARING BRACKET TO PEDESTAL | ||
| 011 | A 6732940180 | GASKET |
| BEARING BRACKET TO PEDESTAL | ||
| 011 | A 6732940180 | GASKET |
| BEARING BRACKET TO PEDESTAL | ||
| 011 | A 6732940180 | GASKET |
| BEARING BRACKET TO PEDESTAL | ||
| 014 | A 6732940270 | STUD |
| BEARING BRACKET TO PEDESTAL | ||
| 014 | A 6732940270 | STUD |
| BEARING BRACKET TO PEDESTAL | ||
| 014 | A 6732940270 | STUD |
| BEARING BRACKET TO PEDESTAL | ||
| 014 | A 6732940270 | STUD |
| BEARING BRACKET TO PEDESTAL | ||
| 014 | A 6732940370 | STUD |
| BEARING BRACKET TO PEDESTAL | ||
| 017 | N 000125008418 | WASHER |
| BEARING BRACKET TO PEDESTAL | ||
| 020 | N 913023008003 | NUT |
| BEARING BRACKET TO PEDESTAL | ||
| 021 | A 3842910030 | ANGLE STOP |
| CLUTCH PEDAL | ||
| 022 | A 6342910030 | STOP |
| CLUTCH PEDAL | ||
| 022 | A 6342910030 | STOP |
| CLUTCH PEDAL | ||
| 023 | A 6732910130 | STOP |
| CLUTCH PEDAL | ||
| Repalced by: A 6932917030 | ||
| 023 | A 6932917030 | STOP |
| CLUTCH PEDAL | ||
| 023 | A 6932917030 | STOP |
| CLUTCH PEDAL | ||
| 023 | A 6932917030 | STOP |
| CLUTCH PEDAL | ||
| 023 | A 6932917030 | STOP |
| CLUTCH PEDAL | ||
| 023 | A 6932917030 | STOP |
| CLUTCH PEDAL | ||
| 026 | N 000933006223 | SCREW |
| STOP TO BEARING BRACKET | ||
| 026 | N 000000001145 | HEXALOBULAR BOLT |
| STOP TO BEARING BRACKET | ||
| M6X12 | ||
| 026 | N 000000001145 | HEXALOBULAR BOLT |
| STOP TO BEARING BRACKET | ||
| M6X12 | ||
| 026 | N 000000001145 | HEXALOBULAR BOLT |
| STOP TO BEARING BRACKET | ||
| M6X12 | ||
| 026 | N 000000001145 | HEXALOBULAR BOLT |
| STOP TO BEARING BRACKET | ||
| M6X12 | ||
| 026 | N 000000001145 | HEXALOBULAR BOLT |
| STOP TO BEARING BRACKET | ||
| M6X12 | ||
| 029 | A 3862917086 | STOP |
| CLUTCH PEDAL | ||
| 029 | A 3862917086 | STOP |
| CLUTCH PEDAL | ||
| 029 | A 3862917086 | STOP |
| CLUTCH PEDAL | ||
| 029 | A 3862917086 | STOP |
| CLUTCH PEDAL | ||
| 030 | A 6732910186 | STOP |
| CLUTCH PEDAL | ||
| 030 | A 6732910186 | STOP |
| CLUTCH PEDAL | ||
| 030 | A 6732910186 | STOP |
| CLUTCH PEDAL | ||
| 030 | A 6732910186 | STOP |
| CLUTCH PEDAL | ||
| 030 | A 3842917186 | STOP |
| CLUTCH PEDAL | ||
| 030 | A 3842917186 | STOP |
| CLUTCH PEDAL | ||
| 030 | A 3849980040 | BUFFER STOP |
| CLUTCH PEDAL | ||
| 031 | A 6882917186 | STOP |
| CLUTCH PEDAL | ||
| 031 | A 6882917186 | STOP |
| CLUTCH PEDAL | ||
| 031 | A 3842917086 | STOP |
| CLUTCH PEDAL | ||
| 031 | A 3842917086 | STOP |
| CLUTCH PEDAL | ||
| 031 | A 3842917086 | STOP |
| CLUTCH PEDAL | ||
| 031 | A 6882917386 | STOP |
| CLUTCH PEDAL | ||
| 031 | A 6882917386 | STOP |
| CLUTCH PEDAL | ||
| 032 | A 3842900116 | CLUTCH PEDAL |
| CLUTCH | ||
| 032 | A 6732900816 | PEDAL |
| CLUTCH | ||
| 032 | A 6732900816 | PEDAL |
| CLUTCH | ||
| 032 | A 6732900816 | PEDAL |
| CLUTCH | ||
| 032 | A 6732900816 | PEDAL |
| CLUTCH | ||
| 032 | A 6732900816 | PEDAL |
| CLUTCH | ||
| 032 | A 6342900116 | PEDAL |
| CLUTCH | ||
| 032 | A 6342900116 | PEDAL |
| CLUTCH | ||
| 035 | A 1102910182 | PAD |
| CLUTCH PEDAL | ||
| 035 | A 1102910182 | PAD |
| CLUTCH PEDAL | ||
| 035 | A 1102910182 | PAD |
| CLUTCH PEDAL | ||
| 035 | A 1102910182 | PAD |
| CLUTCH PEDAL | ||
| 035 | A 1102910182 | PAD |
| CLUTCH PEDAL | ||
| 035 | A 1102910182 | PAD |
| CLUTCH PEDAL | ||
| 038 | A 0019816310 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 038 | A 0019816310 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 038 | A 0019816310 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 038 | A 0019816310 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 038 | A 0019816310 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 038 | A 0019816310 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 038 | A 0139814610 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 038 | A 0139814610 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 038 | A 0139814610 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 038 | A 0139814610 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 038 | A 0139814610 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 038 | A 0139814610 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 038 | A 0109818010 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 038 | A 0109818010 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 038 | A 0109818010 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 038 | A 0109818010 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 038 | A 0109818010 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 038 | A 0109818010 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 041 | A 6732910053 | SPACER TUBE |
| CLUTCH PEDAL | ||
| 041 | A 6732910053 | SPACER TUBE |
| CLUTCH PEDAL | ||
| 041 | A 6732910053 | SPACER TUBE |
| CLUTCH PEDAL | ||
| 041 | A 6732910053 | SPACER TUBE |
| CLUTCH PEDAL | ||
| 041 | A 6732910053 | SPACER TUBE |
| CLUTCH PEDAL | ||
| 041 | A 6732910053 | SPACER TUBE |
| CLUTCH PEDAL | ||
| 044 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 044 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 044 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 044 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 044 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 044 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 047 | A 6732940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 047 | A 6732940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 047 | A 6732940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 047 | A 6732940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 047 | A 6732940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 047 | A 6732940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 048 | A 6342910074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 048 | A 6342910074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 048 | A 6342910074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 048 | A 6342910074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 050 | A 6732920073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 050 | A 6732920073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 050 | A 6732920073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 050 | A 6732920073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 050 | A 6732920073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 050 | A 6732920073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 053 | N 000000001146 | HEXALOBULAR BOLT |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| M 6X16 | ||
| 053 | N 000000001146 | HEXALOBULAR BOLT |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| M 6X16 | ||
| 053 | N 000000001146 | HEXALOBULAR BOLT |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| M 6X16 | ||
| 053 | N 000000001146 | HEXALOBULAR BOLT |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| M 6X16 | ||
| 053 | N 000000001146 | HEXALOBULAR BOLT |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| M 6X16 | ||
| 053 | N 000000001146 | HEXALOBULAR BOLT |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| M 6X16 | ||
| 053 | N 000933006220 | SCREW |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 056 | N 912004006100 | LOCK WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 059 | A 6732910074 | PIN |
| CLUTCH PEDAL RESET | ||
| 059 | A 6732910074 | PIN |
| CLUTCH PEDAL RESET | ||
| 059 | A 6732910074 | PIN |
| CLUTCH PEDAL RESET | ||
| 059 | A 6732910074 | PIN |
| CLUTCH PEDAL RESET | ||
| 059 | A 6732910074 | PIN |
| CLUTCH PEDAL RESET | ||
| 059 | A 6732910074 | PIN |
| CLUTCH PEDAL RESET | ||
| 062 | A 6732910191 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 062 | A 6732910191 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 062 | A 6732910191 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 062 | A 6732910191 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 062 | A 6732910191 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 062 | A 6732910191 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 065 | A 3829937001 | SPRING |
| CLUTCH PEDAL RESET | ||
| 065 | A 3829937001 | SPRING |
| CLUTCH PEDAL RESET | ||
| 065 | A 3829937001 | SPRING |
| CLUTCH PEDAL RESET | ||
| 065 | A 3829937001 | SPRING |
| CLUTCH PEDAL RESET | ||
| 065 | A 3829937001 | SPRING |
| CLUTCH PEDAL RESET | ||
| 065 | A 3829937001 | SPRING |
| CLUTCH PEDAL RESET | ||
| 068 | A 6732910291 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 068 | A 6732910291 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 068 | A 6732910291 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 068 | A 6732910291 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 068 | A 6732910291 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 068 | A 6732910291 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 068 | A 1112910491 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 068 | A 1112910491 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 068 | A 1112910491 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 068 | A 1112910491 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 068 | A 1112910491 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 068 | A 1112910491 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 071 | A 6732900339 | ROD |
| CLUTCH PEDAL RESET | ||
| 071 | A 6732900339 | ROD |
| CLUTCH PEDAL RESET | ||
| 071 | A 6732900339 | ROD |
| CLUTCH PEDAL RESET | ||
| 071 | A 6732900339 | ROD |
| CLUTCH PEDAL RESET | ||
| 071 | A 6732900339 | ROD |
| CLUTCH PEDAL RESET | ||
| 071 | A 6732900339 | ROD |
| CLUTCH PEDAL RESET | ||
| 074 | N 000439010203 | NUT |
| CLUTCH PEDAL RESET | ||
| 074 | N 000439010203 | NUT |
| CLUTCH PEDAL RESET | ||
| 074 | N 000439010203 | NUT |
| CLUTCH PEDAL RESET | ||
| 074 | N 000439010203 | NUT |
| CLUTCH PEDAL RESET | ||
| 074 | N 000439010203 | NUT |
| CLUTCH PEDAL RESET | ||
| 074 | N 000439010203 | NUT |
| CLUTCH PEDAL RESET | ||
| 077 | A 3822907093 | SPRING |
| PARTS KIT,OVER-LENTRE HELPER SPRING | ||
| 080 | A 3842917186 | STOP |
| CLUTCH PEDAL RESET | ||
| 080 | A 3842917186 | STOP |
| CLUTCH PEDAL RESET | ||
| 080 | A 6732910186 | STOP |
| CLUTCH PEDAL RESET | ||
| 083 | N 006799007001 | CIRCLIP |
| CLUTCH PEDAL RESET | ||
| 083 | N 006799007001 | CIRCLIP |
| CLUTCH PEDAL RESET | ||
| 083 | N 006799007001 | CIRCLIP |
| CLUTCH PEDAL RESET | ||
| 083 | N 006799007001 | CIRCLIP |
| CLUTCH PEDAL RESET | ||
| 083 | N 006799007001 | CIRCLIP |
| CLUTCH PEDAL RESET | ||
| 083 | N 006799007001 | CIRCLIP |
| CLUTCH PEDAL RESET | ||
| 086 | N 000125010517 | WASHER |
| CLUTCH PEDAL RESET | ||
| 086 | N 000125010517 | WASHER |
| CLUTCH PEDAL RESET | ||
| 086 | N 000125010517 | WASHER |
| CLUTCH PEDAL RESET | ||
| 086 | N 000125010517 | WASHER |
| CLUTCH PEDAL RESET | ||
| 086 | N 000125010517 | WASHER |
| CLUTCH PEDAL RESET | ||
| 086 | N 000125010517 | WASHER |
| CLUTCH PEDAL RESET | ||
| 089 | A 6732920030 | STOP |
| Repalced by: A 3825410840 | ||
| 090 | A 3825410840 | BRACKET |
| BRAKE PEDAL | ||
| 090 | A 3825410840 | BRACKET |
| BRAKE PEDAL | ||
| 090 | A 3825410840 | BRACKET |
| BRAKE PEDAL | ||
| 090 | A 3825410840 | BRACKET |
| BRAKE PEDAL | ||
| 092 | A 1232910286 | STOP |
| DEAD CENTER SPRING | ||
| 092 | A 1232910286 | STOP |
| DEAD CENTER SPRING | ||
| 092 | A 1232910286 | STOP |
| DEAD CENTER SPRING | ||
| 092 | A 1232910286 | STOP |
| DEAD CENTER SPRING | ||
| 095 | N 000000001145 | HEXALOBULAR BOLT |
| STOP TO BEARING BRACKET | ||
| M6X12 | ||
| 095 | N 000000001145 | HEXALOBULAR BOLT |
| STOP TO BEARING BRACKET | ||
| M6X12 | ||
| 095 | N 000000001145 | HEXALOBULAR BOLT |
| STOP TO BEARING BRACKET | ||
| M6X12 | ||
| 095 | N 000000001145 | HEXALOBULAR BOLT |
| STOP TO BEARING BRACKET | ||
| M6X12 | ||
| 095 | N 000000001145 | HEXALOBULAR BOLT |
| STOP TO BEARING BRACKET | ||
| M6X12 | ||
| 098 | A 6732900118 | PEDAL |
| BRAKE | ||
| 098 | A 6342900118 | PEDAL |
| BRAKE | ||
| 098 | A 6342900118 | PEDAL |
| BRAKE | ||
| 098 | A 6342900118 | PEDAL |
| BRAKE | ||
| 101 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 101 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 101 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 101 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 101 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 101 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 104 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 104 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 104 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 104 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 107 | A 6932957050 | BUSHING |
| ROD TO CLUTCH PEDAL | ||
| 107 | A 6932957050 | BUSHING |
| ROD TO CLUTCH PEDAL | ||
| 107 | A 6932957050 | BUSHING |
| ROD TO CLUTCH PEDAL | ||
| 107 | A 6932957050 | BUSHING |
| ROD TO CLUTCH PEDAL | ||
| 107 | A 6932957050 | BUSHING |
| ROD TO CLUTCH PEDAL | ||
| 107 | A 6932957050 | BUSHING |
| ROD TO CLUTCH PEDAL | ||
| 107 | A 3842910050 | BUSH WITHOUT CHAMFER |
| ROD TO CLUTCH PEDAL | ||
| 110 | A 6732940174 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 110 | A 6732940174 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 110 | A 6732940174 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 110 | A 6732940174 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 113 | A 6732920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 113 | A 6732920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 113 | A 6732920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 113 | A 6732920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 116 | N 910105006004 | SCREW |
| BRAKE PEDAL TO BEARING BRACKET | ||
| M 6X16 | ||
| 116 | N 910105006004 | HEXAGON HEAD BOLT |
| BRAKE PEDAL TO BEARING BRACKET | ||
| M 6X16 | ||
| 116 | N 910105006004 | HEXAGON HEAD BOLT |
| BRAKE PEDAL TO BEARING BRACKET | ||
| M 6X16 | ||
| 116 | N 910105006004 | HEXAGON HEAD BOLT |
| BRAKE PEDAL TO BEARING BRACKET | ||
| M 6X16 | ||
| 119 | N 000127006203 | LOCK WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 122 | A 3852920174 | PIN |
| ROD TO BRAKE PEDAL | ||
| 122 | A 3852920174 | PIN |
| ROD TO BRAKE PEDAL | ||
| 122 | A 3852920174 | PIN |
| ROD TO BRAKE PEDAL | ||
| 122 | A 3852920174 | PIN |
| ROD TO BRAKE PEDAL | ||
| 125 | N 000433008403 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 125 | N 000433008403 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 125 | N 000433008403 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 125 | N 000433008403 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 128 | N 000094002077 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 2X20 | ||
| 128 | N 000094002059 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 128 | N 000094002059 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 128 | N 000094002059 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 131 | A 6739930110 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 131 | A 6739930110 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 131 | A 6739930110 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 131 | A 6739930110 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 131 | A 6939930110 | COMPENSATING SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 134 | A 6932917074 | PIN |
| ROD TO CLUTCH PEDAL | ||
| 134 | A 6932917074 | PIN |
| ROD TO CLUTCH PEDAL | ||
| 134 | A 6932917074 | PIN |
| ROD TO CLUTCH PEDAL | ||
| 134 | A 6932917074 | PIN |
| ROD TO CLUTCH PEDAL | ||
| 134 | A 6932917074 | PIN |
| ROD TO CLUTCH PEDAL | ||
| 134 | A 6932917074 | PIN |
| ROD TO CLUTCH PEDAL | ||
| 137 | A 6939917035 | SPACER RING |
| ROD TO CLUTCH PEDAL | ||
| 137 | A 6939917035 | SPACER RING |
| ROD TO CLUTCH PEDAL | ||
| 137 | A 6939917035 | SPACER RING |
| ROD TO CLUTCH PEDAL | ||
| 137 | A 6939917035 | SPACER RING |
| ROD TO CLUTCH PEDAL | ||
| 137 | A 6939917035 | SPACER RING |
| ROD TO CLUTCH PEDAL | ||
| 137 | A 6939917035 | SPACER RING |
| ROD TO CLUTCH PEDAL | ||
| 140 | A 6732920032 | ROD |
| BRAKE ACTUATION | ||
| 140 | A 6732920032 | ROD |
| BRAKE ACTUATION | ||
| 140 | A 6732920032 | ROD |
| BRAKE ACTUATION | ||
| 140 | A 6732920032 | ROD |
| BRAKE ACTUATION | ||
| 143 | N 071752008002 | YOKE |
| BRAKE ACTUATION | ||
| 143 | N 071752008002 | CLEVIS |
| BRAKE ACTUATION | ||
| 143 | N 071752008002 | CLEVIS |
| BRAKE ACTUATION | ||
| 143 | N 071752008002 | CLEVIS |
| BRAKE ACTUATION | ||
| 146 | N 000439008104 | NUT |
| BRAKE ACTUATION | ||
| 146 | N 000439008104 | NUT |
| BRAKE ACTUATION | ||
| 146 | N 000439008104 | NUT |
| BRAKE ACTUATION | ||
| 146 | N 000439008104 | NUT |
| BRAKE ACTUATION | ||
| 149 | A 6932917040 | BRACKET |
| CLUTCH PEDAL | ||
| 149 | A 3842917040 | BRACKET |
| 149 | A 3842917040 | BRACKET |
| 149 | A 3842917040 | BRACKET |
| 149 | A 3842917040 | BRACKET |
| 149 | A 3842917040 | BRACKET |
| 152 | A 3829937010 | SPRING |
| Repalced by: A 3829937110 | ||
| 152 | A 3829937110 | SPRING |
| PEDAL RETURN SPRING | ||
| 152 | A 3829937110 | SPRING |
| PEDAL RETURN SPRING | ||
| 152 | A 3829937110 | SPRING |
| PEDAL RETURN SPRING | ||
| 152 | A 3829937110 | SPRING |
| PEDAL RETURN SPRING | ||
| 152 | A 3829930110 | SPRING |
| PEDAL RETURN SPRING | ||
| 152 | A 3829937010 | SPRING |
| PEDAL RETURN SPRING | ||
| 152 | A 3829937010 | SPRING |
| PEDAL RETURN SPRING | ||
| 152 | A 3829937010 | SPRING |
| PEDAL RETURN SPRING | ||
| 152 | A 3829937010 | SPRING |
| PEDAL RETURN SPRING | ||
| 160 | A 6342910140 | BRACKET |
| CLUTCH PEDAL | ||
| 170 | A 3829937110 | SPRING |
| PEDAL RETURN SPRING | ||
| 180 | N 910105006004 | SCREW |
| CLUTCH PEDAL | ||
| M 6X16 | ||
| 190 | N 913023006001 | NUT |
| CLUTCH PEDAL | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
