Transporto priemonė: OH 1113; VIN numerio dalis: 345230

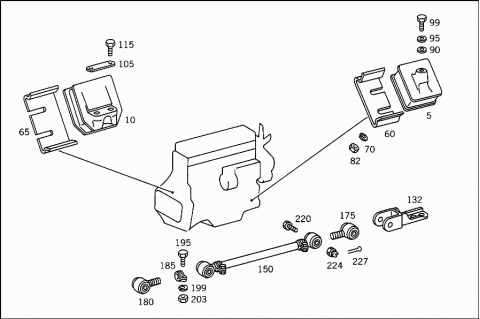

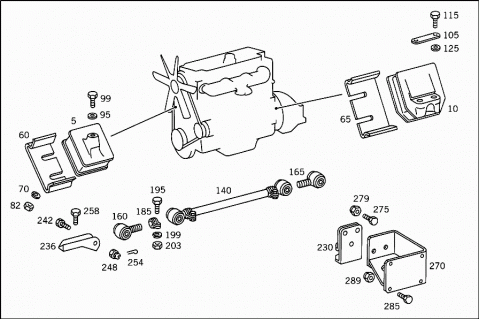

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3522400417 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 005 | A 3452400317 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 010 | A 3522400318 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 010 | A 3452400018 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 060 | A 3522420509 | ENGINE STAY |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 065 | A 3522420409 | ENGINE STAY |
| RUBBER MOUNTING TO REAR CROSS MEMBER | ||
| 070 | N 000127012201 | LOCK WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 082 | N 000934012004 | NUT |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 090 | A 3529901040 | WASHER |
| Repalced by: A 3459907340 | ||
| 090 | A 3459907340 | WASHER |
| 095 | A 3459907440 | WASHER |
| Repalced by: A 3529902440 | ||
| 095 | A 3529902440 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 099 | N 000960016023 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 099 | N 000960016030 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 105 | A 3529940032 | LOCK |
| ON CLUTCH END | ||
| 115 | N 000961014012 | SCREW |
| ON CLUTCH END | ||
| 115 | N 000961014101 | SCREW |
| ON CLUTCH END | ||
| 115 | N 000961014101 | SCREW |
| ENGINE TO REAR RUBBER MOUNTING | ||
| 125 | A 3609901840 | WASHER |
| ENGINE TO REAR RUBBER MOUNTING | ||
| 132 | A 3452407035 | BEARING BRACKET |
| Repalced by: A 3452407135 | ||
| 132 | A 3452407135 | BEARING BRACKET |
| ENGINE TO REAR RUBBER MOUNTING | ||
| 140 | A 3452407225 | ROD |
| ENGINE ALONGSIDE FIXING | ||
| 150 | A 3452407525 | ROD |
| ENGINE ALONGSIDE FIXING | ||
| 160 | A 3459967140 | ROD END |
| 165 | A 3459967040 | ROD END |
| 175 | A 3452407121 | ROD END |
| RIGHT | ||
| TO 345 240 75 25 | ||
| 180 | A 3452407021 | ROD END |
| LEFT | ||
| TO 345 240 75 25 | ||
| 185 | A 3459957044 | CLAMP |
| 185 | A 3443387245 | CLAMP |
| TO 345 240 75 25 | ||
| 195 | N 000960008002 | SCREW |
| 195 | N 000960010030 | SCREW |
| TO 345 240 75 25 | ||
| 199 | N 000127008203 | LOCK WASHER |
| 199 | N 000127010202 | LOCK WASHER |
| TO 345 240 75 25 | ||
| 203 | N 000934008020 | NUT |
| 203 | N 000934010000 | NUT |
| TO 345 240 75 25 | ||
| 220 | A 3022420070 | STUD |
| ROD END TO BRACKET AT SUBSTRUCTURE | ||
| 224 | N 000937022000 | NUT |
| 227 | N 000094005016 | COTTER PIN |
| 230 | A 3452400135 | BEARING BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 236 | A 3452417135 | BEARING BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 242 | A 3522420071 | SCREW |
| PULL ROD TO BEARING BRACKET | ||
| 248 | N 000979016000 | NUT |
| PULL ROD TO BEARING BRACKET | ||
| 254 | N 000094004056 | COTTER PIN |
| PULL ROD TO BEARING BRACKET | ||
| 270 | A 3452407140 | BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 275 | N 000933012122 | SCREW |
| BEARING BRACKET TO BRACKET | ||
| 279 | N 913004012004 | NUT |
| BEARING BRACKET TO BRACKET | ||
| 285 | N 000933010129 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 289 | N 913004010008 | NUT |
| BRACKET TO SIDE MEMBER | ||
