Transporto priemonė: SF 2575; VIN numerio dalis: FA1083

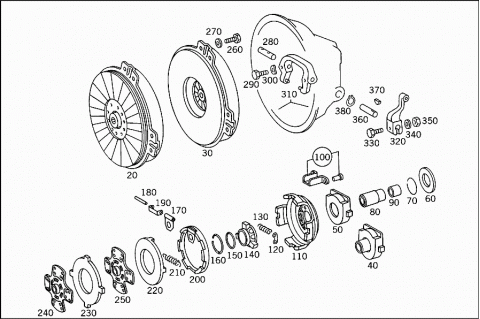

Grupė: 25 CLUTCH

#	Kodas	Pavadinimas
	Q 498003R91	PART NAME MISSING
	Repalced by: Q SP B1071912
020	Q SP B1071912	PART NAME MISSING
		CLUTCH
		15 1/2" X 2" TO MOTOR NTC 350
	Q 498003R92	PART NAME MISSING
	Repalced by: Q SP B1071917
020	Q SP B1071917	PART NAME MISSING
		CLUTCH
		15 1/2" X 2" TO MOTOR NTC 400
	Q 498383R91	PART NAME MISSING
	Repalced by: Q SP 4502671X
030	Q SP 4502671X	PART NAME MISSING
		CLUTCH PRESSURE PLATE
	Q 472164C1	PART NAME MISSING
	Repalced by: Q SP B127865X
040	Q SP B127865X	PART NAME MISSING
		RELEASE BEARING
		2"
	Q 508657R1	PART NAME MISSING
	Repalced by: Q SPB128007X
050	Q SP B128007X	PART NAME MISSING
		BALL BEARING
	Q 498033R91	PART NAME MISSING
	Repalced by: Q SP 127760X
060	Q SP 127760X	PART NAME MISSING
		BEARING COVER
	Q 972394R1	PART NAME MISSING
	Repalced by: Q SP 236C13
070	Q SP 236C13	PART NAME MISSING
		LOCK RING
	Q 469236C91	PART NAME MISSING
	Repalced by: Q SP 127393
080	Q SP 127393	PART NAME MISSING
		MOUNTING
		2"
	Q 411631C1	PART NAME MISSING
	Repalced by: Q SP 257C30
090	Q SP 257C30	PART NAME MISSING
		BUSHING
		2"
	Q 472163C1	PART NAME MISSING
	Repalced by: Q SP B128023X
100	Q SP B128023X	PART NAME MISSING
		PARTS KIT
	Y YYYYYYYYYYYY	PART NAME MISSING
		BEARING BRACKET
	Q 197C135	PART NAME MISSING
	Repalced by: Q SP 197C135
110	Q SP 197C135	PART NAME MISSING
		INTERMEDIATE PIECE
		15.5"
	Q 3247548R1	PART NAME MISSING
	Repalced by: Q SP 178C6
120	Q SP 178C6	PART NAME MISSING
		SLEEVE
	Q 3243182R1	PART NAME MISSING
	Repalced by: Q SP 277C149
130	Q SP 277C149	PART NAME MISSING
		SPRING
		TO QSP B1071912
	Q 399781C1	PART NAME MISSING
	Repalced by: Q SP 277C96
130	Q SP 277C96	PART NAME MISSING
		SPRING
		TO QSP B1071917
	Q 472166C1	PART NAME MISSING
	Repalced by: Q SP 127929
140	Q SP 127929	PART NAME MISSING
		FLANGE
	Q 411632C1	PART NAME MISSING
	Repalced by: Q SP 236C18
150	Q SP 236C18	PART NAME MISSING
		LOCK RING
	Q 400495C1	PART NAME MISSING
	Repalced by: Q SP 236C20
160	Q SP 236C20	PART NAME MISSING
		LOCK RING
	Q 443331C1	PART NAME MISSING
	Repalced by: Q SP B128001X
170	Q SP B128001X	PART NAME MISSING
		LEAF SPRING
	Q 444230C1	PART NAME MISSING
	Repalced by: Q SP 123C27
180	Q SP 123C27	PART NAME MISSING
		PIN
	Q 444231C1	PART NAME MISSING
	Repalced by: Q SP 107C3
190	Q SP 107C3	PART NAME MISSING
		LOCK PLATE
	Q 580975C1	PART NAME MISSING
	Repalced by: Q SP 195C69
200	Q SP 195C69	PART NAME MISSING
		FLANGE
	Q 444809C1	PART NAME MISSING
	Repalced by: Q SP 230C22
210	Q SP 230C22	PART NAME MISSING
		SPRING
	Q 444811C1	PART NAME MISSING
	Repalced by: Q SP 170C201
220	Q SP 170C201	PART NAME MISSING
		PRESSURE PLATE
		15.5"
	Q 498384R91	PART NAME MISSING
	Repalced by: Q SP 113C124
230	Q SP 113C124	PART NAME MISSING
		PLATE
		15.5"
	Q 498381R91	PART NAME MISSING
	Repalced by: Q SP B1278171X
240	Q SP B1278171X	PART NAME MISSING
		CLUTCH DISC
		15.5 X 2.0 DEL. TO QSP B1071912
	Y YYYYYYYYYYYY	PART NAME MISSING
		FRONT
	Q 574074C92	PART NAME MISSING
	Repalced by: Q SP 128215
240	Q SP 128215	PART NAME MISSING
		CLUTCH DISC
		15.5 X 2.0 TO QSP B1071917
	Y YYYYYYYYYYYY	PART NAME MISSING
		FRONT
	Q 498382R91	PART NAME MISSING
	Repalced by: Q SP B127818X
240	Q SP B127818X	PART NAME MISSING
		CLUTCH DISC
		15.5 X 2.0 TO QSP B1071912
	Y YYYYYYYYYYYY	PART NAME MISSING
		REAR
	Q 574075C92	PART NAME MISSING
	Repalced by: Q SP 128216
250	Q SP 128216	PART NAME MISSING
		CLUTCH DISC
		15.5 X 2.0 TO QSP B1071917
	Y YYYYYYYYYYYY	PART NAME MISSING
		REAR
260	Q 24853R1	PART NAME MISSING
		SCREW
		7/16-14X2 1/2
270	Q 21904R1	PART NAME MISSING
		WASHER
		7/16 X 0.875
	Q 697927R1	PART NAME MISSING
	Repalced by: Q SP 106C1185
280	Q SP 106C1185	PART NAME MISSING
		CLUTCH RELEASE SHAFT
290	Q 100114R1	PART NAME MISSING
		SCREW
		7/16-14X1 1/4
300	Q 120383	PART NAME MISSING
		SPRING WASHER
		7/16-.446
	Q 697924R4	PART NAME MISSING
	Repalced by: Q 697924R5
	Q 697924R5	PART NAME MISSING
	Repalced by: Q SP 105C1371X
310	Q SP 105C1371X	PART NAME MISSING
		RELEASE LEVER
	Q 479269C1	PART NAME MISSING
	Repalced by: Q SP 129C251XM
320	Q SP 129C251XM	PART NAME MISSING
		LEVER
330	Q 24621R1	PART NAME MISSING
	Repalced by: A 6859900801
330	A 6859900801	SCREW
		3/8-16X2 1/4
340	Q 25709R1	PART NAME MISSING
	Repalced by: A 6859900140
340	A 6859900140	WASHER
		3/8-.812-.089
350	Q 9413979	PART NAME MISSING
	Repalced by: A 6859900351
350	A 6859900351	NUT
		3/8-16
360	Q 476337C2	PART NAME MISSING
		CLUTCH RELEASE SHAFT
370	Q 124553	PART NAME MISSING
		WOODRUFF KEY
		1/4X1
380	Q 32796VA	PART NAME MISSING
		LOCK RING
