Transporto priemonė: SF 2575; VIN numerio dalis: FA1083

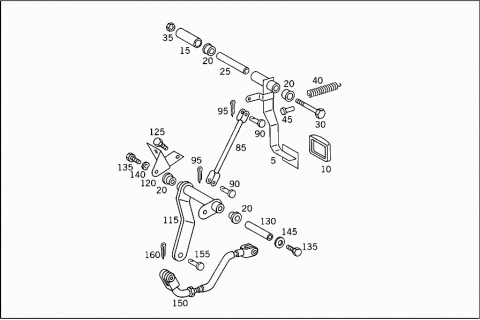

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | Q 476297C3 | PART NAME MISSING |
| CLUTCH PEDAL | ||
| 010 | Q 166880R1 | PART NAME MISSING |
| PAD | ||
| 015 | Q 480987C1 | PART NAME MISSING |
| INTERMEDIATE PIECE | ||
| 020 | Q 477715C1 | PART NAME MISSING |
| BUSHING | ||
| 025 | Q 476408C1 | PART NAME MISSING |
| SPACER TUBE | ||
| 030 | Q 025691R1 | PART NAME MISSING |
| SCREW | ||
| 1/2-13X9 | ||
| 035 | Q 9412230 | PART NAME MISSING |
| Repalced by: A 6859901151 | ||
| 035 | A 6859901151 | NUT |
| 1/2-13 | ||
| 040 | Q 481739C2 | PART NAME MISSING |
| SPRING | ||
| 045 | Q 489057C1 | PART NAME MISSING |
| RUBBER BUFFER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CLUTCH PEDAL | ||
| 085 | Q 495870C2 | PART NAME MISSING |
| ROD | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CLUTCH LINKAGE | ||
| 090 | Q 138084 | PART NAME MISSING |
| PIN | ||
| 3/8X1 1/16 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| ROD TO PEDAL | ||
| 095 | Q 103375 | PART NAME MISSING |
| COTTER PIN | ||
| 3/32X1 1/4 | ||
| 115 | Q 495867C2 | PART NAME MISSING |
| INTERMEDIATE LEVER | ||
| 120 | Q 1647113C1 | PART NAME MISSING |
| BRACKET | ||
| 125 | Q 323888C1 | PART NAME MISSING |
| SCREW | ||
| 5/16 - 18X3/4 | ||
| 130 | Q 479264C1 | PART NAME MISSING |
| BUSHING | ||
| 135 | Q 24861R1 | PART NAME MISSING |
| SCREW | ||
| 1/2 - 13X1 | ||
| 140 | Q 120384 | PART NAME MISSING |
| SPRING WASHER | ||
| 145 | Q 25710R1 | PART NAME MISSING |
| WASHER | ||
| 150 | Q 479284C95 | PART NAME MISSING |
| ROD | ||
| 150 | Q 499961R91 | PART NAME MISSING |
| ROD | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CLUTCH OPERATION | ||
| 155 | Q 138086 | PART NAME MISSING |
| PIN | ||
| 1/2X1.36 | ||
| 160 | Q 103388 | PART NAME MISSING |
| COTTER PIN | ||
| 1/8X3/4 | ||
| 165 | Q 477139C91 | PART NAME MISSING |

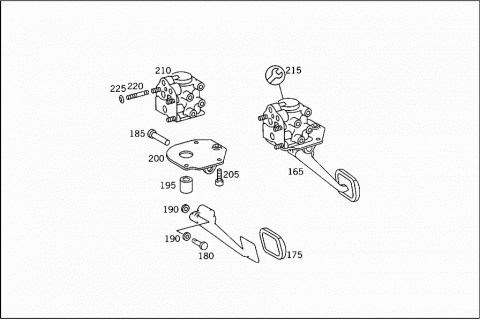

| BRAKE BOOSTER ASSEMBLY | ||
| 165 | Q 574787C91 | PART NAME MISSING |
| BRAKE BOOSTER ASSEMBLY | ||
| 175 | Q 382495C1 | PART NAME MISSING |
| PAD | ||
| Q 103496 | PART NAME MISSING | |
| Repalced by: Q 138084 | ||
| 180 | Q 138084 | PART NAME MISSING |
| PIN | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRAKE PEDAL TO BEARING | ||
| 185 | Q 552697R1 | PART NAME MISSING |
| PIN | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| 190 | Q 464902C1 | PART NAME MISSING |
| ROLLER | ||
| 195 | Q 487433C1 | PART NAME MISSING |
| PISTON | ||
| 200 | Q 464906C1 | PART NAME MISSING |
| PLATE | ||
| 205 | Q 464901C1 | PART NAME MISSING |
| SCREW | ||
| 210 | Q 479024C91 | PART NAME MISSING |
| VALVE | ||
| 215 | Q 464903C92 | PART NAME MISSING |
| PARTS KIT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SMALL SCOPE | ||
| Q 501776C91 | PART NAME MISSING | |
| REPAIR KIT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LARGE SCOPE | ||
| 220 | Q 24840R1 | PART NAME MISSING |
| SCREW | ||
| 3/8X16X1 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRAKE VALVE | ||
| 225 | Q 120382 | PART NAME MISSING |
| Repalced by: A 6859900347 | ||
| 225 | A 6859900347 | LOCK WASHER |
| BRAKE VALVE | ||
