Transporto priemonė: SF 2575; VIN numerio dalis: FA1083
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | Q 533563C91 | PART NAME MISSING |
| FRONT SPRING | ||
| 18 000 LB | ||
| 010 | Q 471263C91 | PART NAME MISSING |
| FRONT SPRING | ||
| 12000 LB | ||
| Q 468702C1 | PART NAME MISSING | |
| Repalced by: Q 1648108C1 | ||
| 015 | Q 1648108C1 | PART NAME MISSING |
| SHACKLE PIN | ||
| Q 468704C1 | PART NAME MISSING | |
| Repalced by: Q 1648110C1 | ||
| 015 | Q 1648110C1 | PART NAME MISSING |
| SHACKLE PIN | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SHACKLE PIN,REAR | ||
| Q 468701C2 | PART NAME MISSING | |
| Repalced by: Q 1648107C1 | ||
| 020 | Q 1648107C1 | PART NAME MISSING |
| SHACKLE PIN | ||
| Q 468703C2 | PART NAME MISSING | |
| Repalced by: Q 1648109C1 | ||
| 020 | Q 1648109C1 | PART NAME MISSING |
| SHACKLE PIN | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SHACKLE PIN,FRONT | ||
| 030 | Q 472480C1 | PART NAME MISSING |
| BUSHING | ||
| 040 | Q 109461 | PART NAME MISSING |
| GREASE NIPPLE | ||
| 1/8-27 PTFM AC | ||
| 055 | Q 444736C1 | PART NAME MISSING |
| U-BOLT | ||
| 055 | Q 453884C1 | PART NAME MISSING |
| U-BOLT | ||
| 3/4-16 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FRONT SPRINGS TO FRONT AXLE | ||
| 060 | Q 25847R1 | PART NAME MISSING |
| WASHER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SPRING DOME | ||
| 065 | Q 144426H | PART NAME MISSING |
| NUT | ||
| 1-14 | ||
| 065 | Q 416743C1 | PART NAME MISSING |
| NUT | ||
| 3/4-16 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SPRING DOME | ||
| 070 | Q 472418C1 | PART NAME MISSING |
| PLATE | ||
| 070 | Q 469897C1 | PART NAME MISSING |
| PLATE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FRONT SPRINGS TO FRONT AXLE | ||
| 075 | Q 692453R1 | PART NAME MISSING |
| SHIM | ||
| 1 GR. | ||
| 075 | Q 692455R1 | PART NAME MISSING |
| SHIM | ||
| 2 GR. | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SHIM TO LEAF SPRING | ||
| 075 | Q 471170C1 | PART NAME MISSING |
| SHIM | ||
| 1/2 GR. | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SHIM TO LEAF SPRING | ||
| 080 | Q 469885C1 | PART NAME MISSING |
| SHIM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SHIM TO BRACKET | ||
| 081 | Q 468699C1 | PART NAME MISSING |
| SHACKLE | ||
| 081 | Q 468700C1 | PART NAME MISSING |
| SHACKLE | ||
| 082 | Q 441246C1 | PART NAME MISSING |
| SCREW | ||
| 083 | Q 9413979 | PART NAME MISSING |
| Repalced by: A 6859900351 | ||
| 083 | A 6859900351 | NUT |
| TCA HEX SEG 3/8-16 F G 8 | ||
| 084 | Q 25709R1 | PART NAME MISSING |
| Repalced by: A 6859900140 | ||
| 084 | A 6859900140 | WASHER |
| FRONT SPRING TO FRAME | ||
| 3/8 | ||
| Q 131019C1 | PART NAME MISSING | |
| Repalced by: Q 131019 | ||
| Q 131019 | PART NAME MISSING | |
| WASHER | ||
| 1-2.00-.108Z | ||

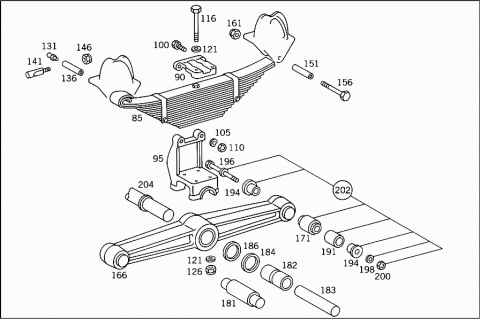

| 085 | Q 471351C91 | PART NAME MISSING |
| REAR SPRING | ||
| 44000 LBS | ||
| 085 | Q 530993C91 | PART NAME MISSING |
| REAR SPRING | ||
| 38000 LBS | ||
| 085 | Q 530993C91 | PART NAME MISSING |
| REAR SPRING | ||
| 38000 LBS | ||
| 085 | Q 501755R91 | PART NAME MISSING |
| REAR SPRING | ||
| 44000 LBS | ||
| 090 | Q 56677R2 | PART NAME MISSING |
| PLATE | ||
| 095 | Q 124903R11 | PART NAME MISSING |
| SPRING SADDLE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BOTTOM | ||
| 100 | Q 12436R1 | PART NAME MISSING |
| SCREW | ||
| 3/4-10X3 1/4 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| PLATE TO SPRING CONSOLE | ||
| 105 | Q 131046 | PART NAME MISSING |
| SPRING WASHER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| PLATE TO SPRING CONSOLE | ||
| 110 | Q 25529R1 | PART NAME MISSING |
| NUT | ||
| 3/4-10 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| PLATE TO SPRING CONSOLE | ||
| 116 | Q 27629R1 | PART NAME MISSING |
| SCREW | ||
| 1-14-2AX10 | ||
| 116 | Q 178441R2 | PART NAME MISSING |
| SCREW | ||
| 1-14-2AX9 | ||
| 116 | Q 178441R2 | PART NAME MISSING |
| SCREW | ||
| 1-14-2AX9 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| PLATE TO SPRING CONSOLE | ||
| 116 | Q 501756R1 | PART NAME MISSING |
| SCREW | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| PLATE TO SPRING CONSOLE | ||
| 121 | Q 304645C1 | PART NAME MISSING |
| WASHER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| PLATE TO SPRING CONSOLE | ||
| 126 | Q 359798C1 | PART NAME MISSING |
| NUT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| PLATE TO SPRING CONSOLE | ||
| 131 | Q 109460 | PART NAME MISSING |
| GREASE NIPPLE | ||
| 1/8-27 | ||
| 136 | Q 422232C2 | PART NAME MISSING |
| SHACKLE PIN | ||
| 1.374X7.12 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SPRING BRACKET TO REAR AXLE | ||
| 141 | Q 69104HA | PART NAME MISSING |
| PIN | ||
| 146 | Q 9412230 | PART NAME MISSING |
| Repalced by: A 6859901151 | ||
| 146 | A 6859901151 | NUT |
| NUT | ||
| 1/2-13 | ||
| 151 | Q 463580R1 | PART NAME MISSING |
| SHACKLE PIN | ||
| 1/2-62X4.41 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SPRING BRACKET TO REAR AXLE | ||
| 156 | Q 25296R1 | PART NAME MISSING |
| SCREW | ||
| 1/2-13X6 1/2 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SHACKLE PIN TO SPRING BRACKET | ||
| 161 | Q 9412230 | PART NAME MISSING |
| Repalced by: A 6859901151 | ||
| 161 | A 6859901151 | NUT |
| SHACKLE PIN TO SPRING BRACKET | ||
| 1/2-13 | ||
| 166 | Q 1305277R91 | PART NAME MISSING |
| BRAKE ANCHOR | ||
| 38000 LBS | ||
| 166 | Q 1305277R91 | PART NAME MISSING |
| BRAKE ANCHOR | ||
| 38000 LBS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| WITH BUSHINGS | ||
| 166 | Q 426261C91 | PART NAME MISSING |
| BRAKE ANCHOR | ||
| 44000 LBS | ||
| 166 | Q 426261C91 | PART NAME MISSING |
| BRAKE ANCHOR | ||
| 44000 LBS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| WITH BUSHINGS | ||
| 166 | Q 426265C1 | PART NAME MISSING |
| BRAKE ANCHOR | ||
| 38000 LBS | ||
| 166 | Q 426265C1 | PART NAME MISSING |
| BRAKE ANCHOR | ||
| 38000 LBS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LESS BUSHING | ||
| 166 | Q 426260C1 | PART NAME MISSING |
| BRAKE ANCHOR | ||
| 44000 LBS | ||
| 166 | Q 426260C1 | PART NAME MISSING |
| BRAKE ANCHOR | ||
| 44000 LBS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LESS BUSHING | ||
| 171 | Q 441302C92 | PART NAME MISSING |
| BUSHING | ||
| 171 | Q 124892R91 | PART NAME MISSING |
| BUSHING | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| OUTSIDE | ||
| 181 | Q 682363R91 | PART NAME MISSING |
| BUSHING | ||
| 181 | Q 682363R91 | PART NAME MISSING |
| BUSHING | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CENTRAL | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| PARTS KIT | ||
| 182 | Q 379077C1 | PART NAME MISSING |
| BUSHING | ||
| 182 | Q 379077C1 | PART NAME MISSING |
| BUSHING | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CENTRAL | ||
| 183 | Q 892611R1 | PART NAME MISSING |
| SLEEVE | ||
| 183 | Q 892611R1 | PART NAME MISSING |
| SLEEVE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| ROD TO SPRING SUPPORT | ||
| 184 | Q 380336C91 | PART NAME MISSING |
| SEAL RING | ||
| 184 | Q 380336C91 | PART NAME MISSING |
| SEAL RING | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CENTRAL | ||
| 186 | Q 423521C1 | PART NAME MISSING |
| SHIM | ||
| 191 | Q 526001C1 | PART NAME MISSING |
| INTERMEDIATE PIECE | ||
| 191 | Q 526001C1 | PART NAME MISSING |
| INTERMEDIATE PIECE | ||
| 191 | Q 526001C1 | PART NAME MISSING |
| INTERMEDIATE PIECE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| AXLE HOUSING | ||
| 194 | Q 526000C1 | PART NAME MISSING |
| BUSHING | ||
| Q 496455C1 | PART NAME MISSING | |
| Repalced by: Q 496454C1 | ||
| 196 | Q 496454C1 | PART NAME MISSING |
| SCREW | ||
| 3/4-16X7 3/4 | ||
| 198 | Q 757816C1 | PART NAME MISSING |
| WASHER | ||
| 200 | Q 496452C1 | PART NAME MISSING |
| NUT | ||
| 3/4-16 | ||
| 202 | Q 496530C91 | PART NAME MISSING |
| PARTS KIT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SUSPENSION | ||
| 204 | Q 124896R2 | PART NAME MISSING |
| ROD | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| ROD TO SPRING SUPPORT | ||

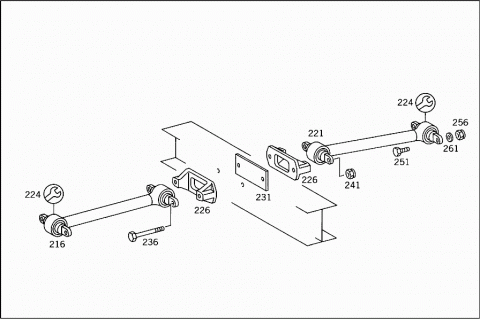

| 216 | Q 498273R91 | PART NAME MISSING |
| STRUT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FRONT | ||
| 221 | Q 498274R91 | PART NAME MISSING |
| STRUT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| REAR | ||
| 224 | Q 3213595R1 | PART NAME MISSING |
| REPAIR KIT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| STRUT | ||
| 226 | Q 498275R1 | PART NAME MISSING |
| BRACKET | ||
| 231 | Q 498702R1 | PART NAME MISSING |
| PLATE | ||
| 236 | Q 28173R1 | PART NAME MISSING |
| SCREW | ||
| 5/8-18X8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| STRUT TO CROSS MEMBER | ||
| 241 | Q 414089C1 | PART NAME MISSING |
| NUT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| STRUT TO CROSS MEMBER | ||
| 251 | Q 890858R1 | PART NAME MISSING |
| SCREW | ||
| 5/8-18X3 1/2 | ||
| 256 | Q 19830R1 | PART NAME MISSING |
| NUT | ||
| 5/8-18 | ||
| 261 | Q 446248 | PART NAME MISSING |
| WASHER | ||
| 5/8-18 | ||
| Q 498376R91 | PART NAME MISSING | |
| (PARTS KIT),REAR SPRINGS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SPRINGS AND SUSPENSION | ||
| A LA DERECHA, 44000 LBS | ||
| Q 498035R91 | PART NAME MISSING | |
| (PARTS KIT),REAR SPRINGS | ||
| Q 498035R91 | PART NAME MISSING | |
| (PARTS KIT),REAR SPRINGS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SPRINGS AND SUSPENSION | ||
| A LA DERECHA, 38000 LBS | ||
| Q 501462R91 | PART NAME MISSING | |
| (PARTS KIT),REAR SPRINGS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SPRINGS AND SUSPENSION | ||
| A LA DERECHA, 44000 LBS | ||
| Q 498377R91 | PART NAME MISSING | |
| (PARTS KIT),REAR SPRINGS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SPRINGS AND SUSPENSION | ||
| A LA IZQUIERDA, 44000 LBS | ||
| Q 498036R91 | PART NAME MISSING | |
| (PARTS KIT),REAR SPRINGS | ||
| Q 498036R91 | PART NAME MISSING | |
| (PARTS KIT),REAR SPRINGS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SPRINGS AND SUSPENSION | ||
| A LA IZQUIERDA, 38000 LBS | ||
| Q 501463R91 | PART NAME MISSING | |
| (PARTS KIT),REAR SPRINGS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SPRINGS AND SUSPENSION | ||
| A LA IZQUIERDA, 44000 LBS | ||
