Transporto priemonė: SF 2575; VIN numerio dalis: FA1085
Grupė: 52 CHASSIS SHEET METAL - 001 SHEET METAL,AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|

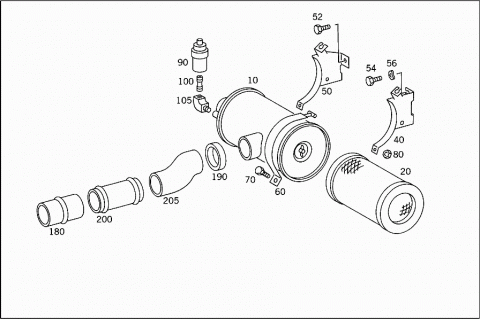

| 010 | Q 470186C91 | PART NAME MISSING |
| AIR CLEANER | ||
| 010 | Q 501031R91 | PART NAME MISSING |
| AIR CLEANER | ||
| Q 476743C1 | PART NAME MISSING | |
| Repalced by: Q DN P129544 | ||
| 020 | Q DN P129544 | PART NAME MISSING |
| FILTER ELEMENT | ||
| 020 | Q 501033R1 | PART NAME MISSING |
| FILTER ELEMENT | ||
| 040 | Q 482689C93 | PART NAME MISSING |
| BRAKE ANCHOR | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LEFT | ||
| 050 | Q 482688C92 | PART NAME MISSING |
| BRAKE ANCHOR | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| RIGHT | ||
| 052 | Q 433351C1 | PART NAME MISSING |
| SCREW | ||
| 3/8-16 X1 1/4 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO FIRE WALL | ||
| 054 | Q 25228R1 | PART NAME MISSING |
| Repalced by: A 6859900401 | ||
| 054 | A 6859900401 | SCREW |
| BRACKET TO FIRE WALL | ||
| 5/16-18X3/4 | ||
| 056 | Q 120214 | PART NAME MISSING |
| SPRING WASHER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO FIRE WALL | ||
| 060 | Q 484004C3 | PART NAME MISSING |
| STRAP | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| AIR CLEANER TO BRACKET | ||
| 070 | Q 433971C1 | PART NAME MISSING |
| SCREW | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| STRAP TO SUPPORT | ||
| 080 | Q 9413979 | PART NAME MISSING |
| Repalced by: A 6859900351 | ||
| 080 | A 6859900351 | NUT |
| STRAP TO SUPPORT | ||
| 090 | Q 539245C1 | PART NAME MISSING |
| MAINTENANCE INDICATOR | ||
| 100 | Q 443998 | PART NAME MISSING |
| CONNECTOR | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| MAINTENANCE INDICATOR | ||
| 105 | Q 9409931 | PART NAME MISSING |
| ELBOW FITTING | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| MAINTENANCE INDICATOR | ||

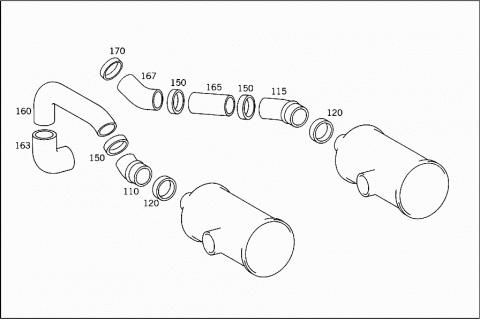

| 110 | Q 492493C1 | PART NAME MISSING |
| HOSE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| HOSE TO AIR CLEANER | ||
| 115 | Q 485886C1 | PART NAME MISSING |
| HOSE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| HOSE TO AIR CLEANER | ||
| 120 | Q 689476C1 | PART NAME MISSING |
| CLAMP | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| HOSE TO AIR CLEANER | ||
| 120 | Q 24768R1 | PART NAME MISSING |
| CLAMP | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| HOSE TO AIR CLEANER | ||
| 150 | Q 690065C1 | PART NAME MISSING |
| CLAMP | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| PIPE ELBOW TO ACCORDION TUBE | ||
| 150 | Q 278053R91 | PART NAME MISSING |
| CLAMP | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| PIPE ELBOW TO ACCORDION TUBE | ||
| 160 | Q 545998C1 | PART NAME MISSING |
| HOSE | ||
| 163 | Q 287947C1 | PART NAME MISSING |
| HOSE | ||
| 165 | Q 481504R1 | PART NAME MISSING |
| HOSE | ||
| 167 | Q 485887C1 | PART NAME MISSING |
| HOSE | ||
| 170 | Q 327094C91 | PART NAME MISSING |
| CLAMP | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| HOSE TO TURBOCHARGER CONNECTION | ||
| 180 | Q 751703C1 | PART NAME MISSING |
| HOSE | ||
| 190 | Q 1132717C1 | PART NAME MISSING |
| CLAMP | ||
| 200 | Q 484285C1 | PART NAME MISSING |
| HOSE | ||
| 205 | Q 483886C3 | PART NAME MISSING |
| HOSE | ||

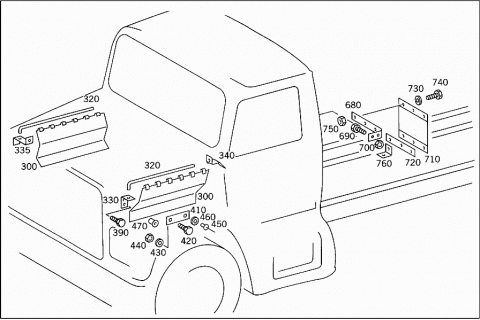

| 300 | Q 486656C5 | PART NAME MISSING |
| MUD APRON | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LEFT AND RIGHT | ||
| 300 | Q 1666912C91 | PART NAME MISSING |
| MUD APRON | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LEFT | ||
| 300 | Q 1666913C91 | PART NAME MISSING |
| MUD APRON | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| RIGHT | ||
| 320 | Q 486540C2 | PART NAME MISSING |
| ROD | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LEFT | ||
| 320 | Q 486541C1 | PART NAME MISSING |
| ROD | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| RIGHT | ||
| 330 | Q 486538C1 | PART NAME MISSING |
| BRACKET | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LEFT | ||
| 335 | Q 486539C1 | PART NAME MISSING |
| BRACKET | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| RIGHT | ||
| 340 | Q 487161C2 | PART NAME MISSING |
| BRACKET | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO FIRE WALL | ||
| Q 489862C1 | PART NAME MISSING | |
| SPRING | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| REAR | ||
| Q 282244C3 | PART NAME MISSING | |
| SPRING | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FRONT | ||
| Q 25222R1 | PART NAME MISSING | |
| Repalced by: A 6859900501 | ||
| A 6859900501 | SCREW | |
| 1/4-20 X 3/4 | ||
| Q 26110R1 | PART NAME MISSING | |
| Repalced by: A 6859900551 | ||
| A 6859900551 | NUT | |
| 1/4-20 | ||
| 390 | Q 403810C91 | PART NAME MISSING |
| SCREW | ||
| 5/16-18X1 | ||
| Q 120214 | PART NAME MISSING | |
| SPRING WASHER | ||
| 410 | Q 492893C2 | PART NAME MISSING |
| REINFORCEMENT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| MUD APRON | ||
| 420 | Q 25222R1 | PART NAME MISSING |
| Repalced by: A 6859900501 | ||
| 420 | A 6859900501 | SCREW |
| 1/4-20 X 3/4 | ||
| 430 | Q 106969R1 | PART NAME MISSING |
| WASHER | ||
| 440 | Q 26110R1 | PART NAME MISSING |
| Repalced by: A 6859900551 | ||
| 440 | A 6859900551 | NUT |
| 450 | Q 403061C1 | PART NAME MISSING |
| RIVET | ||
| 460 | Q 477461C1 | PART NAME MISSING |
| WASHER | ||
| 470 | Q 872114R1 | PART NAME MISSING |
| BUTTON | ||
| 1 11/10X1 9/32X11/32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| MUD APRON | ||
| 470 | Q 192669R1 | PART NAME MISSING |
| BUTTON | ||
| 2.37X2.00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| MUD APRON | ||

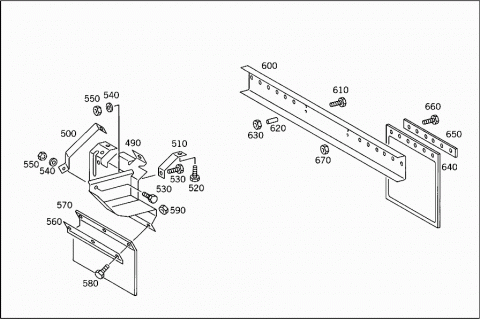

| 490 | Q 490637C2 | PART NAME MISSING |
| BRACKET | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LEFT | ||
| 490 | Q 490639C2 | PART NAME MISSING |
| BRACKET | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| RIGHT | ||
| 500 | Q 505082C1 | PART NAME MISSING |
| BRACKET | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LEFT | ||
| 500 | Q 505083C1 | PART NAME MISSING |
| BRACKET | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| RIGHT | ||
| 510 | Q 489999C1 | PART NAME MISSING |
| BRACKET | ||
| 520 | Q 403810C91 | PART NAME MISSING |
| SCREW | ||
| 5/16-18X1 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO FRAME | ||
| 530 | Q 25493R1 | PART NAME MISSING |
| Repalced by: A 6859900701 | ||
| 530 | A 6859900701 | SCREW |
| BRACKET TO BRACKET | ||
| 5/16-18X1 | ||
| 540 | Q 25708R1 | PART NAME MISSING |
| Repalced by: A 6859900240 | ||
| 540 | A 6859900240 | WASHER |
| BRACKET TO BRACKET | ||
| 550 | Q 9413977 | PART NAME MISSING |
| Repalced by: A 6859900251 | ||
| 550 | A 6859900251 | NUT |
| 5/16-18 | ||
| 560 | Q 506021C3 | PART NAME MISSING |
| REINFORCEMENT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| MUD APRON | ||
| 570 | Q 481610C4 | PART NAME MISSING |
| MUD APRON | ||
| 580 | Q 25222R1 | PART NAME MISSING |
| Repalced by: A 6859900501 | ||
| 580 | A 6859900501 | SCREW |
| SPLASH GUARD TO BRACKET | ||
| 1/4-20 X 3/4 | ||
| 590 | Q 26110R1 | PART NAME MISSING |
| Repalced by: A 6859900551 | ||
| 590 | A 6859900551 | NUT |
| SPLASH GUARD TO BRACKET | ||
| 1/4-20 | ||
| 600 | Q 499330R1 | PART NAME MISSING |
| BRAKE ANCHOR | ||
| 610 | Q 180183 | PART NAME MISSING |
| SCREW | ||
| 1/2-3X2 1/4 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SUPPORT TO SIDE MEMBER | ||
| 620 | Q 524925R1 | PART NAME MISSING |
| SPACER TUBE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SUPPORT TO SIDE MEMBER | ||
| 630 | Q 9412230 | PART NAME MISSING |
| Repalced by: A 6859901151 | ||
| 630 | A 6859901151 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 1/2-13 | ||
| 640 | Q 499340R1 | PART NAME MISSING |
| MUD APRON | ||
| 650 | Q 499333R1 | PART NAME MISSING |
| LEDGE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| MUD APRON | ||
| 660 | Q 25485R1 | PART NAME MISSING |
| SCREW | ||
| 1/4-20X1 1/4 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| MUD APRON TO SUPPORT | ||
| 670 | Q 26110R1 | PART NAME MISSING |
| Repalced by: A 6859900551 | ||
| 670 | A 6859900551 | NUT |
| MUD APRON TO SUPPORT | ||
| 1/4-20 | ||
| 680 | Q 501365R91 | PART NAME MISSING |
| BRACKET | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| MUD APRON | ||
| 690 | Q 24841R1 | PART NAME MISSING |
| Repalced by: A 6859901401 | ||
| 690 | A 6859901401 | SCREW |
| BRACKET TO FRAME | ||
| 3/8"-16X1 1/2" | ||
| 700 | Q 9413979 | PART NAME MISSING |
| Repalced by: A 6859900351 | ||
| 700 | A 6859900351 | NUT |
| BRACKET TO FRAME | ||
| 710 | Q 481610C3 | PART NAME MISSING |
| MUD APRON | ||
| 720 | Q 501364R1 | PART NAME MISSING |
| REINFORCEMENT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| MUD APRON | ||
| 730 | Q 25707R1 | PART NAME MISSING |
| WASHER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SPLASH GUARD TO BRACKET | ||
| 740 | Q 25222R1 | PART NAME MISSING |
| Repalced by: A 6859900501 | ||
| 740 | A 6859900501 | SCREW |
| SPLASH GUARD TO BRACKET | ||
| 1/4-20 X 3/4 | ||
| 750 | Q 26110R1 | PART NAME MISSING |
| Repalced by: A 6859900551 | ||
| 750 | A 6859900551 | NUT |
| SPLASH GUARD TO BRACKET | ||
| 1/4"-20 | ||
| 760 | Q 501363R1 | PART NAME MISSING |
| ANGLE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SPLASH GUARD TO BRACKET | ||
