Transporto priemonė: TM 215; VIN numerio dalis: 435161
Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SEE ALSO SA: | ||
| 36 200/01 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SEE ALSO SA: | ||
| 36 200/02 | ||

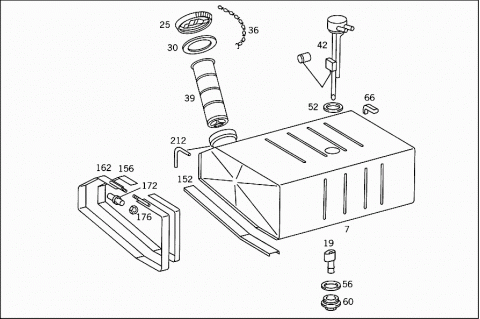

| 007 | A 4254701001 | FUEL TANK |
| Repalced by: A 4354701501 | ||
| 007 | A 4354701501 | FUEL TANK |

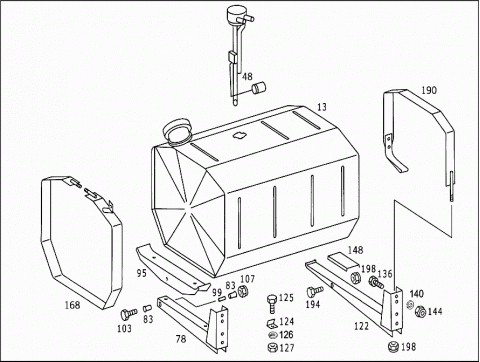

| 013 | A 4254700501 | FUEL TANK |
| 019 | A 0004710235 | FUEL STRAINER |
| 025 | A 3094700005 | FILLER CAP |
| Repalced by: A 0004710530 | ||
| 025 | A 0004710530 | FILLER CAP |
| Repalced by: A 4354700205 | ||
| 025 | A 4354700205 | FILLER CAP |
| Repalced by: A 0004700105 | ||
| 025 | A 0004700105 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 025 | A 0004700305 | FILLER CAP |
| 030 | A 3099970040 | SEAL RING |
| Repalced by: A 3049970340 | ||
| 030 | A 3049970340 | SEAL RING |
| TO 309 470 00 05,435 470 02 05 | ||
| 030 | A 3049970340 | SEAL RING |
| TO 000 470 01 05,000 470 03 05 | ||
| 036 | A 3034700031 | CHAIN |
| 039 | A 4354700006 | FUEL STRAINER |
| 042 | A 0045428717 | SENDER UNIT |
| Repalced by: A 0085423517 | ||
| 042 | A 0085423517 | SENDER UNIT |
| 048 | A 0045428617 | SENDER UNIT |
| Repalced by: A 0085423417 | ||
| 048 | A 0085423417 | SENDER UNIT |
| 052 | A 0009975149 | GASKET |
| 056 | N 915035000006 | SEAL RING |
| FUEL TANK | ||
| 060 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 060 | N 007604014110 | SCREW PLUG |
| FUEL TANK | ||
| 066 | A 0019873625 | PLASTIC SECTION |
| Repalced by: A 0019872272 | ||
| 066 | A 0019872272 | EDGE GUARD SECTION |
| 1000 MM | ||

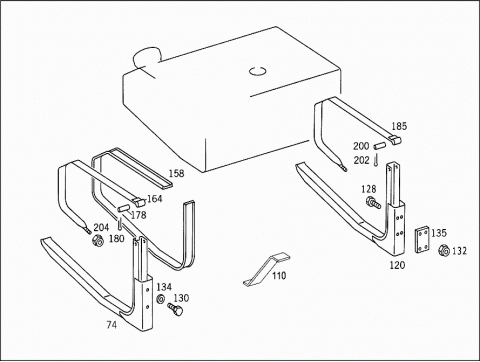

| 074 | A 4354700242 | SUPPORT |
| Repalced by: A 4354701842 | ||
| 074 | A 4354700642 | SUPPORT |
| Repalced by: A 4354701842 | ||
| 074 | A 4354701842 | SUPPORT |
| FRONT | ||
| 074 | A 4354701842 | SUPPORT |
| FRONT | ||
| 074 | A 4354702342 | SUPPORT |
| FRONT | ||
| 078 | A 4254700742 | SUPPORT |
| FRONT | ||
| 083 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 083 | A 1242920050 | BUSHING |
| 083 | A 1242920050 | BUSHING |
| A 4354750227 | BRACKET | |
| FUEL TANK,FRONT SIDE | ||
| 095 | A 4254750427 | BRACKET |
| FUEL TANK,FRONT SIDE | ||
| A 4044750150 | BUSHING | |
| Repalced by: A 3140720253 | ||
| 099 | A 3140720253 | SPACER TUBE |
| SUPPORT TO CONSOLE | ||
| 099 | A 3140720253 | SPACER TUBE |
| SUPPORT TO CONSOLE | ||
| 103 | N 000960012224 | SCREW |
| Repalced by: A 0119901304 | ||
| 103 | A 0119901304 | CAPSCREW W HEXAL. DRIVE |
| 103 | N 000961012208 | SCREW |
| SUPPORT TO CONSOLE | ||
| 107 | N 913004012008 | NUT |
| Repalced by: N 913023012003 | ||
| 107 | N 913023012003 | NUT |
| SUPPORT TO CONSOLE | ||
| 107 | N 913023012003 | NUT |
| SUPPORT TO CONSOLE | ||
| 110 | A 4354710022 | REINFORCEMENT |
| 120 | A 4354700342 | SUPPORT |
| Repalced by: A 4354701942 | ||
| 120 | A 4354700742 | SUPPORT |
| Repalced by: A 4354701942 | ||
| 120 | A 4354701942 | SUPPORT |
| FUEL TANK,REAR SIDE | ||
| 120 | A 4354701942 | SUPPORT |
| FUEL TANK,REAR SIDE | ||
| 120 | A 4354702442 | SUPPORT |
| FUEL TANK,REAR SIDE | ||
| 122 | A 4254701342 | SUPPORT |
| FUEL TANK,REAR SIDE | ||
| 124 | A 4254752227 | BRACKET |
| STOP TO REAR CONSOLE | ||
| 125 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 125 | N 910105010006 | SCREW |
| STOP TO REAR CONSOLE | ||
| 126 | N 912004010102 | LOCK WASHER |
| STOP TO REAR CONSOLE | ||
| 127 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 127 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 127 | N 913023010002 | NUT |
| STOP TO REAR CONSOLE | ||
| 128 | N 000960012342 | SCREW |
| Repalced by: N 910105012015 | ||
| 128 | N 910105012015 | SCREW |
| Repalced by: N 308676012015 | ||
| 128 | N 308676012015 | SCREW |
| SUPPORT TO FRAME | ||
| 130 | N 910106014007 | SCREW |
| SUPPORT TO FRAME | ||
| 130 | N 910106014007 | SCREW |
| SUPPORT TO FRAME | ||
| 132 | N 913004012008 | NUT |
| Repalced by: N 913023012003 | ||
| 132 | N 913023012003 | NUT |
| SUPPORT TO FRAME | ||
| 134 | A 4359917125 | WASHER |
| SUPPORT TO FRAME | ||
| 135 | A 4354710295 | SHIM |
| SUPPORT TO FRAME | ||
| 136 | N 000933012094 | SCREW |
| SUPPORT TO FRAME | ||
| 140 | N 912004012100 | LOCK WASHER |
| SUPPORT TO FRAME | ||
| 144 | N 913004012009 | NUT |
| Repalced by: N 910113012005 | ||
| 144 | N 910113012005 | NUT |
| SUPPORT TO FRAME | ||
| 148 | A 3144750020 | PAD |
| 152 | A 6174750420 | PAD |
| Repalced by: A 6174750020 | ||
| 152 | A 6174750020 | PAD |
| 61 MM | ||
| 152 | A 6174750020 | PAD |
| 61 MM | ||
| 156 | A 3634750320 | PAD |
| FRONT STRAP | ||
| 156 | A 3634750320 | PAD |
| FRONT AND REAR TANKS | ||
| 158 | A 4354750720 | PAD |
| 162 | A 4254700740 | STRAP |
| Repalced by: A 4354700040 | ||
| 164 | A 4354700040 | STRAP |
| FRONT | ||
| 164 | A 4354700040 | STRAP |
| FRONT | ||
| 168 | A 4254700240 | STRAP |
| FRONT | ||
| 172 | N 900333010001 | TURNBUCKLE |
| FRONT STRAP | ||
| 172 | N 900333010001 | TURNBUCKLE |
| FRONT STRAP | ||
| 176 | N 070615010003 | NUT |
| FRONT STRAP | ||
| 176 | N 070615010003 | NUT |
| FRONT STRAP | ||
| 178 | N 001443016204 | PIN |
| FRONT STRAP | ||
| 180 | N 000094004080 | COTTER PIN |
| FRONT STRAP | ||
| 185 | A 4254700640 | STRAP |
| Repalced by: A 4354700040 | ||
| 185 | A 4354700040 | STRAP |
| REAR | ||
| 185 | A 4354700040 | STRAP |
| REAR | ||
| 190 | A 4254700340 | STRAP |
| REAR | ||
| 194 | N 000931010331 | SCREW |
| Repalced by: N 910105010012 | ||
| 194 | N 910105010012 | SCREW |
| REAR STRAP | ||
| 194 | N 910105010012 | SCREW |
| REAR STRAP | ||
| 198 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 198 | N 913023010003 | NUT |
| REAR STRAP | ||
| 198 | N 913023010003 | NUT |
| REAR STRAP | ||
| 200 | N 001443016204 | PIN |
| REAR STRAP | ||
| 202 | N 000094004080 | COTTER PIN |
| REAR STRAP | ||
| 204 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 204 | N 913023010003 | NUT |
| REAR STRAP | ||

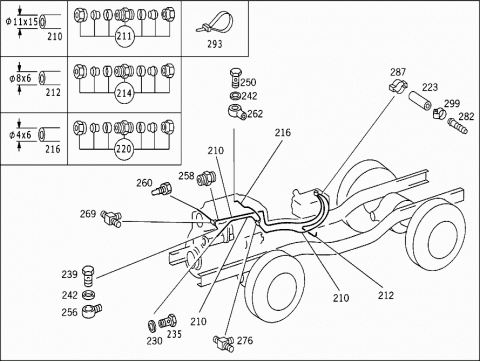

| 210 | A 0089975482 | HOSE |
| FROM PUMP TO T-FITTING | ||
| 210 | A 0089975482 | HOSE |
| FROM FUEL PUMP TO MANUAL PUMP | ||
| 210 | A 0089975482 | HOSE |
| FROM FUEL FILTER TO T-FITTING | ||
| 210 | A 0089975482 | HOSE |
| FROM T-FITTING TO INJECTION ENGINE RETURN LINE | ||
| 210 | A 0089975482 | HOSE |
| FROM STARTER PILOT TO INJECTION ENGINE | ||
| 211 | A 0049971672 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 212 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 212 | A 0009872727 | PLASTIC PIPE |
| FUEL TANK BREATHING | ||
| 8X6 MM | ||
| 214 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 214 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 216 | A 0109977082 | HOSE |
| Repalced by: A 0089976082 | ||
| 216 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 216 | A 0009872627 | PLASTIC PIPE |
| FROM T-FITTING TO INJECTION NOZZLE RETURN LINE | ||
| 4X6 MM | ||
| 220 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 223 | A 3054760126 | HOSE |
| 60 MM | ||
| 230 | N 007603014106 | SEAL RING |
| 235 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 235 | N 915036010108 | HOLLOW SCREW |
| FUEL LINE TO FEED PUMP | ||
| 239 | A 3149900163 | HOLLOW SCREW |
| Repalced by: A 6159900263 | ||
| 239 | A 6159900263 | HOLLOW SCREW |
| FUEL LINE LEADING TO FILTER | ||
| 242 | N 007603008109 | SEAL RING |
| LEAK LINE | ||
| 250 | N 915036005100 | HOLLOW SCREW |
| LEAK LINE | ||
| Repalced by: N 000000004895 | ||
| 250 | N 000000004895 | BANJO BOLT |
| LEAK LINE | ||
| 256 | N 915052008016 | BANJO UNION |
| Repalced by: N 000000000363 | ||
| 256 | N 000000000363 | BANJO UNION |
| FROM PUMP TO T-FITTING | ||
| 258 | A 0019975272 | FITTING |
| SUCTION LINE | ||
| 260 | A 0004760124 | CONNECTOR |
| FROM FILTER TO T-FITTING | ||
| 262 | A 0009905288 | BANJO UNION |
| Repalced by: N 915052004025 | ||
| 262 | N 915052004025 | BANJO UNION |
| RETURN LINE | ||
| 269 | A 0009908070 | T-FITTING |
| SUCTION LINE | ||
| 276 | A 0009908170 | T-FITTING |
| Repalced by: A 0029901370 | ||
| 276 | A 0029901370 | T-FITTING |
| RETURN LINE | ||
| 282 | A 3879900078 | CONNECTOR |
| 282 | N 915062008000 | SLEEVE |
| 287 | A 0029978790 | CLIP |
| 293 | A 0019978490 | LOOM TIE |
| 293 | A 0019978390 | LOOM TIE |
| 299 | N 916002015100 | CLAMP |
| FUEL LINE TO SENDER UNIT | ||

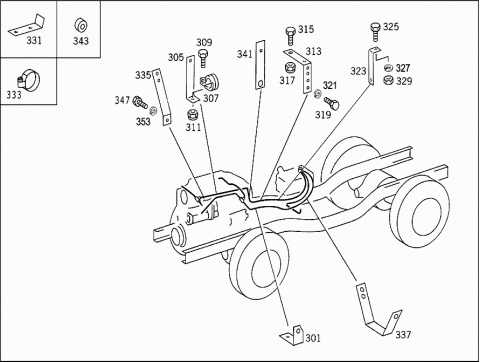

| 301 | A 4424261140 | BRACKET |
| Repalced by: A 6205240340 | ||
| 301 | A 6205240340 | BRACKET |
| FUEL LINE | ||
| 301 | A 4254260740 | BRACKET |
| Repalced by: A 6205240340 | ||
| 301 | A 6205240340 | BRACKET |
| FUEL LINES TO ENGINE | ||
| 305 | A 4254760736 | BRACKET |
| Repalced by: A 4044291240 | ||
| 305 | A 4044291240 | BRACKET |
| Repalced by: A 3524290740 | ||
| 305 | A 3524290740 | BRACKET |
| FUEL LINES TO ENGINE | ||
| 305 | A 3524290740 | BRACKET |
| FUEL LINE TO BRACKET | ||
| 307 | N 916016028204 | CLAMP |
| FUEL LINE TO BRACKET | ||
| 309 | N 000933006130 | SCREW |
| Repalced by: N 304017006020 | ||
| 309 | N 304017006020 | SCREW |
| CLAMP TO BRACKET | ||
| 311 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 311 | N 913023006001 | NUT |
| CLAMP TO BRACKET | ||
| 313 | A 4354262340 | BRACKET |
| FUEL LINE TO SIDE MEMBER | ||
| 315 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 315 | N 910105010009 | HEXAGON HEAD BOLT |
| 317 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 317 | N 913023010003 | NUT |
| FUEL LINE TO SIDE MEMBER | ||
| TO 435 426 23 40 | ||
| 319 | N 000961012052 | SCREW |
| Repalced by: N 910105012013 | ||
| 319 | N 910105012013 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 321 | N 912004012100 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 323 | A 4424261440 | BRACKET |
| Repalced by: A 3524290740 | ||
| 323 | A 3524290740 | BRACKET |
| FUEL LINE | ||
| 323 | A 4422682240 | BRACKET |
| Repalced by: A 6574760036 | ||
| 323 | A 6574760036 | BRACKET |
| AT FUEL TANK CONSOLE | ||
| 325 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 325 | N 304017006020 | SCREW |
| FUEL LINE | ||
| 327 | N 912004006102 | LOCK WASHER |
| FUEL LINE | ||
| 329 | N 000934006007 | NUT |
| FUEL LINE | ||
| 331 | A 4254760536 | BRACKET |
| Repalced by: A 3184923441 | ||
| 331 | A 3184923441 | BRACKET |
| FUEL LINE | ||
| 333 | N 000000000645 | CLAMP |
| BRACKET TO CROSS MEMBER | ||
| 333 | N 000000000645 | CLAMP |
| 335 | A 4254760336 | BRACKET |
| Repalced by: A 3184924841 | ||
| 335 | A 3184924841 | BRACKET |
| FUEL LINES TO ENGINE | ||
| 337 | A 4254760636 | BRACKET |
| A 4422682240 | BRACKET | |
| Repalced by: A 4354262340 | ||
| 341 | A 4255511740 | BRACKET |
| Repalced by: A 6455240940 | ||
| 341 | A 6455240940 | BRACKET |
| BATTERY CASE | ||
| A 4255511740 | BRACKET | |
| Repalced by: A 4354760137 | ||
| 341 | A 4354760137 | BRACKET |
| BATTERY CASE | ||
| 343 | A 4249900040 | WASHER |
| BETWEEN BRACKET AND FUEL LINE | ||
| 347 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 347 | N 304017008016 | SCREW |
| BRACKET TO ENGINE | ||
| 347 | N 304017008016 | SCREW |
| FUEL LINES TO ENGINE | ||
| 347 | N 304017008016 | SCREW |
| FUEL LINE TO BRACKET | ||
| 353 | N 912004008102 | LOCK WASHER |
| BRACKET TO ENGINE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
