Transporto priemonė: TM 215; VIN numerio dalis: 435161

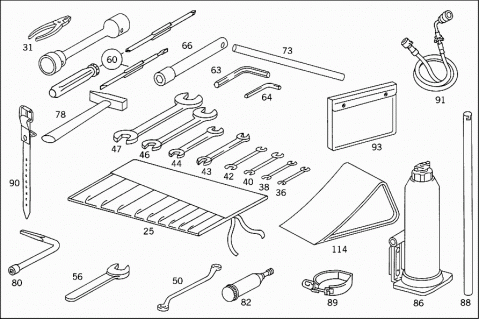

Grupė: 58 TOOLS AND ACCESSORIES
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SEE ALSO SA: | ||
| 36 200/01 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SEE ALSO SA: | ||
| 36 200/02 | ||
| 003 | A 4255800105 | TOOL BOX |
| 005 | A 4245800005 | TOOL BOX |
| 006 | N 000603008043 | SCREW |
| Repalced by: N 000603008096 | ||
| 006 | N 000603008096 | SCREW |
| 008 | N 000933008145 | SCREW |
| 009 | N 912004008102 | LOCK WASHER |
| 011 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 011 | N 009021008213 | WASHER |
| Repalced by: N 000000003250 | ||
| 011 | N 000000003250 | WASHER |
| 014 | N 304032008006 | NUT |
| 014 | N 304032008006 | NUT |
| N 007465040101 | PADLOCK | |
| Repalced by: A 0005831295 | ||
| A 0005831295 | PADLOCK | |
| Repalced by: A 0005830695 | ||
| 017 | A 0005830695 | PADLOCK |
| 025 | A 3855850001 | TOOL BAG |
| Repalced by: A 6555850001 | ||
| 025 | A 6555850001 | TOOL BAG |
| Repalced by: A 9425850001 | ||
| 025 | A 9425850001 | TOOL BAG |
| 031 | N 005244180004 | COMBINATION PLIERS |
| A 0005811124 | WRENCH | |
| Repalced by: N 000895008007 | ||
| 036 | N 000895008007 | OPEN END WRENCH |
| SW 8X10 MM | ||
| 038 | N 003110010002 | OPEN END WRENCH |
| SW 10X11 MM | ||
| 040 | N 003110012005 | OPEN END WRENCH |
| SW 12X13 MM | ||
| A 0005811324 | WRENCH | |
| Repalced by: N 000895013000 | ||
| 042 | N 000895013000 | OPEN END WRENCH |
| SW 13X15 MM | ||
| A 0005811424 | WRENCH | |
| Repalced by: N 000895017002 | ||
| 043 | N 000895017002 | OPEN END WRENCH |
| SW 17X19 MM | ||
| 044 | N 003110019002 | OPEN END WRENCH |
| Repalced by: N 003110019003 | ||
| 044 | N 003110019003 | OPEN END WRENCH |
| SW 19X22 MM | ||
| 046 | N 003110024001 | OPEN END WRENCH |
| SW 24X27 MM | ||
| 047 | N 003110030001 | OPEN END WRENCH |
| SW 30X32 MM | ||
| N 000838017001 | BOX TYPE WRENCH | |
| Repalced by: A 0005812136 | ||
| A 0005812136 | BOX TYPE WRENCH | |
| Repalced by: N 000838017002 | ||
| 050 | N 000838017002 | BOX TYPE WRENCH |
| SW 17X19 MM | ||
| 056 | N 000894030001 | OPEN END WRENCH |
| SW 30 MM | ||
| 060 | A 0005810317 | SCREWDRIVER |
| THREE-PART | ||
| 063 | N 000911005001 | HEX. KEY WRENCH |
| 063 | N 000911014006 | HEX. KEY WRENCH |
| 064 | N 000911004001 | HEX. KEY WRENCH |
| 064 | N 000911004001 | HEX. KEY WRENCH |
| 066 | A 0005811701 | SOCKET WRENCH |
| SW 24X27 MM | ||
| 066 | A 0005811701 | SOCKET WRENCH |
| SW 24X27 MM | ||
| 066 | A 0005814001 | SOCKET WRENCH |
| SW 27X30 MM | ||
| A 4065810166 | WRENCH | |
| 073 | A 3155810003 | TURN HANDLE |
| 078 | N 001041500001 | HAMMER |
| 080 | A 4355810002 | SQUARE KEY WRENCH |
| SEE GROUP: | ||
| 72 | ||
| 082 | A 0005832318 | GREASE GUN |
| Repalced by: A 0005833018 | ||
| 082 | A 0005833018 | GREASE GUN |
| A 0005838515 | JACK | |
| Repalced by: A 0005839815 | ||
| 086 | A 0005839815 | JACK |
| A 0005839115 | JACK | |
| Repalced by: A 0015831215 | ||
| A 0015831215 | JACK | |
| Repalced by: A 0015832215 | ||
| A 0015830515 | JACK | |
| Repalced by: A 0015832215 | ||
| 086 | A 0015832215 | JACK |
| A 0005833745 | ROD | |
| Repalced by: A 0005833845 | ||
| 088 | A 0005833845 | ROD |
| TO 000 583 98 15 | ||
| 088 | A 0005833845 | ROD |
| TO 001 583 12 15 | ||
| 089 | A 3228900271 | STRAP |
| TO 000 583 98 15 | ||
| 089 | A 3228900371 | STRAP |
| TO 001 583 12 15 | ||
| 090 | A 4258900194 | BELT |
| 091 | A 0005912604 | AIR PUMP HOSE |
| 093 | A 1155850095 | PROTECTIVE WRAPPER |
| FOR LICENSE DOCUMENTS | ||
| 095 | A 3185840038 | GUMMED LABEL |
| Repalced by: A 3185840138 | ||
| 095 | A 3185840138 | GUMMED LABEL |
| Repalced by: A 3185840438 | ||
| 095 | A 3185840438 | GUMMED LABEL |
| EXHAUST | ||
| "STVZO/EG",0.60 | ||
| 095 | A 4355840338 | GUMMED LABEL |
| EXHAUST | ||
| "ECE 24",0.60 | ||
| 096 | A 4355840638 | GUMMED LABEL |
| EXHAUST | ||
| "ECE 24",2.40 | ||
| A 4355840138 | GUMMED LABEL | |
| Repalced by: A 4245840138 | ||
| 096 | A 4245840138 | GUMMED LABEL |
| EXHAUST | ||
| "STVZO/EG",2.30 | ||
| A 4355840238 | GUMMED LABEL | |
| Repalced by: A 4165840938 | ||
| 096 | A 4165840938 | GUMMED LABEL |
| Repalced by: A 3185840438 | ||
| 096 | A 3185840438 | GUMMED LABEL |
| EXHAUST | ||
| "STVZO/EG",0.60 | ||
| A 4255840034 | PLATE | |
| Repalced by: A 4425843915 | ||
| 097 | A 4425843915 | PLATE |
| STARTER PILOT | ||
| 098 | A 4255841121 | GUIDE SIGN |
| CAB IN TILTED POSITION | ||
| 100 | A 4255841221 | GUIDE SIGN |
| CAB IN TILTED POSITION | ||
| 101 | A 4255840315 | PLATE |
| CONTROL SYMBOLS | ||
| A 4355840215 | PLATE | |
| Repalced by: A 4375840426 | ||
| 102 | A 4375840426 | GUIDE SIGN |
| CONTROL SYMBOLS | ||
| 104 | A 4355840115 | PLATE |
| DIFFERENTIAL LOCK SWITCH | ||
| A 4165840003 | CHASSIS NO. PLATE | |
| Repalced by: A 4355840003 | ||
| 106 | A 4355840003 | CHASSIS NO. PLATE |
| 106 | A 4355840301 | TYPE PLATE |
| A 4355840201 | TYPE PLATE | |
| Repalced by: A 4075840001 | ||
| 108 | A 4075840001 | TYPE PLATE |
| 110 | N 910002002100 | RIVET |
| TYPE PLATE TO BODY | ||
| A 0005841711 | INSTRUCTION PLATE | |
| Repalced by: A 0005841811 | ||
| 112 | A 0005841811 | INSTRUCTION PLATE |
| ANTI-FREEZE | ||
| 114 | A 4045800017 | CHOCK |
| 116 | A 4375840026 | GUIDE SIGN |
| STARTING INSTRUCTIONS; IN GERMAN/ENGLISH/FRENCH | ||
| 118 | A 4375840126 | GUIDE SIGN |
| ON LEFT CAB DOOR,BOTTOM | ||
| 120 | A 4258100469 | SIGN |
| Repalced by: A 4258100769 | ||
| 120 | A 4258100769 | SIGN |
| UNIMOG 1300 L | ||
| 122 | A 4258102069 | SIGN |
| UNIMOG 1700 | ||
| 124 | A 4258100169 | SIGN |
| Repalced by: A 4258100869 | ||
| 124 | A 4258100869 | SIGN |
| UNIMOG 1700 L | ||
