Transporto priemonė: UGN NA; VIN numerio dalis: 405230

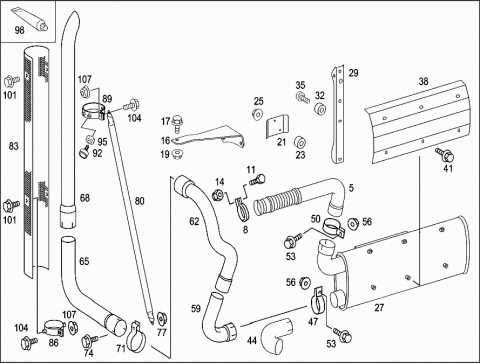

Grupė: 49 EXHAUST SYSTEM

#	Kodas	Pavadinimas
005	A 4054900419	EXHAUST PIPE
		WITH FLEXIBLE PIPE
008	A 6209970590	CLAMP
		EXHAUST PIPE TO TURBOCHARGER
011	N 910105008014	SCREW
		CLAMP TO EXHAUST PIPE
		M 8X35
014	N 910113008003	NUT
		CLAMP TO EXHAUST PIPE
016	A 4054930040	BRACKET
		FRONT EXHAUST PIPE TO CLUTCH BELL
017	N 910105010011	HEXAGON HEAD BOLT
		BRACKET TO CLAMP
		M 10X40
019	N 913023010002	NUT
		BRACKET TO CLAMP
021	A 4054920530	PROTECTIVE PLATE
		(HEAT SHIELD)
023	A 4609927101	BUSHING
		HEAT PROTECTION PLATE ON EXHAUST PIPE
025	N 913023006001	NUT
		HEAT PROTECTION PLATE ON EXHAUST PIPE
027	A 4054900501	EXHAUST MUFFLER
029	A 4054710265	CLAMP
		FASTENING FOR EXHAUST ON FRAME,RIGHT
032	A 6769900140	WASHER
		MUFFLER TO BRACKET
035	N 000000001435	SCREW
		MUFFLER TO BRACKET
		M 10X40
038	A 4054920130	PROTECTIVE PLATE
		(HEAT SHIELD)
041	N 910105006023	SCREW
		SCREENING PLATE TO MAIN MUFFLER
		M 6X16
044	A 4054920014	END PIECE
047	N 071555100501	CLAMP
		TAIL PIPE TO EXHAUST MUFFLER
050	N 071555104501	CLAMP
		EXHAUST PIPE TO MUFFLER
053	N 910105010009	SCREW
		EXHAUST PIPE TO MUFFLER
		M 10X25
056	N 913023010002	NUT
		EXHAUST PIPE TO MUFFLER
059	A 4054921101	FRONT EXHAUST PIPE
062	A 4054921201	FRONT EXHAUST PIPE
065	A 4054921501	FRONT EXHAUST PIPE
068	A 4054921401	FRONT EXHAUST PIPE
		VERTICAL TAIL PIPE BEHIND CAB
071	N 000000001647	CLAMP
		VERTICAL TAIL PIPE
074	N 910105010001	HEXAGON HEAD BOLT
		CLAMP TO EXHAUST PIPE
		M10X30
074	N 910105010001	HEXAGON HEAD BOLT
		CLAMP TO EXHAUST PIPE
		M10X30
074	N 000000000428	HEXAGON HEAD BOLT
		CLAMP TO EXHAUST PIPE
		M10X35
077	N 913023010002	NUT
		CLAMP TO EXHAUST PIPE
080	A 4054920020	STRUT
		TAIL PIPE BRACING
080	A 4054920320	STRUT
		TAIL PIPE BRACING
083	A 4054920430	PROTECTIVE PLATE
	Repalced by: A 4054921230
083	A 4054921230	PROTECTIVE PLATE
		(HEAT SHIELD) EXHAUST TAIL PIPE
083	A 4054920930	PROTECTIVE PLATE
		(HEAT SHIELD) EXHAUST TAIL PIPE
086	A 4054900041	CLAMP
		HEAT SHIELD TO TAILPIPE
089	A 4054900341	CLAMP
		HEAT SHIELD ON TAILPIPE,TOP
092	A 0009887211	BUFFER
		ON PIPE CLAMP, TOP
095	N 304032008006	NUT
		BUFFER ON PIPE CLAMP
098	A 0029899471	FAST-CURE ADHESIVE
		BUFFER ON PIPE CLAMP
101	N 000000000436	HEXAGON HEAD BOLT
		HEAT SHIELD TO TAILPIPE
		M8X12
104	N 910105010001	HEXAGON HEAD BOLT
		CLAMP TO EXHAUST PIPE
		M10X30
107	N 913023010002	NUT
		CLAMP TO EXHAUST PIPE
