Transporto priemonė: U 100,U 1100 L; VIN numerio dalis: 416116
Grupė: 42 BRAKE SYSTEM - 001 BRAKES
43361

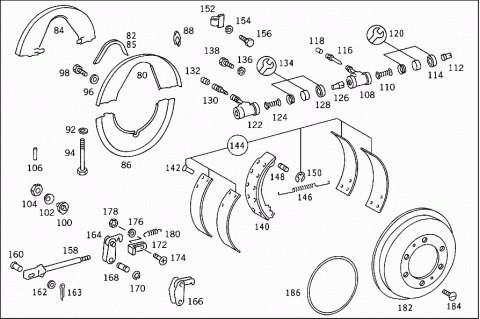

43362
43363

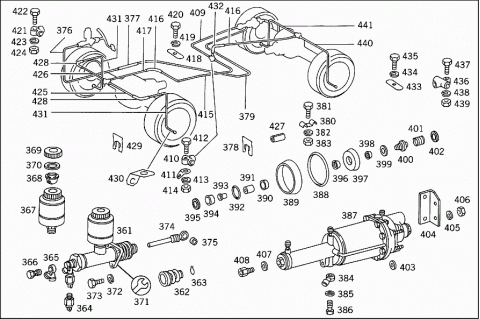

43364

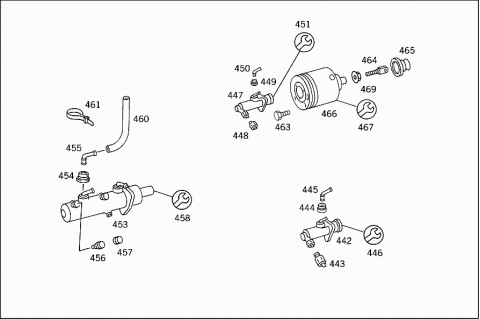

43365

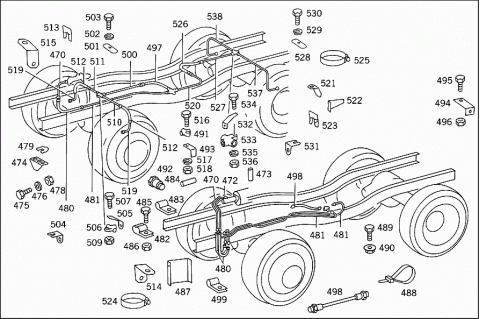

43366

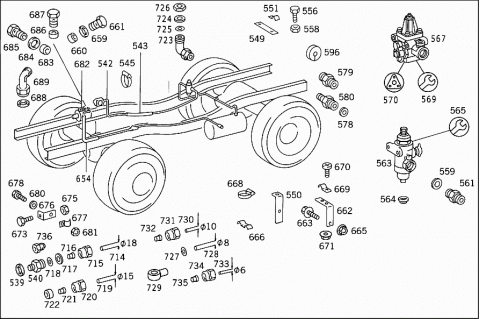

43367

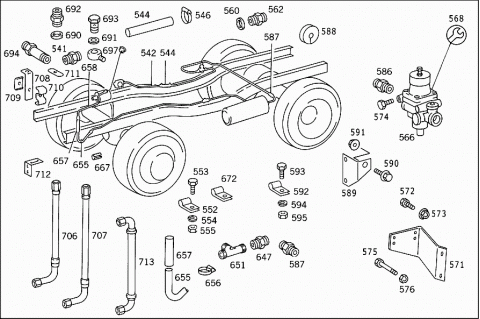

43368

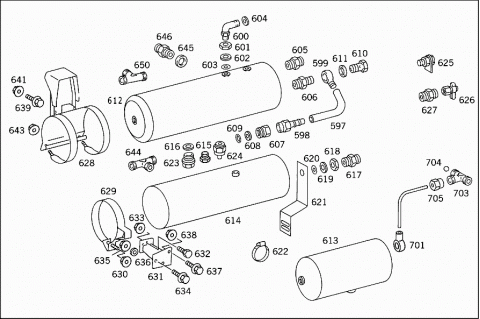

43369

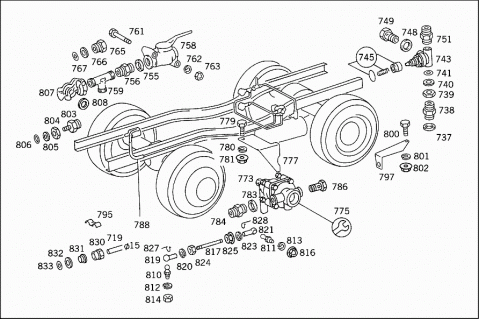

43370

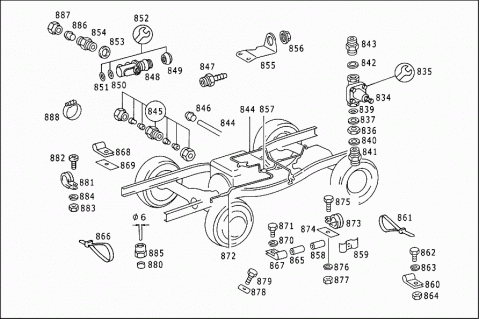

43371

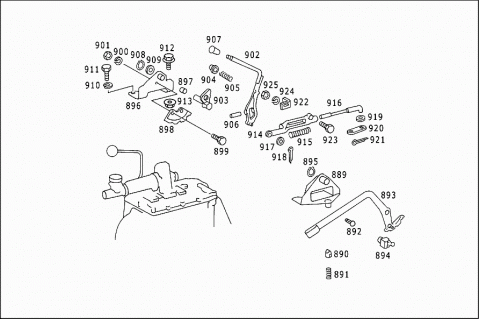

43372
43373
# Kodas Pavadinimas
X XXXXXXXXXXXX PART NAME MISSING

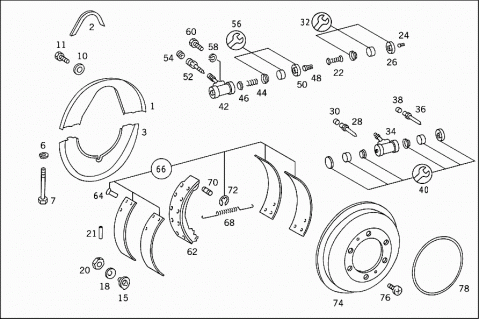

FRONT WHEEL BRAKE, SEE FOOTNOTE:
25
001 A 4064200444 PROTECTIVE PLATE
001 A 4164200644 PROTECTIVE PLATE
002 A 4069875151 RUBBER SEAL
002 A 4069875151 RUBBER SEAL
003 A 4064200544 PROTECTIVE PLATE
003 A 4164200744 PROTECTIVE PLATE
A 4064210187 PROTECTIVE CAP
006 N 912004008102 LOCK WASHER
007 N 000931008276 SCREW
010 N 000125008418 WASHER
Repalced by: N 000125008443
010 N 000125008443 WASHER
011 N 000933008009 SCREW
015 A 4214210434 ROLLER
LEFT
015 A 4214210534 ROLLER
RIGHT
018 A 0009932126 DISC SPRING
020 A 4214210176 WASHER
021 N 001481005009 CLAMPING SLEEVE
022 A 0004212390 SPRING
024 A 0004211988 THRUST PIN
026 A 0004231387 PROTECTIVE CAP
028 A 0004201555 BLEEDER VALVE
030 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
030 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
030 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
030 A 0004210887 PROTECTIVE CAP
032 A 0005864888 REPAIR KIT
034 A 0024203718 WHEEL BRAKE CYLINDER
Repalced by: A 0024209918
034 A 0024209918 WHEEL BRAKE CYLINDER
036 A 0004202355 BLEEDER VALVE
Repalced by: A 0004201755
036 A 0004201755 BLEEDER VALVE
038 A 0004212687 PROTECTIVE CAP
Repalced by: A 0004210887
038 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
038 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
038 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
038 A 0004210887 PROTECTIVE CAP
040 A 0025861042 REPAIR KIT
042 A 0034201918 WHEEL BRAKE CYLINDER
38.1 MM
044 A 0004212790 SPRING
046 A 0004212289 FILLER
048 A 0004212288 THRUST PIN
050 A 0004213587 PROTECTIVE CAP
052 A 0004201855 BLEEDER VALVE
Repalced by: A 0004201555
052 A 0004201555 BLEEDER VALVE
054 A 0004212687 PROTECTIVE CAP
Repalced by: A 0004210887
054 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
054 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
054 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
054 A 0004210887 PROTECTIVE CAP
056 A 0005865142 REPAIR KIT
058 N 912004008102 LOCK WASHER
060 N 000933008177 SCREW
Repalced by: N 304017008024
060 N 304017008024 SCREW
062 A 4064200120 BRAKE SHOE
Repalced by: A 4164200020
062 A 4064200320 BRAKE SHOE
Repalced by: A 4164200020
062 A 4164200020 BRAKE SHOE
Repalced by: A 4064200319
062 A 4064200319 BRAKE SHOE
LESS LINING
064 N 007338006300 RIVET
066 A 4064210110 BRAKE LINING
Repalced by: A 4164210010
066 A 4064210210 BRAKE LINING
Repalced by: A 4164210010
066 A 4164210010 BRAKE LINING
REPAIR SIZE I
7.0 MM
066 A 4064210310 BRAKE LINING
Repalced by: A 4164210110
066 A 4164210110 BRAKE LINING
Repalced by: A 4164210910
066 A 4164210910 BRAKE LINING
Repalced by: A 4164210610
066 A 4164210610 BRAKE LINING
Repalced by: A 4164211910
066 A 4164211910 BRAKE LINING
Repalced by: A 4164212610
066 A 4164212610 BRAKE LINING
PARTS KIT,REPAIR SIZE I
7.50 MM
068 A 4169935010 SPRING
Repalced by: A 4169935310
068 A 4169935210 SPRING
Repalced by: A 4169935310
068 A 4169935310 SPRING
070 A 4064210018 PIVOT PIN
Repalced by: A 4064210218
070 A 4064210218 PIVOT PIN
072 N 006799015002 LOCK PLATE
074 A 4064230101 BRAKE DRUM
074 A 4164230201 BRAKE DRUM
076 N 000963010016 SCREW
BRAKE DRUM TO FRONT WHEEL SPIDER
078 A 4164210080 GASKET
080 A 4064200644 PROTECTIVE PLATE
080 A 4164200444 PROTECTIVE PLATE
082 A 4069875151 RUBBER SEAL
082 A 4069875151 RUBBER SEAL
084 A 4064200744 PROTECTIVE PLATE
084 A 4164200544 PROTECTIVE PLATE
085 A 4069875151 RUBBER SEAL
085 A 4069875151 RUBBER SEAL
086 A 4064200544 PROTECTIVE PLATE
BOTTOM
086 A 4164200744 PROTECTIVE PLATE
088 A 4064210087 PROTECTIVE CAP
A 4064210187 PROTECTIVE CAP
092 N 912004008102 LOCK WASHER
094 N 000931008276 SCREW
096 N 000125008418 WASHER
Repalced by: N 000125008443
096 N 000125008443 WASHER
098 N 000933008009 SCREW
100 A 4214210434 ROLLER
LEFT
100 A 4214210534 ROLLER
RIGHT
102 A 0009932126 DISC SPRING
104 A 4214210176 WASHER
106 N 001481005009 CLAMPING SLEEVE
108 A 0024200818 WHEEL BRAKE CYLINDER
Repalced by: A 0034200318
108 A 0034200318 WHEEL BRAKE CYLINDER
20.64 MM
110 A 0004232993 SPRING
112 A 0004230988 THRUST PIN
114 A 0004232687 PROTECTIVE CAP
116 A 0004200355 BLEEDER VALVE
Repalced by: A 0004201555
116 A 0004201555 BLEEDER VALVE
118 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
118 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
118 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
118 A 0004210887 PROTECTIVE CAP
120 A 0005864988 REPAIR KIT
Repalced by: A 0004201151
120 A 0004201151 REPAIR KIT
122 A 0034200418 WHEEL BRAKE CYLINDER
22.2 MM
124 A 0004230693 SPRING
Repalced by: A 0004233393
124 A 0004233393 SPRING
126 A 0004230988 THRUST PIN
128 A 0004210087 PROTECTIVE CAP
130 A 0004201555 BLEEDER VALVE
132 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
132 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
132 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
132 A 0004210887 PROTECTIVE CAP
134 A 0005861642 REPAIR KIT
Repalced by: A 0004201251
134 A 0004201251 REPAIR KIT
136 N 912004008102 LOCK WASHER
138 N 000933008177 SCREW
Repalced by: N 304017008024
138 N 304017008024 SCREW
140 A 4064200120 BRAKE SHOE
Repalced by: A 4164200020
140 A 4064200320 BRAKE SHOE
Repalced by: A 4164200020
140 A 4164200020 BRAKE SHOE
Repalced by: A 4064200319
140 A 4064200319 BRAKE SHOE
LESS LINING
142 N 007338006300 RIVET
144 A 4064210110 BRAKE LINING
Repalced by: A 4164210010
144 A 4064210210 BRAKE LINING
Repalced by: A 4164210010
144 A 4164210010 BRAKE LINING
REPAIR SIZE I
7.0 MM
144 A 4064210310 BRAKE LINING
Repalced by: A 4164210110
144 A 4164210110 BRAKE LINING
Repalced by: A 4164210910
144 A 4164210910 BRAKE LINING
Repalced by: A 4164210610
144 A 4164210610 BRAKE LINING
Repalced by: A 4164211910
144 A 4164211910 BRAKE LINING
Repalced by: A 4164212610
144 A 4164212610 BRAKE LINING
PARTS KIT,REPAIR SIZE I
7.50 MM
146 A 4169935010 SPRING
Repalced by: A 4169935310
146 A 4169935210 SPRING
Repalced by: A 4169935310
146 A 4169935310 SPRING
148 A 4064210018 PIVOT PIN
Repalced by: A 4064210218
148 A 4064210218 PIVOT PIN
150 N 006799015002 LOCK PLATE
152 A 4064270044 GUIDE
154 N 912004006102 LOCK WASHER
156 N 000933006103 SCREW
Repalced by: N 304017006018
156 N 304017006018 SCREW
158 A 4064200274 ROD
160 N 001434008041 PIN
162 N 000125008418 WASHER
Repalced by: N 000125008443
162 N 000125008443 WASHER
163 N 000094002059 COTTER PIN
Repalced by: N 000094002060
163 N 000094002060 COTTER PIN
164 A 4064200389 SHACKLE
Repalced by: A 4064200489
164 A 4064200489 SHACKLE
LEFT
166 A 4064200289 SHACKLE
Repalced by: A 4064200589
166 A 4064200589 SHACKLE
RIGHT
168 A 4064230074 PIN
170 N 000471010001 LOCK RING
172 A 4214230044 THRUST SHACKLE
174 A 4169905130 SCREW
176 N 912004006102 LOCK WASHER
178 N 000934006007 NUT
180 A 4069935210 SPRING
180 A 4069935310 SPRING
182 A 4064230101 BRAKE DRUM
182 A 4164230201 BRAKE DRUM
184 N 000963010016 SCREW
BRAKE DRUM TO REAR WHEEL HUB
186 A 4164210080 GASKET
X XXXXXXXXXXXX PART NAME MISSING

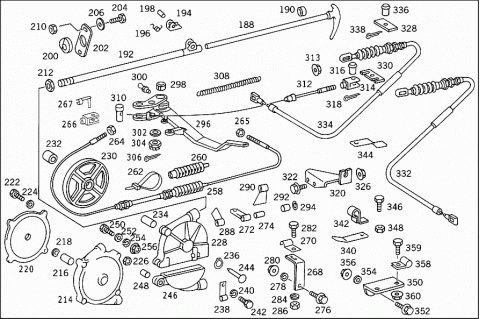

HAND BRAKE
188 A 4064200188 RATCHET ROD
190 A 1124270086 DAMPING RING
192 A 4064200177 GUIDE
194 A 1204270115 PAWL
196 A 1209930020 SPRING
198 N 007341006101 RIVET
200 A 4064270060 SEAL RING
202 A 4064270193 FLANGE
204 N 000933006183 SCREW
Repalced by: N 304017006016
204 N 304017006016 SCREW
BEARING FLANGE TO CAB
206 N 009021006205 WASHER
Repalced by: N 009021006208
206 N 009021006208 WASHER
BEARING FLANGE TO CAB
N 912004006102 LOCK WASHER
BEARING FLANGE TO CAB
210 N 000934006007 NUT
BEARING FLANGE TO CAB
212 N 000439018204 NUT
214 A 4064270181 HOUSING
216 A 4064271174 PIN
218 N 900055020001 SPRING WASHER
220 A 4064270085 COVER
222 N 000931008244 SCREW
222 N 000931008246 SCREW
Repalced by: N 304017008028
222 N 304017008028 SCREW
224 N 912004008102 LOCK WASHER
226 N 304032008006 NUT
228 A 4064270381 HOUSING
230 A 4064270042 CABLE PULLEY
Repalced by: A 4064270242
230 A 4064270242 CABLE PULLEY
232 A 0059811710 NEEDLE BEARING
234 A 4064271574 PIN
Repalced by: A 4064271774
234 A 4064271774 PIN
236 N 900055020201 LOCK RING
238 A 4069935015 SPRING
240 N 912004006102 LOCK WASHER
242 N 000933006122 SCREW
Repalced by: N 304017006034
242 N 304017006034 SCREW
244 N 001476006003 GROOVED NAIL
246 A 4064270481 HOUSING
Repalced by: A 4174270081
246 A 4174270081 HOUSING
248 A 4064270753 SPACER TUBE
250 N 000931008327 SCREW
Repalced by: N 304017008043
250 N 304017008043 SCREW
252 N 000125008418 WASHER
Repalced by: N 000125008443
252 N 000125008443 WASHER
254 N 912004008102 LOCK WASHER
256 N 913004008004 NUT
Repalced by: N 913003008003
256 N 913003008003 PART NAME MISSING
Repalced by: N 913023008003
256 N 913023008003 NUT
Repalced by: N 913023008002
256 N 913023008002 NUT
258 A 4164200085 BRAKE CABLE
258 A 4164200185 BRAKE CABLE
258 A 4164201985 BRAKE CABLE
258 A 4164201085 BRAKE CABLE
258 A 4164202085 BRAKE CABLE
260 A 4069871343 RUBBER SLEEVE
262 N 900286005100 CABLE HOLDER
Repalced by: A 0009950859
262 A 0009950859 SHACKLE
Repalced by: A 0019978390
262 A 0019978390 LOOM TIE
264 N 000934006007 NUT
BRAKE CABLE
265 N 304032008006 NUT
BRAKE CABLE
265 N 304032008006 NUT
266 A 4164210028 YOKE
Repalced by: A 4194210028
266 A 4194210028 YOKE
BRAKE CABLE TO INTERMEDIATE LEVER
267 N 918001008001 PIN
BRAKE CABLE TO INTERMEDIATE LEVER
268 A 4065510254 MOUNTING PLATE
TO HAND BRAKE CABLE
270 N 071434010100 CLAMP
272 A 4119950035 CLAMP
274 A 4049871943 RUBBER SLEEVE
276 N 000933010129 SCREW
Repalced by: N 910105010001
276 N 910105010001 SCREW
ANGLE TO FRAME
278 N 912004010102 LOCK WASHER
ANGLE TO FRAME
280 N 000934010014 NUT
Repalced by: N 910112010001
280 N 910112010001 NUT
Repalced by: N 913023010002
280 N 913023010002 NUT
ANGLE TO FRAME
282 N 000933005075 SCREW
Repalced by: N 304017005002
282 N 304017005002 SCREW
MOUNTING CLAMP TO ANGLE
284 N 912004005103 LOCK WASHER
MOUNTING CLAMP TO ANGLE
286 N 304032005002 NUT
Repalced by: N 304032005005
286 N 304032005005 NUT
MOUNTING CLAMP TO ANGLE
288 A 4165600031 CABLE GUIDE
290 A 4064200578 BEARING BRACKET
292 A 4065990189 EYE
INTERMEDIATE LEVER TO BEARING BRACKET
294 N 009045016001 SNAP RING
INTERMEDIATE LEVER TO BEARING BRACKET
296 A 4064270110 INTERMEDIATE LEVER
Repalced by: A 4064270210
296 A 4064270210 INTERMEDIATE LEVER
296 A 4064270310 INTERMEDIATE LEVER
298 A 0059811610 NEEDLE BEARING
300 N 071412008200 GREASE NIPPLE
302 N 000125015013 WASHER
Repalced by: N 000125015019
302 N 000125015019 WASHER
INTERMEDIATE LEVER TO BEARING BRACKET
304 N 000935014004 NUT
INTERMEDIATE LEVER TO BEARING BRACKET
306 N 000094003226 COTTER PIN
INTERMEDIATE LEVER TO BEARING BRACKET
308 A 3159930210 SPRING
INTERMEDIATE LEVER TO BEARING BRACKET
310 A 4064271274 PIN
Repalced by: A 4194270074
310 A 4194270074 PIN
INTERMEDIATE LEVER TO BEARING BRACKET
312 A 4064200285 BRAKE CABLE
Repalced by: A 4074200885
312 A 4074200885 BRAKE CABLE
313 N 000934010014 NUT
Repalced by: N 910112010001
313 N 910112010001 NUT
Repalced by: N 913023010002
313 N 913023010002 NUT
314 N 071752010004 YOKE
Repalced by: A 0009961401
314 A 0009961401 YOKE
316 N 001434010127 PIN
318 N 000094003226 COTTER PIN
320 A 4064202286 BRACKET
Repalced by: A 4174200486
320 A 4174200486 BRACKET
BRAKE CABLE
322 N 000961012052 SCREW
Repalced by: N 910105012013
322 N 910105012013 SCREW
BRACKET
N 000933010129 SCREW
Repalced by: N 910105010001
N 910105010001 SCREW
N 912004010102 LOCK WASHER
326 N 913004012008 NUT
Repalced by: N 913023012003
326 N 913023012003 NUT
BRACKET
328 A 4064270010 INTERMEDIATE LEVER
330 A 4044270189 CONNECTOR
332 A 4064200385 BRAKE CABLE
Repalced by: A 4064200685
332 A 4064200685 BRAKE CABLE
LEFT
334 A 4064200485 BRAKE CABLE
Repalced by: A 4064200785
334 A 4064200785 BRAKE CABLE
RIGHT
336 N 001434010127 PIN
BRAKE CABLE TO COMPENSATING LEVER
338 N 000094003219 COTTER PIN
340 A 4064270241 BRACKET
340 A 4064270241 BRACKET
340 A 4064270241 BRACKET
342 A 4164260540 BRACKET
BRAKE CABLE TO REAR AXLE,RIGHT
344 A 4164290140 BRACKET
346 N 000933006130 SCREW
Repalced by: N 304017006020
346 N 304017006020 SCREW
MOUNTING CLAMP AND BRACKET TO BRACKET
M 6X18
N 912004006102 LOCK WASHER
MOUNTING CLAMP AND BRACKET TO BRACKET
348 N 000934006007 NUT
MOUNTING CLAMP AND BRACKET TO BRACKET
350 A 4254263740 BRACKET
Repalced by: A 4254264240
350 A 4254264240 BRACKET
BRAKE CABLE TO REAR AXLE,LEFT
352 N 000933010129 SCREW
Repalced by: N 910105010001
352 N 910105010001 SCREW
MOUNTING CLAMP AND BRACKET TO BRACKET
M 10X30
354 N 000125010518 WASHER
Repalced by: N 000125010532
354 N 000125010532 WASHER
MOUNTING CLAMP AND BRACKET TO BRACKET
356 N 913004010008 NUT
Repalced by: N 913023010003
356 N 913023010003 NUT
MOUNTING CLAMP AND BRACKET TO BRACKET
358 N 001593019000 CLAMP
MOUNTING CLAMP AND BRACKET TO BRACKET
359 N 000933006121 SCREW
Repalced by: N 304017006020
359 N 304017006020 SCREW
MOUNTING CLAMP AND BRACKET TO BRACKET
M 6X20
360 N 913004006002 NUT
Repalced by: N 913023006001
360 N 913023006001 NUT
360 N 913023006001 NUT
HYDRAULIC BRAKE, SEE FOOTNOTE 003
361 A 0014304301 BRAKE MASTER CYLINDER
31.75 MM,36 MM
362 A 0004310087 PROTECTIVE CAP
363 A 0009940135 SNAP RING
364 A 0005453409 SWITCH
Repalced by: A 0005454309
364 A 0005454309 SWITCH
365 A 0004281924 DISTRIBUTOR
366 A 0004280026 HOLLOW SCREW
367 A 0014312802 RESERVOIR
Repalced by: A 0004312102
367 A 0004312102 RESERVOIR
Repalced by: A 0014317702
367 A 0014317702 RESERVOIR
0.26 L.
368 A 0004310034 STRAINER
Repalced by: A 0004313734
368 A 0004313734 STRAINER
Repalced by: A 0004314334
368 A 0004314334 STRAINER
369 A 0004310933 FILLER CAP
Repalced by: A 0004311333
369 A 0004311333 FILLER CAP
Repalced by: A 0004315133
369 A 0004315133 FILLER CAP
Repalced by: A 0004315433
369 A 0002950237 SCREW PLUG
369 A 0004315433 FILLER CAP
BUTTRESS THREAD
370 A 0009972940 SEAL RING
Repalced by: A 0049975340
370 A 0049975340 SEAL RING
Repalced by: A 0039976440
370 A 0039976440 SEAL RING
371 A 0005864688 REPAIR KIT
372 N 912004008102 LOCK WASHER
373 N 000933008154 SCREW
Repalced by: N 304017008021
373 N 304017008021 SCREW
374 A 4062900239 ROD
375 A 1112950150 BUSHING
376 A 4064200035 LINE
Repalced by: A 0004290701
376 A 0004290701 LINE
Repalced by: A 0004296201
376 A 0004296201 LINE
A 0004287035 BRAKE HOSE
TEVES
377 A 0014280735 BRAKE HOSE
Repalced by: A 0024284035
377 A 0024284035 BRAKE HOSE
Repalced by: A 0024285935
377 A 0024285935 BRAKE HOSE
KUGELFISCHER
378 A 0004280473 BRACKET
Repalced by: A 6525040038
378 A 6525040038 MOUNTING PLATE
379 A 4064200135 LINE
Repalced by: A 0004290701
379 A 0004290701 LINE
Repalced by: A 0004296201
379 A 0004296201 LINE
380 A 3120780185 PIPE BRACKET
381 N 304017005007 SCREW
Repalced by: N 000000002035
381 N 000000002035 SCREW
382 N 912004005103 LOCK WASHER
383 N 304032005002 NUT
Repalced by: N 304032005005
383 N 304032005005 NUT
384 A 0004280730 CONNECTOR
385 N 915035000006 SEAL RING
386 A 0004280026 HOLLOW SCREW
387 A 0004311114 BRAKE BOOSTER
388 A 0009879846 SEALING CORD
90X4 MM
389 A 0004314560 SEAL RING
100X86X16 MM
390 A 0004314660 SEAL RING
22X12X7 MM
391 A 0004310349 GUIDE BUSHING
Repalced by: A 3359920703
391 A 3359920703 BUSHING
392 A 0009879946 SEALING CORD
34X2.3 MM
393 A 0004314760 SEAL RING
394 A 0004314860 SEAL RING
25X17X8 MM
395 N 007603035101 SEAL RING
396 A 0004314960 SEAL RING
22X10X8 MM
397 A 0004315986 CUP
398 A 0004310523 VALVE
399 A 0004312260 SEAL RING
400 A 0004312123 VALVE
401 A 0019938101 SPRING
402 N 007603032105 SEAL RING
403 A 0019870046 SEALING CORD
404 A 4064260040 BRACKET
405 N 912004008102 LOCK WASHER
406 N 304032008006 NUT
407 N 915035000006 SEAL RING
408 A 0004230284 FITTING
409 A 4064200335 LINE
Repalced by: A 0004290701
409 A 0004290701 LINE
Repalced by: A 0004296201
409 A 0004296201 LINE
410 A 0004290437 DISTRIBUTOR
411 A 3152920140 BRACKET
412 N 000933008150 SCREW
Repalced by: N 304017008018
412 N 304017008018 SCREW
DISTRIBUTOR TO BRACKET
413 N 912004008102 LOCK WASHER
414 N 304032008006 NUT
415 A 4064200435 LINE
Repalced by: A 0004290701
415 A 0004290701 LINE
Repalced by: A 0004296201
415 A 0004296201 LINE
A 0004287035 BRAKE HOSE
TEVES
416 A 0014280735 BRAKE HOSE
Repalced by: A 0024284035
416 A 0024284035 BRAKE HOSE
Repalced by: A 0024285935
416 A 0024285935 BRAKE HOSE
KUGELFISCHER
417 A 4064200628 LINE
Repalced by: A 3404200729
417 A 3404200729 LINE
6X0.7X500 MM
418 A 3044760019 BASE
Repalced by: A 3142030084
418 A 3142030084 SHIM
LINE TO THRUST TUBE
419 N 912004006102 LOCK WASHER
LINE TO THRUST TUBE
420 N 000933006103 SCREW
Repalced by: N 304017006018
420 N 304017006018 SCREW
LINE TO THRUST TUBE
421 A 0004290437 DISTRIBUTOR
422 N 000933008074 SCREW
DISTRIBUTOR TO BRACKET
423 N 912004008102 LOCK WASHER
DISTRIBUTOR TO BRACKET
424 N 304032008006 NUT
DISTRIBUTOR TO BRACKET
425 A 4064200028 LINE
Repalced by: A 3404200729
425 A 3404200729 LINE
6X0.7X500 MM
426 A 4064200128 LINE
Repalced by: A 3404201529
426 A 3404201529 LINE
6X0.7X900 MM
427 A 4063380082 RUBBER RING
Repalced by: A 3209922282
427 A 3209922282 HOSE
428 A 0004287135 BRAKE HOSE
Repalced by: A 0014281735
428 A 0014281735 BRAKE HOSE
Repalced by: A 0024285735
428 A 0014280435 BRAKE HOSE
Repalced by: A 0024285735
428 A 0024285735 BRAKE HOSE
429 A 0004280473 BRACKET
Repalced by: A 6525040038
429 A 6525040038 MOUNTING PLATE
430 A 4063350246 STOP
LEFT
430 A 4063350346 STOP
RIGHT
431 A 4064200828 LINE
Repalced by: A 3404200529
431 A 4064200928 LINE
Repalced by: A 3404200529
431 A 3404200529 LINE
6X0.7X400 MM
431 A 4164200028 LINE
Repalced by: A 3404202529
431 A 3404202529 LINE
6X0.7X1400 MM
A 0004284435 BRAKE HOSE
432 A 0014280835 BRAKE HOSE
433 A 3044760019 BASE
Repalced by: A 3142030084
433 A 3142030084 SHIM
LINE TO THRUST TUBE
434 N 912004006102 LOCK WASHER
LINE TO THRUST TUBE
435 N 000933006103 SCREW
Repalced by: N 304017006018
435 N 304017006018 SCREW
LINE TO THRUST TUBE
436 A 0004290437 DISTRIBUTOR
437 N 000933008074 SCREW
DISTRIBUTOR TO BRACKET
438 N 912004008102 LOCK WASHER
DISTRIBUTOR TO BRACKET
439 N 304032008006 NUT
DISTRIBUTOR TO BRACKET
440 A 4064200228 LINE
Repalced by: A 3404202429
440 A 3404202429 LINE
6X0.7X1350
441 A 4064200328 LINE
Repalced by: A 3404201729
441 A 3404201729 LINE
6X0.7X1000 MM
441 A 3404201729 LINE
HYDRAULIC BRAKE, SEE FOOTNOTE:
442 A 0014308501 BRAKE MASTER CYLINDER
TEVES
442 A 0024305301 BRAKE MASTER CYLINDER
KUGELFISCHER
443 A 0005455109 SWITCH
Repalced by: A 0005454309
443 A 0005454309 SWITCH
444 A 0009974235 PLUG
Repalced by: A 0009971186
444 A 0009971186 PLUG
TO 001 430 85 01
445 A 0004310835 CONNECTOR
TO 001 430 85 01
445 A 0009907371 ELBOW FITTING
TO 002 430 53 01
446 A 0005861843 REPAIR KIT
TO 001 430 85 01,TEVES
446 A 0005868743 REPAIR KIT
TO 002 430 53 01,KUGELFISCHER
447 A 0024305701 BRAKE MASTER CYLINDER
TEVES
447 A 0024305601 BRAKE MASTER CYLINDER
KUGELFISCHER
448 A 0005455109 SWITCH
Repalced by: A 0005454309
448 A 0005454309 SWITCH
449 A 0009974235 PLUG
Repalced by: A 0009971186
449 A 0009971186 PLUG
450 A 0004310835 CONNECTOR
450 A 0009907371 ELBOW FITTING
451 A 0005866143 REPAIR KIT
TO 002 430 57 01,TEVES
A 0005868843 REPAIR KIT
TO 002 430 56 01,KUGELFISCHER
453 A 0034301301 BRAKE MASTER CYLINDER
33X2.5 MM, 16.5 MM HUB, TEVES
454 A 0002950050 BUSHING
Repalced by: A 0004310950
454 A 0004310950 BUSHING
455 A 0009909071 ELBOW FITTING
456 A 0004310665 VALVE
Repalced by: A 0004205255
456 A 0004205255 BLEEDER VALVE
Repalced by: A 0004208755
456 A 0004208755 BLEEDER VALVE
457 A 0004316087 PROTECTIVE CAP
Repalced by: A 0004210887
457 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
457 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
457 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
457 A 0004210887 PROTECTIVE CAP
458 A 0015865443 REPAIR KIT
TO 003 430 13 01,TEVES
460 A 0049977682 HOSE
Repalced by: A 0029976782
460 A 0029977682 HOSE
Repalced by: A 0029976782
460 A 0069977882 HOSE
Repalced by: A 0029976782
460 A 0029976782 HOSE
Repalced by: A 4069977782
460 A 4069977782 HOSE
461 A 0009953344 CLAMP
Repalced by: A 0019978390
461 A 0019978390 LOOM TIE
FEED HOSE TO MEASURING LINE
N 912004008102 LOCK WASHER
MASTER CYLINDER TO BRAKE BOOSTER
463 N 000933008154 SCREW
Repalced by: N 304017008021
463 N 304017008021 SCREW
MASTER CYLINDER TO BRAKE BOOSTER
M 8X22
464 A 4062900639 ROD
464 A 4062900939 ROD
465 A 4212920097 BOOT
Repalced by: A 4212920197
465 A 4212920197 BOOT
466 A 0004312314 BRAKE CYLINDER
Repalced by: A 0004317414
466 A 0004314614 BRAKE CYLINDER
Repalced by: A 0004317414
466 A 0004317414 BRAKE BOOSTER
467 A 0005865743 REPAIR KIT
467 A 0015866943 REPAIR KIT
467 A 0005865843 REPAIR KIT
N 912004010102 LOCK WASHER
BRAKE BOOSTER TO CAB
469 N 000934010014 NUT
Repalced by: N 910112010001
469 N 910112010001 NUT
Repalced by: N 913023010002
469 N 913023010002 NUT
BRAKE BOOSTER TO CAB
470 A 4064201035 LINE
Repalced by: A 0004290701
470 A 4064201037 LINE
Repalced by: A 0004290701
470 A 0004290701 LINE
Repalced by: A 0004296201
470 A 0004296201 LINE
472 A 4064201137 LINE
Repalced by: A 0004290701
472 A 0004290701 LINE
Repalced by: A 0004296201
472 A 0004296201 LINE
473 A 3209922282 HOSE
474 A 4212950040 BRACKET
BRAKE HOSE
475 N 000933006183 SCREW
Repalced by: N 304017006016
475 N 304017006016 SCREW
BRACKET TO RADIATOR GRILLE
476 N 000125006421 WASHER
BRACKET TO RADIATOR GRILLE
Repalced by: N 000125006449
476 N 000125006449 WASHER
BRACKET TO RADIATOR GRILLE
N 912004006102 LOCK WASHER
BRACKET TO RADIATOR GRILLE
478 N 000934006007 NUT
BRACKET TO RADIATOR GRILLE
479 A 0004280473 BRACKET
Repalced by: A 6525040038
479 A 6525040038 MOUNTING PLATE
BRAKE HOSE
480 A 0004293635 BRAKE HOSE
Repalced by: A 0004293435
480 A 0004293435 BRAKE HOSE
Repalced by: A 0024286035
480 A 0024286035 BRAKE HOSE
480 A 0024286035 BRAKE HOSE
481 A 4064201135 LINE
Repalced by: A 0004290701
481 A 0004290701 LINE
Repalced by: A 0004296201
481 A 0004296201 LINE
481 A 4064203435 LINE
Repalced by: A 0004290701
481 A 4064203137 LINE
Repalced by: A 0004290701
481 A 4064201337 LINE
Repalced by: A 0004290701
481 A 0004290701 LINE
Repalced by: A 0004296201
481 A 0004296201 LINE
482 A 3049951020 CLAMP
482 A 3049951020 CLAMP
483 A 3609950101 CLAMP
Repalced by: A 3129951401
483 A 3129951401 CLAMP
BRAKE LINE TO CLUTCH LINE
483 A 3129951401 CLAMP
484 A 3209922282 HOSE
485 N 000933006183 SCREW
Repalced by: N 304017006016
485 N 304017006016 SCREW
BRAKE LINE TO CLUTCH LINE
N 912004006102 LOCK WASHER
BRAKE LINE TO CLUTCH LINE
486 N 000934006007 NUT
BRAKE LINE TO CLUTCH LINE
487 A 4064290440 SCREENING PLATE
(HEAT SHIELD)
487 A 4064290440 SCREENING PLATE
(HEAT SHIELD)
488 A 0009953344 CLAMP
Repalced by: A 0019978390
488 A 0019978390 LOOM TIE
BRAKE LINE TO CLUTCH LINE
A 3045460643 BRACKET
BRAKE LINE TO FRAME
489 N 000933005035 SCREW
BRAKE LINE TO FRAME
490 N 913004005001 NUT
Repalced by: N 913023005002
490 N 913023005002 NUT
BRAKE LINE TO FRAME
491 A 0004290437 DISTRIBUTOR
492 A 0004280032 SCREW PLUG
493 A 3274925419 BRACKET
Repalced by: A 6205240340
493 A 6205240340 BRACKET
DISTRIBUTOR TO FRAME
494 A 4064264640 BRACKET
Repalced by: A 3184280240
494 A 3184280240 BRACKET
495 N 000933008168 SCREW
DISTRIBUTOR TO BRACKET
N 912004008102 LOCK WASHER
DISTRIBUTOR TO BRACKET
496 N 304032008006 NUT
DISTRIBUTOR TO BRACKET
A 0004283635 BRAKE HOSE
Repalced by: A 0024286335
A 0024286335 BRAKE HOSE
FROM DISTRIBUTOR TO FRONT AXLE
497 A 0014280635 BRAKE HOSE
Repalced by: A 0024286335
497 A 0024286335 BRAKE HOSE
FROM DISTRIBUTOR TO FRONT AXLE
498 A 0014280935 BRAKE HOSE
Repalced by: A 0014288735
498 A 0014288735 BRAKE HOSE
Repalced by: A 0024282035
498 A 0024282035 BRAKE HOSE
Repalced by: A 0024285835
498 A 0024285835 BRAKE HOSE
499 A 3609951401 CLAMP
Repalced by: N 916016011202
499 N 916016011202 CLAMP
500 A 4064200628 LINE
Repalced by: A 3404200729
500 A 3404200729 LINE
6X0.7X500
500 A 4064201128 LINE
Repalced by: A 3404200829
500 A 3404200829 LINE
Repalced by: A 1093207753
500 A 1093207753 LINE
6X0.7X550 MM
501 A 3044760019 BASE
Repalced by: A 3142030084
501 A 3142030084 SHIM
LINE TO THRUST TUBE
502 N 912004006102 LOCK WASHER
LINE TO THRUST TUBE
503 N 000933006102 SCREW
LINE TO THRUST TUBE
504 A 4214280043 ANGLE
AT FRONT AXLE,FOR DISTRIBUTOR
505 A 4064280040 BRACKET
FOR DISTRIBUTOR
506 A 0004290437 DISTRIBUTOR
BRAKE LINE TO FRONT AXLE,LEFT & RIGHT
507 N 000933008168 SCREW
DISTRIBUTOR TO BRACKET
N 912004008102 LOCK WASHER
DISTRIBUTOR TO BRACKET
509 N 304032008006 NUT
DISTRIBUTOR TO BRACKET
510 A 4064200028 LINE
Repalced by: A 3404200729
510 A 3404200729 LINE
6X0.7X500 MM
510 A 4064201228 LINE
Repalced by: A 3404201029
510 A 3404201029 LINE
6X0.7X650
510 A 4064200128 LINE
Repalced by: A 3404201529
510 A 3404201529 LINE
6X0.7X900 MM
511 A 4064201328 LINE
Repalced by: A 3404201229
511 A 3404201229 LINE
6X0.7X750
512 A 0004287135 BRAKE HOSE
Repalced by: A 0014281735
512 A 0014281735 BRAKE HOSE
Repalced by: A 0024285735
512 A 0014280435 BRAKE HOSE
Repalced by: A 0024285735
512 A 0024285735 BRAKE HOSE
AT FRONT AXLE
513 A 0004280473 BRACKET
Repalced by: A 6525040038
513 A 6525040038 MOUNTING PLATE
514 A 4063350246 STOP
LEFT BRAKE HOSE TO STEERING KNUCKLE
515 A 4063350346 STOP
RIGHT BRAKE HOSE TO STEERING KNUCKLE
516 N 000933008152 SCREW
Repalced by: N 304017008027
516 N 304017008027 SCREW
DISTRIBUTOR TO BRACKET
517 N 912004008102 LOCK WASHER
DISTRIBUTOR TO BRACKET
518 N 304032008006 NUT
DISTRIBUTOR TO BRACKET
519 A 4064200828 LINE
Repalced by: A 3404200529
519 A 4064200928 LINE
Repalced by: A 3404200529
519 A 3404200529 LINE
6X0.7X400 MM
520 A 4064201235 LINE
Repalced by: A 0004290701
520 A 4064205737 LINE
Repalced by: A 0004290701
520 A 4064202035 LINE
Repalced by: A 0004290701
520 A 0004290701 LINE
Repalced by: A 0004296201
520 A 0004296201 LINE
521 A 4063350346 STOP
522 A 4164230094 BRACKET
Repalced by: A 4164230194
522 A 4164230194 BRACKET
523 A 0004280473 BRACKET
Repalced by: A 6525040038
523 A 6525040038 MOUNTING PLATE
524 A 0019971690 LOOM TIE
Repalced by: N 916017070000
524 N 916017070000 CLAMP
Repalced by: N 000000000674
524 N 000000000674 CLAMP
BRACKET TO CROSS MEMBER
525 A 0019972890 LOOM TIE
Repalced by: A 0009972290
525 A 0009972290 LOOM TIE
Repalced by: N 916017080000
525 N 916017080000 CLAMP
Repalced by: N 000000000675
525 N 000000000675 CLAMP
Repalced by: A 0059972990
525 A 0059972990 CLAMP
BRACKET TO CROSS MEMBER
A 0004287035 BRAKE HOSE
TEVES
526 A 0014280735 BRAKE HOSE
Repalced by: A 0024284035
526 A 0024284035 BRAKE HOSE
Repalced by: A 0024285935
526 A 0024285935 BRAKE HOSE
KUGELFISCHER
527 A 4164200028 LINE
Repalced by: A 3404202529
527 A 3404202529 LINE
6X0.7X1400 MM
527 A 4164200128 LINE
Repalced by: A 3404202629
527 A 4164200328 LINE
Repalced by: A 3404202629
527 A 3404202629 LINE
6X0.7X1450 MM
528 A 3044760019 BASE
Repalced by: A 3142030084
528 A 3142030084 SHIM
LINE TO THRUST TUBE
529 N 912004006102 LOCK WASHER
LINE TO THRUST TUBE
530 N 000933006102 SCREW
LINE TO THRUST TUBE
531 A 4214280043 ANGLE
532 A 4064280040 BRACKET
FOR DISTRIBUTOR
533 A 0004290437 DISTRIBUTOR
LEFT & RIGHT BRAKE LINES TO REAR AXLE
534 N 000933008152 SCREW
Repalced by: N 304017008027
534 N 304017008027 SCREW
DISTRIBUTOR TO BRACKET
535 N 912004008102 LOCK WASHER
DISTRIBUTOR TO BRACKET
536 N 304032008006 NUT
DISTRIBUTOR TO BRACKET
537 A 4064200228 LINE
Repalced by: A 3404202429
537 A 3404202429 LINE
6X0.7X1350 MM
537 A 4064201528 LINE
Repalced by: A 3404202329
537 A 3404202329 LINE
6X0.7X1300 MM
538 A 4064200328 LINE
Repalced by: A 3404201729
538 A 3404201729 LINE
6X0-7X1000 MM
538 A 4064201628 LINE
Repalced by: A 3404202229
538 A 3404202229 LINE
6X0.7X1250 MM
539 N 007603022102 SEAL RING
540 N 074313016204 FITTING
540 N 074313018201 FITTING
540 N 074313018201 FITTING
540 N 074313018201 FITTING
540 N 074313018201 FITTING
541 N 074313016203 FITTING
Repalced by: A 0019970172
541 A 0019970172 FITTING
Repalced by: A 0009970171
541 A 0009970171 FITTING
541 A 0009970171 FITTING
541 A 0009970171 FITTING
541 A 0009970171 FITTING
A 4064200226 LINE
Repalced by: A 4064290725
542 A 4064206726 LINE
18 MM
542 A 4064206726 LINE
18 MM
542 A 4064206726 LINE
18 MM
A 4064204726 LINE
Repalced by: A 4064290725
A 4064200737 LINE
Repalced by: A 4114293402
A 4064200737 LINE
Repalced by: A 4114293402
543 A 4069975882 HOSE
543 A 4069975882 HOSE
543 A 4069975882 HOSE
543 A 4069975882 HOSE
544 A 4069976582 HOSE
544 A 4069976582 HOSE
544 A 4069976582 HOSE
544 A 4069976582 HOSE
545 A 0009971390 LOOM TIE
Repalced by: N 916017020000
545 N 916017020000 CLAMP
Repalced by: N 000000000667
545 N 000000000667 CLAMP
545 N 000000000667 CLAMP
546 N 916017016000 CLAMP
Repalced by: N 000000000666
546 N 000000000666 CLAMP
A 4064200326 LINE
Repalced by: A 4064290725
A 4064206826 LINE
Repalced by: A 4064290725
A 4064206826 LINE
Repalced by: A 4064290725
A 4064201935 LINE
Repalced by: A 4064290725
A 4164209726 LINE
Repalced by: A 4064290725
A 4064208736 LINE
Repalced by: A 4114293402
A 4064208736 LINE
Repalced by: A 4114293402
549 A 4064260640 BRACKET
Repalced by: A 3874661240
549 A 3874661240 BRACKET
Repalced by: A 3044760335
549 A 3044760335 BRACKET
Repalced by: A 6205244040
549 A 6205244040 BRACKET
549 A 4064261040 BRACKET
Repalced by: A 6674710541
549 A 6674710541 BRACKET
550 A 4044290940 BRACKET
Repalced by: A 4164261240
550 A 4164261240 BRACKET
550 A 4164210594 BRACKET
551 A 3049950120 CLAMP
Repalced by: A 3609950601
551 A 3609950601 CLAMP
551 A 3609950601 CLAMP
551 A 3609950601 CLAMP
551 A 3609950601 CLAMP
552 A 3609950501 CLAMP
Repalced by: A 3609952001
552 A 3609952001 CLAMP
Repalced by: A 6739950001
552 A 6739950001 CLAMP
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
552 A 6739950001 CLAMP
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
552 A 3129952420 CLAMP
Repalced by: A 1109950401
552 A 1109950401 CLAMP
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
552 A 1109950401 CLAMP
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
552 A 1109950401 CLAMP
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
552 A 1109950401 CLAMP
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
553 N 000933005075 SCREW
Repalced by: N 304017005002
553 N 304017005002 SCREW
554 N 912004005103 LOCK WASHER
555 N 304032005002 NUT
Repalced by: N 304032005005
555 N 304032005005 NUT
556 N 000933006183 SCREW
Repalced by: N 304017006016
556 N 304017006016 SCREW
N 912004006102 LOCK WASHER
558 N 000934006007 NUT
559 N 007603026106 SEAL RING
559 N 007603026106 SEAL RING
560 N 007603022102 SEAL RING
560 N 007603022102 SEAL RING
561 N 074313018201 FITTING
561 N 074313018201 FITTING
562 N 074313016203 FITTING
Repalced by: A 0019970172
562 A 0019970172 FITTING
Repalced by: A 0009970171
562 A 0009970171 FITTING
562 A 0009970171 FITTING
563 A 0004313006 VALVE
Repalced by: A 0004317906
563 A 0004317906 PRESSURE REGULATOR
Repalced by: A 0024316006
563 A 0024316006 PRESSURE REGULATOR
Repalced by: A 0024315906
563 A 0024315906 PRESSURE REGULATOR
563 A 0004317906 PRESSURE REGULATOR
Repalced by: A 0024316006
563 A 0024316006 PRESSURE REGULATOR
Repalced by: A 0024315906
563 A 0024315906 PRESSURE REGULATOR
564 A 0004313834 STRAINER
565 A 0005867743 REPAIR KIT
TO 000 431 79 06
566 A 0014312906 PRESSURE REGULATOR
Repalced by: A 0034316006
566 A 0034316006 VALVE
566 A 0034316006 VALVE
566 A 0034316006 VALVE
566 A 0034316006 VALVE
567 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
567 A 0024314906 PRESSURE REGULATOR
(PRESSURE CONTROL VALVE)
WABCO
567 A 0024314306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
BOSCH
568 A 0015865743 REPAIR KIT
TO 001 431 29 06
569 A 0014304960 REPAIR KIT
TO 002 431 49 06
569 A 0004301768 REPAIR KIT
PARTS KIT
TO 002 431 43 06
569 A 0024304681 REPAIR KIT
VALVE
TO 001 431 00 06
570 A 0004307960 REPAIR KIT
GASKET KIT
TO 002 431 43 06
571 A 4064310240 BRACKET
PRESSURE REGULATOR
571 A 4064310240 BRACKET
571 A 4064310240 BRACKET
571 A 4064310940 BRACKET
PRESSURE REGULATOR
572 N 000933010164 SCREW
BRACKET TO FRAME
572 N 000933010164 SCREW
BRACKET TO FRAME
N 912004010102 LOCK WASHER
BRACKET TO FRAME
N 912004010102 LOCK WASHER
BRACKET TO FRAME
573 N 000934010014 NUT
Repalced by: N 910112010001
573 N 910112010001 NUT
Repalced by: N 913023010002
573 N 913023010002 NUT
BRACKET TO FRAME
573 N 913023010002 NUT
BRACKET TO FRAME
574 N 000933008153 SCREW
Repalced by: N 304017008034
574 N 304017008034 SCREW
PRESSURE REGULATOR TO BRACKET
574 N 304017008034 SCREW
PRESSURE REGULATOR TO BRACKET
574 N 304017008034 SCREW
PRESSURE REGULATOR TO BRACKET
575 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
575 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
N 912004008102 LOCK WASHER
PRESSURE REGULATOR TO BRACKET
576 N 304032008006 NUT
PRESSURE REGULATOR TO BRACKET
578 N 007603022100 SEAL RING
579 N 074313016203 FITTING
Repalced by: A 0019970172
579 A 0019970172 FITTING
Repalced by: A 0009970171
579 A 0009970171 FITTING
579 A 0009970171 FITTING
579 A 0009970171 FITTING
PRESSURE REGULATOR TO AIR RESERVOIR
580 N 074313010101 FITTING
A 4164204126 LINE
Repalced by: A 0005516256
A 4164209826 LINE
Repalced by: A 0005516256
A 4164201736 LINE
Repalced by: A 0004292301
A 4164202236 LINE
Repalced by: A 0004292301
A 4164204536 LINE
Repalced by: A 0004292301
A 4164204936 LINE
Repalced by: A 0004292301
586 N 074313016203 FITTING
Repalced by: A 0019970172
586 A 0019970172 FITTING
Repalced by: A 0009970171
586 A 0009970171 FITTING
587 N 003902010002 CONNECTION FITTING
Repalced by: A 0049971672
587 A 0049971672 FITTING
587 A 0049971672 FITTING
587 A 0049971672 FITTING
A 4164204226 LINE
Repalced by: A 0005516256
A 4164209926 LINE
Repalced by: A 0005516256
A 4064201335 LINE
Repalced by: A 0005516256
A 4164202336 LINE
Repalced by: A 0004292301
A 4164204636 LINE
Repalced by: A 0004292301
A 4164205036 LINE
Repalced by: A 0004290801
588 A 4069875042 SPACER
588 A 4069875042 SPACER
588 A 4069875042 SPACER
FROM PRESSURE REGULATOR TO AIR RESERVOIR
589 A 4244680140 BRACKET
BRAKE LINE TO SIDE MEMBER
590 N 000933010128 SCREW
Repalced by: N 910105010006
590 N 910105010006 SCREW
BRAKE LINE TO SIDE MEMBER
591 N 913004010008 NUT
Repalced by: N 913023010003
591 N 913023010003 NUT
592 A 3609952001 CLAMP
Repalced by: A 6739950001
592 A 6739950001 CLAMP
BRAKE LINE TO SIDE MEMBER
593 N 000933006102 SCREW
BRAKE LINE TO SIDE MEMBER
594 N 912004006102 LOCK WASHER
BRAKE LINE TO SIDE MEMBER
595 N 000934006007 NUT
BRAKE LINE TO SIDE MEMBER
596 A 4069875242 SPACER
596 A 4069875242 SPACER
596 A 4069875242 SPACER
596 A 4069875242 SPACER
597 A 0089975482 HOSE
AIR RESERVOIR,REAR CONNECTION
598 A 0039971572 FITTING
Repalced by: N 915059008000
598 N 915059008001 FITTING
AIR RESERVOIR,REAR CONNECTION
599 N 915052008019 BANJO UNION
AIR RESERVOIR,REAR CONNECTION
600 N 074301022203 ELBOW FITTING
AT AIR RESERVOIR
601 N 080705022001 NUT
602 A 0004290227 THRUST RING
Repalced by: A 0009940203
602 A 0009940203 THRUST RING
603 A 0009870446 O-RING
20.30X2.40
604 N 007603022102 SEAL RING
604 N 007603002102 SEAL RING
604 N 007603022102 SEAL RING
605 N 074313016203 FITTING
Repalced by: A 0019970172
605 A 0019970172 FITTING
Repalced by: A 0009970171
605 A 0009970171 FITTING
605 A 0009970171 FITTING
605 A 0009970171 FITTING
606 N 074313010101 FITTING
606 N 074313010101 FITTING
607 A 0009905168 FITTING
Repalced by: A 0049903068
607 A 0049903068 FITTING
AT AIR RESERVOIR
608 A 0004290227 THRUST RING
Repalced by: A 0009940203
608 A 0009940203 THRUST RING
AT AIR RESERVOIR
608 A 0004290227 THRUST RING
Repalced by: A 0009940203
608 A 0009940203 THRUST RING
AT AIR RESERVOIR
609 A 0009870446 O-RING
AT AIR RESERVOIR
609 A 0009870446 O-RING
AT AIR RESERVOIR
610 N 915036012203 HOLLOW SCREW
AT AIR RESERVOIR
611 N 007603016401 SEAL RING
AT AIR RESERVOIR
612 A 4064300605 RESERVOIR
Repalced by: A 0034327701
612 A 0034327701 RESERVOIR
27 L.
613 A 4064300305 RESERVOIR
10 L.
614 N 074348020001 AIR RESERVOIR
20 L.
614 A 4244300305 RESERVOIR
615 N 007604022102 SCREW PLUG
AT AIR RESERVOIR
M 22X1.5
616 N 007603022102 SEAL RING
617 N 074313016203 FITTING
Repalced by: A 0019970172
617 A 0019970172 FITTING
Repalced by: A 0009970171
617 A 0009970171 FITTING
AIR RESERVOIR
618 N 080705022001 NUT
AIR RESERVOIR
619 A 0004290227 THRUST RING
Repalced by: A 0009940203
619 A 0009940203 THRUST RING
AIR RESERVOIR
620 A 0009870446 O-RING
621 A 4164290340 BRACKET
AIR RESERVOIR TO FRAME
622 N 916017070000 CLAMP
Repalced by: N 000000000674
622 N 000000000674 CLAMP
AIR RESERVOIR TO FRAME
622 N 000000000674 CLAMP
623 N 074305022102 HOLLOW SCREW
Repalced by: A 3469970230
623 A 3469970230 SCREW PLUG
623 A 3469970230 SCREW PLUG
623 A 3469970230 SCREW PLUG
624 A 0004320807 VALVE
DRAIN VALVE
WESTINGHOUSE
624 A 0004321107 VALVE
DRAIN VALVE
VOSS
Repalced by: A 0004322407
624 A 0004322407 DRAIN VALVE
DRAIN VALVE
VOSS
Repalced by: A 0004322107
624 A 0004322107 DRAIN VALVE
DRAIN VALVE
VOSS
624 A 0004322107 VALVE
DRAIN VALVE
AUCO
624 A 0004321507 VALVE
Repalced by: A 0004322407
624 A 0004322407 VALVE
DRAIN VALVE
WIRA
Repalced by: A 0004322107
624 A 0004322107 DRAIN VALVE
DRAIN VALVE
WIRA
625 A 0004311431 TEST CONNECTION
626 A 0004311431 TEST CONNECTION
Repalced by: A 0004312031
626 A 0004312031 TEST CONNECTION
626 A 0004312031 TEST CONNECTION
626 A 0004314531 TEST CONNECTION
626 A 0004314531 TEST CONNECTION
627 A 0039972072 FITTING
TEST CONNECTION
628 A 4164200086 BRACKET
Repalced by: A 4164200286
628 A 4164200286 BRACKET
Repalced by: A 4164201886
628 A 4164201886 BRACKET
AIR RESERVOIR TO FRAME
629 A 4164200486 BRACKET
629 A 4424200186 BRACKET
AIR RESERVOIR
630 N 000934010014 NUT
Repalced by: N 910112010001
630 N 910112010001 NUT
Repalced by: N 913023010002
630 N 913023010002 NUT
631 A 4164202286 BRACKET
632 N 000933008147 SCREW
Repalced by: N 304017008021
632 N 304017008021 SCREW
BRACKET TO FRAME
633 N 913004008004 NUT
Repalced by: N 913003008003
633 N 913003008003 PART NAME MISSING
Repalced by: N 913023008003
633 N 913023008003 NUT
Repalced by: N 913023008002
633 N 913023008002 NUT
BRACKET TO FRAME
634 N 000933010129 SCREW
Repalced by: N 910105010001
634 N 910105010001 SCREW
BRACKET TO LEFT SIDE MEMBER
635 N 913004010008 NUT
Repalced by: N 913023010003
635 N 913023010003 NUT
BRACKET TO LEFT SIDE MEMBER
636 N 009021010202 WASHER
Repalced by: N 009021010209
636 N 009021010209 WASHER
BRACKET TO LEFT SIDE MEMBER
637 N 000961012151 SCREW
Repalced by: N 910105012007
637 N 910105012007 SCREW
BRACKET TO LEFT SIDE MEMBER
638 N 913004012008 NUT
Repalced by: N 913023012003
638 N 913023012003 NUT
BRACKET TO LEFT SIDE MEMBER
639 N 000933010129 SCREW
Repalced by: N 910105010001
639 N 910105010001 SCREW
AIR RESERVOIR TO FRAME
N 912004010102 LOCK WASHER
AIR RESERVOIR TO FRAME
641 N 000934010014 NUT
Repalced by: N 910112010001
641 N 910112010001 NUT
Repalced by: N 913023010002
641 N 913023010002 NUT
AIR RESERVOIR TO FRAME
N 912004010102 LOCK WASHER
STRAP TO BRACKET
643 N 000934010014 NUT
Repalced by: N 910112010001
643 N 910112010001 NUT
Repalced by: N 913023010002
643 N 913023010002 NUT
STRAP TO BRACKET
644 N 074302022304 T-FITTING
645 N 007603022102 SEAL RING
645 N 007603022102 SEAL RING
646 N 074313016203 FITTING
Repalced by: A 0019970172
646 A 0019970172 FITTING
Repalced by: A 0009970171
646 A 0009970171 FITTING
647 N 074313010101 FITTING
A 4064200526 LINE
Repalced by: A 0005516256
A 4064208326 LINE
Repalced by: A 0004292301
A 4164204437 LINE
Repalced by: A 0004292301
A 4164202436 LINE
Repalced by: A 0004292301
A 4064201435 LINE
Repalced by: A 0005516256
A 4164200036 LINE
Repalced by: A 0005516256
650 N 074302022202 T-FITTING
651 N 003908010004 T-FITTING
A 4064206926 LINE
Repalced by: A 0005516256
A 4064209236 LINE
Repalced by: A 4064297709
A 4064200236 LINE
Repalced by: A 0005516256
654 A 4064200048 BRAKE HOSE
655 A 4069877943 HOSE
420 MM
656 N 900288017001 CLAMP
656 A 0009971190 LOOM TIE
Repalced by: N 916017011000
656 N 916017011000 CLAMP
Repalced by: N 916017011001
656 N 000000000665 CLAMP
657 A 4049970982 HOSE
350 MM
658 A 4064201537 LINE
10 MM
659 N 007603018104 SEAL RING
660 A 4214310153 SPACER TUBE
661 A 4219905563 HOLLOW SCREW
662 A 4064261140 BRACKET
Repalced by: A 4064265540
662 A 4064261140 BRACKET
Repalced by: A 4064265540
662 A 4064265540 BRACKET
Repalced by: A 4064265440
662 A 4064265440 BRACKET
BRACKET TO FRAME
663 N 000931010258 SCREW
Repalced by: N 910105010021
663 N 910105010021 SCREW
Repalced by: N 910105010017
663 N 910105010017 SCREW
BRACKET TO FRAME
N 912004010102 LOCK WASHER
BRACKET TO FRAME
665 N 000934010014 NUT
Repalced by: N 910112010001
665 N 910112010001 NUT
Repalced by: N 913023010002
665 N 913023010002 NUT
BRACKET TO FRAME
666 A 3039950232 CLAMP
SUPPLY LINE TO FRAME
667 A 3129973782 HOSE
668 A 0009972190 LOOM TIE
Repalced by: N 916017070000
668 N 916017060000 CLAMP
Repalced by: N 000000000673
668 N 000000000673 CLAMP
669 A 3049950220 CLAMP
Repalced by: A 3129952420
669 A 3129952420 CLAMP
Repalced by: A 1109950401
669 A 1109950401 CLAMP
670 N 000000001147 SCREW
SUPPLY LINE TO FRAME
M 6X20
671 N 913004006002 NUT
Repalced by: N 913023006001
671 N 913023006001 NUT
SUPPLY LINE TO FRAME
672 A 3609950301 CLAMP
673 N 000933006127 SCREW
COMPRESSED AIR LINE TO BRACKET
N 912004006102 LOCK WASHER
COMPRESSED AIR LINE TO BRACKET
675 N 000934006007 NUT
COMPRESSED AIR LINE TO BRACKET
A 3204340440 BRACKET
Repalced by: A 3812950440
676 A 3812950440 BRACKET
677 A 3049951520 CLAMP
Repalced by: A 1009950420
677 A 1009950420 CLAMP
678 N 000933006183 SCREW
Repalced by: N 304017006016
678 N 304017006016 SCREW
HOSE LINE TO RADIATOR GRILLE
N 912004006102 LOCK WASHER
HOSE LINE TO RADIATOR GRILLE
680 N 000125006421 WASHER
HOSE LINE TO RADIATOR GRILLE
Repalced by: N 000125006449
680 N 000125006449 WASHER
HOSE LINE TO RADIATOR GRILLE
681 N 000934006007 NUT
HOSE LINE TO RADIATOR GRILLE
682 A 4214207536 LINE
15 MM
683 A 4214310053 SPACER TUBE
684 N 007603018104 SEAL RING
685 A 4219905263 HOLLOW SCREW
686 A 4214310153 SPACER TUBE
687 A 4219905463 HOLLOW SCREW
688 N 007603022102 SEAL RING
LINE TO BRAKE BOOSTER
689 N 074301022203 ELBOW FITTING
LINE TO BRAKE BOOSTER
690 N 007603022102 SEAL RING
AT BRAKE BOOSTER
691 N 007603010112 SEAL RING
AT BRAKE BOOSTER
692 A 0004291034 ADAPTER FITTING
Repalced by: N 074313006100
692 N 074313006100 FITTING
Repalced by: A 0039972072
692 A 0039972072 FITTING
AT BRAKE BOOSTER
693 N 915036006202 HOLLOW SCREW
AT BRAKE BOOSTER
693 N 915036006202 HOLLOW SCREW
693 N 915036006202 HOLLOW SCREW
694 N 915012004001 HOLLOW SCREW FITTING
A 4064206237 LINE
Repalced by: A 4214201726
697 N 915010004202 BANJO UNION
A 4214200145 LINE
Repalced by: A 0004290701
701 N 915010004202 BANJO UNION
701 N 915010004202 BANJO UNION
A 0004291532 T-FITTING
Repalced by: N 003908006001
703 A 0009903470 T-FITTING
Repalced by: N 000000006204
703 N 000000006204 FITTING
704 A 3209970286 PLUG
705 N 915017006100 UNION NUT
706 A 0005511756 TUBE
140 MM LONG FROM BUNDY TUBING TO INSTRUMENT CLUSTER
707 A 0005511656 TUBE
490 MM FROM BUNDY TUBING TO INSTRUMENT CLUSTER
708 A 4064260640 BRACKET
Repalced by: A 3874661240
708 A 3874661240 BRACKET
Repalced by: A 3044760335
708 A 3044760335 BRACKET
Repalced by: A 6205244040
708 A 6205244040 BRACKET
LINE TO SIDE MEMBER
709 A 4115520054 MOUNTING PLATE
LINE TO SIDE MEMBER
710 A 3379950132 CLAMP
710 A 3379950032 CLAMP
711 A 3044760019 BASE
Repalced by: A 3142030084
711 A 3142030084 SHIM
712 A 3255460343 BRACKET
LINE TO RIGHT TOEBOARD SUPPORT
713 A 0005510656 TUBE
FROM ENGINE TO INSTRUMENT CLUSTER,OIL PRESSURE GAUGE
714 A 4064290725 LINE
18X1,5MM
715 N 915018018000 UNION NUT
716 N 003861018003 GLAND
Repalced by: A 0019901167
716 A 0019901167 SEAL CONE
717 N 915065018101 THRUST RING
718 N 074297014400 SEAL RING
Repalced by: A 0004291584
718 A 0004291584 SEAL RING
Repalced by: N 007603018104
718 N 007603018104 SEAL RING
719 A 4114293402 LINE
Repalced by: A 0005516256
719 A 0005516256 TUBE
15X1,5MM
720 N 915018015000 UNION NUT
721 N 003861015004 GLAND
722 N 915065015101 THRUST RING
N 007603015102 SEAL RING
723 N 074301022203 ELBOW FITTING
COMPRESSED AIR LINE TO PRESSURE REGULATOR
724 A 0004290227 THRUST RING
Repalced by: A 0009940203
724 A 0009940203 THRUST RING
COMPRESSED AIR LINE TO PRESSURE REGULATOR
725 A 0009870446 O-RING
COMPRESSED AIR LINE TO PRESSURE REGULATOR
726 N 080705022001 NUT
COMPRESSED AIR LINE TO PRESSURE REGULATOR
A 0004292084 SEAL RING
Repalced by: N 915045012100
727 N 007603014104 SEAL RING
728 A 0004290801 LINE
8X0,7MM
728 A 0099979382 PLASTIC PIPE
8X4 MM
729 N 915052004016 BANJO UNION
730 A 4064297709 LINE
730 A 0004292301 LINE
FROM FITTING TO HOSE IN CAB
10X1X3408 MM
730 A 0004292301 LINE
10X1X3000 MM
731 N 915017010100 UNION NUT
732 N 003861010009 GLAND
733 A 4214201726 LINE
DELIVERY LINE TO PRESSURE GAUGE, "SUPPLY"
6X0,7MM
733 A 4214201726 LINE
DELIVERY LINE TO PRESSURE GAUGE, "BRAKE"
733 A 0004290701 LINE
Repalced by: A 0004296201
733 A 0004296201 LINE
6X0,7MM
734 N 915017006100 UNION NUT
DELIVERY LINE TO PRESSURE GAUGE, "SUPPLY"
734 N 915017006100 UNION NUT
DELIVERY LINE TO PRESSURE GAUGE, "BRAKE"
735 N 003861006007 GLAND
Repalced by: A 0019901667
735 A 0019901667 SEAL CONE
DELIVERY LINE TO PRESSURE GAUGE, "SUPPLY"
735 A 0019901667 SEAL CONE
DELIVERY LINE TO PRESSURE GAUGE, "BRAKE"
736 A 0004280072 UNION SCREW
736 A 0004280072 UNION SCREW
TRAILER BRAKE
737 N 007603022102 SEAL RING
738 N 074313016401 FITTING
Repalced by: A 0019972372
738 A 0019972372 FITTING
739 N 080705022001 NUT
740 A 0004290227 THRUST RING
Repalced by: A 0009940203
740 A 0009940203 THRUST RING
741 A 0009870446 O-RING
743 A 0004291444 VALVE
Repalced by: A 0014296644
743 A 0014296644 VALVE
745 A 0005863542 REPAIR KIT
748 N 007603022102 SEAL RING
749 N 074305022102 HOLLOW SCREW
AT PRESSURE CONTROL VALVE
751 N 074313016203 FITTING
Repalced by: A 0019970172
751 A 0019970172 FITTING
Repalced by: A 0009970171
751 A 0009970171 FITTING
A 4164203826 LINE
Repalced by: A 0005516256
755 N 007603022102 SEAL RING
756 N 074313016203 FITTING
Repalced by: A 0019970172
756 A 0019970172 FITTING
Repalced by: A 0009970171
756 A 0009970171 FITTING
AT SHUT-OFF COCK
758 A 0004291031 SHUT-OFF COCK
Repalced by: A 0004291531
758 A 0004291531 SHUT-OFF COCK
Repalced by: A 0004291431
758 A 0004291431 SHUT-OFF COCK
759 N 074302022304 T-FITTING
761 N 304014008004 SCREW
Repalced by: N 304014008001
761 N 304014008001 SCREW
SHUT-OFF COCK TO FIFTH WHEEL UPPER PLATE
762 N 912004008102 LOCK WASHER
763 N 304032008006 NUT
765 N 080705022001 NUT
766 A 0004290227 THRUST RING
Repalced by: A 0009940203
766 A 0009940203 THRUST RING
T-FITTING TO SHUT-OFF COCK AND TO BRAKE LINE COUPLING,RESP.
767 A 0009870446 O-RING
T-FITTING TO SHUT-OFF COCK AND TO BRAKE LINE COUPLING,RESP.
A 4164203926 LINE
Repalced by: A 0005516256
773 A 0004296644 VALVE
(RELAY VALVE)
775 A 0005866042 REPAIR KIT
777 A 4064261340 BRACKET
779 N 000933010105 SCREW
Repalced by: N 910105010009
779 N 910105010009 SCREW
780 N 912004010102 LOCK WASHER
781 N 000934010014 NUT
Repalced by: N 910112010001
781 N 910112010001 NUT
Repalced by: N 913023010002
781 N 913023010002 NUT
783 N 007603022102 SEAL RING
784 N 074313016203 FITTING
Repalced by: A 0019970172
784 A 0019970172 FITTING
Repalced by: A 0009970171
784 A 0009970171 FITTING
786 N 074305022102 HOLLOW SCREW
788 A 4064200148 BRAKE HOSE
A 4064203026 LINE
Repalced by: A 0005516256
A 4164204026 LINE
Repalced by: A 0005516256
795 A 3039950232 CLAMP
797 A 4064261740 BRACKET
800 N 000933010105 SCREW
Repalced by: N 910105010009
800 N 910105010009 SCREW
801 N 912004010102 LOCK WASHER
BRACKET TO FIFTH WHEEL UPPER PLATE
802 N 000934010014 NUT
Repalced by: N 910112010001
802 N 910112010001 NUT
Repalced by: N 913023010002
802 N 913023010002 NUT
BRACKET TO FIFTH WHEEL UPPER PLATE
803 N 074313016401 FITTING
Repalced by: A 0019972372
803 A 0019972372 FITTING
AT BRAKE LINE COUPLING
804 N 080705022001 NUT
805 A 0004290227 THRUST RING
Repalced by: A 0009940203
805 A 0009940203 THRUST RING
806 A 0009870446 O-RING
807 A 0004292230 BRAKE LINE COUPLING
Repalced by: A 0004292830
807 A 0004292830 BRAKE LINE COUPLING
808 A 0004290327 THRUST RING
Repalced by: A 0004292184
808 A 0004292184 SEAL RING
810 N 071803013102 BALL STUD
Repalced by: N 000000004468
810 N 000000004468 BALL STUD
811 N 071803016101 BALL PIVOT
812 N 912004008102 LOCK WASHER
813 N 912004010102 LOCK WASHER
814 N 304032008006 NUT
816 N 000934010014 NUT
Repalced by: N 910112010001
816 N 910112010001 NUT
Repalced by: N 913023010002
816 N 913023010002 NUT
817 A 4064260430 ROD
819 A 4069910022 BALL SOCKET
820 N 071805013302 SNAP RING
821 A 0009916222 BALL SOCKET
823 N 071805016300 SNAP RING
824 N 304032008006 NUT
825 N 000934010009 NUT
Repalced by: N 910112010001
825 N 910112010001 NUT
Repalced by: N 913023010002
825 N 913023010002 NUT
827 N 071805013402 CIRCLIP
828 N 071805016402 CIRCLIP
830 N 915018015000 UNION NUT
831 N 003861015004 GLAND
832 N 915065015101 THRUST RING
A 0004292084 SEAL RING
Repalced by: N 915045012100
833 N 007603014104 SEAL RING
834 A 0004296344 VALVE
Repalced by: A 0014295244
834 A 0014295244 VALVE
(OVERFLOW VALVE)
A 0004297544 VALVE
Repalced by: A 0014299844
A 0014299844 VALVE
(OVERFLOW VALVE)
A 0005863642 REPAIR KIT
Repalced by: A 0005865842
A 0005865842 REPAIR KIT
835 A 0015862042 REPAIR KIT
TO 001 429 52 44
836 N 080705022001 NUT
837 A 0004290227 THRUST RING
Repalced by: A 0009940203
837 A 0009940203 THRUST RING
839 A 0009870446 O-RING
840 N 007603022102 SEAL RING
841 N 074313010101 FITTING
842 N 007603022102 SEAL RING
843 A 0004291034 ADAPTER FITTING
Repalced by: N 074313006100
843 N 074313006100 FITTING
Repalced by: A 0039972072
843 A 0039972072 FITTING
844 A 4064200336 LINE
Repalced by: A 0004290701
844 A 4064203836 LINE
Repalced by: A 0004290701
844 A 0004290701 LINE
Repalced by: A 0089976082
844 A 0089976082 HOSE
Repalced by: A 0009872627
844 A 0009872627 PLASTIC PIPE
4X6 MM
845 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
846 A 0009920105 BUSHING
Repalced by: N 915062004000
846 N 915062004000 SLEEVE
847 N 915059004001 FITTING
HOSE LINE
848 A 0004300409 VALVE
Repalced by: A 0004340501
848 A 0007631252 VALVE
Repalced by: A 0004340501
848 A 0004340501 VALVE
Repalced by: A 0004342301
848 A 0004342301 VALVE
3/2-WAY VALVE
A 0004317387 PROTECTIVE CAP
TO 000 434 05 01
A 0003280191 CLEANER
TO 000 434 23 01
849 A 0004340586 CUP
TO 000 434 23 01
850 A 0079972448 SEAL RING
TO 000 434 23 01
851 A 0079972548 SEAL RING
TO 000 434 23 01
A 0009971977 HANDLE
TO 000 434 23 01
852 A 0005866443 REPAIR KIT
TO 000 763 12 52
852 A 0005869743 REPAIR KIT
TO 000 434 05 01
852 A 0025869843 REPAIR KIT
TO 000 434 23 01
853 N 007603012405 SEAL RING
854 N 074298012202 DOUBLE FITTING
Repalced by: A 0019972872
854 A 0019972872 FITTING
Repalced by: A 0039979072
854 A 0039979072 FITTING
Repalced by: A 0029906071
854 A 0029906071 FITTING
855 A 4062670040 BRACKET
856 N 074305026202 NUT
857 A 4063500390 DISTRIBUTOR
857 A 0009902878 CONNECTOR
Repalced by: A 0029901670
857 A 0029901670 T-FITTING
858 A 4063380082 RUBBER RING
Repalced by: A 3209922282
858 A 3209922282 HOSE
859 A 3120780185 PIPE BRACKET
859 A 3120780185 PIPE BRACKET
860 A 3609950101 CLAMP
Repalced by: A 3129951401
860 A 3129951401 CLAMP
860 A 3609950401 CLAMP
861 A 0009953344 CLAMP
Repalced by: A 0019978390
861 A 0019978390 LOOM TIE
862 N 000933005075 SCREW
Repalced by: N 304017005002
862 N 304017005002 SCREW
LINE MOUNTING
863 N 912004005103 LOCK WASHER
LINE MOUNTING
864 N 304032005002 NUT
Repalced by: N 304032005005
864 N 304032005005 NUT
LINE MOUNTING
865 A 3044280081 RUBBER PAD
Repalced by: A 3129973482
865 A 3129973482 HOSE
866 A 0019979590 LOOM TIE
Repalced by: A 0019978390
866 A 0019978390 LOOM TIE
867 A 0029977190 LOOM TIE
Repalced by: N 916017100000
867 N 000000000676 CLAMP
Repalced by: N 000000005890
867 N 000000005890 CLAMP
867 A 4049951201 CLAMP
Repalced by: A 3609951101
867 A 3609951101 CLAMP
868 A 3609951001 CLAMP
HOSE TO REAR AXLE
868 A 3609951201 CLAMP
BREATHER LINE TO REAR AXLE
869 A 6034280184 SHIM
REAR THRUST TUBE
870 N 912004010102 LOCK WASHER
871 N 000933010111 SCREW
872 A 4069970082 HOSE
Repalced by: A 4069976182
872 A 4069976182 HOSE
5 X 9 X 220 MM
A 4063300482 LINE
Repalced by: A 0004290701
A 4063300682 LINE
Repalced by: A 0004290701
A 4163500080 LINE
Repalced by: A 0004290701
A 4163500180 LINE
Repalced by: A 0004290701
A 4163500280 LINE
Repalced by: A 0089976082
A 4164204736 LINE
Repalced by: A 0004290701
873 A 3609950201 CLAMP
Repalced by: A 3604300143
873 A 3604300143 CLAMP
Repalced by: N 916016008200
873 N 916016008200 CLAMP
Repalced by: N 000000000319
873 N 000000000319 CLAMP
873 N 916016006208 CLAMP
873 N 916016008201 CLAMP
874 A 6034280284 SHIM
FRONT THRUST TUBE
875 N 000933006102 SCREW
876 N 912004006102 LOCK WASHER
877 N 000934006007 NUT
878 A 3044760019 BASE
Repalced by: A 3142030084
878 A 3142030084 SHIM
BRAKE LINE & DIFFERENTIAL LOCK LINE TO THRUST TUBE
N 912004006102 LOCK WASHER
BRAKE LINE & DIFFERENTIAL LOCK LINE TO THRUST TUBE
879 N 000933006102 SCREW
BRAKE LINE & DIFFERENTIAL LOCK LINE TO THRUST TUBE
879 N 000933006147 SCREW
BRAKE LINE & DIFFERENTIAL LOCK LINE TO THRUST TUBE
880 A 0009900567 SEAL CONE
881 N 916016006208 CLAMP
882 N 000084005180 SCREW
Repalced by: N 007985005175
882 N 007985005175 SCREW
883 N 304032005002 NUT
Repalced by: N 304032005005
883 N 304032005005 NUT
884 N 912004005103 LOCK WASHER
885 N 915017006100 UNION NUT
886 N 003861006007 GLAND
Repalced by: A 0019901667
886 A 0019901667 SEAL CONE
887 N 915017006100 UNION NUT
888 N 900288010001 CLAMP
RUBBER HOSE TO LINE
889 A 4064200168 SUPPORT
890 A 4214270174 PIN
891 A 4219930001 SPRING
892 N 001476002006 GROOVED NAIL
893 A 4062600139 SHIFT LEVER
894 N 071412010200 GREASE NIPPLE
895 N 000471018000 LOCK RING
896 A 4164200168 SUPPORT
896 A 4064200468 SUPPORT
897 A 4219925003 BUSHING
898 A 4212670046 SHIFTING SEGMENT
899 N 000933008153 SCREW
Repalced by: N 304017008034
899 N 304017008034 SCREW
900 N 912004008102 LOCK WASHER
901 N 304032008006 NUT
902 A 4062601839 SHIFT LEVER
902 A 4162600139 SHIFT LEVER
903 A 4212600141 FOLLOWER
904 A 4212670085 SPRING RETAINER
905 A 4219935001 SPRING
906 N 001475012000 GROOVED PIN
907 A 4219885080 FASTENER BUTTON
908 N 000471016001 LOCK RING
Repalced by: A 0079942041
908 A 0079942041 LOCK
909 N 000125017010 WASHER
Repalced by: N 000125017016
909 N 000125017016 WASHER
910 N 912004010102 LOCK WASHER
911 N 000933010164 SCREW
912 N 000933010238 SCREW
Repalced by: N 304017010028
912 N 304017010028 HEXAGON HEAD BOLT
913 N 000934010014 NUT
Repalced by: N 910112010001
913 N 910112010001 NUT
Repalced by: N 913023010002
913 N 913023010002 NUT
914 A 4114270012 GUIDE
915 A 4049930005 SPRING
916 A 4044270031 ROD
917 N 000125010518 WASHER
Repalced by: N 000125010532
917 N 000125010532 WASHER
918 N 000094002076 COTTER PIN
919 N 000433013005 WASHER
Repalced by: N 000433013010
919 N 000433013010 WASHER
920 A 4112610140 BRACKET
921 N 000094003219 COTTER PIN
922 A 4062650039 BRACKET
923 N 000931008047 SCREW
Repalced by: N 304017008018
923 N 304017008018 SCREW
924 N 912004008102 LOCK WASHER
925 N 304032008006 NUT
926 A 4064202486 BRACKET
PNEUMATIC VALVE
927 A 4064200778 BEARING BRACKET
928 A 3609950401 CLAMP
DIFFERENTIAL-LOCK COMPRESSED AIR LINE
928 A 3609950301 CLAMP
DIFFERENTIAL-LOCK COMPRESSED AIR LINE
928 A 3609950101 CLAMP
Repalced by: A 3129951401
928 A 3129951401 CLAMP
DIFFERENTIAL-LOCK COMPRESSED AIR LINE
929 A 4164230194 BRACKET
DIFFERENTIAL-LOCK COMPRESSED AIR LINE
930 N 916017060000 CLAMP
Repalced by: N 000000000673
930 N 000000000673 CLAMP
DIFFERENTIAL-LOCK COMPRESSED AIR LINE
931 N 000933006183 SCREW
Repalced by: N 304017006016
931 N 304017006016 SCREW
DIFFERENTIAL-LOCK COMPRESSED AIR LINE
N 912004006102 LOCK WASHER
DIFFERENTIAL-LOCK COMPRESSED AIR LINE
932 N 000934006007 NUT
DIFFERENTIAL-LOCK COMPRESSED AIR LINE
933 A 4064201674 ROD
POWER CYLINDER
934 N 000933010238 SCREW
Repalced by: N 304017010028
934 N 304017010028 HEXAGON HEAD BOLT
BRACKET & BEARING BRACKET TO TRANSMISSION COVER
N 912004010102 LOCK WASHER
BRACKET & BEARING BRACKET TO TRANSMISSION COVER
935 A 0019976936 VALVE
(PNEUMATIC VALVE),DIFFERENTIAL LOCK
936 A 0009970577 HANDLE
Repalced by: A 4252680242
936 A 4252680242 KNOB
937 A 3839900051 NUT
938 A 0004302726 CYLINDER
Repalced by: A 0004303026
938 A 0004303026 CYLINDER
POWER CYLINDER
KNORR
938 A 0004303126 CYLINDER
Repalced by: A 0004303726
938 A 0004303726 CYLINDER
POWER CYLINDER
TECHNOMATIK
939 A 0015867243 REPAIR KIT
Repalced by: A 0024300060
939 A 0024300060 REPAIR KIT
POWER CYLINDER
TO 000 430 27 26
939 A 0004308460 REPAIR KIT
POWER CYLINDER
TO 000 430 30 26
940 A 0009956801 CLAMP
Repalced by: N 916016035201
940 N 916016035201 CLAMP
POWER CYLINDER TO BEARING BRACKET
941 N 000933008147 SCREW
Repalced by: N 304017008021
941 N 304017008021 SCREW
POWER CYLINDER TO BEARING BRACKET
N 912004008102 LOCK WASHER
POWER CYLINDER TO BEARING BRACKET
942 N 304032008006 NUT
POWER CYLINDER TO BEARING BRACKET
943 A 0089976082 HOSE
Repalced by: A 0009872627
943 A 0009872627 PLASTIC PIPE
4X6 MM
944 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
945 N 003861006007 GLAND
Repalced by: A 0019901667
945 A 0019901667 SEAL CONE
946 N 915017006100 UNION NUT
947 A 0009920105 BUSHING
Repalced by: N 915062004000
947 N 915062004000 SLEEVE
948 N 915052004015 BANJO UNION
949 N 915017006100 UNION NUT
950 N 003861006007 GLAND
Repalced by: A 0019901667
950 A 0019901667 SEAL CONE
951 A 0089979082 HOSE
Repalced by: A 0009872727
951 A 0009872727 PLASTIC PIPE
FROM T-FITTING TO SEPARATION POINT ON REAR AXLE
8X1 MM
951 A 0009872727 PLASTIC PIPE
FROM T-FITTING TO SEPARATION POINT ON FRONT AXLE
8X1 MM
951 A 0009872727 PLASTIC PIPE
8X1 MM
952 A 0019909870 T-FITTING
Repalced by: A 0009907990
952 A 0009907990 T-FITTING
953 N 915059006002 FITTING
954 A 0009902878 CONNECTOR
Repalced by: A 0029901670
954 A 0029901670 T-FITTING
955 A 4164230094 BRACKET
ALL-WHEEL DRIVE DIFFERENTIAL LOCK
956 N 000000000645 SCREW
ALL-WHEEL DRIVE DIFFERENTIAL LOCK
957 A 4249900040 WASHER
ALL-WHEEL DRIVE DIFFERENTIAL LOCK
958 A 3525422840 BRACKET
THRUST BALL HOUSING TO TRANSMISION CASE
959 N 000933010089 SCREW
Repalced by: N 910105010006
959 N 910105010006 SCREW
THRUST BALL HOUSING TO TRANSMISION CASE
M 10X20
960 N 000125010518 WASHER
Repalced by: N 000125010532
960 N 000125010532 WASHER
THRUST BALL HOUSING TO TRANSMISION CASE
962 A 0004294237 DISTRIBUTOR
964 A 0019973572 FITTING
Repalced by: N 915059004000
964 N 915059004001 FITTING
966 N 001444012208 PIN
968 N 000094003219 COTTER PIN
970 A 3434301010 BRACKET
972 N 915036006202 HOLLOW SCREW
974 N 007603010103 SEAL RING
Repalced by: N 007603010110
974 N 007603010110 SEAL RING
976 N 007604010102 SCREW PLUG
Repalced by: N 007604010108
976 N 007604010108 SCREW PLUG
978 A 0029972290 LOOM TIE
Repalced by: A 0019978390
978 A 0019978390 LOOM TIE
980 N 916016006208 CLAMP
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
