Transporto priemonė: U 100,U 1100 L; VIN numerio dalis: 416116

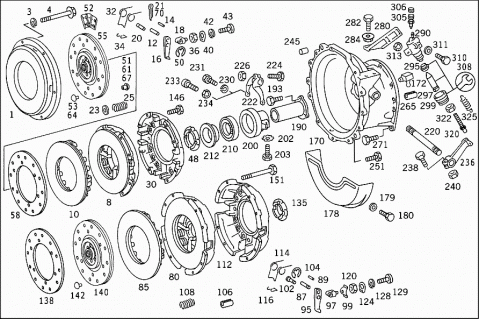

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 4062520007 | SHIM |
| 001 | A 4062520007 | SHIM |
| 003 | N 912004010102 | LOCK WASHER |
| SHIM TO FLYWHEEL | ||
| 003 | N 912004010102 | LOCK WASHER |
| SHIM TO FLYWHEEL | ||
| 004 | N 000931010271 | SCREW |
| Repalced by: N 910105010003 | ||
| 004 | N 910105010003 | SCREW |
| 004 | N 910105010003 | SCREW |
| 008 | A 0002506404 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0002507904 | ||
| 008 | A 0002507904 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0002507804 | ||
| 008 | A 0002503804 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0002507804 | ||
| 008 | A 0002507804 | CLUTCH PRESSURE PLATE |
| 008 | A 0002507804 | CLUTCH PRESSURE PLATE |
| 010 | A 0002521612 | PRESSURE PLATE |
| Repalced by: A 0002527012 | ||
| 010 | A 0002527012 | PRESSURE PLATE |
| 010 | A 0002527012 | PRESSURE PLATE |
| 012 | A 0002520816 | SPINDLE |
| Repalced by: A 0002523716 | ||
| 012 | A 0002523716 | SPINDLE |
| 012 | A 0002523716 | SPINDLE |
| 014 | A 0002520018 | ROLLER |
| 014 | A 0002520018 | ROLLER |
| 016 | A 0002521713 | RELEASE LEVER |
| Repalced by: A 0002527013 | ||
| 016 | A 0002527013 | RELEASE LEVER |
| 016 | A 0002527013 | RELEASE LEVER |
| 018 | A 0002520814 | BRACKET |
| Repalced by: A 0002523414 | ||
| 018 | A 0002523414 | BRACKET |
| 018 | A 0002523414 | BRACKET |
| 020 | A 0002520516 | SPINDLE |
| Repalced by: A 0002523816 | ||
| 020 | A 0002523816 | SPINDLE |
| 020 | A 0002523816 | SPINDLE |
| 021 | N 000094002059 | COTTER PIN |
| Repalced by: N 000094002060 | ||
| 021 | N 000094002060 | COTTER PIN |
| 021 | N 000094002059 | COTTER PIN |
| Repalced by: N 000094002060 | ||
| 021 | N 000094002060 | COTTER PIN |
| 023 | A 0002520024 | INSULATING WASHER |
| 023 | A 0002520024 | INSULATING WASHER |
| 025 | A 0002523120 | PRESSURE SPRING |
| 025 | A 0002523120 | PRESSURE SPRING |
| 030 | A 0002521132 | HOUSING |
| 030 | A 0002521132 | HOUSING |
| A 0002521427 | SPRING | |
| A 0002521427 | SPRING | |
| 032 | A 0002522727 | SPRING |
| 032 | A 0002522727 | SPRING |
| 034 | A 0002520829 | CLAMP |
| 034 | A 0002520829 | CLAMP |
| 036 | A 0002521572 | NUT |
| 036 | A 0002521572 | NUT |
| 040 | A 0002520473 | LOCK |
| Repalced by: A 0002521173 | ||
| 040 | A 0002521173 | LOCK |
| 042 | N 912004005103 | LOCK WASHER |
| 043 | N 007985005157 | SCREW |
| 048 | A 0002520628 | PRESSURE PLATE |
| Repalced by: A 0002520928 | ||
| 048 | A 0002520928 | RELEASE RING |
| 048 | A 0002520928 | RELEASE RING |
| 050 | N 006799007007 | LOCK PLATE |
| 051 | A 0002520375 | RIVET |
| Repalced by: A 0002521275 | ||
| 051 | A 0002521275 | RIVET |
| Repalced by: A 0002524375 | ||
| 051 | A 0002524375 | RIVET |
| TO 000 250 61 03 | ||
| 051 | A 0002521175 | RIVET |
| Repalced by: A 0002524075 | ||
| 051 | A 0002524075 | RIVET |
| TO 001 250 49 03,001 250 86 03 | ||
| 052 | A 0002520219 | LEAF SPRING |
| TO 000 250 61 03 | ||
| 053 | A 0002520175 | RIVET |
| TO 000 250 61 03 | ||
| 055 | A 0002506103 | CLUTCH DISC |
| Repalced by: A 0032504103 | ||
| 055 | A 0012504903 | CLUTCH DISC |
| Repalced by: A 0032504103 | ||
| 055 | A 0012508603 | CLUTCH DISC |
| Repalced by: A 0032504103 | ||
| 055 | A 0032502203 | CLUTCH DISC |
| Repalced by: A 0032504103 | ||
| 055 | A 0002521310 | CLUTCH LINING |
| Repalced by: A 0032504103 | ||
| 055 | A 0002524010 | CLUTCH LINING |
| Repalced by: A 0032504103 | ||
| 055 | A 0002525410 | CLUTCH LINING |
| Repalced by: A 0032504103 | ||
| 055 | A 0002508403 | CLUTCH DISC |
| Repalced by: A 0032504103 | ||
| 055 | A 0012504803 | CLUTCH DISC |
| Repalced by: A 0032504103 | ||
| 055 | A 0012507603 | CLUTCH DISC |
| Repalced by: A 0032504103 | ||
| 055 | A 0002521310 | CLUTCH LINING |
| Repalced by: A 0032504103 | ||
| 055 | A 0002524110 | CLUTCH LINING |
| Repalced by: A 0032504103 | ||
| 055 | A 0002524810 | CLUTCH LINING |
| Repalced by: A 0032504103 | ||
| 055 | A 0032504103 | CLUTCH DISC |
| Repalced by: A 0042504703 | ||
| 055 | A 0042504703 | CLUTCH DISC |
| Repalced by: A 0112507103 | ||
| 055 | A 0112507103 | CLUTCH DISC |
| ASBESTOS-FREE | ||
| F&S | ||
| 055 | A 0112507103 | CLUTCH DISC |
| ASBESTOS-FREE | ||
| F&S | ||
| 055 | A 0042504203 | CLUTCH DISC |
| Repalced by: A 0062507803 | ||
| 055 | A 0062507803 | CLUTCH DISC |
| Repalced by: A 0082504303 | ||
| 055 | A 0082504303 | CLUTCH DISC |
| Repalced by: A 0092505603 | ||
| 055 | A 0092505603 | CLUTCH DISC |
| Repalced by: A 0122503603 | ||
| 055 | A 0122503603 | CLUTCH DISC |
| F&S | ||
| 055 | A 0092505503 | CLUTCH DISC |
| F&S | ||
| 058 | A 0012523410 | CLUTCH LINING |
| Repalced by: A 0012527410 | ||
| 058 | A 0012527410 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| BERAL K208/1B | ||
| 061 | A 0002521475 | RIVET |
| Repalced by: A 0002523875 | ||
| 061 | A 0002523875 | RIVET |
| TO 004 250 42 03,006 250 78 03 | ||
| 061 | A 0002523875 | RIVET |
| TO 009 250 55 03,009 250 56 03 | ||
| 061 | A 0002523975 | RIVET |
| TO 009 250 55 03,009 250 56 03 | ||
| 061 | A 0002520375 | RIVET |
| Repalced by: A 0002521275 | ||
| 061 | A 0002520375 | RIVET |
| Repalced by: A 0002521275 | ||
| 061 | A 0002521275 | RIVET |
| Repalced by: A 0002524375 | ||
| 061 | A 0002524375 | RIVET |
| TO 004 250 47 03 | ||
| 061 | A 0002524375 | RIVET |
| TO 000 250 84 03 | ||
| 061 | A 0002524375 | RIVET |
| TO 004 250 47 03 | ||
| 061 | A 0002524375 | RIVET |
| TO 004 250 42 03,006 250 78 03 | ||
| 061 | A 0002524375 | RIVET |
| TO 009 250 55 03,009 250 56 03 | ||
| 061 | A 0002521875 | RIVET |
| Repalced by: A 0002521175 | ||
| 061 | A 0002521175 | RIVET |
| Repalced by: A 0002524075 | ||
| 061 | A 0002524075 | RIVET |
| TO 001 250 48 03,001 250 76 03 | ||
| 064 | A 0002520175 | RIVET |
| TO 004 250 47 03 | ||
| 064 | A 0002520175 | RIVET |
| A 0012520410 | CLUTCH LINING | |
| TO 004 250 47 03 | ||
| 067 | A 0002522575 | RIVET |
| Repalced by: A 0002523975 | ||
| 067 | A 0002523975 | RIVET |
| 067 | A 0002523975 | RIVET |
| A 0012520910 | CLUTCH LINING | |
| A 0002524919 | LEAF SPRING | |
| TO 009 250 55 03,009 250 56 03 | ||
| A 0002521712 | PRESSURE PLATE | |
| A 0002521712 | PRESSURE PLATE | |
| A 0002521271 | SCREW | |
| A 0002521271 | SCREW | |
| A 0002521116 | SPINDLE | |
| SHORT | ||
| A 0002521116 | SPINDLE | |
| SHORT | ||
| A 0009933026 | DISC SPRING | |
| Repalced by: A 0009934326 | ||
| A 0009934326 | DISC SPRING | |
| A 0009934326 | DISC SPRING | |
| A 0002523013 | RELEASE LEVER | |
| A 0002523013 | RELEASE LEVER | |
| A 0002520050 | BUSHING | |
| LEVER | ||
| A 0002520050 | BUSHING | |
| LEVER | ||
| N 005402202101 | CYLINDRICAL ROLLER | |
| LEVER | ||
| N 005402202101 | CYLINDRICAL ROLLER | |
| LEVER | ||
| A 0002521016 | SPINDLE | |
| LONG | ||
| A 0002521016 | SPINDLE | |
| LONG | ||
| A 0002521327 | SPRING | |
| TO 000 250 79 04 | ||
| A 0002521327 | SPRING | |
| N 001441008000 | WASHER | |
| N 001441008000 | WASHER | |
| 070 | N 000094002059 | COTTER PIN |
| Repalced by: N 000094002060 | ||
| 070 | N 000094002060 | COTTER PIN |
| 070 | N 000094002059 | COTTER PIN |
| Repalced by: N 000094002060 | ||
| 070 | N 000094002060 | COTTER PIN |
| A 0002520978 | WASHER | |
| A 0002520978 | WASHER | |
| A 0002522372 | NUT | |
| A 0002522372 | NUT | |
| A 0002520528 | PRESSURE PLATE | |
| TO 000 250 79 04 | ||
| A 0002520528 | PRESSURE PLATE | |
| A 0002521119 | LEAF SPRING | |
| TO 000 250 84 03 | ||
| 080 | A 0002522632 | HOUSING |
| Repalced by: A 0022501604 | ||
| 080 | A 0012507804 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0022501604 | ||
| 080 | A 0022501604 | CLUTCH PRESSURE PLATE |
| F&S, GFX 310 | ||
| 080 | A 0022501604 | CLUTCH PRESSURE PLATE |
| F&S, GFX 310 | ||
| 080 | A 0032500604 | CLUTCH PRESSURE PLATE |
| F&S, MF 310K | ||
| A 0002522512 | PRESSURE PLATE | |
| Repalced by: A 0002524312 | ||
| A 0002524312 | PRESSURE PLATE | |
| Repalced by: A 0002527112 | ||
| A 0002527112 | PRESSURE PLATE | |
| A 0002527112 | PRESSURE PLATE | |
| 085 | A 0002523112 | PRESSURE PLATE |
| Repalced by: A 0002524612 | ||
| 085 | A 0002524612 | PRESSURE PLATE |
| Repalced by: A 0002526612 | ||
| 085 | A 0002526612 | PRESSURE PLATE |
| 087 | A 0002521616 | SPINDLE |
| Repalced by: A 0002524016 | ||
| 087 | A 0002524016 | SPINDLE |
| 087 | A 0002524016 | SPINDLE |
| 089 | A 0002520318 | ROLLER |
| 089 | A 0002520318 | ROLLER |
| A 0002523713 | RELEASE LEVER | |
| Repalced by: A 0002527113 | ||
| A 0002527113 | RELEASE LEVER | |
| A 0002527113 | RELEASE LEVER | |
| 095 | A 0002524313 | RELEASE LEVER |
| Repalced by: A 0002526813 | ||
| 095 | A 0002526813 | RELEASE LEVER |
| Repalced by: A 0002502213 | ||
| 095 | A 0002502213 | RELEASE LEVER |
| 097 | A 0002521514 | BRACKET |
| Repalced by: A 0002522314 | ||
| 097 | A 0002522314 | BRACKET |
| Repalced by: A 0002523214 | ||
| 097 | A 0002523214 | BRACKET |
| 097 | A 0002523214 | BRACKET |
| 099 | A 0002520619 | LEAF SPRING |
| 102 | A 0002521716 | SPINDLE |
| Repalced by: A 0002524116 | ||
| 102 | A 0002524116 | SPINDLE |
| 102 | A 0002524116 | SPINDLE |
| 104 | N 006799007007 | LOCK PLATE |
| 104 | N 006799007007 | LOCK PLATE |
| 106 | A 0002520124 | INSULATING WASHER |
| Repalced by: A 0002520253 | ||
| 106 | A 0002520253 | SPACER TUBE |
| 106 | A 0002520253 | SPACER TUBE |
| 108 | A 0002525920 | PRESSURE SPRING |
| 108 | A 0002525920 | PRESSURE SPRING |
| 112 | A 0002523532 | HOUSING |
| Repalced by: A 0002524532 | ||
| 112 | A 0002524532 | HOUSING |
| 114 | A 0002522327 | SPRING |
| 114 | A 0002522327 | SPRING |
| 116 | A 0002520929 | CLAMP |
| Repalced by: A 0002521829 | ||
| 116 | A 0002521829 | CLAMP |
| Repalced by: A 0002524527 | ||
| 116 | A 0002524527 | SPRING |
| 116 | A 0002524527 | SPRING |
| 120 | A 0002522472 | NUT |
| Repalced by: A 0002523372 | ||
| 120 | A 0002523372 | NUT |
| 120 | A 0002523372 | NUT |
| 124 | A 0002520473 | LOCK |
| Repalced by: A 0002521173 | ||
| 124 | A 0002521173 | LOCK |
| 128 | N 912004005103 | LOCK WASHER |
| 129 | N 007985005157 | SCREW |
| 135 | A 0002520828 | PRESSURE PLATE |
| Repalced by: A 0002521045 | ||
| 135 | A 0002521045 | FLANGE |
| 138 | A 0022502503 | CLUTCH DISC |
| Repalced by: A 0042504203 | ||
| 138 | A 0032504203 | CLUTCH DISC |
| Repalced by: A 0042504203 | ||
| 138 | A 0002525810 | CLUTCH LINING |
| Repalced by: A 0012520110 | ||
| 138 | A 0042504203 | CLUTCH DISC |
| Repalced by: A 0062507803 | ||
| 138 | A 0062507803 | CLUTCH DISC |
| Repalced by: A 0082504303 | ||
| 138 | A 0082504303 | CLUTCH DISC |
| Repalced by: A 0092505603 | ||
| 138 | A 0092505603 | CLUTCH DISC |
| Repalced by: A 0122503603 | ||
| 138 | A 0122503603 | CLUTCH DISC |
| F&S | ||
| 138 | A 0092505503 | CLUTCH DISC |
| F&S | ||
| 140 | A 0012520110 | CLUTCH LINING |
| Repalced by: A 0012523410 | ||
| 140 | A 0012523410 | CLUTCH LINING |
| Repalced by: A 0012527410 | ||
| 140 | A 0012527410 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 140 | A 0012527410 | CLUTCH LINING |
| TO 004 250 42 03,006 250 78 03 | ||
| 140 | A 0012527410 | CLUTCH LINING |
| TO 009 250 55 03,56 03, 008 250 43 03 | ||
| 142 | A 0002520375 | RIVET |
| Repalced by: A 0002521275 | ||
| 142 | A 0002521275 | RIVET |
| Repalced by: A 0002524375 | ||
| 142 | A 0002524375 | RIVET |
| TO 002 250 25 03,004 250 42 03 | ||
| 142 | A 0002524375 | RIVET |
| TO 006 250 78 03,008 250 43 03 | ||
| 142 | A 0002524375 | RIVET |
| TO 009 250 55 03,009 250 56 03 | ||
| 142 | A 0002524375 | RIVET |
| 004 250 42 03,006 250 78 03 | ||
| 142 | A 0002521475 | RIVET |
| Repalced by: A 0002523875 | ||
| 142 | A 0002523875 | RIVET |
| TO 004 250 42 03,006 250 78 03 | ||
| 142 | A 0002523875 | RIVET |
| TO 004 250 42 03,006 250 78 03 | ||
| 142 | A 0002523875 | RIVET |
| TO 008 250 43 03 | ||
| 142 | A 0002523875 | RIVET |
| TO 009 250 55 03,009 250 56 03 | ||
| 142 | A 0002523975 | RIVET |
| TO 009 250 55 03,009 250 56 03 | ||
| A 0002524919 | LEAF SPRING | |
| TO 009 250 55 03,009 250 56 03 | ||
| N 912004008102 | LOCK WASHER | |
| 146 | N 000933008177 | SCREW |
| Repalced by: N 304017008024 | ||
| 146 | N 304017008024 | SCREW |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 146 | N 914125008329 | SCREW |
| Repalced by: N 910107008017 | ||
| 146 | N 910107008017 | SCREW |
| Repalced by: N 914141008311 | ||
| 146 | N 914141008311 | SCREW |
| Repalced by: N 910107008020 | ||
| 146 | N 910107008020 | SCREW |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| M 8X16 | ||
| N 912004008102 | LOCK WASHER | |
| 151 | N 000931008292 | SCREW |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| 151 | N 000931008292 | SCREW |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| 170 | A 4062510101 | BELL HOUSING |
| 172 | N 071412008302 | GREASE NIPPLE |
| 178 | A 4062510010 | COVER PLATE |
| 179 | N 007349008003 | WASHER |
| 180 | N 000933008212 | SCREW |
| Repalced by: N 914141008307 | ||
| 180 | N 914141008307 | SCREW |
| Repalced by: N 910107008020 | ||
| 180 | N 910107008020 | SCREW |
| COVER PLATE TO BELL HOUSING | ||
| M 8X25 | ||
| 190 | A 4062501015 | RELEASE BEARING |
| Repalced by: A 4062540616 | ||
| 190 | A 4062501115 | RELEASE BEARING |
| Repalced by: A 4062540616 | ||
| 190 | A 4062540616 | GUIDE |
| 190 | A 4062541016 | GUIDE |
| N 912004008102 | LOCK WASHER | |
| GUIDE TO BELL HOUSING | ||
| 193 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 193 | N 304017008034 | SCREW |
| GUIDE TO BELL HOUSING | ||
| M 8X25 | ||
| 200 | A 4062540510 | RELEASE COLLAR |
| 200 | A 4062540810 | RELEASE COLLAR |
| 200 | A 4172540010 | RELEASE COLLAR |
| 202 | A 0009940651 | LOCK |
| 203 | A 4069900015 | SCREW |
| 210 | A 4062500515 | RELEASE BEARING |
| Repalced by: A 0009816725 | ||
| 210 | A 0009816725 | BALL BEARING |
| 210 | A 0009817525 | BALL BEARING |
| 210 | A 0019813327 | ANGULAR CONTACT BEARING |
| 212 | A 4062520152 | RING |
| 220 | A 4062530001 | CLUTCH SHAFT |
| 221 | A 4412530001 | CLUTCH SHAFT |
| 222 | A 4062540008 | RELEASE LEVER |
| 222 | A 4062540208 | RELEASE LEVER |
| Repalced by: A 4172540008 | ||
| 222 | A 4172540008 | RELEASE LEVER |
| 223 | A 4402540008 | RELEASE LEVER |
| 224 | N 000933008119 | SCREW |
| Repalced by: N 304017008042 | ||
| 224 | N 304017008042 | SCREW |
| RELEASE LEVER TO CLUTCH SHAFT | ||
| 225 | N 000933008116 | SCREW |
| Repalced by: N 910107008021 | ||
| 225 | N 910107008021 | SCREW |
| Repalced by: N 910107008041 | ||
| 225 | N 910107008041 | SCREW |
| RELEASE LEVER TO CLUTCH SHAFT | ||
| M 8X28 | ||
| N 912004008102 | LOCK WASHER | |
| RELEASE LEVER TO CLUTCH SHAFT | ||
| 226 | N 913004008010 | NUT |
| RELEASE LEVER TO CLUTCH SHAFT | ||
| 230 | N 912004006102 | LOCK WASHER |
| Repalced by: N 912004006106 | ||
| 230 | N 912004006106 | LOCK WASHER |
| RELEASE LEVER | ||
| 231 | A 4069900115 | SCREW |
| RELEASE LEVER | ||
| 231 | A 4069900115 | SCREW |
| RELEASE LEVER | ||
| 233 | A 4069905015 | SCREW |
| RELEASE LEVER | ||
| 234 | N 304032008006 | NUT |
| RELEASE LEVER | ||
| 235 | N 912004006102 | LOCK WASHER |
| RELEASE LEVER | ||
| 236 | A 4062540525 | LEVER |
| 237 | A 4172540425 | LEVER |
| 238 | N 000931008244 | SCREW |
| Repalced by: N 910107008004 | ||
| 238 | N 910107008004 | SCREW |
| Repalced by: N 914141008317 | ||
| 238 | N 914141008317 | SCREW |
| Repalced by: N 304017008042 | ||
| 238 | N 304017008042 | SCREW |
| LEVER ON CLUTCH SHAFT | ||
| M 8X45 | ||
| N 912004008102 | LOCK WASHER | |
| LEVER ON CLUTCH SHAFT | ||
| 240 | N 913004008004 | NUT |
| Repalced by: N 304032008006 | ||
| 240 | N 304032008006 | NUT |
| LEVER ON CLUTCH SHAFT | ||
| 245 | N 000007012203 | CYLINDRICAL PIN |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| N 912004010102 | LOCK WASHER | |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 251 | N 914125010320 | SCREW |
| Repalced by: N 910106010020 | ||
| 251 | N 910106010020 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 10X30 | ||
| 251 | N 910106010020 | SCREW |
| M 10X30 | ||
| 251 | N 910106010020 | SCREW |
| M 10X30 | ||
| 251 | N 914125010314 | SCREW |
| Repalced by: N 910106010022 | ||
| 251 | N 910106010022 | SCREW |
| Repalced by: N 910106010034 | ||
| 251 | N 910106010034 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 10X35 | ||
| 251 | N 910106010022 | SCREW |
| Repalced by: N 910106010034 | ||
| 251 | N 910106010034 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 10X35 | ||
| A 4062540410 | RELEASE COLLAR | |
| Repalced by: A 4062540510 | ||
| 254 | N 000933010092 | SCREW |
| 254 | N 910107010017 | SCREW |
| Repalced by: N 910107010018 | ||
| 254 | N 910107010018 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 10X30 | ||
| 254 | N 000933010093 | SCREW |
| Repalced by: N 910107010020 | ||
| 254 | N 910107010020 | SCREW |
| Repalced by: N 914141010312 | ||
| 254 | N 914141010312 | SCREW |
| Repalced by: N 910107010020 | ||
| 254 | N 910107010020 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 10X35 | ||
| N 912004012100 | LOCK WASHER | |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| N 000931012264 | SCREW | |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 265 | N 001481013001 | CLAMPING SLEEVE |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 912004010102 | LOCK WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 271 | N 914141010302 | SCREW |
| Repalced by: N 910107010020 | ||
| 271 | N 910107010020 | SCREW |
| Repalced by: N 914141010312 | ||
| 271 | N 914141010312 | SCREW |
| Repalced by: N 910107010020 | ||
| 271 | N 910107010020 | SCREW |
| BELL HOUSING TO TRANSMISSION CASE | ||
| M 10X35 | ||
| 280 | A 4062540240 | BRACKET |
| 282 | N 000933010105 | SCREW |
| Repalced by: N 910107010016 | ||
| 282 | N 910107010019 | SCREW |
| CONSOLE TO BELL HOUSING | ||
| M 10X30 | ||
| N 912004010102 | LOCK WASHER | |
| CONSOLE TO BELL HOUSING | ||
| 284 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 284 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 284 | N 913023010002 | NUT |
| CONSOLE TO BELL HOUSING | ||
| 290 | A 0002950807 | SLAVE CYLINDER |
| Repalced by: A 0002953507 | ||
| 290 | A 0002953507 | SLAVE CYLINDER |
| Repalced by: A 0012957307 | ||
| 290 | A 0012957307 | SLAVE CYLINDER |
| Repalced by: A 0012959507 | ||
| 290 | A 0012959507 | SLAVE CYLINDER |
| 295 | A 0019975140 | SEAL RING |
| TO 000 295 35 07 | ||
| 297 | A 0002950374 | PIN |
| TO 000 295 35 07 | ||
| 299 | A 0002950583 | BOOT |
| 305 | A 0004201355 | BLEEDER VALVE |
| Repalced by: A 0004201055 | ||
| 305 | A 0004201055 | BLEEDER VALVE |
| 306 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 306 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 306 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 306 | A 0004210887 | PROTECTIVE CAP |
| 308 | A 0005865829 | REPAIR KIT |
| TO 000 295 35 07 | ||
| 308 | A 0002903667 | REPAIR KIT |
| TO 001 295 73 07,001 295 95 07 | ||
| 310 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 310 | N 304017008018 | SCREW |
| SLAVE CYLINDER TO CONSOLE | ||
| M 8X35 | ||
| 311 | N 007349008002 | WASHER |
| SLAVE CYLINDER TO CONSOLE | ||
| N 912004008102 | LOCK WASHER | |
| SLAVE CYLINDER TO CONSOLE | ||
| 313 | N 913004008004 | NUT |
| Repalced by: N 304032010003 | ||
| 313 | N 304032010003 | NUT |
| SLAVE CYLINDER TO CONSOLE | ||
| 320 | A 1112950733 | ROD |
| 320 | A 4172540032 | ROD |
| 322 | N 304032008006 | NUT |
| ROD TO CLUTCH SLAVE CYLINDER | ||
| 325 | A 1119931010 | SPRING |
| SLAVE CYLINDER TO CONSOLE | ||
| 330 | A 4172500043 | BRACKET |
| CLUTCH SLAVE CYLINDER | ||
| 335 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 335 | N 910105010009 | SCREW |
| 340 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 340 | N 913023010003 | NUT |
| BRACKET TO BELL HOUSING | ||
| M 10 | ||
| 345 | A 0012958707 | SLAVE CYLINDER |
| 350 | A 0002954583 | BOOT |
| 355 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 355 | A 3075530107 | VALVE |
| 360 | A 0004210887 | PROTECTIVE CAP |
| 365 | A 0002904767 | REPAIR KIT |
| TO 001 295 87 07 | ||
| 370 | N 000933008116 | SCREW |
| Repalced by: N 910107008021 | ||
| 370 | N 910107008021 | SCREW |
| Repalced by: N 910107008041 | ||
| 370 | N 910107008041 | SCREW |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| M 8X28 | ||
| 375 | N 913004008004 | NUT |
| Repalced by: N 304032008006 | ||
| 375 | N 304032008006 | NUT |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
