Transporto priemonė: U 100,U 1100 L; VIN numerio dalis: 416116

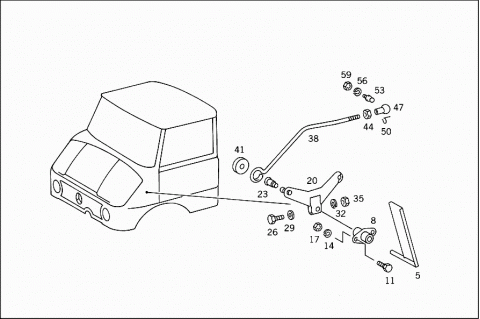

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4063000002 | PLATE |
| 008 | A 4063000236 | BEARING BRACKET |
| 011 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 011 | N 304017008016 | SCREW |
| 014 | N 912004008102 | LOCK WASHER |
| 017 | N 304032008006 | NUT |
| 020 | A 4063000104 | ACCELERATOR PEDAL |
| 023 | A 1803010074 | PIN |
| 026 | N 304017006026 | SCREW |
| Repalced by: N 304017006026 | ||
| 026 | N 304017006026 | SCREW |
| 029 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 029 | N 000125006449 | WASHER |
| 032 | N 912004006102 | LOCK WASHER |
| 035 | N 000934006007 | NUT |
| 038 | A 4063010015 | ROD |
| 041 | A 1213010097 | BOOT |
| Repalced by: A 1803010097 | ||
| 041 | A 1803010097 | BOOT |
| 044 | N 304032008006 | NUT |
| 047 | A 4069910022 | BALL SOCKET |
| 050 | N 071805013402 | CIRCLIP |
| 053 | N 071803013102 | BALL STUD |
| Repalced by: N 000000004468 | ||
| 053 | N 000000004468 | BALL STUD |
| 056 | N 912004008102 | LOCK WASHER |
| 059 | N 304032008006 | NUT |
| 062 | A 4063010020 | LEVER |
| 065 | A 4063010350 | BUSHING |
| 068 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 068 | N 009021010209 | WASHER |
| 071 | A 4063000404 | LEVER |
| 074 | A 4213010011 | ROLLER |
| 077 | A 4044270071 | SCREW |
| 080 | N 912004008102 | LOCK WASHER |
| 083 | N 304032008006 | NUT |
| 086 | A 4063000904 | LEVER |
| 089 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 089 | A 3129910120 | BALL PIVOT |
| 092 | A 4253010011 | ROLLER |
| Repalced by: A 4273010011 | ||
| 092 | A 4273010011 | ROLLER |
| 095 | A 4063020253 | SPACER TUBE |
| Repalced by: A 4173020053 | ||
| 095 | A 4173020053 | SPACER TUBE |
| 098 | N 000931008228 | SCREW |
| Repalced by: N 000933008134 | ||
| 098 | N 000933008134 | SCREW |
| 101 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 101 | N 000125008443 | WASHER |
| 101 | N 000125008443 | WASHER |
| 104 | N 913004008005 | NUT |
| Repalced by: N 913023008002 | ||
| 104 | N 913023008002 | NUT |
| 107 | A 0019901651 | NUT |
| Repalced by: N 913004008004 | ||
| 107 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 107 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 107 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 107 | N 913023008002 | NUT |
| 107 | N 913023008002 | NUT |
| 110 | A 4069935110 | SPRING |
| ACCELERATOR PEDAL | ||
| 113 | A 4063000536 | BEARING BRACKET |
| Repalced by: A 4063000636 | ||
| 113 | A 4063000636 | BEARING BRACKET |
| N 912004006102 | LOCK WASHER | |
| BEARING BRACKET TO OIL PAN | ||
| 116 | N 000933006127 | SCREW |
| BEARING BRACKET TO OIL PAN | ||
| M 6X25 | ||
| 119 | A 4063000304 | ACCELERATOR PEDAL |
| Repalced by: A 4063000704 | ||
| 119 | A 4063000704 | LEVER |
| ACCELERATOR PEDAL | ||
| 122 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 122 | N 000125008443 | WASHER |
| LEVER TO BEARING BRACKET | ||
| 122 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 122 | N 000125010532 | WASHER |
| LEVER TO BEARING BRACKET | ||
| 125 | N 000471008002 | LOCK RING |
| LEVER TO BEARING BRACKET | ||
| 125 | N 000471010001 | LOCK RING |
| LEVER TO BEARING BRACKET | ||
| 128 | A 4063000515 | ROD |
| Repalced by: A 4063000715 | ||
| 128 | A 4063000715 | ROD |
| 131 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 131 | N 000125008443 | WASHER |
| ROD TO LEVER | ||
| 134 | N 000094002077 | COTTER PIN |
| ROD TO LEVER | ||
| 137 | A 4043020005 | WIRE |
| Repalced by: A 4063020105 | ||
| 137 | A 4063020105 | WIRE |
| 140 | A 4043020168 | END PIECE |
| 143 | A 4063000226 | MANUAL CONTROL |
| Repalced by: A 4063001326 | ||
| 143 | A 4063000426 | MANUAL CONTROL |
| Repalced by: A 4063001326 | ||
| 143 | A 4063000626 | MANUAL CONTROL |
| Repalced by: A 4063001326 | ||
| 143 | A 4063000726 | MANUAL CONTROL |
| Repalced by: A 4063001326 | ||
| 143 | A 4063000053 | SLEEVE |
| Repalced by: A 4063001326 | ||
| 143 | A 4063001226 | MANUAL CONTROL |
| Repalced by: A 4063001326 | ||
| 143 | A 4063001326 | MANUAL CONTROL |
| 146 | A 4423001217 | LEVER |
| Repalced by: A 4413000325 | ||
| 146 | A 4413000325 | LEVER |
| 149 | A 0009932226 | DISC SPRING |
| 152 | A 4063020162 | THRUST WASHER |
| 155 | A 4063020154 | GUARD PLATE |
| Repalced by: A 4063020454 | ||
| 155 | A 3262910076 | WASHER |
| Repalced by: A 4063020454 | ||
| 155 | A 4063020454 | GUARD PLATE |
| 158 | A 1233000086 | END PIECE |
| 161 | N 000933005036 | SCREW |
| 164 | A 4063000045 | FLANGE |
| 167 | A 4063020128 | STOP |
| 170 | N 000963005011 | SCREW |
| 173 | A 4063000153 | SLEEVE |
| Repalced by: A 4063020427 | ||
| 173 | A 4063020427 | HUB |
| 176 | A 4063000926 | MANUAL CONTROL |
| 176 | A 4063001526 | MANUAL CONTROL |
| 179 | N 001481004034 | CLAMPING SLEEVE |
| 182 | N 000319025300 | BALL KNOB |
| 185 | A 4069935025 | SPRING |
| 188 | A 4069885035 | CAP |
| 191 | A 4063000138 | COVER |
| Repalced by: A 4063000038 | ||
| 191 | A 4063000038 | COVER |
| 194 | A 4069875445 | LOCKING CAP |
| 197 | A 1203020087 | RING |
| Repalced by: A 1233000086 | ||
| 197 | A 1233000086 | END PIECE |
| 200 | N 000933005058 | SCREW |
| 203 | A 4063020050 | BUSHING |
| WIRE CABLE TO LEVER | ||
| 206 | A 3358335071 | SCREW |
| WIRE CABLE TO LEVER | ||
| 209 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 209 | N 000433005304 | WASHER |
| WIRE CABLE TO LEVER | ||
| 212 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 212 | N 304032005005 | NUT |
| WIRE CABLE TO LEVER | ||
| 215 | A 4165860030 | REPAIR KIT |
| Repalced by: A 4163000026 | ||
| 215 | A 4163000026 | MANUAL CONTROL |
| MANUAL CONTROL | ||
| 218 | A 4063001104 | ACCELERATOR PEDAL |
| Repalced by: A 4193000025 | ||
| 218 | A 4193000025 | LEVER |
| 221 | A 4063020162 | THRUST WASHER |
| 224 | A 4063020554 | GUARD PLATE |
| 224 | A 4063020554 | GUARD PLATE |
| 224 | A 4423020154 | GUARD PLATE |
| BETWEEN CONTROL LEVER AND CAB | ||
| 227 | A 4063020114 | LEVER |
| 230 | A 4253010085 | RUBBER BUFFER |
| 233 | A 4253020162 | THRUST WASHER |
| 236 | N 913004008005 | NUT |
| Repalced by: N 913023008002 | ||
| 236 | N 913023008002 | NUT |
| 239 | A 4069875545 | LOCKING CAP |
| 242 | A 4063010041 | STOP |
| 242 | A 4193010041 | STOP |
| 245 | N 007985006148 | SCREW |
| Repalced by: N 007985006180 | ||
| 245 | N 007985006180 | SCREW |
| 248 | A 4063000615 | ROD |
| 251 | A 0009912422 | BALL SOCKET |
| 254 | N 000934006007 | NUT |
| 257 | A 4063020362 | THRUST WASHER |
| 260 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 260 | N 910113006001 | NUT |
| 263 | A 4259930110 | SPRING |
