Transporto priemonė: U 100,U 1100 L; VIN numerio dalis: 416116

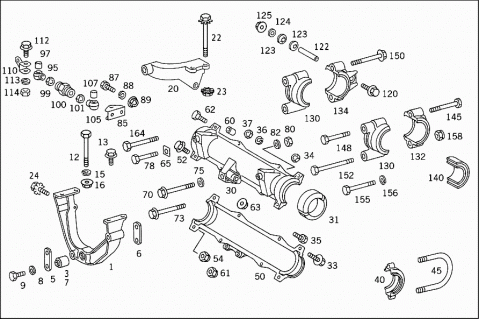

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 4062400001 | ENGINE SUPPORT |
| Repalced by: A 4062400101 | ||
| 001 | A 4062400101 | ENGINE SUPPORT |
| FRONT | ||
| A 4162400001 | ENGINE SUPPORT | |
| FRONT | ||
| 003 | A 0002410050 | BUSHING |
| 005 | A 4062410031 | PLATE |
| ENGINE FRONT SUPPORT TO FRAME | ||
| 006 | A 4062410131 | PLATE |
| ENGINE REAR SUPPORT TO FRAME | ||
| 007 | A 0002410050 | BUSHING |
| IN CROSS MEMBER NO.2 | ||
| 008 | N 912004020100 | LOCK WASHER |
| ENGINE SUPPORT TO FRAME | ||
| 009 | A 4062410074 | PIN |
| ENGINE SUPPORT TO FRAME | ||
| 012 | N 900170014020 | SCREW |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| M 14X1,5X60 | ||
| 012 | N 000960014244 | SCREW |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| M 14X1,5X65 | ||
| 012 | N 000960014244 | SCREW |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| M 14X1,5X65 | ||
| 013 | N 900170014036 | SCREW |
| Repalced by: N 910105014010 | ||
| 013 | N 910105014010 | SCREW |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| M 14X1,5X45 | ||
| 015 | N 912004014100 | LOCK WASHER |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| 016 | N 913004014002 | NUT |
| Repalced by: N 913023014004 | ||
| 016 | N 913023014004 | NUT |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| 020 | A 4065520618 | BEARING BRACKET |
| 022 | N 914140014009 | SCREW |
| 023 | N 913019014000 | NUT |
| 024 | N 914140012000 | SCREW |
| Repalced by: N 914140012024 | ||
| 024 | N 914140012024 | SCREW |
| 030 | A 4062400114 | BEARING SHELL |
| Repalced by: A 4062401014 | ||
| 030 | A 4062400814 | BEARING SHELL |
| Repalced by: A 4062401014 | ||
| 030 | A 4062400214 | BEARING SHELL |
| Repalced by: A 4062401014 | ||
| 030 | A 4062400714 | BEARING SHELL |
| Repalced by: A 4062401014 | ||
| 030 | A 4062401214 | BEARING SHELL |
| Repalced by: A 4062401014 | ||
| 030 | A 4062400814 | BEARING SHELL |
| Repalced by: A 4062401014 | ||
| 030 | A 4062401014 | BEARING SHELL |
| 031 | A 4042410113 | RUBBER MOUNTING |
| 033 | N 000961012052 | SCREW |
| Repalced by: N 910105012013 | ||
| 033 | N 910105012013 | SCREW |
| UPPER BEARING SHELL TO LOWER BEARING SHELL | ||
| 034 | N 000936012005 | NUT |
| Repalced by: N 308675012000 | ||
| 034 | N 308675012000 | NUT |
| 035 | N 000961010037 | SCREW |
| UPPER BEARING SHELL TO LOWER BEARING SHELL | ||
| 035 | N 000960010007 | SCREW |
| 036 | N 912004010102 | LOCK WASHER |
| 037 | N 000936010010 | NUT |
| Repalced by: N 304035010000 | ||
| 037 | N 304035010000 | NUT |
| Repalced by: N 304035010001 | ||
| 037 | N 304035010001 | HEXAGON NUT |
| 037 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 037 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 037 | N 913023010002 | NUT |
| 040 | A 4062401314 | BEARING SHELL |
| Repalced by: A 4062401414 | ||
| 040 | A 4062401414 | BEARING COVER |
| 040 | A 4062401414 | BEARING COVER |
| 040 | A 4062401414 | BEARING COVER |
| 045 | A 4062410030 | CLAMP |
| 045 | A 4062410030 | CLAMP |
| 045 | A 4062410030 | CLAMP |
| 050 | A 4062400714 | BEARING SHELL |
| Repalced by: A 4062401914 | ||
| 050 | A 4062401114 | BEARING SHELL |
| Repalced by: A 4062401914 | ||
| 050 | A 4062401914 | BEARING SHELL |
| 052 | N 000961012106 | SCREW |
| Repalced by: N 308676012014 | ||
| 052 | N 308676012014 | HEXAGON HEAD BOLT |
| Repalced by: N 910105012020 | ||
| 052 | N 910105012020 | SCREW |
| UPPER BEARING SHELL TO LOWER BEARING SHELL | ||
| 052 | N 000961012192 | SCREW |
| Repalced by: N 308676012016 | ||
| 052 | N 308676012016 | SCREW |
| 052 | N 000960014190 | SCREW |
| Repalced by: N 910105014019 | ||
| 052 | N 910105014019 | SCREW |
| 054 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 054 | N 910113014000 | NUT |
| 054 | N 910113014000 | NUT |
| 054 | N 910113014000 | NUT |
| 060 | A 4062410550 | BUSHING |
| 060 | A 4062410650 | BUSHING |
| 061 | N 913004012009 | NUT |
| Repalced by: N 910113012005 | ||
| 061 | N 910113012005 | NUT |
| 061 | N 910113012005 | NUT |
| 061 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 061 | N 910113014000 | NUT |
| 062 | N 000961010018 | SCREW |
| Repalced by: A 0079901001 | ||
| 062 | A 0079901001 | SCREW |
| UPPER BEARING SHELL TO LOWER BEARING SHELL | ||
| 062 | N 000960010049 | SCREW |
| Repalced by: N 308676010015 | ||
| 062 | N 308676010015 | SCREW |
| 063 | N 913004010014 | NUT |
| Repalced by: N 913023010004 | ||
| 063 | N 913023010004 | NUT |
| 065 | A 4042420352 | SPACER WASHER |
| Repalced by: A 4062420052 | ||
| 065 | A 4042420152 | SPACER WASHER |
| Repalced by: A 4062420052 | ||
| 065 | A 4042420252 | SPACER WASHER |
| Repalced by: A 4062420052 | ||
| 065 | A 4062420052 | SPACER WASHER |
| 070 | N 000960016087 | SCREW |
| 070 | N 000960016277 | SCREW |
| Repalced by: N 910105016016 | ||
| 070 | N 910105016016 | SCREW |
| 070 | N 000960016260 | SCREW |
| Repalced by: N 910105016002 | ||
| 070 | N 910105016002 | SCREW |
| 070 | N 000960016121 | SCREW |
| 070 | N 000960016121 | SCREW |
| 070 | N 000960016121 | SCREW |
| 073 | N 000960016277 | SCREW |
| Repalced by: N 910105016016 | ||
| 073 | N 910105016016 | SCREW |
| 073 | N 910105016016 | SCREW |
| 075 | A 4069905640 | WASHER |
| Repalced by: A 6249900040 | ||
| 075 | A 6249900040 | WASHER |
| 078 | N 000960016241 | SCREW |
| 078 | N 000960016057 | SCREW |
| 078 | N 000960016057 | SCREW |
| 080 | N 913001016001 | NUT |
| 082 | A 8202021551 | SPACER RING |
| 085 | A 4062420040 | BRACKET |
| 087 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 087 | N 910105010009 | SCREW |
| 088 | N 912004010102 | LOCK WASHER |
| 089 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 089 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 089 | N 913023010002 | NUT |
| 095 | A 4062400126 | INTERMEDIATE PIECE |
| 097 | A 4069880010 | RUBBER MOUNTING |
| 099 | N 308675014003 | NUT |
| Repalced by: N 000000005466 | ||
| 099 | N 000000005466 | HEXAGON NUT |
| 100 | A 4062420074 | PIN |
| 101 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 101 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 101 | N 308675014002 | NUT |
| 105 | A 4062400026 | INTERMEDIATE PIECE |
| 107 | A 4069880010 | RUBBER MOUNTING |
| 110 | A 4062400140 | BRACKET |
| Repalced by: A 4062400440 | ||
| 110 | A 4062400440 | BRACKET |
| 112 | N 000960012189 | SCREW |
| Repalced by: N 910105012021 | ||
| 112 | N 910105012021 | HEXAGON HEAD BOLT |
| 113 | N 912004012100 | LOCK WASHER |
| 114 | N 000936012005 | NUT |
| Repalced by: N 308675012000 | ||
| 114 | N 308675012000 | NUT |
| 120 | N 000931010455 | SCREW |
| Repalced by: N 910105010042 | ||
| 120 | N 910105010042 | SCREW |
| STABILIZATION OF UNIT POWER PLANT SUSPENSION AT FRAME | ||
| 122 | A 4062410053 | SPACER TUBE |
| STABILIZATION OF UNIT POWER PLANT SUSPENSION AT FRAME | ||
| 123 | A 1151500149 | BUSHING |
| STABILIZATION OF UNIT POWER PLANT SUSPENSION AT FRAME | ||
| 124 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 124 | N 007349010007 | WASHER |
| STABILIZATION OF UNIT POWER PLANT SUSPENSION AT FRAME | ||
| 125 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 125 | N 913023010003 | NUT |
| STABILIZATION OF UNIT POWER PLANT SUSPENSION AT FRAME | ||
| 130 | A 4062410035 | BEARING BRACKET |
| Repalced by: A 4062410135 | ||
| 130 | A 4062410135 | BEARING BRACKET |
| UNIT POWER PLANT SUSPENSION,REAR LEFT AND RIGHT | ||
| 132 | A 4062410115 | COVER |
| Repalced by: A 4062410315 | ||
| 132 | A 4062410315 | COVER |
| UNIT POWER PLANT SUSPENSION,REAR LEFT | ||
| 134 | A 4062410015 | COVER |
| Repalced by: A 4062410215 | ||
| 134 | A 4062410215 | COVER |
| UNIT POWER PLANT SUSPENSION, REAR RIGHT | ||
| 140 | A 4062410013 | RUBBER MOUNTING |
| Repalced by: A 4062410113 | ||
| 140 | A 4062410113 | RUBBER MOUNTING |
| UNIT POWER PLANT SUSPENSION,REAR LEFT AND RIGHT | ||
| 140 | A 4062410213 | RUBBER MOUNTING |
| UNIT POWER PLANT SUSPENSION,REAR LEFT AND RIGHT | ||
| 145 | N 000960016177 | SCREW |
| 148 | N 000960016057 | SCREW |
| 150 | N 000960016261 | SCREW |
| Repalced by: N 910105016015 | ||
| 150 | N 910105016015 | SCREW |
| 152 | N 308765016000 | SCREW |
| Repalced by: N 308765016018 | ||
| 152 | N 308765016018 | SCREW |
| 155 | N 000960016204 | SCREW |
| 156 | N 912004016101 | LOCK WASHER |
| 158 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 158 | N 910113016001 | NUT |
| LEFT AND RIGHT | ||
| 164 | N 000960016284 | SCREW |
| RIGHT | ||
| M 16X1,5X210 | ||
| 164 | N 000960016282 | SCREW |
| Repalced by: N 308765016006 | ||
| 164 | N 308765016006 | SCREW |
| LEFT | ||
| M 16X1,5X240 | ||
