Transporto priemonė: U 100,U 1100 L; VIN numerio dalis: 416116

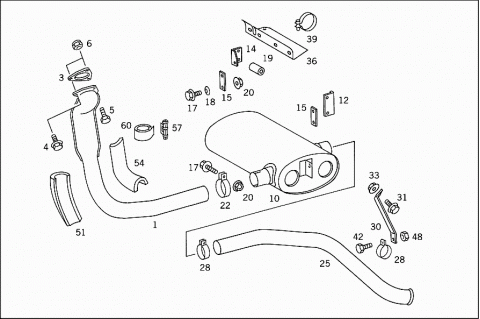

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 4064900219 | EXHAUST PIPE |
| WITH INSULATION | ||
| 001 | A 4064900019 | EXHAUST PIPE |
| Repalced by: A 4064900919 | ||
| 001 | A 4064900919 | EXHAUST PIPE |
| FRONT | ||
| 001 | A 4064900919 | EXHAUST PIPE |
| FRONT | ||
| 001 | A 4064900419 | EXHAUST PIPE |
| 001 | A 4064901119 | EXHAUST PIPE |
| 001 | A 4064901019 | EXHAUST PIPE |
| 003 | A 4064920180 | FLANGE GASKET |
| Repalced by: A 4064920280 | ||
| 003 | A 4064920280 | FLANGE GASKET |
| 004 | N 000931010260 | SCREW |
| Repalced by: N 910105100002 | ||
| 004 | N 910105100002 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X50 | ||
| 005 | N 000931010282 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X40 | ||
| 006 | N 999901010000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 010 | A 4064910000 | MUFFLER |
| Repalced by: A 0004910199 | ||
| 010 | A 0004910199 | REAR MUFFLER |
| 010 | A 0004910199 | REAR MUFFLER |
| 010 | A 0004910599 | REAR MUFFLER |
| 010 | A 4064910099 | REAR MUFFLER |
| 012 | A 4064920019 | BRACKET |
| LEFT | ||
| 012 | A 4064920019 | BRACKET |
| LEFT | ||
| 012 | A 4064920741 | BRACKET |
| Repalced by: A 4064920019 | ||
| 012 | A 4064920019 | BRACKET |
| LEFT | ||
| 014 | A 4064920119 | BRACKET |
| Repalced by: A 4064920919 | ||
| 014 | A 4064920919 | BRACKET |
| RIGHT | ||
| 014 | A 4064920919 | BRACKET |
| RIGHT | ||
| 014 | A 4064920841 | BRACKET |
| RIGHT | ||
| 015 | A 4064920143 | CLAMP |
| MUFFLER TO BRACKET | ||
| 015 | A 4064920143 | CLAMP |
| 015 | A 4064920123 | SHACKLE |
| Repalced by: A 6734921041 | ||
| 015 | A 6734921041 | BRACKET |
| 015 | A 4064291240 | BRACKET |
| 015 | A 4064920023 | SHACKLE |
| Repalced by: A 3954923241 | ||
| 015 | A 3954923241 | BRACKET |
| Repalced by: A 3184924841 | ||
| 015 | A 3184924841 | BRACKET |
| 017 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 017 | N 910105010009 | SCREW |
| 017 | N 910105010009 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| 017 | N 910105010009 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| 017 | N 000931010268 | SCREW |
| Repalced by: N 910105010010 | ||
| 017 | N 910105010010 | SCREW |
| Repalced by: N 000931010283 | ||
| 017 | N 000931010283 | SCREW |
| Repalced by: N 000931010357 | ||
| 017 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 017 | A 0019909404 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| M 10X70 | ||
| 017 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 017 | N 910105010001 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| M 10X30 | ||
| 018 | N 002093020102 | DISC SPRING |
| MUFFLER TO BRACKET | ||
| 019 | A 4064920053 | SPACER TUBE |
| 020 | A 0019901551 | NUT |
| Repalced by: N 913004010008 | ||
| 020 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 020 | N 913023010003 | NUT |
| MUFFLER TO BRACKET | ||
| 022 | N 071555068502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 025 | A 4164900010 | EXHAUST PIPE |
| WITH POSTERIOR MUFFLER | ||
| 025 | A 4164920104 | REAR EXHAUST PIPE |
| 025 | A 4164920204 | REAR EXHAUST PIPE |
| 025 | A 4164920404 | REAR EXHAUST PIPE |
| 025 | A 4064920004 | REAR EXHAUST PIPE |
| Repalced by: A 4064900121 | ||
| 025 | A 4064900121 | EXHAUST PIPE |
| REAR | ||
| 025 | A 4064900321 | EXHAUST PIPE |
| REAR | ||
| A 4164920304 | REAR EXHAUST PIPE | |
| 025 | A 4164920804 | REAR EXHAUST PIPE |
| Repalced by: A 4164921104 | ||
| 025 | A 4164921104 | REAR EXHAUST PIPE |
| 028 | N 071555058500 | CLAMP |
| 028 | N 071555070501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 030 | A 4164910141 | BRACKET |
| 030 | A 4164910041 | BRACKET |
| Repalced by: A 4164910341 | ||
| 030 | A 4164910341 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 030 | A 4164910241 | BRACKET |
| 031 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 031 | N 910105010009 | SCREW |
| N 912004010102 | LOCK WASHER | |
| BRACKET TO FRAME | ||
| 033 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 033 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 033 | N 913023010002 | NUT |
| BRACKET TO FRAME | ||
| 036 | A 4064910730 | PROTECTIVE PLATE |
| 039 | N 916002080100 | CLAMP |
| PROTECTIVE PLATE TO SUPPORT | ||
| 042 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 042 | N 304017008018 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 8X35 | ||
| 042 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 042 | N 304017008034 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 8X25 | ||
| N 912004008102 | LOCK WASHER | |
| REAR EXHAUST PIPE TO BRACKET | ||
| 048 | N 304032008006 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 051 | A 4064920383 | INSULATION |
| Repalced by: A 4164920383 | ||
| 051 | A 4164920383 | INSULATION |
| EXHAUST PIPE | ||
| 054 | A 4064920483 | INSULATION |
| Repalced by: A 4164920483 | ||
| 054 | A 4164920483 | INSULATION |
| EXHAUST PIPE | ||
| 057 | N 900262009100 | LOOM TIE |
| 060 | N 900263009000 | STRAP |
