Transporto priemonė: U 100,U 1100 L; VIN numerio dalis: 416116

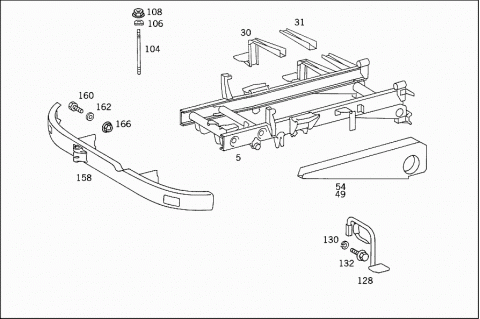

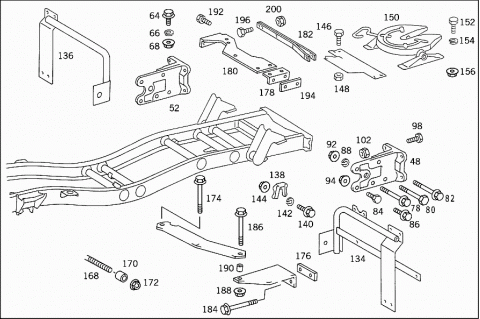

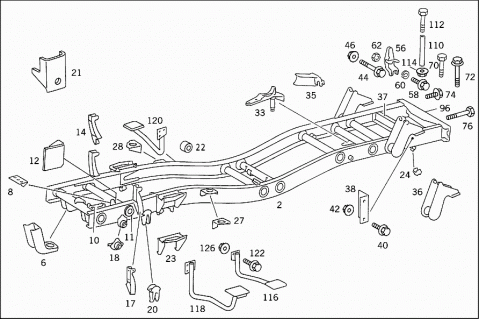

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 002 | A 4163100001 | FRAME |
| Repalced by: A 4163100801 | ||
| 002 | A 4163100201 | FRAME |
| Repalced by: A 4163100801 | ||
| 002 | A 4163100401 | FRAME |
| Repalced by: A 4163100801 | ||
| 002 | A 4163100101 | FRAME |
| Repalced by: A 4163100901 | ||
| 002 | A 4163100301 | FRAME |
| Repalced by: A 4163100901 | ||
| 002 | A 4163100501 | FRAME |
| Repalced by: A 4163100901 | ||
| 002 | A 4163100801 | FRAME |
| 002 | A 4163100801 | FRAME |
| Repalced by: A 4163104501 | ||
| 002 | A 4163104501 | FRAME |
| 002 | A 4163100901 | FRAME |
| 002 | A 4163100901 | FRAME |
| Repalced by: A 4163104601 | ||
| 002 | A 4163104601 | FRAME |
| 002 | A 4163102101 | FRAME |
| Repalced by: A 4163105001 | ||
| 002 | A 4163105001 | FRAME |
| 005 | A 4063100901 | FRAME |
| Repalced by: A 4063102801 | ||
| 005 | A 4063102801 | FRAME |
| 006 | A 4063110040 | BRACKET |
| RADIATOR | ||
| 008 | A 4212950040 | BRACKET |
| 010 | A 4063110363 | CONSOLE |
| 011 | A 4063110554 | REINFORCEMENT |
| 012 | A 4063110754 | REINFORCEMENT |
| 014 | A 4063200145 | STRAP |
| Repalced by: A 4063200345 | ||
| 014 | A 4063200345 | BRACKET |
| SHOCK ABSORBER,RIGHT FRONT | ||
| 017 | A 4063200245 | BRACKET |
| SHOCK ABSORBER,LEFT FRONT | ||
| 018 | A 4063110045 | BRACKET |
| 020 | A 4063330003 | BEARING BRACKET |
| Repalced by: A 4063330303 | ||
| 020 | A 4063330303 | BEARING BRACKET |
| Repalced by: A 4063330703 | ||
| 020 | A 4063330703 | BEARING BRACKET |
| TRANSVERSE CONTROL ARM | ||
| 021 | A 4193110143 | MOUNTING BRACKET |
| TRANSVERSE CONTROL ARM | ||
| 022 | A 4063120150 | BUSHING |
| 023 | A 4063200270 | REAR SUBFRAME |
| Repalced by: A 4063200370 | ||
| 023 | A 4063200370 | REAR SUBFRAME |
| 024 | A 4063110087 | STOP |
| 027 | A 4063130126 | BRACKET |
| Repalced by: A 4063130326 | ||
| 027 | A 4063130326 | BRACKET |
| CAB,LEFT | ||
| 028 | A 4063130226 | BRACKET |
| Repalced by: A 4063130426 | ||
| 028 | A 4063130426 | BRACKET |
| CAB, RIGHT | ||
| 030 | A 4065200531 | RUNNING BOARD |
| 031 | A 4064750140 | BRACKET |
| 033 | A 4064200378 | BEARING BRACKET |
| HAND BRAKE INTERMEDIATE LEVER | ||
| 035 | A 4064260940 | BRACKET |
| BRAKE CABLE | ||
| 036 | A 4163200075 | SPRING BRACKET |
| LEFT | ||
| 036 | A 4163200175 | SPRING BRACKET |
| RIGHT | ||
| 037 | A 4163100037 | CROSS MEMBER |
| 037 | A 4163100237 | CROSS MEMBER |
| 038 | A 4163130142 | ANGLE |
| CROSS MEMBER TO FRAME | ||
| 040 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 040 | N 910105010009 | SCREW |
| 040 | N 910105010009 | SCREW |
| CROSS MEMBER TO FRAME | ||
| N 912004010102 | LOCK WASHER | |
| ANGLE TO FRAME | ||
| 042 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 042 | N 913023010003 | NUT |
| ANGLE TO FRAME | ||
| 042 | N 913023010003 | NUT |
| CROSS MEMBER TO FRAME | ||
| 044 | N 000960014194 | SCREW |
| Repalced by: N 910105014019 | ||
| 044 | N 910105014019 | SCREW |
| CROSS MEMBER TO FRAME | ||
| M 14X1.5X60 | ||
| 044 | N 000961014114 | SCREW |
| CROSS MEMBER TO FRAME | ||
| M 14X1.5X85 | ||
| N 912004014100 | LOCK WASHER | |
| CROSS MEMBER TO FRAME | ||
| 046 | N 000934014019 | NUT |
| Repalced by: N 910112014000 | ||
| 046 | N 910112014000 | NUT |
| Repalced by: N 913023014003 | ||
| 046 | N 913023014003 | NUT |
| CROSS MEMBER TO FRAME | ||
| M14X1.5 | ||
| 048 | A 4063110051 | TRUSS |
| Repalced by: A 4063110951 | ||
| 048 | A 4063110451 | TRUSS |
| Repalced by: A 4063110951 | ||
| 048 | A 4163110051 | TRUSS |
| Repalced by: A 4063110951 | ||
| 048 | A 4163110251 | TRUSS |
| Repalced by: A 4063110951 | ||
| 048 | A 4063110651 | TRUSS |
| Repalced by: A 4063110951 | ||
| 048 | A 4063110951 | FRAME FLANGE |
| LEFT | ||
| 049 | A 4063110254 | REINFORCEMENT |
| LEFT | ||
| 052 | A 4063110151 | TRUSS |
| Repalced by: A 4063111051 | ||
| 052 | A 4063110551 | TRUSS |
| Repalced by: A 4063111051 | ||
| 052 | A 4163110151 | TRUSS |
| Repalced by: A 4063111051 | ||
| 052 | A 4163110351 | TRUSS |
| Repalced by: A 4063111051 | ||
| 052 | A 4063110751 | TRUSS |
| Repalced by: A 4063111051 | ||
| 052 | A 4063111051 | FRAME FLANGE |
| RIGHT | ||
| 054 | A 4063110154 | REINFORCEMENT |
| RIGHT | ||
| 056 | A 4063330103 | BEARING BRACKET |
| Repalced by: A 4063330403 | ||
| 056 | A 4063330403 | BEARING BRACKET |
| CONTROL ARMS REAR | ||
| 058 | N 000961016142 | SCREW |
| 058 | N 000961016036 | SCREW |
| Repalced by: N 910105016004 | ||
| 058 | N 910105016004 | SCREW |
| 060 | N 912004016101 | LOCK WASHER |
| 062 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 062 | N 308673016001 | NUT |
| 064 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 064 | N 910105010009 | SCREW |
| 066 | N 912004010102 | LOCK WASHER |
| 068 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 068 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 068 | N 913023010002 | NUT |
| 070 | N 000960012221 | SCREW |
| 072 | N 000960012197 | SCREW |
| Repalced by: N 910105012016 | ||
| 072 | N 910105012016 | SCREW |
| 074 | N 000960014110 | SCREW |
| Repalced by: N 910105014016 | ||
| 074 | N 910105014016 | SCREW |
| 076 | N 000960014143 | SCREW |
| FRAME FLANGE | ||
| M 14X1.5X95 | ||
| 078 | N 000960016237 | SCREW |
| Repalced by: N 910105016005 | ||
| 078 | N 910105016005 | SCREW |
| M 16X1.5X60 | ||
| 078 | N 910105016005 | SCREW |
| M 16X1.5X60 | ||
| 080 | N 000960014244 | SCREW |
| 082 | N 000960014250 | SCREW |
| Repalced by: N 910105014009 | ||
| 082 | N 910105014009 | SCREW |
| FRAME FLANGE | ||
| M 14X1.5X70 | ||
| 084 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 084 | N 308676014008 | SCREW |
| 086 | N 000961014101 | SCREW |
| Repalced by: N 910105014010 | ||
| 086 | N 910105014010 | SCREW |
| FRAME FLANGE | ||
| M 14X1.5X45 | ||
| 088 | N 912004012100 | LOCK WASHER |
| N 912004014100 | LOCK WASHER | |
| 092 | N 000934012022 | NUT |
| Repalced by: N 913023012002 | ||
| 092 | N 913023012002 | NUT |
| 094 | N 308673014002 | NUT |
| FRAME FLANGE | ||
| 096 | A 4063120035 | CROSS MEMBER |
| Repalced by: A 4063100046 | ||
| 096 | A 4063100046 | CROSS MEMBER |
| 098 | N 308676012010 | SCREW |
| REAR CROSS MEMBER TO FRAME | ||
| M 12X1,5X40 | ||
| N 912004012100 | LOCK WASHER | |
| REAR CROSS MEMBER TO FRAME | ||
| 102 | N 913004012009 | NUT |
| Repalced by: N 910113012005 | ||
| 102 | N 910113012005 | NUT |
| REAR CROSS MEMBER TO FRAME | ||
| A 4193200129 | STOP | |
| 104 | A 4169960125 | ROD |
| CONTROL ARM CROSS BRACING | ||
| 106 | N 006796018101 | CONICAL SPRING WASHER |
| CONTROL ARM CROSS BRACING | ||
| 108 | N 000934018006 | NUT |
| Repalced by: N 913023018002 | ||
| 108 | N 913023018002 | NUT |
| CONTROL ARM CROSS BRACING | ||
| 110 | A 4063120053 | SPACER TUBE |
| 112 | N 000960012254 | SCREW |
| M 12X1,5X180 | ||
| 114 | N 000934012022 | NUT |
| Repalced by: N 913023012002 | ||
| 114 | N 913023012002 | NUT |
| 116 | A 4065200031 | RUNNING BOARD |
| Repalced by: A 4063101109 | ||
| 116 | A 4063100909 | BRACKET |
| Repalced by: A 4063101109 | ||
| 116 | A 4063101109 | STEP |
| 118 | A 4065201131 | RUNNING BOARD |
| Repalced by: A 4065201431 | ||
| 118 | A 4065201431 | RUNNING BOARD |
| Repalced by: A 4065201731 | ||
| 118 | A 4065201731 | RUNNING BOARD |
| LEFT | ||
| 120 | A 4065200131 | RUNNING BOARD |
| Repalced by: A 4063101209 | ||
| 120 | A 4063101009 | BRACKET |
| Repalced by: A 4063101209 | ||
| 120 | A 4063101209 | STEP |
| Repalced by: A 4063101409 | ||
| 120 | A 4063101409 | STEP |
| Repalced by: A 4195200131 | ||
| 120 | A 4195200131 | RUNNING BOARD |
| RIGHT | ||
| 122 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 122 | N 910105010009 | SCREW |
| N 912004010102 | LOCK WASHER | |
| STEP TO FRAME | ||
| 126 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 126 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 126 | N 913023010002 | NUT |
| STEP TO FRAME | ||
| 128 | A 4065200431 | RUNNING BOARD |
| 130 | N 912004012100 | LOCK WASHER |
| 132 | N 000960012246 | SCREW |
| Repalced by: N 910105012011 | ||
| 132 | N 910105012011 | SCREW |
| 134 | A 4163100009 | BRACKET |
| Repalced by: A 4163100709 | ||
| 134 | A 4163100709 | BRACKET |
| LEFT | ||
| 136 | A 4163100109 | BRACKET |
| Repalced by: A 4163100809 | ||
| 136 | A 4163100809 | BRACKET |
| RIGHT | ||
| 138 | A 4163170001 | CONSOLE |
| 140 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 140 | N 910105010009 | SCREW |
| 142 | N 912004010102 | LOCK WASHER |
| 144 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 144 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 144 | N 913023010002 | NUT |
| A 4165500038 | SUPPORT | |
| A 4165500138 | SUPPORT | |
| A 4165510041 | PLATE | |
| 146 | N 000961016074 | SCREW |
| 148 | N 000934016020 | NUT |
| Repalced by: N 308673016001 | ||
| 148 | N 308673016001 | NUT |
| 150 | A 0022500101 | CLUTCH |
| (FIFTH WHEEL COUPLING) | ||
| 152 | N 000961014054 | SCREW |
| Repalced by: N 308676014022 | ||
| 152 | N 308676014022 | SCREW |
| 154 | N 912004014100 | LOCK WASHER |
| 156 | N 000934014019 | NUT |
| Repalced by: N 910112014000 | ||
| 156 | N 910112014000 | NUT |
| Repalced by: N 913023014003 | ||
| 156 | N 913023014003 | NUT |
| M14X1.5 | ||
| 158 | A 4065200070 | BUMPER |
| 160 | N 000961016075 | SCREW |
| Repalced by: N 308676016021 | ||
| 160 | N 308676016021 | SCREW |
| Repalced by: N 308676016020 | ||
| 160 | N 308676016020 | SCREW |
| BUMPER TO FRAME | ||
| 162 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 162 | N 000125017016 | WASHER |
| BUMPER TO FRAME | ||
| N 912004016101 | LOCK WASHER | |
| BUMPER TO FRAME | ||
| 166 | N 913004016004 | NUT |
| Repalced by: N 913023016001 | ||
| 166 | N 913023016001 | NUT |
| BUMPER TO FRAME | ||
| Repalced by: N 000000005738 | ||
| 166 | N 000000005738 | NUT |
| BUMPER TO FRAME | ||
| 168 | A 4169960025 | ROD |
| 170 | A 3099910640 | SPACER TUBE |
| 172 | N 000934020008 | NUT |
| Repalced by: N 913023020000 | ||
| 172 | N 913023020000 | NUT |
| Repalced by: N 913023020001 | ||
| 172 | N 913023020001 | NUT |
| 174 | N 000960014263 | SCREW |
| Repalced by: N 910105014022 | ||
| 174 | N 910105014022 | HEXAGON HEAD BOLT |
| REINFORCEMENT TO CROSS MEMBER | ||
| M14X1.5X120 | ||
| 176 | A 4163250054 | PLATE |
| REINFORCEMENT TO CROSS MEMBER | ||
| 178 | A 4163110045 | ANGLE |
| REINFORCEMENT TO CROSS MEMBER | ||
| 180 | A 4163250040 | BRACKET |
| Repalced by: A 4163100041 | ||
| 180 | A 4163250095 | WEB |
| Repalced by: A 4163100041 | ||
| 180 | A 4163100041 | CROSS MEMBER |
| REAR | ||
| 182 | A 4163100653 | STRUT |
| 184 | N 000960014263 | SCREW |
| Repalced by: N 910105014022 | ||
| 184 | N 910105014022 | HEXAGON HEAD BOLT |
| GUSSET PLATE TO SUPPORT USED FOR CROSS MEMBER | ||
| M14X1.5X120 | ||
| 186 | N 000960016171 | SCREW |
| Repalced by: N 910105016005 | ||
| 186 | N 910105016005 | SCREW |
| GUSSET PLATE TO SUPPORT USED FOR CROSS MEMBER | ||
| 188 | N 913004016004 | NUT |
| Repalced by: N 913023016001 | ||
| 188 | N 913023016001 | NUT |
| GUSSET PLATE TO SUPPORT USED FOR CROSS MEMBER | ||
| Repalced by: N 000000005738 | ||
| 188 | N 000000005738 | NUT |
| GUSSET PLATE TO SUPPORT USED FOR CROSS MEMBER | ||
| 190 | A 4403220150 | BUSHING |
| GUSSET PLATE TO SUPPORT USED FOR CROSS MEMBER | ||
| 192 | N 000961014066 | SCREW |
| CROSS MEMBER TO FRAME | ||
| 194 | A 4163250054 | PLATE |
| CROSS MEMBER TO FRAME | ||
| 196 | N 308676012010 | SCREW |
| STRUT TO CROSS MEMBER | ||
| 200 | N 913004012009 | NUT |
| Repalced by: N 910113012005 | ||
| 200 | N 910113012005 | NUT |
| STRUT TO CROSS MEMBER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
