Transporto priemonė: U 100,U 1100 L; VIN numerio dalis: 416116
Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| "E" AND "F" VERSIONS;"G" VERSION,SEE UNIT SPARE PARTS LIST 737.0/1 | ||
| 005 | A 4063300399 | FRONT AXLE |
| Repalced by: A 4063301299 | ||
| 005 | A 4063301299 | FRONT AXLE |
| Repalced by: A 4063300999 | ||
| 005 | A 4063300999 | FRONT AXLE |
| WITH BRAKE | ||
| 005 | A 4063300999 | FRONT AXLE |
| WITH BRAKE | ||
| 005 | A 4163303099 | FRONT AXLE |
| WITH BRAKE | ||
| A 4163300299 | FRONT AXLE | |
| Repalced by: A 4163300999 | ||
| A 4163300499 | FRONT AXLE | |
| Repalced by: A 4163301099 | ||
| 008 | A 4063350201 | DIFFERENTIAL CASE |
| 008 | A 4163350001 | DIFFERENTIAL CASE |
| Repalced by: A 4163350101 | ||
| 008 | A 4163350101 | DIFFERENTIAL CASE |
| Repalced by: A 4163350401 | ||
| 008 | A 4163350401 | DIFFERENTIAL CASE |
| Repalced by: A 4373350401 | ||
| 008 | A 4373350401 | DIFFERENTIAL CASE |
| Repalced by: A 4053350201 | ||
| 008 | A 4053350201 | DIFFERENTIAL CASE |
| 011 | A 4063300139 | RING GEAR AND PINION |
| RATIO: | ||
| 8:25 | ||
| 011 | A 4163300039 | RING GEAR AND PINION |
| Repalced by: A 4063300339 | ||
| 011 | A 4063300339 | RING GEAR AND PINION |
| RATIO: | ||
| 7:22 | ||
| 011 | A 4163300239 | RING GEAR AND PINION |
| Repalced by: A 4163300539 | ||
| 011 | A 4163300539 | RING GEAR AND PINION |
| RATIO: | ||
| 9:23 | ||
| A 4063350020 | DIFFERENTIAL SPIDER | |
| A 4163350020 | DIFFERENTIAL SPIDER | |
| Repalced by: A 4163350220 | ||
| A 4163350220 | DIFFERENTIAL SPIDER | |
| A 4063350114 | DIFFERENTIAL PINION | |
| A 4163350014 | DIFFERENTIAL PINION | |
| A 4063370162 | SEGMENT | |
| A 4163370062 | SEGMENT | |
| A 4063350215 | SIDE GEAR | |
| A 4163350015 | SIDE GEAR | |
| A 4063350662 | THRUST WASHER | |
| 1.45 MM | ||
| A 4163350062 | THRUST WASHER | |
| 2.00 MM | ||
| 014 | A 4163500240 | DIFFERENTIAL PINION |
| DIFFERENTIAL GEAR | ||
| 014 | A 4353500040 | REPAIR KIT |
| Repalced by: A 4373500040 | ||
| 014 | A 4373500040 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 017 | A 4069905119 | SCREW |
| 017 | N 000960012277 | SCREW |
| Repalced by: A 0079900101 | ||
| 017 | A 0079900101 | SCREW |
| 020 | N 000934012033 | NUT |
| Repalced by: A 0039909651 | ||
| 020 | A 0039909651 | NUT |

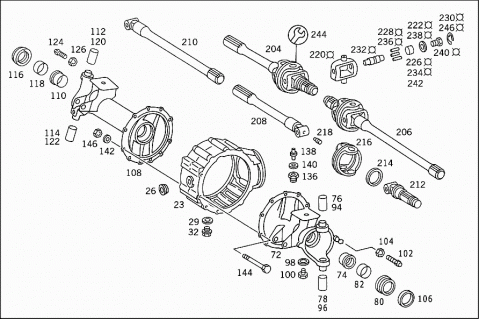

| 023 | A 4063510203 | HOUSING |
| 023 | A 4063510203 | HOUSING |
| 026 | N 000906030003 | SCREW PLUG |
| 029 | N 915035000001 | SEAL RING |
| 032 | N 007604018109 | SCREW PLUG |
| A 4163371352 | SPACER WASHER | |
| 035 | N 000720030211 | TAPERED ROLLER BEARING |
| 035 | A 0029816005 | TAPERED ROLLER BEARING |
| Repalced by: N 000720032013 | ||
| 035 | N 000720032013 | TAPERED ROLLER BEARING |
| 038 | A 4063370152 | SPACER WASHER |
| Repalced by: A 4163370052 | ||
| 038 | A 4163370052 | SPACER WASHER |
| Repalced by: A 4163371852 | ||
| 038 | A 4163371852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| 038 | A 4063370252 | SPACER WASHER |
| Repalced by: A 4163370152 | ||
| 038 | A 4163370152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 038 | A 4063370352 | SPACER WASHER |
| Repalced by: A 4163370252 | ||
| 038 | A 4163370252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 038 | A 4063370452 | SPACER WASHER |
| Repalced by: A 4163370352 | ||
| 038 | A 4063370552 | SPACER WASHER |
| Repalced by: A 4163370352 | ||
| 038 | A 4063370652 | SPACER WASHER |
| Repalced by: A 4163370352 | ||
| 038 | A 4163370352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 038 | A 4163371452 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 038 | A 4163371552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 041 | A 4063371552 | SPACER WASHER |
| Repalced by: A 4063372852 | ||
| 041 | A 4063372852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| 041 | A 4063371652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 041 | A 4063371752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 041 | A 4063371852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 041 | A 4063371952 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 041 | A 4063372052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 044 | N 000720030214 | TAPERED ROLLER BEARING |
| 044 | N 000720032016 | TAPERED ROLLER BEARING |
| 047 | A 4163530011 | BEARING BODY |
| 047 | A 4163530011 | BEARING BODY |
| 050 | A 0019814605 | TAPERED ROLLER BEARING |
| 050 | A 0019814605 | TAPERED ROLLER BEARING |
| 052 | A 4063310053 | SPACER TUBE |
| 054 | A 0019814405 | TAPERED ROLLER BEARING |
| 054 | A 0019814405 | TAPERED ROLLER BEARING |
| 056 | A 4063370251 | SPACER RING |
| 056 | A 4063370251 | SPACER RING |
| 058 | A 4063350172 | NUT |
| 058 | A 4063350172 | NUT |
| 060 | A 4063370073 | LOCK |
| 060 | A 4063370073 | LOCK |
| 062 | A 4063370173 | LOCK |
| 062 | A 4063370173 | LOCK |
| 064 | N 000933006030 | SCREW |
| Repalced by: N 304017006022 | ||
| 064 | N 304017006022 | SCREW |
| 066 | A 4163310258 | RADIAL SEAL RING |
| 066 | A 4163310258 | RADIAL SEAL RING |
| 068 | A 4063354552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 068 | A 4063352152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 068 | A 4063352252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 068 | A 4063352352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 068 | A 4063352452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 070 | A 0009878046 | SEALING CORD |
| 76X2.5 MM | ||
| 072 | A 4063301329 | FRONT AXLE TUBE |
| Repalced by: A 4063301829 | ||
| 072 | A 4063301629 | FRONT AXLE TUBE |
| Repalced by: A 4063301829 | ||
| 072 | A 4063301829 | FRONT AXLE TUBE |
| 072 | A 4163300629 | FRONT AXLE TUBE |
| Repalced by: A 4163303029 | ||
| 072 | A 4163301029 | FRONT AXLE TUBE |
| Repalced by: A 4163303029 | ||
| 072 | A 4163303029 | FRONT AXLE TUBE |
| 072 | A 4163303229 | FRONT AXLE TUBE |
| 072 | A 4163303829 | FRONT AXLE TUBE |
| LEFT | ||
| 074 | A 4063320350 | BUSHING |
| Repalced by: A 4063320850 | ||
| 074 | A 4063320850 | BUSHING |
| Repalced by: A 4063321050 | ||
| 074 | A 4063321050 | BUSHING |
| 076 | A 4163320274 | PIN |
| TOP | ||
| 078 | A 4163320174 | PIN |
| Repalced by: A 4163320374 | ||
| 078 | A 4163320374 | PIN |
| BOTTOM | ||
| 080 | A 0039970746 | SEAL RING |
| Repalced by: A 0109972246 | ||
| 080 | A 0109972246 | SEAL RING |
| Repalced by: A 0129973447 | ||
| 080 | A 0129973447 | SEAL RING |
| 082 | A 4163370851 | SPACER RING |
| 084 | A 4069940034 | SNAP RING |
| 086 | A 4063350458 | SEAL HOLDER |
| 088 | A 0009878046 | SEALING CORD |
| 76X2.5 MM | ||
| 090 | A 4063350350 | PISTON |
| 090 | A 4163350050 | BUSHING |
| Repalced by: A 4163350250 | ||
| 090 | A 4163350250 | PISTON |
| 092 | A 4069875041 | BOOT |
| INSIDE, FOR PISTON | ||
| 092 | A 4069875141 | BOOT |
| OUTSIDE,FOR PISTON | ||
| 092 | A 0009977941 | SEAL RING |
| 094 | A 4063320650 | BUSHING |
| Repalced by: A 4063320750 | ||
| 094 | A 4063320750 | BUSHING |
| TOP | ||
| 096 | A 4063320606 | KINGPIN |
| BOTTOM | ||
| 28 MM | ||
| 098 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 098 | N 007603010110 | SEAL RING |
| 100 | A 3159900801 | SCREW |
| 102 | A 4063320071 | SCREW |
| Repalced by: A 4063320171 | ||
| 102 | A 4063320171 | SCREW |
| Repalced by: A 4403320071 | ||
| 102 | A 4403320071 | SCREW |
| 104 | N 000936012010 | NUT |
| Repalced by: N 304035012002 | ||
| 104 | N 304035012002 | NUT |
| 106 | A 4033350052 | SPACER WASHER |
| 124.5 MM | ||
| 108 | A 4063301429 | FRONT AXLE TUBE |
| Repalced by: A 4063301929 | ||
| 108 | A 4063301929 | FRONT AXLE TUBE |
| 108 | A 4163300729 | FRONT AXLE TUBE |
| Repalced by: A 4163301129 | ||
| 108 | A 4163301129 | FRONT AXLE TUBE |
| 108 | A 4163302929 | FRONT AXLE TUBE |
| Repalced by: A 4163303729 | ||
| 108 | A 4163303729 | FRONT AXLE TUBE |
| RIGHT | ||
| 110 | A 4063320350 | BUSHING |
| Repalced by: A 4063320850 | ||
| 110 | A 4063320850 | BUSHING |
| Repalced by: A 4063321050 | ||
| 110 | A 4063321050 | BUSHING |
| 112 | A 4163320274 | PIN |
| TOP | ||
| 114 | A 4163320174 | PIN |
| Repalced by: A 4163320374 | ||
| 114 | A 4163320374 | PIN |
| BOTTOM | ||
| 116 | A 0039970746 | SEAL RING |
| Repalced by: A 0109972246 | ||
| 116 | A 0109972246 | SEAL RING |
| Repalced by: A 0129973447 | ||
| 116 | A 0129973447 | SEAL RING |
| 118 | A 4163370851 | SPACER RING |
| 120 | A 4063320650 | BUSHING |
| Repalced by: A 4063320750 | ||
| 120 | A 4063320750 | BUSHING |
| TOP | ||
| 122 | A 4063320606 | KINGPIN |
| BOTTOM | ||
| 28 MM | ||
| 124 | A 4063320071 | SCREW |
| Repalced by: A 4063320171 | ||
| 124 | A 4063320171 | SCREW |
| Repalced by: A 4403320071 | ||
| 124 | A 4403320071 | SCREW |
| STEERING KNUCKLE STOP | ||
| 126 | N 000936012010 | NUT |
| Repalced by: N 304035012002 | ||
| 126 | N 304035012002 | NUT |
| STEERING KNUCKLE STOP | ||
| 128 | A 4069930301 | SPRING |
| 128 | A 4169935001 | SPRING |
| 128 | A 4169935001 | SPRING |
| 130 | A 4063350236 | FOLLOWER |
| 130 | A 4213350036 | FOLLOWER |
| 130 | A 4163350036 | FOLLOWER |
| 132 | A 4063350362 | THRUST WASHER |
| 132 | A 4163350262 | THRUST WASHER |
| 134 | A 4063350562 | THRUST WASHER |
| 134 | A 4163350362 | THRUST WASHER |
| 136 | N 915007006003 | ADAPTER FITTING |
| 138 | A 4163300077 | STOP |
| Repalced by: A 4163310084 | ||
| 138 | A 4163310084 | FITTING |
| Repalced by: A 4353310084 | ||
| 138 | A 4353310084 | FITTING |
| 140 | N 915035000006 | SEAL RING |
| 142 | N 900055012001 | SPRING WASHER |
| Repalced by: A 4069905048 | ||
| 142 | A 4069905048 | WASHER |
| 144 | N 000961012055 | SCREW |
| 144 | N 000960012164 | SCREW |
| 144 | N 000960012164 | SCREW |
| 146 | A 0009909851 | NUT |
| Repalced by: N 000934012033 | ||
| 146 | N 000934012033 | NUT |
| Repalced by: A 0039909651 | ||
| 146 | A 0039909651 | NUT |
| 146 | A 0039909651 | NUT |
| WHEEL HUB DRIVE,LEFT AND RIGHT | ||

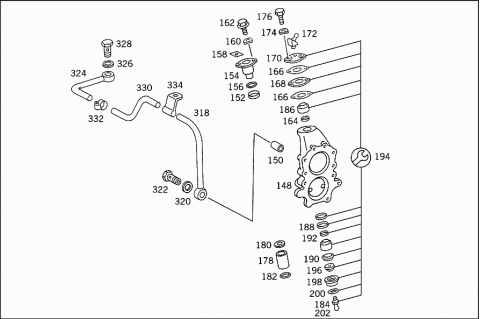

| 148 | A 4063300520 | STEERING KNUCKLE |
| 148 | A 4163300620 | STEERING KNUCKLE |
| Repalced by: A 4163300720 | ||
| 148 | A 4163300720 | STEERING KNUCKLE |
| 148 | A 4163301420 | STEERING KNUCKLE |
| 148 | A 4163301420 | STEERING KNUCKLE |
| OUTSIDE LEFT | ||
| 148 | A 4163301620 | STEERING KNUCKLE |
| OUTSIDE RIGHT | ||
| 150 | A 0009911141 | CLAMPING PIN |
| 150 | A 4069925025 | SLEEVE |
| 152 | A 4063320151 | SPACER RING |
| 154 | A 4063320206 | KINGPIN |
| Repalced by: A 4063320506 | ||
| 154 | A 4063320506 | KINGPIN |
| TOP | ||
| 156 | A 0049975545 | SEAL RING |
| TOP | ||
| 156 | A 0059975945 | SEAL RING |
| 158 | A 4063320173 | LOCK |
| AT LEFT AND RIGHT UPPER KING PINS | ||
| 160 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 160 | N 000137012206 | SPRING WASHER |
| UPPER KINGPIN TO STEERING KNUCKLE | ||
| 162 | N 308676012012 | SCREW |
| Repalced by: N 910105012013 | ||
| 162 | N 910105012013 | SCREW |
| UPPER KINGPIN TO STEERING KNUCKLE | ||
| 164 | A 0059976045 | SEAL RING |
| 166 | A 4163320179 | GASKET |
| AS REQUIRED | ||
| 166 | A 4163320079 | GASKET |
| 168 | A 4163371052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 168 | A 4163371152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 170 | A 4163320146 | PLATE |
| 170 | A 4163320346 | PLATE |
| 172 | N 071412008200 | GREASE NIPPLE |
| 174 | N 000137010201 | SPRING WASHER |
| 176 | N 000933010112 | SCREW |
| Repalced by: N 304017010043 | ||
| 176 | N 304017010043 | SCREW |
| 178 | A 4063300050 | BUSHING |
| BOTTOM | ||
| 178 | A 4063320250 | BUSHING |
| BOTTOM | ||
| 180 | A 4063320062 | THRUST WASHER |
| 182 | A 0039970945 | SEAL RING |
| BOTTOM | ||
| 184 | N 071412008200 | GREASE NIPPLE |
| BOTTOM | ||
| 186 | A 4163320051 | SPACER RING |
| 188 | A 0059978145 | SEAL RING |
| 190 | A 4163320262 | THRUST WASHER |
| Repalced by: A 4163320362 | ||
| 190 | A 4163320362 | THRUST WASHER |
| 192 | A 4163320059 | SEAL RING |
| Repalced by: A 0059976045 | ||
| 192 | A 0059976045 | SEAL RING |
| 194 | A 4169810031 | JOINT BEARING |
| Repalced by: A 4169810331 | ||
| 194 | A 4169810231 | JOINT BEARING |
| Repalced by: A 4165860233 | ||
| 194 | A 4169810331 | JOINT BEARING |
| Repalced by: A 4165860233 | ||
| 194 | A 4165860233 | REPAIR KIT |
| Repalced by: A 4163300012 | ||
| 194 | A 4163300012 | REPAIR KIT |
| 196 | A 4163320162 | THRUST WASHER |
| 198 | A 4163320150 | BUSHING |
| 200 | A 0039970845 | SEAL RING |
| 202 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 202 | N 071412008102 | GREASE NIPPLE |
| 202 | A 4163320083 | OIL PIPE |
| Repalced by: A 4163320783 | ||
| 202 | A 4163320783 | OIL PIPE |
| Repalced by: N 071412008300 | ||
| 202 | N 071412008302 | GREASE NIPPLE |
| 204 | A 4063300601 | DRIVE SHAFT |
| 204 | A 4163300001 | DRIVE SHAFT |
| 206 | A 4163300301 | DRIVE SHAFT |
| Repalced by: A 4163300701 | ||
| A 4163300701 | DRIVE SHAFT | |
| Repalced by: A 4163301401 | ||
| 206 | A 4063300701 | DRIVE SHAFT |
| 206 | A 4163300101 | DRIVE SHAFT |
| A 4163300201 | DRIVE SHAFT | |
| Repalced by: A 4163300801 | ||
| A 4163300801 | DRIVE SHAFT | |
| Repalced by: A 4163301301 | ||
| A 0003370403 | PROPELLER SHAFT | |
| LEFT | ||
| A 0003371003 | PROPELLER SHAFT | |
| A 0003371603 | PROPELLER SHAFT | |
| A 0003371603 | PROPELLER SHAFT | |
| 208 | A 0003371803 | PROPELLER SHAFT |
| A 0003370503 | PROPELLER SHAFT | |
| RIGHT | ||
| A 0003371103 | PROPELLER SHAFT | |
| A 0003371703 | PROPELLER SHAFT | |
| A 0003371703 | PROPELLER SHAFT | |
| 210 | A 0003371903 | PROPELLER SHAFT |
| A 0003370601 | DRIVE SHAFT | |
| A 0003370801 | DRIVE SHAFT | |
| Repalced by: A 0003371501 | ||
| A 0003371501 | DRIVE SHAFT | |
| A 0003370901 | DRIVE SHAFT | |
| A 0003370901 | DRIVE SHAFT | |
| 212 | A 0003371001 | DRIVE SHAFT |
| Repalced by: A 4163300081 | ||
| 212 | A 4163300081 | SHAFT |
| 214 | A 0109972547 | SEAL RING |
| 216 | A 0003370317 | FOLLOWER |
| 218 | A 0009901477 | SCREW |
| 220 | A 0003370311 | JOINT CROSS |
| 220 | A 0003370311 | JOINT CROSS |
| 220 | A 0003370511 | JOINT CROSS |
| 222 | A 0003371080 | GASKET |
| 222 | A 0003371080 | GASKET |
| 222 | A 0003371380 | GASKET |
| A 0003370049 | BUSHING | |
| Repalced by: A 0003370449 | ||
| A 0003370449 | BUSHING | |
| Repalced by: A 4063300012 | ||
| A 4063300012 | BEARING BUSHING | |
| A 4063300012 | BEARING BUSHING | |
| 226 | A 0003370249 | BUSHING |
| Repalced by: A 0003370949 | ||
| 226 | A 0003370949 | BUSHING |
| 228 | A 0009813487 | NEEDLE |
| Repalced by: A 0009817687 | ||
| 228 | A 0009817687 | NEEDLE |
| Repalced by: A 4169810187 | ||
| 228 | A 4169810187 | NEEDLE |
| SET = 128 PIECES | ||
| 228 | A 4169810187 | NEEDLE |
| SET = 128 PIECES | ||
| 228 | A 0009817587 | NEEDLE |
| Repalced by: A 4169810087 | ||
| 228 | A 4169810087 | NEEDLE |
| SET = 128 PIECES | ||
| 230 | A 0003370073 | LOCK |
| Repalced by: A 0003371073 | ||
| 230 | A 0003371073 | LOCK |
| AS REQUIRED | ||
| 1.300 MM | ||
| 230 | A 0003371273 | LOCK |
| AS REQUIRED | ||
| 1.450 MM | ||
| 230 | A 0003370273 | LOCK |
| AS REQUIRED | ||
| 1.500 MM | ||
| 230 | A 0003370373 | LOCK |
| AS REQUIRED | ||
| 1.525 MM | ||
| 230 | A 0003370473 | LOCK |
| AS REQUIRED | ||
| 1.550 MM | ||
| 230 | A 0003370573 | LOCK |
| AS REQUIRED | ||
| 1.575 MM | ||
| 230 | A 0003370673 | LOCK |
| AS REQUIRED | ||
| 1.600 MM | ||
| 232 | A 0003370274 | PIN |
| Repalced by: A 0003370674 | ||
| 232 | A 0003370674 | PIN |
| 232 | A 0003370674 | PIN |
| 232 | A 0003370474 | PIN |
| A 0003370149 | BUSHING | |
| Repalced by: A 0003370549 | ||
| A 0003370549 | BUSHING | |
| Repalced by: A 4213300012 | ||
| A 4213300012 | BEARING BUSHING | |
| 234 | A 0003370349 | BUSHING |
| Repalced by: A 0003370849 | ||
| 234 | A 0003370849 | BUSHING |
| 236 | A 0009814487 | NEEDLE |
| Repalced by: A 0009817587 | ||
| 236 | A 0009817587 | NEEDLE |
| Repalced by: A 4169810087 | ||
| 236 | A 4169810087 | NEEDLE |
| SET = 128 PIECES | ||
| 236 | A 4169810087 | NEEDLE |
| SET = 128 PIECES | ||
| 236 | A 0009817687 | NEEDLE |
| Repalced by: A 4169810187 | ||
| 236 | A 4169810187 | NEEDLE |
| SET = 128 PIECES | ||
| 238 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 238 | N 007603010110 | SEAL RING |
| 240 | A 0009971532 | SCREW PLUG |
| 242 | A 4213300012 | BEARING BUSHING |
| 242 | A 4063300012 | BEARING BUSHING |
| 244 | A 4165860033 | REPAIR KIT |
| Repalced by: A 4163300035 | ||
| 244 | A 4163300035 | REPAIR KIT |
| 244 | A 4163300035 | REPAIR KIT |
| A 4165860133 | REPAIR KIT | |
| Repalced by: A 0005862133 | ||
| 244 | A 0005862133 | REPAIR KIT |
| Repalced by: A 0003300528 | ||
| 244 | A 0003300528 | UNIVERSAL JOINT |
| REPAIR KIT | ||
| 246 | A 0004111573 | LOCK |
| AS REQUIRED | ||
| 1,4 MM TO 000 330 05 28 | ||
| 246 | A 0004111673 | LOCK |
| AS REQUIRED | ||
| 1,5 MM TO 000 330 05 28 | ||
| 246 | A 0004111773 | LOCK |
| AS REQUIRED | ||
| 1,6 MM TO 000 330 05 28 | ||
| 246 | A 0004111873 | LOCK |
| AS REQUIRED | ||
| 1,7 MM TO 000 330 05 28 | ||
| 248 | A 0039970846 | SEAL RING |
| 248 | A 4163310158 | RADIAL SEAL RING |
| 248 | A 4163310558 | CONSOLE |
| Repalced by: A 0109973446 | ||
| 248 | A 0109973446 | SEAL RING |
| 248 | A 0109973546 | SEAL RING |
| 250 | A 0019813705 | TAPERED ROLLER BEARING |
| Repalced by: A 0099810305 | ||
| 250 | A 0099810305 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 250 | N 000625006310 | GROOVED BALL BEARING |
| Repalced by: A 0019816125 | ||
| 250 | N 000625036310 | GROOVED BALL BEARING |
| Repalced by: A 0019816125 | ||
| 250 | A 0019816125 | BALL BEARING |
| 250 | A 0019817225 | BALL BEARING |

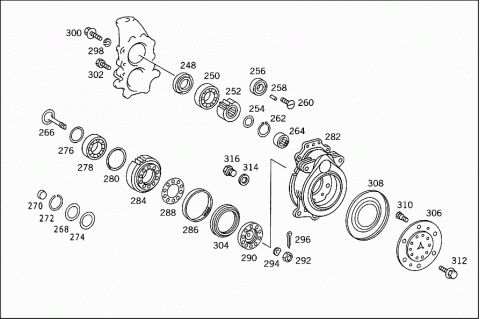

| 252 | A 4063360410 | SPUR GEAR |
| LEFT;15 TEETH | ||
| 252 | A 4163360010 | SPUR GEAR |
| 252 | A 4063360510 | SPUR GEAR |
| RIGHT;15 TEETH | ||
| 252 | A 4163360110 | SPUR GEAR |
| 252 | A 4163360410 | SPUR GEAR |
| 252 | A 4163360310 | SPUR GEAR |
| NUMBER OF TEETH: | ||
| 13 | ||
| 254 | A 4063372252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 254 | A 4063372352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 254 | A 4063372452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 254 | A 4063372552 | SPACER WASHER |
| Repalced by: A 4063372352 | ||
| 254 | A 4063372352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 254 | A 4063372652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 254 | A 4063372752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 254 | A 4163370752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 254 | A 4163370852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 254 | A 4163370952 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 256 | A 4063350062 | THRUST WASHER |
| 258 | N 001481004012 | CLAMPING SLEEVE |
| Repalced by: N 308752004000 | ||
| 258 | N 308752004000 | CLAMPING PIN |
| 260 | N 000063010103 | SCREW |
| Repalced by: A 4049900330 | ||
| 260 | A 4049900330 | SCREW |
| 262 | N 000471042000 | LOCK RING |
| 264 | A 0009818605 | TAPERED ROLLER BEARING |
| 264 | A 0019817701 | CYLINDR. ROLLER BEARING |
| 266 | A 4063350076 | SET SCREW |
| 266 | A 4163350076 | SET SCREW |
| 266 | A 4163350176 | SET SCREW |
| 266 | A 4163350276 | SET SCREW |
| TO 416 337 03 51 | ||
| 266 | A 4163350376 | SET SCREW |
| TO 435 337 04 51 | ||
| 268 | N 000988050000 | FITTED WASHER |
| 270 | A 4039970620 | EXPANSION PLUG |
| 272 | N 900055050300 | LOCK RING |
| 274 | A 4063340152 | SPACER WASHER |
| 274 | A 4063340252 | SPACER WASHER |
| 276 | A 4063370152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 276 | A 4063370252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 276 | A 4063370352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 276 | A 4063370452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 276 | A 4063370552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 276 | A 4063370652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 276 | A 4163370452 | SPACER WASHER |
| Repalced by: A 4273370052 | ||
| 276 | A 4273370052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 276 | A 4163370552 | SPACER WASHER |
| Repalced by: A 4273370152 | ||
| 276 | A 4273370152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 276 | A 4163370652 | SPACER WASHER |
| Repalced by: A 4273370252 | ||
| 276 | A 4273370252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 278 | N 000625006211 | GROOVED BALL BEARING |
| 278 | N 000625006309 | GROOVED BALL BEARING |
| 278 | N 000625006310 | GROOVED BALL BEARING |
| Repalced by: A 0019816125 | ||
| 278 | A 0019816125 | BALL BEARING |
| 278 | A 0019817225 | BALL BEARING |
| 280 | A 0009878046 | SEALING CORD |
| A 4163510079 | GASKET | |
| 282 | A 4063310005 | HOUSING |
| Repalced by: A 4163310005 | ||
| 282 | A 4163310005 | HOUSING |
| 282 | A 4163310105 | HOUSING |
| 284 | A 4063530015 | SIDE GEAR |
| LEFT | ||
| 284 | A 4163530015 | SIDE GEAR |
| Repalced by: A 4163530215 | ||
| 284 | A 4163530215 | SIDE GEAR |
| LEFT | ||
| 284 | A 4063530115 | SIDE GEAR |
| RIGHT | ||
| TO 416 337 03 51 | ||
| 284 | A 4163530115 | SIDE GEAR |
| Repalced by: A 4163530315 | ||
| 284 | A 4163530315 | SIDE GEAR |
| RIGHT | ||
| 284 | A 4163530615 | SIDE GEAR |
| NUMBER OF TEETH: | ||
| 32 | ||
| 284 | A 4163530515 | SIDE GEAR |
| NUMBER OF TEETH: | ||
| 27 | ||
| 286 | A 0009816801 | CYLINDR. ROLLER BEARING |
| 286 | A 0019814201 | CYLINDR. ROLLER BEARING |
| 288 | A 4163310052 | SPACER WASHER |
| TO 416 337 03 51 | ||
| 290 | A 4063370551 | SPACER RING |
| Repalced by: A 4063371151 | ||
| 290 | A 4063371151 | SPACER RING |
| LEFT | ||
| 290 | A 4163370051 | SPACER RING |
| Repalced by: A 4163370351 | ||
| 290 | A 4063370651 | SPACER RING |
| Repalced by: A 4063371251 | ||
| 290 | A 4063371251 | SPACER RING |
| RIGHT | ||
| 290 | A 4163370151 | SPACER RING |
| Repalced by: A 4163370351 | ||
| 290 | A 4163370351 | SPACER RING |
| Repalced by: A 4353370451 | ||
| 290 | A 4353370451 | SPACER RING |
| 290 | A 4063371551 | SPACER RING |
| 292 | N 000937020001 | NUT |
| 292 | N 000935020005 | NUT |
| 294 | N 900055020001 | SPRING WASHER |
| 296 | N 000094004065 | COTTER PIN |
| 298 | N 912004012100 | LOCK WASHER |
| 300 | N 000961012094 | SCREW |
| Repalced by: N 910105012007 | ||
| 300 | N 910105012007 | SCREW |
| 300 | N 000961012106 | SCREW |
| Repalced by: N 308676012014 | ||
| 300 | N 308676012014 | SCREW |
| Repalced by: N 910105012020 | ||
| 300 | N 910105012020 | SCREW |
| 300 | N 910105012020 | SCREW |
| 300 | N 000960012206 | SCREW |
| 300 | N 000960012162 | SCREW |
| Repalced by: N 910105012021 | ||
| 300 | N 910105012021 | SCREW |
| 300 | N 000960012261 | SCREW |
| Repalced by: N 910105012016 | ||
| 300 | N 910105012016 | SCREW |
| 302 | A 4069905201 | SCREW |
| 304 | A 0059971946 | SEAL RING |
| 304 | A 4163310058 | RADIAL SEAL RING |
| Repalced by: A 0119977947 | ||
| 304 | A 4163311258 | RADIAL SEAL RING |
| Repalced by: A 0119977947 | ||
| 304 | A 4163310958 | RADIAL SEAL RING |
| Repalced by: A 0119977947 | ||
| 304 | A 0119977947 | SEAL RING |
| Repalced by: A 0219971147 | ||
| 304 | A 4163311358 | RADIAL SEAL RING |
| Repalced by: A 0059974547 | ||
| 304 | A 0059974547 | SEAL RING |
| Repalced by: A 0219971147 | ||
| 304 | A 0219971147 | SEAL RING |
| LEFT AND RIGHT | ||
| 306 | A 4063560101 | WHEEL HUB |
| 306 | A 4163500035 | WHEEL HUB |
| Repalced by: A 4163560001 | ||
| 306 | A 4163560001 | WHEEL HUB |
| 308 | A 4163340082 | OIL COLLECTOR |
| 310 | A 4044010071 | WHEEL MOUNTING BOLT |
| 310 | A 4044010071 | WHEEL MOUNTING BOLT |
| 312 | N 000960016237 | SCREW |
| Repalced by: N 910105016005 | ||
| 312 | N 910105016005 | SCREW |
| 314 | N 915035000006 | SEAL RING |
| 316 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 316 | N 007604014110 | SCREW PLUG |
| 318 | A 4213300066 | BREATHER PIPE |
| LEFT | ||
| 318 | A 4063300966 | BREATHER PIPE |
| Repalced by: A 4163300066 | ||
| 318 | A 4163300066 | BREATHER PIPE |
| 320 | N 007603008107 | SEAL RING |
| 322 | N 915036005100 | HOLLOW SCREW |
| Repalced by: N 000000004895 | ||
| 322 | N 000000004895 | BANJO BOLT |
| 324 | A 4213300166 | BREATHER PIPE |
| Repalced by: A 4163300066 | ||
| 324 | A 4163300166 | BREATHER PIPE |
| Repalced by: A 4163300066 | ||
| 324 | A 4163300266 | BREATHER PIPE |
| Repalced by: A 4163300066 | ||
| 324 | A 4163300366 | BREATHER PIPE |
| Repalced by: A 4163300066 | ||
| 324 | A 4163300066 | BREATHER PIPE |
| WHEEL HUB DRIVE,LEFT AND RIGHT | ||
| 324 | A 4163300066 | BREATHER PIPE |
| LEFT AND RIGHT AXLE TUBES | ||
| 326 | N 007603008107 | SEAL RING |
| 328 | N 915036005100 | HOLLOW SCREW |
| Repalced by: N 000000004895 | ||
| 328 | N 000000004895 | BANJO BOLT |
| 330 | A 4119970482 | HOSE |
| Repalced by: A 4189970182 | ||
| 330 | A 4189970182 | HOSE |
| 332 | N 900288010001 | CLAMP |
| 334 | A 4069955044 | CLAMP |
| 334 | A 4069955244 | CLAMP |
| 334 | A 4169955044 | CLAMP |

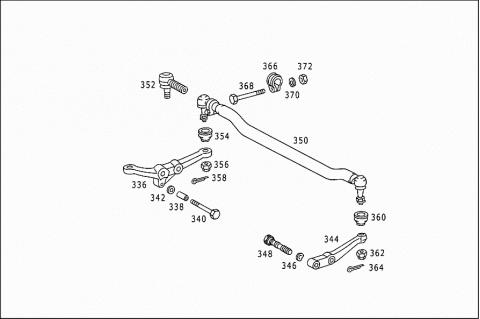

| 336 | A 4063380108 | STEERING ARM |
| 336 | A 4063380508 | STEERING ARM |
| Repalced by: A 4163380408 | ||
| 336 | A 4163380408 | STEERING ARM |
| 336 | A 4163380108 | STEERING ARM |
| 336 | A 4063380608 | STEERING ARM |
| Repalced by: A 4163380508 | ||
| 336 | A 4163380508 | STEERING ARM |
| 336 | A 4163380208 | STEERING ARM |
| 338 | A 4163380050 | BUSHING |
| 340 | N 000960012206 | SCREW |
| 342 | N 000988012009 | FITTED WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 342 | N 000988012009 | FITTED WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 342 | N 000988012010 | FITTED WASHER |
| AS REQUIRED | ||
| 1.40 MM | ||
| 342 | N 000988012015 | FITTED WASHER |
| AS REQUIRED | ||
| 1.60 MM | ||
| 342 | N 000988012020 | FITTED WASHER |
| AS REQUIRED | ||
| 1.80 MM | ||
| 344 | A 4063380005 | STEERING ARM |
| 344 | A 4063380305 | STEERING ARM |
| 344 | A 4063380405 | STEERING ARM |
| 346 | N 000137016202 | SPRING WASHER |
| 346 | N 000137020202 | SPRING WASHER |
| Repalced by: N 000137020205 | ||
| 346 | N 000137020205 | SPRING WASHER |
| 348 | N 000960016154 | SCREW |
| 348 | N 000960020090 | SCREW |
| Repalced by: A 4169905319 | ||
| 348 | A 4169905319 | SCREW |
| 350 | A 4063300103 | TIE ROD |
| 350 | A 4063300203 | TIE ROD |
| 352 | A 3103300635 | JOINT |
| Repalced by: A 0003381810 | ||
| 352 | A 0003381810 | BALL JOINT |
| Repalced by: A 0003305635 | ||
| 352 | A 0003305635 | JOINT |
| Repalced by: A 0004604348 | ||
| 352 | A 0004604348 | DRAG LINK END |
| 354 | A 0004630096 | BOOT |
| Repalced by: A 0003300285 | ||
| 354 | A 0003300285 | BOOT |
| Repalced by: A 0003300885 | ||
| 354 | A 0003300885 | BOOT |
| 356 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 356 | N 000979016007 | NUT |
| 358 | N 000094004065 | COTTER PIN |
| 360 | A 0004630096 | BOOT |
| Repalced by: A 0003300285 | ||
| 360 | A 0003300285 | BOOT |
| Repalced by: A 0003300885 | ||
| 360 | A 0003300885 | BOOT |
| 362 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 362 | N 000979016007 | NUT |
| 364 | N 000094004065 | COTTER PIN |
| 366 | A 0009953244 | CLAMP |
| 368 | N 000960010030 | SCREW |
| 370 | N 912004010102 | LOCK WASHER |
| 372 | N 000934010010 | NUT |
| 372 | N 000934010010 | NUT |

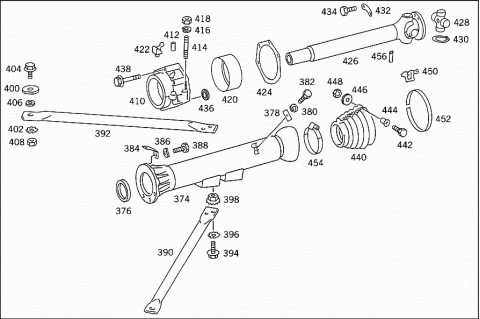

| THRUST TUBE,THRUST BALL HOUSING,AND PROPELLER SHAFT | ||
| 374 | A 4063300431 | END PIECE |
| Repalced by: A 4063300931 | ||
| 374 | A 4063300931 | THRUST TUBE |
| Repalced by: A 4163300831 | ||
| 374 | A 4163300831 | THRUST TUBE |
| Repalced by: A 4403300231 | ||
| 374 | A 4403300231 | THRUST TUBE |
| 376 | A 0029978646 | SEAL RING |
| 376 | A 0029978646 | SEAL RING |
| 378 | A 3044760019 | BASE |
| Repalced by: A 3142030084 | ||
| 378 | A 3142030084 | SHIM |
| 380 | N 912004006102 | LOCK WASHER |
| 382 | N 000933006102 | SCREW |
| A 4214280043 | ANGLE | |
| 384 | A 4064280040 | BRACKET |
| 386 | N 900055012001 | SPRING WASHER |
| 388 | N 000960012171 | SCREW |
| 390 | A 4063300111 | THRUST ARM |
| Repalced by: A 4163300211 | ||
| 390 | A 4163300211 | THRUST ARM |
| 390 | A 4063300211 | THRUST ARM |
| Repalced by: A 4163300011 | ||
| 390 | A 4163330077 | INDEXING PLATE |
| 390 | A 4163300011 | THRUST ARM |
| LEFT | ||
| 390 | A 4163300011 | THRUST ARM |
| LEFT | ||
| 392 | A 4063300011 | THRUST ARM |
| Repalced by: A 4163300111 | ||
| 392 | A 4163330077 | INDEXING PLATE |
| 392 | A 4163330111 | THRUST ARM |
| Repalced by: A 4163300111 | ||
| 392 | A 4163300111 | THRUST ARM |
| RIGHT | ||
| 392 | A 4163300111 | THRUST ARM |
| RIGHT | ||
| A 4063330068 | WEB | |
| Repalced by: A 0019903651 | ||
| 394 | N 000961016077 | SCREW |
| Repalced by: N 910105016007 | ||
| 394 | N 910105016007 | SCREW |
| 394 | N 000961016036 | SCREW |
| Repalced by: N 910105016004 | ||
| 394 | N 910105016004 | SCREW |
| AXLE STRUT TO THRUST TUBE | ||
| 396 | A 4063580073 | LOCK |
| 396 | A 0009941651 | LOCK |
| 398 | A 0019903651 | NUT |
| Repalced by: N 913013016002 | ||
| 398 | N 913013016002 | NUT |
| 400 | A 4063330077 | INDEXING PLATE |
| Repalced by: A 4163330077 | ||
| 400 | A 4163330077 | INDEXING PLATE |
| 402 | A 0009931826 | DISC SPRING |
| Repalced by: A 0009941651 | ||
| 402 | A 0009941651 | LOCK |
| N 000961016097 | SCREW | |
| Repalced by: N 308676016005 | ||
| N 308676016005 | SCREW | |
| 404 | A 0029907001 | SCREW |
| 404 | A 0029907001 | SCREW |
| 404 | N 000961016074 | SCREW |
| AXLE STRUTS TO AXLE TUBE | ||
| 406 | N 006796016200 | CONICAL SPRING WASHER |
| 406 | N 006796016200 | CONICAL SPRING WASHER |
| 408 | A 0019903651 | NUT |
| Repalced by: N 913013016002 | ||
| 408 | N 913013016002 | NUT |
| 408 | N 913013016002 | NUT |
| 408 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 408 | N 308673016001 | NUT |
| 410 | A 4163300014 | HOUSING |
| Repalced by: A 4163300314 | ||
| 410 | A 4163300214 | HOUSING |
| Repalced by: A 4163300314 | ||
| 410 | A 4163300314 | THRUST BALL HOUSING |
| Repalced by: A 4163301314 | ||
| 410 | A 4163301314 | HOUSING |
| 412 | N 000007006105 | CYLINDRICAL PIN |
| 414 | N 000939010008 | STUD BOLT |
| Repalced by: N 000939010138 | ||
| 414 | N 000939010138 | STUD BOLT |
| 416 | N 912004010102 | LOCK WASHER |
| 418 | N 070615010003 | NUT |
| 420 | A 4063370405 | PART NAME MISSING |
| Repalced by: A 4063370506 | ||
| 420 | A 4063370506 | THRUST BALL CUP |
| 420 | A 4163370406 | HOUSING |
| Repalced by: A 4163370506 | ||
| 420 | A 4163370506 | THRUST BALL CUP |
| 422 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 422 | N 071412008102 | GREASE NIPPLE |
| 424 | A 4063370752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 424 | A 4063370852 | SPACER WASHER |
| AS REQUIRED | ||
| 1.80 MM | ||
| 424 | A 4063370952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.60 MM | ||
| 424 | A 4063371052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.40 MM | ||
| 424 | A 4063371152 | SPACER WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 424 | A 4063371252 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 424 | A 4063371352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 424 | A 4063371452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| A 4063350446 | STOP | |
| 426 | A 4063370210 | JOINT |
| Repalced by: A 4163370210 | ||
| 426 | A 4063370410 | JOINT |
| Repalced by: A 4163370210 | ||
| 426 | A 4163370210 | PROPELLER SHAFT |
| 426 | A 4163370210 | PROPELLER SHAFT |
| 428 | A 0003370711 | JOINT CROSS |
| Repalced by: A 0003300728 | ||
| 428 | A 0003300728 | UNIVERSAL JOINT |
| REPAIR KIT | ||
| 428 | A 0003300728 | UNIVERSAL JOINT |
| REPAIR KIT | ||
| 430 | A 0004112073 | LOCK |
| AS REQUIRED | ||
| 1.4 | ||
| 430 | A 0004112173 | LOCK |
| AS REQUIRED | ||
| 1.5 | ||
| 430 | A 0004112273 | LOCK |
| AS REQUIRED | ||
| 1.6 | ||
| 430 | A 0004112373 | LOCK |
| AS REQUIRED | ||
| 1.7 | ||
| 430 | A 0004112473 | LOCK |
| AS REQUIRED | ||
| 1.8 | ||
| 430 | A 0004112573 | LOCK |
| AS REQUIRED | ||
| 1.9 | ||
| 432 | A 4043370073 | LOCK |
| 432 | A 4163370073 | LOCK |
| 434 | N 000933008031 | SCREW |
| Repalced by: A 1249902201 | ||
| 434 | A 1249902201 | SCREW |
| M 8X18 | ||
| 434 | A 4169905001 | SCREW |
| Repalced by: N 070614010033 | ||
| 434 | N 070614010033 | SCREW |
| Repalced by: A 4169905001 | ||
| 434 | A 4169905001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 436 | N 007603010108 | SEAL RING |
| 438 | N 070613010014 | SCREW |
| 438 | N 070613010028 | SCREW |
| Repalced by: A 0069908901 | ||
| 438 | A 0069908901 | SCREW |
| 440 | A 4169875043 | RUBBER SLEEVE |
| Repalced by: A 4169875243 | ||
| 440 | A 4169875243 | RUBBER SLEEVE |
| 442 | N 000933006127 | SCREW |
| 444 | N 007340008103 | RIVET |
| 446 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 446 | N 009021006208 | WASHER |
| 448 | N 000934006007 | NUT |
| 450 | N 900262009100 | LOOM TIE |
| 452 | N 900263009000 | STRAP |
| 1200 MM | ||
| 454 | N 916002109200 | CLAMP |
| 456 | A 0009970420 | PROTECTIVE CAP |
| GREASE NIPPLE | ||
| 458 | A 3933280065 | PIPE SOCKET |
| Repalced by: A 4063580065 | ||
| 458 | A 4063580065 | BREATHER |
| 458 | A 4063580065 | BREATHER |
| 460 | N 915059006002 | FITTING |
| 462 | A 0109978982 | HOSE |
| Repalced by: A 0089979082 | ||
| 462 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 462 | A 0009872727 | PLASTIC PIPE |
| 464 | N 915017008100 | UNION NUT |
| DE-AERATION LINE | ||
| 466 | N 003861008005 | GLAND |
| DE-AERATION LINE | ||
| 468 | N 915062006000 | SLEEVE |
| DE-AERATION LINE | ||
| 470 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 470 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 472 | A 0009907990 | T-FITTING |
| Repalced by: A 0009900678 | ||
| 472 | A 0009900678 | CONNECTOR |
| Repalced by: A 0019909870 | ||
| 472 | A 0019909870 | T-FITTING |
| Repalced by: A 0009907990 | ||
| 472 | A 0009907990 | T-FITTING |
| 474 | A 4064710715 | BREATHER PIPE |
| 476 | A 0019978390 | LOOM TIE |
| 476 | A 0019978490 | CABLE TIE |
| 478 | A 3609951201 | CLAMP |
| 478 | A 3609951301 | CLAMP |
| Repalced by: A 3609951201 | ||
| 478 | A 3609951201 | CLAMP |
| 480 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 480 | N 910105010006 | SCREW |
| 482 | N 912004010102 | LOCK WASHER |
| 484 | N 070615010003 | NUT |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 358 | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
