Transporto priemonė: U 100,U 1100 L; VIN numerio dalis: 416116

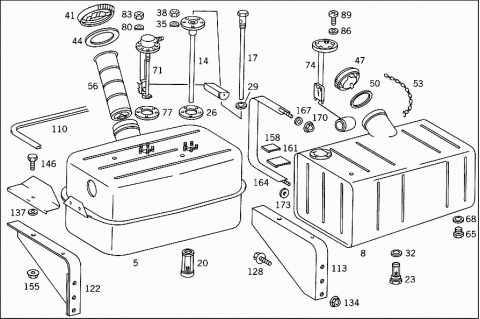

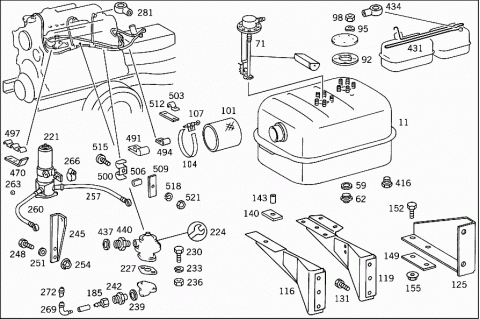

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4064700001 | FUEL TANK |
| Repalced by: A 4064700901 | ||
| 005 | A 4064701801 | FUEL TANK |
| Repalced by: A 4064700901 | ||
| 005 | A 4064700901 | FUEL TANK |
| 90 L | ||
| 008 | A 4064700301 | FUEL TANK |
| Repalced by: A 4064700401 | ||
| 008 | A 4064700401 | FUEL TANK |
| 80 L | ||
| 008 | A 4164700001 | FUEL TANK |
| Repalced by: A 4164700101 | ||
| 008 | A 4164700101 | FUEL TANK |
| 90 L | ||
| 011 | A 4044703201 | FUEL TANK |
| Repalced by: A 4044703301 | ||
| 011 | A 4044703301 | FUEL TANK |
| Repalced by: A 4044703401 | ||
| 011 | A 4044703401 | FUEL TANK |
| 60 L | ||
| 014 | A 4044700124 | SUCTION LINE |
| Repalced by: A 4404700024 | ||
| 014 | A 4404700024 | SUCTION LINE |
| 323 MM | ||
| 017 | A 4164700024 | SUCTION LINE |
| 020 | A 4044730035 | STRAINER |
| 023 | A 3034700206 | FUEL STRAINER |
| 026 | A 4044710080 | GASKET |
| 029 | N 007603012405 | SEAL RING |
| 032 | N 915035000010 | SEAL RING |
| 035 | N 000137005203 | SPRING WASHER |
| 038 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 038 | N 304032005005 | NUT |
| 041 | A 0004700105 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 041 | A 4114700105 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 041 | A 0004700305 | FILLER CAP |
| 044 | A 4214710079 | SEAL RING |
| TO 411 470 01 05 | ||
| 044 | A 3049970340 | SEAL RING |
| TO 000 470 01 05,000 470 03 05 | ||
| 047 | A 3044700005 | FILLER CAP |
| Repalced by: A 3094700005 | ||
| 047 | A 3094700005 | FILLER CAP |
| 050 | A 3049970340 | SEAL RING |
| 053 | A 3034700031 | CHAIN |
| TO FILLER CAP | ||
| 056 | A 4354700006 | FUEL STRAINER |
| 059 | N 915035000008 | SEAL RING |
| 062 | A 4044710185 | SCREW PLUG |
| 065 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 065 | N 007604014110 | SCREW PLUG |
| 068 | N 915035000006 | SEAL RING |
| 071 | A 4065420017 | SENDER UNIT |
| 074 | A 0015427117 | SENDER UNIT |
| 077 | A 4044710080 | GASKET |
| 080 | N 000137005203 | SPRING WASHER |
| FOR SENDER UNIT OR COVER | ||
| 083 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 083 | N 304032005005 | NUT |
| FOR SENDER UNIT OR COVER | ||
| 086 | A 0669970640 | SEAL RING |
| FOR SENDER UNIT OR COVER | ||
| 089 | N 000084005180 | SCREW |
| Repalced by: N 007985005175 | ||
| 089 | N 007985005175 | SCREW |
| FOR SENDER UNIT OR COVER | ||
| A 3044710045 | CLAMPING BRACKET | |
| Repalced by: A 4044710037 | ||
| A 4044710037 | COVER | |
| Repalced by: A 0055428617 | ||
| 092 | A 4044710080 | GASKET |
| 095 | N 000137005203 | SPRING WASHER |
| "SUPPLY" SWITCH TO FUEL TANK | ||
| 098 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 098 | N 304032005005 | NUT |
| "SUPPLY" SWITCH TO FUEL TANK | ||
| 101 | A 4044730026 | HOSE |
| 104 | N 900263009000 | STRAP |
| 600 MM | ||
| 107 | N 900262009100 | LOOM TIE |
| 110 | A 0009872172 | EDGE GUARD SECTION |
| Repalced by: A 0009870772 | ||
| 110 | A 0009870772 | EDGE GUARD SECTION |
| FUEL TANK MOUNTING | ||
| 856 MM | ||
| 113 | A 4064700042 | SUPPORT |
| REAR | ||
| 116 | A 4164700042 | SUPPORT |
| Repalced by: A 4164700942 | ||
| 116 | A 4164700942 | SUPPORT |
| FRONT | ||
| 119 | A 4164700142 | SUPPORT |
| Repalced by: A 4164701042 | ||
| 119 | A 4164701042 | SUPPORT |
| CENTRAL | ||
| 122 | A 4064700142 | SUPPORT |
| FRONT | ||
| 125 | A 4164700242 | SUPPORT |
| Repalced by: A 4164701142 | ||
| 125 | A 4164701142 | SUPPORT |
| REAR | ||
| 128 | N 000961012151 | SCREW |
| Repalced by: N 910105012007 | ||
| 128 | N 910105012007 | SCREW |
| 131 | N 000933010157 | SCREW |
| SUPPORT TO FRAME | ||
| 134 | N 913004012008 | NUT |
| Repalced by: N 913023012003 | ||
| 134 | N 913023012003 | NUT |
| A 4069870360 | RUBBER PAD | |
| FUEL TANK TO SUPPORT | ||
| A 4064750526 | REINFORCEMENT | |
| FUEL TANK TO SUPPORT | ||
| 137 | A 0009870741 | RUBBER RING |
| FUEL TANK TO SUPPORT | ||
| A 4064750019 | BASE | |
| 140 | A 4069875060 | RUBBER PAD |
| 143 | A 4064710153 | SPACER TUBE |
| 146 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 146 | N 304017008018 | SCREW |
| FUEL TANK TO SUPPORT | ||
| 149 | A 4049850045 | METAL SECTION |
| FUEL TANK TO SUPPORT | ||
| 152 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 152 | N 304017008027 | SCREW |
| FUEL TANK TO SUPPORT | ||
| 155 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 155 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 155 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 155 | N 913023008002 | NUT |
| 158 | A 3034750720 | PAD |
| Repalced by: A 3634750220 | ||
| 158 | A 3634750220 | PAD |
| 55 MM | ||
| 161 | A 6174750520 | PAD |
| 161 | A 3634750320 | PAD |
| 70 MM | ||
| 164 | A 4064700040 | STRAP |
| Repalced by: A 4064700340 | ||
| 164 | A 4064700340 | STRAP |
| 167 | N 000125013008 | WASHER |
| 170 | N 000934012022 | NUT |
| Repalced by: N 913023012002 | ||
| 170 | N 913023012002 | NUT |
| 173 | A 0009941551 | LOCK |

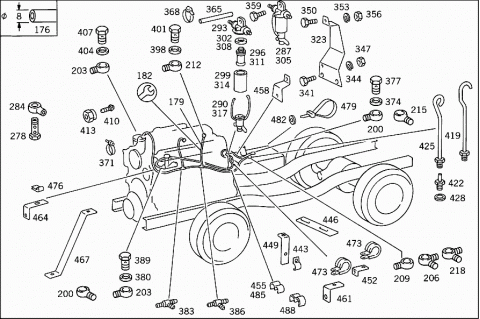

| FUEL LINES | ||
| 176 | A 4064700064 | LINE |
| Repalced by: A 0089979082 | ||
| 176 | A 4064700164 | LINE |
| Repalced by: A 0089979082 | ||
| 176 | A 4064700264 | LINE |
| Repalced by: A 0089979082 | ||
| 176 | A 4064700770 | LINE |
| Repalced by: A 0089979082 | ||
| 176 | A 4064700570 | LINE |
| Repalced by: A 0089979082 | ||
| 176 | A 4064700070 | LINE |
| Repalced by: A 0089979082 | ||
| 176 | A 4064760901 | LINE |
| Repalced by: A 0089979082 | ||
| 176 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 176 | A 0009872727 | PLASTIC PIPE |
| 6X8 MM | ||
| 179 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 179 | A 0009872627 | PLASTIC PIPE |
| 6X4 MM | ||
| 182 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 185 | A 0004760124 | CONNECTOR |
| 188 | N 073379008200 | HOSE |
| FEED-PUMP-TO-TANK SUCTION LINE | ||
| 191 | A 0004760824 | CONNECTOR |
| Repalced by: A 4194760025 | ||
| 191 | A 4194760025 | INTERMEDIATE PIECE |
| FEED-PUMP-TO-TANK SUCTION LINE | ||
| 194 | A 0039974190 | CLIP |
| FEED-PUMP-TO-TANK SUCTION LINE | ||
| 11-13 MM | ||
| 197 | N 916002012100 | CLAMP |
| FEED-PUMP-TO-TANK SUCTION LINE | ||
| 200 | A 4214760025 | INTERMEDIATE PIECE |
| Repalced by: A 0009905888 | ||
| A 0004760224 | BANJO UNION | |
| Repalced by: A 0009906688 | ||
| A 4064760025 | INTERMEDIATE PIECE | |
| Repalced by: A 0009906588 | ||
| A 4064760225 | INTERMEDIATE PIECE | |
| Repalced by: A 0009905288 | ||
| 200 | A 0009905888 | BANJO UNION |
| Repalced by: N 915052006005 | ||
| 200 | N 915052006021 | BANJO UNION |
| 14 MM | ||
| 203 | A 0009906688 | BANJO UNION |
| Repalced by: N 915052006013 | ||
| 203 | N 915052006013 | BANJO UNION |
| 12 MM | ||
| 206 | A 4064760125 | BANJO UNION |
| 14 MM | ||
| 209 | N 915052006014 | BANJO UNION |
| 16 MM | ||
| 212 | N 915052004025 | BANJO UNION |
| 8 MM | ||
| 215 | A 4064760325 | BANJO UNION |
| 16 MM | ||
| 218 | A 4164760025 | BANJO UNION |
| Repalced by: A 0009909288 | ||
| 218 | A 0009909288 | BANJO UNION |
| 14 MM | ||
| 221 | A 0004700394 | AUXILIARY PUMP |
| Repalced by: A 0004700794 | ||
| 221 | A 0004700794 | AUXILIARY PUMP |
| (FUEL PUMP),ELECTRIC | ||
| 224 | A 0005860047 | REPAIR KIT |
| TO 000 470 03 94 | ||
| 227 | N 917003022003 | GASKET |
| A 4164780045 | FLANGE | |
| 230 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 230 | N 304017008027 | SCREW |
| FLANGE AND GASKET TO FUEL PUMP WITH BRACKET | ||
| 233 | N 912004008102 | LOCK WASHER |
| FLANGE AND GASKET TO FUEL PUMP WITH BRACKET | ||
| 236 | N 304032008006 | NUT |
| FLANGE AND GASKET TO FUEL PUMP WITH BRACKET | ||
| A 4164780040 | BRACKET | |
| FUEL PUMP | ||
| 239 | N 007603012405 | SEAL RING |
| INTAKE AIR LINE | ||
| 242 | N 915013006002 | SCREW FITTING |
| INTAKE AIR LINE | ||
| 245 | A 4164710241 | BRACKET |
| LEFT | ||
| 245 | A 4164710341 | BRACKET |
| RIGHT | ||
| 248 | N 000933006127 | SCREW |
| FUEL PUMP AND BRACKET TO CENTRAL SUPPORT | ||
| 248 | N 000933006102 | SCREW |
| FUEL PUMP AND BRACKET TO CENTRAL SUPPORT | ||
| 251 | N 000125006421 | WASHER |
| FUEL PUMP AND BRACKET TO CENTRAL SUPPORT | ||
| Repalced by: N 000125006449 | ||
| 251 | N 000125006449 | WASHER |
| FUEL PUMP AND BRACKET TO CENTRAL SUPPORT | ||
| 254 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 254 | N 913023006001 | NUT |
| FUEL PUMP AND BRACKET TO CENTRAL SUPPORT | ||
| 257 | A 4164700764 | LINE |
| FRONT | ||
| 260 | A 4164700664 | LINE |
| REAR | ||
| 263 | A 3879970086 | PLUG |
| ELECTRIC FUEL PUMP | ||
| 266 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 266 | N 000000000665 | CLAMP |
| ELECTRIC FUEL PUMP | ||
| 269 | A 4164760024 | ELBOW FITTING |
| 272 | N 915004006002 | SEAL CONE |
| 278 | A 4069900086 | BANJO UNION |
| Repalced by: N 915047012203 | ||
| 278 | N 915047012203 | HOLLOW SCREW |
| 16 MM | ||
| 281 | N 915010008205 | BANJO UNION |
| 14 MM | ||
| 284 | N 915010004202 | BANJO UNION |
| 10 MM | ||
| A 0014771701 | FUEL FILTER | |
| Repalced by: A 0014774301 | ||
| 287 | A 0014778001 | FUEL FILTER |
| CLAMP-ON VERSION | ||
| 287 | A 0024771601 | FUEL FILTER |
| SCREWED | ||
| 290 | A 0004770918 | MOUNTING BOW |
| TO 001 477 80 01,002 477 16 01 | ||
| 293 | A 0004770805 | HOUSING |
| TO 001 477 80 01 | ||
| 296 | A 0004777415 | FILTER ELEMENT |
| TO 001 477 80 01,002 477 16 01 | ||
| 299 | A 0004771816 | FILTER BOWL |
| TO 001 477 80 01,002 477 16 01 | ||
| 302 | A 0004771360 | SEAL RING |
| TO 001 477 80 01,002 477 16 01 | ||
| 305 | A 0014774301 | FUEL FILTER |
| CLAMP-ON VERSION | ||
| 308 | A 0004771980 | GASKET |
| TO 001 477 43 01 | ||
| 311 | A 4114770015 | FILTER ELEMENT |
| TO 001 477 43 01 | ||
| 314 | A 0004771716 | FILTER BOWL |
| TO 001 477 43 01 | ||
| 317 | A 0004770318 | MOUNTING BOW |
| Repalced by: A 0004770918 | ||
| 317 | A 0004770918 | MOUNTING BOW |
| TO 001 477 43 01 | ||
| 320 | A 0014774201 | FUEL FILTER |
| 320 | A 0014775601 | FUEL FILTER |
| 323 | A 4034760036 | BRACKET |
| 323 | A 4034760036 | BRACKET |
| 326 | A 4254760336 | BRACKET |
| Repalced by: A 3184924841 | ||
| 326 | A 3184924841 | BRACKET |
| FUEL LINES TO ENGINE,FRONT | ||
| 329 | A 4404760136 | BRACKET |
| FUEL LINES TO ENGINE,CENTER | ||
| 332 | A 4244680040 | BRACKET |
| Repalced by: A 6205244040 | ||
| 332 | A 6205244040 | BRACKET |
| BELL HOUSING | ||
| 335 | A 4255420440 | BRACKET |
| Repalced by: A 4044291240 | ||
| 335 | A 4044291240 | BRACKET |
| Repalced by: A 3524290740 | ||
| 335 | A 3524290740 | BRACKET |
| TRANSMISSION,REAR RIGHT | ||
| 338 | N 000933010198 | SCREW |
| BRACKET TO TRANSMISSION | ||
| M 10X16 | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO TRANSMISSION | ||
| 341 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 341 | N 304017008016 | SCREW |
| BRACKET TO FUEL TANK | ||
| M 8X16 | ||
| 341 | N 304017008016 | SCREW |
| BRACKET TO FUEL TANK | ||
| M 8X16 | ||
| 344 | N 912004008102 | LOCK WASHER |
| BRACKET TO FUEL TANK | ||
| 344 | N 912004008102 | LOCK WASHER |
| BRACKET TO FUEL TANK | ||
| 347 | N 304032008006 | NUT |
| BRACKET TO FUEL TANK | ||
| 347 | N 304032008006 | NUT |
| BRACKET TO FUEL TANK | ||
| 350 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 350 | N 304017006020 | SCREW |
| PRE-FILTER TO BRACKET | ||
| 353 | N 912004006102 | LOCK WASHER |
| PRE-FILTER TO BRACKET | ||
| 356 | N 000934006007 | NUT |
| PRE-FILTER TO BRACKET | ||
| 359 | N 000933006130 | SCREW |
| Repalced by: N 304017006020 | ||
| 359 | N 304017006020 | SCREW |
| PRE-FILTER TO FRAME | ||
| 362 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 362 | N 304017008016 | SCREW |
| FUEL LINES TO ENGINE,FRONT | ||
| M 8X16 | ||
| 362 | N 304017008016 | SCREW |
| FUEL LINES TO ENGINE,CENTER | ||
| M 8X16 | ||
| N 912004008102 | LOCK WASHER | |
| FUEL LINES TO ENGINE | ||
| 365 | A 3124760026 | HOSE |
| Repalced by: A 3054760126 | ||
| 365 | A 3054760126 | HOSE |
| 16X10X180 MM | ||
| A 0009971190 | LOOM TIE | |
| Repalced by: N 916017011000 | ||
| N 916017011000 | CLAMP | |
| Repalced by: N 916017011001 | ||
| 368 | N 000000000665 | CLAMP |
| A 4064760126 | HOSE | |
| LEAK LINE TO RETURN LINE | ||
| 371 | N 900288010001 | CLAMP |
| 374 | N 007603012405 | SEAL RING |
| 377 | N 915036008202 | HOLLOW SCREW |
| SUCTION LINE TO FUEL TANK | ||
| 380 | N 915035000006 | SEAL RING |
| 383 | A 0009900678 | CONNECTOR |
| Repalced by: A 0019909870 | ||
| 383 | A 0019909870 | T-FITTING |
| Repalced by: A 0009907990 | ||
| 383 | A 0009907990 | T-FITTING |
| 386 | A 0009903770 | T-FITTING |
| Repalced by: A 0029901470 | ||
| 386 | A 0029901470 | T-FITTING |
| 389 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 389 | N 915036010108 | HOLLOW SCREW |
| AT FEED PUMP | ||
| 392 | N 007603016401 | SEAL RING |
| 395 | N 915036012203 | HOLLOW SCREW |
| Repalced by: A 4064700226 | ||
| 395 | A 4064700226 | RISING PIPE |
| AT TANK | ||
| 395 | N 915036012203 | HOLLOW SCREW |
| Repalced by: A 4064700426 | ||
| 395 | A 4064700426 | RISING PIPE |
| AT TANK | ||
| 398 | N 007603008112 | SEAL RING |
| 401 | N 915036005100 | HOLLOW SCREW |
| AT LEAK FUEL NOZZLES | ||
| Repalced by: N 000000004895 | ||
| 401 | N 000000004895 | BANJO BOLT |
| AT LEAK FUEL NOZZLES | ||
| 404 | N 007603014106 | SEAL RING |
| 407 | A 3149900163 | HOLLOW SCREW |
| Repalced by: A 6159900263 | ||
| 407 | A 6159900263 | HOLLOW SCREW |
| AT THROTTLE FILTER | ||
| 410 | A 0019977672 | FITTING |
| 413 | N 915017008201 | UNION NUT |
| 416 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 416 | N 007604014110 | SCREW PLUG |
| FUEL FILTER | ||
| 419 | A 4034700025 | BREATHER |
| Repalced by: A 4064700125 | ||
| 419 | A 4064700125 | BREATHER |
| AT TANK | ||
| 422 | A 4064700325 | BREATHER |
| Repalced by: A 4064700525 | ||
| 422 | A 4064700525 | BREATHER |
| 425 | A 4064710615 | BREATHER PIPE |
| 428 | N 007603016401 | SEAL RING |
| 431 | A 4164700125 | BREATHER |
| 434 | N 915010010202 | BANJO UNION |
| 437 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 437 | N 007603010110 | SEAL RING |
| 440 | N 915007006003 | ADAPTER FITTING |
| 443 | A 3049950120 | CLAMP |
| Repalced by: A 3609950601 | ||
| 443 | A 3609950601 | CLAMP |
| 446 | A 3044292740 | BRACKET |
| 449 | A 4064260640 | BRACKET |
| Repalced by: A 3874661240 | ||
| 449 | A 3874661240 | BRACKET |
| Repalced by: A 3044760335 | ||
| 449 | A 3044760335 | BRACKET |
| Repalced by: A 6205244040 | ||
| 449 | A 6205244040 | BRACKET |
| 452 | A 4064760036 | BRACKET |
| 452 | A 4064760036 | BRACKET |
| 455 | A 0009950068 | CLAMP |
| SUCTION LINE | ||
| 458 | A 4064760236 | BRACKET |
| 461 | A 3045460643 | BRACKET |
| AT BELL HOUSING | ||
| 464 | A 3204340440 | BRACKET |
| Repalced by: A 3812950440 | ||
| 464 | A 3812950440 | BRACKET |
| 467 | A 4164760036 | BRACKET |
| 470 | A 4164760336 | BRACKET |
| 473 | A 0009954601 | CLAMP |
| Repalced by: N 916016008201 | ||
| 473 | N 916016008201 | CLAMP |
| 476 | A 4049951201 | CLAMP |
| Repalced by: A 3609951101 | ||
| 476 | A 3609951101 | CLAMP |
| 479 | A 0009953344 | CLAMP |
| Repalced by: A 0019978390 | ||
| 479 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 479 | A 0019978490 | LOOM TIE |
| 376 MM | ||
| 482 | A 4249900040 | WASHER |
| 485 | A 0009950068 | CLAMP |
| LINE CONNECTIONS | ||
| 485 | A 0009950068 | CLAMP |
| SUCTION LINE | ||
| 488 | A 0009950168 | CLAMP |
| Repalced by: A 6388320028 | ||
| 488 | A 6388320028 | CLAMP |
| LINE CONNECTIONS | ||
| 491 | N 900285001200 | CLAMP |
| 494 | A 0669950001 | CLAMP |
| 497 | A 3129950232 | CLAMP |
| 500 | A 3379950032 | CLAMP |
| 503 | A 1539950220 | CLAMP |
| 506 | A 3044760081 | RUBBER PAD |
| 509 | A 3044760019 | BASE |
| Repalced by: A 3142030084 | ||
| 509 | A 3142030084 | SHIM |
| 512 | A 3124761236 | BRACKET |
| Repalced by: A 3604293140 | ||
| 512 | A 3604293140 | BRACKET |
| 515 | N 007985005149 | SCREW |
| M 5X20 | ||
| 518 | N 912004005103 | LOCK WASHER |
| 521 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 521 | N 304032005005 | NUT |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
