Transporto priemonė: U 100,U 1100 L; VIN numerio dalis: 416116

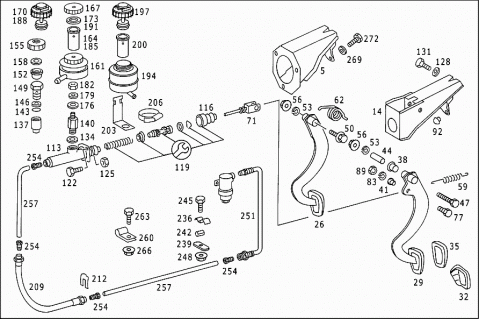

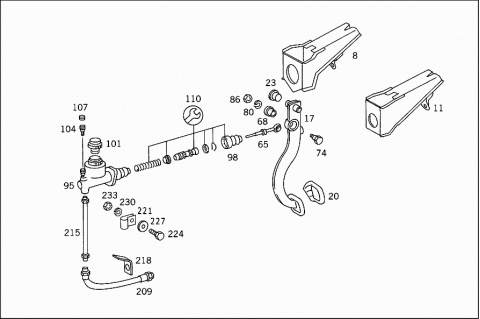

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4062900433 | BRACKET |
| 005 | A 4042900433 | BRACKET |
| BRAKE | ||
| 008 | A 4062900033 | BRACKET |
| BRAKE PEDAL | ||
| 011 | A 4062900233 | BRACKET |
| CLUTCH PEDAL | ||
| 014 | A 4212900133 | BRACKET |
| Repalced by: A 4062900633 | ||
| 014 | A 4062900633 | BRACKET |
| CLUTCH | ||
| 017 | A 1102902718 | PEDAL |
| CLUTCH AND BRAKE | ||
| 020 | A 1102910182 | PAD |
| Repalced by: A 1072910182 | ||
| 020 | A 1072910182 | PAD |
| 023 | A 1112950250 | BUSHING |
| Repalced by: A 1102910550 | ||
| 023 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 023 | A 1242920050 | BUSHING |
| 026 | A 4062900018 | PEDAL |
| 026 | A 4062900218 | PEDAL |
| BRAKE | ||
| 029 | A 4062900401 | PEDAL |
| BRAKE | ||
| 032 | A 1102910182 | PAD |
| Repalced by: A 1072910182 | ||
| 032 | A 1072910182 | PAD |
| 035 | A 3192920082 | PAD |
| 038 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 038 | A 1242920050 | BUSHING |
| 041 | A 1102920150 | BUSHING |
| 044 | A 1112920150 | BUSHING |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 047 | N 000960012224 | SCREW |
| Repalced by: N 000961012208 | ||
| 047 | N 000961012208 | SCREW |
| CLUTCH PEDAL TO CONSOLE | ||
| 050 | N 000960012230 | SCREW |
| Repalced by: N 910105012017 | ||
| 050 | N 910105012017 | SCREW |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 053 | N 912004012100 | LOCK WASHER |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 056 | N 000934012022 | NUT |
| Repalced by: N 913023012002 | ||
| 056 | N 913023012002 | NUT |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 059 | A 4069930010 | SPRING |
| CLUTCH PEDAL | ||
| 059 | A 4069930010 | SPRING |
| CLUTCH PEDAL | ||
| 062 | A 4069935010 | SPRING |
| BRAKE PEDAL | ||
| 065 | A 4062900039 | ROD |
| 068 | A 1112950150 | BUSHING |
| 071 | A 4212900239 | ROD |
| Repalced by: A 4062900739 | ||
| 071 | A 4062900739 | ROD |
| 074 | A 1102950071 | SCREW |
| 077 | A 1102950571 | SCREW |
| 080 | N 912004010102 | LOCK WASHER |
| 083 | N 912004008102 | LOCK WASHER |
| 086 | N 000936010010 | NUT |
| Repalced by: N 304035010000 | ||
| 086 | N 304035010000 | NUT |
| Repalced by: N 304035010001 | ||
| 086 | N 304035010001 | HEXAGON NUT |
| 089 | N 304032008006 | NUT |
| 092 | A 1112910086 | STOP |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 092 | A 1112910086 | STOP |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 092 | A 4062910086 | STOP |
| Repalced by: A 1112910086 | ||
| 092 | A 1112910086 | STOP |
| BRAKE PEDAL | ||
| 095 | A 0002951406 | MASTER CYLINDER |
| 098 | A 0002950483 | BOOT |
| 101 | A 0002950337 | SCREW PLUG |
| Repalced by: A 0002950037 | ||
| 101 | A 0002950037 | SCREW PLUG |
| 104 | A 0004201055 | BLEEDER VALVE |
| 107 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 107 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 107 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 107 | A 0004210887 | PROTECTIVE CAP |
| 110 | A 0005864129 | REPAIR KIT |
| TO 000 295 14 06 | ||
| 113 | A 0002953106 | MASTER CYLINDER |
| Repalced by: A 0012955106 | ||
| 113 | A 0012955106 | MASTER CYLINDER |
| 116 | A 0002950483 | BOOT |
| TO 000 295 31 06,001 295 51 06 | ||
| 119 | A 0005865429 | REPAIR KIT |
| Repalced by: A 0002902967 | ||
| 119 | A 0002902967 | REPAIR KIT |
| TO 000 295 31 06 | ||
| 119 | A 0002903567 | REPAIR KIT |
| TO 001 295 51 06 | ||
| 122 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 122 | N 304017008021 | SCREW |
| CLUTCH MASTER CYLINDER TO CAB | ||
| M 8X20 | ||
| N 912004008102 | LOCK WASHER | |
| CLUTCH MASTER CYLINDER TO CAB | ||
| 125 | N 304032008006 | NUT |
| CLUTCH MASTER CYLINDER TO CAB | ||
| 128 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 128 | N 000125008443 | WASHER |
| PEDAL ASSEMBLY TO CAB | ||
| N 912004008102 | LOCK WASHER | |
| PEDAL ASSEMBLY TO CAB | ||
| 131 | N 000933008145 | SCREW |
| PEDAL ASSEMBLY TO CAB | ||
| M 8X18 | ||
| 131 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 131 | N 304017008021 | SCREW |
| PEDAL ASSEMBLY TO CAB | ||
| M 8X20 | ||
| 131 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 131 | N 304017008027 | SCREW |
| PEDAL ASSEMBLY TO CAB | ||
| M 8X30 | ||
| 134 | N 007603022102 | SEAL RING |
| 134 | N 007603022102 | SEAL RING |
| 137 | A 0009979272 | FITTING |
| 140 | A 4069975172 | FITTING |
| A 0004314102 | RESERVOIR | |
| Repalced by: A 0004317902 | ||
| 143 | A 0059978445 | SEAL RING |
| 146 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 146 | N 000137012206 | SPRING WASHER |
| 149 | A 0009902363 | HOLLOW SCREW |
| 152 | A 0004310034 | STRAINER |
| Repalced by: A 0004313734 | ||
| 152 | A 0004313734 | STRAINER |
| Repalced by: A 0004314334 | ||
| 152 | A 0004314334 | STRAINER |
| 155 | A 0004311333 | FILLER CAP |
| Repalced by: A 0004315133 | ||
| 155 | A 0004313133 | FILLER CAP |
| Repalced by: A 0004314333 | ||
| 155 | A 0004314333 | FILLER CAP |
| Repalced by: A 0004315133 | ||
| 155 | A 0004315133 | FILLER CAP |
| Repalced by: A 0004315433 | ||
| 155 | A 0004315433 | FILLER CAP |
| BUTTRESS THREAD | ||
| 155 | A 0004315433 | FILLER CAP |
| WITH WEAR INDICATOR,RIGHT; WITH LINING | ||
| 158 | A 0009972940 | SEAL RING |
| Repalced by: A 0049975340 | ||
| 158 | A 0049975340 | SEAL RING |
| Repalced by: A 0039976440 | ||
| 158 | A 0039976440 | SEAL RING |
| A 0002950237 | SCREW PLUG | |
| Repalced by: A 0004315433 | ||
| 161 | A 0014319802 | RESERVOIR |
| Repalced by: A 0014318302 | ||
| 161 | A 0014318302 | RESERVOIR |
| WITH WARNING DEVICE | ||
| 164 | A 0002950023 | STRAINER |
| Repalced by: A 0004313734 | ||
| 164 | A 0004310034 | STRAINER |
| Repalced by: A 0004313734 | ||
| 164 | A 0004313734 | STRAINER |
| Repalced by: A 0004314334 | ||
| 164 | A 0004314334 | STRAINER |
| TO 001 431 98 02 | ||
| 164 | A 0004313134 | STRAINER |
| Repalced by: A 0004315334 | ||
| 164 | A 0004315334 | STRAINER |
| Repalced by: A 0004316934 | ||
| 164 | A 0004316934 | STRAINER |
| TO 001 431 83 02 | ||
| 167 | A 0002950237 | SCREW PLUG |
| 167 | A 0004315433 | FILLER CAP |
| BUTTRESS THREAD | ||
| TO 001 431 98 02 | ||
| 170 | A 0004315733 | FILLER CAP |
| Repalced by: A 0004316633 | ||
| 170 | A 0004316633 | FILLER CAP |
| Repalced by: A 0004317733 | ||
| 170 | A 0004317733 | FILLER CAP |
| WITH WARNING DEVICE | ||
| TO 001 431 83 02 | ||
| 173 | A 0009976841 | SEAL RING |
| Repalced by: A 0009972940 | ||
| 173 | A 0009972940 | SEAL RING |
| Repalced by: A 0049975340 | ||
| 173 | A 0049975340 | SEAL RING |
| Repalced by: A 0039976440 | ||
| 173 | A 0039976440 | SEAL RING |
| 176 | A 0099975645 | SEAL RING |
| Repalced by: A 0139977748 | ||
| 176 | A 0139977748 | SEAL RING |
| 179 | A 4212920076 | WASHER |
| 182 | N 000936012005 | NUT |
| Repalced by: N 308675012000 | ||
| 182 | N 308675012000 | NUT |
| A 0004318002 | RESERVOIR | |
| Repalced by: A 0004319902 | ||
| A 0004319902 | RESERVOIR | |
| Repalced by: A 0014318302 | ||
| A 0004313134 | STRAINER | |
| 185 | A 0004314734 | STRAINER |
| Repalced by: A 0004315334 | ||
| 185 | A 0004315334 | STRAINER |
| Repalced by: A 0004316934 | ||
| 185 | A 0004316934 | STRAINER |
| TO 000 431 99 02 | ||
| 188 | A 0004315733 | FILLER CAP |
| Repalced by: A 0004316633 | ||
| 188 | A 0004316633 | FILLER CAP |
| Repalced by: A 0004317733 | ||
| 188 | A 0004317733 | FILLER CAP |
| WITH WARNING DEVICE | ||
| TO 000 431 99 02 | ||
| 191 | A 0009972940 | SEAL RING |
| Repalced by: A 0049975340 | ||
| 191 | A 0049975340 | SEAL RING |
| Repalced by: A 0039976440 | ||
| 191 | A 0039976440 | SEAL RING |
| 194 | A 0004318102 | RESERVOIR |
| Repalced by: A 0014319902 | ||
| 194 | A 0014319902 | RESERVOIR |
| 197 | A 0004312333 | FILLER CAP |
| Repalced by: A 0004315533 | ||
| 197 | A 0004315533 | FILLER CAP |
| TO 000 431 81 02 | ||
| 197 | A 0004316633 | FILLER CAP |
| Repalced by: A 0004317733 | ||
| 197 | A 0004317733 | FILLER CAP |
| TO 001 431 99 02 | ||
| 200 | A 0004315334 | STRAINER |
| Repalced by: A 0004316934 | ||
| 200 | A 0004316934 | STRAINER |
| TO 001 431 99 02 | ||
| 203 | A 4064263940 | BRACKET |
| RESERVOIR,BRAKE MASTER CYLINDER | ||
| 206 | A 0009972190 | LOOM TIE |
| Repalced by: N 916017060000 | ||
| 206 | N 916017060000 | CLAMP |
| Repalced by: N 000000000673 | ||
| 206 | N 000000000673 | CLAMP |
| RESERVOIR TO BRACKET | ||
| A 4062900013 | LINE | |
| 209 | A 0004284535 | BRAKE HOSE |
| 209 | A 0004293635 | BRAKE HOSE |
| Repalced by: A 0004293435 | ||
| 209 | A 0004293435 | BRAKE HOSE |
| Repalced by: A 0024286035 | ||
| 209 | A 0024286035 | BRAKE HOSE |
| 212 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 212 | A 6525040038 | MOUNTING PLATE |
| CLUTCH LINE TO FRAME | ||
| 215 | A 4062900113 | LINE |
| 218 | A 4062950140 | BRACKET |
| BRAKE HOSE TO ENGINE | ||
| 221 | A 4049950001 | CLAMP |
| Repalced by: A 3609951001 | ||
| 221 | A 3609951001 | CLAMP |
| PIPE LINE TO ENGINE | ||
| 224 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 224 | N 304017008018 | SCREW |
| 227 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 227 | N 009021008213 | WASHER |
| Repalced by: N 000000003250 | ||
| 227 | N 000000003250 | WASHER |
| 230 | N 912004008102 | LOCK WASHER |
| 233 | N 304032008006 | NUT |
| 236 | A 3379950132 | CLAMP |
| CLUTCH LINE TO FRAME | ||
| 239 | A 3044760019 | BASE |
| Repalced by: A 3142030084 | ||
| 239 | A 3142030084 | SHIM |
| CLUTCH LINE TO FRAME | ||
| 242 | A 3044280081 | RUBBER PAD |
| Repalced by: A 3129973482 | ||
| 242 | A 3129973482 | HOSE |
| CLUTCH LINE TO FRAME | ||
| 245 | N 000933005075 | SCREW |
| Repalced by: N 304017005002 | ||
| 245 | N 304017005002 | SCREW |
| CLUTCH LINE TO FRAME | ||
| N 912004005103 | LOCK WASHER | |
| CLUTCH LINE TO FRAME | ||
| 248 | N 913004005001 | NUT |
| Repalced by: N 913023005002 | ||
| 248 | N 913023005002 | NUT |
| CLUTCH LINE TO FRAME | ||
| A 0004280735 | BRAKE HOSE | |
| Repalced by: A 0004280835 | ||
| A 0014280535 | BRAKE HOSE | |
| Repalced by: A 0004280835 | ||
| A 0004280835 | BRAKE HOSE | |
| 251 | A 0014284035 | BRAKE HOSE |
| Repalced by: A 0024284635 | ||
| 251 | A 0024284635 | BRAKE HOSE |
| FROM CONNECTOR TO CLUTCH CYLINDER | ||
| 254 | A 0004280072 | UNION SCREW |
| FROM CONNECTING HOSE TO SLAVE CYLINDER | ||
| 257 | A 4062900213 | LINE |
| Repalced by: A 0004290701 | ||
| A 4062900313 | LINE | |
| Repalced by: A 0004290701 | ||
| 257 | A 4062900513 | LINE |
| Repalced by: A 0004290701 | ||
| 257 | A 4062900036 | BEARING TUBE |
| Repalced by: A 0004290701 | ||
| 257 | A 4062900136 | BEARING TUBE |
| Repalced by: A 0004290701 | ||
| 257 | A 0004290701 | LINE |
| Repalced by: A 0004296201 | ||
| 257 | A 0004296201 | LINE |
| CLUTCH LINE | ||
| 6X0,7MM | ||
| 260 | A 3609950101 | CLAMP |
| Repalced by: A 3129951401 | ||
| 260 | A 3129951401 | CLAMP |
| CLUTCH LINE TO BRAKE LINE | ||
| 263 | N 000933006102 | SCREW |
| CLUTCH LINE TO BRAKE LINE | ||
| 266 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 266 | N 913023006001 | NUT |
| CLUTCH LINE TO BRAKE LINE | ||
| 269 | N 007349008003 | WASHER |
| CLUTCH BOOSTER BRACKET TO FRAME | ||
| 272 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 272 | N 304017008018 | SCREW |
| CLUTCH BOOSTER BRACKET TO FRAME | ||
| 272 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 272 | N 304017008034 | SCREW |
| CLUTCH BOOSTER BRACKET TO FRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
