Transporto priemonė: U 100,U 1100 L; VIN numerio dalis: 416116
Grupė: 46 STEERING

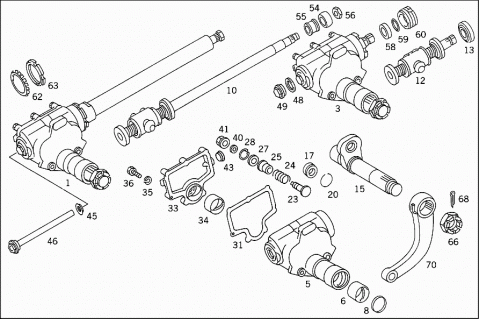

53019
53020

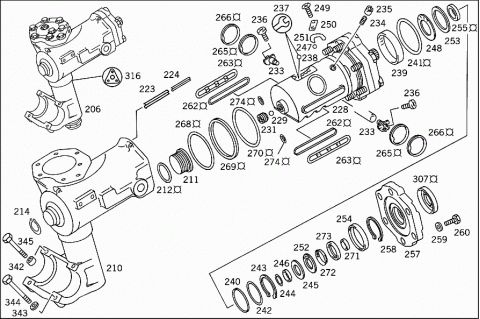

53021

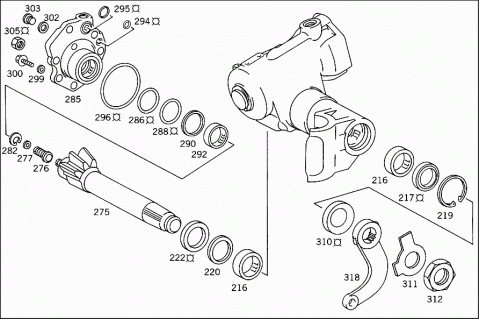

53022

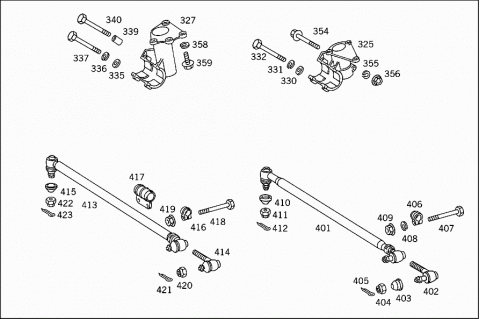

53023

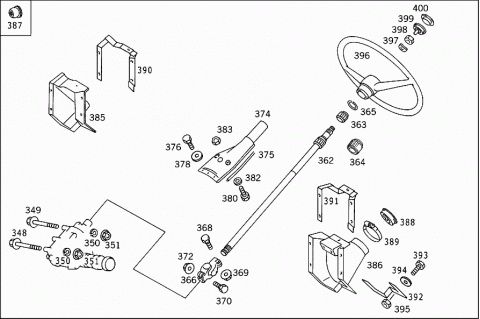

53024

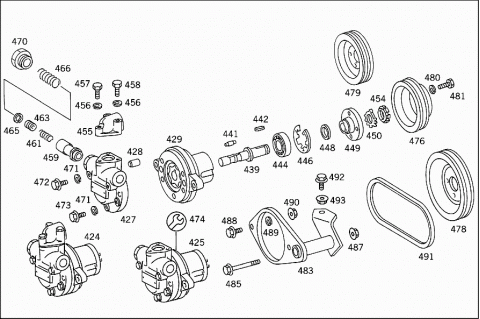

53025

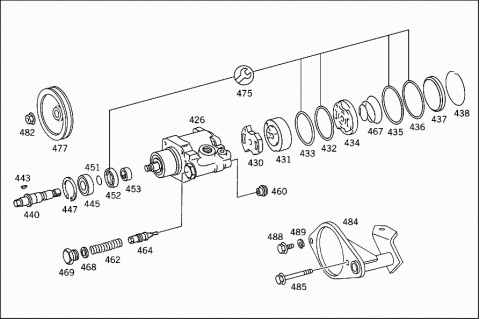

53026

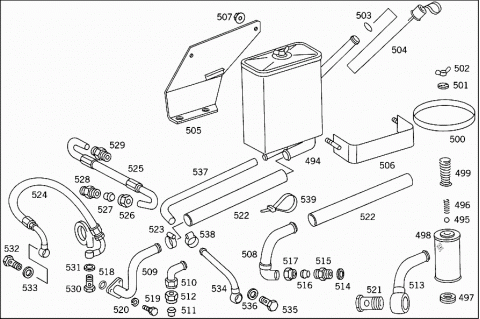

53027

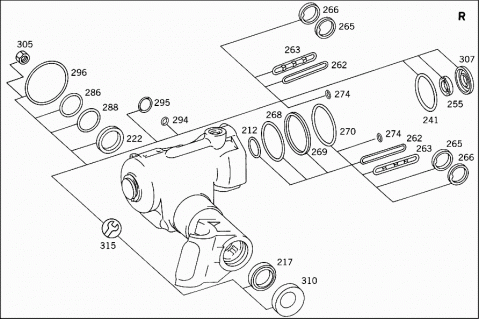

53028
# Kodas Pavadinimas
X XXXXXXXXXXXX PART NAME MISSING
MERCEDES-BENZ STEERING
001 A 3124602452 STEERING BOX ASSEMBLY
003 A 3124602852 STEERING BOX ASSEMBLY
005 A 3124602002 STEERING BOX
006 A 3214610350 BUSHING
008 A 0019970645 SEAL RING
010 A 4064600018 STEERING COLUMN
012 A 4064600118 STEERING NUT
Repalced by: A 4064600218
012 A 4064600218 STEERING NUT
013 A 3459817006 BARREL-TYPE BEARING
013 A 3459817006 BARREL-TYPE BEARING
013 A 0009810806 BARREL-TYPE BEARING
013 A 0009811306 BARREL-TYPE BEARING
015 A 3224600011 STEERG. WORM SECTOR SHAFT
Repalced by: A 3224600211
015 A 3224600211 STEERG. WORM SECTOR SHAFT
017 A 3214620437 BALL CUP
017 A 3214620537 BALL CUP
020 N 009045038001 SNAP RING
023 A 3214620171 SCREW
024 A 3219932201 SPRING
025 A 3214620185 THRUST PIECE
027 A 3214610162 THRUST WASHER
028 A 0009946041 LOCK
031 A 3214610880 GASKET
Repalced by: A 3524610180
031 A 3524610180 GASKET
033 A 3274600214 STEERING BOX COVER
034 A 3214620250 BUSHING
035 N 912004008102 LOCK WASHER
036 A 0019909101 SCREW
040 A 0019976140 SEAL RING
041 A 3219900050 NUT
043 N 000906016002 SCREW PLUG
Repalced by: A 3029970035
043 A 3029970035 PLUG
Repalced by: N 000906016002
043 N 000906016002 SCREW PLUG
045 A 3219970640 SEAL RING
046 A 3214600415 OIL LEVEL CHECK PIPE
048 N 007603030400 SEAL RING
049 N 007604030206 SCREW PLUG
049 N 007604010102 SCREW PLUG
Repalced by: N 007604010108
049 N 007604010108 SCREW PLUG
054 A 3124621065 RING
055 A 3124621050 BUSHING
056 N 000439018204 NUT
058 A 0029974346 SEAL RING
059 A 0029979845 SEAL RING
26 X 3 MM
060 A 3224620151 RING
062 A 3229940115 LOCK
063 N 070852060000 NUT
Repalced by: A 6743560226
063 A 6743560226 GROOVED NUT
066 A 0009902555 NUT
068 N 000094006013 COTTER PIN
070 A 4064630001 PITMAN ARM
ZF BALL-NUT-TYPE HYDRAULIC POWER STEERING
080 A 4064600178 STEERING BOX ASSEMBLY
Repalced by: A 4064600278
080 A 4064600278 STEERING BOX ASSEMBLY
085 A 0004615101 BOX
087 A 0029812110 NEEDLE BEARING
088 A 0019816110 NEEDLE BEARING
090 A 0039976646 SEAL RING
091 N 000472056000 LOCK RING
093 A 0004622975 WASHER
094 A 0004622765 RING
096 N 007603012405 SEAL RING
097 N 000908012003 SCREW PLUG
Repalced by: N 000908012009
097 N 000908012009 SCREW PLUG
100 A 0004622212 STEERG. WORM SECTOR SHAFT
102 A 0004620671 SCREW
Repalced by: A 0004621871
102 A 0004621871 SCREW
103 A 0004612952 SPACER WASHER
Repalced by: A 0034620452
103 A 0034620452 SPACER WASHER
AS REQUIRED
2.95 MM
103 A 0004613052 SPACER WASHER
Repalced by: A 0034620552
103 A 0034620552 SPACER WASHER
AS REQUIRED
3.00 MM
103 A 0004613152 SPACER WASHER
Repalced by: A 0034620652
103 A 0034620652 SPACER WASHER
AS REQUIRED
3.05 MM
103 A 0004613252 SPACER WASHER
Repalced by: A 0034620752
103 A 0034620752 SPACER WASHER
AS REQUIRED
3.10 MM
103 A 0004613352 SPACER WASHER
Repalced by: A 0034624952
103 A 0034624952 SPACER WASHER
AS REQUIRED
3.15 MM
103 A 0004613452 SPACER WASHER
Repalced by: A 0034625052
103 A 0034625052 SPACER WASHER
AS REQUIRED
3.20 MM
103 A 0004613552 SPACER WASHER
Repalced by: A 0034625152
103 A 0034625152 SPACER WASHER
AS REQUIRED
3.25 MM
103 A 0004613652 SPACER WASHER
Repalced by: A 0034625252
103 A 0034625252 SPACER WASHER
AS REQUIRED
3.30 MM
103 A 0004613752 SPACER WASHER
Repalced by: A 0034625352
103 A 0034625352 SPACER WASHER
AS REQUIRED
3.35 MM
106 N 900055025310 LOCK RING
108 A 0004600714 STEERING BOX COVER
109 A 0029812210 NEEDLE BEARING
111 A 0004623075 WASHER
112 A 0059976246 SEAL RING
114 A 0009900015 SCREW
115 A 0004620096 BOOT
117 A 0069973545 SEAL RING
98 X 3 MM
119 A 0019870746 SEALING CORD
9 X 2 MM
120 A 0019870846 SEALING CORD
Repalced by: A 0049978548
120 A 0049978548 SEAL RING
12 X 2 MM
121 A 0004620372 NUT
123 A 0004629952 SPACER WASHER
124 N 000961008012 SCREW
126 N 007603012405 SEAL RING
127 N 000908012003 SCREW PLUG
Repalced by: N 000908012009
127 N 000908012009 SCREW PLUG
129 N 915035000006 SEAL RING
TO HEX.HEAD SCREW
129 A 0004624065 RING
TO HEX.SOCKET SCREW
130 N 000908014001 SCREW PLUG
Repalced by: N 000908014009
130 N 000908014009 SCREW PLUG
132 A 0069973645 SEAL RING
69 X 3 MM
133 A 0004610446 COVER
135 A 0069973745 SEAL RING
7 X 1.5 MM
136 A 0079977945 SEAL RING
60 X 2 MM
138 A 0014624952 SPACER WASHER
AS REQUIRED
140 A 0004622865 RING
142 A 0024621052 SPACER WASHER
Repalced by: A 0014623052
142 A 0024621152 SPACER WASHER
Repalced by: A 0014623052
142 A 0024621252 SPACER WASHER
Repalced by: A 0014623052
142 A 0024621352 SPACER WASHER
Repalced by: A 0014623052
142 A 0014623052 SPACER WASHER
AS REQUIRED
1.950 MM
142 A 0024621452 SPACER WASHER
Repalced by: A 0014623252
142 A 0024621552 SPACER WASHER
Repalced by: A 0014623252
142 A 0024621652 SPACER WASHER
Repalced by: A 0014623252
142 A 0024621752 SPACER WASHER
Repalced by: A 0014623252
142 A 0014623252 SPACER WASHER
AS REQUIRED
2.000 MM
142 A 0024621852 SPACER WASHER
Repalced by: A 0014623452
142 A 0024621952 SPACER WASHER
Repalced by: A 0014623452
142 A 0024622052 SPACER WASHER
Repalced by: A 0014623452
142 A 0024622152 SPACER WASHER
Repalced by: A 0014623452
142 A 0014623452 SPACER WASHER
AS REQUIRED
2.050 MM
142 A 0024622252 SPACER WASHER
Repalced by: A 0014623652
142 A 0024622352 SPACER WASHER
Repalced by: A 0014623652
142 A 0024622452 SPACER WASHER
Repalced by: A 0014623652
142 A 0024622552 SPACER WASHER
Repalced by: A 0014623652
142 A 0014623652 SPACER WASHER
AS REQUIRED
2.100 MM
142 A 0024622652 SPACER WASHER
Repalced by: A 0014623852
142 A 0024622752 SPACER WASHER
Repalced by: A 0014623852
142 A 0024622852 SPACER WASHER
Repalced by: A 0014623852
142 A 0024622952 SPACER WASHER
Repalced by: A 0014623852
142 A 0014623852 SPACER WASHER
AS REQUIRED
2.150 MM
142 A 0024623052 SPACER WASHER
Repalced by: A 0014624052
142 A 0024623152 SPACER WASHER
Repalced by: A 0014624052
142 A 0024623252 SPACER WASHER
Repalced by: A 0014624052
142 A 0024623352 SPACER WASHER
Repalced by: A 0014624052
142 A 0014624052 SPACER WASHER
AS REQUIRED
2.200 MM
142 A 0024623452 SPACER WASHER
Repalced by: A 0014624252
142 A 0024623552 SPACER WASHER
Repalced by: A 0014624252
142 A 0024623652 SPACER WASHER
Repalced by: A 0014624252
142 A 0024623752 SPACER WASHER
Repalced by: A 0014624252
142 A 0014624252 SPACER WASHER
AS REQUIRED
2.250 MM
142 A 0024623852 SPACER WASHER
Repalced by: A 0014624452
142 A 0024623952 SPACER WASHER
Repalced by: A 0014624452
142 A 0024624052 SPACER WASHER
Repalced by: A 0014624452
142 A 0024624152 SPACER WASHER
Repalced by: A 0014624452
142 A 0014624452 SPACER WASHER
AS REQUIRED
2.300 MM
142 A 0024624252 SPACER WASHER
Repalced by: A 0014624652
142 A 0024624352 SPACER WASHER
Repalced by: A 0014624652
142 A 0024624452 SPACER WASHER
Repalced by: A 0014624652
142 A 0024624552 SPACER WASHER
Repalced by: A 0014624652
142 A 0014624652 SPACER WASHER
AS REQUIRED
2.350 MM
142 A 0024624652 SPACER WASHER
Repalced by: A 0014624852
142 A 0024624752 SPACER WASHER
Repalced by: A 0014624852
142 A 0024624852 SPACER WASHER
Repalced by: A 0014624852
142 A 0024624952 SPACER WASHER
Repalced by: A 0014624852
142 A 0014624852 SPACER WASHER
AS REQUIRED
2.400 MM
155 A 0019813410 NEEDLE BEARING
156 A 0004623165 RING
Repalced by: A 0004623065
156 A 0004623065 RING
1.7 MM
158 A 0069973845 SEAL RING
55X1.5 MM
160 A 0004604108 STEERING WORM
Repalced by: A 0004606008
160 A 0004606008 STEERING WORM
161 A 0005861446 REPAIR KIT
163 A 0004622527 BALL RACE
165 A 0009818285 BALL
AS REQUIRED
6.989 MM
165 A 0009818385 BALL
AS REQUIRED
6.992 MM
165 A 0009818485 BALL
AS REQUIRED
6.995 MM
165 A 0009818585 BALL
AS REQUIRED
6.998 MM
165 A 0009818685 BALL
AS REQUIRED
7.001 MM
165 A 0009818785 BALL
AS REQUIRED
7.004 MM
165 A 0009818885 BALL
AS REQUIRED
7.007 MM
165 A 0009818985 BALL
AS REQUIRED
7.010 MM
165 A 0009819085 BALL
AS REQUIRED
7.013 MM
168 A 0004620873 LOCK
169 N 000933005004 SCREW
172 A 0004623365 RING
174 A 0004623465 RING
176 A 0005860446 REPAIR KIT
176 A 0005862246 REPAIR KIT
180 A 0029812310 NEEDLE BEARING
180 A 0009801710 NEEDLE BEARING
28X18.008
180 A 0009801810 NEEDLE BEARING
28X18.011
180 A 0009801910 NEEDLE BEARING
28X18.014
180 A 0009802010 NEEDLE BEARING
28X18.017
180 A 0009802110 NEEDLE BEARING
28.015X18.008
180 A 0009802210 NEEDLE BEARING
28.015X18.011
180 A 0009802310 NEEDLE BEARING
28.015X18.014
180 A 0009802410 NEEDLE BEARING
28.015X18.017
A 0029812410 NEEDLE BEARING
A 0029812510 NEEDLE BEARING
A 0029812610 NEEDLE BEARING
182 A 0019810081 INNER RING
A 0019810181 INNER RING
184 A 0004620538 BALL CAGE
186 A 0004625665 RING
187 A 0069973945 SEAL RING
45X1.5 MM
190 A 0004610504 BOX
191 A 0059976346 SEAL RING
Repalced by: A 0099975247
191 A 0099975247 SEAL RING
Repalced by: A 0169975447
191 A 0169975447 SEAL RING
193 A 0009818480 OUTER RACE
195 A 0014622752 SPACER WASHER
196 N 000960012220 SCREW
198 A 0004620496 BOOT
Repalced by: A 0004621996
198 A 0004621996 BOOT
200 N 000937035001 NUT
201 N 000094006013 COTTER PIN
202 A 4064630201 PITMAN ARM
202 A 4064630301 PITMAN ARM
206 A 4064600378 STEERING BOX ASSEMBLY
Repalced by: A 4064600478
206 A 4064600478 STEERING BOX ASSEMBLY
Repalced by: A 4064600578
206 A 4064600578 STEERING BOX ASSEMBLY
Repalced by: A 4064600001
206 A 4064600001 STEERING BOX ASSEMBLY
Repalced by: A 4064600101
206 A 4064600101 STEERING BOX ASSEMBLY
ZF BALL-NUT-TYPE HYDRAULIC POWER STEERING
210 A 0004601602 STEERING BOX
TO 406 460 03 78,406 460 04 78
211 A 0004613305 COVER
TO 406 460 03 78,406 460 04 78
211 A 0004610242 COVER
TO 406 460 05 78,406 460 00 01, 01 01
212 A 0019977448 SEAL RING
Repalced by: A 0159970048
212 A 0159970048 SEAL RING
TO 406 460 01 01
214 A 0039943741 LOCK
Repalced by: N 000471045000
214 N 000471045000 LOCK RING
TO 406 460 03 78,406 460 04 78, 05 78
214 N 000471045000 LOCK RING
TO 406 460 00 01,406 460 01 01
216 A 0029817210 NEEDLE BEARING
Repalced by: A 0009812710
216 A 0009812710 NEEDLE BEARING
TO 406 460 03 78,406 460 04 78, 05 7
216 A 0009812710 NEEDLE BEARING
TO 406 460 00 01, 01 01
217 A 0019970640 SEAL RING
TO 406 460 00 01,406 460 01 01
219 N 000472060000 LOCK RING
TO 406 460 00 01,406 460 01 01
220 A 0004622475 WASHER
TO 406 460 00 01,406 460 01 01
222 A 0004621865 RING
TO 406 460 00 01,406 460 01 01
223 N 001481008038 CLAMPING SLEEVE
Repalced by: N 308752008000
223 N 308752008000 CLAMPING PIN
TO 406 460 03 78,406 460 04 78
224 N 007346005006 CLAMPING SLEEVE
TO 406 460 03 78,406 460 04 78
228 A 0004606308 STEERING WORM
Repalced by: A 0004606508
228 A 0004606508 STEERING WORM
TO 406 460 03 78,406 460 04 78
228 A 0004606408 STEERING WORM
Repalced by: A 0004606608
228 A 0004606608 STEERING WORM
TO 406 460 03 78,406 460 04 78
229 N 005401309000 BALL
TO 406 460 03 78,406 460 04 78
231 A 0004620434 SCREW COLLAR
TO 406 460 03 78,406 460 04 78
233 A 0004621783 PISTON
TO 406 460 03 78,406 460 04 78
233 A 0004622183 PISTON
TO 406 460 05 78,406 460 00 01
233 A 0004622783 PISTON
TO 406 460 01 01
234 A 0004620570 STUD
TO 406 460 05 78,406 460 00 01, 01 01
235 N 000546006002 NUT
TO 406 460 05 78,406 460 00 01, 01 01
236 A 0004621771 SCREW
237 A 0004620353 SPACER TUBE
Repalced by: A 0005864546
237 A 0004623750 BUSHING
Repalced by: A 0005864546
237 A 0005864546 REPAIR KIT
TO 406 460 03 78,406 460 04 78, 05 78
237 A 0005864546 REPAIR KIT
TO 406 460 00 01, 01 01
238 N 005401307000 BALL
TO 406 460 05 78,406 460 00 01, 01 01
239 A 0059811410 NEEDLE BEARING
TO 406 460 03 78,406 460 04 78
240 A 0109975748 SEAL RING
TO 406 460 05 78,406 460 00 01, 01 01
241 A 0109979545 SEAL RING
TO 406 460 03 78,406 460 04 78
242 A 0004620560 SEAL RING
TO 406 4600578,406 4600001,0101
243 A 0039948741 LOCK
TO 406 460 05 78,406 460 00 01, 01 01
244 A 0034627652 SPACER WASHER
TO 406 460 05 78,406 460 00 01,01 01
245 A 0034627052 SPACER WASHER
TO 406 460 0578,406 460 00 01,01 01
246 A 0019816980 OUTER RACE
TO 406 460 05 78,406 460 00 01, 01 01
247 A 0029810685 BALL
AS REQUIRED
7.989 MM
247 A 0029810785 BALL
AS REQUIRED
7.993 MM
247 A 0029810885 BALL
AS REQUIRED
7.997 MM
247 A 0029810985 BALL
AS REQUIRED
8.001 MM
247 A 0029811085 BALL
AS REQUIRED
8.005 MM
247 A 0029811185 BALL
AS REQUIRED
8.009 MM
247 A 0029811285 BALL
AS REQUIRED
2-8.009 MM
248 A 0059811510 NEEDLE BEARING
TO 406 460 03 78,406 460 04 78
248 A 0079813610 NEEDLE BEARING
TO 406 460 05 78,406 460 00 01, 01 01
249 N 000965005035 SCREW
TO 406 460 05 78,406 460 00 01, 01 01
250 A 0004620295 COVERING
TO 406 460 05 78,406 460 00 01, 01 01
251 A 0004622027 BALL RACE
Repalced by: A 0004622827
251 A 0004622827 BALL RACE
TO 406 460 05 78,406 460 00 01, 01 01
252 A 0019813410 NEEDLE BEARING
TO 406 460 05 78,406 460 00 01, 01 01
253 A 0034625952 SPACER WASHER
TO 406 460 05 78,406 460 00 01, 01 01
253 A 0034620852 SPACER WASHER
AS REQUIRED
1.95 MM
253 A 0034620952 SPACER WASHER
Repalced by: A 0034621352
253 A 0034621052 SPACER WASHER
Repalced by: A 0034621352
253 A 0034621152 SPACER WASHER
Repalced by: A 0034621352
253 A 0034621252 SPACER WASHER
Repalced by: A 0034621352
253 A 0034621352 SPACER WASHER
AS REQUIRED
2.00 MM
253 A 0034621452 SPACER WASHER
Repalced by: A 0034621852
253 A 0034621552 SPACER WASHER
Repalced by: A 0034621852
253 A 0034621652 SPACER WASHER
Repalced by: A 0034621852
253 A 0034621752 SPACER WASHER
Repalced by: A 0034621852
253 A 0034621852 SPACER WASHER
AS REQUIRED
2.05 MM
253 A 0034621952 SPACER WASHER
Repalced by: A 0034622352
253 A 0034622052 SPACER WASHER
Repalced by: A 0034622352
253 A 0034622152 SPACER WASHER
Repalced by: A 0034622352
253 A 0034622252 SPACER WASHER
Repalced by: A 0034622352
253 A 0034622352 SPACER WASHER
AS REQUIRED
2.10 MM
253 A 0034622452 SPACER WASHER
Repalced by: A 0034622852
253 A 0034622552 SPACER WASHER
Repalced by: A 0034622852
253 A 0034622652 SPACER WASHER
Repalced by: A 0034622852
253 A 0034622752 SPACER WASHER
Repalced by: A 0034622852
253 A 0034622852 SPACER WASHER
AS REQUIRED
2.15 MM
253 A 0034622952 SPACER WASHER
Repalced by: A 0034623352
253 A 0034623052 SPACER WASHER
Repalced by: A 0034623352
253 A 0034623152 SPACER WASHER
Repalced by: A 0034623352
253 A 0034623152 SPACER WASHER
253 A 0034623252 SPACER WASHER
Repalced by: A 0034623352
253 A 0034623352 SPACER WASHER
AS REQUIRED
2.20 MM
253 A 0034623452 SPACER WASHER
Repalced by: A 0034623852
253 A 0034623552 SPACER WASHER
Repalced by: A 0034623852
253 A 0034623652 SPACER WASHER
Repalced by: A 0034623852
253 A 0034623752 SPACER WASHER
Repalced by: A 0034623852
253 A 0034623852 SPACER WASHER
AS REQUIRED
2.25 MM
253 A 0034623952 SPACER WASHER
Repalced by: A 0034624352
253 A 0034624052 SPACER WASHER
Repalced by: A 0034624352
253 A 0034624152 SPACER WASHER
Repalced by: A 0034624352
253 A 0034624252 SPACER WASHER
Repalced by: A 0034624352
253 A 0034624352 SPACER WASHER
AS REQUIRED
2.30 MM
253 A 0034624452 SPACER WASHER
Repalced by: A 0034624852
253 A 0034624552 SPACER WASHER
Repalced by: A 0034624852
253 A 0034624652 SPACER WASHER
Repalced by: A 0034624852
253 A 0034624752 SPACER WASHER
Repalced by: A 0034624852
253 A 0034624852 SPACER WASHER
AS REQUIRED
2.35 MM
254 A 0004620634 SCREW COLLAR
TO 406 460 05 78,406 460 00 01, 01 01
255 A 0039973946 SEAL RING
Repalced by: A 0059973747
255 A 0059973747 SEAL RING
Repalced by: A 0089979447
255 A 0089979447 SEAL RING
TO 406 460 03 78,406 460 04 78
255 A 0089979447 SEAL RING
TO 406 460 05 78,406 460 00 01, 01 01
257 A 0004611046 COVER
TO 406 460 03 78,406 460 04 78
257 A 0004601215 STEERING BOX COVER
TO 406 460 05 78,406 460 00 01, 01 01
258 N 000472037000 LOCK RING
TO 406 460 05 78,406 460 00 01, 01 01
259 A 0014622752 SPACER WASHER
260 N 000960012162 SCREW
Repalced by: N 910105012021
260 N 910105012021 SCREW
TO 406 460 03 78,406 460 04 78
260 N 308676012010 SCREW
TO 406 460 05 78,406 460 00 01, 01 01
260 N 000961012192 SCREW
Repalced by: N 308676012016
260 N 308676012016 SCREW
TO 406 460 05 78,406 460 00 01, 01 01
262 A 0004624965 RING
Repalced by: A 0004626165
262 A 0004626165 RING
AS REQUIRED
TO 406 460 03 78,406 460 04 78
262 A 0004625765 RING
Repalced by: A 0004626265
262 A 0004626265 RING
AS REQUIRED
TO 406 460 03 78,406 460 04 78
262 A 0004626265 RING
AS REQUIRED
TO 406 460 05 78,406 460 00 01, 01 01
263 A 0004624865 RING
AS REQUIRED
265 A 0004625065 RING
AS REQUIRED
266 A 0004625165 RING
AS REQUIRED
1.4 MM
266 A 0004625265 RING
AS REQUIRED
1.2 MM
266 A 0004620060 SEAL RING
TO 406 460 05 78,406 460 00 01, 01 01
266 A 0004620760 SEAL RING
TO 406 460 05 78,406 460 00 01, 01 01
268 A 0019977748 SEAL RING
86X2 MM; TO 406 460 03 78, 04 78
269 A 0004625365 RING
AS REQUIRED
TO 406 460 03 78,406 460 04 78
270 A 0019977848 SEAL RING
Repalced by: A 0059970248
270 A 0059970248 SEAL RING
Repalced by: A 0159970148
270 A 0159970148 SEAL RING
88X3 MM,TO 406 460 01 01
271 A 0004620660 SEAL RING
TO 406 460 05 78, 00 01, 01 01
272 A 0004620438 BALL CAGE
TO 406 460 05 78,406 460 00 01, 01 01
273 A 0009816180 OUTER RACE
TO 406 460 05 78,406 460 00 01, 01 01
274 A 0059970945 SEAL RING
TO 406 460 03 78, 04 78
274 A 0049979848 SEAL RING
TO 406 460 05 78,406 460 00 01, 01 01
275 A 0004624412 STEERG. WORM SECTOR SHAFT
TO 406 460 03 78,406 460 04 78
275 A 0004624612 STEERG. WORM SECTOR SHAFT
TO 406 460 00 01 ,406 460 01 01
276 A 0004621671 SCREW
Repalced by: A 0004621571
276 A 0004621571 SCREW
277 A 0004612952 SPACER WASHER
Repalced by: A 0034620452
277 A 0034620452 SPACER WASHER
AS REQUIRED
2.950 MM
277 A 0004613052 SPACER WASHER
Repalced by: A 0034620552
277 A 0034620552 SPACER WASHER
AS REQUIRED
2.975 MM
277 A 0004613152 SPACER WASHER
Repalced by: A 0034620652
277 A 0034620652 SPACER WASHER
AS REQUIRED
3.000 MM
277 A 0004613252 SPACER WASHER
Repalced by: A 0034620752
277 A 0034620752 SPACER WASHER
AS REQUIRED
3.025 MM
277 A 0004613352 SPACER WASHER
Repalced by: A 0034624952
277 A 0034624952 SPACER WASHER
AS REQUIRED
3.050 MM
277 A 0004613452 SPACER WASHER
Repalced by: A 0034625052
277 A 0034625052 SPACER WASHER
AS REQUIRED
3.075 MM
277 A 0004613552 SPACER WASHER
Repalced by: A 0034625152
277 A 0034625152 SPACER WASHER
AS REQUIRED
3.100 MM
277 A 0004613652 SPACER WASHER
Repalced by: A 0034625252
277 A 0034625252 SPACER WASHER
AS REQUIRED
3.125 MM
277 A 0004613752 SPACER WASHER
Repalced by: A 0034625352
277 A 0034625352 SPACER WASHER
AS REQUIRED
3.150 MM
277 A 0034625452 SPACER WASHER
Repalced by: A 0034625852
277 A 0034625852 SPACER WASHER
AS REQUIRED
3.175 MM
277 A 0034625552 SPACER WASHER
AS REQUIRED
3.200 MM
277 A 0034625652 SPACER WASHER
AS REQUIRED
3.225 MM
277 A 0034625752 SPACER WASHER
AS REQUIRED
3.250 MM
277 A 0034625852 SPACER WASHER
AS REQUIRED
3.275 MM
282 N 900055025310 LOCK RING
TO 406 460 03 78,406 460 04 78
282 A 0039943041 LOCK
TO 406 460 05 78,406 460 00 01, 01 01
285 A 0004601114 STEERING BOX COVER
TO 406 460 03 78,406 460 04 78
285 A 0004601214 STEERING BOX COVER
286 A 0004624765 RING
TO 406 460 03 78,406 460 04 78
286 A 0039971148 SEAL RING
Repalced by: A 0099979948
286 A 0099979948 SEAL RING
44.8X47.6X2 MM
288 A 0019977548 SEAL RING
45X3 MM; TO 406 460 03 78; 04 78
288 A 0039971048 SEAL RING
49X1.5 MM
290 A 0004624075 WASHER
TO 406 460 03 78,406 460 04 78
290 A 0004620528 BEARING RING
292 A 0059811310 NEEDLE BEARING
TO 406 460 03 78,406 460 04 78
292 A 0009812710 NEEDLE BEARING
294 A 0099977645 SEAL RING
Repalced by: A 0019870746
294 A 0019870746 SEALING CORD
10X2 MM; TO 406 460 03 78, 04 78
294 A 0049979948 SEAL RING
11X2 MM; TO 406 460 05 78,00 01,01 01
295 A 0009871346 SEALING CORD
22X3 MM; TO 406 460 03 78,04 78
295 A 0059970048 SEAL RING
23X3 MM;TO 406 460 05 78,00 01,01 01
296 A 0019977648 SEAL RING
96X3 MM;TO 406 460 03 78,04 78
296 A 0109975848 SEAL RING
96X3 MM; TO 406 460 05 78,00 01,01 01
299 A 0014622752 SPACER WASHER
300 N 000961012094 SCREW
Repalced by: N 910105012007
300 N 910105012007 SCREW
302 N 007603012405 SEAL RING
303 N 000908012003 SCREW PLUG
Repalced by: N 000908012009
303 N 000908012009 SCREW PLUG
303 N 007604012102 SCREW PLUG
TO 406 460 01 01
Repalced by: N 007604012105
303 N 007604012105 SCREW PLUG
TO 406 460 01 01
305 A 0004620372 NUT
307 A 0004621396 BOOT
Repalced by: A 0004620196
307 A 0004620196 BOOT
TO 406 460 03 78,406 460 04 78,05 78
307 A 0004620196 BOOT
TO 406 460 00 01,01 01
310 A 0004620896 BOOT
311 N 000463036000 LOCK PLATE
Repalced by: A 4039915025
311 A 4039915025 WASHER
TO 406 460 03 78,406 460 04 78
312 N 000936035002 NUT
315 A 0005864446 REPAIR KIT
TO 406 460 03 78,406 460 04 78
315 A 0005865946 REPAIR KIT
TO 406 460 03 78,406 460 04 78
316 A 0004600261 GASKET KIT
RANGE OF DELIVERY
TO 406 460 05 78,406 460 00 01,01 01
318 A 4064630401 PITMAN ARM
318 A 4064630501 PITMAN ARM
325 A 4064610040 STEERING SUPPORT
327 A 4064610340 STEERING SUPPORT
327 A 4064610440 STEERING SUPPORT
330 N 007349013003 WASHER
Repalced by: N 007349013005
330 N 007349013005 WASHER
331 N 912004012100 LOCK WASHER
332 N 000960012221 SCREW
335 N 007349013003 WASHER
Repalced by: N 007349013005
335 N 007349013005 WASHER
336 N 912004012100 LOCK WASHER
337 N 000960012258 SCREW
339 A 4064640053 SPACER TUBE
340 N 000960012192 SCREW
342 A 4064640253 SPACER TUBE
Repalced by: A 4273150053
342 A 4273150053 SPACER TUBE
Repalced by: A 4185660049
342 A 4185660049 BUSHING
STEERING SUPPORT
343 A 0009942651 LOCK
Repalced by: A 0009941551
343 A 0009941551 LOCK
STEERING SUPPORT TO FRAME
344 N 000960014205 SCREW
Repalced by: N 910105014016
344 N 910105014016 SCREW
STEERING SUPPORT TO FRAME
M 14X1,5X90
345 N 000960014183 SCREW
STEERING SUPPORT TO FRAME
M 14X1,5X120
348 N 000960012333 SCREW
349 N 000960012342 SCREW
Repalced by: N 910105012015
349 N 910105012015 SCREW
350 N 912004012100 LOCK WASHER
351 N 000934012022 NUT
Repalced by: N 913023012002
351 N 913023012002 NUT
354 N 000931010268 SCREW
Repalced by: N 910105010010
354 N 910105010010 SCREW
Repalced by: N 000931010283
354 N 000931010283 SCREW
Repalced by: N 000931010357
354 N 000931010357 SCREW
Repalced by: N 000933010192
354 A 0019909404 SCREW
355 N 912004010102 LOCK WASHER
356 N 000934010014 NUT
Repalced by: N 910112010001
356 N 910112010001 NUT
Repalced by: N 913023010002
356 N 913023010002 NUT
358 N 912004016101 LOCK WASHER
359 N 000961016036 SCREW
Repalced by: N 910105016004
359 N 910105016004 SCREW
362 A 4064600157 STEERING COLUMN
362 A 4064600257 STEERING COLUMN
Repalced by: A 4064620012
362 A 4064620012 STEERING SHAFT
363 A 0004620328 BEARING RING
TO 406 460 01 57,406 460 02 57
364 A 4064600857 UNIVERSAL JOINT
Repalced by: A 4064600957
364 A 4064600957 SELF-ALIGNING BEARING
365 A 0019941941 LOCK
366 A 4214600357 UNIVERSAL JOINT
Repalced by: A 0004620744
366 A 0004620244 UNIVERSAL JOINT
Repalced by: A 0004620744
366 A 0004622950 BUSHING
Repalced by: A 0004620744
366 A 4214600457 UNIVERSAL JOINT
Repalced by: A 0004620744
366 A 0004620744 UNIVERSAL JOINT
366 A 0004620744 UNIVERSAL JOINT
366 A 4064600457 UNIVERSAL JOINT
Repalced by: A 4064600557
366 A 4064600557 UNIVERSAL JOINT
Repalced by: A 0004620844
366 A 0004620844 UNIVERSAL JOINT
366 A 0004620844 UNIVERSAL JOINT
368 N 000610010003 FITTED SCREW
369 A 0019901551 NUT
Repalced by: N 913004010008
369 N 913004010008 NUT
Repalced by: N 913023010003
369 N 913023010003 NUT
370 A 4069905014 SCREW
Repalced by: A 3169900114
370 A 3169900114 SCREW
Repalced by: A 2109900604
370 A 2109900604 SCREW
370 A 3169900114 SCREW
Repalced by: A 2109900604
370 A 2109900604 SCREW
370 A 3169900114 SCREW
Repalced by: A 2109900604
370 A 2109900604 SCREW
372 A 0019901651 NUT
Repalced by: N 913004008004
372 N 913004008004 NUT
Repalced by: N 913003008003
372 N 913003008003 PART NAME MISSING
Repalced by: N 913023008003
372 N 913023008003 NUT
Repalced by: N 913023008002
372 N 913023008002 NUT
372 A 0019901651 NUT
Repalced by: N 913004008004
372 N 913004008004 NUT
Repalced by: N 913003008003
372 N 913003008003 PART NAME MISSING
Repalced by: N 913023008003
372 N 913023008003 NUT
Repalced by: N 913023008002
372 N 913023008002 NUT
372 N 913023008002 NUT
374 A 4064600031 STEERING COLUMN BRACKET
374 A 4164600031 STEERING COLUMN BRACKET
375 A 0009870772 EDGE GUARD SECTION
220 MM
376 N 000933006183 SCREW
Repalced by: N 304017006016
376 N 304017006016 SCREW
STEERING COLUMN BRACKET TO CAB
M 6X16
N 912004006102 LOCK WASHER
STEERING COLUMN BRACKET TO CAB
378 N 009021006205 WASHER
Repalced by: N 009021006208
378 N 009021006208 WASHER
STEERING COLUMN BRACKET TO CAB
380 N 000933008131 SCREW
Repalced by: N 304017008016
380 N 304017008016 SCREW
STEERING COLUMN BRACKET TO CAB
M 8X15
N 912004008102 LOCK WASHER
STEERING COLUMN BRACKET TO CAB
382 N 000125008418 WASHER
Repalced by: N 000125008443
382 N 000125008443 WASHER
STEERING COLUMN BRACKET TO CAB
383 N 304032008006 NUT
STEERING COLUMN BRACKET TO CAB
385 A 4064620297 SEAL
386 A 4064620397 SEAL
387 N 915042011000 PLUG
388 A 4064620023 COVER
STEERING SHAFT SEALING
389 A 0009972190 LOOM TIE
Repalced by: N 916017060000
389 N 916017060000 CLAMP
Repalced by: N 000000000673
389 N 000000000673 CLAMP
STEERING SHAFT SEALING
390 A 4066100073 FRAME
391 A 4066105073 FRAME
SEALING IN FLOOR PLATE
392 A 4066165006 FRAME
393 N 000933006078 SCREW
SEAL AND FRAME TO TOEBOARD SUPPORT
393 N 000933006178 SCREW
Repalced by: N 304017006019
393 N 304017006019 SCREW
SEAL AND FRAME TO TOEBOARD SUPPORT
394 N 009021006205 WASHER
Repalced by: N 009021006208
394 N 009021006208 WASHER
SEAL AND FRAME TO TOEBOARD SUPPORT
395 N 000934006007 NUT
SEAL AND FRAME TO TOEBOARD SUPPORT
396 A 4064600203 STEERING WHEEL
450 MM
397 N 000137018202 SPRING WASHER
398 N 000439018204 NUT
399 A 0004641720 HORN PUSH BUTTON
400 A 0004640531 CAP
401 A 4064600105 DRAG LINK
401 A 4064600205 DRAG LINK
402 A 0003381810 BALL JOINT
Repalced by: A 0003305635
402 A 0003305635 JOINT
Repalced by: A 0004604348
402 A 0004604348 DRAG LINK END
403 A 0004630096 BOOT
Repalced by: A 0003300285
403 A 0003300285 BOOT
Repalced by: A 0003300885
403 A 0003300885 BOOT
404 N 000979016006 NUT
Repalced by: N 000979016007
404 N 000979016007 NUT
405 N 000094004065 COTTER PIN
406 A 0009953644 CLAMP
Repalced by: A 0009950544
406 A 0009950544 CLAMP
Repalced by: A 0009957044
406 A 0009957044 CLAMP
407 N 000960010033 SCREW
408 N 912004010102 LOCK WASHER
409 N 000934010014 NUT
Repalced by: N 910112010001
409 N 910112010001 NUT
Repalced by: N 913023010002
409 N 913023010002 NUT
410 A 0004630096 BOOT
Repalced by: A 0003300285
410 A 0003300285 BOOT
Repalced by: A 0003300885
410 A 0003300885 BOOT
411 N 000979016006 NUT
Repalced by: N 000979016007
411 N 000979016007 NUT
412 N 000094004065 COTTER PIN
413 A 4064600405 DRAG LINK
A 4064600505 DRAG LINK
ASTRA
413 A 4064600305 DRAG LINK
Repalced by: A 4064600605
413 A 4064600605 DRAG LINK
EHRENREICH
413 A 4064600705 DRAG LINK
LEMFOERDER
414 A 0004632229 BALL JOINT
Repalced by: A 0004633429
414 A 0004633429 BALL JOINT
Repalced by: A 0013300135
414 A 0013300135 JOINT
R.H. THREAD
LEMFOERDER
414 A 0013300135 JOINT
TO 406 460 03 05,406 460 04 05
414 A 0013300135 JOINT
TO 406 460 06 05,406 460 07 05
414 A 0004633529 BALL JOINT
415 A 0003301085 BOOT
TO 001 330 01 35
415 A 0004631196 BOOT
Repalced by: A 0003301085
415 A 0003301085 BOOT
TO 406 460 06 05,406 460 07 05
415 A 0003301085 BOOT
TO 406 460 04 05,406 460 03 05
416 A 0003382645 CLAMP
TO 406 460 04 05
417 A 0009954944 CLAMP
TO 406 460 03 05
418 N 000960012077 SCREW
Repalced by: N 308676012017
418 N 308676012017 SCREW
TO 406 460 06 05,406 460 07 05
418 N 000960012292 SCREW
TO 406 460 03 05,406 460 04 05
419 N 913004012008 NUT
Repalced by: N 913023012003
419 N 913023012003 NUT
TO 406 460 06 05,406 460 07 05
419 N 913023012003 NUT
TO 406 460 04 05
420 N 000935012002 NUT
TO 406 460 03 05
421 N 000094003230 COTTER PIN
TO 406 460 03 05
422 N 000937020001 NUT
TO 406 460 03 05
422 N 000937020014 NUT
Repalced by: N 000979020000
422 N 000979020000 NUT
TO 406 460 06 05,406 460 07 05
422 N 000979020000 NUT
TO 406 460 04 05
423 N 000094004065 COTTER PIN
TO 406 460 06 05,406 460 07 05
423 N 000094004065 COTTER PIN
TO 406 460 04 05
X XXXXXXXXXXXX PART NAME MISSING
POWER STEERING PUMP,OIL TANK,AND OIL LINE
424 A 0004665601 HYDRAULIC PUMP
425 A 0004669601 HYDRAULIC PUMP
425 A 0004669801 HYDRAULIC PUMP
425 A 0004669801 HYDRAULIC PUMP
426 A 0014661101 HYDRAULIC PUMP
427 A 0004600382 COVER
Repalced by: A 0004601882
427 A 0004601682 COVER
Repalced by: A 0004601882
427 A 0004601882 COVER
428 A 0009912560 DOWEL PIN
429 A 0004600381 HOUSING
Repalced by: A 0004601981
429 A 0004601981 HOUSING
429 A 0004660905 COVER
430 A 0004664505 COVER
Repalced by: A 0004668205
430 A 0004668205 COVER
431 A 0004660722 SET OF ROTORS
Repalced by: A 0004664221
431 A 0004664221 ROTOR SET
432 A 0089978745 SEAL RING
433 A 0004660251 SPACER RING
Repalced by: A 0004661151
433 A 0004661151 SPACER RING
434 A 0004666005 COVER
Repalced by: A 0004668505
434 A 0004668505 COVER
435 A 0089978845 SEAL RING
Repalced by: A 0179970748
435 A 0179970748 SEAL RING
436 A 0004660351 SPACER RING
Repalced by: A 0004661051
436 A 0004661051 SPACER RING
437 A 0004662405 COVER
Repalced by: A 0004661605
437 A 0004661605 COVER
Repalced by: A 0004666505
437 A 0004666505 COVER
438 A 0009941637 SNAP RING
439 A 0004660120 DRIVE SHAFT
440 A 0004661920 DRIVE SHAFT
441 A 0004660074 PIN
442 A 0009910568 KEY
443 N 006888004012 WOODRUFF KEY
444 N 000625900200 GROOVED BALL BEARING
445 A 0049816025 BALL BEARING
446 N 000984052000 LOCK RING
447 N 000472042001 LOCK RING
448 A 0004660052 SPACER WASHER
449 A 0004660945 FLANGE
450 N 070952020101 LOCK PLATE
451 N 009045020001 SNAP RING
452 A 0129973147 SEAL RING
453 A 0009811084 CAGE
Repalced by: A 0109818010
453 A 0109818010 NEEDLE BEARING
454 N 070852020000 NUT
455 A 0004660058 CONNECTOR
456 N 912004006102 LOCK WASHER
457 N 000933006127 SCREW
458 N 304017006026 SCREW
Repalced by: N 304017006026
458 N 304017006026 SCREW
459 A 0004660284 CARTRIDGE
459 A 0004660084 CARTRIDGE
460 A 0004662284 CARTRIDGE
461 A 0029932401 SPRING
462 A 0029935201 SPRING
463 A 0004660083 PISTON
464 A 0004662983 PISTON
Repalced by: A 0004665483
464 A 0004665483 PISTON
465 A 0009942041 LOCK
466 A 0009937001 SPRING
467 A 0059934201 SPRING
468 N 007603022102 SEAL RING
469 A 0019970130 SCREW PLUG
470 A 0009972472 FITTING
471 N 912004010102 LOCK WASHER
472 N 910105010002 SCREW
473 N 000933010129 SCREW
Repalced by: N 910105010001
473 N 910105010001 SCREW
474 A 0005864346 REPAIR KIT
TO 000 466 56 01,000 466 96 01, 98 01
475 A 0004601661 GASKET KIT
TO 000 466 11 01
476 A 4065520446 PULLEY
477 A 4064660015 PULLEY
478 A 4165520146 PULLEY
479 A 4165520079 PULLEY
480 N 912004008102 LOCK WASHER
PULLEY TO HYDRAULIC PUMP
480 N 912004008102 LOCK WASHER
PULLEY TO HYDRAULIC PUMP
481 N 000933008123 SCREW
Repalced by: N 304017008008
481 N 304017008008 SCREW
PULLEY TO HYDRAULIC PUMP
481 N 000933008130 SCREW
Repalced by: N 304017008039
481 N 304017008039 SCREW
PULLEY TO HYDRAULIC PUMP
482 N 913004014002 NUT
Repalced by: N 913023014004
482 N 913023014004 NUT
PULLEY TO HYDRAULIC PUMP
483 A 4065501640 BRACKET
484 A 4065504240 BRACKET
484 A 4165500340 BRACKET
485 N 000960020127 SCREW
Repalced by: N 000960020150
485 N 000960020150 SCREW
BRACKET TO ENGINE SUPPORT
M 20X1,5X200
485 N 000960020150 SCREW
BRACKET TO ENGINE SUPPORT
M 20X1,5X205
485 N 000960020086 SCREW
BRACKET TO ENGINE SUPPORT
485 N 000960014121 SCREW
Repalced by: N 910105014009
485 N 910105014009 SCREW
BRACKET TO ENGINE SUPPORT
M 14X1,5X70
N 912004020100 LOCK WASHER
BRACKET TO ENGINE SUPPORT
487 N 000934020008 NUT
Repalced by: N 913023020000
487 N 913023020000 NUT
Repalced by: N 913023020001
487 N 913023020001 NUT
BRACKET TO ENGINE SUPPORT
488 N 000933010145 SCREW
Repalced by: N 910105010007
488 N 910105010007 SCREW
Repalced by: N 000000000428
488 N 000000000428 HEXAGON HEAD BOLT
HYDRAULIC PUMP TO BRACKET
M 10X35
488 N 000000000428 HEXAGON HEAD BOLT
HYDRAULIC PUMP TO BRACKET
M 10X35
488 N 000933008147 SCREW
Repalced by: N 304017008021
488 N 304017008021 SCREW
HYDRAULIC PUMP TO BRACKET
M 8X20
489 N 912004010102 LOCK WASHER
HYDRAULIC PUMP TO BRACKET
489 N 912004010102 LOCK WASHER
HYDRAULIC PUMP TO BRACKET
489 N 912004008102 LOCK WASHER
HYDRAULIC PUMP TO BRACKET
490 N 000934010014 NUT
Repalced by: N 910112010001
490 N 910112010001 NUT
Repalced by: N 913023010002
490 N 913023010002 NUT
HYDRAULIC PUMP TO BRACKET
490 N 913023010002 NUT
HYDRAULIC PUMP TO BRACKET
491 N 007753012561 NARROW V-BELT
Repalced by: A 0029973592
491 A 0029973592 V-BELT
Repalced by: A 0069977492
491 A 0069977492 V-BELT
Repalced by: A 0059970892
491 A 0059970892 V-BELT
491 N 007753012503 NARROW V-BELT
Repalced by: A 0039971492
491 A 0039971492 V-BELT
491 A 0059979192 V-BELT
492 N 000933010094 SCREW
Repalced by: N 910105010011
492 N 910105010011 HEXAGON HEAD BOLT
FOR V-BELT TENSIONING
493 N 000934010014 NUT
Repalced by: N 910112010001
493 N 910112010001 NUT
Repalced by: N 913023010002
493 N 913023010002 NUT
494 A 0004662302 TANK
Repalced by: A 0004663502
494 A 0004663502 TANK
495 N 005401309000 BALL
496 A 0029934501 SPRING
497 A 0004661260 SEAL RING
498 A 0004660404 FILTER
499 A 0029934401 SPRING
Repalced by: A 0039933101
499 A 0039933101 SPRING
500 A 0004660580 GASKET
501 A 0004660775 WASHER
502 N 000315008006 NUT
503 A 1989970040 SEAL RING
504 A 4065800055 OIL DIPSTICK
505 A 4065501940 BRACKET
506 A 4065000574 CLAMP
507 N 913004008004 NUT
Repalced by: N 913003008003
507 N 913003008003 PART NAME MISSING
Repalced by: N 913023008003
507 N 913023008003 NUT
Repalced by: N 913023008002
507 N 913023008002 NUT
508 A 4065507257 PIPE LINE
509 A 4064600188 LINE
509 A 4064600188 LINE
510 A 4404600288 SUCTION PIPE
511 N 003861022004 GLAND
Repalced by: A 0019901267
511 A 0019901267 SEAL CONE
512 N 915017022100 UNION NUT
Repalced by: N 000000006243
512 N 000000006243 NUT
513 A 4165503057 PIPE LINE
514 N 007603026104 SEAL RING
515 N 003901022006 SCREW-IN FITTING
516 N 003861022004 GLAND
Repalced by: A 0019901267
516 A 0019901267 SEAL CONE
517 N 915017022100 UNION NUT
Repalced by: N 000000006243
517 N 000000006243 NUT
518 A 0029974748 SEAL RING
SUCTION LINE TO OIL PUMP
518 A 0029974748 SEAL RING
SUCTION LINE TO OIL PUMP
519 N 000933006121 SCREW
Repalced by: N 304017006020
519 N 304017006020 SCREW
519 N 304017006020 SCREW
520 N 912004006102 LOCK WASHER
520 N 912004006102 LOCK WASHER
521 N 915011020102 HOLLOW SCREW
SUCTION LINE TO OIL PUMP
522 A 4069877043 RUBBER SLEEVE
Repalced by: A 4039875643
522 A 4039875643 HOSE
Repalced by: A 4429871143
522 A 4429871143 HOSE
Repalced by: A 0005514156
522 A 0005514156 HOSE
30X22
522 A 4069878643 HOSE
Repalced by: A 0005514156
523 A 0009971390 LOOM TIE
Repalced by: N 916017020000
523 N 916017020000 CLAMP
Repalced by: N 000000000667
523 N 000000000667 CLAMP
524 A 0005512956 TUBE
524 A 4069878343 HOSE
FROM PUMP TO STEERING
525 A 4065531082 HOSE
Repalced by: A 4064600024
525 A 4064600024 LINE
FROM PUMP TO STEERING
526 N 915017012100 UNION NUT
FROM HOSE TO STEERING
Repalced by: N 000000006239
526 N 000000006239 UNION NUT
FROM HOSE TO STEERING
527 N 003861012007 GLAND
Repalced by: A 0019901967
527 A 0019901967 SEAL CONE
FROM HOSE TO STEERING
528 N 003901012011 SCREW-IN FITTING
529 A 0049972272 FITTING
Repalced by: A 0049973372
529 A 0049973372 FITTING
Repalced by: A 3529970571
529 A 3529970571 FITTING
SUCTION LINE
530 N 915036012203 HOLLOW SCREW
DELIVERY LINE TO STEERING
530 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
530 N 915036010108 HOLLOW SCREW
531 N 007603016105 SEAL RING
DELIVERY LINE TO STEERING
531 N 007603014103 SEAL RING
532 N 915036012203 HOLLOW SCREW
DELIVERY LINE TO STEERING
532 N 915036012203 HOLLOW SCREW
533 N 007603016105 SEAL RING
DELIVERY LINE TO STEERING
533 N 007603016105 SEAL RING
534 A 4065507357 PIPE LINE
534 A 4065501758 PIPE LINE
534 A 4065502558 PIPE LINE
RETURN
535 N 915036012203 HOLLOW SCREW
535 N 915036015200 HOLLOW SCREW
Repalced by: N 915036015201
535 N 915036015201 HOLLOW SCREW
RETURN LINE TO STEERING
536 N 007603016105 SEAL RING
536 N 007603018101 SEAL RING
RETURN LINE TO STEERING
537 A 4069877143 RUBBER SLEEVE
Repalced by: A 4039875743
537 A 4039875743 RUBBER SLEEVE
Repalced by: A 0005514056
537 A 0005514056 HOSE
18X11.5
537 A 4069878743 HOSE
Repalced by: A 0005514056
537 A 0005514056 HOSE
RETURN LINE
18X11.5
A 0009971190 LOOM TIE
Repalced by: N 916018011000
N 916017011000 CLAMP
Repalced by: N 916017011001
538 N 000000000665 CLAMP
539 A 0009953344 CLAMP
Repalced by: A 0019978390
539 A 0019978390 LOOM TIE
280 MM
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
