Transporto priemonė: U 1000; VIN numerio dalis: 424121
Grupė: 52 CHASSIS SHEET METAL - 001 SHEET METAL,AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|

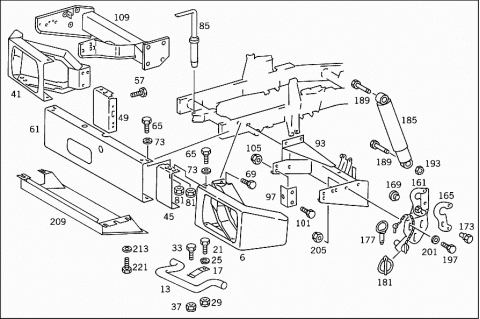

| 006 | A 4245200470 | BUMPER |
| LEFT | ||
| 013 | A 4255200031 | RUNNING BOARD |
| Repalced by: A 4255200731 | ||
| 013 | A 4255200731 | RUNNING BOARD |
| Repalced by: A 4255230536 | ||
| 013 | A 4255230536 | PIPE |
| 017 | A 4259930025 | SPRING |
| Repalced by: A 4259930225 | ||
| 017 | A 4259930225 | SPRING |
| Repalced by: A 4259930325 | ||
| 017 | A 4259930325 | SPRING |
| 017 | A 4259930425 | SPRING |
| 017 | A 4259930425 | SPRING |
| 021 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 021 | N 304017006018 | SCREW |
| M 6X12 | ||
| 025 | N 912004006102 | LOCK WASHER |
| 029 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 029 | N 913023006001 | NUT |
| 033 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 033 | N 304017008016 | SCREW |
| M 8X16 | ||
| 037 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 037 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 037 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 037 | N 913023008002 | NUT |
| 041 | A 4245200570 | BUMPER |
| RIGHT | ||
| 045 | A 4255251239 | BRACKET |
| LEFT | ||
| 049 | A 4255251139 | BRACKET |
| RIGHT | ||
| N 912004012100 | LOCK WASHER | |
| BRACKET TO FRAME | ||
| 057 | N 000961012165 | SCREW |
| Repalced by: N 000961012051 | ||
| 057 | N 000961012051 | SCREW |
| BRACKET TO FRAME | ||
| 061 | A 4255250201 | BUMPER |
| Repalced by: A 4255251301 | ||
| 061 | A 4255251301 | BUMPER |
| 065 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 065 | N 910105010006 | SCREW |
| M 10X20 | ||
| 069 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 069 | N 910105010009 | SCREW |
| 073 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 073 | N 007349010007 | WASHER |
| N 912004010102 | LOCK WASHER | |
| BUMPER TO FRAME | ||
| 081 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 081 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 081 | N 913023010002 | NUT |
| 085 | A 4255240274 | PIN |
| Repalced by: A 4255240974 | ||
| 085 | A 4255240974 | PIN |
| 085 | A 4255240974 | PIN |
| 089 | A 4245200292 | BEARING BRACKET |
| LEFT | ||
| A 4245200492 | BEARING BRACKET | |
| Repalced by: A 4245200692 | ||
| 093 | A 4245200692 | BEARING BRACKET |
| LEFT | ||
| 093 | A 4245200692 | BEARING BRACKET |
| LEFT | ||
| A 4255202092 | BEARING BRACKET | |
| Repalced by: A 4255202292 | ||
| 093 | A 4255202292 | BEARING BRACKET |
| LEFT | ||
| 097 | A 4355240110 | MOUNTING ANGLE |
| HORN | ||
| 101 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 101 | N 304017008016 | SCREW |
| HORN | ||
| M 8X16 | ||
| 105 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 105 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 105 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 105 | N 913023008002 | NUT |
| HORN | ||
| 109 | A 4245200392 | BEARING BRACKET |
| RIGHT | ||
| 109 | A 4245200592 | BEARING BRACKET |
| RIGHT | ||
| 109 | A 4245200592 | BEARING BRACKET |
| RIGHT | ||

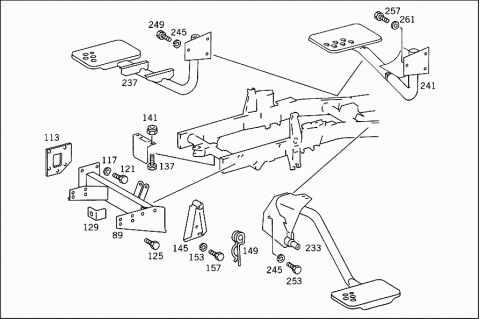

| 113 | A 4255243440 | BRACKET |
| 117 | N 000137010201 | SPRING WASHER |
| LEFT CONSOLE ARM TO FRAME | ||
| 117 | N 000137010201 | SPRING WASHER |
| RIGHT CONSOLE ARM TO FRAME | ||
| 121 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 121 | N 910105010001 | HEXAGON HEAD BOLT |
| LEFT CONSOLE ARM TO FRAME | ||
| M10X30 | ||
| 121 | N 910105010001 | HEXAGON HEAD BOLT |
| RIGHT CONSOLE ARM TO FRAME | ||
| M10X30 | ||
| 125 | N 000931010264 | SCREW |
| Repalced by: N 910105010008 | ||
| 125 | N 910105010008 | SCREW |
| Repalced by: N 910143010000 | ||
| 125 | N 910143010000 | SCREW |
| LEFT CONSOLE ARM TO FRAME | ||
| M 10X45 | ||
| 129 | A 4255241340 | BRACKET |
| Repalced by: A 3604280243 | ||
| 129 | A 3604280243 | ANGLE |
| HORN | ||
| A 4255510725 | PROTECTIVE PLATE | |
| 137 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 137 | N 910105010006 | SCREW |
| COVER PLATE TO CROSS MEMBER | ||
| M 10X20 | ||
| 141 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 141 | N 913023010003 | NUT |
| COVER PLATE TO CROSS MEMBER | ||
| 145 | A 4255202341 | BRACKET |
| CAB IN TILTED POSITION | ||
| 149 | N 011024004000 | SPRING RETAINING PIN |
| 153 | N 912004010102 | LOCK WASHER |
| 157 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 157 | N 910105010009 | SCREW |
| 161 | A 4355200692 | BEARING BRACKET |
| LEFT | ||
| 161 | A 4355200692 | BEARING BRACKET |
| LEFT | ||
| A 4355200992 | BEARING BRACKET | |
| Repalced by: A 4355201192 | ||
| 161 | A 4355201192 | BEARING BRACKET |
| Repalced by: A 4375202192 | ||
| 161 | A 4375202192 | BEARING BRACKET |
| LEFT | ||
| 161 | A 4355200792 | BEARING BRACKET |
| RIGHT | ||
| 161 | A 4355200792 | BEARING BRACKET |
| RIGHT | ||
| A 4355201092 | BEARING BRACKET | |
| Repalced by: A 4355201292 | ||
| 161 | A 4355201292 | BEARING BRACKET |
| Repalced by: A 4375202292 | ||
| 161 | A 4375202292 | BEARING BRACKET |
| RIGHT | ||
| 165 | A 4355240065 | LATCH |
| 165 | A 4355240065 | LATCH |
| 169 | A 4355240050 | BUSHING |
| 169 | A 4355240050 | BUSHING |
| 173 | A 4355240074 | PIN |
| 173 | A 4355240074 | PIN |
| 177 | A 4355200074 | PIN |
| Repalced by: A 4255200974 | ||
| 177 | A 4255200974 | PIN |
| 177 | A 4255200974 | PIN |
| 181 | A 4425500275 | LOCK |
| 181 | A 4425500275 | LOCK |
| 185 | A 0033235200 | SHOCK ABSORBER |
| CAB TILTING BEARING | ||
| 189 | N 000961014114 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| M 14X1.5X85 | ||
| 189 | N 000960014121 | SCREW |
| Repalced by: N 910105014009 | ||
| 189 | N 910105014009 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| M 14X15X70 | ||
| 193 | N 913004014002 | NUT |
| Repalced by: N 913023014004 | ||
| 193 | N 913023014004 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 197 | N 000961012122 | SCREW |
| BEARING BRACKET TO CONSOLE | ||
| 197 | N 000961012122 | SCREW |
| BEARING BRACKET TO CONSOLE | ||
| 201 | N 006916013000 | WASHER |
| BEARING BRACKET TO CONSOLE | ||
| 201 | N 006916013000 | WASHER |
| BEARING BRACKET TO CONSOLE | ||
| 205 | N 913004012008 | NUT |
| Repalced by: N 913023012003 | ||
| 205 | N 913023012003 | NUT |
| BEARING BRACKET TO CONSOLE | ||
| 205 | N 913023012003 | NUT |
| BEARING BRACKET TO CONSOLE | ||
| 209 | A 4255500054 | MOUNTING PLATE |
| Repalced by: A 4255500154 | ||
| 209 | A 4255500154 | MOUNTING PLATE |
| Repalced by: A 4255501054 | ||
| 209 | A 4255501054 | MOUNTING PLATE |
| 213 | N 000125013008 | WASHER |
| N 912004012100 | LOCK WASHER | |
| PORTECTIVE PLATE TO FRMAE | ||
| 213 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 213 | N 000125017016 | WASHER |
| PORTECTIVE PLATE TO FRMAE | ||
| N 912004016101 | LOCK WASHER | |
| PORTECTIVE PLATE TO FRMAE | ||
| 221 | N 910105012020 | SCREW |
| PORTECTIVE PLATE TO FRMAE | ||
| 221 | N 000960016052 | SCREW |
| PORTECTIVE PLATE TO FRMAE | ||
| 233 | A 4245200431 | RUNNING BOARD |
| Repalced by: A 4245200631 | ||
| 233 | A 4245200631 | RUNNING BOARD |
| Repalced by: A 4275200031 | ||
| 233 | A 4275200031 | RUNNING BOARD |
| LEFT | ||
| 233 | A 4275200031 | RUNNING BOARD |
| LEFT | ||
| 237 | A 4245200331 | RUNNING BOARD |
| RIGHT | ||
| 241 | A 4245201031 | RUNNING BOARD |
| Repalced by: A 4245200831 | ||
| 241 | A 4245200831 | RUNNING BOARD |
| Repalced by: A 4245201831 | ||
| 241 | A 4245201831 | RUNNING BOARD |
| RIGHT | ||
| 241 | A 4245201831 | RUNNING BOARD |
| RIGHT | ||
| 245 | N 912004010102 | LOCK WASHER |
| ROCKER PANEL TO FRAME | ||
| 249 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 249 | N 910105010009 | SCREW |
| 249 | N 000933010145 | SCREW |
| Repalced by: N 910105010007 | ||
| 249 | N 910105010007 | SCREW |
| Repalced by: N 000000000428 | ||
| 249 | N 000000000428 | HEXAGON HEAD BOLT |
| ROCKER PANEL TO FRAME | ||
| 253 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 253 | N 910105010001 | HEXAGON HEAD BOLT |
| ROCKER PANEL TO FRAME | ||
| 257 | N 000933010094 | SCREW |
| Repalced by: N 910105010011 | ||
| 257 | N 910105010011 | HEXAGON HEAD BOLT |
| ROCKER PANEL TO FRAME | ||
| 261 | A 3609901240 | WASHER |
| Repalced by: A 1159903140 | ||
| 261 | A 1159903140 | WASHER |
| ROCKER PANEL TO FRAME | ||

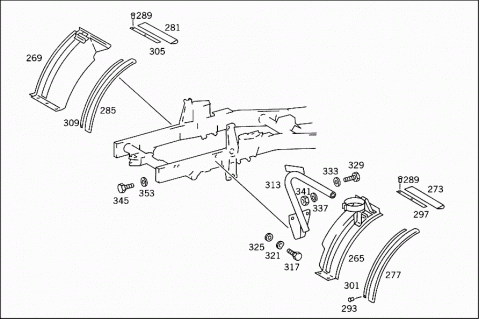

| 265 | A 4245200017 | FENDER |
| Repalced by: A 4245200417 | ||
| 265 | A 4245200417 | FENDER |
| LEFT | ||
| 269 | A 4255200018 | FENDER |
| Repalced by: A 4375200318 | ||
| 269 | A 4375200318 | FENDER |
| RIGHT | ||
| 273 | A 4255210084 | LEDGE |
| LEFT | ||
| 277 | A 4255210384 | LEDGE |
| LEFT | ||
| 281 | A 4255210284 | LEDGE |
| RIGHT | ||
| 285 | A 4255210184 | LEDGE |
| RIGHT | ||
| 289 | N 910002004122 | RIVET |
| 293 | N 007331004248 | RIVET |
| 297 | A 4255221540 | BRACKET |
| LEFT | ||
| 301 | A 4255221840 | BRACKET |
| LEFT | ||
| 305 | A 4255221640 | BRACKET |
| RIGHT | ||
| 309 | A 4255221440 | BRACKET |
| 313 | A 4245200341 | BRACKET |
| LEFT | ||
| 313 | A 4245200441 | BRACKET |
| Repalced by: A 4245201741 | ||
| 313 | A 4245201741 | BRACKET |
| RIGHT | ||
| 317 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 317 | N 910105010009 | SCREW |
| 321 | N 000137010201 | SPRING WASHER |
| BRACKET TO FRAME | ||
| 325 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 325 | N 000125010532 | WASHER |
| BRACKET-TO-FRAME ADAPTATION | ||
| 329 | N 000933006147 | SCREW |
| SPLASH GUARD TO BRACKET | ||
| 333 | N 000125006421 | WASHER |
| SPLASH GUARD TO BRACKET | ||
| Repalced by: N 000125006449 | ||
| 333 | N 000125006449 | WASHER |
| SPLASH GUARD TO BRACKET | ||
| 337 | N 912004006102 | LOCK WASHER |
| SPLASH GUARD TO BRACKET | ||
| 341 | N 000934006007 | NUT |
| SPLASH GUARD TO BRACKET | ||
| 345 | N 914145006304 | SCREW |
| SPLASH GUARD TO HEADLAMP CONSOLE | ||
| M 6X16 | ||
| N 912004006102 | LOCK WASHER | |
| SPLASH GUARD TO HEADLAMP CONSOLE | ||
| 353 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 353 | N 009021006208 | WASHER |
| SPLASH GUARD TO HEADLAMP CONSOLE | ||

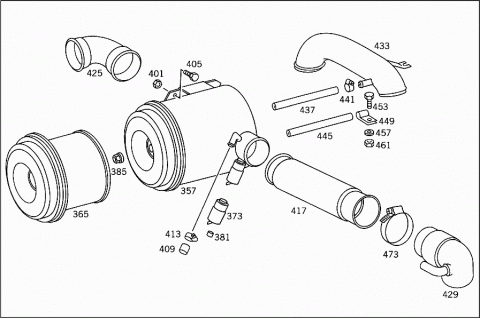

| 357 | A 0090948702 | AIR CLEANER |
| KNECHT | ||
| A 0100940902 | AIR CLEANER | |
| MANN & HUMMEL | ||
| 361 | A 0090940802 | AIR CLEANER |
| Repalced by: A 0120941202 | ||
| 361 | A 0120941202 | AIR CLEANER |
| MANN & HUMMEL | ||
| A 0090947402 | AIR CLEANER | |
| KNECHT | ||

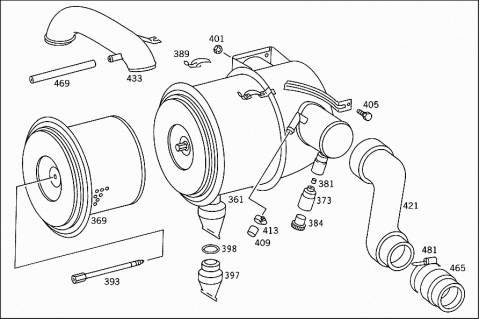

| 365 | A 0010949404 | FILTER ELEMENT |
| TO 009 094 87 02 | ||
| 369 | A 0010947304 | FILTER ELEMENT |
| Repalced by: A 0040940804 | ||
| 369 | A 0040940804 | FILTER ELEMENT |
| TO 009 094 08 02,012 094 12 02 | ||
| 373 | A 0000940568 | MAINTENANCE INDICATOR |
| (MAINTENANCE SWITCH) | ||
| TO 009 094 08 02,009 094 87 02 | ||
| 373 | A 0000940568 | MAINTENANCE INDICATOR |
| (MAINTENANCE SWITCH) | ||
| TO 012 094 12 02 | ||
| 381 | A 0000940276 | WASHER |
| 384 | A 0009871645 | LOCKING CAP |
| TO 012 094 12 02 | ||
| 385 | A 0029900851 | NUT |
| TO 009 094 87 02 | ||
| 389 | A 0000941255 | FASTENER |
| TO 009 094 08 02,012 094 12 02 | ||
| 393 | A 0000941671 | SCREW |
| TO 009 094 08 02,012 094 12 02 | ||
| 397 | A 0000940665 | VALVE |
| TO 009 094 08 02,012 094 12 02 | ||
| 398 | N 007603010100 | SEAL RING |
| TO 012 094 12 02 | ||
| N 912004010102 | LOCK WASHER | |
| AIR CLEANER TO CAB | ||
| N 912004008102 | LOCK WASHER | |
| AIR CLEANER TO CAB | ||
| 401 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 401 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 401 | N 913023010002 | NUT |
| AIR CLEANER TO CAB | ||
| 405 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 405 | N 304017008016 | SCREW |
| AIR CLEANER TO CAB | ||
| 409 | A 4069875045 | LOCKING CAP |
| AIR COMPRESSOR CONNECTION | ||
| 409 | A 4069875045 | LOCKING CAP |
| AIR COMPRESSOR CONNECTION | ||
| 409 | A 4259970020 | EXPANSION PLUG |
| AIR COMPRESSOR CONNECTION | ||
| 413 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 413 | N 000000000666 | CLAMP |
| AIR COMPRESSOR CONNECTION | ||
| 413 | N 000000000666 | CLAMP |
| AIR COMPRESSOR CONNECTION | ||
| 413 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 413 | N 000000000667 | CLAMP |
| AIR COMPRESSOR CONNECTION | ||
| 417 | A 4249870243 | RUBBER SLEEVE |
| 417 | A 4249870943 | RUBBER SLEEVE |
| 421 | A 4259871943 | RUBBER SLEEVE |
| 425 | A 4255280008 | AIR INTAKE PIPE |
| A 4255200506 | PIPE ELBOW | |
| Repalced by: A 4255200906 | ||
| 429 | A 4255200906 | PIPE ELBOW |
| 429 | A 4255200906 | PIPE ELBOW |
| A 4255200406 | PIPE ELBOW | |
| Repalced by: A 4245200006 | ||
| 433 | A 4245200006 | PIPE ELBOW |
| INTAKE PIPE | ||
| 433 | A 4244290005 | LINE |
| Repalced by: A 0005516456 | ||
| 433 | A 0005516456 | TUBE |
| FROM INTAKE PIPE TO CAMSHAFT-DRIVEN AIR COMPRESSOR | ||
| 437 | N 900271018036 | HOSE |
| INTAKE PIPE | ||
| 18X25X100 | ||
| 441 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 441 | N 000000000666 | CLAMP |
| INTAKE PIPE | ||
| 441 | N 000000000666 | CLAMP |
| INTAKE PIPE TO CAMSHAFT-DRIVEN AIR COMPRESSOR | ||
| 445 | A 4245280082 | HOSE |
| INTAKE PIPE TO CAMSHAFT-DRIVEN AIR COMPRESSOR | ||
| 449 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 449 | N 000000000667 | CLAMP |
| INTAKE PIPE TO CAMSHAFT-DRIVEN AIR COMPRESSOR | ||
| 449 | A 3609950601 | CLAMP |
| PIPE LINE TO FUEL SYSTEM BRACKET | ||
| 453 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 453 | N 304017006016 | SCREW |
| PIPE LINE TO FUEL SYSTEM BRACKET | ||
| 457 | N 000125006421 | WASHER |
| PIPE LINE TO FUEL SYSTEM BRACKET | ||
| Repalced by: N 000125006449 | ||
| 457 | N 000125006449 | WASHER |
| PIPE LINE TO FUEL SYSTEM BRACKET | ||
| 461 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 461 | N 913023006001 | NUT |
| PIPE LINE TO FUEL SYSTEM BRACKET | ||
| 465 | A 4255280208 | AIR INTAKE PIPE |
| (REDUCING SLEEVE) | ||
| 469 | A 4255280382 | HOSE |
| Repalced by: A 3520182182 | ||
| 469 | A 3520182182 | HOSE |
| INTAKE PIPE | ||
| 469 | A 4255280582 | HOSE |
| 473 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 473 | N 000000000675 | CLAMP |
| Repalced by: A 0059972990 | ||
| 473 | A 0059972990 | CLAMP |
| 82 - 105 X 15.8 MM | ||
| 481 | N 916017110001 | CLAMP |
| Repalced by: A 0059971490 | ||
| 481 | A 0059971490 | HOSE CLAMP |
| RUBBER MOUNTING TO AIR CLEANER | ||
| Repalced by: A 0019951910 | ||
| 481 | A 0019951910 | CLAMP |
| RUBBER MOUNTING TO AIR CLEANER | ||
| 481 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 481 | N 000000000674 | CLAMP |
| REDUCING SLEEVE TO INTAKE PIPE | ||
| 481 | N 000000000676 | CLAMP |
| Repalced by: N 000000005890 | ||
| 481 | N 000000005890 | CLAMP |
| 481 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 481 | N 000000000668 | CLAMP |
| 485 | A 4245200032 | STAY |
| Repalced by: A 4255200032 | ||
| 485 | A 4255200032 | STAY |
| OECD | ||

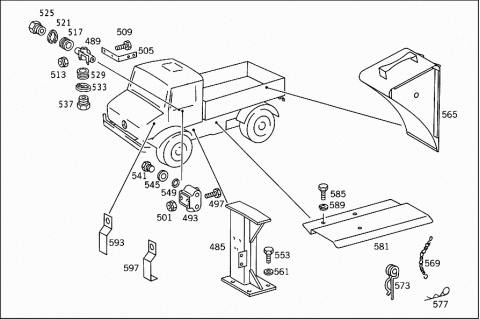

| 489 | A 0004294137 | DISTRIBUTOR |
| Repalced by: A 0009903272 | ||
| 489 | A 0009903272 | DISTRIBUTOR |
| 489 | A 0009903272 | DISTRIBUTOR |
| 489 | A 0009903272 | DISTRIBUTOR |
| 493 | A 0004294137 | DISTRIBUTOR |
| 493 | A 0004294137 | DISTRIBUTOR |
| 497 | N 000931006191 | SCREW |
| 497 | N 000931006191 | SCREW |
| 497 | N 000931006191 | SCREW |
| 497 | N 000931006127 | SCREW |
| 497 | N 000931006127 | SCREW |
| 501 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 501 | N 913023006001 | NUT |
| 501 | N 913023006001 | NUT |
| 501 | N 913023006001 | NUT |
| 505 | A 4244263440 | BRACKET |
| Repalced by: A 3874296740 | ||
| 505 | A 3874296740 | BRACKET |
| DISTRIBUTOR | ||
| 505 | A 3874296740 | BRACKET |
| DISTRIBUTOR | ||
| 509 | N 000931006118 | SCREW |
| DISTRIBUTOR TO BRACKET | ||
| 509 | N 000931006118 | SCREW |
| DISTRIBUTOR TO BRACKET | ||
| 513 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 513 | N 913023006001 | NUT |
| DISTRIBUTOR TO BRACKET | ||
| 513 | N 913023006001 | NUT |
| DISTRIBUTOR TO BRACKET | ||
| 517 | A 0009940047 | SEAL RING |
| Repalced by: A 0009940747 | ||
| 517 | A 0009940747 | LOCK RING |
| 517 | A 0009940747 | LOCK RING |
| 521 | A 0009941248 | LOCK |
| Repalced by: A 0009945448 | ||
| 521 | A 0009945448 | LOCK |
| 521 | A 0009945448 | LOCK |
| 525 | A 0009970834 | UNION SCREW |
| Repalced by: A 0009973734 | ||
| 525 | A 0009973734 | UNION SCREW |
| 525 | A 0009973734 | UNION SCREW |
| 529 | A 0009940147 | SEAL RING |
| 529 | A 0009940147 | SEAL RING |
| 533 | A 0009941448 | LOCK |
| 533 | A 0009941448 | LOCK |
| 537 | A 0009970934 | UNION SCREW |
| 537 | A 0009970934 | UNION SCREW |
| 541 | N 007604012102 | SCREW PLUG |
| CONNECTIONS: | ||
| 1+5 | ||
| Repalced by: N 007604012105 | ||
| 541 | N 007604012105 | SCREW PLUG |
| CONNECTIONS: | ||
| 1+5 | ||
| 541 | N 007604012105 | SCREW PLUG |
| CONNECTIONS: | ||
| 1+5 | ||
| 541 | N 007604012105 | SCREW PLUG |
| CONNECTIONS: | ||
| 1+5 | ||
| 541 | N 007604012105 | SCREW PLUG |
| CONNECTIONS: | ||
| 1+5 | ||
| 545 | A 0004290827 | THRUST RING |
| Repalced by: A 0009940103 | ||
| 545 | A 0009940103 | THRUST RING |
| CONNECTIONS: | ||
| 1+5 | ||
| 545 | A 0009940103 | THRUST RING |
| CONNECTIONS: | ||
| 1+5 | ||
| 545 | A 0009940103 | THRUST RING |
| CONNECTIONS: | ||
| 1+5 | ||
| 545 | A 0009940103 | THRUST RING |
| CONNECTIONS: | ||
| 1+5 | ||
| 549 | A 0019970845 | SEAL RING |
| CONNECTIONS: | ||
| 1+5 | ||
| 549 | A 0019970845 | SEAL RING |
| CONNECTIONS: | ||
| 1+5 | ||
| 549 | A 0019970845 | SEAL RING |
| CONNECTIONS: | ||
| 1+5 | ||
| 549 | A 0019970845 | SEAL RING |
| CONNECTIONS: | ||
| 1+5 | ||
| 553 | N 000931010264 | SCREW |
| Repalced by: N 910105010008 | ||
| 553 | N 910105010008 | SCREW |
| Repalced by: N 910143010000 | ||
| 553 | N 910143010000 | SCREW |
| STAY ON TRANSMISSION CASE | ||
| A 4245240050 | BUSHING | |
| 553 | N 910105010002 | SCREW |
| N 912004010102 | LOCK WASHER | |
| 561 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 561 | N 000125010532 | WASHER |
| 565 | A 4045800017 | CHOCK |
| A 4409800230 | CHAIN | |
| Repalced by: N 005686002028 | ||
| 569 | N 005686002028 | CHAIN |
| Repalced by: A 4354350085 | ||
| 569 | A 4354350085 | CABLE |
| CHOCK | ||
| N 005296020204 | RING | |
| CHOCK | ||
| 573 | N 011024004000 | SPRING RETAINING PIN |
| 577 | A 4048990035 | SPRING |
| 581 | A 4242920092 | COVER PLATE |
| EXHAUST PIPE | ||
| 585 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 585 | N 304017008021 | SCREW |
| 589 | N 912004008102 | LOCK WASHER |
| 593 | A 4244620040 | STAY |
| GUIDE FOR STEERING COLUMN | ||
| 597 | A 4244620140 | STAY |
| 597 | A 4244620140 | STAY |

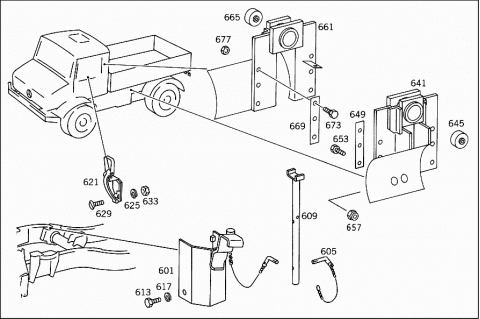

| 601 | A 4255800188 | SUPPORT |
| 605 | A 4255200474 | PIN |
| 609 | A 4255800088 | SUPPORT |
| 613 | N 000961014108 | SCREW |
| 617 | N 912004014100 | LOCK WASHER |
| 621 | N 999852060100 | HOLDING FIXTURE |
| Repalced by: A 4355830166 | ||
| 621 | A 4355830166 | HOLDING FIXTURE |
| 625 | N 912004005103 | LOCK WASHER |
| 629 | N 000963005001 | SCREW |
| 633 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 633 | N 304032005005 | NUT |
| A 4256007011 | PLATE | |
| A 4255200036 | FLOOR PLATE | |
| A 4246101553 | MOUNTING | |
| Repalced by: A 4244300610 | ||
| 641 | A 4244300610 | BRACKET |
| 645 | A 0019881310 | RUBBER MOUNTING |
| 649 | A 4245210187 | SHIM |
| Repalced by: A 4245210087 | ||
| 649 | A 4245210087 | SHIM |
| FRONT AND REAR | ||
| 653 | N 308676012010 | HEXAGON HEAD BOLT |
| PLATFORM BEARING BRACKET AND AIR RESERVOIR TO FRAME,LEFT | ||
| 653 | N 910105012020 | SCREW |
| PLATFORM BEARING BRACKET AND AIR RESERVOIR TO FRAME,LEFT | ||
| 657 | N 000934012023 | NUT |
| Repalced by: N 913023012002 | ||
| 657 | N 913023012002 | NUT |
| PLATFORM BEARING BRACKET AND AIR RESERVOIR TO FRAME,LEFT | ||
| 657 | N 000934012022 | NUT |
| PLATFORM BEARING BRACKET AND AIR RESERVOIR TO FRAME,LEFT | ||
| A 4246101653 | MOUNTING | |
| Repalced by: A 4244300710 | ||
| 661 | A 4244300710 | BRACKET |
| 665 | A 0019881310 | RUBBER MOUNTING |
| 669 | A 4245210187 | SHIM |
| Repalced by: A 4245210087 | ||
| 669 | A 4245210087 | SHIM |
| FRONT AND REAR | ||
| 673 | N 910105012020 | SCREW |
| PLATFORM BEARING BRACKET AND AIR RESERVOIR TO FRAME,RIGHT | ||
| 677 | N 000934012022 | NUT |
| PLATFORM BEARING BRACKET AND AIR RESERVOIR TO FRAME,RIGHT | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
