Transporto priemonė: U 1000; VIN numerio dalis: 424121
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 4252600528 | GUIDE PLATE |

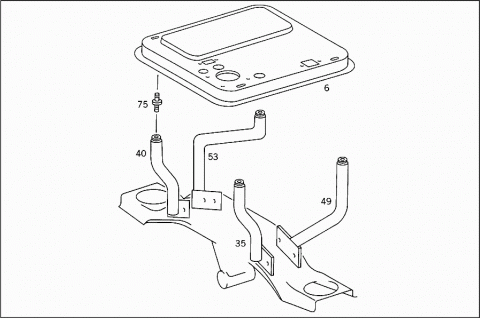

| 006 | A 4252601728 | GUIDE PLATE |
| Repalced by: A 4252671242 | ||

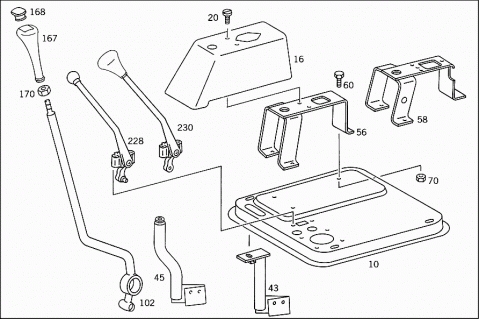

| 006 | A 4252671242 | PLATE |
| 006 | A 4252671242 | PLATE |

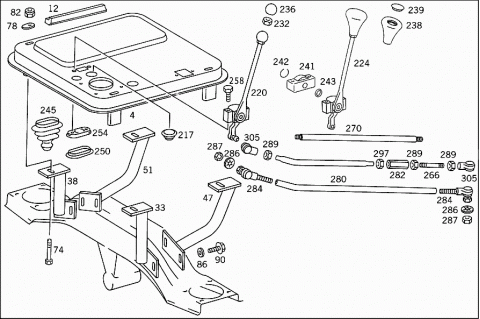

| 010 | A 4252600728 | GUIDE PLATE |
| Repalced by: A 4252670642 | ||
| 010 | A 4252670642 | PLATE |
| Repalced by: A 4252671242 | ||
| 010 | A 4252671242 | PLATE |
| 012 | A 4252670183 | SEAL |
| 016 | A 4252670014 | CAP |
| 016 | A 4252670214 | CAP |
| 016 | A 4252670214 | CAP |
| 016 | A 4252670214 | CAP |
| 020 | N 000084006134 | SCREW |
| CAP TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| CAP TO BRACKET | ||
| A 4259970481 | GROMMET | |
| 033 | A 4252600760 | SUPPORT |
| FRONT LEFT | ||
| TO 425 260 07 28,425 260 17 28 | ||
| 035 | A 4252601960 | SUPPORT |
| TO 425 267 06 42,425 267 12 42 | ||
| 038 | A 4252600660 | SUPPORT |
| FRONT RIGHT | ||
| TO 425 260 07 28,425 260 17 28 | ||
| 040 | A 4252601860 | SUPPORT |
| FRONT RIGHT | ||
| TO 425 267 12 42 | ||
| 043 | A 4252601260 | SUPPORT |
| FRONT RIGHT | ||
| TO 425 260 07 28 | ||
| 045 | A 4252602260 | SUPPORT |
| FRONT RIGHT | ||
| TO 425 267 06 42 | ||
| 047 | A 4252600460 | SUPPORT |
| Repalced by: A 4252601560 | ||
| 047 | A 4252601560 | SUPPORT |
| REAR LEFT | ||
| TO 425 260 07 28,425 260 17 28 | ||
| 049 | A 4252602060 | SUPPORT |
| REAR LEFT | ||
| TO 425 267 06 42,425 267 12 42 | ||
| 051 | A 4252601160 | SUPPORT |
| REAR RIGHT | ||
| TO 425 260 07 28,425 260 17 28 | ||
| 053 | A 4252602160 | SUPPORT |
| REAR RIGHT | ||
| TO 425 267 06 42,425 267 12 42 | ||
| 056 | A 4252601062 | BRACKET |
| 058 | A 4252601262 | BRACKET |
| Repalced by: A 4372600062 | ||
| 058 | A 4372600062 | BRACKET |
| 058 | A 4372600062 | BRACKET |
| 060 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 060 | N 304017008016 | SCREW |
| BRACKET TO SHIFTING PLATE | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO SHIFTING PLATE | ||
| 070 | N 304032008006 | NUT |
| BRACKET TO SHIFTING PLATE | ||
| 074 | N 000931008251 | SCREW |
| GUIDE PLATE TO BRACKET | ||
| 075 | N 000931008220 | SCREW |
| Repalced by: A 4252650375 | ||
| 075 | A 4252650375 | THREADED PIN |
| 078 | A 4252650076 | WASHER |
| Repalced by: A 4252650276 | ||
| 078 | A 4252650276 | WASHER |
| GUIDE PLATE TO BRACKET | ||
| 082 | N 304032008006 | NUT |
| GUIDE PLATE TO BRACKET | ||
| 086 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 086 | N 000125010532 | WASHER |
| TO 425 260 07 28,425 260 17 28 | ||
| 090 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 090 | N 910105010009 | SCREW |

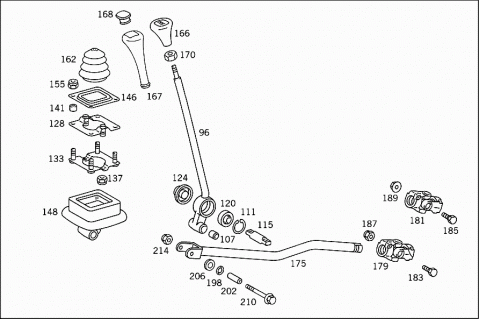

| 096 | A 4252601539 | SHIFT LEVER |
| Repalced by: A 4252603239 | ||
| 096 | A 4252603239 | SHIFT LEVER |
| Repalced by: A 4372603839 | ||
| 096 | A 4372603839 | SHIFT LEVER |
| Repalced by: A 4372609139 | ||
| 096 | A 4372609139 | SHIFT LEVER |
| Repalced by: A 4372603839 | ||
| 096 | A 4372603839 | SHIFT LEVER |
| 102 | A 4252602639 | SHIFT LEVER |
| Repalced by: A 4372604139 | ||
| 102 | A 4372604139 | SHIFT LEVER |
| Repalced by: A 4372609439 | ||
| 102 | A 4372609439 | SHIFT LEVER |
| Repalced by: A 4372604139 | ||
| 102 | A 4372604139 | SHIFT LEVER |
| 107 | A 3359920203 | BUSHING |
| 111 | N 000472042001 | LOCK RING |
| 115 | A 4252680474 | PIN |
| 120 | A 0009815531 | JOINT BEARING |
| Repalced by: A 0019813931 | ||
| 120 | A 0019813931 | JOINT BEARING |
| 124 | A 3852680696 | BOOT |
| Repalced by: A 6202680196 | ||
| 124 | A 6202680196 | BOOT |
| 128 | A 4252600862 | BRACKET |
| 133 | A 4252600762 | BRACKET |
| 137 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 137 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 137 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 137 | N 913023008002 | NUT |
| 141 | A 4252670053 | SPACER TUBE |
| Repalced by: A 4252650853 | ||
| 141 | A 4252650853 | SPACER TUBE |
| 146 | A 4252610205 | TRANSMISSION CASE COVER |
| 148 | A 4252670097 | BOOT |
| 148 | A 4252670497 | BOOT |
| 155 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 155 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 155 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 155 | N 913023008002 | NUT |
| 162 | A 4252670197 | BOOT |
| 162 | A 4252670597 | BOOT |
| 166 | A 4252680142 | KNOB |
| (GEARSHIFT LEVER KNOB) | ||
| TO 425 260 32 39,425 260 26 39 | ||
| 167 | A 6202680042 | KNOB |
| SHIFT LEVER | ||
| TO 437 260 38 39,437 260 41 39 | ||
| 168 | A 6202680157 | COVER |
| SHIFT LEVER | ||
| TO 437 260 38 39,437 260 41 39 | ||
| 170 | N 000439010215 | NUT |
| Repalced by: N 308675010001 | ||
| 170 | N 308675010001 | NUT |
| (GEARSHIFT LEVER KNOB) | ||
| TO 425 260 32 39,425 260 26 39 | ||
| 175 | A 4252601631 | SHIFTING ROD |
| 179 | A 4252600134 | ROD END |
| 181 | A 4252600334 | ROD END |
| Repalced by: A 4252600434 | ||
| 181 | A 4252600434 | ROD END |
| 183 | N 000931008314 | SCREW |
| 183 | N 000931010355 | SCREW |
| Repalced by: N 910105010008 | ||
| 183 | N 910105010008 | SCREW |
| Repalced by: N 910143010000 | ||
| 183 | N 910143010000 | SCREW |
| 185 | N 070613010049 | SCREW |
| 187 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 187 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 187 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 187 | N 913023008002 | NUT |
| 189 | N 913004010015 | NUT |
| Repalced by: A 4609900050 | ||
| 189 | A 4609900050 | NUT |
| 198 | A 0009978648 | SEAL RING |
| 202 | A 3852680153 | SPACER TUBE |
| 206 | N 900055018001 | SPRING WASHER |
| 210 | N 000931010268 | SCREW |
| Repalced by: N 910105010010 | ||
| 210 | N 910105010010 | SCREW |
| Repalced by: N 000931010283 | ||
| 210 | N 000931010283 | SCREW |
| Repalced by: N 000931010357 | ||
| 210 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 210 | A 0019909404 | SCREW |
| 214 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 214 | N 913023010003 | NUT |
| 217 | A 4259970586 | PLUG |
| Repalced by: A 4089870044 | ||
| 217 | A 4089870044 | EXPANSION PLUG |
| 217 | A 4089870044 | EXPANSION PLUG |
| 217 | A 4089870044 | EXPANSION PLUG |
| TO PLUG SHIFTING PLATE BORE | ||
| 220 | A 4252601295 | BEARING |
| WITH SHIFT LEVER | ||
| 224 | A 4252602095 | BEARING |
| Repalced by: A 4252602495 | ||
| 224 | A 4252602495 | BEARING |
| Repalced by: A 4252604439 | ||
| 224 | A 4252604439 | SHIFT LEVER |
| Repalced by: A 4252605039 | ||
| 224 | A 4252605039 | SHIFT LEVER |
| Repalced by: A 4372600039 | ||
| 224 | A 4372600039 | SHIFT LEVER |
| Repalced by: A 4372605239 | ||
| 224 | A 4372600039 | SHIFT LEVER |
| Repalced by: A 4372605239 | ||
| 224 | A 4372605239 | SHIFT LEVER |
| 224 | A 4372605239 | SHIFT LEVER |
| 228 | A 4252601995 | BEARING |
| Repalced by: A 4252602595 | ||
| 228 | A 4252602595 | BEARING |
| Repalced by: A 4252604539 | ||
| 228 | A 4252604539 | SHIFT LEVER |
| Repalced by: A 4252605139 | ||
| 228 | A 4252605139 | SHIFT LEVER |
| 230 | A 4372600439 | SHIFT LEVER |
| Repalced by: A 4372605139 | ||
| 230 | A 4372600439 | SHIFT LEVER |
| Repalced by: A 4372605139 | ||
| 230 | A 4372605139 | SHIFT LEVER |
| 230 | A 4372605139 | SHIFT LEVER |
| 232 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 232 | N 304035010001 | NUT |
| 232 | N 304035010001 | NUT |
| 236 | A 0009971077 | HANDLE |
| 236 | A 4259970077 | HANDLE |
| SHIFT LEVER | ||
| TO 437 260 00 39,437 260 04 39 | ||
| 236 | A 4259970077 | HANDLE |
| SHIFT LEVER | ||
| TO 437 260 00 39,437 260 04 39 | ||
| 238 | A 0002600340 | HANDLE |
| SHIFT LEVER | ||
| TO 437 260 52 39,437 260 51 39 | ||
| 239 | A 0002671214 | CAP |
| TO 437 260 52 39,437 260 51 39 | ||
| 241 | A 4372600095 | BEARING |
| TO 437 260 04 39,51 39 | ||
| 241 | A 4372600095 | BEARING |
| TO 437 260 04 39,51 39 | ||
| 241 | A 4372600095 | BEARING |
| TO 437 260 00 39,52 39 | ||
| 241 | A 4372600095 | BEARING |
| TO 437 260 00 39,52 39 | ||
| 242 | N 912009014101 | SNAP RING |
| TO 437 260 04 39,51 39 | ||
| 242 | N 912009014101 | SNAP RING |
| TO 437 260 04 39,51 39 | ||
| 242 | N 912009014101 | SNAP RING |
| TO 437 260 00 39,52 39 | ||
| 242 | N 912009014101 | SNAP RING |
| TO 437 260 00 39,52 39 | ||
| 243 | A 0129971248 | SEAL RING |
| 245 | A 4252670297 | BOOT |
| 245 | A 4252670397 | BOOT |
| 250 | A 4252670797 | BOOT |
| 250 | A 4252670797 | BOOT |
| 254 | A 4252600662 | BRACKET |
| 258 | N 000931008244 | SCREW |
| N 912004008102 | LOCK WASHER | |
| 266 | A 4252651605 | SHIFTING ROD |
| 266 | A 4252652305 | SHIFTING ROD |
| Repalced by: A 4252670703 | ||
| 266 | A 4252652305 | SHIFTING ROD |
| 270 | A 4252651805 | SHIFTING ROD |
| 280 | A 4252652605 | SHIFTING ROD |
| Repalced by: A 4252670703 | ||
| 280 | A 4252670703 | SHIFTING SHAFT |
| 280 | A 4372650705 | SHIFTING ROD |
| 280 | A 4372650705 | SHIFTING ROD |
| 282 | N 001479008003 | TURNBUCKLE |
| 282 | A 4252670069 | TURNBUCKLE |
| TO 425 265 23 05,425 265 26 05 | ||
| 282 | A 4252670069 | TURNBUCKLE |
| TO 425 265 23 05,425 265 26 05 | ||
| 284 | A 0009916522 | BALL SOCKET |
| Repalced by: A 0009916622 | ||
| 284 | A 0009916622 | BALL SOCKET |
| Repalced by: A 0019910822 | ||
| 284 | A 0019910822 | BALL SOCKET |
| Repalced by: A 0019911422 | ||
| 284 | A 0019911422 | BALL SOCKET |
| TO 425 267 07 03 | ||
| 284 | A 0019911422 | BALL SOCKET |
| TO 425 267 07 03 | ||
| 286 | N 900050010001 | LOCK PLATE |
| SHIFTING ROD TO SHIFT LEVER | ||
| 286 | N 900050010001 | LOCK PLATE |
| SHIFTING ROD TO SHIFT LEVER | ||
| 287 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 287 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 287 | N 913023010002 | NUT |
| SHIFTING ROD TO SHIFT LEVER | ||
| 289 | N 304032008006 | NUT |
| 289 | N 000936012005 | NUT |
| Repalced by: N 308675012000 | ||
| 289 | N 308675012000 | NUT |
| TO 425 265 23 05,425 265 26 05 | ||
| 289 | N 308675012000 | NUT |
| TO 425 265 23 05,425 265 26 05 | ||
| 289 | N 308675012000 | NUT |
| TO 425 267 07 03 | ||
| 289 | N 308675012000 | NUT |
| TO 425 267 07 03 | ||
| 297 | N 000934008035 | NUT |
| 297 | N 000439012215 | NUT |
| TO 425 265 23 05,425 265 26 05 | ||
| 297 | N 000439012215 | NUT |
| TO 425 265 23 05,425 265 26 05 | ||
| 305 | A 0009914422 | BALL SOCKET |
| 305 | A 0009915722 | BALL SOCKET |
| TO 425 265 23 05,425 265 26 05 | ||
| 305 | A 0009915722 | BALL SOCKET |
| TO 425 265 23 05,425 265 26 05 | ||

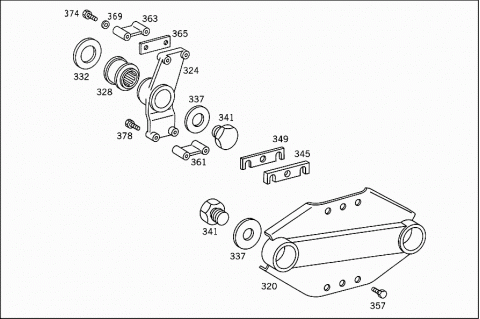

| 320 | A 4252601060 | SUPPORT |
| Repalced by: A 4252600360 | ||
| 320 | A 4252600360 | SUPPORT |
| LEFT | ||
| 324 | A 4252600260 | SUPPORT |
| Repalced by: A 4252601360 | ||
| 324 | A 4252601360 | SUPPORT |
| Repalced by: A 4252660403 | ||
| 324 | A 4252660403 | MOUNTING |
| Repalced by: A 4252660803 | ||
| 324 | A 4252660403 | MOUNTING |
| Repalced by: A 4252660803 | ||
| 324 | A 4252660803 | MOUNTING |
| Repalced by: A 4252661003 | ||
| 324 | A 4252660803 | MOUNTING |
| Repalced by: A 4252661003 | ||
| 324 | A 4252661003 | MOUNTING |
| RIGHT | ||
| 328 | A 0009888910 | RUBBER MOUNTING |
| 332 | A 4242660062 | THRUST WASHER |
| LEFT TRANSMISSION MOUNTING TO FRAME | ||
| 337 | A 4252660062 | THRUST WASHER |
| LEFT TRANSMISSION MOUNTING TO FRAME | ||
| 337 | A 4252660062 | THRUST WASHER |
| RIGHT TRANSMISSION MOUNTING TO FRAME | ||
| 341 | A 4259905201 | SCREW |
| LEFT TRANSMISSION MOUNTING TO FRAME | ||
| 341 | A 4259905201 | SCREW |
| RIGHT TRANSMISSION MOUNTING TO FRAME | ||
| 345 | A 4252660284 | SHIM |
| TRANSMISSION MOUNTING TO TRANSMISSION, LEFT | ||
| 349 | A 4252410126 | INTERMEDIATE PIECE |
| Repalced by: A 4252410226 | ||
| 349 | A 4252410226 | INTERMEDIATE PIECE |
| TRANSMISSION MOUNTING TO TRANSMISSION, LEFT | ||
| 357 | N 914140016000 | SCREW |
| Repalced by: A 0009907504 | ||
| 357 | A 0009907504 | SCREW |
| TRANSMISSION MOUNTING TO TRANSMISSION, LEFT | ||
| 361 | A 4252600175 | CONNECTOR |
| Repalced by: A 4252600575 | ||
| 361 | A 4252600575 | CONNECTOR |
| BOTTOM | ||
| TO 425 266 04 03 | ||
| 361 | A 4252600575 | CONNECTOR |
| BOTTOM | ||
| TO 425 266 04 03 | ||
| 363 | A 4252600675 | CONNECTOR |
| Repalced by: A 4252660495 | ||
| 363 | A 4252600675 | CONNECTOR |
| Repalced by: A 4252660495 | ||
| 363 | A 4252660495 | WEB |
| TRANSMISSION MOUNTING TO TRANSMISSION, RIGHT | ||
| TO 425 266 08 03,425 266 08 03 | ||
| 363 | A 4252660495 | WEB |
| TRANSMISSION MOUNTING TO TRANSMISSION, RIGHT | ||
| TO 425 266 08 03,425 266 08 03 | ||
| 365 | A 4242660084 | SHIM |
| 369 | N 006916013000 | WASHER |
| TRANSMISSION MOUNTING TO TRANSMISSION, RIGHT | ||
| TO 425 266 04 03 | ||
| 374 | N 914125012208 | SCREW |
| TRANSMISSION MOUNTING TO TRANSMISSION, RIGHT | ||
| TO 425 266 04 03 | ||
| 374 | N 914125012210 | SCREW |
| TRANSMISSION MOUNTING TO TRANSMISSION, RIGHT | ||
| TO 425 26 04 03 | ||
| 378 | N 914140012003 | SCREW |
| 378 | N 914140012003 | SCREW |
| TRANSMISSION MOUNTING TO TRANSMISSION, RIGHT | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
