Transporto priemonė: U 1000 T; VIN numerio dalis: 424131
Grupė: 42 BRAKES

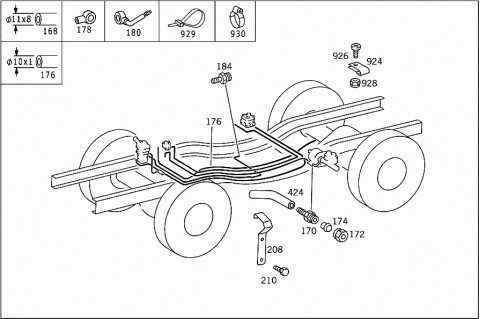

43429

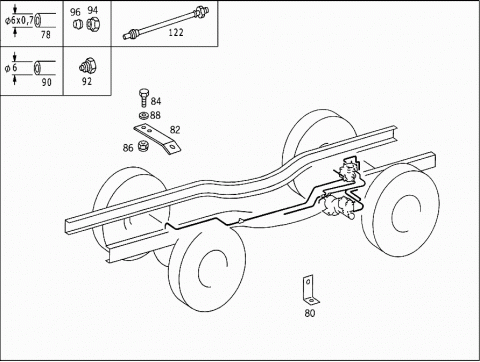

43430

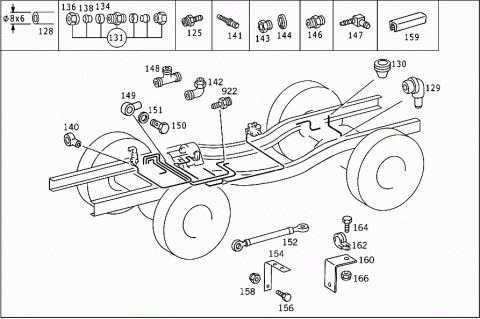

43431

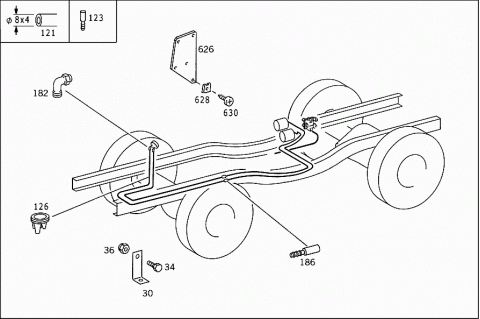

43432

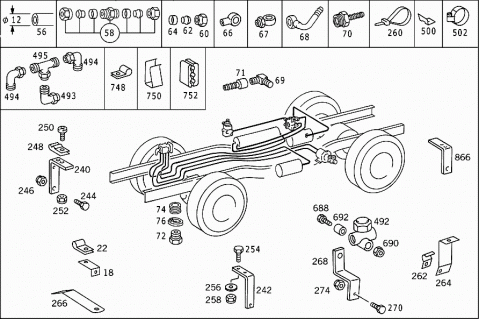

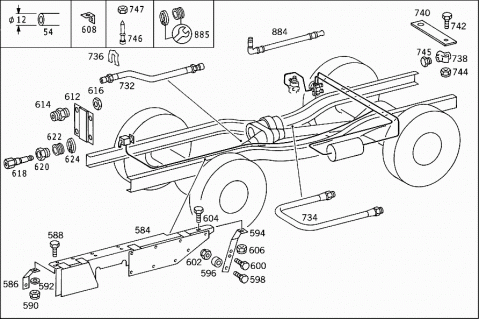

43433

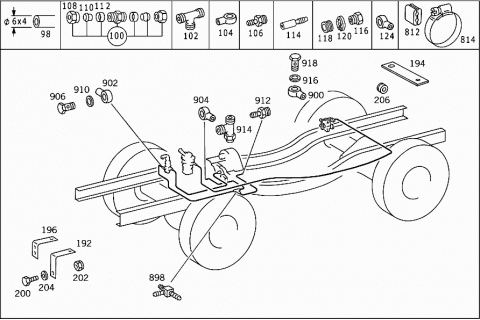

43434

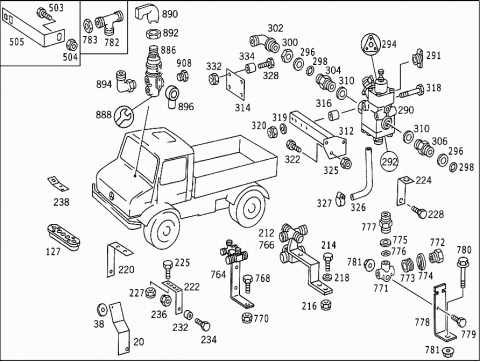

43435

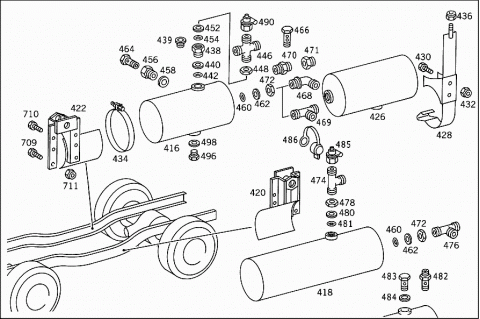

43436

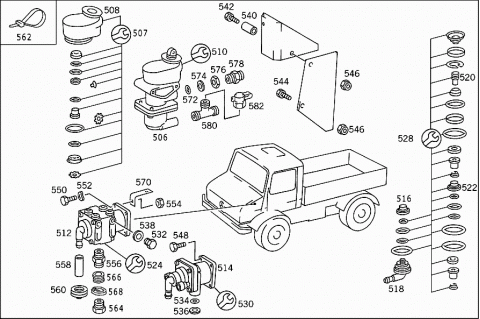

43437
43438

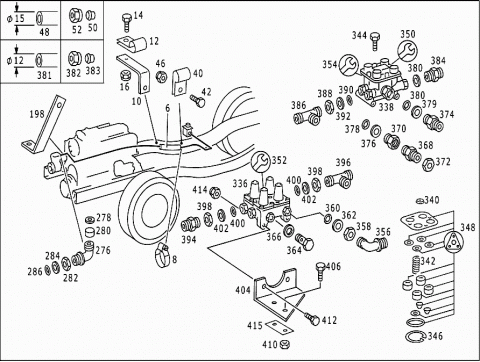

43439

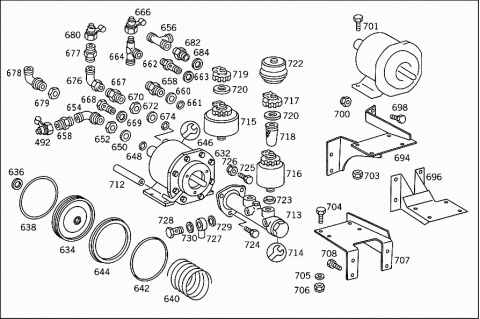

43440

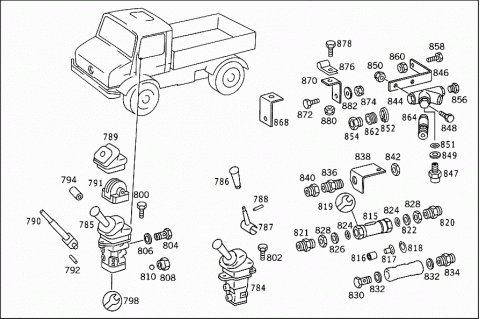

43441

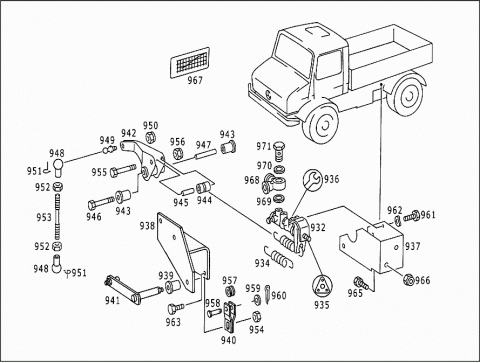

43442
# Kodas Pavadinimas
006 A 4069976582 HOSE
LINE CONNECTIONS
008 N 916017016000 CLAMP
Repalced by: N 000000000666
008 N 000000000666 CLAMP
LINE CONNECTIONS
010 A 3634293440 BRACKET
Repalced by: A 6205061740
010 A 6205061740 BRACKET
AT BELL HOUSING
012 A 3129952420 CLAMP
Repalced by: A 1109950401
012 A 1109950401 CLAMP
PIPE LINE TO BELL HOUSING
012 A 3609952001 CLAMP
Repalced by: A 6739950001
012 A 6739950001 CLAMP
PIPE LINE TO BELL HOUSING
012 A 6739950001 CLAMP
PIPE LINE TO BELL HOUSING
014 N 000933006102 SCREW
PIPE LINE TO BELL HOUSING
016 N 913004006002 NUT
Repalced by: N 913023006001
016 N 913023006001 NUT
PIPE LINE TO BELL HOUSING
018 A 4064270241 BRACKET
Repalced by: A 4255514740
018 A 4255514740 BRACKET
Repalced by: A 4044291240
018 A 4044291240 BRACKET
Repalced by: A 3524290740
018 A 3524290740 BRACKET
PIPE LINE TO ROCKER PANEL
020 A 4244264540 BRACKET
PIPE LINE TO ROCKER PANEL
022 A 3129952420 CLAMP
Repalced by: A 1109950401
022 A 1109950401 CLAMP
N 000933006102 SCREW
PIPE LINE TO ROCKER PANEL
N 913004006002 NUT
Repalced by: N 913023006001
N 913023006001 NUT
PIPE LINE TO ROCKER PANEL
A 4044290440 BRACKET
AT FUEL TANK CONSOLE
A 4245512540 BRACKET
Repalced by: A 4245514340
A 4245514340 BRACKET
LINE TO SIDE MEMBER
A 4245512440 BRACKET
LINE TO SIDE MEMBER
030 A 4064261140 BRACKET
LINE TO SIDE MEMBER
030 A 4214290550 BRACKET
Repalced by: A 3525422840
030 A 3525422840 BRACKET
LINE TO SIDE MEMBER
A 4354262340 BRACKET
LINE TO SIDE MEMBER
034 N 000933006102 SCREW
LINE MOUNTING
036 N 913004006002 NUT
Repalced by: N 913023006001
036 N 913023006001 NUT
LINE MOUNTING
038 N 009021006205 WASHER
Repalced by: N 009021006208
038 N 009021006208 WASHER
LINE MOUNTING
040 A 3129952420 CLAMP
Repalced by: A 1109950401
040 A 1109950401 CLAMP
LINE MOUNTING
042 N 000961012052 SCREW
Repalced by: N 910105012013
042 N 910105012013 SCREW
LINE TO SIDE MEMBER
N 912004012100 LOCK WASHER
LINE TO SIDE MEMBER
046 N 913004012008 NUT
Repalced by: N 913023012003
046 N 913023012003 NUT
LINE TO SIDE MEMBER
048 A 4114293402 LINE
Repalced by: A 0005516256
048 A 0005516256 TUBE
FROM AIR COMPRESSOR TO HOSE
15 MM
048 A 0005516256 TUBE
FROM AIR COMPRESSOR TO HOSE
15 MM
048 A 0005516256 TUBE
HOSE TO PRESSURE REGULATOR
15 MM
050 N 003861015004 GLAND
052 N 915018015000 UNION NUT
054 A 0004292101 LINE
12 MM
054 A 0004292101 LINE
FROM PRESSURE REGULATOR TO FOURCIRCUIT PROTECTIVE VALVE
12 MM
054 A 0004292101 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "21",TO AIR RESERVOIR I
12 MM
054 A 0004292101 LINE
FROM AIR RESERVOIR I TO FOUR-CIRCUIT PROTECTIVE VALVE
"11"
054 A 0004292101 LINE
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11"
054 A 0004292101 LINE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "21",TO AIR RESERVOIR,CONNECTION:
"10"
054 A 0004292101 LINE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "22",TO AIR RESERVOIR,CONNECTION:
"10"
054 A 0004292101 LINE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "11",TO AIR RESERVOIR,CONNECTION:
"20"
056 A 0109975982 HOSE
Repalced by: A 0009872827
056 A 0009872827 PLASTIC PIPE
12 X 9 MM
056 A 0009872827 PLASTIC PIPE
FROM PRESSURE REGULATOR TO FOURCIRCUIT PROTECTIVE VALVE
"10"
056 A 0009872827 PLASTIC PIPE
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR,CONNECTION:
"710"
056 A 0009872827 PLASTIC PIPE
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR,CONNECTION:
"720"
056 A 0009872827 PLASTIC PIPE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION"22",TO AIR RESERVOIR,FRONT BOTTOM
12 X 9 MM
056 A 0009872827 PLASTIC PIPE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "12",TO AIR RESERVOIR,FRONT CENTRAL
12 X 9 MM
056 A 0009872827 PLASTIC PIPE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "11",TO AIR RESERVOIR,FRONT CENTRAL
12 X 9 MM
056 A 0009872827 PLASTIC PIPE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "21",TO FRONT AIR RESERVOIR,BOTTOM
12 X 9 MM
056 A 0009872827 PLASTIC PIPE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "12",TO AIR RESERVOIR,CONNECTION:
"20"
056 A 0009872827 PLASTIC PIPE
BRAKE CYLINDER
"22"
056 A 0009872827 PLASTIC PIPE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "11",TO 2-CIRC. BRAKE VALVE,CONNECT.:
"11"
056 A 0009872827 PLASTIC PIPE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "12",TO 2-CIRC.PROTECT.VALVE,CONNECT.:
"12"
056 A 0009872827 PLASTIC PIPE
FROM SERVICE BRAKE VALE TO PRE-LOAD CYLINDER
12 X 9 MM
056 A 0009872827 PLASTIC PIPE
FROM SERVICE BRAKE VALE TO PRE-LOAD CYLINDER
12 X 9 MM
056 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,SERVICE BRAKE VALVE, PRE-LOAD CYLINDER
12 X 9 MM
056 A 0009872827 PLASTIC PIPE
TWO-CIRCUIT BRAKE CYLINDER
"22"
056 A 0009872827 PLASTIC PIPE
12 X 9 MM
056 A 0009872827 PLASTIC PIPE
12 X 9 MM
056 A 0009872827 PLASTIC PIPE
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11"
056 A 0009872827 PLASTIC PIPE
FROM AIR RESERVOIR TO TWO-CIRCUIT BRAKE VALVE
"11","12"
056 A 0009872827 PLASTIC PIPE
12 X 9 MM
056 A 0009872827 PLASTIC PIPE
12 X 9 MM
056 A 0009872827 PLASTIC PIPE
BRAKE CYLINDER
"21"
056 A 0009872827 PLASTIC PIPE
BRAKE CYLINDER
"31"
056 A 0009872827 PLASTIC PIPE
FROM AIR RESERVOIR TO TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"11,12"
056 A 0009872827 PLASTIC PIPE
12 X 9 MM
056 A 0009872827 PLASTIC PIPE
12 X 9 MM
056 A 0009872827 PLASTIC PIPE
FROM BULKHEAD FITTING TO TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"11,12,21,22"
056 A 0009872827 PLASTIC PIPE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "23",TO CHECK VALVE,CONNECTION:
"10"
056 A 0009872827 PLASTIC PIPE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "23",TO CHECK VALVE,CONNECTION:
"10"
056 A 0009872827 PLASTIC PIPE
FROM PARKING BRAKE VALVE TO T-FITTING
"10",1910 MM
056 A 0009872827 PLASTIC PIPE
FROM PARKING BRAKE VALVE TO CHECK VALVE
"20",740 MM
056 A 0009872827 PLASTIC PIPE
FROM PARKING BRAKE TO SEPARATION POINT
360 MM
058 A 0049971772 FITTING
Repalced by: A 0029906171
058 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
060 N 915017012100 UNION NUT
Repalced by: N 000000006239
060 N 000000006239 UNION NUT
062 N 003861012007 GLAND
Repalced by: A 0019901967
062 A 0019901967 SEAL CONE
064 N 915062009000 SLEEVE
066 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
066 N 915052009009 BANJO UNION
FROM CHECK VALVE TO PARKING BRAKE VALVE
9/16 MM
067 N 915009004001 BANJO UNION
068 A 4279900388 BANJO UNION
FROM PARKING BRAKE VALVE TO T-FITTING
068 A 4279900388 BANJO UNION
FROM CHECK VALVE TO PARKING BRAKE VALVE
069 A 0019908171 ELBOW FITTING
069 A 0019908171 ELBOW FITTING
FROM PARKING BRAKE VALVE TO T-FITTING
069 A 0019908171 ELBOW FITTING
FROM PARKING BRAKE TO SEPARATION POINT
069 A 0019908171 ELBOW FITTING
069 A 0019908171 ELBOW FITTING
070 N 915059009003 FITTING
FROM PARKING BRAKE TO SEPARATION POINT
071 A 0009906878 CONNECTOR
071 A 0009906878 CONNECTOR
FROM FOUR-CIRCUIT PROTECT. VALVE,CONNECTION "24",TO DISTRIBUTOR,CONNECT.:
"20"
071 A 0009908878 CONNECTOR
071 A 0009908878 CONNECTOR
072 A 0009970934 UNION SCREW
072 A 0009970934 UNION SCREW
074 A 0009940147 SEAL RING
074 A 0009940147 SEAL RING
076 A 0009941448 LOCK
076 A 0009941448 LOCK
078 A 3404201229 LINE
FROM TANDEM BRAKE MASTER CYLINDER TO BRAKE PRESSURE REGULATOR
6X0.7X750 MM
078 A 3404201229 LINE
FROM MASTER CYLINDER TO DIFFERENTIAL PRESSURE SWITCH
6X0.7X750 MM
078 A 3404200829 LINE
Repalced by: A 1093207753
078 A 1093207753 LINE
FROM BRAKE POWER REGULATOR TO TEST CONNECTION
6X0.7X550 MM
078 A 3404200929 LINE
FROM BRAKE POWER REGULATOR TO TEST CONNECTION
6X0.7X600 MM
078 A 3404202029 LINE
FROM TEST CONNECTION TO DISTRIBUTOR
6X0.7X1150 MM
078 A 3404201929 LINE
FROM TEST CONNECTION TO DISTRIBUTOR
6X0.7X1100 MM
078 A 3404201929 LINE
FROM DISTRIBUTOR TO DISTRIBUTOR
6X0.7X1100 MM
078 A 3404202429 LINE
FROM DISTRIBUTOR TO FRONT AXLE
6X0.7X1350 MM
078 A 3404200429 LINE
FROM WARNING SWITCH TO TEST CONNECTION
6X7X350 MM
078 A 3404201529 LINE
FROM MASTER CYLINDER TO DIFFERENTIAL PRESSURE SWITCH
6X7X900 MM
078 A 3404200529 LINE
FROM TANDEM BRAKE MASTER CYLINDER TO TEST CONNECTION
6X0.7X400 MM
078 A 3404200529 LINE
FROM TANDEM BRAKE MASTER CYLINDER TO TEST CONNECTION
6X0.7X400 MM
078 A 3404200629 LINE
FROM TANDEM BRAKE MASTER CYLINDER TO TEST CONNECTION
6X0.7X450 MM
078 A 3404200129 LINE
FROM DISTRIBUTOR TO FRONT WHEEL BRAKE HOSE
6X0.7X200 MM
078 A 3404200729 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
6X0.7X500 MM
078 A 3404200729 LINE
FROM WARNING SWITCH TO BRAKE POWER REGULATOR
6X0.7X500 MM
078 A 3404202329 LINE
FROM TEST CONNECTION TO BRAKE HOSE, FRONT AXLE
6X0.7X1300 MM
078 A 3404202929 LINE
FROM TEST CONNECTION TO BRAKE HOSE, REAR AXLE
6X0.7X1600 MM
A 3404203729 LINE
Repalced by: A 3404203829
078 A 3404203829 LINE
FROM BRAKE POWER REGULATOR DISTRIBUTOR TO HOSE
6X0.7X2200 MM
080 A 4245511840 BRACKET
BRAKE LINE MOUNTING
082 A 4404760036 BRACKET
FROM TEST CONNECTION TO BRAKE HOSE, FRONT AXLE
084 N 000933008153 SCREW
Repalced by: N 304017008034
084 N 304017008034 SCREW
BRAKE LINE MOUNTING
086 N 913004008004 NUT
Repalced by: N 913003008003
086 N 913003008003 PART NAME MISSING
Repalced by: N 913023008003
086 N 913023008003 NUT
Repalced by: N 913023008002
086 N 913023008002 NUT
FROM TEST CONNECTION TO BRAKE HOSE, FRONT AXLE
088 N 009021008205 WASHER
Repalced by: N 009021008213
088 N 009021008213 WASHER
FROM TEST CONNECTION TO BRAKE HOSE, FRONT AXLE
Repalced by: N 000000003250
088 N 000000003250 WASHER
FROM TEST CONNECTION TO BRAKE HOSE, FRONT AXLE
090 A 0004290701 LINE
Repalced by: A 0004296201
090 A 0004296201 LINE
6 MM
092 A 0004280072 UNION SCREW
094 N 915017006100 UNION NUT
096 N 003861006007 GLAND
Repalced by: A 0019901667
096 A 0019901667 SEAL CONE
098 A 0089976082 HOSE
Repalced by: A 0009872627
098 A 0009872627 PLASTIC PIPE
FROM 3/2-WAY VALVE,CONNECTION "22",TO CROSS FITTING,CONNECTION:
"10",6X4 MM
098 A 0009872627 PLASTIC PIPE
FROM ALL-WHEEL-DRIVE/DIFF.-LOCK VALVE, CONNECT."22",TO CROSS FITTG.,CONNECT.:
"10",3730 MM
098 A 0009872627 PLASTIC PIPE
FROM ALL-WHEEL-DRIVE/DIFF.-LOCK VALVE, CONNECT."22",TO CROSS FITTG.,CONNECT.:
"10",4900 MM
098 A 0009872627 PLASTIC PIPE
FROM ALL-WHEEL-DRIVE/DIFFERENTIAL-LOCK VALVE,CONNECTION "22",TO T-FITTING
660 MM
098 A 0009872627 PLASTIC PIPE
FROM ALL-WHEEL-DRIVE/DIFFERENTIAL-LOCK VALVE,CONNECTION "22",TO T-FITTING
1900 MM
098 A 0009872627 PLASTIC PIPE
FROM ALL-WHEEL-DRIVE/DIFF.-LOCK VALVE, CONN. "21",TO ALL-WHEEL-DRIVE CYLINDER
"10",3860 MM
098 A 0009872627 PLASTIC PIPE
FROM ALL-WHEEL-DRIVE/DIFF.-LOCK VALVE, CONN. "21",TO ALL-WHEEL-DRIVE CYLINDER
"10",3900 MM
098 A 0009872627 PLASTIC PIPE
FROM ALL-WHEEL-DRIVE/DIFF.-LOCK VALVE, CONN. "21",TO ALL-WHEEL-DRIVE CYLINDER
"10",5150 MM
098 A 0009872627 PLASTIC PIPE
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO PARKING BRAKE VALVE
"10",6X4 MM
098 A 0009872627 PLASTIC PIPE
FROM AIR RESERVOIR TO SEPARATION POINT
"10",6X4 MM
098 A 0009872627 PLASTIC PIPE
FROM ALL-WHEEL-DRIVE/DIFF.-LOCK VALVE, CONNECT."21",TO ALL-WHEEL-DR. CYLINDER
"10",6X4 MM
098 A 0009872627 PLASTIC PIPE
FROM ALL-WHEEL-DRIVE/DIFF.-LOCK VALVE, CONNECT."21",TO ALL-WHEEL-DR. CYLINDER
"10",6X4 MM
098 A 0009872627 PLASTIC PIPE
FROM 3/2-WAY VALVE,CONNECTION "22",TO CROSS FITTING,CONNECTION:
"10"
098 A 0009872627 PLASTIC PIPE
FROM ALL-WHEEL-DRIVE/DIFF.-LOCK VALVE, CONNECT."22",TO CROSS FITTG.,CONNECT.:
"10"
098 A 0009872627 PLASTIC PIPE
REAR AXLE DIFFERENTIAL LOCK
850 MM
098 A 0009872627 PLASTIC PIPE
REAR AXLE DIFFERENTIAL LOCK
800 MM
098 A 0009872627 PLASTIC PIPE
FROM 3/2-WAY VALVE,CONNECTION "22",TO CROSS FITTING,CONNECTION:
"10",6X4 MM
098 A 0009872627 PLASTIC PIPE
FROM ELBOW FITTING,CONNECTION "20",TO PIPE LINE,CONNECTION:
"10"
098 A 0009872627 PLASTIC PIPE
FROM 4/3-WAY VALVE TO CROSS FITTING
"16"
098 A 0009872627 PLASTIC PIPE
FRONT AXLE DIFFERENTIAL LOCK
"10",6X4 MM
098 A 0009872627 PLASTIC PIPE
FRONT AXLE DIFFERENTIAL LOCK
"10",6X4 MM
098 A 0009872627 PLASTIC PIPE
3/2-WAY VALVE BREATHING
ANSCHLUSS "30"
098 A 0009872627 PLASTIC PIPE
FROM PRE-LOAD CYLINDER "20.3",CONNECTION "12",TO TEST CONNECTION "38.2"
"10",6X4 MM
098 A 0009872627 PLASTIC PIPE
BREATHING OF VALVE & DIFFERENTIAL LOCK
"30",1050 MM
098 A 0009872627 PLASTIC PIPE
FROM T-FITTING WITH SWITCH TO T-FITTING ON TRANSMISSION MOUNTING
3200 MM
098 A 0009872627 PLASTIC PIPE
FROM DIFFERENTIAL LOCK TO SEPARATION POINT
1000 MM
098 A 0009872627 PLASTIC PIPE
FROM DIFFERENTIAL LOCK TO FRONT AXLE
130 MM
100 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
102 A 0004296932 T-FITTING
TRANSMISSION MOUNTING TO CROSS MEMBER
104 N 915052004016 BANJO UNION
HOSE WIDTH, / I.D.,
4/10 MM
106 N 915059004001 FITTING
FROM DIFFERENTIAL LOCK SEPARATION POINT TO T-FITTING
106 N 915059004001 FITTING
FROM T-FITTING TO SEPARATION POINT ON REAR AXLE
106 N 915059004001 FITTING
FROM DIFFERENTIAL LOCK TO FRONT AXLE
106 N 915059004001 FITTING
FRONT AXLE DIFFERENTIAL LOCK
108 N 915017006100 UNION NUT
110 N 003861006007 GLAND
Repalced by: A 0019901667
110 A 0019901667 SEAL CONE
112 N 915062004000 SLEEVE
114 A 6739900178 CONNECTOR
FROM DIFFERENTIAL LOCK TO FRONT AXLE
116 A 0009970834 UNION SCREW
Repalced by: A 0009973734
116 A 0009973734 UNION SCREW
FROM DIFFERENTIAL LOCK TO FRONT AXLE
118 A 0009940047 SEAL RING
Repalced by: A 0009940747
118 A 0009940747 LOCK RING
FROM DIFFERENTIAL LOCK TO FRONT AXLE
120 A 0009941248 LOCK
Repalced by: A 0009945448
120 A 0009945448 LOCK
FROM DIFFERENTIAL LOCK TO FRONT AXLE
121 A 0099979382 PLASTIC PIPE
8 X 4 MM
121 A 0099979382 PLASTIC PIPE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "22",TO SEPARATION POINT,CONNECTION:
"20"
121 A 0099979382 PLASTIC PIPE
FROM AIR RESERVOIR,CONNECTION "30",TO SEPARATION POINT,CONNECTION:
"20"
121 A 0099979382 PLASTIC PIPE
FROM DOUBLE PRESSURE GAUGE,CONNECTION "41",TO PLASTIC PIPE,CONNECTION:
"20",3290 MM
121 A 0099979382 PLASTIC PIPE
FROM DOUBLE PRESSURE GAUGE,CONNECTION "41",TO PLASTIC PIPE,CONNECTION:
"20",3340 MM
121 A 0099979382 PLASTIC PIPE
FROM DOUBLE PRESSURE GAUGE,CONNECTION "41",TO PLASTIC PIPE,CONNECTION:
"20",4200 MM
121 A 0099979382 PLASTIC PIPE
FROM DOUBLE PRESSURE GAUGE,CONNECTION "41",TO PLASTIC PIPE,CONNECTION:
"20",4010 MM
121 A 0099979382 PLASTIC PIPE
FROM DOUBLE PRESSURE GAUGE,CONNECTION "42",TO PLASTIC PIPE,CONNECTION:
"20",3300 MM
121 A 0099979382 PLASTIC PIPE
FROM DOUBLE PRESSURE GAUGE,CONNECTION "42",TO VALVE
"42",3340 MM
121 A 0099979382 PLASTIC PIPE
FROM DOUBLE PRESSURE GAUGE,CONNECTION "42",TO PLASTIC PIPE,CONNECTION:
"20",4010 MM
121 A 0099979382 PLASTIC PIPE
FROM DOUBLE PRESSURE GAUGE,CONNECTION "42",TO VALVE
"42",4200 MM
121 A 0099979382 PLASTIC PIPE
FROM AIR RESERVOIR,CENTRAL CONNECTION, TO SEPARATION POINT
8 X 4 MM
121 A 0099979382 PLASTIC PIPE
8 X 4 MM
121 A 0099979382 PLASTIC PIPE
FROM SEPARATION POINT TO PRESSURE GAUGE
8 X 4 MM
121 A 0099979382 PLASTIC PIPE
FROM PRESSURE GAUGE SEPARATION POINT TO DOUBLE PRESSURE GAUGE,CONNECTION:
"41,42"
122 A 4254200048 BRAKE HOSE
123 A 4068245009 PIPE SOCKET
Repalced by: N 915058004000
123 N 915058004000 FITTING
123 N 915058004000 FITTING
123 N 915058004000 FITTING
FROM DOUBLE PRESSURE GAUGE,CONNECTION "42",TO PLASTIC PIPE,CONNECTION:
123 N 915058004000 FITTING
FROM DOUBLE PRESSURE GAUGE,CONNECTION "42",TO PLASTIC PIPE,CONNECTION:
123 N 915058004000 FITTING
DOUBLE PRESSURE GAUGE
"42"
123 N 915058004000 FITTING
FROM DOUBLE PRESSURE GAUGE,CONNECTION "41",TO PLASTIC PIPE,CONNECTION:
123 N 915058004000 FITTING
FROM DOUBLE PRESSURE GAUGE,CONNECTION "41",TO PLASTIC PIPE,CONNECTION:
123 N 915058004000 FITTING
FROM DOUBLE PRESSURE GAUGE,CONNECTION "41",TO PLASTIC PIPE,CONNECTION:
124 N 915052004015 BANJO UNION
124 N 915052004019 BANJO UNION
125 N 915059004001 FITTING
PRESSURE GAUGE,CONNECTION:
125 N 915059004001 FITTING
AIR RESERVOIR
125 N 915059004001 FITTING
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "12",TO PLASTIC PIPE SEPARATION POINT
125 N 915059004001 FITTING
AIR RESERVOIR
125 N 915059004001 FITTING
PRESSURE GAUGE,CONNECTION:
125 N 915059006002 FITTING
REAR AXLE BREATHING
125 N 915059006002 FITTING
FRONT AXLE BREATHING
125 N 915059006002 FITTING
BREATHING OF SPRING LOAD ACCUMULATOR CYLINDER
126 A 3833020091 GROMMET
126 A 4259970581 GROMMET
127 A 4259970481 GROMMET
128 A 0089979082 HOSE
Repalced by: A 0009872727
128 A 0009872727 PLASTIC PIPE
FROM DISTRIBUTOR,CONNECTION "20",TO SEPARATION POINT AT CAB
"10",8X6 MM
128 A 0009872727 PLASTIC PIPE
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO T-FITTING
"10"
128 A 0009872727 PLASTIC PIPE
FROM T-FITTING TO ALL-WHEEL-DRIVE/ DIFFERENTIAL-LOCK VALVE,CONNECTION:
"10"
128 A 0009872727 PLASTIC PIPE
FROM T-FITTING TO ALL-WHEEL-DRIVE/ DIFFERENTIAL-LOCK VALVE,CONNECTION:
"10",8X6 MM
128 A 0009872727 PLASTIC PIPE
FROM DISTRIBUTOR,CONNECTION "20",TO SEPARATION POINT AT CAB
"10",8X6 MM
128 A 0009872727 PLASTIC PIPE
FROM DISTRIBUTOR,CONNECTION "20",TO SEPARATION POINT AT CAB
"10",8X6 MM
128 A 0009872727 PLASTIC PIPE
REAR AXLE BREATHING
1900 MM
128 A 0009872727 PLASTIC PIPE
REAR AXLE BREATHING
2050 MM
128 A 0009872727 PLASTIC PIPE
FRONT AXLE BREATHING
1200 MM
128 A 0009872727 PLASTIC PIPE
FRONT AXLE BREATHING
1120 MM
128 A 0009872727 PLASTIC PIPE
FRONT AXLE BREATHING
1010 MM
128 A 0009872727 PLASTIC PIPE
BREATHING OF SPRING LOAD ACCUMULATOR CYLINDER
1930 MM
128 A 0009872727 PLASTIC PIPE
BREATHING OF SPRING LOAD ACCUMULATOR CYLINDER
2010 MM
128 A 0009872727 PLASTIC PIPE
FROM DISTRIBUTOR,CONNECTION "40",TO SEPARATION POINT ON CAB
"10",8X6 MM
128 A 0009872727 PLASTIC PIPE
FROM ALL-WHEEL-DRIVE/DIFFERENTIAL-LOCK VALVE,CONNECTION"10",TO DOUBLE FITTING
"10",8X6 MM
128 A 0009872727 PLASTIC PIPE
FROM ALL-WHEEL-DRIVE/DIFFERENTIAL-LOCK VALVE,CONNECTION"10",TO DOUBLE FITTING
2250 MM
128 A 0009872727 PLASTIC PIPE
FROM ALL-WHEEL-DRIVE/DIFFERENTIAL-LOCK VALVE,CONNECTION"10",TO DOUBLE FITTING
850 MM
128 A 0009872727 PLASTIC PIPE
FROM ALL-WHEEL-DRIVE/DIFFERENTIAL-LOCK VALVE,CONNECTION"10",TO DOUBLE FITTING
2150 MM
128 A 0009872727 PLASTIC PIPE
BREATHING OF VALVE & DIFFERENTIAL LOCK
"30"
128 A 0009872727 PLASTIC PIPE
FROM CAB SEPARATION POINT TO CAB DISTRIBUTOR
"10",8X6 MM
128 A 0009872727 PLASTIC PIPE
BREATHING OF VALVE & DIFFERENTIAL LOCK
"30",1150 MM
128 A 0009872727 PLASTIC PIPE
FROM ALL-WHEEL-DRIVE/DIFFERENTIAL-LOCK VALVE,CONNECTION "10",TO DISTRIBUTOR
2320 MM
128 A 0009872727 PLASTIC PIPE
FROM ALL-WHEEL-DRIVE/DIFFERENTIAL-LOCK VALVE,CONNECTION "10",TO DISTRIBUTOR
3570 MM
129 A 4063580065 BREATHER
BREATHING OF VALVE & DIFFERENTIAL LOCK
"30"
129 A 4063580065 BREATHER
3/2-WAY VALVE BREATHING
"30"
130 A 3819970881 GROMMET
BREATHER LINE
131 A 0039978972 FITTING
Repalced by: A 0029905971
131 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
134 N 915062006000 SLEEVE
136 N 915017008100 UNION NUT
138 N 003861008005 GLAND
140 N 915052006014 BANJO UNION
140 N 915052006022 BANJO UNION
HOSE WIDTH, / I.D.,
6/10 MM
140 N 915052006013 BANJO UNION
141 A 0009906678 CONNECTOR
Repalced by: A 0029905478
141 A 0029905478 CONNECTOR
FROM CAB SEPARATION POINT TO CAB DISTRIBUTOR
141 A 0029905478 CONNECTOR
REAR AXLE BREATHING
141 A 0029905478 CONNECTOR
FRONT AXLE BREATHING
141 A 0029905478 CONNECTOR
BREATHING OF SPRING LOAD ACCUMULATOR CYLINDER
142 A 0019907971 ELBOW FITTING
Repalced by: A 0049905371
142 A 0049905371 ELBOW FITTING
FROM DISTRIBUTOR,CONNECTION "40",TO SEPARATION POINT ON CAB
142 A 0049905371 ELBOW FITTING
FROM VALVE TO DISTRIBUTOR
142 A 0049905371 ELBOW FITTING
FROM ALL-WHEEL-DRIVE/DIFFERENTIAL-LOCK VALVE,CONNECTION"10",TO DOUBLE FITTING
142 A 0049905371 ELBOW FITTING
FROM ALL-WHEEL-DRIVE/DIFFERENTIAL-LOCK VALVE,CONNECTION "10",TO DISTRIBUTOR
143 A 0009970834 UNION SCREW
Repalced by: A 0009973734
143 A 0009973734 UNION SCREW
FROM DISTRIBUTOR,CONNECTION "40",TO SEPARATION POINT ON CAB
144 A 0009940044 LOCK
FROM DISTRIBUTOR,CONNECTION "40",TO SEPARATION POINT ON CAB
144 A 0009941248 LOCK
Repalced by: A 0009945448
144 A 0009945448 LOCK
FROM DISTRIBUTOR,CONNECTION "40",TO SEPARATION POINT ON CAB
146 A 6739900278 CONNECTOR
FROM DISTRIBUTOR,CONNECTION "40",TO SEPARATION POINT ON CAB
147 A 0019908071 ELBOW FITTING
FROM CAB SEPARATION POINT TO CAB DISTRIBUTOR
148 A 0009900678 CONNECTOR
Repalced by: A 0019909870
148 A 0019909870 T-FITTING
Repalced by: A 0009907990
148 A 0009907990 T-FITTING
148 A 0009907990 T-FITTING
149 N 915052006021 BANJO UNION
150 N 915036008202 HOLLOW SCREW
LINE CONNECTION TO DISTRIBUTOR, CONNECTION:
2,3,4
150 N 915036008202 HOLLOW SCREW
LINE CONNECTION TO DISTRIBUTOR, CONNECTION:
2,3,4
151 N 007603012405 SEAL RING
LINE CONNECTION TO DISTRIBUTOR, CONNECTION:
2,3,4
151 N 007603012405 SEAL RING
LINE CONNECTION TO DISTRIBUTOR, CONNECTION:
2,3,4
152 A 4354200048 BRAKE HOSE
FROM DISTRIBUTOR,CONNECTION "30",TO 3/2-WAY VALVE,CONNECTION:
"10"
152 A 4354200048 BRAKE HOSE
FROM DISTRIBUTOR TO TRANSMISSION
"10"
154 A 4255511540 BRACKET
Repalced by: A 3604292940
154 A 3604292940 BRACKET
LINE MOUNTING
156 N 000933010105 SCREW
Repalced by: N 910105010009
156 N 910105010009 SCREW
158 N 913004010008 NUT
Repalced by: N 913023010003
158 N 913023010003 NUT
BRACKET
159 A 4068365043 EDGE GUARD SECTION
PROTECTION AGAINST SCORING TO TRANSMISSION MOUNTING
160 A 4064261140 BRACKET
Repalced by: A 4245240640
160 A 4245240640 BRACKET
HOSE LINE
162 N 916016015202 CLAMP
HOSE LINE TO BRACKET
162 N 916016015202 CLAMP
HOSE LINE TO BRACKET
164 N 000933006130 SCREW
Repalced by: N 304017006020
164 N 304017006020 SCREW
HOSE LINE TO BRACKET
164 N 304017006020 SCREW
HOSE LINE TO BRACKET
166 N 913004006002 NUT
Repalced by: N 913023006001
166 N 913023006001 NUT
HOSE LINE TO BRACKET
166 N 913023006001 NUT
HOSE LINE TO BRACKET
168 A 0089975482 HOSE
TWO-CIRCUIT BRAKE CYLINDER BREATHING
11X8 MM
168 A 0089975482 HOSE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "23",TO PARKG.BRAKE VALVE,CONNECTION:
11X8 MM
168 A 0089975482 HOSE
FROM PARKING BRAKE VALVE TO T-FITTING
"10",1210 MM
168 A 0089975482 HOSE
FROM PARKING BRAKE VALVE TO T-FITTING
"10"
168 A 0089975482 HOSE
FROM PARKING BRAKE VALVE TO T-FITTING
"10",620 MM
168 A 0089975482 HOSE
FROM PARKING BRAKE VALVE TO CHECK VALVE
"20",740 MM
168 A 0089975482 HOSE
FROM PARKING BRAKE VALVE TO CHECK VALVE
"20"
168 A 0089975482 HOSE
FROM PARKING BRAKE VALVE TO CHECK VALVE
"20",740 MM
168 A 0089975482 HOSE
FROM CHECK VALVE TO PARKING BRAKE VALVE
"11"
168 A 0089975482 HOSE
FROM PARKING BRAKE VALVE TO OVERFLOW VALVE
"20"
168 A 0089975482 HOSE
FROM PARKING BRAKE VALVE TO OVERFLOW VALVE
"20"
168 A 0089975482 HOSE
FROM PARKING BRAKE VALVE,CONNECTION "21",TO T-FITTING,CONNECTION:
"10"
168 A 0089975482 HOSE
FROM PARKING BRAKE VALVE TO FOUR-CIRCUIT PROTECTIVE VALVE
11X8 MM
168 A 0089975482 HOSE
PARKING BRAKE VALVE BLEEDING
11X8 MM
168 A 0089975482 HOSE
FROM ELBOW FITTING,CONNECTION "20",TO PIPE LINE,CONNECTION:
"10"
168 A 0089975482 HOSE
SPRING-LOADED CYLINDER BREATHER LINE
"30"
168 A 0089975482 HOSE
SPRING LOAD ACCUMULATOR COMPRESSEDAIR FEED LINE
810 MM
168 A 0089975482 HOSE
SPRING LOAD ACCUMULATOR COMPRESSEDAIR FEED LINE
720 MM
168 A 0089975482 HOSE
FROM FOUR-CIRCUIT PROTECT. VALVE,CONNECTION "24",TO DISTRIBUTOR,CONNECT.:
"22"
168 A 0089975482 HOSE
FROM FOUR-CIRCUIT PROTECT. VALVE,CONNECTION "24",TO DISTRIBUTOR,CONNECT.:
"22"
170 N 915059008001 FITTING
SPRING-LOADED CYLINDER BREATHER LINE
172 N 915017010100 UNION NUT
SPRING-LOADED CYLINDER BREATHER LINE
172 N 915017010100 UNION NUT
SPRING-LOADED CYLINDER BREATHER LINE
174 N 003861010009 GLAND
SPRING-LOADED CYLINDER BREATHER LINE
174 N 003861010009 GLAND
SPRING-LOADED CYLINDER BREATHER LINE
176 A 0004292301 LINE
SPRING LOAD ACCUMULATOR CYLINDER
10 X 1 MM
178 N 915052008016 BANJO UNION
Repalced by: N 000000000363
178 N 000000000363 BANJO UNION
HOSE WIDTH, / I.D.,
8/14 MM
178 N 000000000363 BANJO UNION
FROM PARKING BRAKE VALVE TO T-FITTING
8/14 MM
178 N 915052008019 BANJO UNION
HOSE WIDTH, / I.D.,
8/16 MM
178 N 915052008019 BANJO UNION
FROM CHECK VALVE TO PARKING BRAKE VALVE
8/16 MM
178 N 915052008018 BANJO UNION
HOSE WIDTH, / I.D.,
8/12 MM
180 A 4259900088 BANJO UNION
FROM PARKING BRAKE VALVE TO T-FITTING
180 A 4259900088 BANJO UNION
FROM CHECK VALVE TO PARKING BRAKE VALVE
180 A 4259900088 BANJO UNION
FROM PARKING BRAKE VALVE TO T-FITTING
180 A 4259900088 BANJO UNION
FROM PARKING BRAKE VALVE TO T-FITTING
182 N 003952006102 FITTING
Repalced by: A 0019909871
182 A 0019909871 ELBOW FITTING
LINE TO PRESSURE GAUGE
184 N 915059008001 FITTING
FROM TEST CONNECTION TO REAR THRUST TUBE
184 N 915059008001 FITTING
TWO-CIRCUIT BRAKE CYLINDER BREATHING
184 N 915059008001 FITTING
FROM TEST CONNECTION TO REAR THRUST TUBE
184 N 915059008001 FITTING
SPRING LOAD ACCUMULATOR COMPRESSEDAIR FEED LINE
186 N 915058008003 FITTING
186 N 915058008003 FITTING
FROM PARKING BRAKE VALVE TO T-FITTING
186 N 915058008003 FITTING
SPRING LOAD ACCUMULATOR COMPRESSEDAIR FEED LINE
186 N 915058008003 FITTING
FROM ELBOW FITTING,CONNECTION "20",TO PIPE LINE,CONNECTION:
186 N 915058008003 FITTING
FROM PARKING BRAKE VALVE TO T-FITTING
192 A 4245511740 BRACKET
LINE MOUNTING
192 A 4255520440 BRACKET
LINE MOUNTING
194 A 4214292040 BRACKET
Repalced by: A 3604293140
194 A 3604293140 BRACKET
LINE MOUNTING
196 A 4244262040 BRACKET
Repalced by: A 3274925819
196 A 3274925819 BRACKET
LINE MOUNTING
198 A 4244231023 BRACKET
LINE MOUNTING
200 N 000933008152 SCREW
Repalced by: N 304017008027
200 N 304017008027 SCREW
LINE MOUNTING
200 N 000933008153 SCREW
Repalced by: N 304017008034
200 N 304017008034 SCREW
LINE MOUNTING
202 N 913004008004 NUT
Repalced by: N 913003008003
202 N 913003008003 PART NAME MISSING
Repalced by: N 913023008003
202 N 913023008003 NUT
Repalced by: N 913023008002
202 N 913023008002 NUT
LINE MOUNTING
204 N 009021008205 WASHER
Repalced by: N 009021008213
204 N 009021008213 WASHER
LINE MOUNTING
Repalced by: N 000000003250
204 N 000000003250 WASHER
LINE MOUNTING
206 A 0079976881 GROMMET
208 A 4244264640 BRACKET
BRAKE LINE TO SIDE MEMBER
210 N 000961012151 SCREW
Repalced by: N 910105012007
210 N 910105012007 SCREW
BRACKET TO SIDE MEMBER
212 A 4354200786 BRACKET
COMPRESSED AIR LINE TO ROCKER PANEL, LEFT
212 A 4354200786 BRACKET
COMPRESSED AIR LINE TO ROCKER PANEL, LEFT
214 N 000933008147 SCREW
Repalced by: N 304017008021
214 N 304017008021 SCREW
BRACKET TO ROCKER PANEL
214 N 304017008021 SCREW
BRACKET TO ROCKER PANEL
216 N 913004008004 NUT
Repalced by: N 913003008003
216 N 913003008003 PART NAME MISSING
Repalced by: N 913023008003
216 N 913023008003 NUT
Repalced by: N 913023008002
216 N 913023008002 NUT
BRACKET TO ROCKER PANEL
216 N 913023008002 NUT
BRACKET TO ROCKER PANEL
218 A 4249900040 WASHER
220 A 4422682240 BRACKET
Repalced by: A 6574760036
220 A 6574760036 BRACKET
PLASTIC LINES TO FRAME
220 A 6574760036 BRACKET
PLASTIC LINES TO FRAME
222 A 4244260440 BRACKET
Repalced by: A 4354262340
A 4354262340 BRACKET
222 A 4354262340 BRACKET
PLASTIC LINE
A 4035060140 BRACKET
Repalced by: A 6205240340
224 A 6205240340 BRACKET
PLASTIC LINE TO RIGHT SIDE MEMBER
A 4354262340 BRACKET
PLASTIC LINE TO LEFT SIDE MEMBER
225 N 000933010128 SCREW
Repalced by: N 910105010006
225 N 910105010006 SCREW
PLASTIC LINE
227 N 913004010008 NUT
Repalced by: N 913023010003
227 N 913023010003 NUT
PLASTIC LINE
228 N 000961012056 SCREW
Repalced by: N 910105012003
228 N 910105012003 SCREW
PLASTIC LINE TO LEFT SIDE MEMBER
M 12X1.5X20
228 N 000933010105 SCREW
Repalced by: N 910105010009
228 N 910105010009 SCREW
N 912004010102 LOCK WASHER
BRACKET TO FRAME
N 912004012100 LOCK WASHER
BRACKET TO FRAME
232 A 1109910140 SPACER TUBE
Repalced by: A 4275510250
232 A 4275510250 BUSHING
BRACKET TO FRAME
232 A 4275510250 BUSHING
BRACKET TO FRAME
232 A 4275510250 BUSHING
BRACKET TO FRAME
234 N 000960012197 SCREW
Repalced by: N 910105012016
234 N 910105012016 SCREW
BRACKET TO FRAME
234 N 910105012016 SCREW
BRACKET TO FRAME
236 N 913004012009 NUT
Repalced by: N 910113012005
236 N 910113012005 NUT
BRACKET TO FRAME
236 N 910113012005 NUT
BRACKET TO FRAME
238 A 4114320740 BRACKET
Repalced by: A 3604293140
238 A 3604293140 BRACKET
PLASTIC LINE TO CAB
238 A 3604293140 BRACKET
PLASTIC LINE TO CAB
240 A 4214290550 BRACKET
Repalced by: A 3525422840
240 A 3525422840 BRACKET
PLASTIC LINE TO CAB
242 A 4244261840 BRACKET
Repalced by: A 6205240340
242 A 6205240340 BRACKET
242 A 6205240340 BRACKET
244 N 000933006102 SCREW
246 N 913004006002 NUT
Repalced by: N 913023006001
246 N 913023006001 NUT
248 A 3049951020 CLAMP
250 N 007985006193 SCREW
Repalced by: N 000000001146
250 N 000000001146 SCREW
M 6X16
252 N 913004006002 NUT
Repalced by: N 913023006001
252 N 913023006001 NUT
254 N 000933008147 SCREW
Repalced by: N 304017008021
254 N 304017008021 SCREW
COMPRESSED AIR LINE MOUNTING
256 N 009021008205 WASHER
Repalced by: N 009021008213
256 N 009021008213 WASHER
COMPRESSED AIR LINE MOUNTING
Repalced by: N 000000003250
256 N 000000003250 WASHER
COMPRESSED AIR LINE MOUNTING
258 N 913004008004 NUT
Repalced by: N 913003008003
258 N 913003008003 PART NAME MISSING
Repalced by: N 913023008003
258 N 913023008003 NUT
Repalced by: N 913023008002
258 N 913023008002 NUT
COMPRESSED AIR LINE MOUNTING
260 A 0019978390 LOOM TIE
280 MM
260 A 0019978490 LOOM TIE
376 MM
262 A 3049951020 CLAMP
264 A 4244231123 BRACKET
DISTRIBUTOR TO FRAME SIDE MEMBER
266 A 4044290540 BRACKET
Repalced by: A 3604293140
266 A 3604293140 BRACKET
DISTRIBUTOR TO FRAME SIDE MEMBER
268 A 4244293240 BRACKET
DISTRIBUTOR TO FRAME SIDE MEMBER
268 A 3974290140 BRACKET
Repalced by: A 6205243040
268 A 6205243040 BRACKET
DISTRIBUTOR TO FRAME SIDE MEMBER
268 A 4244263140 BRACKET
DISTRIBUTOR TO FRAME SIDE MEMBER
270 N 000961012151 SCREW
Repalced by: N 910105012007
270 N 910105012007 SCREW
DISTRIBUTOR TO FRAME SIDE MEMBER
M 12X1.5X30
270 N 000961012056 SCREW
Repalced by: N 910105012003
270 N 910105012003 SCREW
DISTRIBUTOR TO FRAME SIDE MEMBER
M 12X1.5X20
N 912004012100 LOCK WASHER
DISTRIBUTOR TO FRAME SIDE MEMBER
274 N 913004012008 NUT
Repalced by: N 913023012003
274 N 913023012003 NUT
DISTRIBUTOR TO FRAME SIDE MEMBER
276 N 074301022203 ELBOW FITTING
LINE CONNECTION TO AIR COMPRESSOR
278 N 915065015101 THRUST RING
LINE CONNECTION TO AIR COMPRESSOR
280 N 007603014106 SEAL RING
LINE CONNECTION TO AIR COMPRESSOR
282 N 080705022001 NUT
LINE CONNECTION TO AIR COMPRESSOR
284 A 0004290227 THRUST RING
Repalced by: A 0009940203
284 A 0009940203 THRUST RING
LINE CONNECTION TO AIR COMPRESSOR
286 A 0069970148 SEAL RING
LINE CONNECTION TO AIR COMPRESSOR
290 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024314306
290 A 0024314306 PRESSURE REGULATOR
Repalced by: A 0024314906
290 A 0024314906 PRESSURE REGULATOR
(PRESSURE CONTROL VALVE)
WABCO
290 A 0024319606 PRESSURE REGULATOR
(PRESSURE CONTROL VALVE)
BOSCH
291 A 0009979486 PROTECTIVE CAP
TO 002 431 96 06
292 A 0004301768 REPAIR KIT
PARTS KIT
TO 002 431 43 06
292 A 0014304960 REPAIR KIT
PARTS KIT
TO 002 431 49 06
292 A 0004300907 PRESSURE REGULATOR
PARTS KIT
TO 002 431 96 06
294 A 0004307960 REPAIR KIT
GASKET KIT
TO 002 431 43 06
A 0001301407 VIBRATION ABSORBER
PARTS KIT
TO 001 431 06 06
296 A 0004290227 THRUST RING
Repalced by: A 0009940203
296 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
10,20
296 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
10,20
296 N 915065015101 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
10,20
298 A 0009870446 O-RING
PRESSURE REGULATOR,CONNECTIONS:
10,20
298 A 0009870446 O-RING
PRESSURE REGULATOR,CONNECTIONS:
10,20
298 A 0139972248 SEAL RING
PRESSURE REGULATOR,CONNECTION:
10
298 A 0139972248 SEAL RING
PRESSURE REGULATOR,CONNECTION "1"
10
300 N 080705022001 NUT
PRESSURE REGULATOR,CONNECTIONS:
"10,20"
300 N 080705022001 NUT
PRESSURE REGULATOR,CONNECTIONS:
"10,20"
302 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTIONS:
"10"
302 A 0004293838 ELBOW FITTING
Repalced by: A 0004294638
302 A 0004294638 ELBOW FITTING
PRESSURE REGULATOR,CONNECTIONS:
"20"
302 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTIONS:
10
302 A 0009907771 ELBOW FITTING
PRESSURE REGULATOR,CONNECTIONS:
"20"
304 A 0029971172 FITTING
PRESSURE REGULATOR,CONNECTIONS:
"20"
Repalced by: N 000000006191
304 N 000000006191 FITTING
PRESSURE REGULATOR,CONNECTIONS:
"20"
N 074313016203 FITTING
Repalced by: A 0019972172
304 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTIONS:
"10,20"
304 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTIONS:
"10,20"
304 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTIONS:
"10,20"
304 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION "1"
"10,20"
306 A 0029971372 FITTING
PRESSURE REGULATOR,CONNECTION "2"
310 N 007603014106 SEAL RING
PRESSURE REGULATOR,CONNECTIONS:
10,20
312 A 4244202186 BRACKET
PRESSURE REGULATOR
314 A 4244262340 BRACKET
PRESSURE REGULATOR
A 4244264840 BRACKET
PRESSURE REGULATOR
316 A 3469910040 SPACER TUBE
PRESSURE REGULATOR TO BRACKET
316 A 1369913140 SPACER TUBE
PRESSURE REGULATOR TO BRACKET
318 N 000931008251 SCREW
PRESSURE REGULATOR TO SUPPORT
318 N 000931008209 SCREW
PRESSURE REGULATOR TO BRACKET
318 N 000931008189 SCREW
PRESSURE REGULATOR TO BRACKET
319 N 000125008418 WASHER
Repalced by: N 000125008443
319 N 000125008443 WASHER
PRESSURE REGULATOR TO SUPPORT
320 N 913004008004 NUT
Repalced by: N 913003008003
320 N 913003008003 PART NAME MISSING
Repalced by: N 913023008003
320 N 913023008003 NUT
Repalced by: N 913023008002
320 N 913023008002 NUT
PRESSURE REGULATOR TO BRACKET
320 N 913023008002 NUT
PRESSURE REGULATOR TO BRACKET
320 N 913023008002 NUT
PRESSURE REGULATOR TO SUPPORT
322 N 000961012052 SCREW
Repalced by: N 910105012013
322 N 910105012013 SCREW
PRESSURE REGULATOR BRACKET TO FRAME SIDE MEMBER
M 12X1.5X25
322 N 000961012122 SCREW
PRESSURE REGULATOR BRACKET TO FRAME SIDE MEMBER
M 12X1.5X40
N 912004012100 LOCK WASHER
PRESSURE REGULATOR BRACKET TO FRAME SIDE MEMBER
325 N 913004012008 NUT
Repalced by: N 913023012003
325 N 913023012003 NUT
PRESSURE REGULATOR BRACKET TO FRAME SIDE MEMBER
326 A 4439970352 HOSE
Repalced by: A 4439970052
326 A 4439970052 HOSE
PRESSURE REGULATOR BREATHING
327 N 916017016000 CLAMP
Repalced by: N 000000000666
327 N 000000000666 CLAMP
PRESSURE REGULATOR BREATHING
328 N 000931008251 SCREW
PRESSURE REGULATOR TO FUEL TANK
328 N 000933008145 SCREW
PRESSURE REGULATOR TO FUEL TANK
328 N 000961012056 SCREW
Repalced by: N 910105012003
328 N 910105012003 SCREW
328 N 000933008326 SCREW
PRESSURE REGULATOR TO FUEL TANK
332 N 913004008004 NUT
Repalced by: N 913003008003
332 N 913003008003 PART NAME MISSING
Repalced by: N 913023008003
332 N 913023008003 NUT
Repalced by: N 913023008002
332 N 913023008002 NUT
PRESSURE REGULATOR TO FUEL TANK
332 N 913023008002 NUT
PRESSURE REGULATOR TO FUEL TANK
332 N 913004012008 NUT
Repalced by: N 913023012003
332 N 913023012003 NUT
334 A 3149910540 SPACER TUBE
PRESSURE REGULATOR TO FUEL TANK
336 A 0014313806 VALVE
Repalced by: A 0014314706
A 0014314706 VALVE
Repalced by: A 0014317706
336 A 0014317706 VALVE
Repalced by: A 0024310406
336 A 0014317806 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
WESTINGHOUSE
338 A 0024310406 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
BOSCH
340 A 0014310986 CUP
TO 002 431 04 06
342 A 0009934905 SPRING
Repalced by: A 0009935205
342 A 0009935205 SPRING
TO 002 431 04 06
344 N 000933006127 SCREW
TO 002 431 04 06
346 N 000472055000 LOCK RING
TO 002 431 04 06
348 A 0004302906 GASKET KIT
BOOT
TO 002 431 04 06
350 A 0015868443 REPAIR KIT
GASKETS
TO 001 431 38 06,001 431 77 06
352 A 0025862843 REPAIR KIT
TO 001 431 47 06,001 431 78 06
354 A 0025861743 REPAIR KIT
BOOT
TO 001 431 38 06,001 431 77 06
356 A 0004294238 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
358 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
360 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
362 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
364 N 915047012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
21
364 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
23,24
364 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
23,24
364 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
24,22
364 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
23,24
364 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21,22"
364 N 915047012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"12"
364 N 915047012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"12,23"
366 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
23,24
366 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
23,24
366 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
23,24
366 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
23,24
366 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
23,24
366 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
23,24
366 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"12,21,22"
366 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
366 N 007603016401 SEAL RING
LINE CONNECTION TO AIR RESERVOIR
I
366 N 007603016401 SEAL RING
LINE CONNECTION TO AIR RESERVOIR
II
368 N 074298022203 DOUBLE FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
368 N 074298022203 DOUBLE FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
370 N 074313012100 FITTING
Repalced by: A 0029971172
370 A 0029971172 FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
Repalced by: N 000000006191
370 N 000000006191 FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
372 N 080705022001 NUT
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
374 N 074298022203 DOUBLE FITTING
FOUR-CIRCUIT PROTECTION VALVE INLET
376 A 0004290227 THRUST RING
Repalced by: A 0009940203
376 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
376 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
378 A 0009870446 O-RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
378 A 0009870446 O-RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
379 N 915065015101 THRUST RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
380 N 007603014106 SEAL RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
381 A 0004292101 LINE
PRESSURE CONTROL VALVE
382 N 915017012100 UNION NUT
PRESSURE CONTROL VALVE
Repalced by: N 000000006239
382 N 000000006239 UNION NUT
PRESSURE CONTROL VALVE
383 N 003861012007 GLAND
Repalced by: A 0019901967
383 A 0019901967 SEAL CONE
PRESSURE CONTROL VALVE
384 N 003901012015 SCREW-IN FITTING
Repalced by: A 0029971572
384 A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE,CONNECTION "21"
384 A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE,CONNECTION "21"
384 A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
11,20,21
384 A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"12,22"
386 A 0009904770 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
386 A 0009904770 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
386 A 0009904770 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11"
386 A 0009904770 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
388 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
388 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
388 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
390 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
390 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
390 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
392 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
392 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
392 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
394 N 074315012100 FITTING
Repalced by: A 0019903371
394 A 0019903371 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11,12"
394 A 0019903371 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11,12"
394 A 0019903371 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11,12"
396 A 0009904270 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11"
396 A 0009904270 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11"
398 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11,12"
398 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11,12"
398 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11,12"
398 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11"
400 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11,12"
400 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11,12"
400 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11,12"
400 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11"
402 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11,12"
402 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11,12"
402 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11,12"
402 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11"
404 A 4244230223 BRACKET
FOUR-CIRCUIT PROTECTIVE VALVE
406 N 000933010128 SCREW
Repalced by: N 910105010006
406 N 910105010006 SCREW
FOUR-CIRCUIT PROTECTIVE VALVE TO SIDE MEMBER
406 N 000933010129 SCREW
Repalced by: N 910105010001
406 N 910105010001 HEXAGON HEAD BOLT
FOUR-CIRCUIT PROTECTIVE VALVE BRACKET & RESERVOIR TO FRAME
M10X30
406 N 000961012052 SCREW
Repalced by: N 910105012013
406 N 910105012013 SCREW
FOUR-CIRCUIT PROTECTIVE VALVE BRACKET & RESERVOIR TO FRAME
M 12X1.5X25
406 N 910105012020 SCREW
FOUR-CIRCUIT PROTECTIVE VALVE TO FRAME
M 12X1.5X35
N 912004010102 LOCK WASHER
FOUR-CIRCUIT PROTECTIVE VALVE BRACKET & RESERVOIR TO FRAME
410 N 913004010008 NUT
Repalced by: N 913023010003
410 N 913023010003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE TO SIDE MEMBER
410 N 913023010003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE BRACKET & RESERVOIR TO FRAME
410 N 913004012008 NUT
Repalced by: N 913023012003
410 N 913023012003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE BRACKET & RESERVOIR TO FRAME
410 N 913023012003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE TO FRAME
412 N 000931008209 SCREW
FOUR-CIRCUIT PROTECTIVE VALVE TO SIDE MEMBER
412 N 000931008209 SCREW
FOUR-CIRCUIT PROTECTIVE VALVE TO BRACKET
412 N 000931008209 SCREW
FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR BRACKET
414 N 913004008004 NUT
Repalced by: N 913003008003
414 N 913003008003 PART NAME MISSING
Repalced by: N 913023008003
414 N 913023008003 NUT
Repalced by: N 913023008002
414 N 913023008002 NUT
FOUR-CIRCUIT PROTECTIVE VALVE TO SIDE MEMBER
414 N 913023008002 NUT
FOUR-CIRCUIT PROTECTIVE VALVE TO BRACKET
414 N 913023008002 NUT
FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR BRACKET
N 912004014100 LOCK WASHER
FOUR-CIRCUIT PROTECTIVE VALVE TO FRAME
415 A 4244270084 SHIM
FOUR-CIRCUIT PROTECTIVE VALVE TO FRAME
416 A 4244300205 RESERVOIR
Repalced by: A 0034327101
416 A 0034327101 RESERVOIR
AIR RESERVOIR I
9.5 L
Repalced by: A 0074321001
416 A 0074321001 COMPRESSED AIR RESERVOIR
AIR RESERVOIR I
9.5 L
418 A 4244300305 RESERVOIR
Repalced by: A 0034327501
418 A 0034327501 RESERVOIR
AIR RESERVOIR II
20 L
Repalced by: A 0074321301
418 A 0074321301 COMPRESSED AIR RESERVOIR
AIR RESERVOIR II
20 L
420 A 4244300110 BRACKET
AIR RESERVOIR II
422 A 4244300210 BRACKET
AIR RESERVOIR I
424 A 0139971282 HOSE
PRE-LOAD CYLINDER BREATHING
13X1.25 MM
426 A 4254300005 RESERVOIR
Repalced by: A 0034326801
426 A 0034326801 RESERVOIR
Repalced by: A 0034326901
426 A 0034326901 RESERVOIR
AIR RESERVOIR
10 L
Repalced by: A 0074322001
426 A 0074322001 COMPRESSED AIR RESERVOIR
AIR RESERVOIR
10 L
428 A 4354300010 BRACKET
Repalced by: A 4354300410
428 A 4354300410 BRACKET
AIR RESERVOIR
430 N 000933010128 SCREW
Repalced by: N 910105010006
430 N 910105010006 SCREW
BRACKET TO TWO-CIRCUIT BRAKE VALVE BRACKET
432 N 913004010008 NUT
Repalced by: N 913023010003
432 N 913023010003 NUT
BRACKET TO TWO-CIRCUIT BRAKE VALVE BRACKET
434 N 900288207101 CLAMP
Repalced by: A 4059950001
434 A 4059950001 CLAMP
AIR RESERVOIR TO BRACKET
TO 424 430 01 10
436 N 913004010008 NUT
Repalced by: N 913023010003
436 N 913023010003 NUT
AIR RESERVOIR TO BRACKET
438 A 0019901968 FITTING
Repalced by: A 0009905168
438 A 0009905168 FITTING
Repalced by: A 0049903068
438 A 0049903068 FITTING
PRESSURE GAUGE LINE FROM BRAKE VALVE CONNECTION "11" TO TEST CONNECTION
438 A 0049903068 FITTING
LINE CONNECTION TO AIR RESERVOIR
438 A 0049903068 FITTING
PRESSURE GAUGE LINE FROM BRAKE VALVE CONNECTION "11" TO TEST CONNECTION
439 N 000908022011 SCREW PLUG
AIR RESERVOIR
TO A 003 432 69 01
N 007603022102 SEAL RING
Repalced by: A 0004290227
440 A 0004290227 THRUST RING
Repalced by: A 0009940203
440 A 0009940203 THRUST RING
PRESSURE GAUGE LINE FROM BRAKE VALVE CONNECTION "11" TO TEST CONNECTION
440 A 0009940203 THRUST RING
SCREW PLUG
TO 003 432 69 01
440 A 0009940203 THRUST RING
PRESSURE GAUGE LINE FROM BRAKE VALVE CONNECTION "11" TO TEST CONNECTION
442 A 0009870446 O-RING
PRESSURE GAUGE LINE FROM BRAKE VALVE CONNECTION "11" TO TEST CONNECTION
442 A 0009870446 O-RING
SCREW PLUG
TO 003 432 69 01
442 A 0009870446 O-RING
PRESSURE GAUGE LINE FROM BRAKE VALVE CONNECTION "11" TO TEST CONNECTION
446 A 0009901387 CROSS FITTING
PRESSURE GAUGE LINE FROM BRAKE VALVE CONNECTION "11" TO TEST CONNECTION
446 A 0009901387 CROSS FITTING
PRESSURE GAUGE LINE FROM BRAKE VALVE CONNECTION "11" TO TEST CONNECTION
446 A 0009901387 CROSS FITTING
PRESSURE GAUGE LINE FROM BRAKE VALVE CONNECTION "11" TO TEST CONNECTION
448 N 080705016003 NUT
PRESSURE GAUGE LINE FROM BRAKE VALVE CONNECTION "11" TO TEST CONNECTION
448 N 080705016003 NUT
PRESSURE GAUGE LINE FROM BRAKE VALVE CONNECTION "11" TO TEST CONNECTION
448 N 080705016003 NUT
PRESSURE GAUGE LINE FROM BRAKE VALVE CONNECTION "11" TO TEST CONNECTION
452 A 0004290927 THRUST RING
PRESSURE GAUGE LINE FROM BRAKE VALVE CONNECTION "11" TO TEST CONNECTION
452 A 0004290927 THRUST RING
PRESSURE GAUGE LINE FROM BRAKE VALVE CONNECTION "11" TO TEST CONNECTION
452 A 0004290927 THRUST RING
PRESSURE GAUGE LINE FROM BRAKE VALVE CONNECTION "11" TO TEST CONNECTION
454 A 0009971548 SEAL RING
PRESSURE GAUGE LINE FROM BRAKE VALVE CONNECTION "11" TO TEST CONNECTION
454 A 0009971548 SEAL RING
PRESSURE GAUGE LINE FROM BRAKE VALVE CONNECTION "11" TO TEST CONNECTION
454 A 0009971548 SEAL RING
PRESSURE GAUGE LINE FROM BRAKE VALVE CONNECTION "11" TO TEST CONNECTION
456 N 007604022102 SCREW PLUG
AT INSIDE AIR RESERVOIR
456 N 007604022102 SCREW PLUG
LINE CONNECTION TO AIR RESERVOIR
"11"
456 N 007604022102 SCREW PLUG
AIR RESERVOIR I
M 22X1.5
458 N 007603022102 SEAL RING
AT INSIDE AIR RESERVOIR
458 N 007603022102 SEAL RING
LINE CONNECTION TO AIR RESERVOIR
"11"
460 A 0009870446 O-RING
AT AIR RESERVOIRS I AND II
460 A 0009870446 O-RING
LINE CONNECTION TO AIR RESERVOIR
"11"
460 A 0009870446 O-RING
AIR RESERVOIR I
462 A 0004290227 THRUST RING
Repalced by: A 0009940203
462 A 0009940203 THRUST RING
AT AIR RESERVOIRS I AND II
462 A 0009940203 THRUST RING
LINE CONNECTION TO AIR RESERVOIR
462 A 0009940203 THRUST RING
AIR RESERVOIR I
464 N 915036012203 HOLLOW SCREW
LINE CONNECTION TO AIR RESERVOIR
I
464 N 915036012203 HOLLOW SCREW
LINE CONNECTION TO AIR RESERVOIR
II
466 N 915047012203 HOLLOW SCREW
LINE CONNECTION TO AIR RESERVOIR
I
468 A 0009907771 ELBOW FITTING
AT AIR RESERVOIRS I AND II
469 A 0019975772 FITTING
Repalced by: A 0019979572
469 A 0019979572 FITTING
AT AIR RESERVOIRS I AND II
470 N 074313012100 FITTING
Repalced by: A 0029971172
470 A 0029971172 FITTING
AT AIR RESERVOIRS I AND II
Repalced by: N 000000006191
470 N 000000006191 FITTING
AT AIR RESERVOIRS I AND II
470 N 000000006191 FITTING
AT AIR RESERVOIRS I AND II
471 A 0009905168 FITTING
Repalced by: A 0049903068
471 A 0049903068 FITTING
LINE CONNECTION TO AIR RESERVOIR
"II"
471 A 0049903068 FITTING
LINE CONNECTION TO AIR RESERVOIR
"II"
471 A 0049903068 FITTING
LINE CONNECTION TO AIR RESERVOIR
"II"
472 N 080705022001 NUT
AT AIR RESERVOIRS I AND II
474 A 0009903970 T-FITTING
Repalced by: A 0019901070
474 A 0019901070 T-FITTING
AIR RESERVOIR
II
474 A 0009909070 T-FITTING
AIR RESERVOIR
II
474 A 0009909070 T-FITTING
AIR RESERVOIR
II
474 A 0009909070 T-FITTING
AIR RESERVOIR II LINE CONNECTION, CONNECTION:
II
476 A 0009904670 T-FITTING
LINE CONNECTION TO AIR RESERVOIR
"I,II"
478 N 080705022001 NUT
AIR RESERVOIR
II
478 N 080705022001 NUT
AIR RESERVOIR II LINE CONNECTION, CONNECTION:
II
478 N 080705022001 NUT
AIR RESERVOIR
II
478 N 080705022001 NUT
LINE CONNECTION TO AIR RESERVOIR
"I,II"
480 A 0004290227 THRUST RING
Repalced by: A 0009940203
480 A 0009940203 THRUST RING
AIR RESERVOIR
II
480 A 0009940203 THRUST RING
LINE CONNECTION TO AIR RESERVOIR
"I,II"
481 A 0009870446 O-RING
AIR RESERVOIR
II
481 A 0009870446 O-RING
LINE CONNECTION TO AIR RESERVOIR
"I,II"
482 N 915039012201 HOLLOW SCREW FITTING
AIR RESERVOIR,TOP REAR
483 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,TOP REAR
484 N 007603016401 SEAL RING
AIR RESERVOIR,TOP REAR
485 A 0004313731 TEST CONNECTION
Repalced by: A 0004312931
485 A 0004312931 TEST CONNECTION
PARKING BRAKE VALVE DISTRIBUTOR
485 A 0004313531 TEST CONNECTION
AIR RESERVOIR
II
485 A 0004315431 TEST CONNECTION
AIR RESERVOIR
II
485 A 0004315431 TEST CONNECTION
AIR RESERVOIR
II
486 A 0014311587 PROTECTIVE CAP
Repalced by: A 0009979486
486 A 0009979486 PROTECTIVE CAP
490 A 0004312031 TEST CONNECTION
AIR RESERVOIR I
490 A 0004312031 TEST CONNECTION
AIR RESERVOIRS I AND II
490 A 0004312031 TEST CONNECTION
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11"
490 A 0004312031 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11"
490 A 0004312031 TEST CONNECTION
AIR RESERVOIR
"II"
490 A 0004312031 TEST CONNECTION
AIR RESERVOIR II
"11"
490 A 0004312031 TEST CONNECTION
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"12"
490 A 0004314531 TEST CONNECTION
AIR RESERVOIR I
490 A 0004314531 TEST CONNECTION
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11"
490 A 0004314531 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11"
490 A 0004314531 TEST CONNECTION
AIR RESERVOIR
II
490 A 0004314531 TEST CONNECTION
AIR RESERVOIR II
"11"
490 A 0004314531 TEST CONNECTION
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"12"
490 A 0004314531 TEST CONNECTION
AIR RESERVOIRS I AND II
492 A 0004311231 TEST CONNECTION
BRAKE MASTER CYLINDER
492 A 0004316631 TEST CONNECTION
BRAKE MASTER CYLINDER
493 N 003952006102 FITTING
Repalced by: A 0019909871
493 A 0019909871 ELBOW FITTING
COMPRESSED AIR LINES TO STEP BRACKET
494 N 003952010102 FITTING
COMPRESSED AIR LINES TO STEP BRACKET
495 N 003953010101 FITTING
COMPRESSED AIR LINES TO STEP BRACKET
A 0004320807 VALVE
DRAIN VALVE
496 A 0004321107 VALVE
DRAIN VALVE
VOSS
Repalced by: A 0004322407
496 A 0004322407 DRAIN VALVE
DRAIN VALVE
VOSS
Repalced by: A 0004322107
496 A 0004322107 DRAIN VALVE
DRAIN VALVE
VOSS
496 A 0004322107 VALVE
DRAIN VALVE
AUCO
496 A 0004321507 VALVE
Repalced by: A 0004322407
496 A 0004322407 VALVE
DRAIN VALVE
WIRA
Repalced by: A 0004322107
496 A 0004322107 DRAIN VALVE
DRAIN VALVE
WIRA
498 N 007603022102 SEAL RING
DRAIN VALVE
500 A 4244261740 BRACKET
LINE TO CROSS MEMBER
502 N 916017080000 CLAMP
Repalced by: N 000000000675
502 N 000000000675 CLAMP
Repalced by: A 0059972990
502 A 0059972990 CLAMP
LINE TO CROSS MEMBER
82 - 105 X 15.8 MM
A 4244265040 BRACKET
COMPRESSED AIR LINE TO REAR SPRING BRACKET
503 N 304017008021 SCREW
COMPRESSED AIR LINE TO REAR SPRING BRACKET
503 N 304017008021 SCREW
COMPRESSED AIR LINE TO CROSS MEMBER
503 N 910105010001 HEXAGON HEAD BOLT
COMPRESSED AIR LINE TO SIDE MEMBER
503 N 910105012007 SCREW
FROM COMPRESSED AIR HOSE TO AIR RESERVOIR
503 N 910105012007 SCREW
COMPRESSED AIR LINE TO CROSS MEMBER
504 N 913023008002 NUT
COMPRESSED AIR LINE TO REAR SPRING BRACKET
504 N 913023010003 NUT
COMPRESSED AIR LINE TO SIDE MEMBER
A 4244265540 BRACKET
FROM COMPRESSED AIR HOSE TO AIR RESERVOIR
504 N 913023012003 NUT
FROM COMPRESSED AIR HOSE TO AIR RESERVOIR
505 A 4245517640 BRACKET
COMPRESSED AIR LINE TO SIDE MEMBER
A 4244264940 BRACKET
COMPRESSED AIR LINE TO CROSS MEMBER
A 4244265440 BRACKET
COMPRESSED AIR LINE TO SIDE MEMBER
506 A 0014315405 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH
506 A 0014316105 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
WABCO
507 A 0025860843 REPAIR KIT
TO 001 431 54 05
508 A 0004318187 PROTECTIVE CAP
510 A 0025860542 REPAIR KIT
TO 001 431 61 05
512 A 0024310305 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH
512 A 0024310005 BRAKE VALVE
Repalced by: A 0024316505
512 A 0024310005 BRAKE VALVE
Repalced by: A 0024316505
512 A 0024316505 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
WABCO
512 A 0024316505 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
WABCO
512 A 0024316305 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH
512 A 0024316305 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH
514 A 0024319805 BRAKE VALVE
BOSCH
514 A 0024319805 BRAKE VALVE
BOSCH
514 A 0034312405 BRAKE VALVE
WABCO
514 A 0034312405 BRAKE VALVE
WABCO
516 A 0004312185 FILLER RING
TO 002 431 00 05
518 A 0004310273 BREATHER PIPE
TO 002 431 00 05
520 A 0004318383 PISTON
TO 002 431 00 05
522 A 0004313623 VALVE
MAKE WESTINGHOUSE
TO 002 431 00 05,002 431 65 05
524 A 0025868743 REPAIR KIT
Repalced by: A 0004303506
524 A 0004303506 REPAIR KIT
TO 002 431 63 05
524 A 0004303506 REPAIR KIT
TO 002 431 03 05
524 A 0004308860 REPAIR KIT
TO 002 431 63 05
528 A 0025868043 REPAIR KIT
Repalced by: A 0004301160
528 A 0004301160 REPAIR KIT
Repalced by: A 0004306260
528 A 0004306260 REPAIR KIT
Repalced by: A 0014300460
528 A 0014300460 REPAIR KIT
Repalced by: A 0004308006
528 A 0004308006 REPAIR KIT
WABCO TO 002 431 00 05,002 431 65 05,
530 A 0025868743 REPAIR KIT
Repalced by: A 0004303506
530 A 0004303506 REPAIR KIT
TO 002 431 98 05
530 A 0004303506 REPAIR KIT
TO 002 431 98 05
530 A 0014300560 REPAIR KIT
TO 003 431 24 05
532 N 000908012003 SCREW PLUG
Repalced by: N 000908012009
532 N 000908012009 SCREW PLUG
TWO-CIRCUIT BRAKE VALVE
532 N 000908012009 SCREW PLUG
TWO-CIRCUIT BRAKE VALVE
534 A 0004290827 THRUST RING
Repalced by: A 0009940103
534 A 0009940103 THRUST RING
TWO-CIRCUIT BRAKE VALVE
536 A 0019970845 SEAL RING
TWO-CIRCUIT BRAKE VALVE
538 N 007603012110 SEAL RING
538 N 007603012110 SEAL RING
A 4244310840 BRACKET
BRAKE VALVE
A 4254263240 BRACKET
BRAKE VALVE
540 A 4243110056 SPACER TUBE
BRACKET TO FRAME
542 N 000931010431 SCREW
BRACKET TO FRAME
542 N 000931010293 SCREW
BRACKET TO FRAME
544 N 000933010105 SCREW
Repalced by: N 910105010009
544 N 910105010009 SCREW
546 N 913004010008 NUT
Repalced by: N 913023010003
546 N 913023010003 NUT
BRACKET TO FRAME
548 N 000961014148 SCREW
M 14X1.5X75
548 N 000961014114 SCREW
M 14X1.5X85
550 N 000933008152 SCREW
Repalced by: N 304017008027
550 N 304017008027 SCREW
BRAKE VALVE TO SUBSTRUCTURE
550 N 304017008027 SCREW
BRAKE VALVE TO SUBSTRUCTURE
550 N 000933008150 SCREW
Repalced by: N 304017008018
550 N 304017008018 SCREW
BRAKE VALVE TO SUBSTRUCTURE
550 N 304017008018 SCREW
BRAKE VALVE TO SUBSTRUCTURE
552 N 000137008204 SPRING WASHER
Repalced by: N 000137008212
552 N 000137008212 SPRING WASHER
BRAKE VALVE TO SUBSTRUCTURE
552 N 000137008212 SPRING WASHER
BRAKE VALVE TO SUBSTRUCTURE
554 N 304032008006 NUT
BRAKE VALVE TO SUBSTRUCTURE
554 N 304032008006 NUT
BRAKE VALVE TO SUBSTRUCTURE
556 N 003901012015 SCREW-IN FITTING
Repalced by: A 0029971572
556 A 0029971572 FITTING
TWO-CIRCUIT BRAKE VALVE
556 A 0029971572 FITTING
TWO-CIRCUIT BRAKE VALVE
556 A 0029971572 FITTING
TWO-CIRCUIT BRAKE VALVE
556 A 0029971572 FITTING
TWO-CIRCUIT BRAKE VALVE
558 N 900271015037 HOSE
Repalced by: A 0005461830
558 A 0005461830 INSULATING HOSE
558 A 4429870143 RUBBER SLEEVE
Repalced by: A 6319972982
558 A 6319972982 HOSE
Repalced by: A 6319974382
558 A 6319974382 HOSE
TWO-CIRCUIT BRAKE VALVE BLEEDING
1500 MM
558 A 6319974382 HOSE
TWO-CIRCUIT BRAKE VALVE BLEEDING
1500 MM
560 A 3219970281 GROMMET
Repalced by: A 3359970081
560 A 3359970081 GROMMET
TWO-CIRCUIT BRAKE VALVE BLEEDING
560 A 3359970081 GROMMET
TWO-CIRCUIT BRAKE VALVE BLEEDING
560 A 1169972481 GROMMET
Repalced by: A 1119971381
560 A 1119971381 GROMMET
562 A 0019978390 LOOM TIE
TWO-CIRCUIT BRAKE VALVE BLEEDING
280 MM
562 A 0019978390 LOOM TIE
TWO-CIRCUIT BRAKE VALVE BLEEDING
280 MM
564 A 0009970934 UNION SCREW
LINE CONNECTION TO TWO-CIRCUIT BRAKE VALVE
564 A 0009970934 UNION SCREW
LINE CONNECTION TO TWO-CIRCUIT BRAKE VALVE
566 A 0009940147 SEAL RING
LINE CONNECTION TO TWO-CIRCUIT BRAKE VALVE
566 A 0009940147 SEAL RING
LINE CONNECTION TO TWO-CIRCUIT BRAKE VALVE
568 A 0009941448 LOCK
LINE CONNECTION TO TWO-CIRCUIT BRAKE VALVE
568 A 0009941448 LOCK
LINE CONNECTION TO TWO-CIRCUIT BRAKE VALVE
570 A 4354200986 BRACKET
Repalced by: A 3521800440
570 A 3521800440 BRACKET
COVERING TO CAB
570 A 3521800440 BRACKET
COVERING TO CAB
572 A 0009971548 SEAL RING
TWO-CIRCUIT BRAKE VALVE
574 A 0004290927 THRUST RING
TWO-CIRCUIT BRAKE VALVE
576 N 080705016003 NUT
TWO-CIRCUIT BRAKE VALVE
578 N 074315012100 FITTING
Repalced by: A 0019903371
578 A 0019903371 ELBOW FITTING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
11.12
580 A 0009909470 T-FITTING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
21.22
582 A 0004312031 TEST CONNECTION
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
21.22
582 A 0004314531 TEST CONNECTION
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
21.22
584 A 4245200375 PANELLING
Repalced by: A 4245200037
584 A 4245200037 PROTECTIVE PLATE
584 A 4245200037 PROTECTIVE PLATE
586 A 4245240640 BRACKET
HEAT SHIELD TO SIDE MEMBER
586 A 4245240640 BRACKET
HEAT SHIELD TO SIDE MEMBER
588 N 000933006121 SCREW
Repalced by: N 304017006020
588 N 304017006020 SCREW
HEAT SHIELD TO SIDE MEMBER
588 N 304017006020 SCREW
HEAT SHIELD TO SIDE MEMBER
590 N 913004006002 NUT
Repalced by: N 913023006001
590 N 913023006001 NUT
HEAT SHIELD TO SIDE MEMBER
590 N 913023006001 NUT
HEAT SHIELD TO SIDE MEMBER
592 N 000125006421 WASHER
HEAT SHIELD TO SIDE MEMBER
Repalced by: N 000125006449
592 N 000125006449 WASHER
HEAT SHIELD TO SIDE MEMBER
592 N 009021006205 WASHER
Repalced by: N 009021006208
592 N 009021006208 WASHER
HEAT SHIELD TO SIDE MEMBER
594 A 4245240740 BRACKET
REAR
594 A 4245240740 BRACKET
REAR
596 A 1109910140 SPACER TUBE
Repalced by: A 4275510250
596 A 4275510250 BUSHING
BRACKET TO FRAME
596 A 4275510250 BUSHING
BRACKET TO FRAME
596 A 4243110256 SPACER TUBE
BRACKET TO FRAME
598 N 000960012197 SCREW
Repalced by: N 910105012016
598 N 910105012016 SCREW
BRACKET TO FRAME
598 N 910105012016 SCREW
BRACKET TO FRAME
600 N 308676012039 SCREW
BRACKET TO FRAME
602 N 913004012008 NUT
Repalced by: N 913023012003
602 N 913023012003 NUT
BRACKET TO FRAME
602 N 913023012003 NUT
BRACKET TO FRAME
604 N 000933008148 SCREW
Repalced by: N 304017008023
604 N 304017008023 SCREW
BRACKET TO FRAME
604 N 304017008023 SCREW
BRACKET TO FRAME
606 N 913004008004 NUT
Repalced by: N 913003008003
606 N 913003008003 PART NAME MISSING
Repalced by: N 913023008003
606 N 913023008003 NUT
Repalced by: N 913023008002
606 N 913023008002 NUT
BRACKET TO FRAME
606 N 913023008002 NUT
BRACKET TO FRAME
608 A 4065421140 BRACKET
Repalced by: A 4255241340
608 A 4255241340 BRACKET
Repalced by: A 3604280243
608 A 3604280243 ANGLE
LINE MOUNTING
A 4354263440 BRACKET
LINE MOUNTING
612 A 4354201086 BRACKET
614 N 074313012100 FITTING
Repalced by: A 0029971172
614 A 0029971172 FITTING
Repalced by: N 000000006191
614 N 000000006191 FITTING
616 N 080705018002 NUT
618 A 0019971289 COUPLING
618 A 0019971289 COUPLING
620 A 0009970934 UNION SCREW
620 A 0009970934 UNION SCREW
622 A 0009940147 SEAL RING
622 A 0009940147 SEAL RING
624 A 0009941448 LOCK
624 A 0009941448 LOCK
626 A 4354263240 BRACKET
Repalced by: A 3184923441
626 A 3184923441 BRACKET
PLASTIC LINE TO FIRE WALL
628 A 0009947145 LOCK
PLASTIC LINE TO FIRE WALL
630 N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
630 N 000000000460 SHEET METAL SCREW
PLASTIC LINE TO FIRE WALL
632 A 0034306501 BRAKE MASTER CYLINDER
Repalced by: A 0044302001
632 A 0044302001 BRAKE MASTER CYLINDER
PRE-LOAD CYLINDER
WABCO
632 A 0044302101 DIAPHRAGM CYLINDER
PRE-LOAD CYLINDER
WABCO
632 A 0044302101 DIAPHRAGM CYLINDER
PRE-LOAD CYLINDER
WABCO
634 A 0004317683 PISTON
Repalced by: A 0004318983
634 A 0004318983 PISTON
636 A 0014313260 SEAL RING
Repalced by: A 0014302060
636 A 0014302060 REPAIR KIT
A 0004317783 PISTON
636 A 0019971245 SEAL RING
TO 003 430 65 01
638 A 0109973345 SEAL RING
TO 003 430 65 01
640 A 0004232893 SPRING
642 A 0059974945 SEAL RING
TO 003 430 65 01
644 A 0004291884 SEAL RING
TO 003 430 65 01
646 A 0014302060 REPAIR KIT
TO 004 430 20 01,004 430 21 01
648 A 0009870446 O-RING
PRE-LOAD CYLINDER
"12"
648 A 0009870446 O-RING
PRE-LOAD CYLINDER
"12"
650 A 0004290227 THRUST RING
Repalced by: A 0009940203
650 A 0009940203 THRUST RING
PRE-LOAD CYLINDER
"12"
650 A 0009940203 THRUST RING
PRE-LOAD CYLINDER
"12"
652 N 080705022001 NUT
PRE-LOAD CYLINDER
"12"
652 N 080705022001 NUT
PRE-LOAD CYLINDER
"12"
654 A 0009907771 ELBOW FITTING
654 A 0009907771 ELBOW FITTING
LINE CONNECTION TO TWO-CIRCUIT BRAKE CYLINDER
656 A 0019907070 T-FITTING
LINE CONNECTION TO TWO-CIRCUIT BRAKE CYLINDER
656 A 0009909070 T-FITTING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11"
658 N 074313012100 FITTING
Repalced by: A 0029971172
658 A 0029971172 FITTING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
11
Repalced by: N 000000006191
658 N 000000006191 FITTING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
11
658 N 000000006191 FITTING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11"
658 N 000000006191 FITTING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
11
658 N 003952006102 FITTING
Repalced by: A 0019909871
658 A 0019909871 ELBOW FITTING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11"
658 A 0019909871 ELBOW FITTING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11"
660 A 0004290227 THRUST RING
Repalced by: A 0009940203
660 A 0009940203 THRUST RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
11
660 A 0009940203 THRUST RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
11
660 A 0009940203 THRUST RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
11
661 A 0009870446 O-RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
11
661 A 0009870446 O-RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
11
662 N 915039012201 HOLLOW SCREW FITTING
663 N 007603016401 SEAL RING
664 A 0019904670 T-FITTING
664 A 0019904670 T-FITTING
664 A 0019904670 T-FITTING
666 A 0004312031 TEST CONNECTION
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"21,22"
666 A 0004312031 TEST CONNECTION
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"21,22"
666 A 0004312031 TEST CONNECTION
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12"
666 A 0004314531 TEST CONNECTION
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"21,22"
666 A 0004314531 TEST CONNECTION
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"21,22"
666 A 0004314531 TEST CONNECTION
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12"
666 A 0004312531 TEST CONNECTION
666 A 0004312531 TEST CONNECTION
666 A 0004315331 TEST CONNECTION
666 A 0004315331 TEST CONNECTION
A 0009904670 T-FITTING
Repalced by: A 0029970772
667 A 0029970772 FITTING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
12
667 A 0029970772 FITTING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
12
668 N 915047012203 HOLLOW SCREW
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
669 N 007603016401 SEAL RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
670 N 080705022001 NUT
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
12
670 N 080705022001 NUT
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
12
670 N 080705022001 NUT
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
11
670 N 080705022001 NUT
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
12
670 N 080705022001 NUT
LINE CONNECTION TO TWO-CIRCUIT BRAKE CYLINDER
12
672 A 0004290227 THRUST RING
Repalced by: A 0009940203
672 A 0009940203 THRUST RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
12
672 A 0009940203 THRUST RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
12
672 A 0009940203 THRUST RING
LINE CONNECTION TO TWO-CIRCUIT BRAKE CYLINDER
12
674 A 0009870446 O-RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
12
674 A 0009870446 O-RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
12
674 A 0009870446 O-RING
LINE CONNECTION TO TWO-CIRCUIT BRAKE CYLINDER
12
676 A 0019902171 ELBOW FITTING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
12
676 A 0019902171 ELBOW FITTING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
12
677 N 003952006102 FITTING
Repalced by: A 0019909871
677 A 0019909871 ELBOW FITTING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"12"
677 A 0019909871 ELBOW FITTING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"12"
A 4244203286 BRACKET
678 N 003911006100 FITTING
Repalced by: A 0019904071
678 A 0019904071 ELBOW FITTING
679 N 080705012003 NUT
680 A 0004312031 TEST CONNECTION
680 A 0004314531 TEST CONNECTION
680 A 0004312531 TEST CONNECTION
680 A 0004312531 TEST CONNECTION
680 A 0004312531 TEST CONNECTION
680 A 0004312531 TEST CONNECTION
680 A 0004315331 TEST CONNECTION
680 A 0004315331 TEST CONNECTION
680 A 0004311231 TEST CONNECTION
TWO-CIRCUIT BRAKE CYLINDER
680 A 0004316631 TEST CONNECTION
TWO-CIRCUIT BRAKE CYLINDER
682 A 0029971372 FITTING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11"
684 N 007603022102 SEAL RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11"
A 4254310053 SPACER TUBE
TEST CONNECTION TO PRE-LOAD CYLINDER
688 N 304014008004 SCREW
Repalced by: N 304014008001
688 N 304014008001 SCREW
TEST CONNECTION TO TWO-CIRCUIT BRAKE CYLINDER
688 N 304014008001 SCREW
TEST CONNECTION TO TWO-CIRCUIT BRAKE CYLINDER
688 N 000931008251 SCREW
TEST CONNECTION TO TWO-CIRCUIT BRAKE CYLINDER
688 N 000931008251 SCREW
TEST CONNECTION TO TWO-CIRCUIT BRAKE CYLINDER
690 N 913004008004 NUT
Repalced by: N 913003008003
690 N 913003008003 PART NAME MISSING
Repalced by: N 913023008003
690 N 913023008003 NUT
Repalced by: N 913023008002
690 N 913023008002 NUT
TEST CONNECTION TO TWO-CIRCUIT BRAKE CYLINDER
690 N 913023008002 NUT
TEST CONNECTION TO TWO-CIRCUIT BRAKE CYLINDER
692 A 4406820082 TUBE
TEST CONNECTION TO PRE-LOAD CYLINDER
694 A 4244200486 BRACKET
TWO-CIRCUIT BRAKE CYLINDER
694 A 4244203686 BRACKET
TWO-CIRCUIT BRAKE CYLINDER
696 A 4354300311 CONSOLE
Repalced by: A 4354300411
696 A 4354300411 CONSOLE
698 N 000961012052 SCREW
Repalced by: N 910105012013
698 N 910105012013 SCREW
BRACKET TO FRAME
698 N 000961012151 SCREW
Repalced by: N 910105012007
698 N 910105012007 SCREW
700 N 913004012008 NUT
Repalced by: N 913023012003
700 N 913023012003 NUT
BRACKET TO FRAME
700 N 913023012003 NUT
BRACKET TO FRAME
701 N 000933010128 SCREW
Repalced by: N 910105010006
701 N 910105010006 SCREW
TWO-CIRCUIT BRAKE CYLINDER TO BRACKET
701 N 000961012079 SCREW
Repalced by: N 910105012011
701 N 910105012011 SCREW
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
701 N 000961012052 SCREW
Repalced by: N 910105012013
701 N 910105012013 SCREW
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
703 N 913004010008 NUT
Repalced by: N 913023010003
703 N 913023010003 NUT
TWO-CIRCUIT BRAKE CYLINDER TO BRACKET
703 N 913004012008 NUT
Repalced by: N 913023012003
703 N 913023012003 NUT
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
704 N 000933010105 SCREW
Repalced by: N 910105010009
704 N 910105010009 SCREW
705 N 000125010518 WASHER
Repalced by: N 000125010532
705 N 000125010532 WASHER
MASTER CYLINDER TO CONSOLE
706 N 913004010008 NUT
Repalced by: N 913023010003
706 N 913023010003 NUT
MASTER CYLINDER TO CONSOLE
707 A 4244200986 BRACKET
Repalced by: A 4244201786
707 A 4244201786 BRACKET
AIR RESERVOIR AND PRE-LOAD CYLINDER
708 N 910105012020 SCREW
BRAKE CYLINDER BRACKET & RESERVOIR TO FRAME
M 12X1.5X35
N 912004012100 LOCK WASHER
BRAKE CYLINDER BRACKET & RESERVOIR TO FRAME
709 N 910105012020 SCREW
AIR RESERVOIR BRACKET TO SIDE MEMBER
709 N 000961012151 SCREW
Repalced by: N 910105012007
709 N 910105012007 SCREW
AIR RESERVOIR BRACKET TO SIDE MEMBER
710 N 000961012164 SCREW
AIR RESERVOIR BRACKET TO SIDE MEMBER
711 N 913004012008 NUT
Repalced by: N 913023012003
711 N 913023012003 NUT
AIR RESERVOIR BRACKET TO SIDE MEMBER
712 N 900271012018 HOSE
PRE-LOAD CYLINDER
712 N 900271012018 HOSE
BLEEDING
712 N 900271012018 HOSE
BLEEDING
713 A 0034306101 BRAKE MASTER CYLINDER
Repalced by: A 0044301601
713 A 0044301601 BRAKE MASTER CYLINDER
Repalced by: A 0044306301
713 A 0044306301 BRAKE MASTER CYLINDER
TANDEM BRAKE MASTER CYLINDER
KUGELFISCHER
714 A 0015869843 REPAIR KIT
Repalced by: A 0004301683
714 A 0004301683 REPAIR KIT
Repalced by: A 0044308201
714 A 0044308201 REPAIR KIT
TO 004 430 63 01,004 430 16 01
714 A 0044308201 REPAIR KIT
TO 003 430 61 01
715 A 0014318902 RESERVOIR
Repalced by: A 0024312302
715 A 0024312302 RESERVOIR
Repalced by: A 0014318902
715 A 0014318902 RESERVOIR
0.28 L
715 A 0014318902 RESERVOIR
0.28 L
716 A 0014312002 RESERVOIR
Repalced by: A 0004316602
716 A 0004316602 RESERVOIR
Repalced by: A 0014319002
716 A 0014319002 RESERVOIR
0,13 L
716 A 0014319002 RESERVOIR
0,13 L
A 0014313402 RESERVOIR
Repalced by: A 0014319402
716 A 0014319402 RESERVOIR
RESERVOIR
716 A 0014319402 RESERVOIR
RESERVOIR
A 0014313302 RESERVOIR
Repalced by: A 0014319302
716 A 0014319302 RESERVOIR
RESERVOIR
716 A 0014319302 RESERVOIR
RESERVOIR
717 A 0004313433 FILLER CAP
TO 000 431 73 02
718 A 0004312634 STRAINER
TO 000 431 87 02,001 431 20 02
718 A 0004314634 STRAINER
TO 000 431 73 02
718 A 0004314334 STRAINER
TO 001 431 33 02,001 431 34 02
718 A 0004316134 STRAINER
718 A 0004312634 STRAINER
TO 001 431 89 02,001 431 90 02
718 A 0004314334 STRAINER
TO 001 431 93 02,001 431 94 02
719 A 0004316333 FILLER CAP
TO 002 431 23 02
719 A 0004312833 FILLER CAP
Repalced by: A 0004315533
719 A 0004315533 FILLER CAP
TO 000 431 87 02,001 431 20 02
719 A 0004314733 FILLER CAP
Repalced by: A 0004318733
719 A 0004318733 FILLER CAP
TO 001 431 33 02,001 431 34 02
719 A 0004316333 FILLER CAP
TO 001 431 89 02,001 431 90 02
T YYYYYYYYYYYY PART NAME MISSING
TO 001 431 93 02,001 431 94 02
720 A 0039976440 SEAL RING
42X21.5 MM
720 A 0039976440 SEAL RING
TO 004 431 93 02,001 431 94 02
T YYYYYYYYYYYY PART NAME MISSING
001 431 89 02,001 431 90 02
720 A 0009972940 SEAL RING
Repalced by: A 0049975340
720 A 0049975340 SEAL RING
Repalced by: A 0039976440
720 A 0039976440 SEAL RING
43.7X30 MM
722 A 0004319787 PROTECTIVE CAP
RESERVOIR
723 N 007603022102 SEAL RING
RESERVOIR TO MASTER CYLINDER
724 N 000933010164 SCREW
BRAKE MASTER CYLINDER TO TWO-CIRCUIT BRAKE CYLINDER
M 10X22
N 912004010102 LOCK WASHER
BRAKE MASTER CYLINDER TO TWO-CIRCUIT BRAKE CYLINDER
725 N 000933010105 SCREW
Repalced by: N 910105010009
725 N 910105010009 SCREW
726 N 913004010008 NUT
Repalced by: N 913023010003
726 N 913023010003 NUT
PRE-LOAD CYLINDER AND TANDEM MASTER CYLINDER
727 A 0004280830 CONNECTOR
BRAKE MASTER CYLINDER
728 A 0009901763 HOLLOW SCREW
BRAKE MASTER CYLINDER
729 N 007603012110 SEAL RING
BRAKE MASTER CYLINDER
730 N 007603014106 SEAL RING
BRAKE MASTER CYLINDER
A 0004280835 BRAKE HOSE
REAR THRUST TUBE
732 A 0014284035 BRAKE HOSE
Repalced by: A 0024284635
732 A 0024284635 BRAKE HOSE
REAR THRUST TUBE
A 0004283835 BRAKE HOSE
REAR THRUST TUBE
732 A 0014288735 BRAKE HOSE
Repalced by: A 0024282035
732 A 0024282035 BRAKE HOSE
Repalced by: A 0024285835
732 A 0024285835 BRAKE HOSE
REAR THRUST TUBE
A 0004287035 BRAKE HOSE
FRONT THRUST TUBE
TEVES
734 A 0014280735 BRAKE HOSE
Repalced by: A 0024284035
734 A 0024284035 BRAKE HOSE
Repalced by: A 0024285935
734 A 0024285935 BRAKE HOSE
FRONT THRUST TUBE
KUGELFISCHER
736 A 0004280473 BRACKET
Repalced by: A 6525040038
736 A 6525040038 MOUNTING PLATE
738 A 0004290437 DISTRIBUTOR
FRONT AND REAR AXLES
740 A 4064920143 CLAMP
DISTRIBUTOR
742 N 000933008152 SCREW
Repalced by: N 304017008027
742 N 304017008027 SCREW
DISTRIBUTOR TO BRACKET
744 N 913004008004 NUT
Repalced by: N 913003008003
744 N 913003008003 PART NAME MISSING
Repalced by: N 913023008003
744 N 913023008003 NUT
Repalced by: N 913023008002
744 N 913023008002 NUT
DISTRIBUTOR TO BRACKET
745 A 0004280032 SCREW PLUG
REAR AXLE
746 A 4426820086 BRACKET
EXPANSION PLUGS,GROMMETS
747 N 080705012003 NUT
EXPANSION PLUGS,GROMMETS
748 A 0009950368 CLAMP
PIPE LINE TO BRACKET
748 A 0009950368 CLAMP
HYDRAULIC BRAKE LINES
748 A 0009951032 CLAMP
PIPE LINE TO BRACKET
750 A 0004290540 BRACKET
LINE MOUNTING
750 A 0004290540 BRACKET
HYDRAULIC BRAKE LINES
752 A 6034280284 SHIM
LINE MOUNTING
752 A 6034280284 SHIM
HYDRAULIC BRAKE LINES
A 0015456214 SWITCH
Repalced by: A 4275400044
A 4275400044 SWITCH
SEE GROUP:
54
A 4275400044 SWITCH
SEE GROUP:
54
A 0055423217 SENDER UNIT
SEE GROUP:
54
A 4354290040 BRACKET
SEE GROUP:
54
N 000933006147 SCREW
SEE GROUP:
54
N 000933006183 SCREW
Repalced by: N 304017006016
N 304017006016 SCREW
SEE GROUP:
54
N 913004006002 NUT
Repalced by: N 913023006001
N 913023006001 NUT
SEE GROUP:
54
764 A 4254200886 BRACKET
LINE CONNECTIONS
766 A 4354200786 BRACKET
COMPRESSED AIR LINE TO ROCKER PANEL, LEFT
766 A 4354200786 BRACKET
COMPRESSED AIR LINE TO ROCKER PANEL, LEFT
768 N 304017008021 SCREW
BRACKET TO ENTRANCE
M 8X20
768 N 304017008021 SCREW
BRACKET TO ENTRANCE
M 8X20
768 N 304017008018 SCREW
DISTRIBUTOR TO BRACKET
M 8X35
770 N 913023008002 NUT
DISTRIBUTOR TO BRACKET
770 N 913023008002 NUT
BRACKET TO ENTRANCE
770 N 913023008002 NUT
BRACKET TO ENTRANCE
771 A 0009903372 DISTRIBUTOR
T-FITTING TO TRANSMISSION PLATE
772 A 0009970934 UNION SCREW
COMPRESSED AIR LINE TO DISTRIBUTOR
773 A 0009940147 SEAL RING
COMPRESSED AIR LINE TO DISTRIBUTOR
774 A 0009941448 LOCK
COMPRESSED AIR LINE TO DISTRIBUTOR
775 A 0004290227 THRUST RING
Repalced by: A 0009940203
775 A 0009940203 THRUST RING
COMPRESSED AIR LINE TO DISTRIBUTOR
776 A 0009870446 O-RING
COMPRESSED AIR LINE TO DISTRIBUTOR
777 A 0039972072 FITTING
COMPRESSED AIR LINE TO DISTRIBUTOR
778 A 4274260040 BRACKET
Repalced by: A 6205243040
778 A 6205243040 BRACKET
T-FITTING TO TRANSMISSION PLATE
779 N 000933008154 SCREW
Repalced by: N 304017008021
779 N 304017008021 SCREW
DISTRIBUTOR TO BRACKET
M 8X22
780 N 000961012052 SCREW
Repalced by: N 910105012013
780 N 910105012013 SCREW
BRACKET TO TRANSMISSION
M 12X1.5X25
781 N 913023008002 NUT
DISTRIBUTOR TO BRACKET
781 N 913023012003 NUT
BRACKET TO TRANSMISSION
782 A 3609900170 T-FITTING
DIFFERENTIAL-LOCK COMPRESSED AIR LINE THRU CAB
783 N 080705012003 NUT
DIFFERENTIAL-LOCK COMPRESSED AIR LINE THRU CAB
M 12X1.5
784 A 0014316005 BRAKE VALVE
Repalced by: A 0004312416
784 A 0004312416 VALVE
PARKING BRAKE VALVE
785 A 0004312316 VALVE
Repalced by: A 0004311916
785 A 0004311916 VALVE
PARKING BRAKE VALVE
WESTINGHOUSE
785 A 0004311916 VALVE
PARKING BRAKE VALVE
WESTINGHOUSE
786 A 0009971677 HANDLE
Repalced by: A 0004300127
786 A 0004300127 HANDLE
TO 000 431 23 16
786 A 0009972277 HANDLE
Repalced by: A 0009972777
786 A 0009972777 HANDLE
TO 000 431 19 16
786 A 0009972877 HANDLE
TO 000 431 23 16
787 A 0004312139 LEVER
Repalced by: A 0034302881
787 A 0034302881 REPAIR KIT
HAND BRAKE LEVER
TO 000 431 19 16
788 A 0009910855 PIN
TO 000 431 19 16
789 A 0014310386 CUP
TO 000 431 23 16
Repalced by: A 0014310586
789 A 0014310586 CUP
TO 000 431 23 16
789 A 0014310586 CUP
TO 000 431 19 16
790 A 0004311164 ACTUATING PART
TO 000 431 23 16
791 A 0004311122 COVER
TO 000 431 23 16
792 A 0009911501 PIN
TO 000 431 23 16
792 A 0009911601 PIN
TO 000 431 23 16
794 A 0009922905 BUSHING
TO 000 431 23 16
798 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
798 A 0034303181 REPAIR KIT
TO 000 431 19 16
798 A 0025869143 REPAIR KIT
TO 000 431 23 16
800 N 000933006103 SCREW
Repalced by: N 304017006018
800 N 304017006018 SCREW
HAND BRAKE VALVE
802 N 000933008130 SCREW
Repalced by: N 304017008039
802 N 304017008039 SCREW
HAND BRAKE VALVE
802 N 304017008039 SCREW
HAND BRAKE VALVE
804 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
804 N 915036010108 HOLLOW SCREW
LINE CONNECTION TO PARKING BRAKE VALVE,CONNECTION:
806 N 915035000006 SEAL RING
LINE CONNECTION TO PARKING BRAKE VALVE,CONNECTION:
808 N 915017006100 UNION NUT
TO PLUG FITTING
810 A 3209970286 PLUG
TO PLUG FITTING
812 A 6034280184 SHIM
LINE TO CROSS MEMBER
814 N 916017070000 CLAMP
Repalced by: N 000000000674
814 N 000000000674 CLAMP
LINE TO CROSS MEMBER
815 A 0004290444 VALVE
Repalced by: A 0034290744
815 A 0034290744 VALVE
(CHECK VALVE)
816 A 0004290088 VALVE SEAT RING
817 A 0004290049 BUSHING
818 N 000472020000 LOCK RING
819 A 0005865942 REPAIR KIT
CHECK VALVE
820 A 0029971372 FITTING
LINE CONNECTION TO CHECK VALVE, CONNECTION:
"10"
821 A 0009905168 FITTING
Repalced by: A 0049903068
821 A 0049903068 FITTING
LINE CONNECTION TO CHECK VALVE, CONNECTION:
"20"
822 A 0004290227 THRUST RING
Repalced by: A 0009940203
822 A 0009940203 THRUST RING
LINE CONNECTION TO CHECK VALVE, CONNECTION:
"10,20"
824 A 0009870446 O-RING
LINE CONNECTION TO CHECK VALVE, CONNECTION:
"10,20"
826 N 000125019009 WASHER
LINE CONNECTION TO CHECK VALVE, CONNECTION:
"10"
828 N 080705018002 NUT
LINE CONNECTION TO CHECK VALVE, CONNECTION:
"10"
830 N 915036012203 HOLLOW SCREW
LINE CONNECTION TO CHECK VALVE, CONNECTION:
"20"
832 N 007603016401 SEAL RING
LINE CONNECTION TO CHECK VALVE, CONNECTION:
"20"
834 N 074313010101 FITTING
LINE CONNECTION TO CHECK VALVE, CONNECTION:
"20"
836 N 003910012001 BULKHEAD FITTING
Repalced by: A 0029971672
836 N 074313012100 FITTING
Repalced by: A 0029971172
836 A 0029971172 FITTING
SHIFTING PLATE
Repalced by: N 000000006191
836 N 000000006191 FITTING
SHIFTING PLATE
838 A 4254310240 BRACKET
SHIFTING PLATE
838 A 4254310240 BRACKET
CHECK VALVE
840 A 4069905082 THREADED UNION
842 N 080705018002 NUT
844 A 0009903272 DISTRIBUTOR
CAB,BOTTOM
844 A 0009903272 DISTRIBUTOR
CAB,BOTTOM
846 A 4244263440 BRACKET
Repalced by: A 3874296740
846 A 3874296740 BRACKET
DISTRIBUTOR
847 A 0049978272 FITTING
DISTRIBUTOR
848 N 000931006118 SCREW
DISTRIBUTOR TO BRACKET
849 A 0004290227 THRUST RING
Repalced by: A 0009940203
849 A 0009940203 THRUST RING
DISTRIBUTOR
850 N 913004006002 NUT
Repalced by: N 913023006001
850 N 913023006001 NUT
DISTRIBUTOR TO BRACKET
851 A 0009870446 O-RING
DISTRIBUTOR
852 A 0009941248 LOCK
Repalced by: A 0009945448
852 A 0009945448 LOCK
DISTRIBUTOR
852 A 0009945448 LOCK
DISTRIBUTOR
852 A 0009941448 LOCK
DISTRIBUTOR
852 A 0009941448 LOCK
DISTRIBUTOR
854 A 0009970834 UNION SCREW
Repalced by: A 0009973734
854 A 0009973734 UNION SCREW
DISTRIBUTOR
854 A 0009973734 UNION SCREW
DISTRIBUTOR
856 A 0009970934 UNION SCREW
DISTRIBUTOR
856 A 0009970934 UNION SCREW
DISTRIBUTOR
858 N 000931006191 SCREW
860 N 913004006002 NUT
Repalced by: N 913023006001
860 N 913023006001 NUT
862 A 0009940047 SEAL RING
Repalced by: A 0009940747
862 A 0009940747 LOCK RING
DISTRIBUTOR
862 A 0009940747 LOCK RING
DISTRIBUTOR
862 A 0009940147 SEAL RING
DISTRIBUTOR
862 A 0009940147 SEAL RING
DISTRIBUTOR
864 A 0009977935 PLUG
CONNECTION:
"3,4"
864 A 0009977935 PLUG
CONNECTION:
"3,4"
864 A 0009977935 PLUG
DISTRIBUTOR
"3,4"
866 A 4255511540 BRACKET
Repalced by: A 3604292940
866 A 3604292940 BRACKET
866 A 3604292940 BRACKET
868 A 4064261140 BRACKET
Repalced by: A 4245240640
868 A 4245240640 BRACKET
868 A 4245240640 BRACKET
870 A 4044760236 BRACKET
Repalced by: A 6162950440
870 A 6162950440 BRACKET
870 A 6162950440 BRACKET
872 N 000933010105 SCREW
Repalced by: N 910105010009
872 N 910105010009 SCREW
872 N 910105010009 SCREW
BRACKET TO TRANSMISSION
874 N 913004010008 NUT
Repalced by: N 913023010003
874 N 913023010003 NUT
BRACKET TO TRANSMISSION
874 N 913023010003 NUT
BRACKET TO TRANSMISSION
876 N 916016015202 CLAMP
HOSE LINE TO BRACKET
876 N 916016015202 CLAMP
HOSE LINE TO BRACKET
878 N 000933006130 SCREW
Repalced by: N 304017006020
878 N 304017006020 SCREW
HOSE LINE TO BRACKET
878 N 304017006020 SCREW
HOSE LINE TO BRACKET
880 N 913004006002 NUT
Repalced by: N 913023006001
880 N 913023006001 NUT
HOSE LINE TO BRACKET
880 N 913023006001 NUT
HOSE LINE TO BRACKET
882 N 009021006205 WASHER
Repalced by: N 009021006208
882 N 009021006208 WASHER
HOSE LINE TO BRACKET
882 N 009021006208 WASHER
HOSE LINE TO BRACKET
884 A 0024282435 BRAKE HOSE
FROM DISTRIBUTOR,CONNECTION "22",TO TRANSMISSION 3/2-WAY VALVE,CONNECTION:
884 A 0024282435 BRAKE HOSE
FROM DISTRIBUTOR,CONNECTION "22",TO TRANSMISSION 3/2-WAY VALVE,CONNECTION:
885 A 0129971448 SEAL RING
Repalced by: A 6739970045
885 A 0129971448 SEAL RING
Repalced by: A 6739970045
885 A 0129971548 SEAL RING
Repalced by: A 6739970045
885 A 0129971548 SEAL RING
Repalced by: A 6739970045
885 A 6739970045 REPAIR KIT
Repalced by: A 0309971748
885 A 0309971748 REPAIR KIT
886 A 0019976936 VALVE
Repalced by: A 0029972636
886 A 0019976936 VALVE
Repalced by: A 0029972636
886 A 0029972636 VALVE
ALL-WHEEL DRIVE AND DIFFERENTIAL LOCK
888 A 0025860943 REPAIR KIT
TO 001 997 69 36,002 997 26 36
890 A 4252680242 KNOB
ALL-WHEEL DRIVE AND DIFFERENTIAL LOCK
TO 001 997 69 36,002 997 26 36
892 N 000936028000 NUT
Repalced by: A 3839900051
892 A 3839900051 NUT
ALL-WHEEL DRIVE AND DIFFERENTIAL LOCK
TO 001 997 69 36,002 997 26 36
894 N 003952006102 FITTING
Repalced by: A 0019909871
894 A 0019909871 ELBOW FITTING
896 A 0009906588 BANJO UNION
Repalced by: N 915052006002
896 N 915052006014 BANJO UNION
898 A 0009900678 CONNECTOR
Repalced by: A 0019909870
898 A 0019909870 T-FITTING
Repalced by: A 0009907990
898 A 0009907990 T-FITTING
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO DIFFERENTIAL LOCK VALVE
900 N 915052004015 BANJO UNION
VALVE-TRANSMISSION
902 N 915052006013 BANJO UNION
FROM T-FITTING TO TRANSMISSION SHIFT VALVE
904 N 915052006022 BANJO UNION
FROM T-FITTING TO DIFFERENTIAL LOCK VALVE
906 N 915036006202 HOLLOW SCREW
PIPE LINE TO CONTROL VALVE
908 N 007604010102 SCREW PLUG
Repalced by: N 007604010108
908 N 007604010108 SCREW PLUG
PIPE LINE TO CONTROL VALVE
910 N 007603010404 SEAL RING
PIPE LINE TO CONTROL VALVE
912 A 0039979072 FITTING
Repalced by: A 0029906071
912 A 0029906071 FITTING
LINE TO TRANSMISSION
914 N 003954006100 FITTING
Repalced by: A 0019900170
914 A 0019900170 T-FITTING
916 N 007603012405 SEAL RING
LINE TO TRANSMISSION
916 N 007603012104 SEAL RING
918 N 915036008202 HOLLOW SCREW
LINE TO TRANSMISSION
922 N 915059004001 FITTING
AT LINE DIFFERENTIAL LOCK
A 6034280184 SHIM
LINE TO THRUST TUBE REAR AXLE
924 A 3609950101 CLAMP
BRAKE LINE
926 N 007985006161 SCREW
Repalced by: N 007985006580
926 N 007985006580 SCREW
BRAKE LINE
926 N 000933006102 SCREW
BRAKE LINE
928 N 913004006002 NUT
Repalced by: N 913023006001
928 N 913023006001 NUT
BRAKE LINE
929 N 916017110001 CLAMP
Repalced by: A 0059971490
929 A 0059971490 HOSE CLAMP
Repalced by: A 0019951910
929 A 0019951910 CLAMP
930 N 000000000676 CLAMP
COMPRESSED AIR LINES TO FRONT AXLE THRUST TUBE
Repalced by: N 000000005890
930 N 000000005890 CLAMP
COMPRESSED AIR LINES TO FRONT AXLE THRUST TUBE
930 N 916017080000 CLAMP
Repalced by: N 000000000675
930 N 000000000675 CLAMP
Repalced by: A 0059972990
930 A 0059972990 CLAMP
82 - 105 X 15.8 MM
932 A 0004319412 BRAKE PRESSURE REGULATOR
Repalced by: A 0014317812
932 A 0014317812 BRAKE PRESSURE REGULATOR
934 A 0009933310 SPRING
Repalced by: A 0014316393
934 A 0014316393 SPRING
935 A 0014307360 GASKET KIT
TO 001 431 78 12
936 A 0025864343 REPAIR KIT
TO 000 431 94 12
937 A 4254263640 BRACKET
BRAKE POWER REGULATOR
938 A 4244200586 BRACKET
Repalced by: A 4244202886
938 A 1102910550 BUSHING
Repalced by: A 4254260053
938 A 4244202886 BRACKET
939 A 4254260053 SPACER TUBE
940 A 4244200281 LEVER
941 A 4244200181 LEVER
Repalced by: A 4244200381
941 A 4244200381 LEVER
Repalced by: A 4244200481
941 A 4244200481 LEVER
941 A 4244200381 LEVER
942 A 4254200681 LEVER
943 A 4254260053 SPACER TUBE
944 A 4254260005 BEARING
945 A 4254260050 BUSHING
946 N 000931008246 SCREW
Repalced by: N 304017008028
946 N 304017008028 SCREW
947 A 4254260250 BUSHING
948 N 071805013203 BALL SOCKET
949 N 071803013102 BALL PIVOT
Repalced by: N 000000004468
949 N 000000004468 BALL STUD
950 N 913004008004 NUT
Repalced by: N 913003008003
950 N 913003008003 PART NAME MISSING
Repalced by: N 913023008003
950 N 913023008003 NUT
Repalced by: N 913023008002
950 N 913023008002 NUT
951 N 071805013402 CIRCLIP
952 N 304032008006 NUT
953 N 900331008419 PULL ROD
954 N 304032008006 NUT
N 912004008102 LOCK WASHER
955 N 000931010294 SCREW
LEVER TO BRAKE PRESSURE REGULATOR BRACKET
956 N 913004010008 NUT
Repalced by: N 913023010003
956 N 913023010003 NUT
LEVER TO BRAKE PRESSURE REGULATOR BRACKET
957 A 0004310398 CONNECTOR
FEDER AN HEBEL UND REGLER
958 N 001444008210 PIN
FEDER AN HEBEL UND REGLER
959 N 007349008002 WASHER
FEDER AN HEBEL UND REGLER
960 N 000094002069 COTTER PIN
FEDER AN HEBEL UND REGLER
961 N 000933008212 SCREW
Repalced by: N 304017008016
961 N 304017008016 SCREW
BRAKE POWER REGULATOR TO FRAME
M 8X16
962 N 000137008204 SPRING WASHER
Repalced by: N 000137008212
962 N 000137008212 SPRING WASHER
BRAKE POWER REGULATOR TO FRAME
963 N 000933008154 SCREW
Repalced by: N 304017008021
963 N 304017008021 SCREW
BRACKET TO FRAME
M 8X22
N 912004008102 LOCK WASHER
BRACKET TO FRAME
965 N 000933010105 SCREW
Repalced by: N 910105010009
965 N 910105010009 SCREW
965 N 000933010145 SCREW
Repalced by: N 910105010007
965 N 910105010007 SCREW
Repalced by: N 000000000428
965 N 000000000428 HEXAGON HEAD BOLT
BRAKE POWER REGULATOR TO FRAME
966 N 913004010008 NUT
Repalced by: N 913023010003
966 N 913023010003 NUT
BRAKE POWER REGULATOR TO FRAME
967 A 4245840221 GUIDE SIGN
Repalced by: A 4245840421
967 A 4245840421 GUIDE SIGN
Repalced by: A 4245840721
A 4245840721 GUIDE SIGN
Repalced by: A 4245841121
A 4245841121 GUIDE SIGN
Repalced by: A 4245840538
967 A 4245840538 GUMMED LABEL
ADJUSTMENT OF AUTOMATIC LOAD-DEPENDING BRAKE
967 A 4245840438 GUMMED LABEL
ADJUSTMENT OF AUTOMATIC LOAD-DEPENDING BRAKE
968 A 0004283924 DISTRIBUTOR
BRAKE PRESSURE REGULATOR CONNECTION
969 N 007603012110 SEAL RING
BRAKE PRESSURE REGULATOR CONNECTION
970 N 915035000006 SEAL RING
BRAKE PRESSURE REGULATOR CONNECTION
971 A 0009901763 HOLLOW SCREW
BRAKE PRESSURE REGULATOR CONNECTION
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
