Transporto priemonė: U 1000 T; VIN numerio dalis: 424131

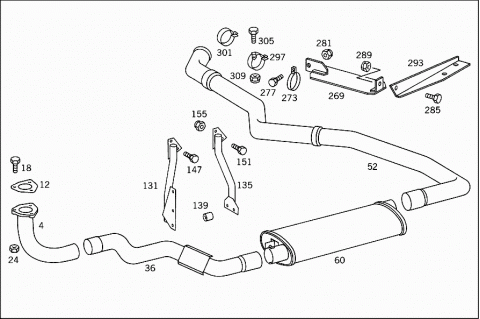

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 4244900119 | EXHAUST PIPE |
| FRONT | ||
| 004 | A 4244900319 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 4244900219 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 4244900619 | EXHAUST PIPE |
| Repalced by: A 4244900419 | ||
| 008 | A 4244900419 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 4244901019 | EXHAUST PIPE |
| FRONT | ||
| 012 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 012 | A 4424920280 | FLANGE GASKET |
| A 3024900080 | FLANGE GASKET | |
| Repalced by: A 4424920080 | ||
| A 4424920080 | FLANGE GASKET | |
| 018 | N 000931010264 | SCREW |
| Repalced by: N 910105010008 | ||
| 018 | N 910105010008 | SCREW |
| Repalced by: N 910143010000 | ||
| 018 | N 910143010000 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X45 | ||
| 018 | N 000931012051 | SCREW |
| Repalced by: N 304017012019 | ||
| 018 | N 304017012019 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X65 | ||
| 024 | N 999901010000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 024 | N 999901012000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 032 | A 4244920201 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 032 | A 4244920601 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| A 4244900519 | EXHAUST PIPE | |
| Repalced by: A 4244900819 | ||
| 032 | A 4244900819 | EXHAUST PIPE |
| CENTRAL | ||
| 032 | A 4244920706 | REAR EXHAUST PIPE |
| Repalced by: A 4244901219 | ||
| 036 | A 4244901219 | EXHAUST PIPE |
| CENTRAL | ||
| 036 | A 4244901319 | EXHAUST PIPE |
| CENTRAL | ||
| 040 | A 4244920301 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 040 | A 4244900919 | EXHAUST PIPE |
| CENTRAL | ||
| 044 | A 4244920006 | REAR EXHAUST PIPE |
| 044 | A 4244920006 | REAR EXHAUST PIPE |
| 048 | A 4244920806 | REAR EXHAUST PIPE |
| 052 | A 4254920106 | REAR EXHAUST PIPE |
| 056 | A 0004911099 | REAR MUFFLER |
| 056 | A 0004911099 | REAR MUFFLER |
| 060 | A 0004911299 | REAR MUFFLER |
| 060 | A 0004911099 | REAR MUFFLER |
| 064 | A 4254900101 | EXHAUST MUFFLER |
| 064 | A 4254900101 | EXHAUST MUFFLER |
| 064 | A 4244900001 | EXHAUST MUFFLER |
| 068 | A 0004910599 | REAR MUFFLER |
| GILLET | ||
| 072 | N 071555068502 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 076 | N 071555070501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 080 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 080 | N 910105010001 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO MUFFLER | ||
| 082 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 082 | N 304017008021 | SCREW |
| N 912004010102 | LOCK WASHER | |
| EXHAUST PIPE TO MUFFLER | ||
| 090 | N 912004008102 | LOCK WASHER |
| EXHAUST PIPE TO MUFFLER | ||
| 092 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 092 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 092 | N 913023010002 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 096 | N 304032008006 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 106 | A 4244910541 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 111 | A 4244910941 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 115 | A 4244911041 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 119 | A 4244910441 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 119 | A 4244910741 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 123 | A 4214293840 | BRACKET |
| 127 | A 4244910841 | BRACKET |
| 131 | A 4244900640 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 135 | A 4244900740 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 139 | A 4244910053 | SPACER TUBE |
| REAR EXHAUST MUFFLER | ||
| 143 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 143 | N 910105010009 | SCREW |
| 143 | N 910105010009 | SCREW |
| FRONT EXHAUST MUFFLER TO BRACKET | ||
| 147 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 147 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO FRAME | ||
| 147 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO FRAME | ||
| 151 | N 000933010145 | SCREW |
| Repalced by: N 910105010007 | ||
| 151 | N 910105010007 | SCREW |
| Repalced by: N 000000000428 | ||
| 151 | N 000000000428 | HEXAGON HEAD BOLT |
| BRACKET TO CONSOLE | ||
| 155 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 155 | N 913023010003 | NUT |
| BRACKET TO CONSOLE | ||
| 155 | N 913023010003 | NUT |
| BRACKET TO FRAME | ||
| N 912004010102 | LOCK WASHER | |
| FRONT EXHAUST MUFFLER TO BRACKET | ||
| N 912004010102 | LOCK WASHER | |
| MUFFLER TO BRACKET | ||
| 159 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 159 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 159 | N 913023010002 | NUT |
| FRONT EXHAUST MUFFLER TO BRACKET | ||
| 159 | N 913023010002 | NUT |
| MUFFLER TO BRACKET | ||
| A 4244920204 | REAR EXHAUST PIPE | |
| Repalced by: A 4244900021 | ||
| 163 | A 4244900021 | EXHAUST PIPE |
| REAR | ||
| 163 | A 4244920504 | REAR EXHAUST PIPE |
| 163 | A 4244920504 | REAR EXHAUST PIPE |
| REAR | ||
| 163 | A 4244920604 | REAR EXHAUST PIPE |
| REAR | ||
| 163 | A 4244920704 | REAR EXHAUST PIPE |
| 167 | A 4244920404 | REAR EXHAUST PIPE |
| N 912004012100 | LOCK WASHER | |
| REAR BRACKET TO FRAME | ||
| 171 | N 000933010129 | SCREW |
| 171 | N 910105010001 | HEXAGON HEAD BOLT |
| REAR EXHAUST PIPE | ||
| 171 | N 000961012052 | SCREW |
| Repalced by: N 910105012013 | ||
| 171 | N 910105012013 | SCREW |
| REAR BRACKET TO FRAME | ||
| 171 | N 000933012064 | SCREW |
| Repalced by: N 910105012002 | ||
| 171 | N 910105012002 | SCREW |
| REAR EXHAUST PIPE | ||
| 175 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 175 | N 913023010003 | NUT |
| REAR EXHAUST PIPE | ||
| 175 | N 000934012022 | NUT |
| REAR BRACKET TO FRAME | ||
| 175 | N 913002012004 | NUT |
| BRACKET TO FRAME | ||
| 175 | N 913002012004 | NUT |
| REAR EXHAUST PIPE | ||
| 179 | N 071555070501 | CLAMP |
| BRACKET TO FRAME | ||
| 179 | N 071555070501 | CLAMP |
| REAR EXHAUST PIPE | ||
| 187 | N 000933010164 | SCREW |
| MUFFLER TO BRACKET | ||
| 191 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 191 | N 304017008027 | SCREW |
| MUFFLER TO BRACKET | ||
| 191 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 191 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 191 | N 304017008034 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 195 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 195 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE TO BRACKET | ||
| 199 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 199 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 199 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 199 | N 913023008002 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 203 | A 4244920241 | BRACKET |
| LEFT | ||
| 207 | A 4244920341 | BRACKET |
| RIGHT | ||
| 211 | A 4244920141 | BRACKET |
| REAR | ||
| N 000933010105 | SCREW | |
| Repalced by: N 910105010009 | ||
| N 910105010009 | SCREW | |
| N 913004010008 | NUT | |
| Repalced by: N 913023010003 | ||
| N 913023010003 | NUT | |
| EXHAUST PIPE TO BRACKET | ||
| 213 | A 4244920441 | BRACKET |
| EXHAUST MUFFLER TO ROCKER PANEL | ||
| 215 | A 4245515640 | BRACKET |
| 217 | N 071555078502 | CLAMP |
| CENTRAL EXHAUST PIPE TO EXHAUST PIPE | ||
| 219 | A 4249950044 | CLAMP |
| EXHAUST MUFFLER TO ROCKER PANEL | ||
| 221 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 221 | N 910105010001 | HEXAGON HEAD BOLT |
| CENTRAL EXHAUST PIPE TO EXHAUST PIPE | ||
| N 912004010102 | LOCK WASHER | |
| CENTRAL EXHAUST PIPE TO EXHAUST PIPE | ||
| 225 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 225 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 225 | N 913023010002 | NUT |
| CENTRAL EXHAUST PIPE TO EXHAUST PIPE | ||
| 225 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 225 | N 913023010003 | NUT |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| A 4244920441 | BRACKET | |
| EXHAUST MUFFLER TO FRAME | ||
| 229 | A 4244920641 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 233 | A 4244920541 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 237 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 237 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO STEP | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO STEP | ||
| 241 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 241 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 241 | N 913023010002 | NUT |
| BRACKET TO STEP | ||
| 245 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 245 | N 910105010006 | SCREW |
| REAR EXHAUST MUFFLER TO BRACKET | ||
| N 912004010102 | LOCK WASHER | |
| REAR EXHAUST MUFFLER TO BRACKET | ||
| 249 | A 4065510254 | MOUNTING PLATE |
| REAR EXHAUST PIPE TO CROSS MEMBER | ||
| 253 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 253 | N 000000000674 | CLAMP |
| REAR EXHAUST PIPE TO CROSS MEMBER | ||
| 257 | N 071555078502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 257 | N 071555078502 | CLAMP |
| EXHAUST MUFFLER TO FRAME | ||
| 257 | N 071555078502 | CLAMP |
| EXHAUST MUFFLER AND EXHAUST PIPE TO FRONT BRACKET | ||
| 257 | N 071555078502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER AND TO BRACKET | ||
| 261 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 261 | N 910105010001 | HEXAGON HEAD BOLT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 261 | N 910105010001 | HEXAGON HEAD BOLT |
| EXHAUST MUFFLER AND EXHAUST PIPE TO FRONT BRACKET | ||
| 261 | N 910105010001 | HEXAGON HEAD BOLT |
| REAR EXHAUST PIPE TO MUFFLER AND TO BRACKET | ||
| N 912004010102 | LOCK WASHER | |
| REAR EXHAUST PIPE TO MUFFLER AND TO BRACKET | ||
| 265 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 265 | N 913023010003 | NUT |
| REAR EXHAUST PIPE TO MUFFLER AND TO BRACKET | ||
| 265 | N 913023010003 | NUT |
| EXHAUST MUFFLER AND EXHAUST PIPE TO FRONT BRACKET | ||
| 265 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 265 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 265 | N 913023010002 | NUT |
| REAR EXHAUST PIPE TO MUFFLER AND TO BRACKET | ||
| 269 | A 4244900240 | BRACKET |
| 273 | A 4249950044 | CLAMP |
| COVER PLATE,FRONT | ||
| 277 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 277 | N 910105010001 | HEXAGON HEAD BOLT |
| COVER PLATE,FRONT | ||
| 281 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 281 | N 913023010003 | NUT |
| COVER PLATE,FRONT | ||
| 285 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 285 | N 304017008021 | SCREW |
| REAR PROTECTIVE PLATE TO BRACKET | ||
| 289 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 289 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 289 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 289 | N 913023008002 | NUT |
| REAR PROTECTIVE PLATE TO BRACKET | ||
| 293 | A 4244912041 | BRACKET |
| TAIL PIPE TO SIDE MEMBER | ||
| 297 | A 4244900141 | CLAMP |
| TAIL PIPE TO AIR RESERVOIR | ||
| 301 | N 071555078502 | CLAMP |
| TAIL PIPE TO SIDE MEMBER | ||
| 301 | N 071555078502 | CLAMP |
| TAIL PIPE TO AIR RESERVOIR | ||
| 305 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 305 | N 910105010001 | HEXAGON HEAD BOLT |
| TAIL PIPE TO SIDE MEMBER | ||
| 305 | N 910105010001 | HEXAGON HEAD BOLT |
| TAIL PIPE TO AIR RESERVOIR | ||
| 309 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 309 | N 913023010003 | NUT |
| TAIL PIPE TO SIDE MEMBER | ||
| 309 | N 913023010003 | NUT |
| TAIL PIPE TO AIR RESERVOIR | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
