Transporto priemonė: U 1000 T; VIN numerio dalis: 424131

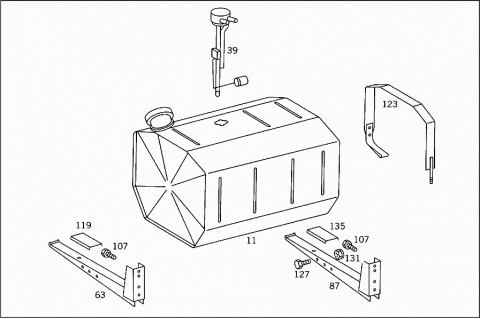

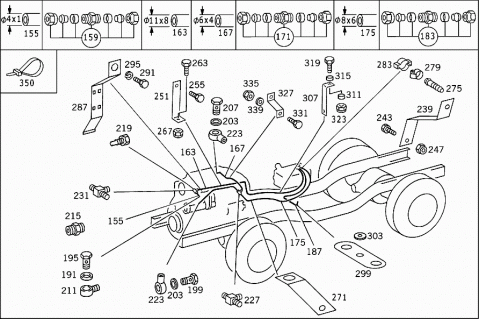

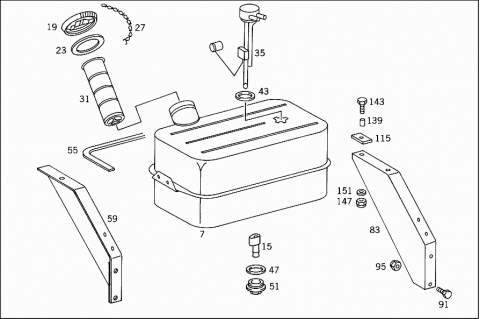

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 4064703301 | FUEL TANK |
| 011 | A 4244700001 | FUEL TANK |
| 015 | A 0004710235 | FUEL STRAINER |
| A 4114700105 | FILLER CAP | |
| Repalced by: A 3094700005 | ||
| A 3094700005 | FILLER CAP | |
| Repalced by: A 0004710530 | ||
| A 0004710530 | FILLER CAP | |
| Repalced by: A 4354700205 | ||
| 019 | A 4354700205 | FILLER CAP |
| Repalced by: A 0004700105 | ||
| 019 | A 0004700105 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 019 | A 0004700305 | FILLER CAP |
| 023 | A 4214710079 | SEAL RING |
| TO 411 470 01 05 | ||
| 023 | A 3099970040 | SEAL RING |
| Repalced by: A 3049970340 | ||
| 023 | A 3049970340 | SEAL RING |
| TO 309 470 00 05,435 470 02 05 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 027 | A 3034700031 | CHAIN |
| 031 | A 4354700006 | FUEL STRAINER |
| 035 | A 0035427017 | SENDER UNIT |
| Repalced by: A 0045428817 | ||
| 035 | A 0045428817 | SENDER UNIT |
| Repalced by: A 0095421617 | ||
| 035 | A 0095421617 | SENDER UNIT |
| SUPPLY | ||
| 039 | A 0045429817 | SENDER UNIT |
| Repalced by: A 0085423717 | ||
| 039 | A 0085423717 | SENDER UNIT |
| SUPPLY | ||
| 043 | A 0009975149 | GASKET |
| 047 | N 915035000006 | SEAL RING |
| FUEL TANK | ||
| 051 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 051 | N 007604014110 | SCREW PLUG |
| FUEL TANK | ||
| 055 | A 0009870772 | EDGE GUARD SECTION |
| 059 | A 4244700442 | SUPPORT |
| FRONT | ||
| 063 | A 4244700942 | SUPPORT |
| FRONT | ||
| 083 | A 4244700342 | SUPPORT |
| Repalced by: A 4244703142 | ||
| 083 | A 4244703142 | SUPPORT |
| Repalced by: A 4274700042 | ||
| 083 | A 4274700042 | SUPPORT |
| REAR | ||
| 083 | A 4244702742 | SUPPORT |
| REAR | ||
| 087 | A 4244701042 | SUPPORT |
| REAR | ||
| 091 | N 000961012190 | SCREW |
| Repalced by: N 910105012013 | ||
| 091 | N 910105012013 | SCREW |
| SUPPORT TO FRAME | ||
| 091 | N 308676014004 | SCREW |
| SUPPORT TO FRAME | ||
| M 14X1.5X25 | ||
| 095 | N 913004012009 | NUT |
| Repalced by: N 910113012005 | ||
| 095 | N 910113012005 | NUT |
| SUPPORT TO FRAME | ||
| 095 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 095 | N 910113014000 | NUT |
| SUPPORT TO FRAME | ||
| 107 | N 000961012025 | SCREW |
| FRONT AND REAR CONSOLES | ||
| N 912004012100 | LOCK WASHER | |
| FRONT AND REAR CONSOLES | ||
| A 4064750019 | BASE | |
| A 4244750019 | BASE | |
| FRONT SUPPORT | ||
| 115 | A 4069875060 | RUBBER PAD |
| 119 | A 3144750020 | PAD |
| 123 | A 4244700240 | STRAP |
| 127 | N 000931010331 | SCREW |
| Repalced by: N 910105010012 | ||
| 127 | N 910105010012 | SCREW |
| 131 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 131 | N 913023010003 | NUT |
| 135 | A 3634750320 | PAD |
| 139 | A 4064710153 | SPACER TUBE |
| 143 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 143 | N 304017008018 | SCREW |
| FUEL TANK | ||
| 147 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 147 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 147 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 147 | N 913023008002 | NUT |
| FUEL TANK | ||
| 151 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 151 | N 000125008443 | WASHER |
| FUEL TANK | ||
| 155 | A 0109975482 | HOSE |
| Repalced by: A 3359972282 | ||
| 155 | A 3359972282 | HOSE |
| FROM STARTER PILOT TO PUMP | ||
| 4X1 MM | ||
| 155 | A 3359972282 | HOSE |
| FROM STARTER PILOT TO INJECTION ENGINE | ||
| 4X1 MM | ||
| 159 | A 0049979572 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 163 | A 0089975482 | HOSE |
| 11 X 8 MM | ||
| 167 | A 0109977082 | HOSE |
| Repalced by: A 0089976082 | ||
| 167 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 167 | A 0009872627 | PLASTIC PIPE |
| 6X4 MM | ||
| 171 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 175 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 175 | A 0009872727 | PLASTIC PIPE |
| FUEL TANK BREATHING | ||
| 8 X 6 MM | ||
| 183 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 183 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 187 | A 3054760126 | HOSE |
| 60 MM | ||
| 191 | N 915035000006 | SEAL RING |
| LINE TO FEED PUMP | ||
| 195 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 195 | N 915036010108 | HOLLOW SCREW |
| LINE TO FEED PUMP | ||
| 199 | A 3149900163 | HOLLOW SCREW |
| Repalced by: A 6159900263 | ||
| 199 | A 6159900263 | HOLLOW SCREW |
| RETURN LINE AT THROTTLE FILTER | ||
| 203 | N 007603008100 | SEAL RING |
| RETURN LINE AT LEAK FUEL NOZZLES | ||
| 207 | N 915036005100 | HOLLOW SCREW |
| Repalced by: N 000000004895 | ||
| 207 | N 000000004895 | BANJO BOLT |
| RETURN LINE AT LEAK FUEL NOZZLES | ||
| 211 | N 915052008016 | BANJO UNION |
| Repalced by: N 000000000363 | ||
| 211 | N 000000000363 | BANJO UNION |
| 215 | A 0019975272 | FITTING |
| FROM FILTER TO T-FITTING | ||
| 219 | A 0004760124 | CONNECTOR |
| FROM FILTER TO T-FITTING | ||
| 223 | A 0009905288 | BANJO UNION |
| Repalced by: N 915052004004 | ||
| 223 | N 915052004025 | BANJO UNION |
| RETURN LINE | ||
| 227 | A 0009908170 | T-FITTING |
| Repalced by: A 0029901370 | ||
| 227 | A 0029901370 | T-FITTING |
| FROM PUMP TO T-FITTING | ||
| A 0009905888 | BANJO UNION | |
| Repalced by: N 915052006005 | ||
| N 915052006021 | BANJO UNION | |
| A 0009900678 | CONNECTOR | |
| Repalced by: A 0019909870 | ||
| 231 | A 0009908070 | T-FITTING |
| FROM FILTER TO T-FITTING | ||
| A 0029977172 | FITTING | |
| A 0009902072 | DISTRIBUTOR | |
| A 0009950168 | CLAMP | |
| Repalced by: A 0019978490 | ||
| 239 | A 4254760436 | BRACKET |
| 243 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 243 | N 304017006020 | SCREW |
| LINE TO BRACKET | ||
| 247 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 247 | N 913023006001 | NUT |
| LINE TO BRACKET | ||
| A 4254760336 | BRACKET | |
| Repalced by: A 4404760036 | ||
| 251 | A 4404760036 | BRACKET |
| FUEL LINES TO ENGINE | ||
| 255 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 255 | N 304017008016 | SCREW |
| BRACKET TO ENGINE | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO ENGINE | ||
| A 4245512340 | BRACKET | |
| 263 | N 000961012052 | SCREW |
| Repalced by: N 910105012013 | ||
| 263 | N 910105012013 | SCREW |
| RIGHT SIDE MEMBER,IMPLEMENT ATTACHMENT BORE | ||
| N 912004012100 | LOCK WASHER | |
| RIGHT SIDE MEMBER,IMPLEMENT ATTACHMENT BORE | ||
| 267 | N 913004012008 | NUT |
| Repalced by: N 913023012003 | ||
| 267 | N 913023012003 | NUT |
| RIGHT SIDE MEMBER,IMPLEMENT ATTACHMENT BORE | ||
| 271 | A 3354292440 | BRACKET |
| Repalced by: A 4255514740 | ||
| 271 | A 4064270241 | BRACKET |
| Repalced by: A 4255514740 | ||
| 271 | A 4255514740 | BRACKET |
| Repalced by: A 4044291240 | ||
| 271 | A 4044291240 | BRACKET |
| Repalced by: A 3524290740 | ||
| 271 | A 3524290740 | BRACKET |
| PIPE LINE TO ROCKER PANEL | ||
| N 304017010027 | HEXAGON HEAD BOLT | |
| N 913004010008 | NUT | |
| Repalced by: N 913023010003 | ||
| N 913023010003 | NUT | |
| A 4254260640 | BRACKET | |
| 275 | A 3879900078 | CONNECTOR |
| 275 | N 915062008000 | SLEEVE |
| 279 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 279 | N 000000000665 | CLAMP |
| FUEL LINE TO SENDER UNIT | ||
| 283 | A 0029978790 | CLIP |
| A 4244760436 | BRACKET | |
| FUEL LINE | ||
| A 0019978490 | LOOM TIE | |
| FUEL LINE | ||
| 287 | A 4244680040 | BRACKET |
| Repalced by: A 4244680140 | ||
| 287 | A 4244680140 | BRACKET |
| Repalced by: A 4244760536 | ||
| 287 | A 4244760536 | BRACKET |
| FUEL LINE | ||
| 291 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 291 | N 304017008016 | SCREW |
| BRACKET TO CYLINDER HEAD | ||
| 295 | N 912004008102 | LOCK WASHER |
| BRACKET TO CYLINDER HEAD | ||
| 299 | A 4254264540 | BRACKET |
| Repalced by: A 3434290940 | ||
| 299 | A 3434290940 | BRACKET |
| FUEL LINE | ||
| 303 | A 4249900040 | WASHER |
| FUEL LINE | ||
| 307 | A 4214290550 | BRACKET |
| Repalced by: A 3525422840 | ||
| 307 | A 3525422840 | BRACKET |
| AT FRAME | ||
| 311 | A 1109910140 | SPACER TUBE |
| Repalced by: A 4275510250 | ||
| 311 | A 4275510250 | BUSHING |
| BRACKET TO FRAME | ||
| 315 | A 4243110256 | SPACER TUBE |
| BRACKET TO FRAME | ||
| 319 | N 308676012039 | SCREW |
| BRACKET TO FRAME | ||
| 323 | N 913004012009 | NUT |
| Repalced by: N 910113012005 | ||
| 323 | N 910113012005 | NUT |
| BRACKET TO FRAME | ||
| 327 | A 4404760136 | BRACKET |
| PLASTIC PIPE | ||
| 331 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 331 | N 304017006016 | SCREW |
| BRACKET TO BRACKET | ||
| M6X16 | ||
| 335 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 335 | N 913023006001 | NUT |
| BRACKET TO BRACKET | ||
| 339 | A 4249900040 | WASHER |
| BRACKET TO BRACKET | ||
| 350 | A 0019978390 | LOOM TIE |
| FUEL TANK BREATHING | ||
| 350 | A 0019978490 | LOOM TIE |
