Transporto priemonė: U 1000 T; VIN numerio dalis: 424131

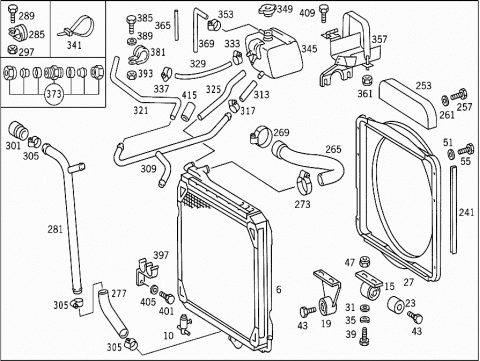

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 4245000103 | RADIATOR |
| Repalced by: A 4245000203 | ||
| 006 | A 4245000203 | RADIATOR |
| 006 | A 4255000703 | RADIATOR |
| Repalced by: A 4275010601 | ||
| 006 | A 4275010601 | RADIATOR |
| Repalced by: A 4275010401 | ||
| 006 | A 4275010401 | RADIATOR |
| N 071401014100 | DRAIN COCK | |
| 010 | N 071401014200 | DRAIN COCK |
| Repalced by: A 0009970136 | ||
| 010 | A 0009970136 | VALVE |
| 015 | A 4245000232 | STAY |
| LEFT | ||
| 015 | A 4255001432 | STAY |
| LEFT | ||
| 019 | A 4245000332 | STAY |
| RIGHT | ||
| 019 | A 4245000432 | STAY |
| RIGHT | ||
| 023 | A 0009888810 | RUBBER MOUNTING |
| 027 | A 4245000155 | FAN SHROUD |
| Repalced by: A 4245000255 | ||
| 027 | A 4245000255 | FAN SHROUD |
| 027 | A 4255000855 | FAN SHROUD |
| 031 | N 000433008406 | WASHER |
| 035 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 035 | N 000137008212 | SPRING WASHER |
| 039 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 039 | N 304017008021 | SCREW |
| BEARING TO AIR BAFFLE | ||
| 043 | N 000931010271 | SCREW |
| Repalced by: N 910105010003 | ||
| 043 | N 910105010003 | SCREW |
| RADIATOR BLOCK TO FRAME | ||
| 047 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 047 | N 913023010003 | NUT |
| RADIATOR BLOCK TO FRAME | ||
| 051 | N 000125006421 | WASHER |
| AIR BAFFLE TO RADIATOR | ||
| Repalced by: N 000125006449 | ||
| 051 | N 000125006449 | WASHER |
| AIR BAFFLE TO RADIATOR | ||
| 055 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 055 | N 304017006018 | SCREW |
| AIR BAFFLE TO RADIATOR | ||
| 059 | A 4255002363 | BEARING BODY |
| Repalced by: A 4255001763 | ||
| 059 | A 4255001763 | BEARING BODY |
| 063 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 063 | N 000137008212 | SPRING WASHER |
| 067 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 067 | N 000125008443 | WASHER |
| 071 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 071 | N 304017008039 | SCREW |
| BEARING TO AIR BAFFLE | ||
| 077 | A 4255010153 | SPACER TUBE |
| Repalced by: A 3199910540 | ||
| 077 | A 3199910540 | SPACER TUBE |
| 081 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 081 | N 009021010209 | WASHER |
| 085 | A 4255010481 | RUBBER PAD |
| 089 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 089 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 089 | N 913023010002 | NUT |
| 093 | N 900331010654 | PULL ROD |
| 097 | A 4245010148 | STAY |
| 101 | A 4255001563 | BEARING BODY |
| Repalced by: A 4255002463 | ||
| 101 | A 4255002463 | BEARING BODY |
| 101 | A 4255002163 | BEARING BODY |
| 105 | A 4255040145 | FLANGE |
| 109 | A 3522052806 | FAN |
| 113 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 113 | N 000137008212 | SPRING WASHER |
| FAN TO FAN BEARING | ||
| 117 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 117 | N 304017008039 | SCREW |
| FAN TO FAN BEARING | ||
| 121 | A 4255511379 | PULLEY |
| 125 | A 1161300160 | PULLEY |
| 129 | A 4255040066 | CAP |
| Repalced by: A 4255040166 | ||
| 129 | A 4255040166 | CAP |
| A 4255040250 | BUSHING | |
| Repalced by: A 4355040050 | ||
| 133 | A 4355040050 | SPACER RING |
| 133 | A 4355040050 | SPACER RING |
| 137 | A 0039979240 | SEAL RING |
| 137 | A 0039979240 | SEAL RING |
| 141 | A 4355010035 | COVER PLATE |
| 141 | A 4355010035 | COVER PLATE |
| 145 | N 000610014005 | FITTED SCREW |
| 149 | A 4259900114 | SCREW |
| BELT TIGHTENER PULLEY TO TIGHTENER PULLEY BRACKET | ||
| 153 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 153 | N 000125015019 | WASHER |
| 157 | N 000137014201 | SPRING WASHER |
| 161 | N 000439014212 | NUT |
| Repalced by: N 304035014000 | ||
| 161 | N 304035014000 | NUT |
| 165 | N 000439014203 | NUT |
| Repalced by: N 308675014001 | ||
| 165 | N 308675014001 | NUT |
| BELT TIGHTENER PULLEY TO TIGHTENER PULLEY BRACKET | ||
| Repalced by: N 308675014002 | ||
| 165 | N 308675014002 | HEXAGON NUT |
| BELT TIGHTENER PULLEY TO TIGHTENER PULLEY BRACKET | ||
| A 4255040514 | BEARING | |
| Repalced by: A 4355040014 | ||
| A 4355040014 | BEARING | |
| Repalced by: A 4365040014 | ||
| 169 | A 4365040014 | BEARING |
| 170 | A 1022360053 | SPACER TUBE |
| 173 | N 000472052000 | LOCK RING |
| 177 | A 0009817825 | BALL BEARING |
| 177 | A 0049811025 | BALL BEARING |
| 181 | A 0039979140 | SEAL RING |
| Repalced by: A 0059974240 | ||
| 181 | A 0059974240 | SEAL RING |
| 181 | A 0059974240 | SEAL RING |
| 185 | A 0029979940 | SEAL RING |
| 185 | A 0029979940 | SEAL RING |
| A 4255520012 | SHAFT | |
| Repalced by: A 4255522512 | ||
| 189 | A 4255522512 | SHAFT |
| 193 | A 0009888610 | RUBBER MOUNTING |
| A 4255001531 | BRACKET | |
| Repalced by: A 4255002331 | ||
| 197 | A 4255002331 | BRACKET |
| 197 | A 4255002331 | BRACKET |
| 201 | N 913004012009 | NUT |
| Repalced by: N 910113012005 | ||
| 201 | N 910113012005 | NUT |
| BRACKET TO INTERMEDIATE BEARING | ||
| 205 | N 006888005012 | WOODRUFF KEY |
| A 4255511579 | PULLEY | |
| Repalced by: A 4355510279 | ||
| A 4355510279 | PULLEY | |
| Repalced by: A 4355510379 | ||
| 209 | A 4355510379 | PULLEY |
| FRONT | ||
| A 4255511479 | PULLEY | |
| Repalced by: A 4355510179 | ||
| A 4355510179 | PULLEY | |
| Repalced by: A 4245510079 | ||
| 213 | A 4245510079 | PULLEY |
| REAR | ||
| 217 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 217 | N 000125015019 | WASHER |
| PULLEY TO INTERMEDIATE SHAFT | ||
| 221 | N 000439014212 | NUT |
| Repalced by: N 304035014000 | ||
| 221 | N 304035014000 | NUT |
| PULLEY TO INTERMEDIATE SHAFT | ||
| 221 | N 000439014203 | NUT |
| Repalced by: N 308675014001 | ||
| 221 | N 308675014001 | NUT |
| PULLEY TO INTERMEDIATE SHAFT | ||
| Repalced by: N 308675014002 | ||
| 221 | N 308675014002 | HEXAGON NUT |
| PULLEY TO INTERMEDIATE SHAFT | ||
| 225 | N 000931008266 | SCREW |
| INTERMEDIATE BEARING TO AIR BAFFLE | ||
| M 8X40 | ||
| 225 | N 000931008209 | SCREW |
| INTERMEDIATE BEARING TO AIR BAFFLE | ||
| M 8X95 | ||
| 233 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 233 | N 000137008212 | SPRING WASHER |
| INTERMEDIATE BEARING TO AIR BAFFLE | ||
| 237 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 237 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 237 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 237 | N 913023008002 | NUT |
| INTERMEDIATE BEARING TO AIR BAFFLE | ||
| 241 | A 4257270079 | EDGING |
| Repalced by: A 4257510535 | ||
| 241 | A 4259870072 | EDGE GUARD SECTION |
| Repalced by: A 4257510535 | ||
| 241 | A 4257510535 | RAIL |
| Repalced by: A 0019872272 | ||
| 241 | A 0019872272 | EDGE GUARD SECTION |
| LUFTLEITBLECH | ||
| 245 | A 0049973492 | V-BELT |
| N 007753012522 | NARROW V-BELT | |
| Repalced by: A 0039973092 | ||
| A 0039973092 | V-BELT | |
| Repalced by: A 0059972592 | ||
| A 0059972592 | V-BELT | |
| Repalced by: A 0059972792 | ||
| 245 | A 0059972792 | V-BELT |
| 12,5X1550 | ||
| 245 | A 0059972792 | V-BELT |
| 12,5X1550 | ||
| 245 | A 0049976192 | V-BELT |
| Repalced by: A 0149979992 | ||
| 245 | A 0149979992 | V-BELT |
| 1625 MM | ||
| A 0069977392 | V-BELT | |
| Repalced by: A 0049976992 | ||
| 249 | A 0049976992 | V-BELT |
| 1125 MM | ||
| 253 | A 4255051024 | COVER PLATE |
| 257 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 257 | N 304017006018 | SCREW |
| 261 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 261 | N 009021006208 | WASHER |
| 265 | A 4249870443 | RUBBER SLEEVE |
| FROM THERMOSTAT TO RADIATOR | ||
| A 4249870443 | RUBBER SLEEVE | |
| Repalced by: A 4259870443 | ||
| 265 | A 4259870443 | RUBBER SLEEVE |
| 269 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 269 | N 000000000671 | CLAMP |
| COOLING WATER HOSE TO THERMOSTAT | ||
| 273 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 273 | N 000000000670 | CLAMP |
| COOLING WATER HOSE TO RADIATOR | ||
| N 900271038025 | HOSE | |
| Repalced by: A 4255010056 | ||
| 277 | A 4255010056 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| 38 X 46 MM | ||
| A 4255000272 | LINE | |
| Repalced by: A 4255000572 | ||
| 281 | A 4255000572 | LINE |
| RETURN | ||
| 285 | A 4259950101 | CLAMP |
| CONNECTION OF RADIATOR RETURN LINE AND STEERING SUCTION LINE | ||
| 285 | A 3609950701 | CLAMP |
| CONNECTION OF RADIATOR RETURN LINE AND STEERING SUCTION LINE | ||
| 289 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 289 | N 304017006020 | SCREW |
| CONNECTION OF RADIATOR RETURN LINE AND STEERING SUCTION LINE | ||
| N 912004006102 | LOCK WASHER | |
| CONNECTION OF RADIATOR RETURN LINE AND STEERING SUCTION LINE | ||
| 297 | N 000934006007 | NUT |
| CONNECTION OF RADIATOR RETURN LINE AND STEERING SUCTION LINE | ||
| 301 | A 4069875743 | RUBBER SLEEVE |
| RETURN LINE AT WATER PUMP | ||
| 305 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 305 | N 000000000671 | CLAMP |
| 309 | A 4255000172 | LINE |
| 313 | N 900271018036 | HOSE |
| RETURN | ||
| 18X25 MM | ||
| 313 | N 900271018036 | HOSE |
| FROM PIPE LINE TO EXPANSION TANK | ||
| 18X25 MM | ||
| 317 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 317 | N 000000000666 | CLAMP |
| 321 | A 0005062934 | HOSE |
| HEATING RETURN | ||
| 325 | N 900271012018 | HOSE |
| FROM RADIATOR TO WATER EXPANSION TANK | ||
| 12X21 MM | ||
| 325 | A 4255060435 | HOSE |
| FROM RADIATOR TO WATER EXPANSION TANK | ||
| 329 | A 4069976182 | HOSE |
| FROM WATER EXPANSION TANK TO THERMOSTAT | ||
| 329 | A 4259970282 | HOSE |
| Repalced by: A 4069976882 | ||
| 329 | A 4069976882 | HOSE |
| FROM WATER EXPANSION TANK TO THERMOSTAT | ||
| 329 | A 4069976882 | HOSE |
| FROM WATER EXPANSION TANK TO THERMOSTAT | ||
| 333 | N 900288010001 | CLAMP |
| 337 | N 000000000665 | CLAMP |
| FROM WATER EXPANSION TANK TO THERMOSTAT | ||
| 337 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 337 | N 000000000665 | CLAMP |
| FROM WATER EXPANSION TANK TO THERMOSTAT | ||
| 337 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 337 | N 000000000666 | CLAMP |
| FROM RADIATOR TO WATER EXPANSION TANK | ||
| 341 | A 0019979590 | LOOM TIE |
| Repalced by: A 0019978390 | ||
| 341 | A 0019978390 | LOOM TIE |
| 345 | A 4255000249 | TANK |
| Repalced by: A 4255000349 | ||
| 345 | A 4255000349 | TANK |
| COOLING WATER EXPANSION | ||
| 349 | A 0005012815 | RADIATOR CAP |
| Repalced by: A 0005015715 | ||
| 349 | A 0005015715 | RADIATOR CAP |
| 353 | A 4355050089 | CLAMP |
| Repalced by: N 916026040000 | ||
| 353 | N 916026040000 | CLAMP |
| Repalced by: A 0069974390 | ||
| 353 | A 0069974390 | LOOM TIE |
| EXPANSION TANK | ||
| 357 | A 4255001931 | BRACKET |
| AT WATER EXPANSION TANK | ||
| 357 | A 4255002531 | BRACKET |
| AT WATER EXPANSION TANK | ||
| 357 | A 4255002531 | BRACKET |
| AT WATER EXPANSION TANK | ||
| 361 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 361 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 361 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 361 | N 913023008002 | NUT |
| 365 | A 0004352082 | HOSE |
| Repalced by: A 4609970882 | ||
| 365 | A 4609970882 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| 50 MM | ||
| 369 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 369 | A 0009872727 | PLASTIC PIPE |
| OVERFLOW, EXPANSION TANK | ||
| 1260 MM | ||
| 373 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 373 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 381 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 381 | N 000000000319 | CLAMP |
| OVERFLOW LINE TO RADIATOR | ||
| 385 | N 000933006102 | SCREW |
| HOSE TO CLAMP | ||
| TO 425 506 00 40 | ||
| 389 | N 000125006421 | WASHER |
| OVERFLOW LINE TO RADIATOR | ||
| Repalced by: N 000125006449 | ||
| 389 | N 000125006449 | WASHER |
| OVERFLOW LINE TO RADIATOR | ||
| 389 | N 000125006449 | WASHER |
| HOSE TO CLAMP | ||
| TO 425 506 00 40 | ||
| N 912004006102 | LOCK WASHER | |
| HOSE TO CLAMP | ||
| TO 425 506 00 40 | ||
| 393 | N 000934006007 | NUT |
| OVERFLOW LINE TO RADIATOR | ||
| 397 | A 4255060040 | BRACKET |
| HOSE | ||
| A 4255060340 | BRACKET | |
| Repalced by: A 4255060040 | ||
| 401 | N 000931008220 | SCREW |
| Repalced by: N 304017008067 | ||
| 401 | N 304017008067 | SCREW |
| EXPANSION TANK BRACKET TO CYLINDER HEAD COVER | ||
| 405 | N 007603008403 | SEAL RING |
| EXPANSION TANK BRACKET TO CYLINDER HEAD COVER | ||
| 409 | N 000931010334 | SCREW |
| Repalced by: N 910105010002 | ||
| 409 | N 910105010002 | SCREW |
| EXPANSION TANK BRACKET TO EXHAUST MANIFOLD | ||
| 415 | A 4255060240 | BRACKET |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
