Transporto priemonė: U 1000 T; VIN numerio dalis: 424131

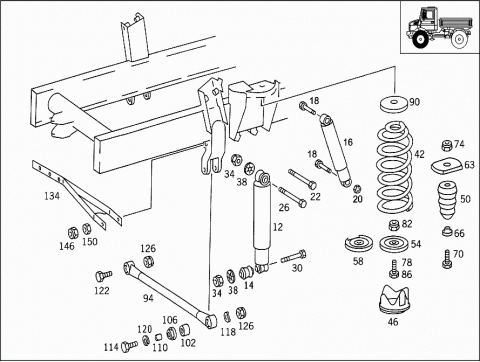

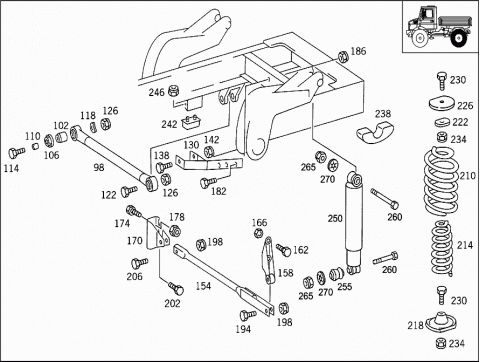

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 012 | A 0033232400 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 012 | A 0033234000 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 012 | A 0043232600 | SHOCK ABSORBER |
| 012 | A 0043232700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 012 | A 0043232600 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 012 | A 0043232700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 014 | A 0003235285 | RUBBER MOUNTING |
| TO 004 323 26 00 | ||
| 014 | A 0009889110 | RUBBER MOUNTING |
| TO 004 323 27 00 | ||
| 014 | A 0003235285 | RUBBER MOUNTING |
| TO 004 323 26 00 | ||
| 014 | A 0009889110 | RUBBER MOUNTING |
| TO 004 323 27 00 | ||
| 016 | A 0033235200 | SHOCK ABSORBER |
| CAB TILTING BEARING | ||
| 018 | N 000961014114 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| M 14X1.5X85 | ||
| 018 | N 910105014009 | HEXAGON HEAD BOLT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 020 | N 913023014004 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 022 | N 308765020012 | SCREW |
| FRONT SHOCK ABSORBERS TO FRAME | ||
| 026 | N 000960020037 | SCREW |
| SHOCK ABSORBER TO FRAME | ||
| 030 | N 308765020012 | HEXAGON HEAD BOLT |
| SHOCK ABSORBER TO FRONT AXLE | ||
| 034 | N 913023020001 | NUT |
| SHOCK ABSORBER TO FRAME | ||
| 034 | N 913023020001 | NUT |
| FRONT SHOCK ABSORBERS TO FRAME | ||
| 038 | N 007349021001 | WASHER |
| SHOCK ABSORBER TO FRAME | ||
| 042 | A 4243210204 | FRONT SPRING |
| Repalced by: A 4243210404 | ||
| 042 | A 4243210404 | FRONT SPRING |
| 046 | A 4243220815 | SPRING CASE |
| 050 | A 0003210006 | HELPER SPRING |
| 054 | A 4243220024 | PLATE |
| FRONT SPRING TO SPRING BRACKET | ||
| 058 | A 4243250026 | PLATE |
| 058 | A 4243250026 | PLATE |
| 063 | A 4243220315 | SPRING CASE |
| FRONT | ||
| 066 | A 4243210008 | SPRING SLEEVE |
| 070 | N 000961014121 | SCREW |
| Repalced by: N 308676014016 | ||
| 070 | N 308676014002 | SCREW |
| Repalced by: N 308676014002 | ||
| 070 | N 308676014002 | SCREW |
| 074 | N 913004014002 | NUT |
| Repalced by: N 913023014004 | ||
| 074 | N 913023014004 | NUT |
| 078 | N 000960014249 | SCREW |
| FRONT SPRING TO SPRING BRACKET | ||
| 082 | N 913004014002 | NUT |
| Repalced by: N 913023014004 | ||
| 082 | N 913023014004 | NUT |
| FRONT SPRING TO SPRING BRACKET | ||
| 086 | N 000961014050 | SCREW |
| Repalced by: N 910105014013 | ||
| 086 | N 910105014013 | SCREW |
| PLATE TO AXLE | ||
| 090 | A 4243210036 | SPACER |
| 094 | A 4243300507 | TRANSVERSE CONTROL ARM |
| Repalced by: A 4243300707 | ||
| 094 | A 4243300707 | TRANSVERSE CONTROL ARM |
| FRONT | ||
| 098 | A 4243300307 | TRANSVERSE CONTROL ARM |
| Repalced by: A 4243300607 | ||
| 098 | A 4243300607 | TRANSVERSE CONTROL ARM |
| REAR | ||
| 102 | A 0009884010 | RUBBER MOUNTING |
| Repalced by: A 0019880510 | ||
| 102 | A 0019880510 | RUBBER MOUNTING |
| FRONT | ||
| 102 | A 0019880510 | RUBBER MOUNTING |
| REAR | ||
| 106 | A 4063330112 | BUSHING |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 110 | A 4063330212 | BUSHING |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 114 | A 4069905155 | SCREW |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 114 | N 914125014209 | SCREW |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 118 | A 0009941651 | LOCK |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 120 | A 4409900047 | LOCK WASHER |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 122 | N 000961014114 | SCREW |
| CONTROL ARM TO FRAME | ||
| M 14X1.5X85 | ||
| 122 | N 000960014248 | SCREW |
| Repalced by: N 910105014018 | ||
| 122 | N 910105014018 | SCREW |
| CONTROL ARM TO FRAME | ||
| 126 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 126 | N 910113014000 | NUT |
| CONTROL ARM TO FRAME | ||
| 130 | A 4243100453 | STRUT |
| CROSS MEMBER BRACING | ||
| 134 | A 4243300030 | GUIDE ROD |
| CROSS MEMBER BRACING | ||
| 138 | N 000960014160 | SCREW |
| 142 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 142 | N 910113014000 | NUT |
| CROSS MEMBER BRACING TO FRAME | ||
| 146 | N 913004020003 | NUT |
| CROSS MEMBER BRACING TO FRAME | ||
| 150 | N 000934020014 | NUT |
| Repalced by: N 913023020000 | ||
| 150 | N 913023020000 | NUT |
| Repalced by: N 913023020001 | ||
| 150 | N 913023020001 | NUT |
| CROSS MEMBER BRACING TO FRAME | ||
| 154 | A 4243301007 | TRANSVERSE CONTROL ARM |
| Repalced by: A 4243301107 | ||
| 154 | A 4243301107 | TRANSVERSE CONTROL ARM |
| CROSS MEMBER BRACING | ||
| 158 | A 4243220035 | COVER |
| 162 | N 000961012094 | SCREW |
| Repalced by: N 910105012007 | ||
| 162 | N 910105012007 | SCREW |
| CONTROL ARM BRACING TO CONTROL ARM BRACKET | ||
| 166 | N 913004012009 | NUT |
| Repalced by: N 910113012005 | ||
| 166 | N 910113012005 | NUT |
| CONTROL ARM BRACING TO CONTROL ARM BRACKET | ||
| 170 | A 4243211140 | BRACKET |
| BRACKET TO CONTROL ARM BRACKET | ||
| 174 | N 000961012151 | SCREW |
| Repalced by: N 910105012007 | ||
| 174 | N 910105012007 | SCREW |
| BRACKET TO CONTROL ARM BRACKET | ||
| 178 | N 913004012009 | NUT |
| Repalced by: N 910113012005 | ||
| 178 | N 910113012005 | NUT |
| BRACKET TO CONTROL ARM BRACKET | ||
| 182 | N 914140012000 | SCREW |
| Repalced by: N 914140012024 | ||
| 182 | N 914140012024 | SCREW |
| CONTROL ARM BRACING TO CONTROL ARM CROSS MEMBER | ||
| 186 | N 913019012000 | NUT |
| CONTROL ARM BRACING TO CONTROL ARM CROSS MEMBER | ||
| A 4243320421 | PLATE | |
| Repalced by: A 4243330184 | ||
| A 4243330184 | SHIM | |
| CONTROL ARM BRACING TO CONTROL ARM BRACKET | ||
| 1 MM DICK | ||
| A 4243330284 | SHIM | |
| Repalced by: A 4243330184 | ||
| A 4243330184 | SHIM | |
| CONTROL ARM BRACING TO CONTROL ARM BRACKET | ||
| 2 MM DICK | ||
| 194 | N 000961014160 | SCREW |
| CONTROL ARM BRACING TO CONTROL ARM BRACKET | ||
| 194 | N 000960014103 | SCREW |
| CONTROL ARM BRACING TO CONTROL ARM BRACKET | ||
| 198 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 198 | N 910113014000 | NUT |
| BEARING BRACKET TO CONTROL ARM BRACING | ||
| 198 | N 910113014000 | HEXAGON NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 198 | N 910113014000 | HEXAGON NUT |
| CONTROL ARM BRACING TO CONTROL ARM BRACKET | ||
| 202 | N 000960014126 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 206 | N 000960014229 | SCREW |
| Repalced by: N 910105014008 | ||
| 206 | N 910105014008 | SCREW |
| BEARING BRACKET TO CONTROL ARM BRACING | ||
| 206 | N 910105014008 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 210 | A 4243240004 | REAR SPRING |
| 210 | A 4243240104 | REAR SPRING |
| 210 | A 4243240104 | REAR SPRING |
| 214 | A 4243240007 | HELPER SPRING |
| 218 | A 4243250015 | SPRING CASE |
| REAR SPRING TO SPRING BRACKET | ||
| 222 | A 4243250126 | PLATE |
| REAR | ||
| 226 | A 4243250026 | PLATE |
| HELPER SPRING | ||
| 230 | N 000961014044 | SCREW |
| 230 | N 000960014249 | SCREW |
| 230 | N 000960014249 | SCREW |
| 234 | N 913004014002 | NUT |
| Repalced by: N 913023014004 | ||
| 234 | N 913023014004 | NUT |
| 234 | N 913023014004 | NUT |
| 234 | N 913023014004 | NUT |
| 238 | A 4063220044 | RUBBER BUFFER |
| REAR SPRING TO SPRING BRACKET | ||
| 242 | A 4243250044 | RUBBER BUFFER |
| REAR SPRING TO SPRING BRACKET | ||
| 246 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 246 | N 913023010003 | NUT |
| RUBBER BUFFER TO FRAME | ||
| 250 | A 0033232400 | SHOCK ABSORBER |
| REAR AXLE | ||
| 250 | A 0033234000 | SHOCK ABSORBER |
| REAR AXLE | ||
| 250 | A 0043232600 | SHOCK ABSORBER |
| REAR AXLE | ||
| 250 | A 0043232700 | SHOCK ABSORBER |
| REAR AXLE | ||
| 250 | A 0043232600 | SHOCK ABSORBER |
| REAR AXLE | ||
| 250 | A 0043232700 | SHOCK ABSORBER |
| REAR AXLE | ||
| 255 | A 0003235285 | RUBBER MOUNTING |
| TO 004 323 26 00 | ||
| 255 | A 0009889110 | RUBBER MOUNTING |
| TO 004 323 27 00 | ||
| 255 | A 0003235285 | RUBBER MOUNTING |
| TO 004 323 26 00 | ||
| 255 | A 0009889110 | RUBBER MOUNTING |
| TO 004 323 27 00 | ||
| 260 | N 308765020012 | HEXAGON HEAD BOLT |
| SHOCK ABSORBER TO REAR AXLE | ||
| 265 | N 913023020001 | NUT |
| SHOCK ABSORBER TO REAR AXLE | ||
| 270 | N 007349021001 | WASHER |
| SHOCK ABSORBER TO REAR AXLE | ||
