Transporto priemonė: U 1000 T; VIN numerio dalis: 424131
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

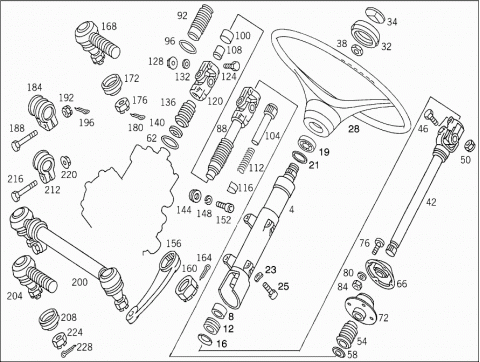

| 004 | A 4254600231 | STEERING COLUMN BRACKET |
| 008 | A 3214620165 | RING |
| TO 425 460 02 31 | ||
| 012 | A 3214621150 | BUSHING |
| TO 425 460 02 31 | ||
| 016 | A 3224620023 | COVER |
| TO 425 460 02 31 | ||
| 019 | A 6739810020 | BALL BEARING |
| TO 425 460 02 31 | ||
| 021 | A 3814620075 | WASHER |
| TO 425 460 02 31 | ||
| 023 | N 000137008212 | SPRING WASHER |
| 025 | N 000000000190 | SCREW |
| 028 | A 4254640101 | STEERING WHEEL |
| Repalced by: A 4254640201 | ||
| 028 | A 4254640201 | STEERING WHEEL |
| 032 | A 0004640131 | CAP |
| Repalced by: A 0004641231 | ||
| 032 | A 0004641231 | CAP |
| Repalced by: A 0004642631 | ||
| 032 | A 0004642631 | CAP |
| TO 425 464 01 01 | ||
| 034 | A 0004640432 | BADGE |
| 038 | N 000439022200 | NUT |
| STEERING WHEEL TO STEERING COLUMN BRACKET | ||
| 042 | A 4254600109 | STEERING SHAFT |
| 046 | A 3819900114 | SCREW |
| STEERING JOINT | ||
| M 8X42 | ||
| 050 | N 910113008001 | NUT |
| STEERING JOINT | ||
| 054 | A 4254620196 | BOOT |
| Repalced by: A 4254620496 | ||
| 054 | A 4254620496 | BOOT |
| Repalced by: A 4374620296 | ||
| 054 | A 4374620296 | BOOT |
| SEALING OF UNIVERSAL JOINT & STEERING | ||
| 058 | A 4254620075 | WASHER |
| SEALING OF UNIVERSAL JOINT & STEERING | ||
| 062 | N 003770045001 | ROUND SECTION SEAL RING |
| Repalced by: A 0079976348 | ||
| 062 | A 0079976348 | SEAL RING |
| SEALING OF UNIVERSAL JOINT & STEERING | ||
| 066 | A 4254600037 | BEARING |
| 072 | A 4354620180 | GASKET |
| 076 | N 000084006197 | SCREW |
| STEERING INTERMEDIATE BEARING,CAB | ||
| 080 | N 000125006421 | WASHER |
| STEERING INTERMEDIATE BEARING,CAB | ||
| Repalced by: N 000125006449 | ||
| 080 | N 000125006449 | WASHER |
| STEERING INTERMEDIATE BEARING,CAB | ||
| 084 | N 000934006007 | NUT |
| STEERING INTERMEDIATE BEARING,CAB | ||
| A 4254620103 | SLEEVE | |
| Repalced by: A 4254620501 | ||
| A 4254620501 | STEERING SHAFT | |
| Repalced by: A 4254601009 | ||
| 088 | A 4254601009 | STEERING SHAFT |
| 092 | A 0004600096 | BOOT |
| 096 | A 0019978048 | SEAL RING |
| 100 | A 0004624250 | BUSHING |
| A 0004624450 | BUSHING | |
| 104 | A 0004620029 | END PIECE |
| 108 | A 0004620086 | GROMMET |
| 112 | A 4254620092 | SPRING |
| 116 | A 0004622073 | LOCK |
| A 4254600157 | UNIVERSAL JOINT | |
| Repalced by: A 4254600457 | ||
| 120 | A 4254600457 | UNIVERSAL JOINT |
| 124 | A 4259905601 | SCREW |
| Repalced by: A 4259906101 | ||
| 124 | A 4259906101 | SCREW |
| 128 | N 913023010002 | NUT |
| 132 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 132 | N 000433010510 | WASHER |
| SEALING OF UNIVERSAL JOINT & STEERING | ||
| 136 | A 4254620196 | BOOT |
| SEALING OF UNIVERSAL JOINT & STEERING | ||
| 140 | A 4254620075 | WASHER |
| 144 | N 006319021302 | SPHERICAL WASHER |
| STEERING TO FRAME | ||
| 148 | N 912004018101 | LOCK WASHER |
| 152 | N 000912018023 | SCREW |
| STEERING TO FRAME | ||
| M 18X1,5X65 | ||
| 156 | A 4254630401 | PITMAN ARM |
| 160 | N 000937042003 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 160 | A 0019908151 | NUT |
| SELF-LOCKING | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 164 | N 000094008014 | COTTER PIN |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| TO 000937 042003 | ||
| 168 | A 0003303235 | JOINT |
| Repalced by: A 0004632229 | ||
| 168 | A 0004632229 | BALL JOINT |
| Repalced by: A 0004633429 | ||
| 168 | A 0004633429 | BALL JOINT |
| Repalced by: A 0013300135 | ||
| 168 | A 0013300135 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| A 0004633529 | BALL JOINT | |
| 172 | A 0003300385 | BOOT |
| Repalced by: A 0003301185 | ||
| 172 | A 0003301185 | BOOT |
| 176 | N 000937020001 | NUT |
| 180 | N 000094004010 | COTTER PIN |
| 184 | A 0003380845 | CLAMP |
| Repalced by: A 0009954944 | ||
| 184 | A 0009954944 | CLAMP |
| 188 | N 000960012292 | SCREW |
| 192 | N 000935012002 | NUT |
| 196 | N 000094003230 | COTTER PIN |
| 200 | A 4244600105 | DRAG LINK |
| Repalced by: A 4244600305 | ||
| 200 | A 4244600305 | DRAG LINK |
| Repalced by: A 4274600005 | ||
| 200 | A 4274600005 | DRAG LINK |
| EHRENREICH | ||
| 200 | A 4244600405 | DRAG LINK |
| LEMFOERDER | ||
| 204 | A 0004633429 | BALL JOINT |
| Repalced by: A 0013300135 | ||
| 204 | A 0013300135 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| A 0004633529 | BALL JOINT | |
| 208 | A 0004631196 | BOOT |
| Repalced by: A 0003301085 | ||
| 208 | A 0003301085 | BOOT |
| 212 | A 0003382645 | CLAMP |
| 216 | N 910105012011 | SCREW |
| 220 | N 913023012003 | NUT |
| 224 | N 000937020001 | NUT |
| 228 | N 000094004065 | COTTER PIN |
| A 4254600153 | ANGLE DRIVE | |
| Repalced by: A 4254600553 | ||

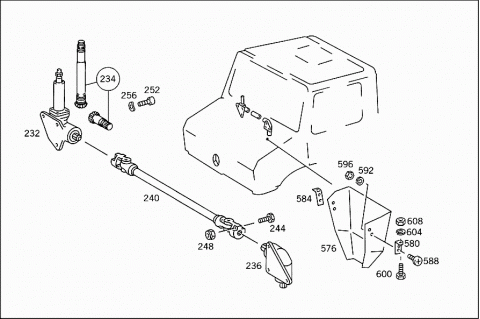

| 232 | A 4254600553 | BEVEL GEAR |
| RIGHT | ||
| 234 | A 4254600753 | DRIVE PINON KIT |
| RIGHT | ||
| A 4254600253 | ANGLE DRIVE | |
| Repalced by: A 4254600453 | ||
| 236 | A 4254600453 | ANGLE DRIVE |
| LEFT | ||
| 240 | A 4254600011 | STEERG. WORM SECTOR SHAFT |
| 244 | A 3819900114 | SCREW |
| STEERING INTERMEDIATE SHAFT TO ANGLE DRIVE | ||
| M 8X42 | ||
| 248 | N 910113008001 | NUT |
| STEERING INTERMEDIATE SHAFT TO ANGLE DRIVE | ||
| 252 | N 000912008111 | SCREW |
| Repalced by: N 000000000190 | ||
| 252 | N 000000000190 | SCREW |
| ANGLE DRIVE TO CAB | ||
| 256 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 256 | N 000137008212 | SPRING WASHER |
| ANGLE DRIVE TO CAB | ||

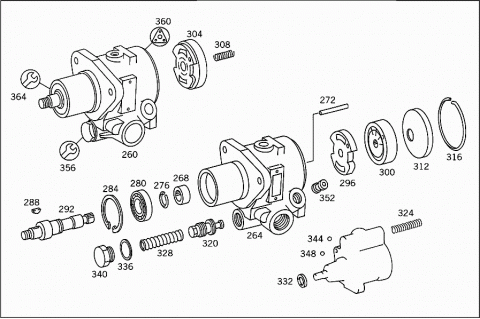

| 260 | A 0014660301 | HYDRAULIC PUMP |
| POWER STEERING PUMP | ||
| Z.F. | ||
| 260 | A 0014668101 | HYDRAULIC PUMP |
| POWER STEERING PUMP | ||
| VICKERS | ||
| 264 | A 0004602081 | HOUSING |
| TO 001 466 03 01 | ||
| A 0009971432 | SCREW PLUG | |
| TO 001 466 03 01 | ||
| 268 | A 0069815710 | NEEDLE BEARING |
| Repalced by: A 0059810310 | ||
| 268 | A 0059810310 | NEEDLE BEARING |
| TO 001 466 03 01 | ||
| 272 | A 0009912760 | DOWEL PIN |
| TO 001 466 03 01 | ||
| 276 | N 009045020001 | SNAP RING |
| TO 001 466 03 01 | ||
| 280 | A 0029817425 | BALL BEARING |
| TO 001 466 03 01 | ||
| 284 | N 000472047000 | LOCK RING |
| TO 001 466 03 01 | ||
| 288 | A 0009911968 | KEY |
| Repalced by: A 0009910668 | ||
| 288 | A 0009910668 | KEY |
| TO 001 466 03 01 | ||
| 292 | A 0004660820 | DRIVE SHAFT |
| Repalced by: A 0004661220 | ||
| 292 | A 0004661220 | DRIVE SHAFT |
| TO 001 466 03 01 | ||
| 292 | A 0004661820 | DRIVE SHAFT |
| V-BELT PULLEY | ||
| TO 001 466 81 01 | ||
| A 0004662205 | COVER | |
| Repalced by: A 0004664505 | ||
| 296 | A 0004664505 | COVER |
| Repalced by: A 0004668205 | ||
| 296 | A 0004668205 | COVER |
| TO 001 466 03 01 | ||
| 300 | A 0004660722 | SET OF ROTORS |
| Repalced by: A 0004664221 | ||
| 300 | A 0004664221 | ROTOR SET |
| TO 001 466 03 01 | ||
| 304 | A 0004666005 | COVER |
| Repalced by: A 0004668505 | ||
| 304 | A 0004668505 | COVER |
| TO 001 466 03 01 | ||
| 308 | A 0049934201 | SPRING |
| Repalced by: A 0059934201 | ||
| 308 | A 0059934201 | SPRING |
| TO 001 466 03 01 | ||
| 312 | A 0004662405 | COVER |
| Repalced by: A 0004661605 | ||
| 312 | A 0004661605 | COVER |
| Repalced by: A 0004666505 | ||
| 312 | A 0004666505 | COVER |
| TO 001 466 03 01 | ||
| 316 | A 0009941637 | SNAP RING |
| TO 001 466 03 01 | ||
| 316 | A 0009949135 | SNAP RING |
| COVER TO BEARING HOUSING | ||
| TO 001 466 81 01 | ||
| 320 | A 0004661483 | PISTON |
| Repalced by: A 0004664091 | ||
| 320 | A 0004661583 | PISTON |
| Repalced by: A 0004664091 | ||
| 320 | A 0004664091 | VALVE |
| TO 001 466 03 01 | ||
| 324 | A 0049939001 | SPRING |
| PISTON | ||
| TO 001 466 81 01 | ||
| 328 | A 0029935201 | SPRING |
| TO 001 466 03 01 | ||
| 332 | A 0069970247 | SEAL RING |
| Repalced by: A 0189976047 | ||
| 332 | A 0189976047 | SEAL RING |
| DRIVE SHAFT | ||
| TO 001 466 81 01 | ||
| 336 | N 007603022102 | SEAL RING |
| TO 001 466 03 01 | ||
| 340 | A 0019970130 | SCREW PLUG |
| TO 001 466 03 01 | ||
| 344 | A 0029811385 | BALL |
| TO 001 466 81 01 | ||
| 348 | A 0019815185 | BALL |
| TO 001 466 81 01 | ||
| 352 | A 0004660884 | CARTRIDGE |
| Repalced by: A 0004662584 | ||
| 352 | A 0004662584 | CARTRIDGE |
| TO 001 466 03 01 | ||
| 356 | A 0004602784 | REPAIR KIT |
| TO 001 466 81 01 | ||
| 360 | A 0004604261 | GASKET KIT |
| Repalced by: A 0005866146 | ||
| 360 | A 0005866146 | REPAIR KIT |
| TO 001 466 03 01 | ||
| 360 | A 0004601561 | REPAIR KIT |
| GASKET KIT | ||
| TO 001 466 81 01 | ||
| 364 | A 0004600780 | REPAIR KIT |
| POWER STEERING PUMP | ||
| TO 001 466 81 01 | ||

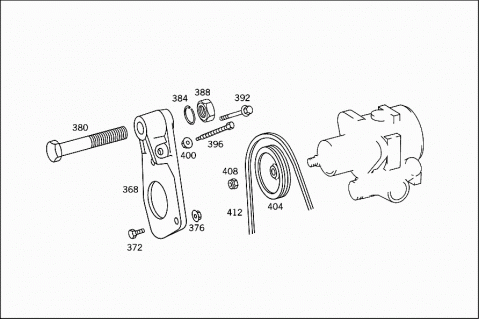

| 368 | A 4254660240 | BRACKET |
| 368 | A 4254660440 | BRACKET |
| POWER STEERING PUMP | ||
| 368 | A 4254660340 | BRACKET |
| POWER STEERING PUMP | ||
| 368 | A 4254660340 | BRACKET |
| POWER STEERING PUMP | ||
| 372 | N 000000000428 | HEXAGON HEAD BOLT |
| POWER STEERING PUMP BRACKET | ||
| 376 | N 913023010003 | NUT |
| POWER STEERING PUMP BRACKET | ||
| 380 | N 000960020040 | SCREW |
| 380 | N 308765016002 | SCREW |
| POWER STEERING PUMP BRACKET | ||
| 380 | N 308765016002 | SCREW |
| POWER STEERING PUMP BRACKET | ||
| 384 | N 912004016101 | LOCK WASHER |
| POWER STEERING PUMP BRACKET | ||
| 388 | N 913023020000 | NUT |
| Repalced by: N 913023020001 | ||
| 388 | N 913023020001 | NUT |
| POWER STEERING PUMP BRACKET | ||
| 388 | N 913023016001 | NUT |
| POWER STEERING PUMP BRACKET | ||
| Repalced by: N 000000005738 | ||
| 388 | N 000000005738 | NUT |
| POWER STEERING PUMP BRACKET | ||
| 388 | N 000000005738 | NUT |
| POWER STEERING PUMP BRACKET | ||
| 392 | N 910105012015 | SCREW |
| FOR V-BELT TENSIONING | ||
| 396 | A 3261310071 | SCREW |
| FOR V-BELT TENSIONING | ||
| 396 | A 3261310071 | SCREW |
| FOR V-BELT TENSIONING | ||
| 400 | N 000934012022 | NUT |
| FOR V-BELT TENSIONING | ||
| 400 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 400 | N 913023010002 | NUT |
| 400 | N 913023010002 | NUT |
| 404 | A 4254660015 | PULLEY |
| A 4254660115 | PULLEY | |
| 408 | N 913023014004 | NUT |
| V-BELT PULLEY | ||
| 412 | A 0049970592 | V-BELT |
| 955 MM | ||
| A 0059970992 | V-BELT | |
| 925 MM | ||
| A 0004663802 | TANK | |
| Repalced by: A 0004664502 | ||

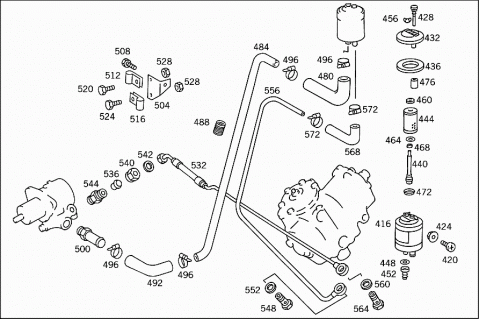

| 416 | A 0004664502 | TANK |
| 420 | N 007985006139 | SCREW |
| OIL TANK | ||
| TO 000 466 45 02 | ||
| 424 | N 910123006000 | NUT |
| OIL TANK | ||
| TO 000 466 45 02 | ||
| 428 | A 0004660218 | PIPE |
| 432 | A 0004661268 | FILLER CAP |
| 436 | A 0004660260 | SEAL RING |
| 440 | A 0014664465 | FILTER CARRIER |
| 444 | A 0004660604 | FILTER |
| Repalced by: A 0004662804 | ||
| 444 | A 0004662804 | FILTER |
| 448 | A 0029973245 | SEAL RING |
| Repalced by: A 0059970848 | ||
| 448 | A 0059970848 | SEAL RING |
| 452 | A 0004660558 | CONNECTOR |
| 456 | N 000315008006 | NUT |
| 460 | A 0004660675 | CENTERING RING |
| 464 | A 0004660275 | WASHER |
| Repalced by: A 9402680552 | ||
| 464 | A 9402680552 | SPACER WASHER |
| 468 | A 0004660153 | SPACER TUBE |
| 472 | A 0004660238 | COVER PLATE |
| 476 | A 0009870643 | RUBBER SLEEVE |
| 480 | A 4259870743 | RUBBER SLEEVE |
| FROM OIL TANK TO PUMP | ||
| 484 | A 4254660418 | PIPE |
| Repalced by: A 0004291601 | ||
| 484 | A 0004291601 | LINE |
| 22 MM | ||
| 488 | A 4355530782 | WIRE SPIRAL |
| Repalced by: A 4075531282 | ||
| 488 | A 4075531282 | WIRE SPIRAL |
| Repalced by: A 4075531182 | ||
| 488 | A 4075531182 | WIRE SPIRAL |
| HOSE LINE PROTECTION | ||
| 492 | A 4169875443 | HOSE |
| Repalced by: A 4429871143 | ||
| 492 | A 4429871143 | HOSE |
| Repalced by: A 0005514156 | ||
| 492 | A 0005514156 | HOSE |
| 30X22 | ||
| 496 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 496 | N 000000000668 | CLAMP |
| 25-40X13 MM | ||
| 500 | A 4405502357 | FITTING |
| HYDRAULIC PUMP | ||
| 500 | A 4409970372 | FITTING |
| HYDRAULIC PUMP | ||
| 504 | A 4244680040 | BRACKET |
| Repalced by: A 4244680140 | ||
| 504 | A 4244680140 | BRACKET |
| STEERING SUCTION LINE TO SIDE MEMBER | ||
| 508 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 508 | N 304017008034 | SCREW |
| STEERING SUCTION LINE TO SIDE MEMBER | ||
| 512 | A 3609950701 | CLAMP |
| N 912004008102 | LOCK WASHER | |
| STEERING SUCTION LINE TO SIDE MEMBER | ||
| 516 | A 3609950401 | CLAMP |
| 520 | N 304017006020 | SCREW |
| 524 | N 304017006016 | SCREW |
| LINE TO BRACKET | ||
| 528 | N 000934006007 | NUT |
| LINE TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| LINE TO BRACKET | ||
| 532 | A 4254610224 | LINE |
| Repalced by: A 4374610924 | ||
| 532 | A 4374610924 | LINE |
| FROM HYDRAULIC PUMP TO STEERING | ||
| 536 | N 003861010009 | GLAND |
| LINE TO OIL PUMP | ||
| TO 425 461 02 24 | ||
| 540 | N 915017010104 | UNION NUT |
| LINE TO OIL PUMP | ||
| TO 425 461 02 24 | ||
| 542 | A 0219970848 | SEAL RING |
| TO 437 461 09 24 | ||
| 544 | N 003901010009 | SCREW-IN FITTING |
| 548 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 548 | N 915036010108 | HOLLOW SCREW |
| DELIVERY LINE TO STEERING | ||
| 552 | N 007603014108 | SEAL RING |
| DELIVERY LINE TO STEERING | ||
| 556 | A 4255501057 | PIPE LINE |
| Repalced by: A 4374600088 | ||
| 556 | A 4374600088 | LINE |
| RETURN LINE | ||
| 560 | N 007603016401 | SEAL RING |
| RETURN LINE TO STEERING | ||
| 564 | N 915036012203 | HOLLOW SCREW |
| RETURN LINE TO STEERING | ||
| 568 | A 4259870643 | RUBBER SLEEVE |
| AT OIL TANK | ||
| 572 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 572 | N 000000000667 | CLAMP |
| 576 | A 4254620095 | COVERING |
| R.H.D. SHAFT IN CAB | ||
| 580 | A 4254620039 | BRACKET |
| 584 | A 4254620139 | BRACKET |
| 588 | N 007985005157 | SCREW |
| 592 | N 912004005103 | LOCK WASHER |
| 596 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 596 | N 304032005005 | NUT |
| 600 | N 304017008016 | SCREW |
| 604 | N 912004008102 | LOCK WASHER |
| 608 | N 304032008006 | NUT |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
