Transporto priemonė: U 1300 L; VIN numerio dalis: 436320

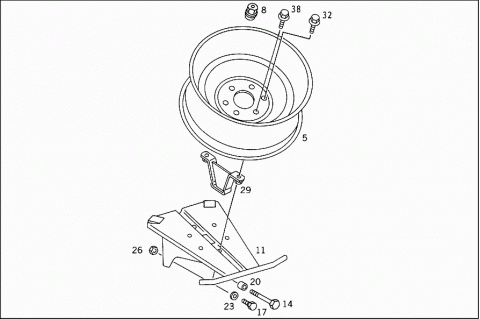

Grupė: 40 WHEELS - 050 DISC WHEELS AND SPARE WHEEL CARRIER
| # | Kodas | Pavadinimas |
|---|---|---|
| A 4064011101 | DISC WHEEL | |
| SIX-HOLE | ||
| "11-20" | ||
| 005 | A 4364017001 | DISC WHEEL |
| 008 | N 074361018105 | NUT |
| 011 | A 4354000239 | BRACKET |
| SPARE WHEEL | ||
| 014 | N 910106014003 | SCREW |
| SPARE WHEEL CARRIER TO FRAME | ||
| 017 | N 910106014008 | SCREW |
| SPARE WHEEL CARRIER TO FRAME | ||
| 020 | A 4359927001 | BUSHING |
| SPARE WHEEL CARRIER TO FRAME | ||
| 023 | A 4359917125 | WASHER |
| SPARE WHEEL CARRIER TO FRAME | ||
| 026 | N 910112014000 | NUT |
| Repalced by: N 913023014003 | ||
| 026 | N 913023014003 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 029 | A 4354000041 | MOUNTING BOW |
| SPARE WHEEL MOUNTING | ||
| 032 | N 910105016013 | SCREW |
| CARRIER TO SPARE WHEEL | ||
| M 16X1,5X30 | ||
| 038 | N 910105016009 | SCREW |
| DISC WHEEL TO BRACKET | ||
| M 16X1,5X100 | ||
