Transporto priemonė: U 1300 L; VIN numerio dalis: 436325

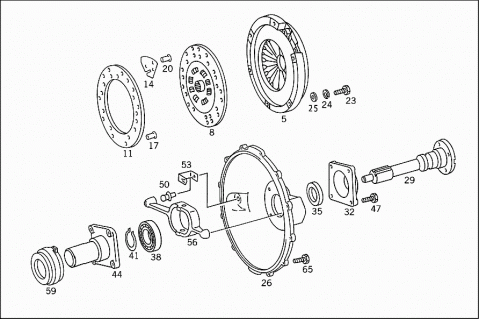

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0042500704 | CLUTCH PRESSURE PLATE |
| 005 | A 0032504804 | CLUTCH PRESSURE PLATE |
| 008 | A 0062501403 | CLUTCH DISC |
| Repalced by: A 0092505703 | ||
| 008 | A 0092505703 | CLUTCH DISC |
| ASBESTOS-FREE | ||
| 008 | A 0062506203 | CLUTCH DISC |
| Repalced by: A 0092505203 | ||
| 008 | A 0092505203 | CLUTCH DISC |
| ASBESTOS-FREE | ||
| 008 | A 0092505303 | CLUTCH DISC |
| 011 | A 0012521210 | CLUTCH LINING |
| CONTAINING ASBESTOS | ||
| TO A 006 250 14 03 | ||
| 011 | A 0012527210 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| TO A 009 250 57 03 | ||
| 011 | A 0012524610 | CLUTCH LINING |
| TO A 006 250 62 03 | ||
| 011 | A 0012527010 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| TO A 009 250 52 03,53 03 | ||
| 014 | A 0002522019 | LEAF SPRING |
| 014 | A 0002524619 | LEAF SPRING |
| 017 | A 0002521475 | RIVET |
| TO A 006 250 14 03 | ||
| 017 | A 0002524375 | RIVET |
| TO A 009 250 57 03 | ||
| 017 | A 0002524575 | RIVET |
| 020 | A 0002522175 | RIVET |
| 020 | A 0002522575 | RIVET |
| 023 | N 910107008006 | SCREW |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| 023 | N 000931008185 | SCREW |
| Repalced by: N 304017008022 | ||
| 023 | N 304017008022 | SCREW |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| 023 | N 910107008010 | SCREW |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| 024 | N 912004008110 | LOCK WASHER |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| 025 | N 000125008443 | WASHER |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| 026 | A 4252510801 | BELL HOUSING |
| 029 | A 4352540007 | SHAFT |
| 032 | A 4252510504 | END COVER |
| BELL HOUSING | ||
| 035 | A 0129976247 | SEAL RING |
| 035 | A 0129975547 | SEAL RING |
| 035 | A 0129976947 | SEAL RING |
| 038 | A 0059812325 | BALL BEARING |
| 041 | N 000471045000 | LOCK RING |
| 044 | A 4352540116 | GUIDE |
| DRIVE SHAFT | ||
| 047 | N 910107008002 | SCREW |
| 050 | A 4259910220 | BALL PIVOT |
| 053 | A 4252510385 | CLAMP |
| 056 | A 4252540208 | RELEASE LEVER |
| 056 | A 4352540008 | RELEASE LEVER |
| 059 | A 0002504415 | RELEASE BEARING |
| 065 | N 910107010020 | SCREW |
| BELL HOUSING TO FLYWHEEL HOUSING | ||
| 075 | A 4069977782 | HOSE |
| 300 MM | ||
| 078 | A 3819970881 | GROMMET |
| 081 | A 0012956306 | MASTER CYLINDER |
| Repalced by: A 0012957706 | ||
| 081 | A 0012957706 | MASTER CYLINDER |
| CLUTCH | ||
| 084 | A 3075530107 | VALVE |
| 087 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 087 | A 0004210887 | PROTECTIVE CAP |
| 090 | A 0009971186 | PLUG |
| 093 | A 0002950036 | INTERMEDIATE PIECE |
| 096 | A 0002900612 | REPAIR KIT |
| 099 | N 304035008000 | NUT |
| 102 | A 0009961045 | ARTICULATION PIECE |
| PISTON ROD | ||
| 102 | A 0009961145 | ARTICULATION PIECE |
| PISTON ROD | ||
| 105 | A 0059813810 | NEEDLE BEARING |
| PISTON ROD | ||
| 105 | A 0059814410 | NEEDLE BEARING |
| PISTON ROD | ||
| 105 | A 0089811210 | NEEDLE BEARING |
| PISTON ROD | ||
| 105 | A 0139818210 | NEEDLE BEARING |
| PISTON ROD | ||
| 108 | A 3812910274 | PIN |
| 111 | N 913004008004 | NUT |
| Repalced by: N 913023008003 | ||
| 111 | N 913023008003 | NUT |
| 114 | N 000433008406 | WASHER |
| JOINT TO PIN | ||
| 117 | N 912002008001 | LOCK |
| JOINT TO PIN | ||
| 120 | N 910105006014 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| M 6X55 | ||
| 123 | N 912004006102 | LOCK WASHER |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 126 | N 000934006007 | NUT |
| Repalced by: N 304032006004 | ||
| 126 | N 304032006004 | NUT |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 129 | A 4252901813 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CONNECTOR | ||
| 129 | A 0004290801 | LINE |
| 8 MM | ||
| 132 | A 0004281072 | UNION SCREW |
| 135 | N 003861008005 | GLAND |
| 138 | N 915017008100 | UNION NUT |
| 141 | A 0019972772 | FITTING |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER | ||
| 144 | N 000933006130 | SCREW |
| Repalced by: N 304017006020 | ||
| 144 | N 304017006020 | SCREW |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER | ||
| 147 | N 080705014001 | NUT |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER | ||
| 150 | N 003952008100 | FITTING |
| Repalced by: A 0019902171 | ||
| 150 | A 0019902171 | ELBOW FITTING |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER | ||
| 153 | A 4252901913 | LINE |
| 156 | A 0012957707 | SLAVE CYLINDER |
| CLUTCH SLAVE CYLINDER | ||
| 159 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 159 | A 3075530107 | VALVE |
| 162 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 162 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 162 | A 0004210887 | PROTECTIVE CAP |
| 165 | A 0002900211 | REPAIR KIT |
| 168 | A 4352540045 | FLANGE |
| 171 | N 910107008021 | SCREW |
| SLAVE CYLINDER TO BELL HOUSING | ||
| 171 | N 910107008002 | SCREW |
| SLAVE CYLINDER TO BELL HOUSING | ||
