Transporto priemonė: U 1300 L; VIN numerio dalis: 436325

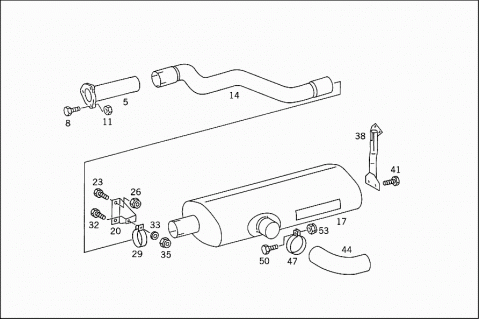

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4364900419 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 4364900119 | EXHAUST PIPE |
| FRONT | ||
| 008 | N 910105012023 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X45 | ||
| 008 | N 304017012015 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X80 | ||
| 011 | N 999901012000 | NUT |
| EXHAUST MUFFLER TO EXHAUST MANIFOLD | ||
| 014 | A 4364920201 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 017 | A 4354900901 | EXHAUST MUFFLER |
| 020 | A 4354925141 | BRACKET |
| EXHAUST MUFFLER AND CENTRAL EXHAUST PIPE TO FRAME | ||
| 023 | N 910105012013 | SCREW |
| BRACKET TO FRAME | ||
| 026 | N 913004012008 | NUT |
| Repalced by: N 913023012003 | ||
| 026 | N 913023012003 | NUT |
| BRACKET TO FRAME | ||
| 029 | A 4374930143 | CLAMP |
| EXHAUST MUFFLER AND CENTRAL EXHAUST PIPE TO FRAME | ||
| 032 | N 910105010007 | SCREW |
| CLAMP TO BRACKET | ||
| M 10X35 | ||
| 033 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 033 | N 000125010532 | WASHER |
| CLAMP TO BRACKET | ||
| 035 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 035 | N 913023010003 | NUT |
| EXHAUST MUFFLER AND CENTRAL EXHAUST PIPE TO FRAME | ||
| 038 | A 4364900040 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 041 | N 910105010006 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| M 10X20 | ||
| 044 | A 4364920401 | REAR EXHAUST PIPE |
| TAIL PIPE | ||
| 047 | N 071555090502 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 050 | N 910105010009 | SCREW |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 053 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 053 | N 913023010003 | NUT |
| TAIL PIPE TO EXHAUST MUFFLER | ||
