Transporto priemonė: U 1300 L; VIN numerio dalis: 436325

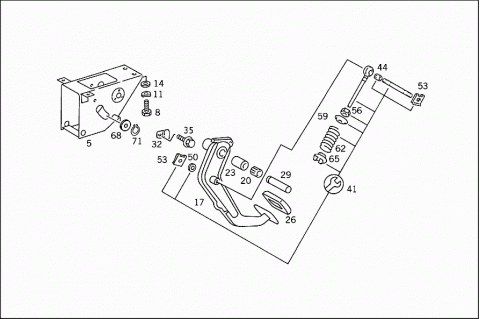

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4252900131 | CONSOLE |
| CLUTCH PEDAL | ||
| 008 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 008 | N 304017008021 | SCREW |
| BEARING BRACKET TO CAB | ||
| 011 | N 000137008204 | SPRING WASHER |
| BEARING BRACKET TO CAB | ||
| 014 | N 000125008418 | WASHER |
| BEARING BRACKET TO CAB | ||
| 017 | A 4352900316 | PEDAL |
| CLUTCH | ||
| 020 | A 0119813410 | NEEDLE BEARING |
| CLUTCH | ||
| 020 | A 0139818410 | NEEDLE BEARING |
| CLUTCH | ||
| 023 | A 4252910126 | TUBE |
| 026 | A 1072910182 | PAD |
| 029 | A 4252940107 | PIVOT PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 032 | A 3812910073 | LOCK |
| 035 | N 910105006004 | SCREW |
| M 6X16 | ||
| 041 | A 4352900039 | REPAIR KIT |
| 044 | A 0059813810 | NEEDLE BEARING |
| PUSH ROD TO CLUTCH PEDAL | ||
| 044 | A 0059814410 | NEEDLE BEARING |
| PUSH ROD TO CLUTCH PEDAL | ||
| 044 | A 0089811210 | NEEDLE BEARING |
| PUSH ROD TO CLUTCH PEDAL | ||
| 044 | A 0139818210 | NEEDLE BEARING |
| PUSH ROD TO CLUTCH PEDAL | ||
| 050 | N 000433008406 | WASHER |
| PUSH ROD TO CLUTCH PEDAL | ||
| 053 | N 912002008001 | LOCK |
| PUSH ROD TO CLUTCH PEDAL | ||
| 056 | N 308675010001 | NUT |
| PUSH ROD TO CLUTCH PEDAL | ||
| 059 | A 1112910491 | SPRING RETAINER |
| PUSH ROD TO CLUTCH PEDAL | ||
| 062 | A 4259930201 | SPRING |
| PUSH ROD TO CLUTCH PEDAL | ||
| 065 | A 3092910091 | SPRING RETAINER |
| PUSH ROD TO CLUTCH PEDAL | ||
| 068 | A 3812910186 | STOP |
| 071 | N 000471016001 | LOCK RING |
| 074 | A 4252900631 | CONSOLE |
| BRAKE PEDAL | ||
| 077 | A 4252900233 | BRACKET |
| 080 | N 910105006004 | SCREW |
| M 6X16 | ||
| 086 | N 304017008021 | SCREW |
| BEARING BRACKET TO CAB | ||
| 089 | N 000137008204 | SPRING WASHER |
| BEARING BRACKET TO CAB | ||
| 092 | A 4252900218 | PEDAL |
| BRAKE | ||
| 095 | N 000618020000 | NEEDLE ROLLER BEARING |
| BRAKE | ||
| 098 | A 4252910126 | TUBE |
| 101 | A 1102910182 | PAD |
| Repalced by: A 1072910182 | ||
| 101 | A 1072910182 | PAD |
| 104 | A 4252940107 | PIVOT PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 107 | A 4252920087 | SPRING |
| 110 | A 3812910073 | LOCK |
| 113 | N 910105006004 | SCREW |
| M 6X16 | ||
| 116 | N 912004006102 | LOCK WASHER |
| 119 | A 4252920032 | ROD |
| 122 | N 913023010003 | NUT |
| 125 | A 0009961501 | YOKE |
| Repalced by: A 4279960101 | ||
| 125 | A 4279960101 | YOKE |
| Repalced by: A 0009961501 | ||
| 125 | A 0009961501 | YOKE |
| 128 | N 918001010000 | PIN |
| 131 | A 0014319902 | RESERVOIR |
| ATE | ||
| 134 | A 0004315433 | FILLER CAP |
| BUTTRESS THREAD | ||
| 137 | A 4252900333 | BRACKET |
| RESERVOIR | ||
| 140 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 140 | N 000000000674 | CLAMP |
| EXPANSION TANK TO BRACKET | ||
| 143 | A 1249971990 | CLAMP |
| EXPANSION TANK TO BRACKET | ||
