Transporto priemonė: U 130 U 140; VIN numerio dalis: 418102

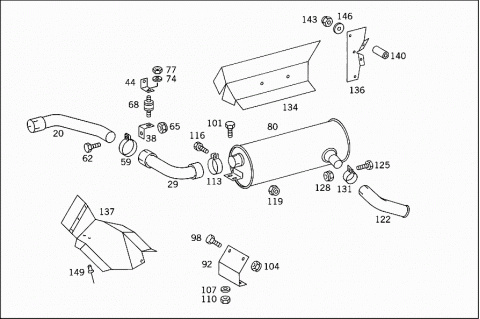

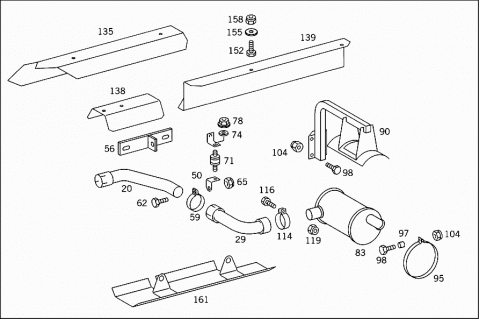

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 020 | A 4184900022 | EXHAUST PIPE |
| Repalced by: A 4184900622 | ||
| 020 | A 4184900622 | EXHAUST PIPE |
| CENTRAL | ||
| 020 | A 4184920601 | FRONT EXHAUST PIPE |
| Repalced by: A 4184900222 | ||
| 020 | A 4184900222 | EXHAUST PIPE |
| Repalced by: A 4184900722 | ||
| 020 | A 4184900722 | EXHAUST PIPE |
| CENTRAL | ||
| 020 | A 4184920701 | FRONT EXHAUST PIPE |
| Repalced by: A 4184900822 | ||
| 020 | A 4184900822 | EXHAUST PIPE |
| CENTRAL | ||
| 029 | A 4184920104 | REAR EXHAUST PIPE |
| 029 | A 4184920204 | REAR EXHAUST PIPE |
| 038 | A 4184920741 | BRACKET |
| CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| 044 | A 4184920641 | BRACKET |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 050 | A 4184920141 | BRACKET |
| Repalced by: A 6205240340 | ||
| 050 | A 6205240340 | BRACKET |
| CENTRAL EXHAUST PIPE TO SUPPORT | ||
| A 4184921541 | BRACKET | |
| REAR EXHAUST PIPE TO SIDE MEMBER | ||
| A 4184921641 | BRACKET | |
| REAR EXHAUST PIPE TO BRACKET | ||
| 056 | A 4184900740 | BRACKET |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 059 | N 071555078502 | CLAMP |
| CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| 062 | N 910105010001 | HEXAGON HEAD BOLT |
| CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| M10X30 | ||
| 062 | N 910105010001 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 062 | N 000000000428 | HEXAGON HEAD BOLT |
| CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| M10X35 | ||
| 062 | N 910105008004 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 8X20 | ||
| 065 | N 913023010002 | NUT |
| CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| 065 | N 913023010002 | NUT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 065 | N 913023010002 | NUT |
| CENTRAL EXHAUST PIPE TO BRACKET | ||
| 065 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 065 | N 913023008002 | NUT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 068 | A 0019875240 | RUBBER BUFFER |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 071 | A 4609870340 | RUBBER BUFFER |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 074 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 074 | N 000125008443 | WASHER |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 077 | N 304032008006 | NUT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 078 | N 913023008002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 080 | A 4184900201 | EXHAUST MUFFLER |
| 083 | A 4184900001 | EXHAUST MUFFLER |
| A 4184920441 | BRACKET | |
| MUFFLER TO SIDE MEMBER | ||
| A 4184920541 | BRACKET | |
| MUFFLER TO SIDE MEMBER | ||
| 090 | A 4184900640 | BRACKET |
| MUFFLER TO SIDE MEMBER | ||
| 092 | A 4184921141 | BRACKET |
| MUFFLER TO BRACKET | ||
| 095 | A 4184910040 | CLAMP |
| MUFFLER TO BRACKET | ||
| 097 | A 3094310151 | SPACER RING |
| MUFFLER TO BRACKET | ||
| 098 | N 000000000428 | HEXAGON HEAD BOLT |
| MUFFLER TO BRACKET | ||
| M10X35 | ||
| 098 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| M10X30 | ||
| 098 | N 910105010009 | SCREW |
| 098 | A 0019908204 | SCREW |
| Repalced by: N 910105010009 | ||
| 098 | N 910105010009 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 101 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 101 | N 304017008034 | SCREW |
| MUFFLER TO BRACKET | ||
| M 8X25 | ||
| 101 | N 304017008027 | SCREW |
| MUFFLER TO BRACKET | ||
| M 8X30 | ||
| 104 | N 913023010002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 104 | N 913023010002 | NUT |
| MUFFLER TO BRACKET | ||
| 107 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 107 | N 000125008443 | WASHER |
| MUFFLER TO BRACKET | ||
| 110 | N 913023008002 | NUT |
| MUFFLER TO BRACKET | ||
| 113 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 113 | N 071555094502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 114 | N 071555078502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 116 | N 910105010001 | HEXAGON HEAD BOLT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M10X30 | ||
| 116 | N 910105010009 | SCREW |
| 116 | N 914126010074 | SCREW |
| Repalced by: A 0019908204 | ||
| 116 | A 0019908204 | SCREW |
| Repalced by: N 910105010009 | ||
| 116 | N 910105010009 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M 10X25 | ||
| 119 | N 913023010002 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 122 | A 4184920014 | END PIECE |
| 125 | N 910105010009 | SCREW |
| 128 | N 913023010003 | NUT |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 131 | N 071555075502 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 134 | A 4184921030 | PROTECTIVE PLATE |
| 135 | A 4184921830 | PROTECTIVE PLATE |
| 135 | A 4184921830 | PROTECTIVE PLATE |
| 136 | A 4184900530 | PROTECTIVE PLATE |
| 137 | A 4184900830 | PROTECTIVE PLATE |
| 138 | A 4184921730 | PROTECTIVE PLATE |
| 138 | A 4184921730 | PROTECTIVE PLATE |
| 139 | A 4184921930 | PROTECTIVE PLATE |
| 139 | A 4184921930 | PROTECTIVE PLATE |
| 140 | A 6499910040 | SPACER TUBE |
| HEAT SHIELD MOUNTING | ||
| 140 | A 6499910040 | SPACER TUBE |
| 143 | A 0009902150 | NUT |
| HEAT SHIELD MOUNTING | ||
| 143 | A 0009902150 | NUT |
| 146 | N 009021006208 | WASHER |
| HEAT SHIELD MOUNTING | ||
| 146 | N 009021006208 | WASHER |
| 149 | N 910002004122 | RIVET |
| HEAT SHIELD MOUNTING | ||
| 152 | N 910105008004 | SCREW |
| SCREENING PLATE TO FRAME | ||
| M 8X20 | ||
| 152 | N 910105008004 | SCREW |
| 155 | N 000000003250 | WASHER |
| SCREENING PLATE TO FRAME | ||
| 155 | N 000000003250 | WASHER |
| 158 | N 913023008002 | NUT |
| SCREENING PLATE TO FRAME | ||
| 158 | N 913023008002 | NUT |
| 161 | A 4184900730 | PROTECTIVE PLATE |
