Transporto priemonė: U 130 U 140; VIN numerio dalis: 418102

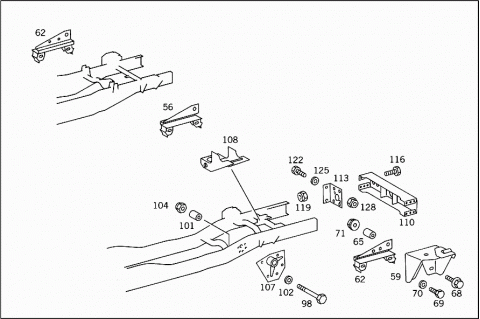

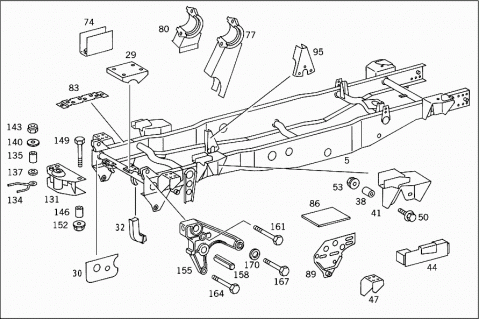

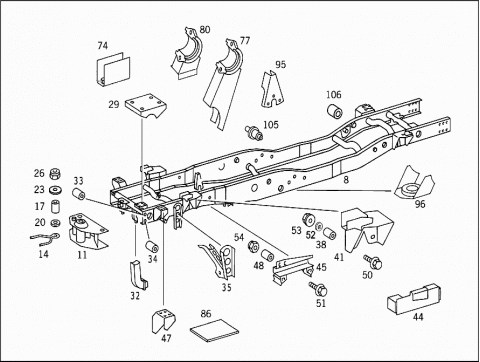

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4183102300 | FRAME |
| LESS REAR CROSS MEMBER | ||
| 005 | A 4183101200 | FRAME |
| Repalced by: A 4183103000 | ||
| 005 | A 4183103000 | FRAME |
| LESS REAR CROSS MEMBER | ||
| 008 | A 4183101400 | FRAME |
| LESS REAR CROSS MEMBER | ||
| 008 | A 4183101300 | FRAME |
| LESS REAR CROSS MEMBER | ||
| 008 | A 4183103200 | FRAME |
| LESS REAR CROSS MEMBER | ||
| 011 | A 4183100106 | COUPLING MOUTH |
| Repalced by: A 4183100306 | ||
| 011 | A 4183100306 | COUPLING MOUTH |
| FRONT | ||
| 014 | A 4259940060 | LOCK |
| COUPLING PIN | ||
| 017 | A 3579910140 | SPACER TUBE |
| LOCK TO TOWING DEVICE | ||
| 020 | N 001440008002 | WASHER |
| LOCK TO TOWING DEVICE | ||
| 023 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 023 | N 000000003250 | WASHER |
| LOCK TO TOWING DEVICE | ||
| 026 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 026 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 026 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 026 | N 913023008002 | NUT |
| LOCK TO TOWING DEVICE | ||
| 026 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 026 | N 913023008002 | NUT |
| LOCK TO TOWING DEVICE | ||
| 029 | A 4183174040 | BRACKET |
| P.T.O. SHAFT BEARING TO FRAME | ||
| 030 | A 4183111655 | COVER |
| P.T.O. SHAFT BEARING TO FRAME | ||
| 032 | A 4183104709 | BRACKET |
| RADIATOR MOUNTING | ||
| 032 | A 4183104809 | BRACKET |
| RADIATOR MOUNTING | ||
| 033 | A 4183170650 | BUSHING |
| STEERING TO FRAME | ||
| 95 MM | ||
| 034 | A 4183170750 | BUSHING |
| STEERING TO FRAME | ||
| 60 MM | ||
| 035 | A 4183101109 | BRACKET |
| Repalced by: A 4183172340 | ||
| 035 | A 4183172340 | BRACKET |
| FRONT AXLE CONTROL ARM | ||
| 038 | A 4183220050 | BUSHING |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| 041 | A 4183200270 | REAR SUBFRAME |
| FRONT LEFT | ||
| 041 | A 4183200370 | REAR SUBFRAME |
| FRONT RIGHT | ||
| 044 | A 4183101672 | STAY |
| Repalced by: A 4183102572 | ||
| 044 | A 4183101672 | STAY |
| 044 | A 4183101772 | STAY |
| Repalced by: A 4183102672 | ||
| 044 | A 4183101772 | STAY |
| 045 | A 4183102572 | STAY |
| FRONT LEFT | ||
| 045 | A 4183102572 | STAY |
| 045 | A 4183102572 | STAY |
| 045 | A 4183102672 | STAY |
| FRONT RIGHT | ||
| 045 | A 4183102672 | STAY |
| 045 | A 4183102672 | STAY |
| 047 | A 4183170401 | CONSOLE |
| FRONT LEFT | ||
| 047 | A 4183170501 | CONSOLE |
| FRONT RIGHT | ||
| 048 | A 4183220050 | BUSHING |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| 050 | N 914126016014 | SCREW |
| Repalced by: N 910105016005 | ||
| 050 | N 910105016005 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| M 16X1.5X60 | ||
| 050 | N 910105016005 | SCREW |
| 050 | N 914126016013 | SCREW |
| Repalced by: N 910105016014 | ||
| 050 | N 910105016014 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| M 16X1.5X70 | ||
| 050 | N 910105016014 | SCREW |
| 051 | N 910105016014 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| M 16X1.5X70 | ||
| 051 | N 910105016014 | SCREW |
| 051 | N 910105016014 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| 051 | N 000960016212 | SCREW |
| Repalced by: N 910105016015 | ||
| 051 | N 910105016015 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| M 16X1.5X65 | ||
| 051 | N 910105016015 | SCREW |
| 051 | N 910105016015 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| M 16X1.5X65 | ||
| 051 | N 910105016005 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| M 16X1.5X60 | ||
| 052 | N 007349017002 | WASHER |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| Repalced by: N 007349017003 | ||
| 052 | N 007349017003 | WASHER |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| 052 | N 007349017002 | WASHER |
| Repalced by: N 007349017003 | ||
| 052 | N 007349017003 | WASHER |
| 053 | N 913023016000 | NUT |
| Repalced by: N 913023016001 | ||
| 053 | N 913023016001 | NUT |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| Repalced by: N 000000005738 | ||
| 053 | N 000000005738 | NUT |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| 053 | N 913023016001 | NUT |
| Repalced by: N 000000005738 | ||
| 053 | N 000000005738 | NUT |
| 054 | N 913004016004 | NUT |
| Repalced by: N 913023016001 | ||
| 054 | N 913023016001 | NUT |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| Repalced by: N 000000005738 | ||
| 054 | N 000000005738 | NUT |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| 054 | N 913023016001 | NUT |
| Repalced by: N 000000005738 | ||
| 054 | N 000000005738 | NUT |
| 054 | N 913023016001 | NUT |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| Repalced by: N 000000005738 | ||
| 054 | N 000000005738 | NUT |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| A 4183100072 | STAY | |
| LEFT AND RIGHT | ||
| 056 | A 4183100272 | STAY |
| REAR LEFT | ||
| 056 | A 4183100172 | STAY |
| REAR RIGHT | ||
| 059 | A 4183200675 | SPRING BRACKET |
| REAR LEFT | ||
| 059 | A 4183200775 | SPRING BRACKET |
| REAR RIGHT | ||
| 062 | A 4183101172 | STAY |
| REAR LEFT | ||
| 062 | A 4183101272 | STAY |
| REAR RIGHT | ||
| 065 | A 4183220050 | BUSHING |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| 065 | A 4183220050 | BUSHING |
| 068 | N 914126016014 | SCREW |
| Repalced by: N 910105016005 | ||
| 068 | N 910105016005 | SCREW |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| M 16X1.5X60 | ||
| 068 | N 910105016005 | SCREW |
| 068 | N 914126016013 | SCREW |
| Repalced by: N 910105016014 | ||
| 068 | N 910105016014 | SCREW |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| M 16X1.5X70 | ||
| 069 | N 000960016212 | SCREW |
| Repalced by: N 910105016015 | ||
| 069 | N 910105016015 | SCREW |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| M 16X1.5X65 | ||
| 069 | N 910105016015 | SCREW |
| 069 | N 910105016015 | SCREW |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| M 16X1.5X65 | ||
| 070 | N 007349017002 | WASHER |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| Repalced by: N 007349017003 | ||
| 070 | N 007349017003 | WASHER |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| 070 | N 007349017002 | WASHER |
| Repalced by: N 007349017003 | ||
| 070 | N 007349017003 | WASHER |
| 071 | N 913023016000 | NUT |
| Repalced by: N 913023016001 | ||
| 071 | N 913023016001 | NUT |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| Repalced by: N 000000005738 | ||
| 071 | N 000000005738 | NUT |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| 071 | N 913023016001 | NUT |
| Repalced by: N 000000005738 | ||
| 071 | N 000000005738 | NUT |
| 071 | N 913004016004 | NUT |
| Repalced by: N 913023016001 | ||
| 071 | N 913023016001 | NUT |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| Repalced by: N 000000005738 | ||
| 071 | N 000000005738 | NUT |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| 071 | N 913023016001 | NUT |
| Repalced by: N 000000005738 | ||
| 071 | N 000000005738 | NUT |
| 071 | N 913023016001 | NUT |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| Repalced by: N 000000005738 | ||
| 071 | N 000000005738 | NUT |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| 074 | A 4183100609 | BRACKET |
| FRONT BUMPER | ||
| A 4183100509 | BRACKET | |
| FRONT BUMPER | ||
| 077 | A 4183102109 | BRACKET |
| CAB SUSPENSION,FRONT | ||
| 080 | A 4183100909 | BRACKET |
| CAB SUSPENSION,FRONT | ||
| 080 | A 4183100809 | BRACKET |
| CAB SUSPENSION,FRONT | ||
| 083 | A 4183113440 | BRACKET |
| LINE MOUNTING | ||
| 083 | A 4184268840 | BRACKET |
| LINE MOUNTING | ||
| 086 | A 4183110755 | COVER |
| 089 | A 4183100291 | STIFFENING |
| LEFT | ||
| 089 | A 4183100691 | STIFFENING |
| RIGHT | ||
| 095 | A 4183104409 | BRACKET |
| FRONT AXLE STABILIZER | ||
| 095 | A 4183105309 | BRACKET |
| FRONT AXLE STABILIZER | ||
| 096 | A 4183102909 | BRACKET |
| FRONT AXLE STABILIZER | ||
| 098 | N 914126012030 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 12X1.5X50 | ||
| 098 | N 910105012016 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 12X1.5X55 | ||
| 098 | N 910105012016 | SCREW |
| 098 | N 000960012246 | SCREW |
| Repalced by: N 910105012011 | ||
| 098 | N 910105012011 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 12X1.5X60 | ||
| 101 | A 4210720053 | SPACER TUBE |
| BEARING BRACKET TO FRAME | ||
| 101 | A 4210720053 | SPACER TUBE |
| 102 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 102 | N 007349013005 | WASHER |
| BEARING BRACKET TO FRAME | ||
| 102 | N 007349013005 | WASHER |
| 104 | N 913023012003 | NUT |
| BEARING BRACKET TO FRAME | ||
| 104 | N 913004012008 | NUT |
| Repalced by: N 913023012003 | ||
| 104 | N 913023012003 | NUT |
| BEARING BRACKET TO FRAME | ||
| 104 | N 913023012002 | NUT |
| BEARING BRACKET TO FRAME | ||
| 105 | A 4183103209 | BRACKET |
| LEFT TRANSMISSION MOUNTING TO FRAME | ||
| 105 | A 4183103509 | BRACKET |
| RIGHT TRANSMISSION MOUNTING TO FRAME | ||
| 106 | A 4046110017 | BUSHING |
| PLATFORM TO FRAME | ||
| 107 | A 4183100063 | CONSOLE |
| PLATFORM | ||
| 107 | A 4173100063 | CONSOLE |
| 107 | A 4183100163 | CONSOLE |
| PLATFORM | ||
| 107 | A 4183100163 | CONSOLE |
| 108 | A 4183104209 | BRACKET |
| REAR AXLE CONTROL ARM | ||
| 110 | A 4183100346 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||
| 113 | A 4183120241 | ANGLE |
| REINFORCEMENT TO REAR CROSS MEMBER | ||
| 113 | A 4183120341 | ANGLE |
| REINFORCEMENT TO REAR CROSS MEMBER | ||
| 116 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 116 | N 910105010001 | HEXAGON HEAD BOLT |
| ANGLE TO REAR CROSS MEMBER | ||
| M10X30 | ||
| 116 | N 910105010007 | SCREW |
| Repalced by: N 000000000428 | ||
| 116 | N 000000000428 | HEXAGON HEAD BOLT |
| ANGLE TO REAR CROSS MEMBER | ||
| M10X35 | ||
| 119 | N 913023010002 | NUT |
| ANGLE TO REAR CROSS MEMBER | ||
| 122 | N 000961014028 | SCREW |
| Repalced by: N 910105014005 | ||
| 122 | N 910105014005 | SCREW |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X1.5X40 | ||
| 122 | N 910105014005 | SCREW |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X1.5X40 | ||
| 122 | N 000961014054 | SCREW |
| Repalced by: N 308676014022 | ||
| 122 | N 308676014022 | SCREW |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X1.5X45 | ||
| 122 | N 910105014010 | SCREW |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X1.5X45 | ||
| 125 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 125 | N 000125015019 | WASHER |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 128 | N 913023014003 | NUT |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 131 | A 4183100106 | COUPLING MOUTH |
| Repalced by: A 4183100306 | ||
| 131 | A 4183100306 | COUPLING MOUTH |
| FRONT | ||
| 134 | A 4259940060 | LOCK |
| COUPLING PIN | ||
| 135 | A 3579910140 | SPACER TUBE |
| LOCK TO TOWING DEVICE | ||
| 137 | N 001440008002 | WASHER |
| LOCK TO TOWING DEVICE | ||
| 140 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 140 | N 000000003250 | WASHER |
| LOCK TO TOWING DEVICE | ||
| 143 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 143 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 143 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 143 | N 913023008002 | NUT |
| LOCK TO TOWING DEVICE | ||
| 146 | A 4183111250 | BUSHING |
| TOWING MOUTH TO REAR CROSS MEMBER | ||
| 149 | N 000960016224 | SCREW |
| Repalced by: N 910105016009 | ||
| 149 | N 910105016009 | SCREW |
| TOWING MOUTH TO REAR CROSS MEMBER | ||
| M 16X1.5X100 | ||
| 152 | N 913023016000 | NUT |
| Repalced by: N 913023016001 | ||
| 152 | N 913023016001 | NUT |
| TOWING MOUTH TO REAR CROSS MEMBER | ||
| Repalced by: N 000000005738 | ||
| 152 | N 000000005738 | NUT |
| TOWING MOUTH TO REAR CROSS MEMBER | ||
| A 3818170026 | BODY NUMBER PLATE | |
| 155 | A 4183171542 | BEARING BRACKET |
| LEFT | ||
| 155 | A 4183171642 | BEARING BRACKET |
| RIGHT | ||
| 158 | N 001481028009 | CLAMPING SLEEVE |
| AT FRAME,TOP | ||
| 161 | N 000960016134 | SCREW |
| Repalced by: N 910105016010 | ||
| 161 | N 910105016010 | SCREW |
| AT FRAME,TOP | ||
| M 16X1.5X130 | ||
| 164 | N 000960012436 | SCREW |
| BOTTOM FRAME | ||
| M 12X1.5X105 | ||
| 167 | N 000960016250 | SCREW |
| REAR | ||
| M 16X1.5X85 | ||
| 170 | N 007349017002 | WASHER |
| REAR | ||
| Repalced by: N 007349017003 | ||
| 170 | N 007349017003 | WASHER |
| REAR | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
