Transporto priemonė: U 1500 T; VIN numerio dalis: 425131
Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR FRONT WHEEL BRAKE,SEE UNIT PARTS LIST: | ||
| 737.2 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR FRONT WHEEL BRAKE,SEE UNIT PARTS LIST: | ||
| 747.2 | ||

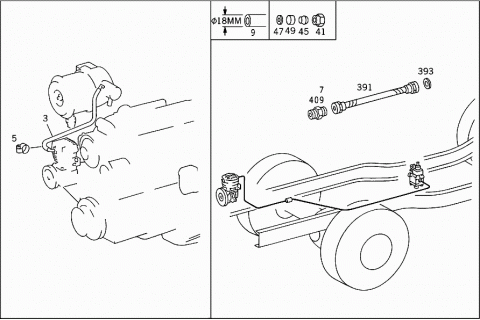

| 003 | N 900271018038 | HOSE |
| Repalced by: A 4254290035 | ||
| 003 | A 4254290035 | BRAKE HOSE |
| FROM AIR CLEANER TO AIR COMPRESSOR | ||
| 650 MM | ||
| 005 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 005 | N 000000000667 | CLAMP |
| 007 | N 915006016002 | DOUBLE FITTING |
| 009 | A 0004290401 | LINE |
| Repalced by: A 0005516456 | ||
| 009 | A 0005516456 | TUBE |
| 18 MM | ||

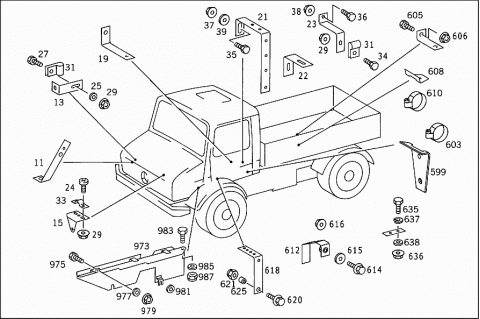

| 011 | A 4244231023 | BRACKET |
| COMPRESSED AIR LINE TO AIR COMPRESSOR | ||
| 013 | A 4354290140 | BRACKET |
| Repalced by: A 4354290240 | ||
| 013 | A 4354290240 | BRACKET |
| Repalced by: A 6205240340 | ||
| 013 | A 6205240340 | BRACKET |
| 013 | A 6205244040 | BRACKET |
| 015 | A 4254290140 | BRACKET |
| Repalced by: A 4254262740 | ||
| 015 | A 4254290240 | BRACKET |
| Repalced by: A 4254262740 | ||
| 015 | A 4254262740 | BRACKET |
| Repalced by: A 4254263740 | ||
| 015 | A 4254263740 | BRACKET |
| AT BELL HOUSING | ||
| 015 | A 4254264240 | BRACKET |
| AT BELL HOUSING | ||
| 015 | A 4374260346 | MOUNTING ANGLE |
| AT BELL HOUSING | ||
| 019 | A 4254290340 | BRACKET |
| AT BATTERY CONSOLE | ||
| 021 | A 4255512540 | BRACKET |
| FITTING-TO-PRESSURE-REGULATOR AIRCOMPRESSOR LINE TO FRAME SIDE MEMBER | ||
| 022 | A 4255519540 | BRACKET |
| Repalced by: A 6205243040 | ||
| 022 | A 6205243040 | BRACKET |
| FITTING-TO-PRESSURE-REGULATOR AIRCOMPRESSOR LINE TO FRAME SIDE MEMBER | ||
| 023 | A 4254265640 | BRACKET |
| FITTING-TO-PRESSURE-REGULATOR AIRCOMPRESSOR LINE TO FRAME SIDE MEMBER | ||
| 024 | N 000000001147 | SCREW |
| M 6X20 | ||
| 025 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 025 | N 000125006449 | WASHER |
| 027 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 027 | N 304017006020 | SCREW |
| 029 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 029 | N 913023006001 | NUT |
| 029 | N 913023006001 | NUT |
| LINE TO BRACKET | ||
| 031 | A 3609950601 | CLAMP |
| 031 | A 3609950601 | CLAMP |
| 031 | A 3609950601 | CLAMP |
| LINE TO BRACKET | ||
| 033 | N 001593019001 | CLAMP |
| Repalced by: N 000000004912 | ||
| 033 | N 000000004912 | CLAMP |
| 034 | N 000933006207 | SCREW |
| LINE TO BRACKET | ||
| 035 | N 000933010164 | SCREW |
| BRACKET TO FRAME | ||
| 036 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 036 | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| 037 | N 913004010011 | NUT |
| Repalced by: N 913023010002 | ||
| 037 | N 913023010002 | NUT |
| BRACKET TO FRAME | ||
| 038 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 038 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 038 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 038 | N 913023008002 | NUT |
| BRACKET TO FRAME | ||
| 039 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 039 | N 009021010209 | WASHER |
| BRACKET TO FRAME | ||
| 041 | N 915018018000 | UNION NUT |
| 041 | N 915017018100 | UNION NUT |
| 045 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 045 | A 0019901167 | SEAL CONE |
| 047 | N 007603018104 | SEAL RING |
| 049 | N 915065018101 | THRUST RING |

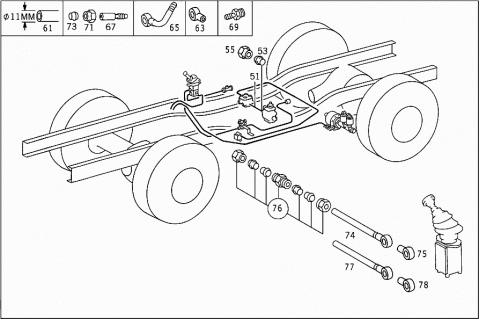

| 051 | A 0004290201 | LINE |
| Repalced by: A 0005516256 | ||
| 051 | A 0005516256 | TUBE |
| 15 MM | ||
| 053 | N 003861015004 | GLAND |
| 055 | N 915018015000 | UNION NUT |
| 057 | A 0004290901 | LINE |
| 10 X 0.7 MM | ||
| 059 | A 0004292301 | LINE |
| 10 X 1 MM | ||
| 061 | A 0089975482 | HOSE |
| HAND BRAKE VALVE BLEEDING | ||
| 11X8 MM | ||
| 061 | A 0089975482 | HOSE |
| FROM CHECK VALVE,CONNECTION "20",TO HAND BRAKE VALVE,CONNECTION: | ||
| "11" | ||
| 061 | A 0089975482 | HOSE |
| FROM FOUR-CIRCUIT PROTECT. VALVE,CONNECTION "24",TO DISTRIBUTOR,CONNECT.: | ||
| "22" | ||
| 061 | A 0089975482 | HOSE |
| FROM PARKING BRAKE VALVE TO T-FITTING | ||
| "10" | ||
| 061 | A 0089975482 | HOSE |
| HAND BRAKE VALVE,CONNECTION: | ||
| "21" | ||
| 061 | A 0089975482 | HOSE |
| FROM PARKING BRAKE VALVE TO CHECK VALVE | ||
| "20" | ||
| 061 | A 0089975482 | HOSE |
| HAND BRAKE VALVE,CONNECTION: | ||
| "11" | ||
| 061 | A 0089975482 | HOSE |
| PRE-LOAD CYLINDER BREATHING | ||
| 11X8 MM | ||
| 061 | A 0089975482 | HOSE |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 11X8 MM | ||
| 063 | N 915052008016 | BANJO UNION |
| Repalced by: N 000000000363 | ||
| 063 | N 000000000363 | BANJO UNION |
| 063 | N 915052008019 | BANJO UNION |
| 065 | A 4259900088 | BANJO UNION |
| 067 | A 0019977772 | FITTING |
| Repalced by: N 915058008000 | ||
| 067 | N 915058008003 | FITTING |
| 069 | A 0039971572 | FITTING |
| Repalced by: N 915059008000 | ||
| 069 | N 915059008001 | FITTING |
| 071 | N 915017010100 | UNION NUT |
| 073 | N 003861010009 | GLAND |
| N 915010010202 | BANJO UNION | |
| 074 | A 4254202126 | LINE |
| 10 MM | ||
| 075 | N 915010008205 | BANJO UNION |
| 076 | N 003902010002 | CONNECTION FITTING |
| Repalced by: A 0049971672 | ||
| 076 | A 0049971672 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 077 | A 4254202226 | LINE |
| 10 MM | ||
| 078 | N 915010008205 | BANJO UNION |

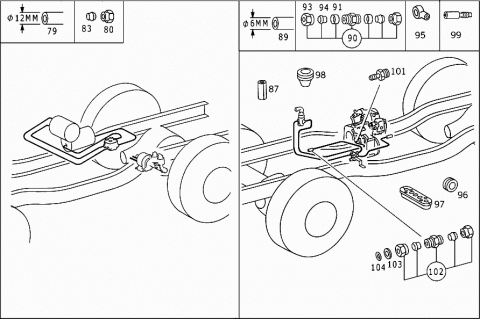

| 079 | A 0004292101 | LINE |
| 12 MM | ||
| 080 | N 915017012100 | UNION NUT |
| Repalced by: N 000000006239 | ||
| 080 | N 000000006239 | UNION NUT |
| 083 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 083 | A 0019901967 | SEAL CONE |
| 087 | A 3209922282 | HOSE |
| 089 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 089 | A 0009872627 | PLASTIC PIPE |
| ALL-WHEEL DRIVE AND DIFFERENTIAL LOCK | ||
| 4X6 MM | ||
| 089 | A 0009872627 | PLASTIC PIPE |
| FROM ALL-WHEEL-DRIVE/DIFF.-LOCK VALVE, CONNECT."22",TO CROSS FITTG.,CONNECT.: | ||
| "10" | ||
| 089 | A 0009872627 | PLASTIC PIPE |
| FROM ALL-WHEEL-DRIVE/DIFF.-LOCK VALVE, CONNECT."22",TO CROSS FITTG.,CONNECT.: | ||
| "10" | ||
| 089 | A 0009872627 | PLASTIC PIPE |
| FROM ALL-WHEEL-DRIVE/DIFF.-LOCK VALVE, CONN. "21",TO ALL-WHEEL-DRIVE CYLINDER | ||
| "10" | ||
| 089 | A 0009872627 | PLASTIC PIPE |
| FROM ALL-WHEEL-DRIVE/DIFF.-LOCK VALVE, CONNECT."22",TO CROSS FITTG.,CONNECT.: | ||
| "10" | ||
| 089 | A 0009872627 | PLASTIC PIPE |
| 3/2-WAY VALVE BREATHING | ||
| 4X6 MM | ||
| 089 | A 0009872627 | PLASTIC PIPE |
| FROM ALL-WHEEL-DRIVE/DIFF.-LOCK VALVE, CONN. "21",TO ALL-WHEEL-DRIVE CYLINDER | ||
| "10" | ||
| 090 | N 003902006001 | CONNECTION FITTING |
| Repalced by: A 0039979172 | ||
| 090 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 090 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 090 | N 074298012202 | DOUBLE FITTING |
| Repalced by: A 0019972872 | ||
| 090 | A 0019972872 | FITTING |
| Repalced by: A 0039979072 | ||
| 090 | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 090 | A 0029906071 | FITTING |
| 091 | A 0009920105 | BUSHING |
| Repalced by: N 915062004000 | ||
| 091 | N 915062004000 | SLEEVE |
| 093 | N 915017006100 | UNION NUT |
| 094 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 094 | A 0019901667 | SEAL CONE |
| 095 | N 915052006014 | BANJO UNION |
| 095 | N 915052006013 | BANJO UNION |
| 095 | A 0009907488 | BANJO UNION |
| Repalced by: N 915052006003 | ||
| 095 | N 915052006022 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/10 | ||
| 095 | N 915052006022 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/10 | ||
| 096 | A 0009906688 | BANJO UNION |
| Repalced by: N 915052006013 | ||
| 096 | A 1009970881 | GROMMET |
| 097 | A 4259970481 | GROMMET |
| 097 | A 4259970481 | GROMMET |
| 098 | A 3819970881 | GROMMET |
| BLEEDING | ||
| 099 | A 4068245009 | PIPE SOCKET |
| Repalced by: N 915058004000 | ||
| 099 | N 915058004000 | FITTING |
| 101 | A 0019973572 | FITTING |
| Repalced by: N 915059004000 | ||
| 101 | N 915059004001 | FITTING |
| 102 | N 074298012202 | DOUBLE FITTING |
| Repalced by: A 0039979072 | ||
| 102 | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 102 | A 0029906071 | FITTING |
| 103 | N 007603012405 | SEAL RING |
| 104 | A 0019970845 | SEAL RING |
| 105 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 105 | A 0009872727 | PLASTIC PIPE |
| FROM DISTRIBUTOR TO ALL-WHEEL-DRIVE/ DIFFERENTIAL-LOCK VALVE,CONNECTION: | ||
| "10" | ||
| 105 | A 0009872727 | PLASTIC PIPE |
| FROM DISTRIBUTOR TO SEPARATION POINT | ||
| "10" | ||
| 105 | A 0009872727 | PLASTIC PIPE |
| FROM SEPARATION POINT TO DISTRIBUTOR | ||
| "10" | ||
| 105 | A 0009872727 | PLASTIC PIPE |
| FROM DISTRIBUTOR TO ALL-WHEEL-DRIVE/ DIFFERENTIAL-LOCK VALVE,CONNECTION: | ||
| "10" | ||
| 105 | A 0009872727 | PLASTIC PIPE |
| FROM DISTRIBUTOR,CONNECTION "40",TO SEPARATION POINT ON CAB | ||
| "10" | ||
| 105 | A 0009872727 | PLASTIC PIPE |
| FRONT AXLE BREATHING | ||
| "10" | ||
| 105 | A 0009872727 | PLASTIC PIPE |
| FROM ALL-WHEEL-DRIVE/DIFFERENTIAL-LOCK VALVE,CONNECTION"10",TO DOUBLE FITTING | ||
| "10" | ||
| 105 | A 0009872727 | PLASTIC PIPE |
| FROM T-FITTING TO TRANSMISSION 3/2-WAY VALVE,CONNECTION: | ||
| "10" | ||
| 105 | A 0009872727 | PLASTIC PIPE |
| BREATHING OF VALVE & DIFFERENTIAL LOCK | ||
| "30" | ||

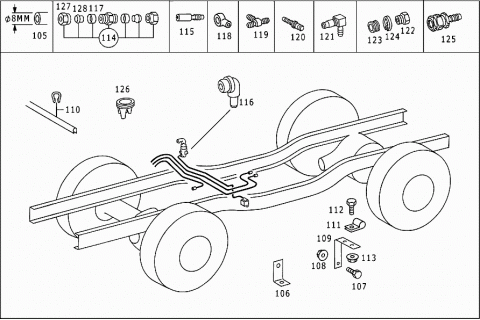

| 106 | A 4255511540 | BRACKET |
| Repalced by: A 3604292940 | ||
| 106 | A 3604292940 | BRACKET |
| 107 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 107 | N 910105010009 | HEXAGON HEAD BOLT |
| 108 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 108 | N 913023010003 | NUT |
| BRACKET | ||
| 109 | A 4064261140 | BRACKET |
| Repalced by: A 4245240640 | ||
| 109 | A 4245240640 | BRACKET |
| 110 | A 4068365043 | EDGE GUARD SECTION |
| TRANSMISSION MOUNTING | ||
| 111 | N 916016015202 | CLAMP |
| HOSE LINE TO BRACKET | ||
| 113 | N 000933006130 | SCREW |
| Repalced by: N 304017006020 | ||
| 112 | N 304017006020 | SCREW |
| HOSE LINE TO BRACKET | ||
| 113 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 113 | N 913023006001 | NUT |
| HOSE LINE TO BRACKET | ||
| 114 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 114 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 115 | A 0019976772 | FITTING |
| Repalced by: N 915059006000 | ||
| 115 | N 915059006002 | FITTING |
| 116 | A 4063580065 | BREATHER |
| 117 | A 0007630043 | SLEEVE |
| Repalced by: N 915062006000 | ||
| 117 | N 915062006000 | SLEEVE |
| 118 | N 915052006014 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6X16 MM | ||
| 118 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 118 | A 0009907488 | BANJO UNION |
| Repalced by: N 915052006003 | ||
| 118 | N 915052006022 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/10 MM | ||
| 118 | A 0009906688 | BANJO UNION |
| Repalced by: N 915052006013 | ||
| 118 | N 915052006022 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 119 | A 0009900678 | CONNECTOR |
| Repalced by: A 0019909870 | ||
| 119 | A 0019909870 | T-FITTING |
| Repalced by: A 0009907990 | ||
| 119 | A 0009907990 | T-FITTING |
| 120 | A 0009906678 | CONNECTOR |
| Repalced by: A 0029905478 | ||
| 120 | A 0029905478 | CONNECTOR |
| 121 | A 0019908071 | ELBOW FITTING |
| 121 | A 0019907971 | ELBOW FITTING |
| Repalced by: A 0049905371 | ||
| 121 | A 0049905371 | ELBOW FITTING |
| 122 | A 0009973734 | UNION SCREW |
| CAB SEPARATION POINT | ||
| 123 | A 0009940747 | SEAL RING |
| CAB SEPARATION POINT | ||
| 124 | A 0009945448 | LOCK |
| CAB SEPARATION POINT | ||
| 125 | A 6739900278 | CONNECTOR |
| CAB SEPARATION POINT | ||
| 126 | A 3833020091 | GROMMET |
| 127 | N 915017008100 | UNION NUT |
| 128 | N 003861008005 | GLAND |

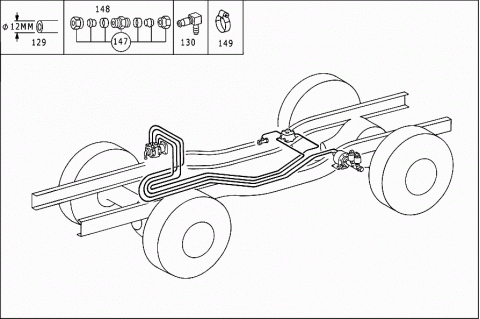

| 129 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 129 | A 0009872827 | PLASTIC PIPE |
| FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "11",TO 2-CIRC. BRAKE VALVE,CONNECT.: | ||
| 12X9 MM, "11" | ||
| 129 | A 0009872827 | PLASTIC PIPE |
| FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "12",TO 2-CIRC.PROTECT.VALVE,CONNECT.: | ||
| "12" | ||
| 129 | A 0009872827 | PLASTIC PIPE |
| BRAKE CYLINDER | ||
| "21" | ||
| 129 | A 0009872827 | PLASTIC PIPE |
| FROM TWO-CIRCUIT BRAKE CYLINDER, CONNECTION "12",TO TWO-WAY VALVE | ||
| "22" | ||
| 129 | A 0009872827 | PLASTIC PIPE |
| FROM PRESSURE RELIEF VALVE TO BRAKE VALVE | ||
| 12X9 MM, "11" | ||
| 129 | A 0009872827 | PLASTIC PIPE |
| FROM BULKHEAD FITTING TO TWO-CIRCUIT BRAKE VALVE,CONNECTION: | ||
| "11","12","21","22" | ||
| 129 | A 0009872827 | PLASTIC PIPE |
| FROM SERVICE BRAKE VALE TO PRE-LOAD CYLINDER | ||
| 12X9 MM, "11" | ||
| 129 | A 0009872827 | PLASTIC PIPE |
| FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "23",TO CHECK VALVE,CONNECTION: | ||
| "10" | ||
| 130 | A 0019908171 | ELBOW FITTING |
| 131 | A 0034290744 | VALVE |
| (CHECK VALVE) | ||
| 132 | A 0004290088 | VALVE SEAT RING |
| 133 | A 0004290049 | BUSHING |
| 134 | N 000472020000 | LOCK RING |
| 135 | A 0005865942 | REPAIR KIT |
| CHECK VALVE | ||
| 136 | A 4254310240 | BRACKET |
| CHECK VALVE | ||
| 137 | A 0029971372 | FITTING |
| LINE CONNECTION | ||
| "10" | ||
| 138 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 138 | A 0009940203 | THRUST RING |
| LINE CONNECTION | ||
| "10" | ||
| 139 | A 0009870446 | O-RING |
| LINE CONNECTION | ||
| "10" | ||
| 140 | N 000125019009 | WASHER |
| LINE CONNECTION | ||
| "10" | ||
| 141 | N 080705018002 | NUT |
| LINE CONNECTION | ||
| "10" | ||
| 142 | A 0009905168 | FITTING |
| Repalced by: A 0049903068 | ||
| 142 | A 0049903068 | FITTING |
| LINE CONNECTION TO CHECK VALVE, CONNECTION: | ||
| "20" | ||
| 143 | N 915036012203 | HOLLOW SCREW |
| LINE CONNECTION TO CHECK VALVE, CONNECTION: | ||
| "20" | ||
| 144 | N 007603016401 | SEAL RING |
| LINE CONNECTION TO CHECK VALVE, CONNECTION: | ||
| "20" | ||
| 145 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 145 | A 0009940203 | THRUST RING |
| LINE CONNECTION TO CHECK VALVE, CONNECTION: | ||
| "20" | ||
| 146 | A 0009870446 | O-RING |
| LINE CONNECTION TO CHECK VALVE, CONNECTION: | ||
| "20" | ||
| 147 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 147 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 148 | A 0009921505 | BUSHING |
| Repalced by: N 915062009000 | ||
| 148 | N 915062009000 | SLEEVE |
| 149 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 149 | N 000000000675 | CLAMP |
| Repalced by: A 0059972990 | ||
| 149 | A 0059972990 | CLAMP |
| 150 | A 0005514556 | TUBE |
| A 4254262140 | BRACKET | |
| PRESSURE GAUGE LINE TO FRONT PANEL | ||
| A 4254262140 | BRACKET | |
| PRESSURE GAUGE LINE TO FRONT PANEL | ||
| A 4254263440 | BRACKET | |

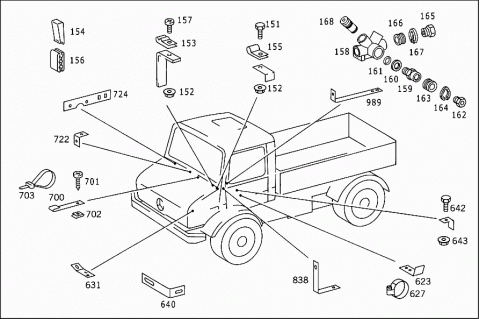

| 151 | N 000933006102 | SCREW |
| 151 | N 000933006102 | SCREW |
| 152 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 152 | N 913023006001 | NUT |
| 153 | A 3049951020 | CLAMP |
| PIPE LINE | ||
| 154 | A 0004290540 | BRACKET |
| PIPE LINE | ||
| 155 | A 3609950101 | CLAMP |
| Repalced by: A 3129951401 | ||
| 155 | A 3129951401 | CLAMP |
| PIPE LINE | ||
| 155 | A 3609950301 | CLAMP |
| 156 | A 6034280284 | SHIM |
| PIPE LINE | ||
| 157 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 157 | N 000000001146 | SCREW |
| M 6X16 | ||
| 158 | A 0009903272 | DISTRIBUTOR |
| 159 | A 0049978272 | FITTING |
| DISTRIBUTOR | ||
| 160 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 160 | A 0009940203 | THRUST RING |
| DISTRIBUTOR | ||
| 161 | A 0009870446 | O-RING |
| DISTRIBUTOR | ||
| 162 | A 0009970934 | UNION SCREW |
| DISTRIBUTOR | ||
| 163 | A 0009940147 | SEAL RING |
| DISTRIBUTOR | ||
| 164 | A 0009941448 | RETAINING CLAMP |
| DISTRIBUTOR | ||
| 165 | A 0009973734 | UNION SCREW |
| DISTRIBUTOR | ||
| 166 | A 0009940747 | SEAL RING |
| DISTRIBUTOR | ||
| 167 | A 0009945448 | LOCK |
| DISTRIBUTOR | ||
| 168 | A 0009977935 | PLUG |
| DISTRIBUTOR | ||

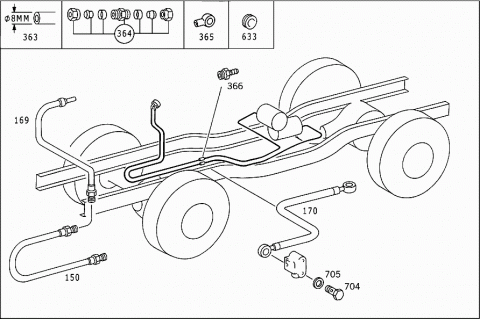

| 169 | A 4254200048 | BRAKE HOSE |
| 170 | A 4354200048 | BRAKE HOSE |
| FROM DISTRIBUTOR,CONNECTION "30",TO 3/2-WAY VALVE,CONNECTION: | ||
| "10" | ||

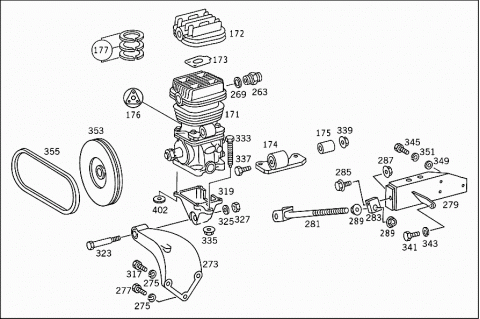

| 171 | A 3521300015 | COMPRESSOR |
| Repalced by: A 0031311301 | ||
| 172 | A 0001303320 | VALVE |
| Repalced by: A 0001303419 | ||
| 172 | A 0001303419 | CYLINDER HEAD |
| TO 352 130 00 15 | ||
| 173 | A 0001314031 | LEAF SPRING |
| TO 352 130 00 15 | ||
| 174 | A 4254200116 | BRAKE ANCHOR PLATE |
| Repalced by: A 4254200016 | ||
| 174 | A 4254200016 | BRACKET |
| TO 352 130 00 15 | ||
| 175 | A 0009889410 | RUBBER MOUNTING |
| TO 352 130 00 15 | ||
| 176 | A 0005862413 | REPAIR KIT |
| GASKET KIT | ||
| TO 352 130 00 15 | ||
| 177 | A 0005862513 | REPAIR KIT |
| Repalced by: A 0005863313 | ||
| 177 | A 0005863313 | REPAIR KIT |
| PISTON | ||
| TO 352 130 00 15 | ||
| A 0005862613 | REPAIR KIT | |

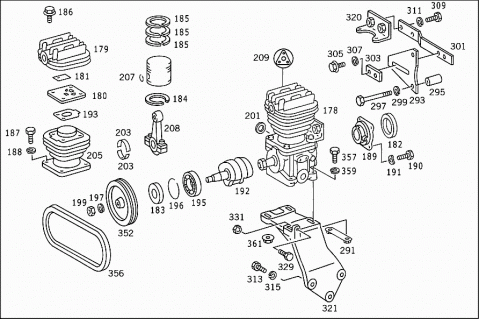

| 178 | A 0031311301 | COMPRESSOR |
| BOSCH | ||
| 179 | A 0001311521 | CAP |
| AIR COMPRESSOR | ||
| 180 | A 0001310039 | SCREENING |
| DISC VALVE | ||
| 181 | A 0001313908 | SPRING |
| DISC VALVE | ||
| 182 | A 0001314060 | SEAL RING |
| BEARING CAP TO HOUSING | ||
| 183 | A 0001314160 | SEAL RING |
| CRANKSHAFT BEARING | ||
| 184 | A 0001316711 | PISTON RING |
| 185 | A 0001316811 | PISTON RING |
| 186 | N 000933008237 | SCREW |
| Repalced by: N 304017008030 | ||
| 186 | N 304017008030 | SCREW |
| Repalced by: N 910105008019 | ||
| 186 | N 910105008019 | SCREW |
| CYLINDER HEAD TO CYLINDER LINER | ||
| M 8X50 | ||
| 187 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 187 | N 304017008034 | SCREW |
| CYLINDER LINER TO CYLINDER CRANKCASE | ||
| M 8X25 | ||
| 188 | N 912004008102 | LOCK WASHER |
| CYLINDER LINER TO CYLINDER CRANKCASE | ||
| 189 | A 0001312032 | BEARING CAP |
| AIR COMPRESSOR | ||
| 190 | N 000933008145 | SCREW |
| BEARING CAP TO HOUSING | ||
| M 8X18 | ||
| 191 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 191 | N 000137008212 | SPRING WASHER |
| BEARING CAP TO HOUSING | ||
| 192 | A 0001313316 | CRANKSHAFT |
| AIR COMPRESSOR | ||
| 193 | A 0001314031 | LEAF SPRING |
| DISC VALVE | ||
| 195 | A 0039810725 | BALL BEARING |
| Repalced by: A 0039810825 | ||
| 195 | A 0039810825 | BALL BEARING |
| CRANKSHAFT BEARING | ||
| 196 | A 0009942137 | SNAP RING |
| FRONT BEARING | ||
| 197 | N 912004018101 | LOCK WASHER |
| PULLEY TO AIR COMPRESSOR | ||
| 199 | N 000439018204 | NUT |
| PULLEY TO AIR COMPRESSOR | ||
| 201 | N 007603010100 | SEAL RING |
| CYLINDER CRANKCASE | ||
| 203 | A 0001310633 | BEARING SHELL |
| Repalced by: A 0001311433 | ||
| 203 | A 0001311433 | BEARING SHELL |
| CONNECTING ROD BEARINGS | ||
| 205 | A 0001300308 | CYLINDER LINER |
| WITH PISTONS | ||
| 207 | N 000472014000 | LOCK RING |
| PIN | ||
| 208 | A 0001311217 | CONNECTING ROD |
| AIR COMPRESSOR | ||
| 209 | A 0005863613 | REPAIR KIT |
| Repalced by: A 0011310480 | ||
| 209 | A 0011310480 | GASKET KIT |
| AIR COMPRESSOR | ||
| TO 003 151 13 01 | ||

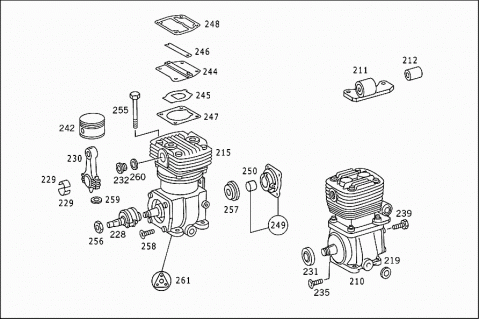

| 210 | A 3521300115 | COMPRESSOR |
| Repalced by: A 0031311301 | ||
| 211 | A 4254201386 | BRACKET |
| TO 352 130 01 15 | ||
| 212 | A 0009889410 | RUBBER MOUNTING |
| TO 352 130 01 15 | ||
| 215 | A 0031315001 | COMPRESSOR |
| WABCO | ||
| 219 | N 007603022102 | SEAL RING |
| 228 | A 0001313916 | CRANKSHAFT |
| AIR COMPRESSOR | ||
| 229 | A 0001310733 | BEARING SHELL |
| CONNECTING ROD BEARINGS | ||
| 230 | A 0001311517 | CONNECTING ROD |
| AIR COMPRESSOR | ||
| 231 | A 0099977246 | SEAL RING |
| 232 | N 000908026005 | SCREW PLUG |
| Repalced by: N 000908026008 | ||
| 232 | N 000908026008 | SCREW PLUG |
| Repalced by: A 0009973532 | ||
| 232 | A 0009973532 | SCREW PLUG |
| CYLINDER COVER | ||
| M 26X1.5 | ||
| 235 | N 007991008008 | SCREW |
| 239 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 239 | N 304017008016 | SCREW |
| 242 | A 0001311607 | PISTON |
| 244 | A 0001304420 | VALVE |
| DISC VALVE | ||
| 245 | A 0001312431 | VALVE DISC |
| DISC VALVE | ||
| 246 | A 0001312531 | VALVE DISC |
| DISC VALVE | ||
| 247 | A 0011310080 | GASKET |
| Repalced by: A 0011316480 | ||
| 247 | A 0011316480 | GASKET |
| 248 | A 0011310180 | GASKET |
| Repalced by: A 0011316580 | ||
| 248 | A 0011316580 | GASKET |
| 249 | A 0001312432 | BEARING CAP |
| AIR COMPRESSOR | ||
| 250 | A 0001313350 | BUSHING |
| 255 | N 000931008254 | SCREW |
| Repalced by: N 304014008002 | ||
| 255 | N 304014008002 | SCREW |
| M 8X65 | ||
| 256 | N 000439018203 | NUT |
| Repalced by: N 308675018002 | ||
| 256 | N 308675018002 | NUT |
| PULLEY TO AIR COMPRESSOR | ||
| 257 | A 0001311921 | CAP |
| AIR INJECTION | ||
| 258 | N 000965008002 | SCREW |
| BEARING CAP TO HOUSING | ||
| M 8X16 | ||
| 259 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 259 | N 000125006449 | WASHER |
| 260 | N 007603026400 | SEAL RING |
| CYLINDER COVER | ||
| 261 | A 0001319980 | GASKET KIT |
| Repalced by: A 0001301615 | ||
| 261 | A 0001301615 | GASKET KIT |
| AIR COMPRESSOR | ||
| TO 003 131 50 01 | ||

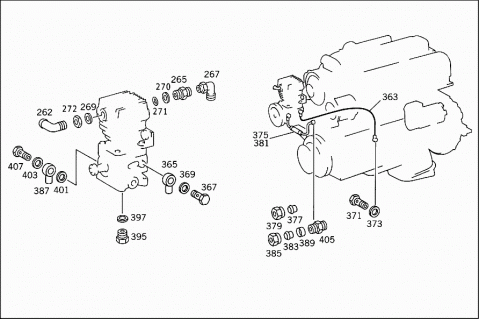

| 262 | A 3271340001 | PIPE BEND |
| SUCTION CONNECTION TO AIR COMPRESSOR | ||
| 263 | N 074313018201 | FITTING |
| LINE CONNECTION TO AIR COMPRESSOR | ||
| 265 | A 0019901468 | FITTING |
| PRESSURE CONNECTION TO AIR COMPRESSOR | ||
| 267 | A 0029904871 | ELBOW FITTING |
| PRESSURE CONNECTION TO AIR COMPRESSOR | ||
| 269 | N 007603026104 | SEAL RING |
| SUCTION CONNECTION TO AIR COMPRESSOR | ||
| 270 | A 0004290527 | THRUST RING |
| PRESSURE CONNECTION TO AIR COMPRESSOR | ||
| 271 | A 0039973848 | SEAL RING |
| PRESSURE CONNECTION TO AIR COMPRESSOR | ||
| 272 | N 074305026202 | NUT |
| SUCTION CONNECTION TO AIR COMPRESSOR | ||
| 273 | A 4254320740 | BRACKET |
| AIR COMPRESSOR BEARING | ||
| 275 | N 912004012100 | LOCK WASHER |
| 277 | N 000933012077 | SCREW |
| 279 | A 4254300310 | BRACKET |
| AIR COMPRESSOR | ||
| 281 | A 4254200074 | ROD |
| AIR COMPRESSOR TO BRACING | ||
| 283 | A 4254270312 | GUIDE |
| 285 | N 000960012197 | SCREW |
| Repalced by: N 910105012016 | ||
| 285 | N 910105012016 | SCREW |
| 287 | N 913004012008 | NUT |
| Repalced by: N 913023012003 | ||
| 287 | N 913023012003 | NUT |
| 289 | N 000934016011 | NUT |
| Repalced by: N 913023016001 | ||
| 289 | N 913023016001 | NUT |
| Repalced by: N 000000005738 | ||
| 289 | N 000000005738 | NUT |
| 291 | A 4254300041 | SHACKLE |
| 293 | A 4254310098 | CONNECTOR |
| TO 003 131 13 01 | ||
| 295 | A 4254320050 | BUSHING |
| TO 003 131 13 01 | ||
| A 4254320150 | BUSHING | |
| 297 | N 000931010357 | SCREW |
| Repalced by: N 910105010010 | ||
| 297 | N 910105010010 | SCREW |
| Repalced by: N 000931010283 | ||
| 297 | N 000931010283 | SCREW |
| Repalced by: N 000931010357 | ||
| 297 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 297 | A 0019909404 | SCREW |
| M 10X55,TO 003 131 13 01 | ||
| 299 | N 912004010102 | LOCK WASHER |
| TO 003 131 13 01 | ||
| 301 | A 4254300141 | SHACKLE |
| TO 003 131 13 01 | ||
| 303 | A 4254320226 | PLATE |
| 305 | N 000933010145 | SCREW |
| Repalced by: N 910105010007 | ||
| 305 | N 910105010007 | SCREW |
| Repalced by: N 000000000428 | ||
| 305 | N 000000000428 | HEXAGON HEAD BOLT |
| BEARING CAP TO HOUSING | ||
| M10X35,TO 003 131 13 01 | ||
| 307 | N 912004010102 | LOCK WASHER |
| TO 003 131 13 01 | ||
| 309 | N 000933010157 | SCREW |
| SHACKLE TO AIR COMPRESSOR | ||
| TO 003 131 13 01 | ||
| 311 | N 912004010102 | LOCK WASHER |
| SHACKLE TO AIR COMPRESSOR | ||
| TO 003 131 13 01 | ||
| 313 | N 000933012071 | SCREW |
| M 12X40 | ||
| 315 | N 912004012100 | LOCK WASHER |
| 317 | N 000933012021 | SCREW |
| 319 | A 4254310040 | BRACKET |
| AIR COMPRESSOR | ||
| 320 | A 4254201686 | BRACKET |
| AIR COMPRESSOR | ||
| TO 003 131 50 01,003 131 13 01 | ||
| 321 | A 4254321240 | BRACKET |
| Repalced by: A 4374320016 | ||
| 321 | A 4374320016 | SUPPORT |
| AIR COMPRESSOR | ||
| 323 | N 000610016008 | FITTED SCREW |
| 325 | N 006796016100 | CONICAL SPRING WASHER |
| 327 | N 000934016012 | NUT |
| 329 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 329 | N 304017008028 | SCREW |
| BELT TENSION READJUSTMENT | ||
| TO 003 131 13 01 | ||
| 331 | N 304032008006 | NUT |
| BELT TENSION READJUSTMENT | ||
| TO 003 131 13 01 | ||
| 333 | A 3261310071 | SCREW |
| 335 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 335 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 335 | N 913023010002 | NUT |
| 337 | N 000960014094 | SCREW |
| 339 | N 913004014002 | NUT |
| Repalced by: N 913023014004 | ||
| 339 | N 913023014004 | NUT |
| 341 | N 000931010282 | SCREW |
| 343 | N 912004010102 | LOCK WASHER |
| 345 | N 000933010200 | SCREW |
| 345 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 345 | N 910105010001 | HEXAGON HEAD BOLT |
| 349 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 349 | N 007349013005 | WASHER |
| 351 | N 912004010102 | LOCK WASHER |
| 352 | A 4254310119 | PULLEY |
| 353 | A 4254310219 | PULLEY |
| TO 352 130 01 15 | ||
| 355 | A 0049974692 | V-BELT |
| 1415 MM,TO 352 130 01 15 | ||
| 355 | A 0039974392 | V-BELT |
| 1400 MM | ||
| 356 | A 0049973392 | V-BELT |
| Repalced by: A 0039970392 | ||
| 356 | A 0039970392 | V-BELT |
| 1350 MM,TO 003 131 13 01 | ||
| 357 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 357 | N 304017008028 | SCREW |
| AIR COMPRESSOR TO SUPPORT | ||
| TO 003 131 13 01 | ||
| 359 | N 912004008102 | LOCK WASHER |
| AIR COMPRESSOR TO SUPPORT | ||
| TO 003 131 13 01 | ||
| 361 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 361 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 361 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 361 | N 913023008002 | NUT |
| TO 003 131 13 01 | ||
| 363 | A 0099979382 | PLASTIC PIPE |
| 8X4 MM | ||
| 363 | A 0099979382 | PLASTIC PIPE |
| PRESSURE RELIEF VALVE,CONNECTION: | ||
| "10" | ||
| 363 | A 0099979382 | PLASTIC PIPE |
| PRESSURE RELIEF VALVE OR TRAILER CONTROL VALVE TO SEPARATION POINT | ||
| "10" | ||
| 363 | A 0099979382 | PLASTIC PIPE |
| FROM PRESSURE RELIEF VALVE,CONNECTION "10",TO PRESSURE GAUGE LINE | ||
| "10" | ||
| 363 | A 0099979382 | PLASTIC PIPE |
| FROM AIR RESERVOIR TO SEPARATION POINT | ||
| 8X4 MM | ||
| 363 | A 0099979382 | PLASTIC PIPE |
| FROM PRESSURE GAUGE TO PLASTIC PIPE, CONNECTION: | ||
| "20" | ||
| 363 | A 0099979382 | PLASTIC PIPE |
| FROM PLASTIC PIPE,CONNECTION "20",TO DOUBLE PRESSURE GAUGE | ||
| "20" | ||
| 363 | A 0099979382 | PLASTIC PIPE |
| FROM PLASTIC PIPE,CONNECTION "20",TO DOUBLE PRESSURE GAUGE | ||
| "20" | ||
| 364 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 364 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 365 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 | ||
| 366 | A 0019973572 | FITTING |
| Repalced by: N 915059004000 | ||
| 366 | N 915059004001 | FITTING |
| 367 | N 915036006202 | HOLLOW SCREW |
| AT AIR COMPRESSOR | ||
| 369 | N 007603010404 | SEAL RING |
| AT AIR COMPRESSOR | ||
| 371 | A 3529900163 | HOLLOW SCREW |
| Repalced by: A 3529900363 | ||
| 371 | A 3529900363 | HOLLOW SCREW |
| OIL FILTER | ||
| 373 | N 007603010404 | SEAL RING |
| OIL FILTER | ||
| 375 | A 4255511056 | TUBE |
| RETURN LINE | ||
| 377 | N 003861010009 | GLAND |
| 379 | N 915017010100 | UNION NUT |
| 381 | A 0109974682 | HOSE |
| Repalced by: A 0024282335 | ||
| 381 | A 0024282335 | BRAKE HOSE |
| Repalced by: A 4254206237 | ||
| 381 | A 4254206237 | LINE |
| TO 003 131 13 01 | ||
| 383 | N 003861015004 | GLAND |
| 385 | N 915017015100 | UNION NUT |
| 387 | A 0009908788 | BANJO UNION |
| Repalced by: N 915052012000 | ||
| 387 | N 915052012004 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 12/22 | ||
| 389 | A 0009922305 | BUSHING |
| Repalced by: N 915062012000 | ||
| 389 | N 915062012000 | SLEEVE |
| 391 | A 4254300064 | LINE |
| 393 | N 007603018106 | SEAL RING |
| 395 | A 0019901968 | FITTING |
| Repalced by: A 0009905168 | ||
| 395 | A 0009905168 | FITTING |
| Repalced by: A 0049903068 | ||
| 395 | A 0049903068 | FITTING |
| 397 | N 007603022102 | SEAL RING |
| 397 | N 007603018104 | SEAL RING |
| TO 003 131 13 01 | ||
| 401 | N 007603022105 | SEAL RING |
| TO 003 131 13 01 | ||
| 402 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 402 | N 009021008213 | WASHER |
| TO 003 131 13 01 | ||
| Repalced by: N 000000003250 | ||
| 402 | N 000000003250 | WASHER |
| TO 003 131 13 01 | ||
| 403 | A 0004660960 | SEAL RING |
| TO 003 131 13 01 | ||
| 403 | A 0015531760 | SEAL RING |
| TO 003 131 13 01 | ||
| 405 | N 003901015005 | SCREW-IN FITTING |
| TO 003 131 13 01 | ||
| 407 | N 915036018204 | HOLLOW SCREW |
| 409 | N 074313018201 | FITTING |
| 409 | N 074313018201 | FITTING |

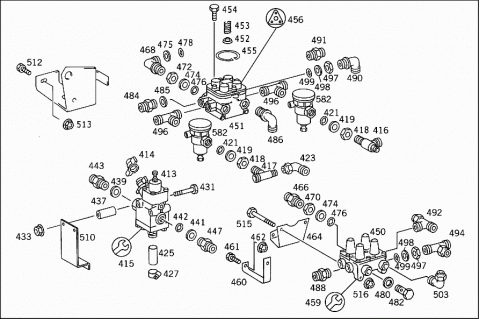

| 413 | A 0014314806 | PRESSURE REGULATOR |
| 413 | A 0014318106 | PRESSURE REGULATOR |
| (PRESSURE CONTROL VALVE) | ||
| WABCO | ||
| 413 | A 0014317906 | PRESSURE REGULATOR |
| Repalced by: A 0024319506 | ||
| 413 | A 0024319506 | VALVE |
| (PRESSURE CONTROL VALVE) | ||
| BOSCH | ||
| 414 | A 0009900562 | NUT |
| Repalced by: A 0009979486 | ||
| 414 | A 0009979486 | PROTECTIVE CAP |
| 414 | A 0014310187 | PROTECTIVE CAP |
| Repalced by: A 0009979486 | ||
| 415 | A 0025867043 | REPAIR KIT |
| Repalced by: A 0004301207 | ||
| 415 | A 0004301207 | REPAIR KIT |
| TO 001 431 81 06 | ||
| 415 | A 0015868543 | REPAIR KIT |
| Repalced by: A 0004301407 | ||
| 415 | A 0004301407 | REPAIR KIT |
| TO 001 586 79 06,001 431 48 06 | ||
| 415 | A 0004300907 | REPAIR KIT |
| PARTS KIT | ||
| TO 002 431 95 06 | ||
| 416 | A 0009904770 | T-FITTING |
| CONNECTION: | ||
| 20,KREIS 1 | ||
| 417 | A 0009909470 | T-FITTING |
| CONNECTION: | ||
| 20,KREIS 1 | ||
| 418 | N 080705016003 | NUT |
| CONNECTION: | ||
| 20 | ||
| 419 | A 0004290927 | THRUST RING |
| CONNECTION: | ||
| 20 | ||
| 421 | A 0009971548 | SEAL RING |
| CONNECTION: | ||
| 423 | N 003952012101 | FITTING |
| Repalced by: A 0019902771 | ||
| 423 | A 0019902771 | ELBOW FITTING |
| 425 | N 900271030002 | HOSE |
| 427 | A 0009971590 | LOOM TIE |
| Repalced by: N 916017040000 | ||
| 427 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 427 | N 000000000671 | CLAMP |
| 431 | N 000931008251 | SCREW |
| PRESSURE REGULATOR TO BRACKET | ||
| 431 | N 000931008209 | SCREW |
| PRESSURE REGULATOR TO BATTERY SUPPORT | ||
| 433 | N 913004008005 | NUT |
| Repalced by: N 913023008002 | ||
| 433 | N 913023008002 | NUT |
| PRESSURE REGULATOR TO BRACKET | ||
| 433 | N 913004008005 | NUT |
| Repalced by: N 913023008002 | ||
| 433 | N 913023008002 | NUT |
| PRESSURE REGULATOR TO BATTERY SUPPORT | ||
| 437 | A 3149910540 | SPACER TUBE |
| PRESSURE REGULATOR TO BATTERY SUPPORT | ||
| 439 | N 007603022102 | SEAL RING |
| PRESSURE REGULATOR,CONNECTION "2.1" | ||
| 441 | N 007603022102 | SEAL RING |
| Repalced by: A 0139972248 | ||
| 441 | A 0139972248 | SEAL RING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 442 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 442 | A 0009940203 | THRUST RING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 443 | N 074313016203 | FITTING |
| Repalced by: A 0019970172 | ||
| 443 | A 0019970172 | FITTING |
| Repalced by: A 0009970171 | ||
| 443 | A 0009970171 | FITTING |
| PRESSURE REGULATOR,CONNECTION "2.1" | ||
| 443 | A 0029971172 | FITTING |
| PRESSURE REGULATOR,CONNECTION "2.1" | ||
| Repalced by: N 000000006191 | ||
| 443 | N 000000006191 | FITTING |
| PRESSURE REGULATOR,CONNECTION "2.1" | ||
| 447 | N 074299026203 | DOUBLE FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 450 | A 0014313806 | VALVE |
| Repalced by: A 0014314706 | ||
| 450 | A 0014314706 | VALVE |
| Repalced by: A 0014317706 | ||
| 450 | A 0014317706 | VALVE |
| Repalced by: A 0024310406 | ||
| 451 | A 0024310406 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 452 | A 0014310986 | CUP |
| TO 002 431 04 06 | ||
| 453 | A 0009934905 | SPRING |
| Repalced by: A 0009935205 | ||
| 453 | A 0009935205 | SPRING |
| TO 002 431 04 06 | ||
| 454 | N 000933006127 | SCREW |
| TO 002 431 04 06 | ||
| 455 | N 000472055000 | LOCK RING |
| TO 002 431 04 06 | ||
| 456 | A 0004302906 | GASKET KIT |
| BOOT | ||
| TO 002 431 04 06 | ||
| 459 | A 0025860643 | REPAIR KIT |
| Repalced by: A 0025862843 | ||
| 459 | A 0025862843 | REPAIR KIT |
| TO 001 431 47 06 | ||
| 459 | A 0015868443 | REPAIR KIT |
| TO 001 431 38 06,001 431 77 06 | ||
| 459 | A 0025861743 | REPAIR KIT |
| TO 001 431 38 06,001 431 77 06 | ||
| 460 | A 4254263340 | BRACKET |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 461 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 461 | N 304017008021 | SCREW |
| M 8X20 | ||
| 462 | N 913004008005 | NUT |
| Repalced by: N 913023008002 | ||
| 462 | N 913023008002 | NUT |
| 464 | A 4254264140 | BRACKET |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 466 | N 074313016401 | FITTING |
| Repalced by: A 0019972372 | ||
| 466 | A 0019972372 | FITTING |
| 468 | N 074315000200 | FITTING |
| Repalced by: A 0009905871 | ||
| 468 | A 0009905871 | ELBOW FITTING |
| 468 | N 074315012101 | FITTING |
| Repalced by: A 0009907771 | ||
| 468 | A 0009907771 | ELBOW FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1";CHECK VALVE | ||
| 470 | N 080705022001 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1";CHECK VALVE | ||
| 472 | N 080705022001 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1";CHECK VALVE | ||
| 474 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 474 | A 0009940203 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1";CHECK VALVE | ||
| 475 | N 915065015101 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1";CHECK VALVE | ||
| 476 | A 0009870446 | O-RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1";CHECK VALVE | ||
| 478 | N 007603014106 | SEAL RING |
| 480 | N 007603016401 | SEAL RING |
| 480 | N 007603016401 | SEAL RING |
| 480 | N 007603016103 | SEAL RING |
| 482 | N 915036012203 | HOLLOW SCREW |
| 484 | N 003901012015 | SCREW-IN FITTING |
| Repalced by: A 0029971572 | ||
| 484 | A 0029971572 | FITTING |
| CONNECTION: | ||
| 22 | ||
| 484 | N 074313012304 | FITTING |
| CONNECTION: | ||
| 22 | ||
| 485 | N 007603016103 | SEAL RING |
| CONNECTION: | ||
| 22 | ||
| 486 | N 003911010102 | FITTING |
| Repalced by: A 0019903371 | ||
| 486 | A 0019903371 | ELBOW FITTING |
| CONNECTION: | ||
| 23 | ||
| 488 | A 0029975772 | FITTING |
| Repalced by: A 6679970672 | ||
| 488 | A 6679970672 | FITTING |
| Repalced by: A 0029907168 | ||
| 488 | A 0029907168 | FITTING |
| 490 | N 074315012100 | FITTING |
| Repalced by: A 0019903371 | ||
| 490 | A 0019903371 | ELBOW FITTING |
| CONNECTION: | ||
| 21 | ||
| 491 | N 003901012015 | SCREW-IN FITTING |
| Repalced by: A 0029971572 | ||
| 491 | A 0029971572 | FITTING |
| CONNECTION: | ||
| 21 | ||
| 492 | N 003954010100 | FITTING |
| 494 | N 003953010100 | FITTING |
| 496 | A 0029972672 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| 11,12 | ||
| 496 | N 003952012101 | FITTING |
| Repalced by: A 0019902771 | ||
| 496 | A 0019902771 | ELBOW FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| 11,12 | ||
| 497 | N 080705016003 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| 11,12,21,22,23 | ||
| 498 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| 11,12,21,22,23 | ||
| 499 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| 11,12,21,22,23 | ||
| 503 | N 003952010100 | FITTING |
| A 4254200586 | BRACKET | |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 510 | A 4254230523 | BRACKET |
| PRESSURE REGULATOR | ||
| 512 | N 000933010164 | SCREW |
| 513 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 513 | N 913023010003 | NUT |
| 515 | N 000931008209 | SCREW |
| 516 | N 913004008005 | NUT |
| Repalced by: N 913023008002 | ||
| 516 | N 913023008002 | NUT |

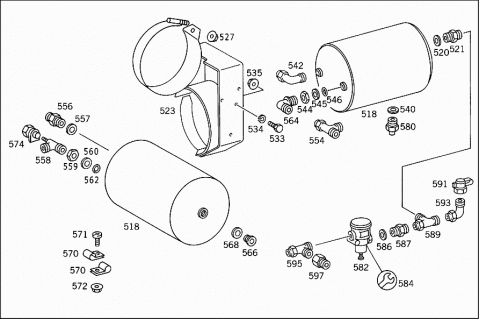

| 518 | A 4254300005 | RESERVOIR |
| Repalced by: A 0034326801 | ||
| 518 | A 0034326801 | RESERVOIR |
| Repalced by: A 0034326901 | ||
| 518 | A 0034326901 | RESERVOIR |
| Repalced by: A 0074322001 | ||
| 518 | A 0074322001 | COMPRESSED AIR RESERVOIR |
| 520 | N 007603022102 | SEAL RING |
| 521 | N 074313010100 | FITTING |
| 523 | A 4254200186 | BRACKET |
| AIR RESERVOIR | ||
| 525 | A 4354300010 | BRACKET |
| AIR RESERVOIR | ||
| 527 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 527 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 527 | N 913023010002 | NUT |
| 529 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 529 | N 913023010003 | NUT |
| AIR RESERVOIR TO BRACKET | ||
| 533 | N 000933012056 | SCREW |
| Repalced by: N 304017012020 | ||
| 533 | N 304017012020 | SCREW |
| BRACKET TO FRAME | ||
| M 12X30 | ||
| 534 | N 912004012100 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 535 | N 000934012021 | NUT |
| Repalced by: N 913023012004 | ||
| 535 | N 913023012004 | NUT |
| BRACKET TO FRAME | ||
| 537 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 537 | N 910105010006 | SCREW |
| AIR RESERVOIR BRACKET TO BRAKE CYLINDER BRACKET | ||
| 538 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 538 | N 913023010003 | NUT |
| AIR RESERVOIR BRACKET TO BRAKE CYLINDER BRACKET | ||
| TO 435 430 00 10 | ||
| 540 | N 007603022102 | SEAL RING |
| 542 | A 3609900071 | ELBOW FITTING |
| 542 | A 0009907771 | ELBOW FITTING |
| OUTSIDE FRONT | ||
| 544 | N 080705022001 | NUT |
| 544 | N 080705022001 | NUT |
| 544 | N 080705022001 | NUT |
| OUTSIDE FRONT | ||
| 544 | N 080705022001 | NUT |
| 544 | N 080705022001 | NUT |
| OUTSIDE FRONT | ||
| 545 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 545 | A 0009940203 | THRUST RING |
| 546 | A 0009970446 | SEAL RING |
| Repalced by: A 0009870446 | ||
| 546 | A 0009870446 | O-RING |
| 548 | A 0019979572 | FITTING |
| AIR RESERVOIR | ||
| 1 | ||
| 550 | A 0009904670 | T-FITTING |
| AIR RESERVOIR | ||
| 2 | ||
| 552 | A 0019979572 | FITTING |
| AIR RESERVOIR | ||
| 2 | ||
| 554 | N 003954010100 | FITTING |
| 556 | N 074313012100 | FITTING |
| Repalced by: A 0029971172 | ||
| 556 | A 0029971172 | FITTING |
| AT AIR RESERVOIR | ||
| Repalced by: N 000000006191 | ||
| 556 | N 000000006191 | FITTING |
| AT AIR RESERVOIR | ||
| 557 | N 007603022102 | SEAL RING |
| AT AIR RESERVOIR | ||
| 558 | A 0009909070 | T-FITTING |
| AT AIR RESERVOIR | ||
| 558 | A 0019979572 | FITTING |
| AT AIR RESERVOIR | ||
| 559 | N 080705022001 | NUT |
| AT AIR RESERVOIR | ||
| 560 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 560 | A 0009940203 | THRUST RING |
| AT AIR RESERVOIR | ||
| 560 | A 0009940203 | THRUST RING |
| SCREW PLUG | ||
| TO A 003 432 69 01 | ||
| 562 | A 0009870446 | O-RING |
| AT AIR RESERVOIR | ||
| 562 | A 0009870446 | O-RING |
| SCREW PLUG | ||
| TO A 003 432 69 01 | ||
| 564 | N 074315012101 | FITTING |
| Repalced by: A 0009907771 | ||
| 564 | A 0009907771 | ELBOW FITTING |
| INSIDE FRONT | ||
| 566 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 566 | N 000908022011 | SCREW PLUG |
| INSIDE | ||
| 566 | N 000908022011 | SCREW PLUG |
| AIR RESERVOIR | ||
| TO A 003 432 69 01 | ||
| 568 | N 007603022102 | SEAL RING |
| INSIDE | ||
| 570 | A 3609950401 | CLAMP |
| Repalced by: A 0009950368 | ||
| 570 | A 0009950368 | CLAMP |
| BRAKE LINE MOUNTING | ||
| 571 | N 007985008142 | SCREW |
| BRAKE LINE MOUNTING | ||
| 572 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 572 | N 913023006001 | NUT |
| BRAKE LINE MOUNTING | ||
| 574 | A 0004311431 | TEST CONNECTION |
| Repalced by: A 0004312931 | ||
| 574 | A 0004313731 | TEST CONNECTION |
| Repalced by: A 0004312931 | ||
| 574 | A 0004312931 | TEST CONNECTION |
| M 16 | ||
| 574 | A 0004313131 | TEST CONNECTION |
| Repalced by: A 0004312031 | ||
| 574 | A 0004312031 | TEST CONNECTION |
| M 12 | ||
| 574 | A 0004312031 | TEST CONNECTION |
| M 12 | ||
| 574 | A 0004314531 | TEST CONNECTION |
| M 12 | ||
| 574 | A 0004314531 | TEST CONNECTION |
| M 12 | ||
| 574 | A 0004312531 | TEST CONNECTION |
| M 14 | ||
| 574 | A 0004315331 | TEST CONNECTION |
| M 14 | ||
| 580 | A 0004320807 | VALVE |
| DRAIN VALVE | ||
| WABCO | ||
| 580 | A 0004321107 | VALVE |
| DRAIN VALVE | ||
| VOSS | ||
| Repalced by: A 0004322407 | ||
| 580 | A 0004322407 | DRAIN VALVE |
| DRAIN VALVE | ||
| VOSS | ||
| Repalced by: A 0004322107 | ||
| 580 | A 0004322107 | DRAIN VALVE |
| DRAIN VALVE | ||
| VOSS | ||
| 580 | A 0004322107 | VALVE |
| DRAIN VALVE | ||
| AUCO | ||
| 580 | A 0004321507 | VALVE |
| Repalced by: A 0004322407 | ||
| 580 | A 0004322407 | VALVE |
| DRAIN VALVE | ||
| WIRA | ||
| Repalced by: A 0004322107 | ||
| 580 | A 0004322107 | DRAIN VALVE |
| DRAIN VALVE | ||
| WIRA | ||
| 582 | A 0014315606 | VALVE |
| (PRESSURE LIMIT VALVE) | ||
| 584 | A 0025862043 | REPAIR KIT |
| Repalced by: A 0004200871 | ||
| 584 | A 0004200871 | REPAIR KIT |
| TO 001 431 56 06 | ||
| 586 | N 007603016401 | SEAL RING |
| 587 | A 0029975772 | FITTING |
| Repalced by: A 6679970672 | ||
| 587 | A 6679970672 | FITTING |
| Repalced by: A 0029907168 | ||
| 587 | A 0029907168 | FITTING |
| 589 | N 003954010100 | FITTING |
| 591 | A 0004313731 | TEST CONNECTION |
| Repalced by: A 0004312931 | ||
| 591 | A 0004312931 | TEST CONNECTION |
| M 16 | ||
| 593 | N 003952010102 | FITTING |
| 595 | N 003954010100 | FITTING |
| 597 | A 0009909168 | FITTING |
| 599 | A 4164230094 | BRACKET |
| LINE TO CROSS MEMBER | ||
| A 4254260740 | BRACKET | |
| PRESSURE REGULATOR TO BRACKET | ||
| 603 | N 916017130000 | CLAMP |
| Repalced by: N 000000000678 | ||
| 603 | N 000000000678 | CLAMP |
| Repalced by: N 000000005892 | ||
| 603 | N 000000005892 | CLAMP |
| 605 | N 304014008004 | SCREW |
| Repalced by: N 304014008001 | ||
| 605 | N 304014008001 | SCREW |
| 605 | N 304014008001 | SCREW |
| 606 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 606 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 606 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 606 | N 913023008002 | NUT |
| 606 | N 913023008002 | NUT |
| 608 | A 4244261740 | BRACKET |
| LINE TO CROSS MEMBER | ||
| 610 | N 000000000645 | CLAMP |
| 612 | A 4354262640 | BRACKET |
| Repalced by: A 4354267640 | ||
| 612 | A 4354267640 | BRACKET |
| Repalced by: A 4354269140 | ||
| 612 | A 4354269140 | BRACKET |
| Repalced by: A 4374200386 | ||
| 612 | A 4374200386 | BRACKET |
| TRANSMISSION PLATE | ||
| 614 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 614 | N 910105010009 | HEXAGON HEAD BOLT |
| 615 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 615 | N 009021010209 | WASHER |
| 616 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 616 | N 913023010003 | NUT |
| 618 | A 4354262340 | BRACKET |
| HOSDE TO FRAME | ||
| 620 | N 000960012261 | SCREW |
| Repalced by: N 910105012016 | ||
| 620 | N 910105012016 | SCREW |
| 621 | N 913004012009 | NUT |
| Repalced by: N 910113012005 | ||
| 621 | N 910113012005 | NUT |
| 623 | A 4254760536 | BRACKET |
| Repalced by: A 3184923441 | ||
| 623 | A 3184923441 | BRACKET |
| AT CROSS MEMBER | ||
| 625 | A 1109910140 | SPACER TUBE |
| Repalced by: A 4275510250 | ||
| 625 | A 4275510250 | BUSHING |
| 627 | N 916017110001 | CLAMP |
| Repalced by: A 0059971490 | ||
| 627 | A 0059971490 | HOSE CLAMP |
| Repalced by: A 0019951910 | ||
| 627 | A 0019951910 | CLAMP |
| 627 | N 000000000676 | CLAMP |
| Repalced by: N 000000005890 | ||
| 627 | N 000000005890 | CLAMP |
| 631 | A 4114320740 | BRACKET |
| Repalced by: A 3604293140 | ||
| 631 | A 3604293140 | BRACKET |
| BRACKET TO CAB | ||
| A 4035040338 | MOUNTING PLATE | |
| AT TRANSMISSION | ||
| 633 | A 0009870744 | EXPANSION PLUG |
| COMPRESSED AIR LINE | ||
| 635 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 635 | N 304017008021 | SCREW |
| AT TRANSMISSION | ||
| 636 | N 913004008005 | NUT |
| Repalced by: N 913023008002 | ||
| 636 | N 913023008002 | NUT |
| AT TRANSMISSION | ||
| 637 | N 912004008102 | LOCK WASHER |
| AT TRANSMISSION | ||
| 638 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 638 | N 000125008443 | WASHER |
| AT TRANSMISSION | ||
| 640 | A 4164261540 | BRACKET |
| Repalced by: A 6205240340 | ||
| 640 | A 6205240340 | BRACKET |
| AT TRANSMISSION | ||
| 642 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 642 | N 304017008021 | SCREW |
| AT TRANSMISSION | ||
| M 8X20 | ||
| 643 | N 913004008005 | NUT |
| Repalced by: N 913023008002 | ||
| 643 | N 913023008002 | NUT |
| AT TRANSMISSION | ||
| 645 | A 0014315405 | BRAKE VALVE |
| PARKING BRAKE | ||
| BOSCH | ||
| 645 | A 0014316105 | BRAKE VALVE |
| PARKING BRAKE | ||
| WABCO | ||
| 647 | A 0004317487 | PROTECTIVE CAP |
| Repalced by: A 0004318187 | ||
| 647 | A 0004318187 | PROTECTIVE CAP |
| TO 001 431 54 05 | ||
| 649 | A 0025860843 | REPAIR KIT |
| TO 001 431 54 05 | ||
| 649 | A 0025860542 | REPAIR KIT |
| TO 001 431 61 05 | ||
| A 0059975948 | SEAL RING | |
| A 0059976248 | SEAL RING | |
| A 0004312581 | VALVE DISC | |
| A 0004313634 | STRAINER | |
| A 0019979340 | SEAL RING | |
| Repalced by: A 0019975945 | ||
| A 0019975945 | SEAL RING | |
| A 0059976048 | SEAL RING | |
| A 0004318886 | CUP | |
| A 0059975848 | SEAL RING | |
| 652 | A 0024310305 | BRAKE VALVE |
| TWO-CIRCUIT BRAKE VALVE | ||
| BOSCH | ||
| 652 | A 0024310005 | BRAKE VALVE |
| Repalced by: A 0024316505 | ||
| 652 | A 0024316505 | BRAKE VALVE |
| TWO-CIRCUIT BRAKE VALVE | ||
| WABCO | ||
| 652 | A 0024316505 | BRAKE VALVE |
| TWO-CIRCUIT BRAKE VALVE | ||
| WABCO | ||
| 652 | A 0024316305 | BRAKE VALVE |
| TWO-CIRCUIT BRAKE VALVE | ||
| BOSCH | ||
| 652 | A 0024316305 | BRAKE VALVE |
| TWO-CIRCUIT BRAKE VALVE | ||
| BOSCH | ||
| 653 | A 0024319805 | BRAKE VALVE |
| MAKE BOSCH | ||
| 653 | A 0034312405 | BRAKE VALVE |
| WABCO | ||
| 654 | A 0004312185 | FILLER RING |
| TO 002 431 00 05 | ||
| 655 | A 0004310273 | BREATHER PIPE |
| TO 002 431 00 05 | ||
| 656 | A 0004318383 | PISTON |
| TO 002 431 00 05 | ||
| 657 | A 0004313623 | VALVE |
| TO 002 431 00 05, 002 431 65 05 | ||
| 658 | A 0025868043 | REPAIR KIT |
| Repalced by: A 0004301160 | ||
| 658 | A 0004301160 | REPAIR KIT |
| Repalced by: A 0004306260 | ||
| 658 | A 0004306260 | REPAIR KIT |
| Repalced by: A 0014300460 | ||
| 658 | A 0014300460 | REPAIR KIT |
| Repalced by: A 0004308006 | ||
| 658 | A 0004308006 | REPAIR KIT |
| TO 002 431 00 05, 002 431 65 05 | ||
| 658 | A 0025868743 | REPAIR KIT |
| Repalced by: A 0004303506 | ||
| 658 | A 0004303506 | REPAIR KIT |
| TO 002 431 03 05,002 431 63 05 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 002 431 98 05 | ||
| 658 | A 0004308860 | REPAIR KIT |
| TO 002 431 63 05 | ||
| 659 | A 0014300560 | REPAIR KIT |
| TO 003 431 24 05 | ||
| 660 | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 660 | N 000908012009 | SCREW PLUG |
| TWO-CIRCUIT BRAKE VALVE | ||
| 661 | N 007603012110 | SEAL RING |
| Repalced by: A 0004290827 | ||
| 661 | A 0004290827 | THRUST RING |
| Repalced by: A 0009940103 | ||
| 661 | A 0009940103 | THRUST RING |
| TWO-CIRCUIT BRAKE VALVE | ||
| 662 | A 0019970845 | SEAL RING |
| TWO-CIRCUIT BRAKE VALVE | ||
| A 4254200386 | BRACKET | |
| BRAKE VALVE | ||
| A 4254263240 | BRACKET | |
| BRAKE VALVE | ||
| A 4244310840 | BRACKET | |
| BRAKE VALVE | ||
| 667 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 667 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO FRAME | ||
| 667 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 667 | N 910105010009 | HEXAGON HEAD BOLT |
| 669 | N 000931010161 | SCREW |
| Repalced by: N 000931010462 | ||
| 669 | N 000931010462 | SCREW |
| 669 | N 000931010293 | SCREW |
| 671 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 671 | N 304017008034 | SCREW |
| 671 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 671 | N 304017008018 | SCREW |
| VALVE TO CAB | ||
| 671 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 671 | N 304017008027 | SCREW |
| VALVE TO CAB | ||
| 673 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 673 | N 000137008212 | SPRING WASHER |
| 677 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 677 | N 913023010003 | NUT |
| 677 | N 913023010003 | NUT |
| 679 | N 007603016401 | SEAL RING |
| 680 | A 0029975772 | FITTING |
| Repalced by: A 6679970672 | ||
| 680 | A 6679970672 | FITTING |
| Repalced by: A 0029907168 | ||
| 680 | A 0029907168 | FITTING |
| AT BRAKE VALVE | ||
| 681 | N 003901012015 | SCREW-IN FITTING |
| Repalced by: A 0029971572 | ||
| 681 | A 0029971572 | FITTING |
| AT BRAKE VALVE | ||
| 681 | A 0029971572 | FITTING |
| AT BRAKE VALVE | ||
| 681 | A 0029971672 | FITTING |
| CAB | ||
| 682 | A 0009970934 | UNION SCREW |
| 682 | A 0009970934 | UNION SCREW |
| 683 | A 0009940147 | SEAL RING |
| 683 | A 0009940147 | SEAL RING |
| 684 | A 0009941448 | RETAINING CLAMP |
| 684 | A 0009941448 | RETAINING CLAMP |
| 685 | A 0009908878 | CONNECTOR |
| 686 | A 0034305701 | BRAKE MASTER CYLINDER |
| Repalced by: A 0044301901 | ||
| 686 | A 0044301901 | BRAKE MASTER CYLINDER |
| PRE-LOAD CYLINDER | ||
| WABCO | ||
| 687 | A 0025860543 | REPAIR KIT |
| TO 003 430 57 01 | ||
| 687 | A 0014300960 | REPAIR KIT |
| TO 004 430 19 01 | ||
| 688 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 688 | A 0009940203 | THRUST RING |
| 689 | A 0009870446 | O-RING |
| 690 | N 074313010100 | FITTING |
| 690 | N 074313012100 | FITTING |
| Repalced by: A 0029971172 | ||
| 690 | A 0029971172 | FITTING |
| Repalced by: N 000000006191 | ||
| 690 | N 000000006191 | FITTING |
| 691 | A 4254200068 | SUPPORT |
| BRAKE MASTER CYLINDER | ||
| A 0015456214 | SWITCH | |
| Repalced by: A 4275400044 | ||
| A 4275400044 | SWITCH | |
| SEE GROUP: | ||
| 54 | ||
| A 0055423217 | SENDER UNIT | |
| SEE GROUP: | ||
| 54 | ||
| N 000931006084 | SCREW | |
| Repalced by: N 304017006027 | ||
| N 304017006027 | SCREW | |
| SEE GROUP: | ||
| 54 | ||
| N 913004006002 | NUT | |
| Repalced by: N 913023006001 | ||
| N 913023006001 | NUT | |
| SEE GROUP: | ||
| 54 | ||
| A 4254201186 | BRACKET | |
| AIR RESERVOIR TO FRAME | ||
| 696 | A 4244200986 | BRACKET |
| Repalced by: A 4244201786 | ||
| 696 | A 4244201786 | BRACKET |
| AIR RESERVOIR TO FRAME | ||
| 697 | N 910105012020 | SCREW |
| BRACKET TO FRAME | ||
| 698 | N 913004012008 | NUT |
| Repalced by: N 913023012003 | ||
| 698 | N 913023012003 | NUT |
| A 4254270034 | COVERING | |
| 700 | A 4354263240 | BRACKET |
| Repalced by: A 3184923441 | ||
| 700 | A 3184923441 | BRACKET |
| CABLE HARNESS TO CAB | ||
| 701 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 701 | N 000000000460 | SHEET METAL SCREW |
| CABLE HARNESS TO CAB | ||
| 702 | A 0009947145 | LOCK |
| CABLE HARNESS TO CAB | ||
| 703 | A 0019978490 | LOOM TIE |
| 704 | N 915036008202 | HOLLOW SCREW |
| LINE CONNECTION TO DISTRIBUTOR, CONNECTION: | ||
| 2,3,4 | ||
| 705 | N 007603012405 | SEAL RING |
| LINE CONNECTION TO DISTRIBUTOR, CONNECTION: | ||
| 2,3,4 | ||
| 706 | N 900271012018 | HOSE |
| BLEEDING | ||
| 12X21X540 MM | ||
| 706 | N 900271010015 | HOSE |
| BLEEDING | ||
| 10X19X650 MM | ||
| 706 | N 900271015037 | HOSE |
| Repalced by: A 0005461830 | ||
| 706 | A 0005461830 | INSULATING HOSE |
| BLEEDING | ||
| 706 | A 0005461830 | INSULATING HOSE |
| BLEEDING | ||
| 708 | A 1869970781 | GROMMET |
| Repalced by: A 3219970281 | ||
| 708 | A 3219970281 | GROMMET |
| Repalced by: A 3359970081 | ||
| 708 | A 3359970081 | GROMMET |
| 710 | A 4259871143 | RUBBER SLEEVE |
| Repalced by: A 4429870443 | ||
| 710 | A 4429870443 | RUBBER SLEEVE |
| 712 | A 0019978390 | LOOM TIE |
| 714 | A 4354200986 | BRACKET |
| Repalced by: A 3521800440 | ||
| 714 | A 3521800440 | BRACKET |
| COVERING | ||
| 718 | N 000933010145 | SCREW |
| Repalced by: N 910105010007 | ||
| 718 | N 910105010007 | SCREW |
| Repalced by: N 000000000428 | ||
| 718 | N 000000000428 | HEXAGON HEAD BOLT |
| TWO-CIRCUIT BRAKE VALVE TO CONSOLE | ||
| M10X35 | ||
| 718 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 718 | N 910105010009 | HEXAGON HEAD BOLT |
| 718 | N 910105010009 | HEXAGON HEAD BOLT |
| 719 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 719 | N 913023010003 | NUT |
| 720 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 720 | N 000125010532 | WASHER |
| 722 | A 4065421140 | BRACKET |
| Repalced by: A 4255241340 | ||
| 722 | A 4255241340 | BRACKET |
| Repalced by: A 3604280243 | ||
| 722 | A 3604280243 | ANGLE |
| TO MOUNT PLASTIC PIPING | ||
| 724 | A 4354263440 | BRACKET |
| TO MOUNT PLASTIC PIPING | ||
| 725 | A 0019971289 | COUPLING |
| CAB | ||
| 726 | A 0009970934 | UNION SCREW |
| CAB | ||
| 727 | A 0009940147 | SEAL RING |
| CAB | ||
| 728 | A 0009941448 | RETAINING CLAMP |
| CAB | ||
| 729 | N 080705018002 | NUT |
| 730 | A 4354290046 | PAD |
| 731 | A 0034306101 | BRAKE MASTER CYLINDER |
| Repalced by: A 0044301601 | ||
| 731 | A 0044301601 | BRAKE MASTER CYLINDER |
| Repalced by: A 0044306301 | ||
| 731 | A 0044306301 | BRAKE MASTER CYLINDER |
| TANDEM BRAKE MASTER CYLINDER | ||
| KUGELFISCHER | ||
| 734 | A 0015869843 | REPAIR KIT |
| Repalced by: A 0004301683 | ||
| 734 | A 0004301683 | REPAIR KIT |
| Repalced by: A 0044308201 | ||
| 734 | A 0044308201 | REPAIR KIT |
| TO 004 430 63 01,003 430 61 01 | ||
| 734 | A 0044308201 | REPAIR KIT |
| TO 004 430 16 01 | ||
| 735 | A 0014311302 | RESERVOIR |
| MAKE KUGELFISCHER | ||
| 0,5 L | ||
| 735 | A 0014311002 | RESERVOIR |
| MAKE TEVES | ||
| 735 | A 0014316302 | RESERVOIR |
| Repalced by: A 0014319102 | ||
| 735 | A 0014319102 | RESERVOIR |
| 735 | A 0014319102 | RESERVOIR |
| 735 | A 0014319502 | RESERVOIR |
| Repalced by: A 0024312002 | ||
| 735 | A 0024312002 | RESERVOIR |
| MAKE KUGELFISCHER | ||
| 736 | A 0004312733 | FILLER CAP |
| TO 001 431 10 02 | ||
| 737 | A 0004312134 | STRAINER |
| TO 000 431 10 02 | ||
| 738 | A 0004314433 | FILLER CAP |
| Repalced by: A 0004316733 | ||
| 738 | A 0004316733 | FILLER CAP |
| TO 000 431 13 02 | ||
| 739 | A 0004316233 | FILLER CAP |
| TO 001 431 91 02,001 431 63 02 | ||
| 739 | A 0004314733 | FILLER CAP |
| Repalced by: A 0004318733 | ||
| 739 | A 0004318733 | FILLER CAP |
| TO 001 431 95 02 | ||
| 740 | A 0039976440 | SEAL RING |
| 42X21.5 MM | ||
| 741 | A 0004314834 | STRAINER |
| Repalced by: A 0004316034 | ||
| 741 | A 0004316034 | STRAINER |
| Repalced by: A 0004316234 | ||
| 741 | A 0004316234 | STRAINER |
| TO 000 431 13 02 | ||
| 741 | A 0004316234 | STRAINER |
| TO 001 431 91 02 | ||
| 741 | A 0004314334 | STRAINER |
| TO 001 431 95 02 | ||
| 743 | A 0014310502 | RESERVOIR |
| TEVES | ||
| 744 | A 0004312334 | STRAINER |
| 745 | A 0004312733 | FILLER CAP |
| 746 | A 0009972940 | SEAL RING |
| Repalced by: A 0049975340 | ||
| 746 | A 0049975340 | SEAL RING |
| Repalced by: A 0039976440 | ||
| 746 | A 0039976440 | SEAL RING |
| 43.7X30 MM | ||
| 747 | A 0014311202 | RESERVOIR |
| MAKE KUGELFISCHER | ||
| 0.33 L | ||
| 747 | A 0014316402 | RESERVOIR |
| Repalced by: A 0014319202 | ||
| 747 | A 0014319202 | RESERVOIR |
| Repalced by: A 0004312102 | ||
| 747 | A 0004312102 | RESERVOIR |
| Repalced by: A 0014317702 | ||
| 747 | A 0014317702 | RESERVOIR |
| MAKE KUGELFISCHER | ||
| 747 | A 0014317702 | RESERVOIR |
| MAKE KUGELFISCHER | ||
| 747 | A 0014319602 | RESERVOIR |
| Repalced by: A 0024311902 | ||
| 747 | A 0024311902 | RESERVOIR |
| MAKE KUGELFISCHER | ||
| 748 | A 0004314834 | STRAINER |
| Repalced by: A 0004316034 | ||
| 748 | A 0004316034 | STRAINER |
| Repalced by: A 0004316234 | ||
| 748 | A 0004316234 | STRAINER |
| TO 001 431 12 02 | ||
| 749 | A 0004314433 | FILLER CAP |
| Repalced by: A 0004316733 | ||
| 749 | A 0004316733 | FILLER CAP |
| TO 001 431 12 02 | ||
| 749 | A 0004316233 | FILLER CAP |
| TO 001 431 64 02,001 431 92 02 | ||
| 749 | A 0004314733 | FILLER CAP |
| Repalced by: A 0004318733 | ||
| 749 | A 0004318733 | FILLER CAP |
| TO 001 431 96 02 ; 002 431 19 02 | ||
| 750 | A 0039976440 | SEAL RING |
| 42X21.5 MM | ||
| 751 | A 0004316234 | STRAINER |
| TO 001 431 92 02 | ||
| 751 | A 0004314334 | STRAINER |
| TO 001 431 96 02 | ||
| 752 | A 0004319787 | PROTECTIVE CAP |
| RESERVOIR | ||
| 753 | N 003911012100 | FITTING |
| Repalced by: A 0009907871 | ||
| 753 | A 0009907871 | ELBOW FITTING |
| TWO-CIRCUIT BRAKE CYLINDER;CONNECTION: | ||
| "11+12" | ||
| Repalced by: N 000000006195 | ||
| 753 | N 000000006195 | FITTING |
| TWO-CIRCUIT BRAKE CYLINDER;CONNECTION: | ||
| "11+12" | ||
| 754 | A 0004290927 | THRUST RING |
| TWO-CIRCUIT BRAKE CYLINDER;CONNECTION: | ||
| "11+12" | ||
| 755 | A 0009971548 | SEAL RING |
| TWO-CIRCUIT BRAKE CYLINDER;CONNECTION: | ||
| "11+12" | ||
| 756 | N 080705018002 | NUT |
| TWO-CIRCUIT BRAKE CYLINDER;CONNECTION: | ||
| "11+12" | ||
| 757 | N 003954012101 | FITTING |
| Repalced by: A 0019900970 | ||
| 757 | A 0019900970 | T-FITTING |
| TWO-CIRCUIT BRAKE CYLINDER;CONNECTION: | ||
| "11+12" | ||
| 758 | A 0004313531 | TEST CONNECTION |
| TWO-CIRCUIT BRAKE CYLINDER;CONNECTION: | ||
| "11+12" | ||
| 758 | A 0004315431 | TEST CONNECTION |
| TWO-CIRCUIT BRAKE CYLINDER;CONNECTION: | ||
| "11+12" | ||
| 759 | A 0014311587 | PROTECTIVE CAP |
| Repalced by: A 0009979486 | ||
| 759 | A 0009979486 | PROTECTIVE CAP |
| TWO-CIRCUIT BRAKE CYLINDER;CONNECTION: | ||
| 11+12 | ||
| 760 | N 000933010164 | SCREW |
| M 10X22 | ||
| 761 | N 912004010102 | LOCK WASHER |
| 762 | N 007603022102 | SEAL RING |
| 763 | A 0019904670 | T-FITTING |
| 764 | A 0019907070 | T-FITTING |
| 765 | N 003905012001 | FITTING |
| Repalced by: A 0019902971 | ||
| 765 | A 0019902971 | ELBOW FITTING |
| 766 | A 0004311231 | TEST CONNECTION |
| 766 | A 0004316631 | TEST CONNECTION |
| 767 | N 000931008189 | SCREW |
| 768 | A 4254310053 | SPACER TUBE |
| 769 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 769 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 769 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 769 | N 913023008002 | NUT |
| 770 | A 0004290437 | DISTRIBUTOR |
| FRONT AND REAR AXLES | ||
| 771 | A 0004280830 | CONNECTOR |
| LINE CONNECTION TO TANDEM MASTER CYLINDER,CIRCUITS I & II | ||
| 772 | A 0009901763 | HOLLOW SCREW |
| LINE CONNECTION TO TANDEM MASTER CYLINDER,CIRCUITS I & II | ||
| 773 | N 007603012110 | SEAL RING |
| LINE CONNECTION TO TANDEM MASTER CYLINDER,CIRCUITS I & II | ||
| 774 | N 915035000006 | SEAL RING |
| LINE CONNECTION TO TANDEM MASTER CYLINDER,CIRCUITS I & II | ||
| 776 | A 6034280284 | SHIM |
| 778 | A 4254262840 | BRACKET |
| DISTRIBUTOR | ||
| 780 | A 4064920143 | CLAMP |
| 782 | A 4354200286 | BRACKET |
| Repalced by: A 4254200886 | ||
| 782 | A 4254200886 | BRACKET |
| FROM QUADRUPLE DISTRIBUTOR TO DISTRIBUTOR AT REAR AXLE | ||
| 784 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 784 | N 304017008027 | SCREW |
| DISTRIBUTOR TO BRACKET | ||
| 784 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 784 | N 304017008021 | SCREW |
| DISTRIBUTOR TO BRACKET | ||
| 785 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 785 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 785 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 785 | N 913023008002 | NUT |
| DISTRIBUTOR TO BRACKET | ||
| A 0004287035 | BRAKE HOSE | |
| TEVES | ||
| 787 | A 0014280735 | BRAKE HOSE |
| Repalced by: A 0024284035 | ||
| 787 | A 0024284035 | BRAKE HOSE |
| Repalced by: A 0024285935 | ||
| 787 | A 0024285935 | BRAKE HOSE |
| KUGELFISCHER | ||
| 789 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 789 | A 6525040038 | MOUNTING PLATE |
| A 0014280235 | BRAKE HOSE | |
| DISTRIBUTOR TO REAR AXLE | ||
| 791 | A 0014283935 | BRAKE HOSE |
| DISTRIBUTOR TO REAR AXLE | ||
| 791 | A 4254200348 | BRAKE HOSE |
| 792 | N 003905010002 | FITTING |
| 793 | A 4254200148 | BRAKE HOSE |
| 795 | N 916017130000 | CLAMP |
| Repalced by: N 000000000678 | ||
| 795 | N 000000000678 | CLAMP |
| BRAKE HOSE TO THRUST TUBE | ||
| Repalced by: N 000000005892 | ||
| 795 | N 000000005892 | CLAMP |
| BRAKE HOSE TO THRUST TUBE | ||
| 797 | A 3044760019 | BASE |
| Repalced by: A 3142030084 | ||
| 797 | A 3142030084 | SHIM |
| BRAKE HOSE TO THRUST TUBE | ||
| 799 | N 000933006102 | SCREW |
| BRAKE HOSE TO THRUST TUBE | ||
| M 6X15 | ||
| 800 | N 912004006102 | LOCK WASHER |
| BRAKE HOSE TO THRUST TUBE | ||
| 808 | A 0014316005 | BRAKE VALVE |
| Repalced by: A 0004312416 | ||
| 808 | A 0004312416 | VALVE |
| WABCO | ||
| 810 | A 0004311916 | VALVE |
| PARKING BRAKE VALVE | ||
| WABCO | ||
| 810 | A 0004312316 | VALVE |
| Repalced by: A 0004311916 | ||
| 810 | A 0004311916 | VALVE |
| PARKING BRAKE VALVE | ||
| BOSCH | ||
| 811 | A 0009971677 | HANDLE |
| Repalced by: A 0004300127 | ||
| 811 | A 0004300127 | HANDLE |
| TO 000 431 23 16 | ||
| 812 | A 0009972277 | HANDLE |
| Repalced by: A 0009912777 | ||
| 812 | A 0009972777 | HANDLE |
| TO 000 431 19 16 | ||
| 812 | A 0009972877 | HANDLE |
| TO 000 431 23 16 | ||
| 813 | A 0004312139 | LEVER |
| Repalced by: A 0034302881 | ||
| 813 | A 0034302881 | REPAIR KIT |
| HAND BRAKE LEVER | ||
| TO 000 431 19 16 | ||
| 814 | A 0009910855 | PIN |
| TO 000 431 19 16 | ||
| 815 | A 0014310386 | CUP |
| TO 000 431 23 16 | ||
| Repalced by: A 0014310586 | ||
| 815 | A 0014310586 | CUP |
| TO 000 431 23 16 | ||
| 815 | A 0014310586 | CUP |
| TO 000 431 19 16 | ||
| 816 | A 0004311164 | ACTUATING PART |
| TO 000 431 23 16 | ||
| 817 | A 0004311122 | COVER |
| 818 | A 0009911501 | PIN |
| TO 000 431 23 16 | ||
| 819 | A 0009911601 | PIN |
| TO 000 431 23 16 | ||
| 820 | A 0009922905 | BUSHING |
| TO 000 431 23 16 | ||
| 821 | A 0025867443 | REPAIR KIT |
| Repalced by: A 0034303181 | ||
| 821 | A 0034303181 | REPAIR KIT |
| TO 000 431 19 16 | ||
| 821 | A 0025869143 | REPAIR KIT |
| TO 000 431 23 16 | ||
| 822 | N 915035000006 | SEAL RING |
| 825 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 825 | N 915036010108 | HOLLOW SCREW |
| AT HAND BRAKE VALVE | ||
| 831 | N 915017010100 | UNION NUT |
| TO PLUG THE FREE CONNECTIONS | ||
| 832 | A 3879970086 | PLUG |
| TO PLUG THE FREE CONNECTIONS | ||
| 838 | A 4214290550 | BRACKET |
| Repalced by: A 3525422840 | ||
| 838 | A 3525422840 | BRACKET |
| HOSE TO CAB SUPPORT | ||
| 840 | N 003908010002 | T-FITTING |
| 842 | N 003952006102 | FITTING |
| Repalced by: A 0019909871 | ||
| 842 | A 0019909871 | ELBOW FITTING |
| A 4064261140 | BRACKET | |
| 844 | A 4354200786 | BRACKET |
| AT ASCENT | ||
| 846 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 846 | N 304017008021 | SCREW |
| 847 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 847 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 847 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 847 | N 913023008002 | NUT |
| 849 | N 003953010101 | FITTING |
| 851 | A 4254264540 | BRACKET |
| Repalced by: A 3434290940 | ||
| 851 | A 3434290940 | BRACKET |
| BRAKE LINE MOUNTING | ||
| 853 | A 3049951020 | CLAMP |
| BRAKE LINE MOUNTING | ||
| 855 | N 000933006102 | SCREW |
| BRAKE LINE MOUNTING | ||
| 856 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 856 | N 910113006001 | NUT |
| BRAKE LINE MOUNTING | ||
| 858 | N 003952010102 | FITTING |
| 858 | N 003952006102 | FITTING |
| Repalced by: A 0019909871 | ||
| 858 | A 0019909871 | ELBOW FITTING |
| 859 | A 0004313531 | TEST CONNECTION |
| Repalced by: A 0004312931 | ||
| 859 | A 0014311587 | PROTECTIVE CAP |
| Repalced by: A 0009979486 | ||
| 859 | A 0009979486 | PROTECTIVE CAP |
| 860 | A 0004313731 | TEST CONNECTION |
| Repalced by: A 0004312931 | ||
| 860 | A 0004312931 | TEST CONNECTION |
| 862 | A 0005455414 | SWITCH |
| Repalced by: A 0025453914 | ||
| 862 | A 0025453914 | SWITCH |
| SPRING-LOADED BRAKE INDICATOR | ||
| 870 | A 0019976936 | VALVE |
| Repalced by: A 0029972636 | ||
| 870 | A 0029972636 | VALVE |
| ALL-WHEEL DRIVE AND DIFFERENTIAL LOCK | ||
| 872 | A 0025860943 | REPAIR KIT |
| TO 001 997 69 36,002 997 26 36 | ||
| 874 | A 0009970577 | HANDLE |
| Repalced by: A 4252680242 | ||
| 874 | A 4252680242 | KNOB |
| ALL-WHEEL DRIVE AND DIFFERENTIAL LOCK | ||
| TO 002 997 26 36,001 997 69 36 | ||
| 876 | N 000936028000 | NUT |
| Repalced by: A 3839900051 | ||
| 876 | A 3839900051 | NUT |
| ALL-WHEEL DRIVE AND DIFFERENTIAL LOCK | ||
| TO 001 997 69 36,002 997 26 36 | ||
| 878 | A 0009900678 | CONNECTOR |
| Repalced by: A 0019909870 | ||
| 878 | A 0019909870 | T-FITTING |
| Repalced by: A 0009907990 | ||
| 878 | A 0009907990 | T-FITTING |
| 879 | N 007604010102 | SCREW PLUG |
| Repalced by: N 007604010108 | ||
| 879 | N 007604010108 | SCREW PLUG |
| 880 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 880 | N 007603010110 | SEAL RING |
| 881 | N 915017006100 | UNION NUT |
| TO PLUG THE FREE CONNECTIONS | ||
| 882 | A 3209970286 | PLUG |
| TO PLUG THE FREE CONNECTIONS | ||
| 887 | N 915036006202 | HOLLOW SCREW |
| 888 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 888 | N 007603010110 | SEAL RING |
| N 074313008104 | FITTING | |
| Repalced by: A 0029979572 | ||
| A 0029979572 | FITTING | |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| N 007603016105 | SEAL RING | |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24" | ||
| 895 | N 915036012203 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24" | ||
| 895 | N 915036008202 | HOLLOW SCREW |
| LINE TO TRANSMISSION | ||
| 895 | N 915036006202 | HOLLOW SCREW |
| PIPE LINE TO CONTROL VALVE | ||
| 901 | N 007603012402 | SEAL RING |
| LINE TO TRANSMISSION | ||
| 901 | N 007603010404 | SEAL RING |
| 913 | A 3404200529 | LINE |
| FROM BRAKE CIRCUIT II TEST CONNECTION TO TANDEM BRAKE MASTER CYLINDER | ||
| 6X0.7X400 MM | ||
| 914 | A 0004290701 | LINE |
| Repalced by: A 0004296201 | ||
| 914 | A 0004296201 | LINE |
| Repalced by: A 3404200629 | ||
| 914 | A 3404200629 | LINE |
| FROM ALB REGULATOR TO TEST CONNECTION | ||
| 6X0.7X450 MM | ||
| 914 | A 3404200629 | LINE |
| FROM WARNING SWITCH TO BRAKE POWER REGULATOR | ||
| 6X0.7X450 MM | ||
| 915 | A 3404201329 | LINE |
| 6X0.7X800 MM | ||
| 915 | A 3404201329 | LINE |
| FROM TANDEM MASTER CYL.,CONNECTION"22" TO DIFFER.PRESS.WARNG.SWITCH,CONNECT.: | ||
| "42";6X0.7X800 MM | ||
| 915 | A 3404201029 | LINE |
| FROM BRAKE MASTER CYLINDER TO WARNING SWITCH,CONNECTION: | ||
| "41";6X0.7X650 MM | ||
| 915 | A 3404200429 | LINE |
| FROM WARNING SWITCH TO TEST CONNECTION | ||
| 6X0.7X350 MM | ||
| 916 | A 0004280072 | UNION SCREW |
| 918 | A 0019978390 | LOOM TIE |
| 918 | A 0019978490 | LOOM TIE |
| 918 | A 0029979090 | LOOM TIE |
| Repalced by: A 0059974490 | ||
| 918 | A 0059974490 | LOOM TIE |
| Repalced by: A 0059974390 | ||
| 918 | A 0059974390 | LOOM TIE |
| Repalced by: A 0069973090 | ||
| 918 | A 0069973090 | LOOM TIE |
| 920 | A 0004319412 | BRAKE PRESSURE REGULATOR |
| Repalced by: A 0014317812 | ||
| 920 | A 0014317812 | BRAKE PRESSURE REGULATOR |
| 921 | A 0009933310 | SPRING |
| Repalced by: A 0014316393 | ||
| 921 | A 0014316393 | SPRING |
| 923 | A 0025864343 | REPAIR KIT |
| TO 000 431 94 12 | ||
| 924 | A 0014307360 | GASKET KIT |
| TO 001 431 78 12 | ||
| 925 | A 0014310312 | BRAKE PRESSURE REGULATOR |
| Repalced by: A 0004319412 | ||
| 925 | A 4255840021 | GUIDE SIGN |
| Repalced by: A 4255841021 | ||
| 925 | A 4255841021 | GUIDE SIGN |
| Repalced by: A 4255841321 | ||
| 925 | A 4255841321 | GUIDE SIGN |
| Repalced by: A 4255841521 | ||
| 925 | A 4255841521 | GUIDE SIGN |
| Repalced by: A 4255840738 | ||
| 925 | A 4255840738 | GUMMED LABEL |
| 927 | A 0004283924 | DISTRIBUTOR |
| 929 | N 007603012405 | SEAL RING |
| 12 X 15.5 | ||
| 931 | N 915035000006 | SEAL RING |
| 14 X 18 | ||
| 933 | A 4254200286 | BRACKET |
| 934 | A 4254263640 | BRACKET |
| 936 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 936 | N 910105010009 | HEXAGON HEAD BOLT |
| 937 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 937 | N 913023010003 | NUT |
| BRACKET TO LEFT SIDE MEMBER | ||
| 939 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 939 | N 000137008212 | SPRING WASHER |
| BRAKE POWER REGULATOR TO BRACKET | ||
| 940 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 940 | N 304017008016 | SCREW |
| BRAKE POWER REGULATOR TO BRACKET | ||
| M 8X16 | ||
| 942 | A 4254200081 | LEVER |
| BRAKE POWER REGULATOR | ||
| 943 | A 1102920150 | BUSHING |
| 944 | N 000125013008 | WASHER |
| 945 | N 000471012001 | LOCK RING |
| 946 | N 000609008000 | FITTED SCREW |
| Repalced by: N 000609008004 | ||
| 946 | N 000609008004 | FITTED SCREW |
| 947 | A 0004310398 | CONNECTOR |
| 948 | N 900071008100 | NUT |
| Repalced by: A 0009900851 | ||
| 948 | A 0009900851 | NUT |
| 950 | A 4254200681 | LEVER |
| BRAKE POWER REGULATOR | ||
| 951 | A 4254260053 | SPACER TUBE |
| 952 | N 000931010142 | SCREW |
| Repalced by: N 304014010009 | ||
| 952 | N 304014010009 | SCREW |
| LEVER TO BRACKET | ||
| 953 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 953 | N 913023010003 | NUT |
| LEVER TO BRACKET | ||
| 954 | A 4254260250 | BUSHING |
| 956 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 956 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 956 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 956 | N 913023008002 | NUT |
| 958 | N 900331008419 | PULL ROD |
| 959 | N 071803013102 | BALL PIVOT |
| Repalced by: N 000000004468 | ||
| 959 | N 000000004468 | BALL STUD |
| 960 | N 071805013402 | CIRCLIP |
| 961 | N 071805013203 | BALL SOCKET |
| 962 | N 304032008006 | NUT |
| 964 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 964 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 964 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 964 | N 913023008002 | NUT |
| N 916017130000 | CLAMP | |
| Repalced by: N 000000000678 | ||
| N 000000000678 | CLAMP | |
| Repalced by: N 000000005892 | ||
| N 000000005892 | CLAMP | |
| LINE TO THRUST TUBE REAR AXLE | ||
| A 6034280184 | SHIM | |
| 966 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 966 | N 304017008028 | SCREW |
| FEDER AN HEBEL | ||
| 967 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 967 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 967 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 967 | N 913023008002 | NUT |
| FEDER AN HEBEL | ||
| 969 | A 4254260050 | BUSHING |
| 971 | A 4254260005 | BEARING |
| BRAKE POWER REGULATOR | ||
| 973 | A 4355200275 | PANELLING |
| Repalced by: A 4355200237 | ||
| 973 | A 4355200237 | PROTECTIVE PLATE |
| Repalced by: A 4355200375 | ||
| 973 | A 4355200375 | PANELLING |
| 975 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 975 | N 304017008016 | SCREW |
| FRONT | ||
| 975 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 975 | N 304017008027 | SCREW |
| FRONT | ||
| 977 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 977 | N 000125008443 | WASHER |
| FRONT | ||
| 979 | N 913004008005 | NUT |
| Repalced by: N 913023008002 | ||
| 979 | N 913023008002 | NUT |
| FRONT | ||
| 981 | A 4254310053 | SPACER TUBE |
| Repalced by: N 007349008002 | ||
| 981 | N 007349008003 | WASHER |
| 983 | N 000933006102 | SCREW |
| REAR | ||
| 985 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 985 | N 000125006449 | WASHER |
| 987 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 987 | N 910113006001 | NUT |
| 989 | A 4355450540 | BRACKET |
| COWL | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
