Transporto priemonė: U 1500 T; VIN numerio dalis: 425131
Grupė: 52 CHASSIS SHEET METAL - 001 SHEET METAL,AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|

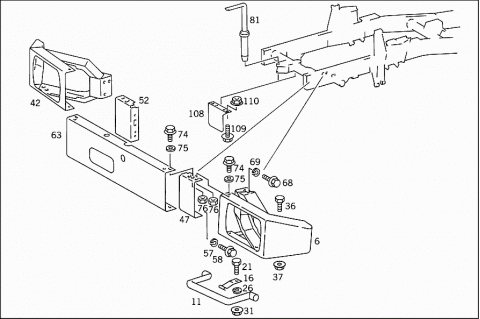

| 006 | A 4255201841 | BUMPER |
| LEFT | ||
| 011 | A 4255200031 | RUNNING BOARD |
| Repalced by: A 4255200731 | ||
| 011 | A 4255200731 | RUNNING BOARD |
| Repalced by: A 4255230536 | ||
| 011 | A 4255230536 | PIPE |
| ROCKER PANEL | ||
| 016 | A 4259930025 | SPRING |
| Repalced by: A 4259930225 | ||
| 016 | A 4259930225 | SPRING |
| Repalced by: A 4259930325 | ||
| 016 | A 4259930325 | SPRING |
| 016 | A 4259930425 | SPRING |
| 021 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 021 | N 304017006018 | SCREW |
| 021 | N 000933006127 | SCREW |
| 026 | N 912004006102 | LOCK WASHER |
| 031 | N 000934006007 | NUT |
| 031 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 031 | N 913023006001 | NUT |
| 036 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 036 | N 304017008016 | SCREW |
| 037 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 037 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 037 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 037 | N 913023008002 | NUT |
| 042 | A 4255201941 | BUMPER |
| RIGHT | ||
| 047 | A 4255251239 | BRACKET |
| LEFT | ||
| 052 | A 4255251139 | BRACKET |
| RIGHT | ||
| 057 | N 912004012100 | LOCK WASHER |
| 058 | N 000961012056 | SCREW |
| Repalced by: N 910105012003 | ||
| 058 | N 910105012003 | SCREW |
| M 12X1.5X22 | ||
| 063 | A 4255250201 | BUMPER |
| Repalced by: A 4255251301 | ||
| 063 | A 4255251301 | BUMPER |
| 068 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 068 | N 910105010006 | SCREW |
| M 10X20 | ||
| 069 | N 912004010102 | LOCK WASHER |
| BUMPER TO FRAME | ||
| 074 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 074 | N 910105010009 | HEXAGON HEAD BOLT |
| 075 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 075 | N 007349010007 | WASHER |
| 076 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 076 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 076 | N 913023010002 | NUT |
| 081 | A 4255240274 | PIN |
| Repalced by: A 4255240974 | ||
| 081 | A 4255240974 | PIN |

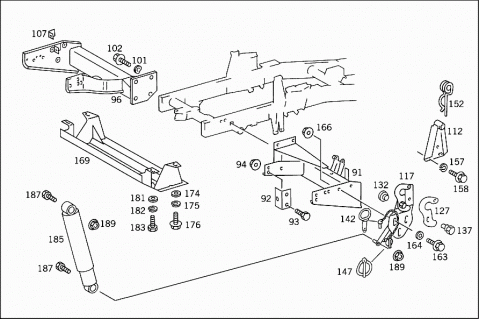

| 091 | A 4255200792 | BEARING BRACKET |
| LEFT | ||
| 091 | A 4255202092 | BEARING BRACKET |
| Repalced by: A 4255202292 | ||
| 091 | A 4255202292 | BEARING BRACKET |
| LEFT | ||
| 092 | A 4355240110 | MOUNTING ANGLE |
| HORN | ||
| 093 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 093 | N 304017008016 | SCREW |
| HORN | ||
| 094 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 094 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 094 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 094 | N 913023008002 | NUT |
| HORN | ||
| 096 | A 4255200692 | BEARING BRACKET |
| RIGHT | ||
| 096 | A 4255202192 | BEARING BRACKET |
| RIGHT | ||
| 101 | N 000137010201 | SPRING WASHER |
| 102 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 102 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 107 | A 4255241340 | BRACKET |
| Repalced by: A 3604280243 | ||
| 107 | A 3604280243 | ANGLE |
| HORN | ||
| 108 | A 4255510725 | PROTECTIVE PLATE |
| 109 | N 000961012052 | SCREW |
| Repalced by: N 910105012013 | ||
| 109 | N 910105012013 | SCREW |
| COVER PLATE TO CROSS MEMBER | ||
| M 12X1.5X25 | ||
| 110 | N 913004012008 | NUT |
| Repalced by: N 913023012003 | ||
| 110 | N 913023012003 | NUT |
| COVER PLATE TO CROSS MEMBER | ||
| 112 | A 4255202341 | BRACKET |
| CAB IN TILTED POSITION | ||
| 117 | A 4355200692 | BEARING BRACKET |
| LEFT | ||
| 117 | A 4355200792 | BEARING BRACKET |
| RIGHT | ||
| 117 | A 4355200992 | BEARING BRACKET |
| Repalced by: A 4355201192 | ||
| 117 | A 4355201192 | BEARING BRACKET |
| Repalced by: A 4375202192 | ||
| 117 | A 4375202192 | BEARING BRACKET |
| LEFT | ||
| 117 | A 4355201092 | BEARING BRACKET |
| Repalced by: A 4355201292 | ||
| 117 | A 4355201292 | BEARING BRACKET |
| Repalced by: A 4375202292 | ||
| 117 | A 4375202292 | BEARING BRACKET |
| RIGHT | ||
| 127 | A 4355240065 | LATCH |
| 132 | A 4355240050 | BUSHING |
| 137 | A 4355240074 | PIN |
| 142 | A 4355200974 | PIN |
| Repalced by: A 4255200974 | ||
| 142 | A 4255200974 | PIN |
| 147 | A 4425500275 | LOCK |
| 152 | N 011024004000 | SPRING RETAINING PIN |
| 157 | N 912004010102 | LOCK WASHER |
| 158 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 158 | N 910105010009 | HEXAGON HEAD BOLT |
| 163 | N 000961012151 | SCREW |
| Repalced by: N 910105012007 | ||
| 163 | N 910105012007 | SCREW |
| BEARING BRACKET TO CONSOLE | ||
| M 12X1.5X30 | ||
| 164 | N 006916013000 | WASHER |
| BEARING BRACKET TO CONSOLE | ||
| 166 | N 913004012008 | NUT |
| Repalced by: N 913023012003 | ||
| 166 | N 913023012003 | NUT |
| BEARING BRACKET TO CONSOLE | ||
| 169 | A 4255500054 | MOUNTING PLATE |
| Repalced by: A 4255500154 | ||
| 169 | A 4255500154 | MOUNTING PLATE |
| Repalced by: A 4255501054 | ||
| 169 | A 4255501054 | MOUNTING PLATE |
| 174 | N 000125013008 | WASHER |
| 175 | N 912004012100 | LOCK WASHER |
| MOUNTING PLATE TO FRAME | ||
| 176 | N 910105012020 | SCREW |
| MOUNTING PLATE TO FRAME | ||
| M 12X1.5X35 | ||
| 181 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 181 | N 000125017016 | WASHER |
| MOUNTING PLATE TO FRAME | ||
| 182 | N 912004016101 | LOCK WASHER |
| MOUNTING PLATE TO FRAME | ||
| 183 | N 000960016138 | SCREW |
| MOUNTING PLATE TO FRAME | ||
| M 16X1.5X75 | ||
| Repalced by: N 000961016122 | ||
| 183 | N 000961016122 | SCREW |
| MOUNTING PLATE TO FRAME | ||
| M 16X1.5X75 | ||
| 185 | A 0033235200 | SHOCK ABSORBER |
| CAB TILTING BEARING | ||
| BOGE | ||
| 187 | N 000961014114 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| M 14X1.5X85 | ||
| 187 | N 000960014121 | SCREW |
| Repalced by: N 910105014009 | ||
| 187 | N 910105014009 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| M 14X1.5X70 | ||
| 189 | N 913004014002 | NUT |
| Repalced by: N 913023014004 | ||
| 189 | N 913023014004 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| A 4255200030 | SUPPORT | |
| LEFT | ||
| 191 | A 4255200530 | SUPPORT |
| LEFT | ||

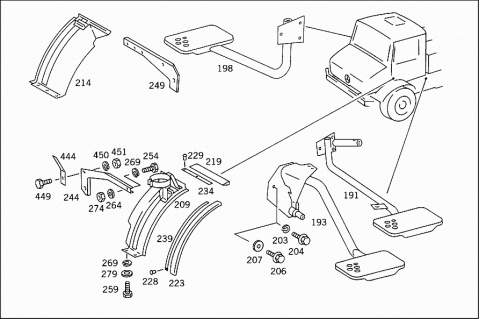

| 193 | A 4255200431 | RUNNING BOARD |
| Repalced by: A 4255200931 | ||
| 193 | A 4255200931 | RUNNING BOARD |
| LEFT | ||
| 198 | A 4255200430 | SUPPORT |
| RIGHT | ||
| 198 | A 4255200630 | RUNNING BOARD |
| RIGHT | ||
| 203 | N 912004010102 | LOCK WASHER |
| ROCKER PANEL TO FRAME | ||
| 204 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 204 | N 910105010009 | HEXAGON HEAD BOLT |
| 206 | N 000933010145 | SCREW |
| Repalced by: N 910105010007 | ||
| 206 | N 910105010007 | SCREW |
| Repalced by: N 000000000428 | ||
| 206 | N 000000000428 | HEXAGON HEAD BOLT |
| ROCKER PANEL TO FRAME | ||
| M10X35 | ||
| 207 | A 3609901240 | WASHER |
| Repalced by: A 1159903140 | ||
| 207 | A 1159903140 | WASHER |
| ROCKER PANEL TO FRAME | ||
| 209 | A 4255200017 | FENDER |
| Repalced by: A 4355200017 | ||
| 209 | A 4355200017 | FENDER |
| Repalced by: A 4355200117 | ||
| 209 | A 4355200117 | FENDER |
| Repalced by: A 4375200317 | ||
| 209 | A 4375200317 | FENDER |
| LEFT | ||
| 214 | A 4255200018 | FENDER |
| Repalced by: A 4375200318 | ||
| 214 | A 4375200318 | FENDER |
| RIGHT | ||
| 219 | A 4255210084 | LEDGE |
| LEFT | ||
| 219 | A 4255210284 | LEDGE |
| RIGHT | ||
| 223 | A 4255210184 | LEDGE |
| RIGHT | ||
| 223 | A 4255210184 | LEDGE |
| LEFT | ||
| 223 | A 4255210384 | LEDGE |
| LEFT | ||
| 228 | N 910002004122 | RIVET |
| 229 | N 007331004248 | RIVET |
| 234 | A 4255221540 | BRACKET |
| LEFT | ||
| 234 | A 4255221640 | BRACKET |
| RIGHT | ||
| 239 | A 4255221440 | BRACKET |
| RIGHT | ||
| 239 | A 4255221440 | BRACKET |
| LEFT | ||
| 239 | A 4255221840 | BRACKET |
| LEFT | ||
| 244 | A 4255210240 | BRACKET |
| Repalced by: A 4355210440 | ||
| 244 | A 4355210440 | BRACKET |
| LEFT | ||
| 249 | A 4255210140 | BRACKET |
| Repalced by: A 4355210540 | ||
| 249 | A 4355210540 | BRACKET |
| Repalced by: A 4355201441 | ||
| 249 | A 4355201441 | BRACKET |
| RIGHT | ||
| 254 | N 000933006130 | SCREW |
| Repalced by: N 304017006020 | ||
| 254 | N 304017006020 | SCREW |
| BRACKET TO FENDER | ||
| M 6X18 | ||
| 259 | N 914145006304 | SCREW |
| SPLASH GUARD TO LEFT HEADLAMP CONSOLE | ||
| M 6X16 | ||
| 259 | N 914145006304 | SCREW |
| SPLASH GUARD TO RIGHT HEADLAMP CONSOLE | ||
| M 6X16 | ||
| 264 | N 000125006421 | WASHER |
| BRACKET TO FENDER | ||
| Repalced by: N 000125006449 | ||
| 264 | N 000125006449 | WASHER |
| BRACKET TO FENDER | ||
| 269 | N 912004006102 | LOCK WASHER |
| BRACKET TO FENDER | ||
| 269 | N 912004006102 | LOCK WASHER |
| SPLASH GUARD TO LEFT HEADLAMP CONSOLE | ||
| 269 | N 912004006102 | LOCK WASHER |
| SPLASH GUARD TO RIGHT HEADLAMP CONSOLE | ||
| 274 | N 000934006007 | NUT |
| BRACKET TO FENDER | ||
| 279 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 279 | N 009021006208 | WASHER |
| SPLASH GUARD TO LEFT HEADLAMP CONSOLE | ||
| 279 | N 009021006208 | WASHER |
| SPLASH GUARD TO RIGHT HEADLAMP CONSOLE | ||

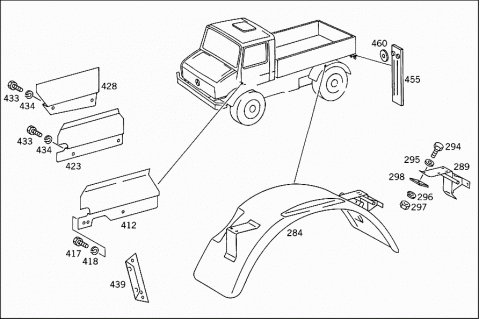

| 284 | A 4255200007 | FENDER |
| LEFT | ||
| 284 | A 4255200107 | FENDER |
| RIGHT | ||
| 289 | A 4255201741 | BRACKET |
| LEFT | ||
| 289 | A 4255202441 | BRACKET |
| RIGHT | ||
| 294 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 294 | N 304017008018 | SCREW |
| 294 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 294 | N 304017008021 | SCREW |
| FENDER TO AUXILIARY FRAME | ||
| 295 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 295 | N 009021008213 | WASHER |
| FENDER TO AUXILIARY FRAME | ||
| Repalced by: N 000000003250 | ||
| 295 | N 000000003250 | WASHER |
| FENDER TO AUXILIARY FRAME | ||
| 296 | N 912004008102 | LOCK WASHER |
| FENDER TO AUXILIARY FRAME | ||
| 297 | N 304032008006 | NUT |
| FENDER TO AUXILIARY FRAME | ||
| 298 | A 4045240052 | SPACER WASHER |

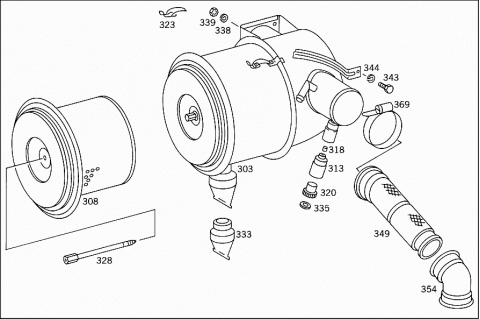

| 303 | A 0090940802 | AIR CLEANER |
| Repalced by: A 0120941202 | ||
| 303 | A 0120941202 | AIR CLEANER |
| MANN & HUMMEL | ||
| 308 | A 0010949304 | FILTER ELEMENT |
| Repalced by: A 0010947304 | ||
| 308 | A 0010947304 | FILTER ELEMENT |
| Repalced by: A 0040940804 | ||
| 308 | A 0040940804 | FILTER ELEMENT |
| 313 | A 0000940568 | MAINTENANCE INDICATOR |
| (MAINTENANCE SWITCH) | ||
| TO 009 094 08 02,012 094 12 02 | ||
| 318 | A 0000940276 | WASHER |
| 320 | A 0009871645 | LOCKING CAP |
| TO 012 094 12 02 | ||
| 323 | A 0000941255 | FASTENER |
| 328 | A 0000941671 | SCREW |
| 333 | A 0000940665 | VALVE |
| 335 | N 007603010100 | SEAL RING |
| TO 012 094 12 02 | ||
| 338 | N 912004010102 | LOCK WASHER |
| AIR CLEANER TO CAB | ||
| 339 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 339 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 339 | N 913023010002 | NUT |
| AIR CLEANER TO CAB | ||
| 343 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 343 | N 304017008016 | SCREW |
| AIR CLEANER TO CAB | ||
| M 8X16 | ||
| 344 | N 912004008102 | LOCK WASHER |

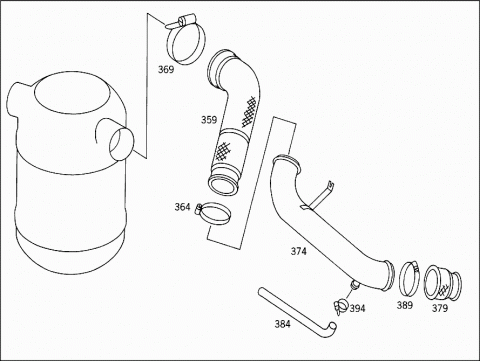

| 349 | A 4259870043 | RUBBER SLEEVE |
| 354 | A 4255280008 | AIR INTAKE PIPE |
| 359 | A 4259870143 | RUBBER SLEEVE |
| 359 | A 4255280682 | HOSE |
| 359 | A 4259871943 | RUBBER SLEEVE |
| Repalced by: A 4255280682 | ||
| 359 | A 4255280682 | HOSE |
| CRANKCASE VENTILATION FROM ENGINE TO SUCTION PIPE | ||
| 364 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 364 | N 000000000675 | CLAMP |
| Repalced by: A 0059972990 | ||
| 364 | A 0059972990 | CLAMP |
| HOSE TO AIR INTAKE PIPE | ||
| 369 | N 916017110001 | CLAMP |
| Repalced by: A 0059971490 | ||
| 369 | A 0059971490 | HOSE CLAMP |
| HOSE TO AIR CLEANER | ||
| Repalced by: A 0019951910 | ||
| 369 | A 0019951910 | CLAMP |
| HOSE TO AIR CLEANER | ||
| 374 | A 4255200006 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 374 | A 4255200006 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 374 | A 4255200406 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 379 | A 4255280208 | AIR INTAKE PIPE |
| (REDUCING SLEEVE) | ||
| 384 | A 4255280582 | HOSE |
| CRANKCASE VENTILATION FROM ENGINE TO SUCTION PIPE | ||
| 384 | A 4255280582 | HOSE |
| CRANKCASE VENTILATION FROM ENGINE TO SUCTION PIPE | ||
| 389 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 389 | N 000000000674 | CLAMP |
| REDUCING SLEEVE TO INTAKE PIPE | ||
| 389 | N 000000000674 | CLAMP |
| REDUCING SLEEVE TO INTAKE PIPE | ||
| 394 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 394 | N 000000000668 | CLAMP |
| CRANKCASE VENTILATION FROM ENGINE TO SUCTION PIPE | ||
| 394 | N 000000000668 | CLAMP |
| CRANKCASE VENTILATION FROM ENGINE TO SUCTION PIPE | ||

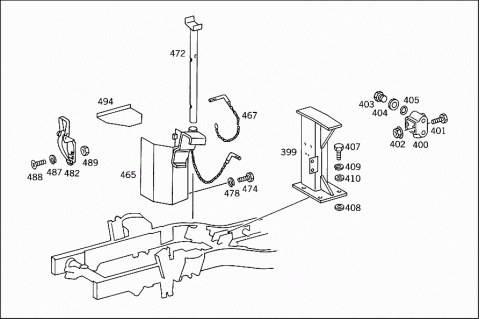

| 399 | A 4255200032 | STAY |
| OECD | ||
| 400 | A 0004294137 | DISTRIBUTOR |
| 401 | N 304017006026 | SCREW |
| Repalced by: N 304017006026 | ||
| 401 | N 304017006026 | SCREW |
| 402 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 402 | N 913023006001 | NUT |
| 403 | N 007604012102 | SCREW PLUG |
| CONNECTIONS: | ||
| 1+5 | ||
| Repalced by: N 007604012105 | ||
| 403 | N 007604012105 | SCREW PLUG |
| CONNECTIONS: | ||
| 1+5 | ||
| 404 | A 0004290827 | THRUST RING |
| Repalced by: A 0009940103 | ||
| 404 | A 0009940103 | THRUST RING |
| CONNECTIONS: | ||
| 1+5 | ||
| 405 | A 0019970845 | SEAL RING |
| CONNECTIONS: | ||
| 1+5 | ||
| 407 | N 000933010260 | SCREW |
| STAY ON TRANSMISSION CASE | ||
| M 10X32 | ||
| 407 | N 000933010145 | SCREW |
| Repalced by: N 910105010007 | ||
| 407 | N 910105010007 | SCREW |
| Repalced by: N 000000000428 | ||
| 407 | N 000000000428 | HEXAGON HEAD BOLT |
| STAY ON TRANSMISSION CASE | ||
| M10X35 | ||
| 408 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 408 | N 007349010007 | WASHER |
| STAY ON TRANSMISSION CASE | ||
| 409 | N 912004010102 | LOCK WASHER |
| 410 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 410 | N 000125010532 | WASHER |
| STAY ON TRANSMISSION CASE | ||
| 412 | A 4252920092 | COVER PLATE |
| BRAKE CABLE | ||
| 417 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 417 | N 304017008016 | SCREW |
| 418 | N 912004008102 | LOCK WASHER |
| 423 | A 4252920192 | COVER PLATE |
| BRAKE CABLE | ||
| 428 | A 4255240033 | COVERING |
| ELECTRIC CABLE THRU FRAME | ||
| 433 | N 000933008145 | SCREW |
| 434 | N 912004008102 | LOCK WASHER |
| 439 | A 4255241440 | BRACKET |
| SHOCK ABSORBER BRACKET,LEFT | ||
| 444 | A 4255241540 | BRACKET |
| LEFT FENDER | ||
| 449 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 449 | N 304017006016 | SCREW |
| BRACKET TO LEFT SHOCK ABSORBER BRACKET | ||
| M 6X16 | ||
| 450 | N 912004006102 | LOCK WASHER |
| BRACKET TO LEFT SHOCK ABSORBER BRACKET | ||
| 451 | N 000934006007 | NUT |
| BRACKET TO LEFT SHOCK ABSORBER BRACKET | ||
| 455 | A 4255400473 | BRACKET |
| 460 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 460 | N 009021006208 | WASHER |
| BRACKET TO FENDER | ||
| 465 | A 4255800188 | SUPPORT |
| 467 | A 4255200474 | PIN |
| 472 | A 4255800088 | SUPPORT |
| 474 | N 000961014108 | SCREW |
| 478 | N 912004014100 | LOCK WASHER |
| 482 | N 999852060100 | HOLDING FIXTURE |
| Repalced by: A 4355830166 | ||
| 482 | A 4355830166 | HOLDING FIXTURE |
| 487 | N 912004005103 | LOCK WASHER |
| 488 | N 000963005001 | SCREW |
| 489 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 489 | N 304032005005 | NUT |
| A 4256007011 | PLATE | |
| 494 | A 4255200036 | FLOOR PLATE |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
