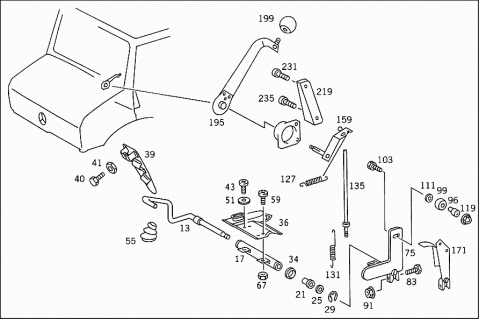

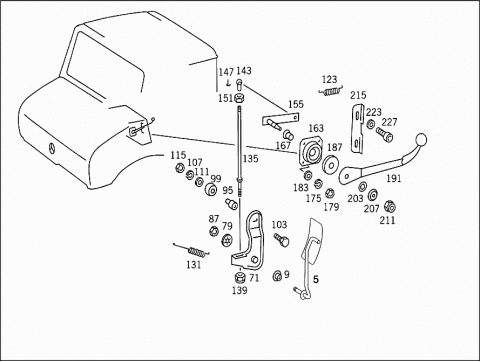

Transporto priemonė: U 1500 T; VIN numerio dalis: 425131
Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4253000125 | LEVER |
| Repalced by: A 4253000825 | ||
| 005 | A 4253000825 | LEVER |
| Repalced by: A 4253000925 | ||
| 005 | A 4253000925 | LEVER |
| Repalced by: A 4373000325 | ||
| 005 | A 4373000325 | LEVER |
| 009 | A 4063010350 | BUSHING |
| 013 | A 4253000104 | ACCELERATOR PEDAL |
| 017 | A 4253000221 | BEARING TUBE |
| 021 | A 4253010050 | BUSHING |
| BEARING TUBE TO FIRE WALL | ||
| 025 | N 000125013008 | WASHER |
| 029 | N 006799009002 | LOCK PLATE |
| BEARING TUBE TO FIRE WALL | ||
| 034 | A 1169970181 | GROMMET |
| BEARING TUBE TO FIRE WALL | ||
| 036 | A 4256840018 | COVERING |
| BEARING TUBE TO FIRE WALL | ||
| A 0019875972 | EDGE GUARD SECTION | |
| 039 | A 4253000102 | PLATE |
| ACCELERATOR PEDAL | ||
| 040 | N 000933010145 | SCREW |
| Repalced by: N 910105010007 | ||
| 040 | N 910105010007 | SCREW |
| Repalced by: N 000000000428 | ||
| 040 | N 000000000428 | HEXAGON HEAD BOLT |
| STOP | ||
| 041 | N 000439010202 | NUT |
| Repalced by: N 304035010000 | ||
| 041 | N 304035010000 | NUT |
| STOP | ||
| Repalced by: N 304035010001 | ||
| 041 | N 304035010001 | HEXAGON NUT |
| STOP | ||
| 043 | N 007985006546 | SCREW |
| ACCELERATOR PEDAL TO CAB | ||
| N 912004006102 | LOCK WASHER | |
| ACCELERATOR PEDAL TO CAB | ||
| 051 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 051 | N 009021006208 | WASHER |
| ACCELERATOR PEDAL TO CAB | ||
| 055 | A 4252670697 | BOOT |
| 059 | N 007985006161 | SCREW |
| Repalced by: N 007985006580 | ||
| 059 | N 007985006580 | SCREW |
| BEARING TUBE TO COVERING | ||
| N 912004006102 | LOCK WASHER | |
| BEARING TUBE TO COVERING | ||
| 067 | N 000439006204 | NUT |
| Repalced by: N 304035006001 | ||
| 067 | N 304035006001 | NUT |
| BEARING TUBE TO COVERING | ||
| 071 | A 4253000025 | LEVER |
| Repalced by: A 4253001025 | ||
| 071 | A 4253001025 | LEVER |
| Repalced by: A 4363000025 | ||
| 071 | A 4363000025 | LEVER |
| 075 | A 4253000325 | LEVER |
| 079 | N 900050008001 | LOCK PLATE |
| Repalced by: A 0000710473 | ||
| 079 | A 0000710473 | LOCK |
| 083 | N 000931006114 | SCREW |
| Repalced by: N 304017006012 | ||
| 083 | N 304017006012 | SCREW |
| 087 | N 304032008006 | NUT |
| 091 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 091 | N 913023006001 | NUT |
| 095 | A 4253020053 | SPACER TUBE |
| Repalced by: A 4273020053 | ||
| 095 | A 4273020053 | SPACER TUBE |
| 096 | A 4253020353 | SPACER TUBE |
| Repalced by: A 4273020153 | ||
| 096 | A 4273020153 | SPACER TUBE |
| 099 | A 4253010011 | ROLLER |
| Repalced by: A 4273010011 | ||
| 099 | A 4253010011 | ROLLER |
| Repalced by: A 4273010011 | ||
| 099 | A 4273010011 | ROLLER |
| 103 | N 000931008244 | SCREW |
| ROLLER TO LEVER | ||
| M 8X45 | ||
| 107 | N 912004008102 | LOCK WASHER |
| 111 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 111 | N 000125008443 | WASHER |
| ROLLER TO LEVER | ||
| 111 | N 000125008443 | WASHER |
| ROLLER TO LEVER | ||
| 115 | N 304032008006 | NUT |
| 119 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 119 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 119 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 119 | N 913023008002 | NUT |
| 123 | A 4259930010 | SPRING |
| 123 | A 4259930010 | SPRING |
| 127 | A 3529931510 | SPRING |
| Repalced by: A 3529931810 | ||
| 127 | A 3529931810 | SPRING |
| 131 | A 4259930110 | SPRING |
| 135 | A 4253000015 | ROD |
| 139 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 139 | N 910113006001 | NUT |
| SHIFTING ROD | ||
| 143 | N 071805010204 | BALL SOCKET |
| SHIFTING ROD | ||
| 147 | N 071805010403 | CIRCLIP |
| SHIFTING ROD | ||
| 151 | N 000934006007 | NUT |
| SHIFTING ROD | ||
| 155 | A 4253000225 | LEVER |
| SHIFTING ROD TO MANUAL CONTROL | ||
| 159 | A 4253000525 | LEVER |
| SHIFTING ROD TO MANUAL CONTROL | ||
| 163 | A 4253000137 | BEARING SHELL |
| 167 | A 4253010050 | BUSHING |
| 171 | A 4253000625 | LEVER |
| (CONTROL LEVER) | ||
| 175 | N 912004006102 | LOCK WASHER |
| 179 | N 000934006007 | NUT |
| BEARING SHELL TO CAB | ||
| 183 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 183 | N 000125006449 | WASHER |
| 187 | A 4253020054 | GUARD PLATE |
| 191 | A 4253000017 | LEVER |
| MANUAL CONTROL | ||
| 195 | A 4253000617 | LEVER |
| MANUAL CONTROL | ||
| 199 | N 000319032500 | BALL KNOB |
| 203 | A 4253010085 | RUBBER BUFFER |
| 207 | A 4253020162 | THRUST WASHER |
| 211 | N 913004008005 | NUT |
| Repalced by: N 913023008002 | ||
| 211 | N 913023008002 | NUT |
| 215 | A 4253000087 | PAWL |
| 219 | A 4253020240 | BRACKET |
| PAWL | ||
| 223 | N 000125006421 | WASHER |
| PAWL TO CAB | ||
| Repalced by: N 000125006449 | ||
| 223 | N 000125006449 | WASHER |
| PAWL TO CAB | ||
| 227 | N 006912006014 | SCREW |
| PAWL TO CAB | ||
| 231 | N 007984006031 | SCREW |
| Repalced by: A 1249900520 | ||
| 231 | A 1249900520 | SCREW |
| PAWL TO CAB | ||
| 235 | N 007984006017 | SCREW |
| PAWL TO CAB | ||
