Transporto priemonė: U 1500 T; VIN numerio dalis: 425131
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0005418001 | BATTERY |
| Repalced by: A 3875400801 | ||
| 005 | A 3875400801 | BATTERY |
| Repalced by: A 0035410101 | ||
| 005 | A 0035410101 | BATTERY |
| Repalced by: A 0035411801 | ||
| 005 | A 0035411801 | BATTERY |
| Repalced by: A 0025412301 | ||
| 005 | A 0025412301 | BATTERY |
| 12 V/135 AH | ||
| 006 | N 000084006132 | SCREW |
| FROM STARTING CABLE TERMINALS 30 AND 50 TO STARTING MOTOR | ||
| AM 6X8 | ||
| 007 | N 912004006102 | LOCK WASHER |
| FROM STARTING CABLE TERMINALS 30 AND 50 TO STARTING MOTOR | ||
| 008 | N 912004010102 | LOCK WASHER |
| FROM STARTING CABLE TERMINALS 30 AND 50 TO STARTING MOTOR | ||
| 009 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 009 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 009 | N 913023010002 | NUT |
| FROM STARTING CABLE TERMINALS 30 AND 50 TO STARTING MOTOR | ||
| 010 | A 4255410002 | BATTERY CASE |
| 015 | A 4255400382 | COVER |
| 020 | A 4068875071 | COMBINATION BOLT |
| 023 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 023 | N 000125006449 | WASHER |
| 026 | N 000934006007 | NUT |
| 030 | A 4255400251 | SUPPORT |
| 035 | A 4255400351 | SUPPORT |
| 040 | A 4255410321 | CLAMPING RAIL |
| Repalced by: A 4165410121 | ||
| 040 | A 4165410121 | CLAMPING RAIL |
| BATTERY MOUNTING | ||
| 045 | A 4069965125 | ROD |
| Repalced by: A 4165410044 | ||
| 045 | A 4165410044 | HOOK |
| BATTERY MOUNTING | ||
| 050 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 050 | N 000125006449 | WASHER |
| 053 | A 0009900962 | NUT |
| 058 | A 4259970281 | GROMMET |
| 063 | A 4255400151 | SUPPORT |
| Repalced by: A 4375400351 | ||
| 063 | A 4375400351 | SUPPORT |
| BATTERY CASE | ||
| 068 | N 000965008028 | SCREW |
| M 8X25 | ||
| 071 | N 900056008101 | COUNTERSUNK WASHER |
| 074 | N 912004008102 | LOCK WASHER |
| 078 | N 304032008006 | NUT |
| 081 | A 4068870214 | FASTENER |
| SUPPORT | ||
| 084 | A 4068870056 | PAD |
| 087 | N 000963006005 | SCREW |
| BRACKET TO SUPPORT | ||
| M 6X20 | ||
| 090 | N 000125006421 | WASHER |
| BRACKET TO SUPPORT | ||
| Repalced by: N 000125006449 | ||
| 090 | N 000125006449 | WASHER |
| BRACKET TO SUPPORT | ||
| 094 | N 000934006007 | NUT |
| BRACKET TO SUPPORT | ||
| 098 | N 000961012151 | SCREW |
| Repalced by: N 910105012007 | ||
| 098 | N 910105012007 | SCREW |
| SUPPORT TO FRAME | ||
| M 12X1.5X30 | ||
| 098 | N 910105012020 | SCREW |
| SUPPORT TO FRAME | ||
| M 12X1.5X35 | ||
| 098 | N 000961012122 | SCREW |
| SUPPORT TO FRAME | ||
| M 12X1.5X40 | ||
| 098 | N 000961012122 | SCREW |
| SUPPORT TO FRAME | ||
| M 12X1.5X40 | ||
| 110 | N 912004012100 | LOCK WASHER |
| SUPPORT TO FRAME | ||
| 114 | N 000934012022 | NUT |
| Repalced by: N 913023012002 | ||
| 114 | N 913023012002 | NUT |
| SUPPORT TO FRAME | ||
| 114 | N 913023012002 | NUT |
| SUPPORT TO FRAME | ||
| 120 | A 4255410018 | BASE |

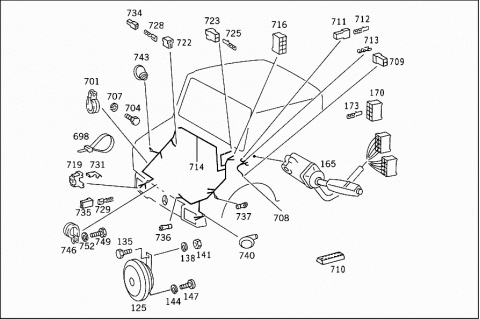

| 125 | A 0025426220 | HORN |
| Repalced by: A 0035423220 | ||
| 125 | A 0035423220 | HORN |
| Repalced by: A 6315420120 | ||
| 125 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 125 | A 0035422720 | HORN |
| 125 | A 0025426420 | HORN |
| Repalced by: A 6315420120 | ||
| 125 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 125 | A 0035422720 | HORN |
| 135 | N 000933008145 | SCREW |
| HORN BRACKET | ||
| M 8X18 | ||
| 138 | N 912004008102 | LOCK WASHER |
| 141 | N 304032008006 | NUT |
| HORN BRACKET | ||
| 144 | N 912004004102 | LOCK WASHER |
| ELECTRIC CABLE TO HORN | ||
| 147 | N 000084004151 | SCREW |
| ELECTRIC CABLE TO HORN | ||
| AM 4X6 | ||
| 152 | A 0025443432 | SENDER UNIT |
| Repalced by: A 0025448832 | ||
| 152 | A 0025448832 | SENDER UNIT |
| Repalced by: A 0035441232 | ||
| 152 | A 0035441232 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 155 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 155 | N 304017006018 | SCREW |
| HAZARD WARNING LIGHT | ||
| 158 | N 912004006102 | LOCK WASHER |
| HAZARD WARNING LIGHT | ||
| 161 | N 000934006007 | NUT |
| HAZARD WARNING LIGHT | ||
| 165 | A 0045458124 | SWITCH,AUTOMATIC |
| BLINKER LIGHT | ||
| 165 | A 0045458124 | SWITCH,AUTOMATIC |
| Repalced by: A 0065456724 | ||
| 165 | A 0065456724 | SWITCH,AUTOMATIC |
| BLINKER LIGHT | ||
| 170 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 173 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||

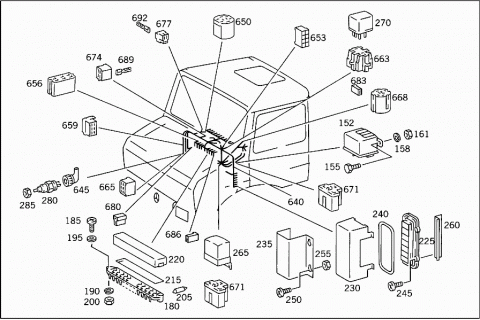

| 180 | A 0015450101 | FUSE BOX |
| LEFT | ||
| 180 | A 0015450201 | FUSE BOX |
| RIGHT | ||
| 185 | N 000084006162 | SCREW |
| Repalced by: A 0029903712 | ||
| 185 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 185 | N 000000001149 | HEXALOBULAR BOLT |
| 190 | N 912004006102 | LOCK WASHER |
| 195 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 195 | N 000125006449 | WASHER |
| 200 | N 000934006007 | NUT |
| 205 | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 205 | N 072581008101 | FUSE |
| 205 | A 0005458334 | FUSE |
| 215 | A 4255450100 | MARKING STRIP |
| AUTOMATIC CUT-OUT | ||
| I | ||
| 215 | A 4255450200 | MARKING STRIP |
| AUTOMATIC CUT-OUT | ||
| II | ||
| 220 | A 0005452303 | CAP |
| 225 | A 0085453128 | PLUG HOUSING |
| 230 | A 4255420091 | COVERING |
| 235 | A 4355450246 | COVERING |
| 240 | A 1819970341 | SEAL RING |
| 245 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 245 | N 000000001146 | SCREW |
| PLUG HOUSING | ||
| M 6X16 | ||
| 245 | N 000000001146 | SCREW |
| PLUG HOUSING | ||
| M 6X16 | ||
| 250 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 250 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 250 | N 000000001149 | HEXALOBULAR BOLT |
| PLUG HOUSING | ||
| 255 | N 000934006007 | NUT |
| PLUG HOUSING | ||
| 260 | A 4355420340 | BRACKET |
| 265 | A 0011548406 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021547406 | ||
| 265 | A 0021547406 | REGULATOR AND CUT-OUT |
| ALTERNATOR | ||
| 270 | A 0005455505 | RELAY |
| Repalced by: A 0005458305 | ||
| 270 | A 0005458305 | RELAY |
| Repalced by: A 0045450405 | ||
| 270 | A 0035452705 | RELAY |
| Repalced by: A 0045450405 | ||
| 270 | A 0045450405 | RELAY |
| Repalced by: A 0025421419 | ||
| 270 | A 0025421419 | RELAY |
| IGNITION/STARTING SWITCH | ||
| Repalced by: A 0025427419 | ||
| 270 | A 0025427419 | RELAY |
| IGNITION/STARTING SWITCH | ||
| 272 | A 0005455414 | SWITCH |
| 275 | A 0005456009 | SWITCH |
| DIFFERENTIAL LOCK | ||
| 280 | A 0005455209 | SWITCH |
| Repalced by: A 0005457909 | ||
| 280 | A 0005457909 | SWITCH |
| Repalced by: A 0005459009 | ||
| 280 | A 0005459009 | SWITCH |
| Repalced by: A 0015451109 | ||
| 280 | A 0015451109 | SWITCH |
| Repalced by: A 0015452709 | ||
| 280 | A 0015452709 | SWITCH |
| STOP LIGHT | ||
| 285 | A 0029901951 | NUT |
| 290 | A 0015424917 | SENDER UNIT |
| Repalced by: A 0045428917 | ||
| 290 | A 0045428917 | SENDER UNIT |
| OIL PRESSURE | ||
| 295 | N 007603014400 | SEAL RING |
| 300 | A 0015422317 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 305 | A 0005450423 | SWITCH |
| SHIFT POSITION INDICATOR | ||
| 310 | A 4405450026 | PLUG SOCKET |
| 315 | N 000084005175 | SCREW |
| 320 | N 006797005210 | TOOTHED WASHER |
| 325 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 325 | N 304032005005 | NUT |
| 330 | A 4255460035 | BOOT |
| Repalced by: A 4245460035 | ||
| 330 | A 4245460035 | BOOT |
| LEFT FRONT CONSOLE | ||
| 335 | A 0015449603 | TAIL LAMP |
| Repalced by: A 0015444003 | ||
| 335 | A 0015449703 | TAIL LAMP |
| Repalced by: A 0015444103 | ||
| 335 | A 0015444103 | TAIL LAMP |
| RIGHT | ||
| 335 | A 0015444003 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 345 | A 0005445293 | LAMP SOCKET |
| 350 | A 0015445590 | LENS |
| 355 | A 0005448080 | GASKET |
| Repalced by: A 0005448480 | ||
| 355 | A 0005448480 | GASKET |
| 360 | N 072601012190 | BULB |
| TAIL LAMP | ||
| 12V 21W | ||
| 365 | N 072601012702 | BULB |
| TAIL LAMP | ||
| 12V 10W | ||
| 370 | A 0019971581 | GROMMET |
| Repalced by: A 0009978081 | ||
| 370 | A 0009978081 | GROMMET |
| TAIL LAMP | ||
| 380 | A 4255400007 | CABLE HARNESS |
| Repalced by: A 4255400107 | ||
| 380 | A 4255400107 | CABLE HARNESS |
| TAIL LAMP | ||
| 385 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 390 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 395 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 395 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 395 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 395 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 400 | A 0005451645 | BOOT |
| 403 | A 4354261840 | BRACKET |
| Repalced by: A 6205244040 | ||
| 403 | A 6205244040 | BRACKET |
| ELECTRIC CABLE | ||
| 405 | A 0005500883 | PUMP |
| Repalced by: A 0005501083 | ||
| 405 | A 0005501083 | PUMP |
| Repalced by: A 0005502383 | ||
| 405 | A 0005502383 | PUMP |
| STARTER PILOT | ||
| 410 | A 0009908867 | SEAL CONE |
| Repalced by: A 0005550618 | ||
| 410 | A 0005550618 | SEAL CONE |
| 415 | A 0019970578 | SCREW CONNECTION |
| 420 | A 3359900240 | WASHER |
| 425 | A 0005501104 | PRIMER CAPSULE |
| Repalced by: A 0005501404 | ||
| 425 | A 0005501404 | PRIMER CAPSULE |
| 427 | A 0009909454 | NUT |
| PARTS KIT | ||
| 430 | A 0005550010 | FILLING CYLINDER |
| 435 | A 4255260040 | BRACKET |
| Repalced by: A 4255260140 | ||
| 435 | A 4255260140 | BRACKET |
| Repalced by: A 4405514740 | ||
| 435 | A 4405514740 | BRACKET |
| 440 | A 3359972282 | HOSE |
| 4X1 MM | ||
| 445 | A 4255400055 | SHELL |
| Repalced by: A 4355400255 | ||
| 445 | A 4355400255 | SHELL |
| 450 | N 912004006102 | LOCK WASHER |
| 455 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 455 | N 304017006016 | SCREW |
| M 6X16 | ||
| 460 | A 0005448901 | HEADLAMP |
| 465 | A 0005447592 | REFLECTOR |
| 470 | A 0005445893 | LAMP SOCKET |
| 475 | A 0008269580 | SEAL |
| 480 | A 0008265990 | LENS |
| 485 | A 0008264184 | SPRING |
| Repalced by: A 0008265884 | ||
| 485 | A 0008265884 | SPRING |
| Repalced by: A 0008262484 | ||
| 485 | A 0008262484 | SPRING |
| 490 | A 0008263482 | LAMP SOCKET |
| A 0008260158 | SEAL | |
| 500 | A 0005450082 | PLATE |
| 505 | N 072601012100 | BULB |
| HEADLAMP | ||
| 12 V 45/40 W | ||
| 510 | N 072601012900 | BULB |
| HEADLAMP | ||
| 12 V/4 W | ||
| 515 | N 007981005211 | SHEET METAL SCREW |
| BEAM UNIT | ||
| Repalced by: N 000000000822 | ||
| 515 | N 000000000822 | TAPPING SCREW |
| BEAM UNIT | ||
| 520 | A 3478265091 | SEAL RING |
| 525 | A 0005440897 | RETAINING RING |
| 530 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 530 | N 000125008443 | WASHER |
| HEADLAMP GROUND | ||
| 535 | N 912004008102 | LOCK WASHER |
| HEADLAMP GROUND | ||
| 540 | N 304032008006 | NUT |
| HEADLAMP GROUND | ||
| 545 | A 0005442205 | REFLECTOR |
| Repalced by: A 0005442405 | ||
| 545 | A 0005442405 | REFLECTOR |
| Repalced by: A 0005444105 | ||
| 545 | A 0005444105 | REFLECTOR |
| 550 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 550 | N 009021005205 | WASHER |
| TO 000 544 24 05 | ||
| 555 | N 912004005103 | LOCK WASHER |
| TO 000 544 24 05 | ||
| 560 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 560 | N 304032005005 | NUT |
| TO 000 544 24 05,000 544 41 05 | ||
| 565 | N 000137005203 | SPRING WASHER |
| TO 000 544 41 05 | ||
| 570 | A 4065400131 | NEG. CABLE |
| Repalced by: N 922002070000 | ||
| 570 | A 4255400130 | POSITIVE CABLE |
| Repalced by: N 922002070000 | ||
| 570 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 570 | A 6735460013 | ELECTRIC CABLE |
| NEG. CABLE | ||
| 570 | A 6735460013 | ELECTRIC CABLE |
| POS. CABLE | ||
| 575 | N 072332011100 | SOLDERING TERMINAL |
| POS. CABLE | ||
| 577 | N 072332011200 | SOLDERING TERMINAL |
| NEG. CABLE | ||
| 580 | N 046234010007 | CABLE SHOE |
| POS. AND NEG. CABLES | ||
| 583 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 583 | N 007349010007 | WASHER |
| ELECTRIC CABLE FROM BATTERY TO STARTING MOTOR | ||
| 585 | A 0005460135 | BOOT |
| CABLE TO STARTING MOTOR | ||
| 586 | A 0005464635 | BOOT |
| BATTERY POS. POLE | ||
| 588 | A 3525840008 | TAG |
| 590 | A 4164320640 | BRACKET |
| AT BELL HOUSING | ||
| 595 | A 4064261140 | BRACKET |
| FROM BATTERY POS.POLE TO STARTING MOTOR | ||
| 600 | A 0009954801 | CLAMP |
| Repalced by: N 916016018201 | ||
| 600 | N 916016018201 | CLAMP |
| 603 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 603 | N 304017006018 | SCREW |
| M 6X12 | ||
| 609 | N 912004006102 | LOCK WASHER |
| 612 | N 000934006007 | NUT |
| 615 | N 000933010164 | SCREW |
| GROUND STRAP TO FRAME | ||
| M 10X22 | ||
| 618 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 618 | N 000125010532 | WASHER |
| GROUND STRAP TO FRAME | ||
| 621 | N 912004010102 | LOCK WASHER |
| GROUND STRAP TO FRAME | ||
| 624 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 624 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 624 | N 913023010002 | NUT |
| GROUND STRAP TO FRAME | ||
| 627 | N 000934010009 | NUT |
| Repalced by: N 910112010001 | ||
| 627 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 627 | N 913023010002 | NUT |
| GROUND CABLE TO STARTING MOTOR | ||
| 630 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 630 | N 304035010001 | NUT |
| GROUND CABLE TO STARTING MOTOR | ||
| 640 | A 4255400005 | CABLE HARNESS |
| CAB | ||
| 640 | A 4255400405 | CABLE HARNESS |
| CAB | ||
| 640 | A 4255400205 | CABLE HARNESS |
| 640 | A 4255400505 | CABLE HARNESS |
| 645 | A 0005400581 | PLUG SOCKET |
| Repalced by: A 3805400281 | ||
| 645 | A 3805400281 | PLUG SOCKET |
| Repalced by: A 3805402281 | ||
| 645 | A 3805402281 | PARTS KIT |
| REPAIR SIZE | ||
| M 27 X 1 | ||
| 650 | A 0065455528 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 653 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 656 | A 0055458428 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 659 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 663 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 665 | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 668 | A 0055459928 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 671 | A 0045457528 | PLUG |
| 4-POLE | ||
| 674 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 677 | A 0055456428 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 680 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 683 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 686 | A 0005451645 | BOOT |
| 689 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 689 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 689 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 689 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 692 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 6 MM2 | ||
| 692 | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 6 MM2 | ||
| 698 | A 0019978490 | LOOM TIE |
| LINE TO CAB | ||
| 376 MM | ||
| 701 | A 0009955201 | CLAMP |
| Repalced by: N 916016025201 | ||
| 701 | N 916016025201 | CLAMP |
| LINE TO CAB | ||
| 704 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 704 | N 304017006016 | SCREW |
| M 6X16 | ||
| 707 | N 912004006102 | LOCK WASHER |
| LINE TO CAB | ||
| 708 | A 4255400036 | ELECTRIC CABLE |
| SIDE MARKER LAMP | ||
| 709 | A 0045450728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 710 | A 0005453728 | PLUG |
| 8-POLE | ||
| 711 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 712 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2,5 MM2 | ||
| 713 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 713 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 714 | A 4255400227 | ELECTRIC CABLE |
| TO HEADLAMPS | ||
| 714 | A 4255402737 | ELECTRIC CABLE |
| Repalced by: A 4355407937 | ||
| 714 | A 4355407937 | ELECTRIC CABLE |
| TO HEADLAMPS | ||
| 716 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 719 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 722 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 723 | A 0015457928 | PLUG HOUSING |
| BIPOLAR | ||
| 725 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 728 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 728 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 729 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 729 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 731 | A 0005457926 | PIN BUSHING |
| OFFSET | ||
| 1-2.5 MM2 | ||
| 734 | A 0005451645 | BOOT |
| 735 | A 0005453545 | PIN BUSHING HOUSING |
| 736 | N 046225004102 | CABLE SHOE |
| 737 | N 046225010102 | CABLE SHOE |
| 740 | A 3149970181 | GROMMET |
| Repalced by: A 4429970181 | ||
| 740 | A 4429970181 | GROMMET |
| 743 | A 1159972081 | GROMMET |
| 746 | A 0009952101 | CLAMP |
| Repalced by: N 916016012200 | ||
| 746 | N 916016012200 | CLAMP |
| ELECTRIC CABLE TO THE LEFT AND THE RIGHT OF COWL | ||
| 749 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 749 | N 304017006016 | SCREW |
| M 6X16 | ||
| 752 | N 912004006102 | LOCK WASHER |
| 755 | A 4255400437 | ELECTRIC CABLE |
| FRAME | ||
| 755 | A 4255408337 | ELECTRIC CABLE |
| FRAME | ||
| 755 | A 4255401037 | ELECTRIC CABLE |
| 755 | A 4255408437 | ELECTRIC CABLE |
| FRAME | ||
| 761 | A 0005400481 | PLUG SOCKET |
| Repalced by: A 3805400181 | ||
| 761 | A 3805400181 | PLUG SOCKET |
| Repalced by: A 3805402181 | ||
| 761 | A 3805402181 | PLUG SOCKET |
| REPAIR SIZE | ||
| M 24 X 1 | ||
| 762 | A 0029970781 | GROMMET |
| 763 | A 0019976572 | FITTING |
| 764 | A 0055454628 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 765 | A 0005400581 | PLUG SOCKET |
| Repalced by: A 3805400281 | ||
| 765 | A 3805400281 | PLUG SOCKET |
| Repalced by: A 3805402281 | ||
| 765 | A 3805402281 | PARTS KIT |
| REPAIR SIZE | ||
| M 27 X 1 | ||
| 770 | A 0009907554 | NUT |
| A 0009903654 | NUT | |
| A 3809900140 | WASHER | |
| 771 | A 3805450226 | PLUG SOCKET |
| 772 | A 0015454826 | ROUND PIN BUSHING |
| 773 | A 0085458028 | HOUSING |
| 776 | A 0029904040 | WASHER |
| 779 | A 0049974281 | GROMMET |
| 782 | A 0015452926 | PIN BUSHING |
| Repalced by: A 0115453328 | ||
| 782 | A 0115453328 | BUSHING |
| 785 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 788 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 788 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 788 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 788 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 791 | A 0005451645 | BOOT |
| 792 | A 3805460335 | BOOT |
| A 0009902054 | NUT | |
| A 0009906840 | WASHER | |
| 793 | A 3805450026 | PLUG SOCKET |
| N 046211005110 | CABLE SHOE | |
| A 5 X 1.5 | ||
| 795 | N 046225010101 | CABLE SHOE |
| A 10 X 2.3 | ||
| 795 | N 046225008102 | CABLE SHOE |
| A 8 X 3.4 | ||
| 800 | A 0009955201 | CLAMP |
| Repalced by: N 916016025201 | ||
| 800 | N 916016025201 | CLAMP |
| 800 | N 916016025201 | CLAMP |
| ELECTRIC CABLE TO FRAME | ||
| 800 | N 916016012200 | CLAMP |
| ELECTRIC CABLE TO RIGHT CONSOLE | ||
| 801 | A 0019978390 | LOOM TIE |
| ELECTRIC CABLE TO RIGHT CONSOLE | ||
| 802 | A 4249900040 | WASHER |
| ELECTRIC CABLE TO RIGHT CONSOLE | ||
| A 0019978490 | LOOM TIE | |
| Repalced by: N 916016014201 | ||
| 803 | N 916016015202 | CLAMP |
| CABLE TO ALTERNATOR | ||
| 804 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 804 | N 304017006016 | SCREW |
| CABLE TO ALTERNATOR | ||
| 805 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 805 | N 913023006001 | NUT |
| CABLE TO ALTERNATOR | ||
| 807 | A 4245450040 | BRACKET |
| ELECTRIC CABLE TO FRAME | ||
| 808 | N 000933006130 | SCREW |
| Repalced by: N 304017006020 | ||
| 808 | N 304017006020 | SCREW |
| ELECTRIC CABLE TO FRAME | ||
| M 6X18 | ||
| 808 | N 000933006102 | SCREW |
| BATTERY CABLE TO BELL HOUSING | ||
| 812 | N 912004006102 | LOCK WASHER |
| BATTERY CABLE TO BELL HOUSING | ||
| 812 | N 912004006102 | LOCK WASHER |
| ELECTRIC CABLE TO FRAME | ||
| 815 | N 000934006007 | NUT |
| BATTERY CABLE TO BELL HOUSING | ||
| 815 | N 000934006007 | NUT |
| ELECTRIC CABLE TO FRAME | ||
| 818 | A 0015458328 | PIN BUSHING HOUSING |
| FRAME MOUNTED CABLE HARNESS | ||
| 819 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 819 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 819 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 819 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 820 | A 4355409037 | ELECTRIC CABLE |
| Repalced by: A 4275403436 | ||
| 820 | A 4275403436 | ELECTRIC CABLE |
| 820 | A 4275403436 | ELECTRIC CABLE |
| 820 | A 4355404936 | ELECTRIC CABLE |
| Repalced by: A 4355406536 | ||
| 820 | A 4355406536 | ELECTRIC CABLE |
| FROM DIFFERENTIAL PRESSURE WARNING SWITCH TO PLUG CONNECTION | ||
| 821 | A 0029904040 | WASHER |
| Repalced by: A 3805403581 | ||
| 821 | A 0005463935 | BOOT |
| Repalced by: A 3805403581 | ||
| 821 | A 0009907554 | NUT |
| Repalced by: A 3805403581 | ||
| 821 | A 3805403581 | PLUG SOCKET |
| PARTS KIT | ||
| M27X1 | ||
| 822 | A 0005455028 | PLUG |
| Repalced by: A 3805450026 | ||
| 822 | A 3805450026 | PLUG HOUSING |
| 823 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 824 | A 0019906440 | WASHER |
| 825 | A 0029970881 | GROMMET |
| TO 435 540 90 37 | ||
| 826 | A 0029970781 | GROMMET |
| TO 435 540 49 36 | ||
| 827 | A 4359977181 | GROMMET |
| TO 435 540 65 36 | ||
| 828 | A 0009904954 | NUT |
| 829 | A 0055454528 | PIN BUSHING HOUSING |
| A 0005401681 | PLUG SOCKET | |
| TO 435 540 49 36,435 540 65 36 | ||
| 831 | A 4245460035 | BOOT |
| ELECTRIC CABLE THRU FRAME | ||
| 832 | A 0009904954 | NUT |
| BRAKE LINING WEAR | ||
| 833 | A 0009970925 | EXPANSION PLUG |
| BRAKE LINING WEAR | ||
| 834 | N 913018013100 | PROTECTION CAP |
| BACK-UP LIGHT | ||
| 835 | A 0009970303 | PLUG |
| WINDSHIELD WIPER STEP CONTROL SWITCH | ||
| 836 | N 046225006100 | CABLE SHOE |
| 837 | A 4255400327 | ELECTRIC CABLE |
| ALTERNATOR | ||
| 837 | A 4255402837 | ELECTRIC CABLE |
| Repalced by: A 4255407537 | ||
| 837 | A 4255407537 | ELECTRIC CABLE |
| Repalced by: A 4255405136 | ||
| 837 | A 4275400037 | ELECTRIC CABLE |
| Repalced by: A 4255405136 | ||
| 837 | A 4255405136 | ELECTRIC CABLE |
| ALTERNATOR | ||
| A 4275400137 | ELECTRIC CABLE | |
| ALTERNATOR | ||
| 838 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 838 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 838 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 838 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 838 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 6 MM2 | ||
| 839 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 840 | A 0025451128 | PLUG |
| UNIPOLAR | ||
| 2.5 MM2,TO 427 540 00 37 | ||
| 841 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| TO 427 540 01 37 | ||
| 842 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| TO 427 540 01 37 | ||
| 843 | A 0005460235 | BOOT |
| Repalced by: A 0005463335 | ||
| 843 | A 0005463335 | BOOT |
| CABLE TO ALTERNATOR | ||
| 844 | N 000137008107 | SPRING WASHER |
| Repalced by: N 000137008204 | ||
| 844 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 844 | N 000137008212 | SPRING WASHER |
| ELECTRIC CABLE TO ALTERNATOR TERMINAL: | ||
| "B+" | ||
| 844 | N 000137005105 | SPRING WASHER |
| Repalced by: N 000137005203 | ||
| 844 | N 000137005203 | SPRING WASHER |
| ELECTRIC CABLE TO ALTERNATOR TERMINAL: | ||
| "W" | ||
| 844 | N 000137006108 | SPRING WASHER |
| ELECTRIC CABLE TO ALTERNATOR TERMINAL: | ||
| "B-" | ||
| 844 | N 000137004105 | SPRING WASHER |
| ELECTRIC CABLE TO ALTERNATOR TERMINAL: | ||
| "D+" | ||
| 845 | N 304032008006 | NUT |
| ELECTRIC CABLE TO ALTERNATOR TERMINAL: | ||
| "B+" | ||
| 845 | N 000934004006 | NUT |
| ELECTRIC CABLE TO ALTERNATOR TERMINAL: | ||
| "D+" | ||
| 845 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 845 | N 304032005005 | NUT |
| ELECTRIC CABLE TO ALTERNATOR TERMINAL: | ||
| "W" | ||
| 845 | N 000934006007 | NUT |
| ELECTRIC CABLE TO ALTERNATOR TERMINAL: | ||
| "B-" | ||
| 846 | A 3049970181 | GROMMET |
| FRONT STRIKER PLATE | ||
| 847 | A 4255460235 | BOOT |
| LEFT FRONT CONSOLE | ||
| 850 | A 4255460335 | BOOT |
| REAR STRIKER PLATE | ||
| A 4255400078 | STARTER SWITCH | |
| Repalced by: A 4255400278 | ||
| A 0005456413 | SWITCH BOX | |
| Repalced by: A 4255400178 | ||
| A 4255400178 | STARTER SWITCH | |
| Repalced by: A 4255400278 | ||
| A 0005455013 | SWITCH BOX | |
| Repalced by: A 4255400278 | ||
| 854 | A 4255460435 | BOOT |
| 856 | A 4255450072 | NUT |
| 858 | N 000988032006 | FITTED WASHER |
| 861 | A 4255400278 | STARTER SWITCH |
| Repalced by: A 4255400078 | ||
| 861 | A 4255400078 | STARTER SWITCH |
| IGNITION/STARTING SWITCH | ||
| 863 | A 3814620030 | TUMBLER |
| Repalced by: A 4428930003 | ||
| 863 | A 3814600004 | TUMBLER |
| 863 | A 4428930003 | OUTFIT (LOCK,KEY,HANDLE) |
| WITH LOCK UNDEFINED | ||
| 864 | A 3814600104 | TUMBLER |
| WITH LOCK DEFINED | ||
| 866 | A 0007600106 | KEY |
| Repalced by: A 0007600006 | ||
| 866 | A 0007600006 | KEY |
| 869 | A 0007663906 | KEY |
| Repalced by: A 0007663706 | ||
| 869 | A 0007663706 | KEY |
| BLANK | ||
| 872 | A 0005454813 | SWITCH |
| Repalced by: A 0005455913 | ||
| 872 | A 0005455913 | LIGHT SWITCH |
| LIGHT ROTARY SWITCH | ||
| 875 | A 0005450176 | WASHER |
| Repalced by: A 0005450376 | ||
| 875 | A 0005450376 | WASHER |
| SWITCH BOX TO INSTRUMENT PANEL | ||
| 877 | A 0005450672 | NUT |
| Repalced by: A 0005451072 | ||
| 877 | A 0005451072 | NUT |
| SWITCH BOX TO INSTRUMENT PANEL | ||
| 881 | A 3095400083 | HANDLE |
| Repalced by: A 3875450037 | ||
| 881 | A 3875450037 | BUTTON |
| Repalced by: A 2015400183 | ||
| 881 | A 2015400183 | HANDLE |
| Repalced by: A 2025450081 | ||
| 881 | A 2025450081 | KNOB |
| LIGHT ROTARY SWITCH | ||
| 884 | A 0005420481 | GROMMET |
| INSTRUMENT CLUSTER | ||
| 887 | A 0045450224 | SWITCH |
| HAZARD WARNING LIGHT | ||
| 889 | A 0005453637 | BUTTON |
| 891 | N 072601012800 | BULB |
| 12V/2W | ||
| 899 | A 0015451815 | TELL-TALE LAMP |
| LESS LENS | ||
| 901 | N 072601012800 | BULB |
| TELL-TALE LAMP | ||
| 12V/2W | ||
| 902 | A 0015456214 | SWITCH |
| Repalced by: A 4275400044 | ||
| 902 | A 4275400044 | SWITCH |
| DIFFERENTIAL PRESSURE WARNING INDICATOR | ||
| 903 | A 0045453214 | SWITCH |
| Repalced by: A 4275400044 | ||
| 903 | A 0004230384 | FITTING |
| 904 | N 007603010110 | SEAL RING |
| 905 | A 0004230684 | FITTING |
| 906 | N 007603012102 | SEAL RING |
| 907 | A 0055423217 | SENDER UNIT |
| TO 001 545 62 14,427 540 00 44 | ||
| 908 | N 000931006084 | SCREW |
| Repalced by: N 304017006027 | ||
| 908 | N 304017006027 | SCREW |
| DIFFERENTIAL PRESSURE WARNING SWITCH | ||
| M 6X45 | ||
| 909 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 909 | N 913023006001 | NUT |
| DIFFERENTIAL PRESSURE WARNING SWITCH | ||
| 910 | A 0005453790 | LENS |
| Repalced by: A 0035453290 | ||
| 910 | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| 911 | A 0005455290 | LENS |
| Repalced by: A 0035453390 | ||
| 911 | A 0035453390 | LENS |
| Repalced by: A 0065451990 | ||
| 911 | A 0065451990 | LENS |
| HIGH BEAM | ||
| 912 | A 0015455890 | LENS |
| Repalced by: A 0035455290 | ||
| 912 | A 0035455290 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| 912 | A 0005455390 | LENS |
| Repalced by: A 0035454190 | ||
| 912 | A 0035454190 | LENS |
| Repalced by: A 0035455290 | ||
| 912 | A 0035455290 | LENS |
| TRAILER BLINKER | ||
| I | ||
| 912 | A 0005455490 | LENS |
| Repalced by: A 0035454290 | ||
| 912 | A 0035454290 | LENS |
| Repalced by: A 0035455290 | ||
| 912 | A 0035455290 | LENS |
| TRAILER BLINKER | ||
| II | ||
| 913 | A 0005456290 | LENS |
| DIFFERENTIAL PRESSURE WARNING INDICATOR | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| RED | ||
| 915 | A 0005455190 | LENS |
| Repalced by: A 0035453790 | ||
| 915 | A 0035453790 | LENS |
| PARKING BRAKE | ||
| 917 | A 0015455790 | LENS |
| FRONT AND REAR AXLE DIFFERENTIAL LOCKS | ||
| 919 | A 0005454090 | LENS |
| Repalced by: A 0015455690 | ||
| 919 | A 0015455690 | LENS |
| LONGITUDINAL LOCK | ||
| 921 | A 0005455090 | LENS |
| Repalced by: A 0055458890 | ||
| 921 | A 0055458890 | LENS |
| BRAKE FLUID | ||
| 921 | A 0055458890 | LENS |
| BRAKE FLUID | ||
| 923 | A 0009974335 | PLUG |
| TELL-TALE LAMP | ||
| 923 | A 0009974435 | PLUG |
| 924 | A 0009870772 | EDGE GUARD SECTION |
| WINDOW SILL | ||
| 925 | A 0015450826 | PLUG SOCKET |
| 927 | A 0005422525 | POTENTIOMETER |
| Repalced by: A 0005422925 | ||
| 927 | A 0005422925 | POTENTIOMETER |
| Repalced by: A 6155420125 | ||
| 927 | A 6155420125 | POTENTIOMETER |
| 930 | A 0005450372 | NUT |
| Repalced by: A 0005451472 | ||
| 930 | A 0005451472 | NUT |
| Repalced by: A 0029906251 | ||
| 930 | A 0029906251 | NUT |
| 932 | A 0005421189 | KNOB |
| Repalced by: A 0005421889 | ||
| 932 | A 0005421889 | KNOB |
| 933 | A 3129970981 | GROMMET |
| 934 | A 0009870344 | EXPANSION PLUG |
| 934 | A 0009870444 | EXPANSION PLUG |
| Repalced by: A 3019870144 | ||
| 934 | A 3019870144 | EXPANSION PLUG |
| FOR ALL-WHEEL-DRIVE/DIFFERENTIAL-LOCK SWITCH OPENING | ||
| 934 | A 3019870144 | EXPANSION PLUG |
| FOR ALL-WHEEL-DRIVE/DIFFERENTIAL-LOCK SWITCH OPENING | ||
| 935 | A 4256890339 | COVER |
| 935 | A 4256890839 | COVER |
| 937 | A 0075425806 | SPEEDOMETER |
| 939 | N 072601012800 | BULB |
| SPEEDOMETER | ||
| 12V/2W | ||
| 942 | A 0015426530 | ANGLE DRIVE |
| Repalced by: A 0035427830 | ||
| 942 | A 0035427830 | ANGLE DRIVE |
| Repalced by: A 0045420730 | ||
| 942 | A 0045420730 | ANGLE DRIVE |
| 945 | A 0005422847 | COUPLER |
| 947 | A 0045426507 | FLEXIBLE SHAFT |
| FROM SEPARATION POINT TO SPEEDOMETER | ||
| 947 | A 0045428507 | FLEXIBLE SHAFT |
| FROM TRANSMISSION TO SEPARATION POINT | ||
| 949 | A 4255420007 | FLEXIBLE SHAFT |
| FROM SEPARATION POINT TO SPEEDOMETER | ||
| 949 | A 0045421807 | FLEXIBLE SHAFT |
| 953 | A 0005422747 | COUPLER |
| 955 | N 000933006172 | SCREW |
| 959 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 959 | N 913023006001 | NUT |
| 963 | A 4255460535 | BOOT |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 964 | A 4255460635 | BOOT |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 965 | A 0045420207 | FLEXIBLE SHAFT |
| Repalced by: A 0045424207 | ||
| 965 | A 0045424207 | FLEXIBLE SHAFT |
| FROM TRANSMISSION TO SEPARATION POINT | ||
| 967 | A 0005422447 | COUPLER |
| 968 | A 3039972240 | SEAL RING |
| SPEEDOMETER DRIVE SHAFT SCREW CONNECTION TO ADAPTER | ||
| 969 | A 0019979590 | LOOM TIE |
| Repalced by: A 0019978390 | ||
| 969 | A 0019978390 | LOOM TIE |
| 969 | A 0019978490 | CABLE TIE |
| FLEXIBLE SHAFT MOUNTING | ||
| A 0005421746 | CONNECTOR | |
| 970 | A 0005422709 | ADAPTER |
| Repalced by: A 0005423409 | ||
| 970 | A 0005423409 | ADAPTER |
| 973 | A 0005421272 | NUT |
| 974 | A 4255420440 | BRACKET |
| Repalced by: A 4044291240 | ||
| 974 | A 4044291240 | BRACKET |
| Repalced by: A 3524290740 | ||
| 974 | A 3524290740 | BRACKET |
| FLEXIBLE SHAFT TO TRANSMISSION | ||
| A 4255420340 | BRACKET | |
| FLEXIBLE SHAFT TO COWL | ||
| 975 | A 3875460244 | CLAMPING PIECE |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 977 | N 000933006127 | SCREW |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||

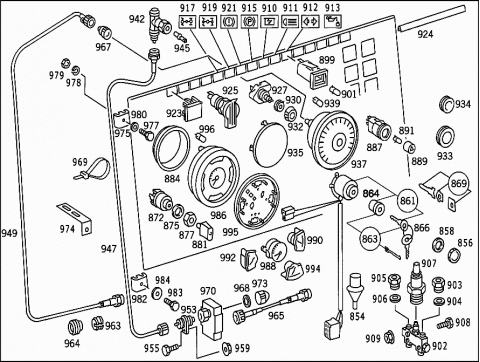

| M 6X25 | ||
| 978 | N 912004006102 | LOCK WASHER |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 979 | N 000934006007 | NUT |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 980 | N 000125006421 | WASHER |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| Repalced by: N 000125006449 | ||
| 980 | N 000125006449 | WASHER |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 982 | A 3875460244 | CLAMPING PIECE |
| FLEXIBLE SHAFT TO RADIATOR GRILLE | ||
| 983 | N 000933006127 | SCREW |
| FLEXIBLE SHAFT TO RADIATOR GRILLE | ||
| 984 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 984 | N 009021006208 | WASHER |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 986 | A 0025408047 | INSTRUMENT CLUSTER |
| Repalced by: A 0035402947 | ||
| 986 | A 0035402947 | INSTRUMENT CLUSTER |
| Repalced by: A 0035407647 | ||
| 986 | A 0035407647 | INSTRUMENT CLUSTER |
| 988 | A 0015421008 | AIR PRESSURE GAUGE |
| TO 003 540 80 47 | ||
| 988 | A 0015423708 | AIR PRESSURE GAUGE |
| TO 003 540 76 47 | ||
| 988 | A 0015421508 | AIR PRESSURE GAUGE |
| Repalced by: A 0015423708 | ||
| 988 | A 0015423708 | AIR PRESSURE GAUGE |
| TO 003 540 29 47 | ||
| 990 | A 0035428905 | TEMPERATURE GAUGE |
| TO 003 540 76 47 | ||
| 990 | A 0035423805 | TEMPERATURE GAUGE |
| TO 002 540 80 47,003 540 29 47 | ||
| 992 | A 0025420202 | OIL PRESSURE GAUGE |
| TO 002 540 80 47,003 540 29 47 | ||
| 992 | A 0025422802 | OIL PRESSURE GAUGE |
| TO 003 540 76 47 | ||
| 994 | A 0015425103 | FUEL GAUGE DASH UNIT |
| TO 002 540 80 47,003 540 29 47 | ||
| 994 | A 0025429103 | FUEL GAUGE DASH UNIT |
| TO 003 540 76 47 | ||
| 995 | A 0005423078 | CONNECTION PLATE |
| TO 003 540 76 47 | ||
| 996 | N 072601012800 | BULB |
| INSTRUMENT CLUSTER | ||
| 12V/2W | ||
| 997 | A 3145400041 | GROUND STRAP |
| Repalced by: A 3525400041 | ||
| 997 | A 3525400041 | GROUND STRAP |
| 400 MM | ||
| 998 | N 000125005317 | WASHER |
| Repalced by: N 000125005330 | ||
| 998 | N 000125005330 | WASHER |
| GROUND CABLE TO ALTERNATOR | ||
| KLEMME B- | ||
| 999 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 999 | N 304032005005 | NUT |
| GROUND CABLE TO ALTERNATOR | ||
| KLEMME B- | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
