Transporto priemonė: U 1500 T; VIN numerio dalis: 425131

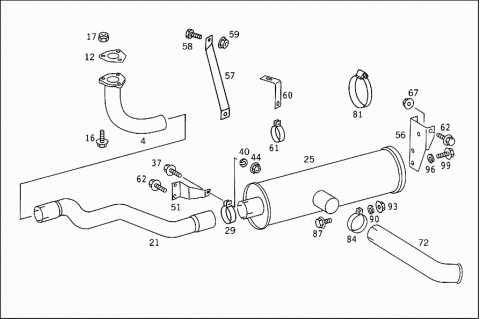

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 4254900019 | EXHAUST PIPE |
| FRONT | ||
| 004 | A 4254900119 | EXHAUST PIPE |
| FRONT | ||
| 004 | A 4254900119 | EXHAUST PIPE |
| FRONT | ||
| 004 | A 4354900119 | EXHAUST PIPE |
| FRONT | ||
| 012 | N 900244065003 | GASKET |
| Repalced by: A 3124921080 | ||
| 012 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 012 | A 4424920280 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 012 | A 3024900080 | FLANGE GASKET |
| Repalced by: A 4424920080 | ||
| 012 | A 4424920080 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 012 | A 4424920080 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 016 | N 910105010002 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X50 | ||
| 016 | N 000931012051 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X65 | ||
| 016 | N 000931012051 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X65 | ||
| 017 | N 999901010000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 017 | N 999901012000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 017 | N 999901012000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 021 | A 4254920201 | CENTRAL EXHAUST PIPE |
| 021 | A 4254920501 | CENTRAL EXHAUST PIPE |
| 021 | A 4254920801 | CENTRAL EXHAUST PIPE |
| 021 | A 4254920301 | CENTRAL EXHAUST PIPE |
| 021 | A 4254920301 | CENTRAL EXHAUST PIPE |
| 023 | A 4254920601 | CENTRAL EXHAUST PIPE |
| 025 | A 4254900101 | EXHAUST MUFFLER |
| 025 | A 4254900101 | EXHAUST MUFFLER |
| 026 | A 4254900101 | EXHAUST MUFFLER |
| Repalced by: A 4254900401 | ||
| 026 | A 4254900401 | EXHAUST MUFFLER |
| 029 | N 071555078502 | CLAMP |
| BRACKET TO SIDE MEMBER | ||
| 037 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 037 | N 910105010001 | HEXAGON HEAD BOLT |
| CLAMP TO BRACKET | ||
| M10X30 | ||
| 040 | N 912004010102 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 040 | N 912004010102 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 040 | N 912004010102 | LOCK WASHER |
| EXHAUST MUFFLER TO FRAME | ||
| 044 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 044 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 044 | N 913023010002 | NUT |
| CLAMP TO BRACKET | ||
| 044 | N 913023010002 | NUT |
| CLAMP TO BRACKET | ||
| 044 | N 913023010002 | NUT |
| EXHAUST MUFFLER TO FRAME | ||
| 047 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 047 | N 913023010003 | NUT |
| CLAMP TO BRACKET | ||
| 051 | A 4254920041 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 056 | A 4254920241 | BRACKET |
| EXHAUST MUFFLER TO SPRING BRACKET | ||
| A 4254920341 | BRACKET | |
| A 4254920541 | BRACKET | |
| Repalced by: A 4254920641 | ||
| A 4254920641 | BRACKET | |
| EXHAUST MUFFLER TO FRAME | ||
| 057 | A 4254920941 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 058 | N 000961014084 | SCREW |
| Repalced by: N 000961014148 | ||
| 058 | N 000961014148 | SCREW |
| BRACKET TO FRAME | ||
| 059 | N 913004014002 | NUT |
| Repalced by: N 913023014004 | ||
| 059 | N 913023014004 | NUT |
| BRACKET TO FRAME | ||
| 060 | A 4065510254 | MOUNTING PLATE |
| COVER PLATE TO FRAME | ||
| 061 | N 071555078502 | CLAMP |
| EXHAUST MUFFLER TO FRAME | ||
| 062 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 062 | N 910105010009 | HEXAGON HEAD BOLT |
| 062 | N 910105010009 | HEXAGON HEAD BOLT |
| EXHAUST MUFFLER TO SPRING BRACKET | ||
| 062 | N 910105010009 | HEXAGON HEAD BOLT |
| EXHAUST MUFFLER TO FRAME | ||
| 067 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 067 | N 913023010003 | NUT |
| EXHAUST MUFFLER TO SPRING BRACKET | ||
| 067 | N 913023010003 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 072 | A 4254920021 | STRAP |
| Repalced by: A 4254920206 | ||
| 072 | A 4254920206 | REAR EXHAUST PIPE |
| 072 | A 4354920006 | REAR EXHAUST PIPE |
| Repalced by: A 4354920306 | ||
| 072 | A 4354920306 | REAR EXHAUST PIPE |
| 075 | A 4254920106 | REAR EXHAUST PIPE |
| 075 | A 4254920106 | REAR EXHAUST PIPE |
| 078 | A 4254920406 | REAR EXHAUST PIPE |
| TAIL PIPE | ||
| 081 | N 000000000676 | CLAMP |
| EXHAUST MUFFLER AND TAIL PIPE TO FRAME AND TO BRACKET | ||
| Repalced by: N 000000005890 | ||
| 081 | N 000000005890 | CLAMP |
| EXHAUST MUFFLER AND TAIL PIPE TO FRAME AND TO BRACKET | ||
| 084 | N 071555078502 | CLAMP |
| OUTLET PIPE TO EXHAUST MUFFLER | ||
| 087 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 087 | N 910105010001 | HEXAGON HEAD BOLT |
| OUTLET PIPE TO EXHAUST MUFFLER | ||
| M10X30 | ||
| 090 | N 912004010102 | LOCK WASHER |
| OUTLET PIPE TO EXHAUST MUFFLER | ||
| 093 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 093 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 093 | N 913023010002 | NUT |
| OUTLET PIPE TO EXHAUST MUFFLER | ||
| 096 | N 912004010102 | LOCK WASHER |
| EXHAUST MUFFLER TO BRACKET | ||
| 099 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 099 | N 910105010006 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| M 10X20 | ||
| 102 | A 4254910841 | BRACKET |
| EXHAUST PIPE & TAIL PIPE TO FRAME & CONSOLE | ||
| 105 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 105 | N 910105010009 | HEXAGON HEAD BOLT |
| 105 | N 910105010009 | HEXAGON HEAD BOLT |
| BRACKET TO FUEL TANK CONSOLE | ||
| 108 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 108 | N 913023010003 | NUT |
| BRACKET TO FRAME | ||
| 108 | N 913023010003 | NUT |
| BRACKET TO FUEL TANK CONSOLE | ||
| 111 | A 4254910941 | BRACKET |
| 114 | N 071555075502 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 117 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 117 | N 910105010001 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO BRACKET | ||
| M10X30 | ||
| 120 | N 912004010102 | LOCK WASHER |
| EXHAUST PIPE TO BRACKET | ||
| 123 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 123 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 123 | N 913023010002 | NUT |
| EXHAUST PIPE TO BRACKET | ||
| 126 | A 4254900240 | BRACKET |
| COVER PLATE | ||
| 126 | A 4254900240 | BRACKET |
| COVER PLATE | ||
| 129 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 129 | N 910105010006 | SCREW |
| COVER PLATE TO SIDE MEMBER | ||
| M 10X20 | ||
| 132 | N 912004010102 | LOCK WASHER |
| COVER PLATE TO SIDE MEMBER | ||
| 135 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 135 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 135 | N 913023010002 | NUT |
| COVER PLATE TO SIDE MEMBER | ||
| 138 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 138 | N 304017008016 | SCREW |
| COVER PLATE TO TWO-CIRCUIT BRAKE CYLINDER CONSOLE | ||
| M 8X16 | ||
| 141 | N 912004010102 | LOCK WASHER |
| COVER PLATE TO TWO-CIRCUIT BRAKE CYLINDER CONSOLE | ||
| 144 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 144 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 144 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 144 | N 913023008002 | NUT |
| COVER PLATE TO TWO-CIRCUIT BRAKE CYLINDER CONSOLE | ||
