Transporto priemonė: U 1500 T; VIN numerio dalis: 425131

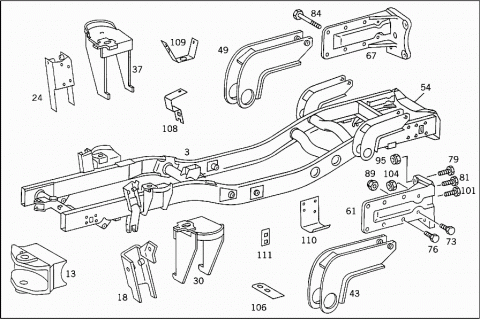

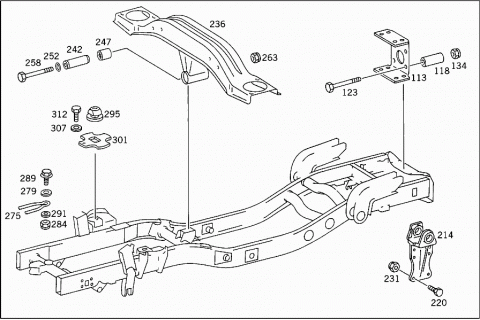

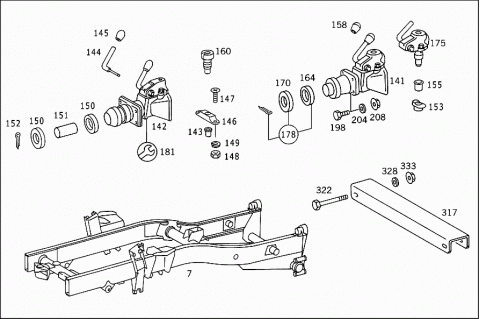

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 4253100301 | FRAME |
| Repalced by: A 4253100901 | ||
| 003 | A 4253100901 | FRAME |
| Repalced by: A 4253101301 | ||
| 003 | A 4253101301 | FRAME |
| A 4253100501 | FRAME | |
| 007 | A 4253100601 | FRAME |
| Repalced by: A 4253100701 | ||
| 007 | A 4253100701 | FRAME |
| Repalced by: A 4253101201 | ||
| 007 | A 4253101201 | FRAME |
| 013 | A 4255250030 | COUPLING MOUTH |
| Repalced by: A 4273150405 | ||
| 013 | A 4273150405 | COUPLING MOUTH |
| Repalced by: A 4255250030 | ||
| 013 | A 4255250030 | COUPLING MOUTH |
| 018 | A 4253200343 | BRACKET |
| SHOCK ABSORBER,LEFT FRONT | ||
| 024 | A 4253200743 | BRACKET |
| SHOCK ABSORBER,RIGHT FRONT | ||
| 030 | A 4373200170 | REAR SUBFRAME |
| Repalced by: A 4253200670 | ||
| 030 | A 4253200670 | REAR SUBFRAME |
| LEFT FRONT | ||
| 037 | A 4373200070 | REAR SUBFRAME |
| Repalced by: A 4253200570 | ||
| 037 | A 4253200570 | REAR SUBFRAME |
| RIGHT FRONT | ||
| 043 | A 4253201075 | SPRING BRACKET |
| LEFT REAR | ||
| 049 | A 4253201175 | SPRING BRACKET |
| RIGHT REAR | ||
| 054 | A 4253120135 | CROSS MEMBER |
| 061 | A 4253120045 | FLANGE |
| LEFT | ||
| 067 | A 4253120145 | FLANGE |
| RIGHT | ||
| 073 | N 910105014005 | SCREW |
| M 14X1.5X40 | ||
| 076 | N 910105016004 | SCREW |
| M 16X1.5X40 | ||
| 076 | N 308676016020 | SCREW |
| M 16X1.5X35 | ||
| 079 | N 910105016007 | SCREW |
| M 16X1.5X45 | ||
| 081 | N 910105016014 | SCREW |
| M 16X1.5X70 | ||
| 084 | N 000960016274 | SCREW |
| M 16X1.5X105 | ||
| N 912004014100 | LOCK WASHER | |
| N 912004016101 | LOCK WASHER | |
| 089 | N 913023014004 | NUT |
| 095 | N 913023016001 | NUT |
| Repalced by: N 000000005738 | ||
| 095 | N 000000005738 | NUT |
| 101 | N 910105012015 | SCREW |
| M 12X1.5X45 | ||
| 104 | N 913023012003 | NUT |
| 106 | A 4374921541 | BRACKET |
| Repalced by: A 3614750019 | ||
| 106 | A 3614750019 | BASE |
| ANTE-FREEZE DEVICE TO FRAME | ||
| 108 | A 4373110140 | BRACKET |
| HYDRAULIC LINE | ||
| 109 | A 4254760636 | BRACKET |
| HYDRAULIC LINE | ||
| 110 | A 4374900240 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 111 | A 4174261240 | BRACKET |
| LINE TO CROSS MEMBER | ||
| 113 | A 4253120460 | REINFORCEMENT |
| 118 | A 4253120053 | SPACER TUBE |
| 123 | N 000960014274 | SCREW |
| M 14X1.5X260 | ||
| 134 | N 913023014004 | NUT |
| 141 | A 0013155999 | TRAILER COUPLING |
| ROCKINGER 225G 110J | ||
| Repalced by: A 0033157899 | ||
| 141 | A 0033157899 | TRAILER COUPLING |
| ROCKINGER 225G 110 | ||
| 142 | A 0013156199 | TRAILER COUPLING |
| Repalced by: A 0023150299 | ||
| 142 | A 0023150299 | TRAILER COUPLING |
| RINGFEDER 7500 KP | ||
| Repalced by: A 0033157899 | ||
| 142 | A 0033157899 | TRAILER COUPLING |
| ROCKINGER 225G 110 | ||
| 143 | A 0003151850 | BUSHING |
| TO 002 315 02 99 | ||
| 144 | A 0003150917 | LEVER |
| TO 002 315 02 99 | ||
| 145 | A 0009973777 | HANDLE |
| TO 002 315 02 99 | ||
| 146 | A 0003150021 | PLATE |
| TO 002 315 02 99 | ||
| 147 | N 000965008035 | SCREW |
| TO 002 315 02 99 | ||
| 148 | N 304032008006 | NUT |
| TO 002 315 02 99 | ||
| 149 | N 912004008102 | LOCK WASHER |
| TO 002 315 02 99 | ||
| 150 | A 0003151344 | BUFFER |
| TO 002 315 02 99 | ||
| 151 | A 0003151950 | BUSHING |
| TO 002 315 02 99 | ||
| 152 | N 000094006317 | COTTER PIN |
| TO 002 315 02 99 | ||
| 153 | A 0003150550 | BUSHING |
| BOTTOM | ||
| TO 001 315 59 99 | ||
| 155 | A 0003150650 | BUSHING |
| TOP | ||
| TO 001 315 59 99 | ||
| 158 | A 0009971477 | HANDLE |
| TO 001 315 59 99 | ||
| 160 | A 0003152106 | COUPLING PIN |
| TO 002 315 02 99 | ||
| 164 | A 0003150844 | BUFFER |
| Repalced by: A 0003100277 | ||
| 170 | A 0003150744 | BUFFER |
| Repalced by: A 0003100277 | ||
| 175 | A 0003100107 | COUPLING PIN |
| Repalced by: A 0003100207 | ||
| 175 | A 0003100207 | COUPLING PIN |
| TO 001 315 59 99 | ||
| A 0005861731 | REPAIR KIT | |
| TO 001 315 59 99 | ||
| 178 | A 0003100277 | PARTS KIT |
| (RUBBER BUFFER) | ||
| TO 001 315 59 99, ROCKINGER | ||
| 181 | A 0005861931 | REPAIR KIT |
| TO 001 315 61 99 | ||
| 198 | N 000960014249 | SCREW |
| M 14X1.5X55 | ||
| 204 | N 000125015019 | WASHER |
| 208 | N 913023014004 | NUT |
| 214 | A 4256147043 | STRUT |
| 220 | N 910105012020 | SCREW |
| 231 | N 913023012003 | NUT |
| 236 | A 4253100107 | BODY SUPPORT |
| Repalced by: A 4253100167 | ||
| 236 | A 4253100167 | BODY SUPPORT |
| Repalced by: A 4253100267 | ||
| 236 | A 4253100267 | BODY SUPPORT |
| Repalced by: A 4253100367 | ||
| 236 | A 4253100367 | BODY SUPPORT |
| 242 | A 0019880410 | RUBBER MOUNTING |
| TO 425 310 02 67,425 310 03 67 | ||
| 247 | A 4253120250 | BUSHING |
| TO 425 310 01 07 | ||
| 247 | A 4253120150 | BUSHING |
| TO 425 310 01 07 | ||
| 247 | A 4253111250 | BUSHING |
| TO 425 310 02 67 | ||
| 252 | N 003770045001 | ROUND SECTION SEAL RING |
| TO 425 310 01 07 | ||
| 258 | A 4253170071 | SCREW |
| Repalced by: N 000960020188 | ||
| 258 | N 000960020188 | SCREW |
| 263 | N 913023020001 | NUT |
| A 4253100357 | PLATE | |
| 275 | A 4259940060 | LOCK |
| 279 | N 009021008213 | WASHER |
| FOR SPRING | ||
| Repalced by: N 000000003250 | ||
| 279 | N 000000003250 | WASHER |
| FOR SPRING | ||
| 279 | N 001440008002 | WASHER |
| FOR SPRING | ||
| TO 914126 008017 | ||
| 284 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 284 | N 913023008002 | NUT |
| FOR SPRING | ||
| 289 | N 914126008017 | SCREW |
| 291 | N 001440008002 | WASHER |
| FOR SPRING | ||
| TO 914126 008017 | ||
| 295 | A 4258910001 | RUBBER MOUNTING |
| Repalced by: A 4258917001 | ||
| 295 | A 4258917001 | INTERMEDIATE BEARING |
| 301 | A 4255240084 | SHIM |
| TO 425 310 01 07 | ||
| 301 | A 4255240384 | SHIM |
| TO 425 310 02 67 | ||
| 307 | N 009021008213 | WASHER |
| Repalced by: N 000000003250 | ||
| 307 | N 000000003250 | WASHER |
| 312 | N 304017008016 | SCREW |
| M 8X16 | ||
| 317 | A 4253120309 | CROSS MEMBER |
| 322 | N 910105014018 | SCREW |
| M 14X1.5X100 | ||
| 328 | N 000125015019 | WASHER |
| 333 | N 913023014004 | NUT |
