Transporto priemonė: U 1500 T; VIN numerio dalis: 425131
Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

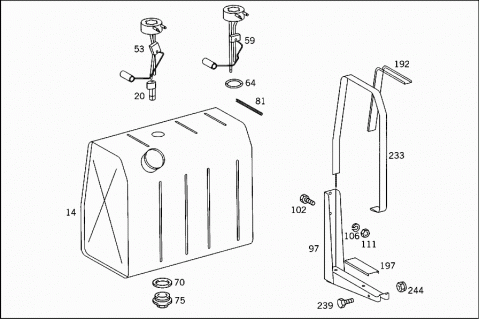

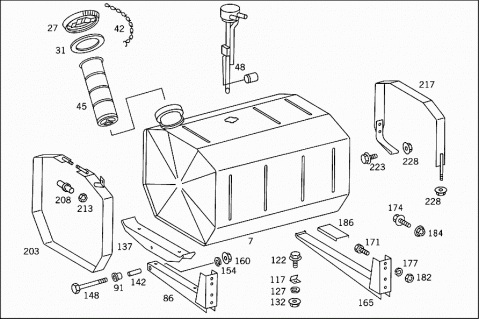

| 007 | A 4254700501 | FUEL TANK |
| 014 | A 4254700901 | FUEL TANK |
| 020 | A 0004710135 | FUEL STRAINER |
| Repalced by: A 0004710235 | ||
| 020 | A 0004710235 | FUEL STRAINER |
| 027 | A 4114700105 | FILLER CAP |
| Repalced by: A 3094700005 | ||
| 027 | A 0004710530 | FILLER CAP |
| Repalced by: A 4354700205 | ||
| 027 | A 4354700205 | FILLER CAP |
| Repalced by: A 0004700105 | ||
| 027 | A 0004700105 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 027 | A 0004700305 | FILLER CAP |
| 031 | A 4214710079 | SEAL RING |
| TO 411 470 01 05,435 470 02 05 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 031 | A 3094700005 | FILLER CAP |
| Repalced by: A 0004710530 | ||
| 031 | A 3099970040 | SEAL RING |
| Repalced by: A 3049970340 | ||
| 031 | A 3049970340 | SEAL RING |
| TO 309 470 00 05,435 470 02 05 | ||
| 042 | A 3034700031 | CHAIN |
| 045 | A 4354700006 | FUEL STRAINER |
| 048 | A 0045421017 | SENDER UNIT |
| Repalced by: A 0045428617 | ||
| 048 | A 0045428617 | SENDER UNIT |
| Repalced by: A 0085423417 | ||
| 048 | A 0085423417 | SENDER UNIT |
| 053 | A 0045424417 | SENDER UNIT |
| 059 | A 0055420017 | SENDER UNIT |
| Repalced by: A 0085423817 | ||
| 059 | A 0085423817 | SENDER UNIT |
| Repalced by: A 0115422017 | ||
| 059 | A 0115422017 | SENDER UNIT |
| 064 | A 0009975149 | GASKET |
| 070 | N 915035000006 | SEAL RING |
| FUEL TANK | ||
| 075 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 075 | N 007604014110 | SCREW PLUG |
| FUEL TANK | ||
| 081 | A 0019873625 | PLASTIC SECTION |
| 1000 MM | ||
| 086 | A 4254700342 | SUPPORT |
| Repalced by: A 4254700742 | ||
| 086 | A 4254700742 | SUPPORT |
| FRONT | ||
| 091 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 091 | A 1242920050 | BUSHING |
| 097 | A 4254701542 | SUPPORT |
| 102 | N 000961012122 | SCREW |
| SUPPORT TO FRAME | ||
| M 12X1.5X40 | ||
| 106 | N 912004012100 | LOCK WASHER |
| SUPPORT TO FRAME | ||
| 111 | N 000934012022 | NUT |
| Repalced by: N 913023012002 | ||
| 111 | N 913023012002 | NUT |
| SUPPORT TO FRAME | ||
| 117 | A 4254752227 | BRACKET |
| STOP TO REAR CONSOLE | ||
| 122 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 122 | N 910105010006 | SCREW |
| STOP TO REAR CONSOLE | ||
| M 10X20 | ||
| 127 | N 912004010102 | LOCK WASHER |
| STOP TO REAR CONSOLE | ||
| 132 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 132 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 132 | N 913023010002 | NUT |
| STOP TO REAR CONSOLE | ||
| 137 | A 4254750427 | BRACKET |
| FRONT TANK | ||
| 142 | A 4044750150 | BUSHING |
| Repalced by: A 3140720253 | ||
| 142 | A 3140720253 | SPACER TUBE |
| 148 | N 000960012224 | SCREW |
| Repalced by: A 0119901304 | ||
| 148 | A 0119901304 | CAPSCREW W HEXAL. DRIVE |
| 154 | N 912004012100 | LOCK WASHER |
| 160 | N 000934012022 | NUT |
| Repalced by: N 913023012002 | ||
| 160 | N 913023012002 | NUT |
| 165 | A 4254700442 | SUPPORT |
| Repalced by: A 4254701342 | ||
| 165 | A 4254701342 | SUPPORT |
| REAR | ||
| 171 | N 000933012016 | SCREW |
| Repalced by: N 304017012020 | ||
| 171 | N 304017012020 | SCREW |
| M 12X30 | ||
| 174 | N 000961012094 | SCREW |
| Repalced by: N 910105012007 | ||
| 174 | N 910105012007 | SCREW |
| M 12X1.5X30 | ||
| 174 | N 000961012106 | SCREW |
| Repalced by: N 308676012014 | ||
| 174 | N 308676012014 | HEXAGON HEAD BOLT |
| Repalced by: N 910105012020 | ||
| 174 | N 910105012020 | SCREW |
| M 12X1.5X35 | ||
| 177 | N 912004012100 | LOCK WASHER |
| 182 | N 000934012010 | NUT |
| 184 | N 913004012009 | NUT |
| Repalced by: N 910113012005 | ||
| 184 | N 910113012005 | NUT |
| 186 | A 3634750220 | PAD |
| 61 X 473 MM | ||
| 192 | A 3634750320 | PAD |
| 46 X 1745 MM | ||
| 197 | A 3144750020 | PAD |
| 51 X 475 MM | ||
| 203 | A 4254700240 | STRAP |
| 208 | N 900333010001 | TURNBUCKLE |
| 213 | N 070615010003 | NUT |
| 217 | A 4254700340 | STRAP |
| 223 | N 000931010331 | SCREW |
| Repalced by: N 910105010012 | ||
| 223 | N 910105010012 | SCREW |
| M 10X65 | ||
| 228 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 228 | N 913023010003 | NUT |
| 233 | A 4254700940 | STRAP |
| Repalced by: A 4254701040 | ||
| 233 | A 4254701040 | STRAP |
| 239 | N 000931010331 | SCREW |
| Repalced by: N 910105010012 | ||
| 239 | N 910105010012 | SCREW |
| M 10X65 | ||
| 244 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 244 | N 913023010003 | NUT |

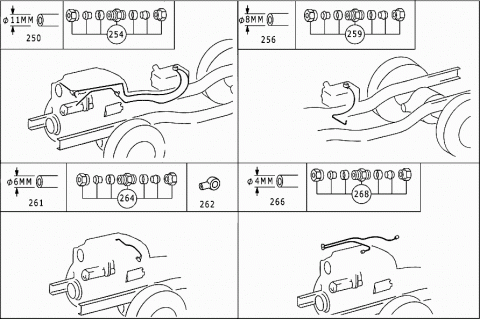

| 250 | A 0089975482 | HOSE |
| 11X8 MM | ||
| 254 | A 0049971672 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 256 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 256 | A 0009872727 | PLASTIC PIPE |
| FUEL TANK BREATHING | ||
| 8X6 MM, 820 MM | ||
| 256 | A 0009872727 | PLASTIC PIPE |
| FUEL TANK BREATHING | ||
| 750 MM | ||
| 259 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 259 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 261 | A 0109977082 | HOSE |
| Repalced by: A 0089976082 | ||
| 261 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 261 | A 0009872627 | PLASTIC PIPE |
| 4X6 MM | ||
| 262 | N 915052004025 | BANJO UNION |
| 264 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 266 | A 0109975482 | HOSE |
| Repalced by: A 3359972282 | ||
| 266 | A 3359972282 | HOSE |
| 4X1 MM | ||
| 268 | A 0049979572 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 271 | N 915035000006 | SEAL RING |
| 276 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 276 | N 915036010108 | HOLLOW SCREW |
| LINE TO FEED PUMP | ||
| 281 | A 3149900163 | HOLLOW SCREW |
| Repalced by: A 6159900263 | ||
| 281 | A 6159900263 | HOLLOW SCREW |
| RETURN LINE AT THROTTLE FILTER | ||
| 286 | N 007603008109 | SEAL RING |
| 291 | N 915036005100 | HOLLOW SCREW |
| Repalced by: N 000000004895 | ||
| 291 | N 000000004895 | BANJO BOLT |
| RETURN LINE AT LEAK FUEL NOZZLES | ||
| 296 | N 915052008016 | BANJO UNION |
| Repalced by: N 000000000363 | ||
| 296 | N 000000000363 | BANJO UNION |
| 300 | A 0004760124 | CONNECTOR |
| FROM FILTER TO T-FITTING | ||
| 316 | N 915052004025 | BANJO UNION |
| RETURN LINE | ||
| 321 | A 0009908070 | T-FITTING |
| FROM FILTER TO T-FITTING | ||
| 326 | A 0009908170 | T-FITTING |
| Repalced by: A 0029901370 | ||
| 326 | A 0029901370 | T-FITTING |
| FROM PUMP TO T-FITTING | ||
| 331 | A 3054760126 | HOSE |
| 336 | A 3879900078 | CONNECTOR |
| 336 | N 915062008000 | SLEEVE |
| 341 | A 0029978790 | CLIP |
| 351 | A 0019978490 | LOOM TIE |
| 374 MM | ||
| 351 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| A 4254260740 | BRACKET | |
| A 4254260740 | BRACKET | |
| 366 | A 4254760736 | BRACKET |
| Repalced by: A 4044291240 | ||
| 366 | A 4044291240 | BRACKET |
| Repalced by: A 3524290740 | ||
| 366 | A 3524290740 | BRACKET |
| 366 | A 3524290740 | BRACKET |
| 371 | A 4254760136 | BRACKET |
| Repalced by: A 4254760336 | ||
| 371 | A 4254760336 | BRACKET |
| Repalced by: A 3184924841 | ||
| 371 | A 3184924841 | BRACKET |
| AT ENGINE | ||
| 371 | A 3184924841 | BRACKET |
| AT ENGINE | ||
| 376 | A 4254760636 | BRACKET |
| FUEL LINE TO ENGINE | ||
| 381 | A 3354292440 | BRACKET |
| A 0009971990 | LOOM TIE | |
| Repalced by: N 916017090000 | ||
| 391 | N 000000000645 | CLAMP |
| 401 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 401 | N 304017008016 | SCREW |
| BRACKET TO ENGINE | ||
| M 8X15 | ||
| 401 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 401 | N 304017008016 | SCREW |
| BRACKET TO ENGINE | ||
| M 8X16 | ||
| 411 | N 912004008102 | LOCK WASHER |
| 426 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 426 | N 000000000665 | CLAMP |
| FUEL LINE TO SENDER UNIT | ||
