Transporto priemonė: U 1500 T; VIN numerio dalis: 425131

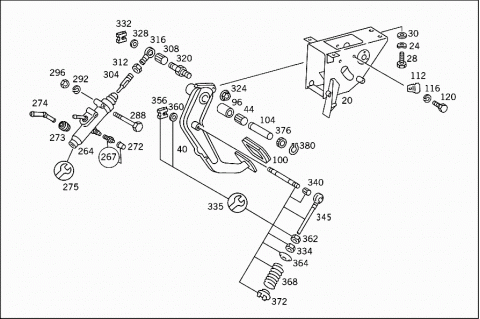

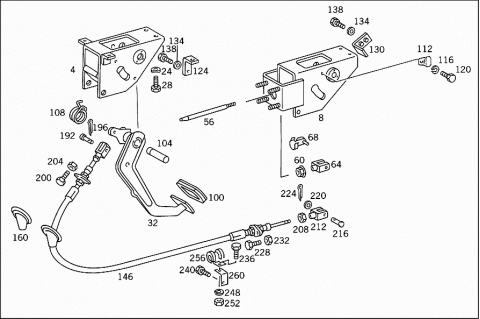

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 4252900231 | BEARING |
| BRAKE PEDAL | ||
| 008 | A 4252900431 | BEARING |
| Repalced by: A 4252900631 | ||
| 008 | A 4252900631 | CONSOLE |
| 012 | A 4252900331 | BEARING |
| BRAKE PEDAL | ||
| 016 | A 4252900531 | CONSOLE |
| BRAKE PEDAL | ||
| 020 | A 4252900131 | CONSOLE |
| CLUTCH PEDAL | ||
| 024 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 024 | N 000137008212 | SPRING WASHER |
| PEDAL ASSEMBLY TO CAB | ||
| 028 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 028 | N 304017008021 | SCREW |
| PEDAL ASSEMBLY TO CAB | ||
| 030 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 030 | N 000125008443 | WASHER |
| PEDAL ASSEMBLY TO CAB | ||
| 032 | A 4252900018 | PEDAL |
| BRAKE | ||
| 032 | A 4252900018 | PEDAL |
| BRAKE | ||
| 036 | A 4252900218 | PEDAL |
| BRAKE | ||
| 036 | A 4252900518 | PEDAL |
| BRAKE | ||
| 040 | A 4252900116 | PEDAL |
| Repalced by: A 4352900316 | ||
| 040 | A 4352900316 | PEDAL |
| Repalced by: A 4272900016 | ||
| 040 | A 4272900016 | PEDAL |
| CLUTCH | ||
| 044 | A 0009815610 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 044 | A 0119813410 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 044 | A 0119813410 | NEEDLE BEARING |
| BRAKE PEDAL | ||
| 044 | A 0119813410 | NEEDLE BEARING |
| BRAKE PEDAL | ||
| 048 | N 000618020000 | NEEDLE ROLLER BEARING |
| BRAKE PEDAL | ||
| 048 | N 000618020000 | NEEDLE ROLLER BEARING |
| BRAKE PEDAL | ||
| 052 | N 001481004017 | CLAMPING SLEEVE |
| Repalced by: N 308752004001 | ||
| 052 | N 308752004001 | CLAMPING PIN |
| 056 | A 4252920032 | ROD |
| 060 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 060 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 060 | N 913023010002 | NUT |
| 064 | A 0009961501 | YOKE |
| 068 | N 918001010004 | PIN |
| 072 | A 3852950133 | ROD |
| Repalced by: A 4372920032 | ||
| 072 | A 4372920032 | ROD |
| (PISTON ROD) | ||
| 076 | A 3859960001 | YOKE |
| Repalced by: A 4279960001 | ||
| 076 | A 4279960001 | YOKE |
| 080 | N 000439008211 | NUT |
| Repalced by: N 304035008000 | ||
| 080 | N 304035008000 | NUT |
| 084 | A 3852920174 | PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| 088 | N 000433008406 | WASHER |
| PISTON ROD TO BRAKE PEDAL | ||
| 092 | N 000094002059 | COTTER PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| Repalced by: N 000094002060 | ||
| 092 | N 000094002060 | COTTER PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| 096 | A 4252910126 | TUBE |
| 100 | A 1102910182 | PAD |
| Repalced by: A 1072910182 | ||
| 100 | A 1072910182 | PAD |
| 104 | A 4252940107 | PIVOT PIN |
| 108 | A 4252920087 | SPRING |
| 112 | A 3812910073 | LOCK |
| 116 | N 912004006102 | LOCK WASHER |
| 120 | N 000933006102 | SCREW |
| 124 | A 4252900132 | STOP |
| 124 | A 4252900132 | STOP |
| 130 | A 4252900233 | BRACKET |
| 134 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 134 | N 000125006449 | WASHER |
| 134 | N 000125006449 | WASHER |
| 138 | N 000933006102 | SCREW |
| 138 | N 000933006102 | SCREW |
| 142 | A 4252920740 | BRACKET |
| STOP LIGHT SWITCH | ||
| 146 | A 4252900685 | CABLE |
| 3243 MM | ||
| 146 | A 4252901485 | CABLE |
| 148 | A 4252900785 | CABLE |
| 3635 MM | ||
| 160 | A 4259970181 | GROMMET |
| 160 | A 4259970181 | GROMMET |
| 160 | A 4259970181 | GROMMET |
| 164 | N 304032008006 | NUT |
| 164 | N 304032008006 | NUT |
| 164 | N 304032008006 | NUT |
| 168 | N 071752008002 | YOKE |
| Repalced by: A 6209960001 | ||
| 168 | A 6209960001 | YOKE |
| 168 | A 6209960001 | YOKE |
| 168 | A 6209960001 | YOKE |
| 172 | A 4254262940 | BRACKET |
| 176 | A 0009954701 | CLAMP |
| Repalced by: N 916016015202 | ||
| 176 | N 916016015202 | CLAMP |
| CABLE TO BRACKET | ||
| 180 | N 000933006102 | SCREW |
| 184 | N 912004006102 | LOCK WASHER |
| CABLE TO BRACKET | ||
| 188 | N 000934006007 | NUT |
| CABLE TO BRACKET | ||
| 192 | N 001434008002 | PIN |
| BRAKE PEDAL | ||
| 192 | N 001434008002 | PIN |
| BRAKE PEDAL | ||
| 196 | N 000094002059 | COTTER PIN |
| BRAKE PEDAL | ||
| Repalced by: N 000094002060 | ||
| 196 | N 000094002060 | COTTER PIN |
| BRAKE PEDAL | ||
| 196 | N 000094002060 | COTTER PIN |
| BRAKE PEDAL | ||
| 200 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 200 | N 304017006018 | SCREW |
| BRAKE PEDAL | ||
| 200 | N 304017006018 | SCREW |
| BRAKE PEDAL | ||
| 204 | N 000934006007 | NUT |
| BRAKE PEDAL | ||
| 204 | N 000934006007 | NUT |
| BRAKE PEDAL | ||
| 208 | N 304032008006 | NUT |
| 208 | N 304032008006 | NUT |
| 212 | A 0009961201 | YOKE |
| Repalced by: A 4249960001 | ||
| 212 | A 4249960001 | YOKE |
| 212 | A 4249960001 | YOKE |
| 216 | N 001444010207 | PIN |
| Repalced by: A 4252920074 | ||
| 216 | A 4252920074 | PIN |
| CABLE TO BRAKE VALVE | ||
| 216 | A 4252920074 | PIN |
| CABLE TO BRAKE VALVE | ||
| 220 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 220 | N 000433010510 | WASHER |
| CABLE TO BRAKE VALVE | ||
| 220 | N 000433010510 | WASHER |
| CABLE TO BRAKE VALVE | ||
| 224 | N 000094003219 | COTTER PIN |
| CABLE TO BRAKE VALVE | ||
| 224 | N 000094003219 | COTTER PIN |
| CABLE TO BRAKE VALVE | ||
| 228 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 228 | N 304017006020 | SCREW |
| CABLE TO BRAKE VALVE | ||
| 228 | N 304017006020 | SCREW |
| CABLE TO BRAKE VALVE | ||
| 232 | N 000934006007 | NUT |
| CABLE TO BRAKE VALVE | ||
| 232 | N 000934006007 | NUT |
| CABLE TO BRAKE VALVE | ||
| 236 | N 000933006102 | SCREW |
| CLAMP TO BRAKE LINE BRACKET | ||
| 236 | N 000933006102 | SCREW |
| CLAMP TO BRAKE LINE BRACKET | ||
| 236 | N 000933006102 | SCREW |
| CLAMP TO BRACKET | ||
| 236 | N 000933006102 | SCREW |
| CLAMP TO BRAKE LINE BRACKET | ||
| 240 | N 000933006130 | SCREW |
| Repalced by: N 304017006020 | ||
| 240 | N 304017006020 | SCREW |
| BRACKET TO TRANSMISSION MOUNTING | ||
| 240 | N 304017006020 | SCREW |
| BRACKET TO TRANSMISSION MOUNTING | ||
| 248 | N 912004006102 | LOCK WASHER |
| 248 | N 912004006102 | LOCK WASHER |
| 252 | N 000934006007 | NUT |
| 252 | N 000934006007 | NUT |
| 256 | A 0009954701 | CLAMP |
| Repalced by: N 916016015202 | ||
| 256 | N 916016015202 | CLAMP |
| 256 | N 916016015202 | CLAMP |
| 260 | A 4254262540 | BRACKET |
| Repalced by: A 4254760436 | ||
| 260 | A 4254760436 | BRACKET |
| BRAKE LINE MOUNTING | ||
| 260 | A 4254760436 | BRACKET |
| BRAKE LINE MOUNTING | ||
| 264 | A 0002959406 | MASTER CYLINDER |
| Repalced by: A 0012956306 | ||
| 264 | A 0012956306 | MASTER CYLINDER |
| Repalced by: A 0012957706 | ||
| 264 | A 0012957706 | MASTER CYLINDER |
| CLUTCH | ||
| 267 | A 3075530107 | VALVE |
| BREATHER | ||
| TO 000 295 94 06,001 431 63 06 | ||
| 272 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 272 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 272 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 272 | A 0004210887 | PROTECTIVE CAP |
| TO 000 295 94 06,001 295 63 06 | ||
| 273 | A 0009971186 | PLUG |
| TO 000 295 94 06,001 295 63 06 | ||
| A 0002953283 | BOOT | |
| 274 | A 0002950036 | INTERMEDIATE PIECE |
| TO 000 295 94 06,001 295 63 06 | ||
| 275 | A 0005863529 | REPAIR KIT |
| Repalced by: A 0002903412 | ||
| 275 | A 0002903412 | REPAIR KIT |
| TO 000 295 94 06 | ||
| 275 | A 0002900612 | REPAIR KIT |
| REPAIR KIT | ||
| TO 001 295 63 06 | ||
| 280 | A 0019972772 | FITTING |
| 280 | A 0019972772 | FITTING |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER | ||
| 284 | N 080705014002 | NUT |
| 284 | N 080705014002 | NUT |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER | ||
| 288 | N 000931006191 | SCREW |
| 292 | N 912004006102 | LOCK WASHER |
| 296 | N 000934006007 | NUT |
| 304 | A 3812900739 | ROD |
| Repalced by: A 3812950033 | ||
| 304 | A 3812950033 | ROD |
| (PISTON ROD) | ||
| TO 000 295 94 06 | ||
| 308 | A 0059813810 | NEEDLE BEARING |
| PISTON ROD | ||
| 308 | A 0059814410 | NEEDLE BEARING |
| PISTON ROD | ||
| 312 | N 000439008211 | NUT |
| Repalced by: N 304035008000 | ||
| 312 | N 304035008000 | NUT |
| PISTON ROD | ||
| 316 | A 0009961145 | ARTICULATION PIECE |
| Repalced by: A 0009961045 | ||
| 316 | A 0009961045 | ARTICULATION PIECE |
| PISTON ROD | ||
| 320 | A 3812910274 | PIN |
| 324 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 324 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 324 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 324 | N 913023008002 | NUT |
| 328 | N 000433008406 | WASHER |
| 332 | N 912002008001 | LOCK |
| Repalced by: N 912002008003 | ||
| 332 | N 912002008003 | LOCK |
| 334 | N 000439010216 | NUT |
| Repalced by: N 308675010000 | ||
| 334 | N 308675010000 | NUT |
| A 4252900039 | ROD | |
| Repalced by: A 3812901439 | ||
| 335 | A 4355860029 | REPAIR KIT |
| Repalced by: A 4352900039 | ||
| 335 | A 4352900039 | REPAIR KIT |
| PUSH ROD TO CLUTCH PEDAL | ||
| TO 381 290 14 39 | ||
| A 3812901439 | ROD | |
| PUSH ROD TO CLUTCH PEDAL | ||
| TO 435 586 00 29,435 290 00 39 | ||
| 340 | A 0059813810 | NEEDLE BEARING |
| TO 435 586 00 29,435 290 00 39 | ||
| 340 | A 0059814410 | NEEDLE BEARING |
| TO 435 586 00 29,435 290 00 39 | ||
| 340 | A 0089811210 | NEEDLE BEARING |
| TO 435 586 00 29,435 290 00 39 | ||
| 345 | A 4252910274 | PIN |
| Repalced by: A 4352900039 | ||
| 345 | A 4252900039 | ROD |
| Repalced by: A 3812910333 | ||
| 345 | A 3812910333 | ROD |
| TO 435 586 00 29,435 290 00 39 | ||
| 356 | N 912002008001 | LOCK |
| Repalced by: N 912002008003 | ||
| 356 | N 912002008003 | LOCK |
| TO 435 586 00 29,435 290 00 39 | ||
| 360 | N 000433008406 | WASHER |
| TO 435 586 00 29,435 290 00 39 | ||
| 362 | N 000439010211 | NUT |
| Repalced by: N 308675010000 | ||
| 362 | N 308675010000 | NUT |
| TO 435 586 00 29,435 290 00 39 | ||
| 364 | A 1112910491 | SPRING RETAINER |
| TO 435 586 00 29,435 290 00 39 | ||
| 368 | A 4259930201 | SPRING |
| TO 435 586 00 29,435 290 00 39 | ||
| 372 | A 3092910091 | SPRING RETAINER |
| TO 435 586 00 29,435 290 00 39 | ||
| 376 | A 3812910086 | STOP |
| Repalced by: A 3812910186 | ||
| 376 | A 3812910186 | STOP |
| 380 | N 000471016001 | LOCK RING |
| Repalced by: A 0079942041 | ||
| 380 | A 0079942041 | LOCK |

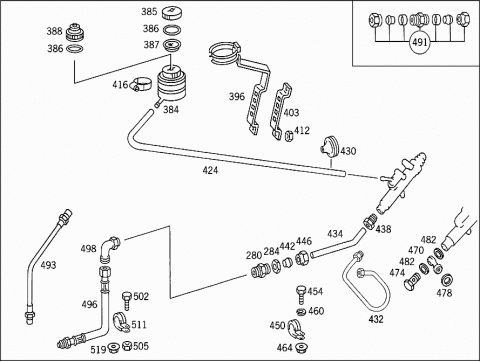

| 384 | A 0004318102 | RESERVOIR |
| Repalced by: A 0014313202 | ||
| 384 | A 0014313202 | RESERVOIR |
| Repalced by: A 0014319702 | ||
| 384 | A 0014319702 | RESERVOIR |
| Repalced by: A 0014319902 | ||
| 384 | A 0014319902 | RESERVOIR |
| RESERVOIR | ||
| 385 | A 0004315533 | FILLER CAP |
| TO 000 431 81 02 | ||
| 385 | A 0004315433 | FILLER CAP |
| BUTTRESS THREAD | ||
| TO 001 431 32 02 | ||
| 385 | A 0002950237 | SCREW PLUG |
| Repalced by: A 0004315433 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| LESS WARNING DEVICE | ||
| 386 | A 0009972940 | SEAL RING |
| Repalced by: A 0049975340 | ||
| 386 | A 0049975340 | SEAL RING |
| Repalced by: A 0039976440 | ||
| 386 | A 0039976440 | SEAL RING |
| 386 | A 0039976440 | SEAL RING |
| 42X21.5 MM | ||
| 386 | A 0002950237 | SCREW PLUG |
| Repalced by: A 0004315433 | ||
| 386 | A 0009972940 | SEAL RING |
| Repalced by: A 0049975340 | ||
| 386 | A 0049975340 | SEAL RING |
| Repalced by: A 0039976440 | ||
| 386 | A 0039976440 | SEAL RING |
| 42X21.5 MM | ||
| 387 | A 0004314334 | STRAINER |
| TO 001 431 32 02 | ||
| 388 | A 0004314733 | FILLER CAP |
| Repalced by: A 0004318733 | ||
| 388 | A 0004318733 | FILLER CAP |
| WITH FORDING ABILITY | ||
| TO 001 431 87 02 | ||
| 389 | A 0014311502 | RESERVOIR |
| Repalced by: A 0004314702 | ||
| 389 | A 0004314702 | RESERVOIR |
| RESERVOIR | ||
| TEVES | ||
| 392 | A 0004313533 | FILLER CAP |
| Repalced by: A 0004315433 | ||
| 392 | A 0004315433 | FILLER CAP |
| BUTTRESS THREAD | ||
| 392 | A 0002950237 | SCREW PLUG |
| Repalced by: A 0004315433 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| LESS WARNING DEVICE | ||
| 393 | A 0004310034 | STRAINER |
| Repalced by: A 0004313734 | ||
| 393 | A 0004313734 | STRAINER |
| Repalced by: A 0004314334 | ||
| 393 | A 0004314334 | STRAINER |
| 394 | A 0009972940 | SEAL RING |
| Repalced by: A 0049975340 | ||
| 394 | A 0049975340 | SEAL RING |
| Repalced by: A 0039976440 | ||
| 394 | A 0039976440 | SEAL RING |
| 43.7X30 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 000 431 54 33 | ||
| 395 | A 0004311040 | CLAMP |
| TO 000 431 47 02 | ||
| A 0004313133 | FILLER CAP | |
| Repalced by: A 0004315433 | ||
| A 0004313734 | STRAINER | |
| Repalced by: A 0004314334 | ||
| 396 | A 4254261840 | BRACKET |
| Repalced by: A 4252900333 | ||
| 396 | A 4252900333 | BRACKET |
| RESERVOIR | ||
| 400 | A 4252570040 | BRACKET |
| RESERVOIR | ||
| 403 | A 4254264740 | BRACKET |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| 412 | N 000934006007 | NUT |
| 416 | A 0019972190 | LOOM TIE |
| Repalced by: N 916017070000 | ||
| 416 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 416 | N 000000000674 | CLAMP |
| 420 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 420 | N 000000000672 | CLAMP |
| 424 | A 0029976782 | HOSE |
| Repalced by: A 4069977782 | ||
| 424 | A 4069977782 | HOSE |
| 300 MM | ||
| 430 | A 3819970881 | GROMMET |
| 432 | A 4252901813 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCHHOSE BULKHEAD FITTING | ||
| 434 | A 0004290801 | LINE |
| 8 MM | ||
| 438 | A 0004281072 | UNION SCREW |
| 442 | N 003861008005 | GLAND |
| 446 | N 915017008100 | UNION NUT |
| 450 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 450 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 450 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 450 | N 000000000319 | CLAMP |
| 450 | N 000000000319 | CLAMP |
| 454 | N 000933006102 | SCREW |
| 454 | N 000933006102 | SCREW |
| 460 | N 912004006102 | LOCK WASHER |
| 464 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 464 | N 913023006001 | NUT |
| 470 | A 0009908388 | BANJO UNION |
| 474 | A 0009905463 | HOLLOW SCREW |
| 478 | N 915035000006 | SEAL RING |
| 482 | N 007603016401 | SEAL RING |
| 491 | N 003902008001 | CONNECTION FITTING |
| Repalced by: A 0019972672 | ||
| 491 | A 0019972672 | FITTING |
| Repalced by: A 0039978972 | ||
| 491 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 491 | A 0029905971 | FITTING |
| 491 | A 0029905971 | FITTING |
| 493 | A 0002951835 | HOSE |
| 493 | A 0002952435 | HOSE |
| 493 | A 0002952435 | HOSE |
| 496 | A 4252901213 | LINE |
| Repalced by: A 4252901913 | ||
| 496 | A 4252901913 | LINE |
| 498 | A 0019902171 | ELBOW FITTING |
| A 4254261740 | BRACKET | |
| 502 | N 000933006102 | SCREW |
| 502 | N 000933006102 | SCREW |
| LINE TO FRAME | ||
| 505 | N 000934006007 | NUT |
| A 0009950601 | CLAMP | |
| Repalced by: N 916016040201 | ||
| N 916016040201 | CLAMP | |
| Repalced by: N 000000005613 | ||
| N 000000005613 | CLAMP | |
| 511 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 511 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 511 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 511 | N 000000000319 | CLAMP |
| LINE TO FRAME | ||
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| 519 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 519 | N 913023006001 | NUT |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
