Transporto priemonė: U 1500 T; VIN numerio dalis: 425131

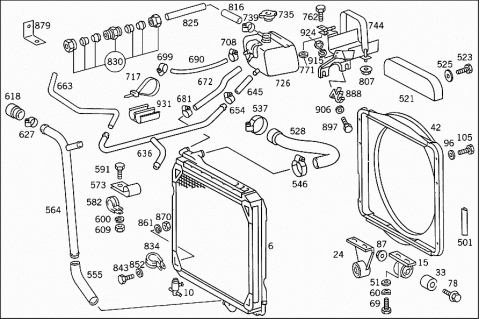

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 4255000103 | RADIATOR |
| Repalced by: A 4255000603 | ||
| 006 | A 4255000603 | RADIATOR |
| Repalced by: A 4255000703 | ||
| 006 | A 4255000003 | RADIATOR |
| Repalced by: A 4255000703 | ||
| 006 | A 4255000703 | RADIATOR |
| Repalced by: A 4275010601 | ||
| 006 | A 4275010601 | RADIATOR |
| Repalced by: A 4275010401 | ||
| 006 | A 4275010401 | RADIATOR |
| N 071401014100 | DRAIN COCK | |
| 010 | N 071401014200 | DRAIN COCK |
| Repalced by: A 0009970136 | ||
| 010 | A 0009970136 | VALVE |
| 015 | A 4255001432 | STAY |
| LEFT | ||
| 024 | A 4255001532 | STAY |
| RIGHT | ||
| 033 | A 0009888810 | RUBBER MOUNTING |
| 042 | A 4255000655 | FAN SHROUD |
| Repalced by: A 4255000755 | ||
| 042 | A 4255000755 | FAN SHROUD |
| Repalced by: A 4255000855 | ||
| 042 | A 4255000855 | FAN SHROUD |
| 051 | N 000433008406 | WASHER |
| BEARING TO AIR BAFFLE | ||
| 060 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 060 | N 000137008212 | SPRING WASHER |
| BEARING TO AIR BAFFLE | ||
| 069 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 069 | N 304017008021 | SCREW |
| BEARING TO AIR BAFFLE | ||
| 078 | N 000931010271 | SCREW |
| Repalced by: N 910105010003 | ||
| 078 | N 910105010003 | SCREW |
| RADIATOR BLOCK TO FRAME | ||
| 087 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 087 | N 913023010003 | NUT |
| RADIATOR BLOCK TO FRAME | ||
| 096 | N 000125006421 | WASHER |
| AIR BAFFLE TO RADIATOR | ||
| Repalced by: N 000125006449 | ||
| 096 | N 000125006449 | WASHER |
| AIR BAFFLE TO RADIATOR | ||
| 105 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 105 | N 304017006018 | SCREW |
| AIR BAFFLE TO RADIATOR | ||
| 114 | A 4255002363 | BEARING BODY |
| Repalced by: A 4255001763 | ||
| 114 | A 4255001763 | BEARING BODY |
| 123 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 123 | N 000137008212 | SPRING WASHER |
| BEARING BODY TO AIR BAFFLE | ||
| 132 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 132 | N 000125008443 | WASHER |
| BEARING BODY TO AIR BAFFLE | ||
| 141 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 141 | N 304017008039 | SCREW |
| BEARING BODY TO AIR BAFFLE | ||
| 150 | A 4255010048 | STAY |
| 159 | A 4255010153 | SPACER TUBE |
| Repalced by: A 3199910540 | ||
| 159 | A 3199910540 | SPACER TUBE |
| 168 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 168 | N 009021010209 | WASHER |
| 177 | A 4255010481 | RUBBER PAD |
| 186 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 186 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 186 | N 913023010002 | NUT |
| 195 | A 4255001563 | BEARING BODY |
| Repalced by: A 4255002463 | ||
| 195 | A 4255002463 | BEARING BODY |
| 195 | A 4255002163 | BEARING BODY |
| 204 | A 4255040145 | FLANGE |
| 213 | A 3522052406 | FAN |
| Repalced by: A 3522052806 | ||
| 213 | A 3522052806 | FAN |
| 222 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 222 | N 000137008212 | SPRING WASHER |
| FAN TO FAN BEARING | ||
| 231 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 231 | N 304017008039 | SCREW |
| FAN TO FAN BEARING | ||
| 240 | A 4255511379 | PULLEY |
| A 1161300460 | PULLEY | |
| 249 | A 1161300160 | PULLEY |
| 258 | A 4255040066 | CAP |
| Repalced by: A 4255040166 | ||
| 258 | A 4255040166 | CAP |
| A 1159900219 | SCREW | |
| 267 | A 4255040250 | BUSHING |
| Repalced by: A 4355040050 | ||
| 267 | A 4355040050 | SPACER RING |
| 276 | A 0039979240 | SEAL RING |
| 285 | A 4355010035 | COVER PLATE |
| 294 | N 000610014005 | FITTED SCREW |
| 294 | A 4259900114 | SCREW |
| BELT TIGHTENER PULLEY TO TIGHTENER PULLEY BRACKET | ||
| 303 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 303 | N 000125015019 | WASHER |
| 312 | N 000137014201 | SPRING WASHER |
| 321 | N 000439014212 | NUT |
| Repalced by: N 304035014000 | ||
| 321 | N 304035014000 | NUT |
| 321 | N 000439014203 | NUT |
| Repalced by: N 308675014001 | ||
| 321 | N 308675014001 | NUT |
| BELT TIGHTENER PULLEY TO TIGHTENER PULLEY BRACKET | ||
| Repalced by: N 308675014002 | ||
| 321 | N 308675014002 | HEXAGON NUT |
| BELT TIGHTENER PULLEY TO TIGHTENER PULLEY BRACKET | ||
| 330 | A 4255040514 | BEARING |
| Repalced by: A 4355040014 | ||
| 330 | A 4355040014 | BEARING |
| Repalced by: A 4365040014 | ||
| 330 | A 4365040014 | BEARING |
| 336 | A 1022360053 | SPACER TUBE |
| 339 | A 0039979140 | SEAL RING |
| Repalced by: A 0059974240 | ||
| 339 | A 0059974240 | SEAL RING |
| 348 | A 0029979940 | SEAL RING |
| 357 | N 000472052000 | LOCK RING |
| 366 | A 0009817825 | BALL BEARING |
| 366 | A 0049811025 | BALL BEARING |
| 375 | A 4255520012 | SHAFT |
| Repalced by: A 4255522512 | ||
| 375 | A 4255522512 | SHAFT |
| INTERMEDIATE SHAFT | ||
| 384 | A 0009888610 | RUBBER MOUNTING |
| 393 | A 4255001531 | BRACKET |
| Repalced by: A 4255002331 | ||
| 393 | A 4255002331 | BRACKET |
| TIGHTENER PULLEY | ||
| 402 | N 913004012009 | NUT |
| Repalced by: N 910113012005 | ||
| 402 | N 910113012005 | NUT |
| BRACKET TO INTERMEDIATE BEARING | ||
| 411 | N 006888005012 | WOODRUFF KEY |
| 420 | A 4255511579 | PULLEY |
| Repalced by: A 4355510279 | ||
| 420 | A 4355510279 | PULLEY |
| FRONT | ||
| 420 | A 4355510379 | PULLEY |
| FRONT | ||
| 429 | A 4255511479 | PULLEY |
| Repalced by: A 4355510179 | ||
| 429 | A 4355510179 | PULLEY |
| REAR | ||
| 438 | A 0029979940 | SEAL RING |
| PULLEY TO INTERMEDIATE SHAFT | ||
| 447 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 447 | N 000125015019 | WASHER |
| PULLEY TO INTERMEDIATE SHAFT | ||
| 456 | N 000439014212 | NUT |
| Repalced by: N 304035014000 | ||
| 456 | N 304035014000 | NUT |
| PULLEY TO INTERMEDIATE SHAFT | ||
| 456 | N 000439014203 | NUT |
| Repalced by: N 308675014001 | ||
| 456 | N 308675014001 | NUT |
| PULLEY TO INTERMEDIATE SHAFT | ||
| Repalced by: N 308675014002 | ||
| 456 | N 308675014002 | HEXAGON NUT |
| PULLEY TO INTERMEDIATE SHAFT | ||
| 465 | N 000931008266 | SCREW |
| INTERMEDIATE BEARING TO AIR BAFFLE | ||
| M 8X40 | ||
| 474 | N 000931008209 | SCREW |
| INTERMEDIATE BEARING TO AIR BAFFLE | ||
| M 8X95 | ||
| 483 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 483 | N 000137008212 | SPRING WASHER |
| INTERMEDIATE BEARING TO AIR BAFFLE | ||
| 492 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 492 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 492 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 492 | N 913023008002 | NUT |
| INTERMEDIATE BEARING TO AIR BAFFLE | ||
| 501 | A 4257270079 | EDGING |
| Repalced by: A 0019872272 | ||
| 501 | A 4259870072 | EDGE GUARD SECTION |
| Repalced by: A 0019872272 | ||
| 501 | A 0019872272 | EDGE GUARD SECTION |
| 510 | N 007753012529 | NARROW V-BELT |
| Repalced by: A 0039970492 | ||
| 510 | A 0039970492 | V-BELT |
| 1700 MM | ||
| 510 | A 0049976192 | V-BELT |
| Repalced by: A 0149979992 | ||
| 510 | A 0149979992 | V-BELT |
| 1625 MM | ||
| 519 | A 0039970692 | V-BELT |
| Repalced by: A 0049976992 | ||
| 519 | A 0069977392 | V-BELT |
| Repalced by: A 0049976992 | ||
| 519 | A 0049976992 | V-BELT |
| 1125 MM | ||
| 521 | A 4255051024 | COVER PLATE |
| 523 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 523 | N 304017006018 | SCREW |
| 525 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 525 | N 009021006208 | WASHER |
| 528 | A 4259870443 | RUBBER SLEEVE |
| FROM THERMOSTAT TO RADIATOR | ||
| 537 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 537 | N 000000000672 | CLAMP |
| COOLING WATER HOSE TO THERMOSTAT | ||
| 546 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 546 | N 000000000670 | CLAMP |
| COOLING WATER HOSE TO RADIATOR | ||
| 555 | N 900271038033 | HOSE |
| Repalced by: A 4255010056 | ||
| 555 | A 4255010056 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| 38 X 47 | ||
| 564 | A 4255000072 | LINE |
| Repalced by: A 4255000272 | ||
| 564 | A 4255000272 | LINE |
| Repalced by: A 4255000572 | ||
| 564 | A 4255000572 | LINE |
| RETURN | ||
| 573 | A 4259950101 | CLAMP |
| 582 | A 3609950701 | CLAMP |
| Repalced by: N 916016018202 | ||
| 582 | N 916016018202 | CLAMP |
| 591 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 591 | N 304017006020 | SCREW |
| M 6X20 | ||
| 600 | N 912004006102 | LOCK WASHER |
| 609 | N 000934006007 | NUT |
| 618 | A 4069875743 | RUBBER SLEEVE |
| RETURN LINE TO WATER PUMP | ||
| 627 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 627 | N 000000000671 | CLAMP |
| 636 | A 4255000172 | LINE |
| 645 | N 900271018038 | HOSE |
| 654 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 654 | N 000000000667 | CLAMP |
| 663 | A 0005062934 | HOSE |
| 672 | N 900271012029 | HOSE |
| Repalced by: A 4255060435 | ||
| 672 | A 4255060435 | HOSE |
| FROM RADIATOR TO WATER EXPANSION TANK | ||
| 681 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 681 | N 000000000665 | CLAMP |
| 690 | A 4069976182 | HOSE |
| 280 MM | ||
| 690 | A 4259970282 | HOSE |
| Repalced by: A 4069976882 | ||
| 690 | A 4069976882 | HOSE |
| FROM WATER EXPANSION TANK TO THERMOSTAT | ||
| 699 | N 900288010001 | CLAMP |
| 699 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 699 | N 000000000665 | CLAMP |
| 708 | N 000000000665 | CLAMP |
| 717 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 726 | A 4255000249 | TANK |
| Repalced by: A 4255000349 | ||
| 726 | A 4255000349 | TANK |
| COOLING WATER EXPANSION | ||
| 735 | A 0005012815 | RADIATOR CAP |
| Repalced by: A 0005015715 | ||
| 735 | A 0005015715 | RADIATOR CAP |
| 739 | A 4355050089 | CLAMP |
| Repalced by: N 916026040000 | ||
| 739 | N 916026040000 | CLAMP |
| Repalced by: A 0069974390 | ||
| 739 | A 0069974390 | LOOM TIE |
| EXPANSION TANK | ||
| 744 | A 4255001731 | BRACKET |
| Repalced by: A 4255001931 | ||
| 744 | A 4255001931 | BRACKET |
| COOLING WATER EXPANSION TANK | ||
| 744 | A 4255002531 | BRACKET |
| 762 | N 000931008403 | SCREW |
| Repalced by: N 304014008011 | ||
| 762 | N 304014008011 | SCREW |
| M 8X110 | ||
| 771 | N 007603008403 | SEAL RING |
| A 4255000274 | CLAMP | |
| A 4255040238 | MOUNTING PLATE | |
| A 4255040074 | PIN | |
| 807 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 807 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 807 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 807 | N 913023008002 | NUT |
| 816 | A 0004352082 | HOSE |
| Repalced by: A 4609970882 | ||
| 816 | A 4609970882 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| 50 MM | ||
| 825 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 825 | A 0009872727 | PLASTIC PIPE |
| OVERFLOW, EXPANSION TANK | ||
| 1260 MM | ||
| 830 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 830 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 834 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 834 | N 000000000319 | CLAMP |
| OVERFLOW LINE TO RADIATOR | ||
| 843 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 843 | N 304017006016 | SCREW |
| HOSE TO CLAMP | ||
| TO 425 506 00 40 | ||
| 852 | N 000125006421 | WASHER |
| OVERFLOW LINE TO RADIATOR | ||
| Repalced by: N 000125006449 | ||
| 852 | N 000125006449 | WASHER |
| OVERFLOW LINE TO RADIATOR | ||
| 852 | N 000125006449 | WASHER |
| HOSE TO CLAMP | ||
| TO 425 506 00 40 | ||
| 861 | N 912004006102 | LOCK WASHER |
| HOSE TO CLAMP | ||
| TO 425 506 00 40 | ||
| 870 | N 000934006007 | NUT |
| OVERFLOW LINE TO RADIATOR | ||
| 879 | A 4035510140 | BRACKET |
| OVERFLOW | ||
| 888 | A 4255060040 | BRACKET |
| HEATING PIPE | ||
| 888 | A 4255060040 | BRACKET |
| HOSE | ||
| A 4255060340 | BRACKET | |
| Repalced by: A 4255060040 | ||
| 897 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 897 | N 304017008016 | SCREW |
| 906 | N 000125005317 | WASHER |
| Repalced by: N 000125005330 | ||
| 906 | N 000125005330 | WASHER |
| 915 | N 912004005103 | LOCK WASHER |
| 924 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 924 | N 304032005005 | NUT |
| 931 | A 4255060240 | BRACKET |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
