Transporto priemonė: U 1500 T; VIN numerio dalis: 425131

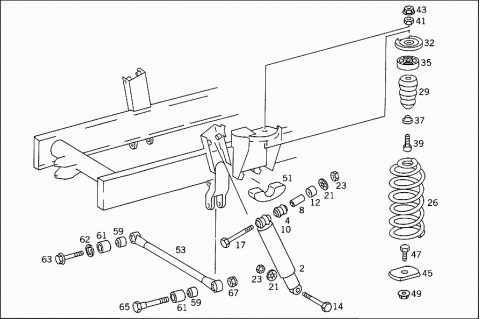

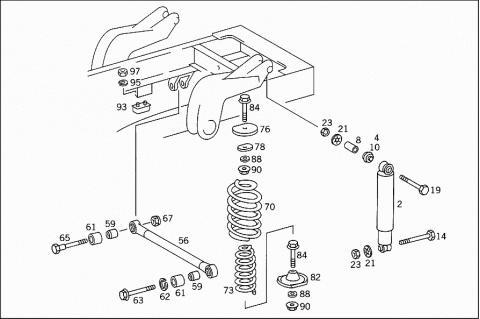

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 002 | A 0023239300 | SHOCK ABSORBER |
| Repalced by: A 0063232500 | ||
| 002 | A 0033231500 | SHOCK ABSORBER |
| Repalced by: A 0063232500 | ||
| 002 | A 0063232500 | SHOCK ABSORBER |
| FICHTEL & SACHS | ||
| 002 | A 0033235200 | SHOCK ABSORBER |
| BOGE | ||
| 004 | A 0009889110 | RUBBER MOUNTING |
| TO 002 323 93 00 | ||
| 004 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 004 | A 0003233144 | RUBBER BUFFER |
| TO 002 323 93 00 | ||
| Repalced by: A 0003238085 | ||
| 004 | A 0003238085 | RUBBER MOUNTING |
| TO 002 323 93 00 | ||
| 008 | A 0003231550 | BUSHING |
| TO 002 323 93 00 | ||
| 010 | A 0003235285 | RUBBER MOUNTING |
| TO 003 323 15 00,006 323 25 00 | ||
| 012 | A 4253230150 | BUSHING |
| SHOCK ABSORBER TO FRAME | ||
| 014 | N 000960020138 | SCREW |
| Repalced by: N 000960020078 | ||
| 014 | N 000960020078 | SCREW |
| SHOCK ABSORBER TO AXLE | ||
| M 20X1.5X85 | ||
| 017 | N 000960020201 | SCREW |
| SHOCK ABSORBER TO FRAME | ||
| M 20X1.5X115 | ||
| 017 | N 000960020140 | SCREW |
| Repalced by: N 910105020009 | ||
| 017 | N 910105020009 | SCREW |
| SHOCK ABSORBER TO FRAME | ||
| M 20X1.5X140 | ||
| 019 | N 000960020141 | SCREW |
| SHOCK ABSORBER TO FRAME | ||
| M 20X1.5X165 | ||
| 019 | N 000961014114 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| M 14X1.5X85 | ||
| 019 | N 000960014121 | SCREW |
| Repalced by: N 910105014009 | ||
| 019 | N 910105014009 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| M 14X1.5X70 | ||
| 021 | N 900050021001 | LOCK PLATE |
| 023 | N 000936020010 | NUT |
| 023 | N 913004014002 | NUT |
| Repalced by: N 913023014004 | ||
| 023 | N 913023014004 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 026 | A 4253210704 | FRONT SPRING |
| 029 | A 0003210006 | HELPER SPRING |
| 032 | A 4253250026 | PLATE |
| Repalced by: A 4353250126 | ||
| 032 | A 4253250526 | PLATE |
| Repalced by: A 4353250126 | ||
| 032 | A 4353250126 | PLATE |
| TOP | ||
| 035 | A 4253210036 | SPACER |
| 037 | A 4253210008 | SPRING SLEEVE |
| 039 | A 4253320171 | SCREW |
| Repalced by: N 000912018021 | ||
| 039 | N 000912018024 | SCREW |
| M 18X1.5X125X60 | ||
| 041 | N 000439018204 | NUT |
| 043 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 043 | N 910113018004 | NUT |
| 045 | A 4253251015 | SPRING CASE |
| 047 | A 0039906701 | SCREW |
| Repalced by: N 000961018009 | ||
| 047 | N 000961018009 | SCREW |
| M 18X1.5X45 | ||
| 049 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 049 | N 910113018004 | NUT |
| 051 | A 4063220044 | RUBBER BUFFER |
| 053 | A 4253300507 | TRANSVERSE CONTROL ARM |
| Repalced by: A 4253300607 | ||
| 053 | A 4253300607 | TRANSVERSE CONTROL ARM |
| FRONT | ||
| 056 | A 4253300107 | TRANSVERSE CONTROL ARM |
| Repalced by: A 4253300707 | ||
| 056 | A 4253300707 | TRANSVERSE CONTROL ARM |
| REAR | ||
| 059 | A 4253330114 | BEARING |
| Repalced by: A 0019880610 | ||
| 059 | A 0019880610 | RUBBER MOUNTING |
| 061 | A 4253330112 | BUSHING |
| TRANSVERSE CONTROL ARM | ||
| 062 | A 4419900047 | LOCK WASHER |
| TRANSVERSE CONTROL ARM | ||
| 063 | A 4259905101 | SCREW |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 063 | N 914125016209 | SCREW |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| M 16X1.5X85 | ||
| 065 | A 4259905501 | SCREW |
| CONTROL ARM TO FRAME | ||
| 067 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 067 | N 910113016001 | NUT |
| CONTROL ARM TO FRAME | ||
| 070 | A 4253240304 | REAR SPRING |
| 073 | A 4253240206 | HELPER SPRING |
| 076 | A 4253250026 | PLATE |
| Repalced by: A 4253250126 | ||
| 076 | A 4253250526 | PLATE |
| Repalced by: A 4353250126 | ||
| 076 | A 4353250126 | PLATE |
| REAR SPRING TO SPRING BRACKET | ||
| 078 | A 4253250226 | PLATE |
| REAR SPRING TO SPRING BRACKET | ||
| 082 | A 4253250915 | SPRING CASE |
| REAR SPRING | ||
| 084 | N 000960018132 | SCREW |
| Repalced by: N 910105018014 | ||
| 084 | N 910105018014 | SCREW |
| Repalced by: N 910105018028 | ||
| 084 | N 910105018028 | SCREW |
| REAR SPRING | ||
| M 18X1.5X90 | ||
| Repalced by: N 000000005725 | ||
| 084 | N 000000005725 | SCREW |
| REAR SPRING | ||
| M 18X1.5X90 | ||
| 088 | N 000125019009 | WASHER |
| REAR SPRING | ||
| 090 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 090 | N 910113018004 | NUT |
| REAR SPRING | ||
| 093 | A 3353250044 | RUBBER BUFFER |
| 095 | N 912004012100 | LOCK WASHER |
| 097 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 097 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 097 | N 913023010002 | NUT |
