Transporto priemonė: U 1500 T; VIN numerio dalis: 425131
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

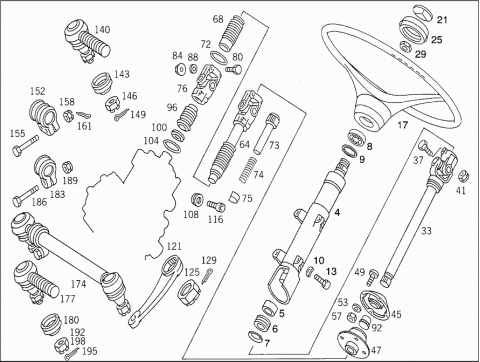

| 004 | A 4254600231 | STEERING COLUMN BRACKET |
| 005 | A 3214620165 | RING |
| TO A 425 460 02 31 | ||
| 006 | A 3124621150 | BUSHING |
| TO A 425 460 02 31 | ||
| 007 | A 3224620023 | COVER |
| TO A 425 460 02 31 | ||
| 008 | A 6739810020 | BALL BEARING |
| TO A 425 460 02 31 | ||
| 009 | A 3814620075 | WASHER |
| TO A 425 460 02 31 | ||
| 010 | N 000137008212 | SPRING WASHER |
| 013 | N 000000000190 | SCREW |
| 017 | A 4254640101 | STEERING WHEEL |
| Repalced by: A 4254640201 | ||
| 017 | A 4254640201 | STEERING WHEEL |
| 021 | A 0004640432 | BADGE |
| 025 | A 0004640131 | CAP |
| Repalced by: A 0004641231 | ||
| 025 | A 0004641231 | CAP |
| Repalced by: A 0004642631 | ||
| 025 | A 0004642631 | CAP |
| 029 | N 000439022200 | NUT |
| 033 | A 4254600109 | STEERING SHAFT |
| 037 | A 3819900114 | SCREW |
| M 8X42 | ||
| 041 | N 910113008001 | NUT |
| 045 | A 4254600037 | BEARING |
| 047 | A 4354620180 | GASKET |
| STEERING INTERMEDIATE BEARING | ||
| 049 | N 000084006134 | SCREW |
| AM 6X12 | ||
| 053 | N 000125006421 | WASHER |
| Repalced by: N 000125006449 | ||
| 053 | N 000125006449 | WASHER |
| 057 | N 000934006007 | NUT |
| 064 | A 4254620103 | SLEEVE |
| Repalced by: A 4254620501 | ||
| 064 | A 4254620501 | STEERING SHAFT |
| Repalced by: A 4254600901 | ||
| 064 | A 4254600901 | STEERING BOX ASSEMBLY |
| Repalced by: A 4254601009 | ||
| 064 | A 4254601009 | STEERING SHAFT |
| 068 | A 0004600096 | BOOT |
| 072 | A 0019978048 | SEAL RING |
| 073 | A 0004620029 | END PIECE |
| 074 | A 4254620092 | SPRING |
| 075 | A 0004622073 | LOCK |
| 076 | A 4254600157 | UNIVERSAL JOINT |
| Repalced by: A 4254600457 | ||
| 076 | A 4254600457 | UNIVERSAL JOINT |
| 080 | A 4259905601 | SCREW |
| Repalced by: A 4259906101 | ||
| 080 | A 4259906101 | SCREW |
| 084 | N 913023010003 | NUT |
| 088 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 088 | N 000433010510 | WASHER |
| 092 | N 915042016000 | PLUG |
| 096 | A 4254620196 | BOOT |
| Repalced by: A 4254620496 | ||
| 096 | A 4254620496 | BOOT |
| Repalced by: A 4374620296 | ||
| 096 | A 4374620296 | BOOT |
| 100 | A 4254620075 | WASHER |
| 104 | N 003770045001 | ROUND SECTION SEAL RING |
| Repalced by: A 0079976348 | ||
| 104 | A 0079976348 | SEAL RING |
| 108 | N 006319021302 | SPHERICAL WASHER |
| STEERING TO FRAME | ||
| N 912004018101 | LOCK WASHER | |
| STEERING TO FRAME | ||
| 116 | N 000912018023 | SCREW |
| STEERING TO FRAME | ||
| M 18X1.5X65 | ||
| 121 | A 4254630401 | PITMAN ARM |
| 125 | N 000937042003 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 125 | A 0019908151 | NUT |
| SELF-LOCKING | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 129 | N 000094008014 | COTTER PIN |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| TO 000937 042003 | ||
| A 4254600105 | DRAG LINK | |
| Repalced by: A 4254600305 | ||
| A 4254600205 | DRAG LINK | |
| Repalced by: A 4254600405 | ||
| 140 | A 0003303235 | JOINT |
| Repalced by: A 0004632229 | ||
| 140 | A 0004632229 | BALL JOINT |
| Repalced by: A 0004633429 | ||
| 140 | A 0004633429 | BALL JOINT |
| Repalced by: A 0013300135 | ||
| 140 | A 0013300135 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 140 | A 0004633529 | BALL JOINT |
| 143 | A 0003300385 | BOOT |
| Repalced by: A 0003301185 | ||
| 143 | A 0003301185 | BOOT |
| TO 425 460 01 05 | ||
| 143 | A 0004631196 | BOOT |
| Repalced by: A 0003301085 | ||
| 143 | A 0003301085 | BOOT |
| TO 425 460 02 05,425 460 04 05 | ||
| 146 | N 000937020001 | NUT |
| TO 425 460 01 05,425 460 02 05 | ||
| 149 | N 000094004010 | COTTER PIN |
| TO 425 460 01 05,425 460 02 05 | ||
| 152 | A 0003380845 | CLAMP |
| Repalced by: A 0009954944 | ||
| 152 | A 0009954944 | CLAMP |
| TO 425 460 01 05 | ||
| 152 | A 0009954944 | CLAMP |
| TO 425 460 02 05 | ||
| 155 | N 000960012292 | SCREW |
| 158 | N 000935012002 | NUT |
| TO 425 460 01 05,425 460 02 05 | ||
| 161 | N 000094003230 | COTTER PIN |
| TO 425 460 01 05,425 460 02 05 | ||
| 174 | A 4254600305 | DRAG LINK |
| Repalced by: A 4374600105 | ||
| 174 | A 4374600105 | DRAG LINK |
| EHRENREICH | ||
| 174 | A 4254600405 | DRAG LINK |
| Repalced by: A 4374600105 | ||
| A 0004633029 | BALL JOINT | |
| TO 425 460 03 05 | ||
| 177 | A 0004633429 | BALL JOINT |
| Repalced by: A 0013300135 | ||
| 177 | A 0013300135 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 177 | A 0004608348 | DRAG LINK END |
| TO 437 460 01 05 | ||
| A 0004633529 | BALL JOINT | |
| 180 | A 0004631196 | BOOT |
| Repalced by: A 0003301085 | ||
| 180 | A 0003301085 | BOOT |
| TO 425 460 04 05 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 437 460 01 05 | ||
| 180 | A 0004631596 | BOOT |
| TO 425 460 03 05 | ||
| 183 | A 0003382645 | CLAMP |
| TO 425 460 04 05,425 460 03 05 | ||
| 186 | N 910105012019 | HEXAGON HEAD BOLT |
| Repalced by: A 6709900304 | ||
| 186 | A 6709900304 | SCREW |
| TO 437 460 01 05 | ||
| 186 | N 910105012011 | SCREW |
| TO 425 460 03 05 | ||
| 186 | N 910105012011 | SCREW |
| TO 425 460 04 05 | ||
| 189 | N 913023012003 | NUT |
| TO 425 460 03 05,425 460 04 05 | ||
| 189 | N 910113012005 | NUT |
| TO 437 460 01 05 | ||
| 192 | N 000937020001 | NUT |
| TO 425 460 04 05,425 460 03 05 | ||
| 195 | N 000094004065 | COTTER PIN |
| TO 425 460 04 05,425 460 03 05 | ||
| 195 | N 000094004065 | COTTER PIN |
| TO 437 460 01 05 | ||
| 198 | N 000937020014 | NUT |
| Repalced by: N 000979020000 | ||
| 198 | N 000979020000 | NUT |
| TO 437 460 01 05 | ||

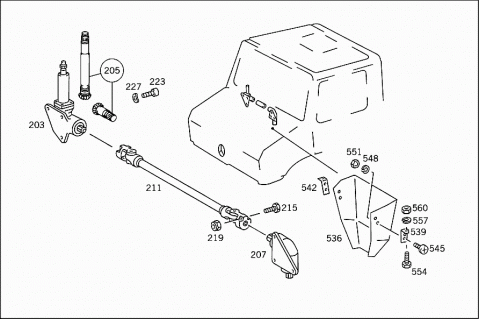

| 203 | A 4254600153 | ANGLE DRIVE |
| Repalced by: A 4254600553 | ||
| 203 | A 4254600553 | BEVEL GEAR |
| RIGHT | ||
| 205 | A 4254600753 | DRIVE PINON KIT |
| RIGHT | ||
| 207 | A 4254600253 | ANGLE DRIVE |
| Repalced by: A 4254600453 | ||
| 207 | A 4254600453 | ANGLE DRIVE |
| LEFT | ||
| 211 | A 4254600011 | STEERG. WORM SECTOR SHAFT |
| 215 | A 3819900114 | SCREW |
| M 8X42 | ||
| 219 | N 910113008001 | NUT |
| 223 | N 000912008111 | SCREW |
| Repalced by: N 000000000190 | ||
| 223 | N 000000000190 | SCREW |
| 227 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 227 | N 000137008212 | SPRING WASHER |

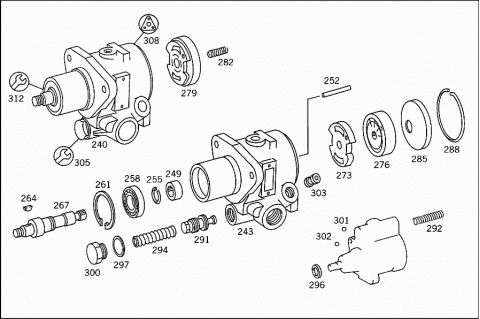

| 240 | A 0014660301 | HYDRAULIC PUMP |
| POWER STEERING PUMP | ||
| Z.F. | ||
| 240 | A 0014668101 | HYDRAULIC PUMP |
| POWER STEERING PUMP | ||
| VICKERS | ||
| 243 | A 0004602081 | HOUSING |
| TO 001 466 03 01 | ||
| A 0009971432 | SCREW PLUG | |
| TO 001 466 03 01 | ||
| 249 | A 0069815710 | NEEDLE BEARING |
| Repalced by: A 0059810310 | ||
| 249 | A 0059810310 | NEEDLE BEARING |
| TO 001 466 03 01 | ||
| 252 | A 0009912760 | DOWEL PIN |
| TO 001 466 03 01 | ||
| 255 | N 009045020001 | SNAP RING |
| TO 001 466 03 01 | ||
| 258 | A 0029817425 | BALL BEARING |
| TO 001 466 03 01 | ||
| 261 | N 000472047000 | LOCK RING |
| TO 001 466 03 01 | ||
| 264 | A 0009911968 | KEY |
| Repalced by: A 0009910668 | ||
| 264 | A 0009910668 | KEY |
| TO 001 466 03 01 | ||
| 267 | A 0004660820 | DRIVE SHAFT |
| Repalced by: A 0004661220 | ||
| 267 | A 0004661220 | DRIVE SHAFT |
| TO 001 466 03 01 | ||
| 267 | A 0004661820 | DRIVE SHAFT |
| V-BELT PULLEY | ||
| TO 001 466 81 01 | ||
| 273 | A 0004662205 | COVER |
| Repalced by: A 0004664505 | ||
| 273 | A 0004664505 | COVER |
| Repalced by: A 0004668205 | ||
| 273 | A 0004668205 | COVER |
| TO 001 466 03 01 | ||
| 276 | A 0004660722 | SET OF ROTORS |
| Repalced by: A 0004664221 | ||
| 276 | A 0004664221 | ROTOR SET |
| TO 001 466 03 01 | ||
| 279 | A 0004666005 | COVER |
| Repalced by: A 0004668505 | ||
| 279 | A 0004668505 | COVER |
| TO 001 466 03 01 | ||
| 282 | A 0049934201 | SPRING |
| Repalced by: A 0059934201 | ||
| 282 | A 0059934201 | SPRING |
| TO 001 466 03 01 | ||
| 285 | A 0004662405 | COVER |
| Repalced by: A 0004661605 | ||
| 285 | A 0004661605 | COVER |
| Repalced by: A 0004666505 | ||
| 285 | A 0004666505 | COVER |
| TO 001 466 03 01 | ||
| 288 | A 0009941637 | SNAP RING |
| TO 001 466 03 01 | ||
| 288 | A 0009949135 | SNAP RING |
| COVER TO BEARING HOUSING | ||
| TO 001 466 81 01 | ||
| 291 | A 0004661483 | PISTON |
| Repalced by: A 0004664091 | ||
| 291 | A 0004661583 | PISTON |
| Repalced by: A 0004664091 | ||
| 291 | A 0004664091 | VALVE |
| TO 001 466 03 01 | ||
| 292 | A 0049939001 | SPRING |
| PISTON | ||
| TO 001 466 81 01 | ||
| 294 | A 0029935201 | SPRING |
| TO 001 466 03 01 | ||
| 296 | A 0069970247 | SEAL RING |
| Repalced by: A 0189976047 | ||
| 296 | A 0189976047 | SEAL RING |
| DRIVE SHAFT | ||
| TO 001 466 81 01 | ||
| 297 | N 007603022102 | SEAL RING |
| TO 001 466 03 01 | ||
| 300 | A 0019970130 | SCREW PLUG |
| TO 001 466 03 01 | ||
| 301 | A 0029811385 | BALL |
| TO 001 466 81 01 | ||
| 302 | A 0019815185 | BALL |
| TO 001 466 81 01 | ||
| 303 | A 0004660884 | CARTRIDGE |
| Repalced by: A 0004662584 | ||
| 303 | A 0004662584 | CARTRIDGE |
| TO 001 466 03 01 | ||
| 305 | A 0004602784 | REPAIR KIT |
| TO 001 466 81 01 | ||
| 308 | A 0004604261 | GASKET KIT |
| Repalced by: A 0005866146 | ||
| 308 | A 0005866146 | REPAIR KIT |
| POWER STEERING PUMP | ||
| TO 001 466 03 01 | ||
| 308 | A 0004601561 | REPAIR KIT |
| GASKET KIT | ||
| TO 001 466 81 01 | ||
| 312 | A 0004600780 | REPAIR KIT |
| POWER STEERING PUMP | ||
| TO 001 466 81 01 | ||

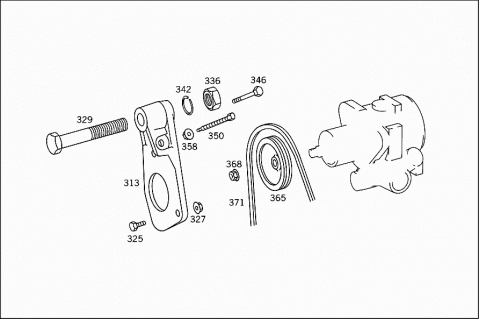

| 313 | A 4254660040 | BRACKET |
| 313 | A 4254660440 | BRACKET |
| 313 | A 4254660340 | BRACKET |
| POWER STEERING PUMP | ||
| 325 | N 000000000428 | HEXAGON HEAD BOLT |
| POWER STEERING PUMP BRACKET | ||
| 327 | N 913023010003 | NUT |
| POWER STEERING PUMP BRACKET | ||
| 329 | N 000960020040 | SCREW |
| POWER STEERING PUMP BRACKET | ||
| 329 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 329 | N 000960016250 | SCREW |
| POWER STEERING PUMP BRACKET | ||
| 336 | N 913023020000 | NUT |
| Repalced by: N 913023020001 | ||
| 336 | N 913023020001 | NUT |
| POWER STEERING PUMP BRACKET | ||
| 336 | N 913023016001 | NUT |
| POWER STEERING PUMP BRACKET | ||
| Repalced by: N 000000005738 | ||
| 336 | N 000000005738 | NUT |
| POWER STEERING PUMP BRACKET | ||
| 342 | N 912004016101 | LOCK WASHER |
| 346 | N 910105012015 | SCREW |
| FOR V-BELT TENSIONING | ||
| 350 | A 3261310071 | SCREW |
| FOR V-BELT TENSIONING | ||
| 358 | N 913023012002 | NUT |
| 358 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 358 | N 913023010002 | NUT |
| FOR V-BELT TENSIONING | ||
| 365 | A 4254660015 | PULLEY |
| 368 | N 913023014004 | NUT |
| 371 | A 0049970592 | V-BELT |
| 955 MM | ||

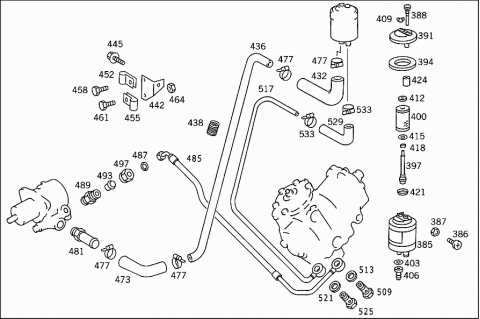

| 385 | A 0004663802 | TANK |
| Repalced by: A 0004664502 | ||
| 385 | A 0004664502 | TANK |
| 386 | N 007985006139 | SCREW |
| OIL TANK | ||
| TO 000 466 45 02 | ||
| 387 | N 913002006009 | NUT |
| OIL TANK | ||
| TO 000 466 45 02 | ||
| 388 | A 0004660218 | PIPE |
| 391 | A 0004661268 | FILLER CAP |
| 394 | A 0004660260 | SEAL RING |
| 397 | A 0014664465 | FILTER CARRIER |
| 400 | A 0004660204 | FILTER |
| Repalced by: A 0004660604 | ||
| 400 | A 0004660604 | FILTER |
| Repalced by: A 0004662804 | ||
| 400 | A 0004662804 | FILTER |
| 403 | A 0029973245 | SEAL RING |
| Repalced by: A 0059970848 | ||
| 403 | A 0059970848 | SEAL RING |
| 406 | A 0004660558 | CONNECTOR |
| 409 | N 000315008006 | NUT |
| 412 | A 0004660675 | CENTERING RING |
| 415 | A 0004660275 | WASHER |
| Repalced by: A 9402680552 | ||
| 415 | A 9402680552 | SPACER WASHER |
| 418 | A 0004660153 | SPACER TUBE |
| 421 | A 0004660238 | COVER PLATE |
| 424 | A 0009870643 | RUBBER SLEEVE |
| 432 | A 4259870743 | RUBBER SLEEVE |
| FROM OIL TANK TO PUMP | ||
| 436 | A 4255510456 | TUBE |
| 436 | A 0004291601 | LINE |
| 22 MM | ||
| 438 | A 4355530782 | WIRE SPIRAL |
| Repalced by: A 4075531282 | ||
| 438 | A 4075531282 | WIRE SPIRAL |
| Repalced by: A 4075531182 | ||
| 438 | A 4075531182 | WIRE SPIRAL |
| HOSE LINE PROTECTION | ||
| 442 | A 4244680140 | BRACKET |
| 445 | N 910105010009 | HEXAGON HEAD BOLT |
| N 912004010102 | LOCK WASHER | |
| 452 | N 916016018202 | CLAMP |
| 455 | A 3609950401 | CLAMP |
| 458 | N 304017006020 | SCREW |
| 461 | N 304017006016 | SCREW |
| M 6X16 | ||
| 464 | N 000934006007 | NUT |
| N 912004006102 | LOCK WASHER | |
| 473 | A 4039875643 | HOSE |
| Repalced by: A 4429871143 | ||
| 473 | A 4429871143 | HOSE |
| Repalced by: A 0005514156 | ||
| 473 | A 0005514156 | HOSE |
| 30X22 | ||
| 477 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 477 | N 000000000668 | CLAMP |
| FROM OIL TANK TO POWER STEERING PUMP AT ENGINE | ||
| 481 | A 4405502357 | FITTING |
| HYDRAULIC PUMP | ||
| 481 | A 4409970372 | FITTING |
| HYDRAULIC PUMP | ||
| 485 | A 4259870543 | RUBBER SLEEVE |
| Repalced by: A 4254610224 | ||
| 485 | A 4254610224 | LINE |
| Repalced by: A 4374610924 | ||
| 485 | A 4374610924 | LINE |
| FROM HYDRAULIC PUMP TO STEERING | ||
| 487 | A 0219970848 | SEAL RING |
| TO 437 461 09 24 | ||
| 489 | N 003901010009 | SCREW-IN FITTING |
| DELIVERY LINE TO PUMP | ||
| 493 | N 003861010009 | GLAND |
| DELIVERY LINE TO PUMP | ||
| TO 425 461 02 24 | ||
| 497 | N 915017010104 | UNION NUT |
| DELIVERY LINE TO PUMP | ||
| TO 425 461 02 24 | ||
| 509 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 509 | N 915036010108 | HOLLOW SCREW |
| DELIVERY LINE TO STEERING | ||
| 513 | N 007603014103 | SEAL RING |
| DELIVERY LINE TO STEERING | ||
| 517 | A 4255501057 | PIPE LINE |
| Repalced by: A 4374600088 | ||
| 517 | A 4374600088 | LINE |
| 521 | N 007603016105 | SEAL RING |
| RETURN LINE TO STEERING | ||
| 525 | N 915036012203 | HOLLOW SCREW |
| RETURN LINE TO STEERING | ||
| 529 | A 4259870643 | RUBBER SLEEVE |
| AT OIL TANK | ||
| 533 | A 0009971390 | LOOM TIE |
| Repalced by: N 916017020000 | ||
| 533 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 533 | N 000000000667 | CLAMP |
| 536 | A 4254620095 | COVERING |
| R.H.D. SHAFT IN CAB | ||
| 539 | A 4254620039 | BRACKET |
| COVERING TO CAB | ||
| 542 | A 4254620139 | BRACKET |
| COVERING TO CAB | ||
| 545 | N 007985005157 | SCREW |
| 548 | N 912004005103 | LOCK WASHER |
| 551 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 551 | N 304032005005 | NUT |
| 554 | N 304017008016 | SCREW |
| 557 | N 912004008102 | LOCK WASHER |
| 560 | N 304032008006 | NUT |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
