Transporto priemonė: U 1500 T; VIN numerio dalis: 425131

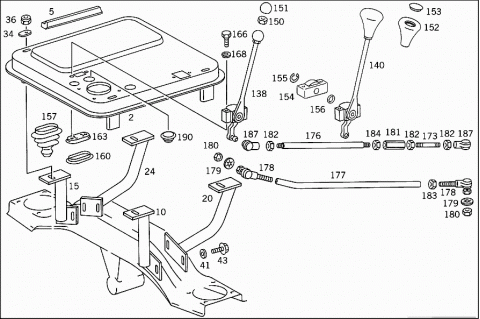

Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 002 | A 4252600528 | GUIDE PLATE |

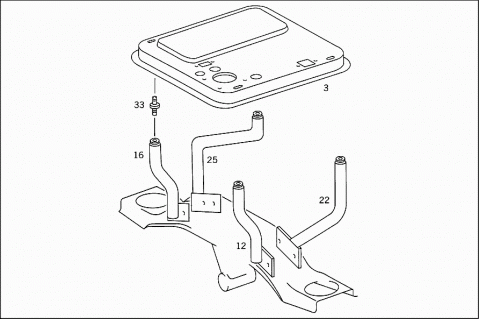

| 003 | A 4252601728 | GUIDE PLATE |
| Repalced by: A 4252671242 | ||
| 003 | A 4252671242 | PLATE |

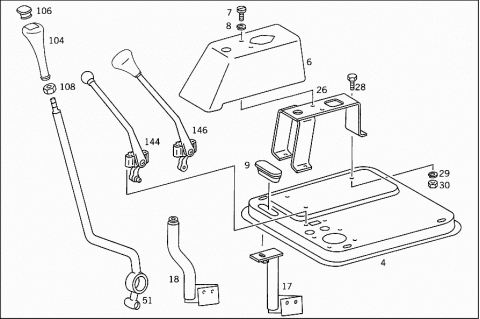

| 004 | A 4252600728 | GUIDE PLATE |
| Repalced by: A 4252670642 | ||
| 004 | A 4252670642 | PLATE |
| Repalced by: A 4252671242 | ||
| 004 | A 4252671242 | PLATE |
| 005 | A 4252670183 | SEAL |
| 006 | A 4252670014 | CAP |
| 006 | A 4252670214 | CAP |
| 007 | N 000084006197 | SCREW |
| CAP TO BRACKET | ||
| 008 | N 912004006102 | LOCK WASHER |
| CAP TO BRACKET | ||
| 009 | A 4259970481 | GROMMET |
| 010 | A 4252600760 | SUPPORT |
| LEFT FRONT | ||
| TO 425 260 07 28,425 260 17 28 | ||
| 012 | A 4252601960 | SUPPORT |
| LEFT FRONT | ||
| TO 425 267 06 42,425 267 12 42 | ||
| 015 | A 4252600660 | SUPPORT |
| RIGHT FRONT | ||
| TO 425 260 17 28 | ||
| 016 | A 4252601860 | SUPPORT |
| RIGHT FRONT | ||
| TO 425 267 12 42 | ||
| 017 | A 4252601260 | SUPPORT |
| RIGHT FRONT | ||
| TO 425 260 07 28 | ||
| 018 | A 4252602260 | SUPPORT |
| RIGHT FRONT | ||
| TO 425 267 06 42 | ||
| 020 | A 4252600460 | SUPPORT |
| Repalced by: A 4252601560 | ||
| 020 | A 4252601560 | SUPPORT |
| LEFT REAR | ||
| TO 425 260 07 28,425 260 17 28 | ||
| 022 | A 4252602060 | SUPPORT |
| LEFT REAR | ||
| TO 425 267 06 42,425 267 12 42 | ||
| 024 | A 4252601160 | SUPPORT |
| RIGHT REAR | ||
| TO 425 260 07 28,425 260 17 28 | ||
| 025 | A 4252602160 | SUPPORT |
| RIGHT REAR | ||
| TO 425 267 06 42,425 267 12 42 | ||
| 026 | A 4252601062 | BRACKET |
| 026 | A 4252601262 | BRACKET |
| Repalced by: A 4372600062 | ||
| 026 | A 4372600062 | BRACKET |
| 028 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 028 | N 304017008016 | SCREW |
| 029 | N 912004008102 | LOCK WASHER |
| 030 | N 304032008006 | NUT |
| 033 | N 000931008220 | SCREW |
| Repalced by: A 4252650375 | ||
| 033 | N 000931008251 | SCREW |
| Repalced by: A 4252650375 | ||
| 033 | A 4252650375 | THREADED PIN |
| SHIFTING PLATE | ||
| 034 | A 4252650076 | WASHER |
| Repalced by: A 4252650276 | ||
| 034 | A 4252650276 | WASHER |
| SHIFTING PLATE | ||
| 036 | N 304032008006 | NUT |
| SHIFTING PLATE | ||
| 041 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 041 | N 000125010532 | WASHER |
| TO 425 260 07 28,425 260 17 28 | ||
| 043 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 043 | N 910105010009 | HEXAGON HEAD BOLT |

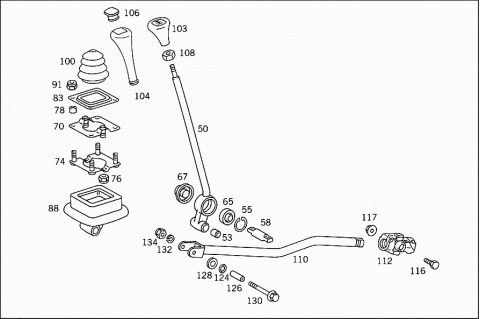

| 050 | A 4252601539 | SHIFT LEVER |
| Repalced by: A 4252603239 | ||
| 050 | A 4252603239 | SHIFT LEVER |
| Repalced by: A 4372603839 | ||
| 050 | A 4372603839 | SHIFT LEVER |
| Repalced by: A 4372609139 | ||
| 050 | A 4372609139 | SHIFT LEVER |
| Repalced by: A 4372603839 | ||
| 050 | A 4372603839 | SHIFT LEVER |
| 051 | A 4252602639 | SHIFT LEVER |
| Repalced by: A 4372604139 | ||
| 051 | A 4372604139 | SHIFT LEVER |
| Repalced by: A 4372609439 | ||
| 051 | A 4372609439 | SHIFT LEVER |
| Repalced by: A 4372604139 | ||
| 051 | A 4372604139 | SHIFT LEVER |
| 053 | A 4219925003 | BUSHING |
| Repalced by: A 3359920203 | ||
| 053 | A 3359920203 | BUSHING |
| 055 | N 000472042001 | LOCK RING |
| 058 | A 4252680474 | PIN |
| 065 | A 0009815531 | JOINT BEARING |
| Repalced by: A 0019813931 | ||
| 065 | A 0019813931 | JOINT BEARING |
| 067 | A 3852680696 | BOOT |
| Repalced by: A 6202680196 | ||
| 067 | A 6202680196 | BOOT |
| 070 | A 4252600862 | BRACKET |
| 074 | A 4252600762 | BRACKET |
| 076 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 076 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 076 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 076 | N 913023008002 | NUT |
| 078 | A 4252670053 | SPACER TUBE |
| Repalced by: A 4252650853 | ||
| 078 | A 4252650853 | SPACER TUBE |
| 083 | A 4252610205 | TRANSMISSION CASE COVER |
| 088 | A 4252670097 | BOOT |
| 088 | A 4252670497 | BOOT |
| 091 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 091 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 091 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 091 | N 913023008002 | NUT |
| 100 | A 4252670197 | BOOT |
| 100 | A 4252670597 | BOOT |
| 103 | A 4252680142 | KNOB |
| SHIFT LEVER | ||
| TO 425 260 32 39,425 260 26 39 | ||
| 104 | A 6202680042 | KNOB |
| SHIFT LEVER | ||
| TO 437 260 38 39,41 39 | ||
| 106 | A 6202680157 | COVER |
| SHIFT LEVER | ||
| TO 437 260 38 39,41 39 | ||
| 108 | N 000439010215 | NUT |
| Repalced by: N 308675010001 | ||
| 108 | N 308675010001 | NUT |
| 110 | A 4252601531 | SHIFTING ROD |
| Repalced by: A 4252601631 | ||
| 110 | A 4252601631 | SHIFTING ROD |
| 112 | A 3832680089 | JOINT |
| Repalced by: A 4252600134 | ||
| 112 | A 4252600134 | ROD END |
| 112 | A 4252600334 | ROD END |
| Repalced by: A 4252600434 | ||
| 112 | A 4252600434 | ROD END |
| A 3852680188 | CLAMPING PIECE | |
| 116 | N 000931008314 | SCREW |
| 116 | N 000931010355 | SCREW |
| Repalced by: N 910105010008 | ||
| 116 | N 910105010008 | SCREW |
| Repalced by: N 910143010000 | ||
| 116 | N 910143010000 | SCREW |
| 116 | N 070613010049 | SCREW |
| 117 | N 913004008005 | NUT |
| Repalced by: N 913023008002 | ||
| 117 | N 913023008002 | NUT |
| 117 | N 913004010015 | NUT |
| Repalced by: A 4609900050 | ||
| 117 | A 4609900050 | NUT |
| A 3049900901 | SCREW | |
| N 912004008102 | LOCK WASHER | |
| N 304032008006 | NUT | |
| 124 | A 0039974748 | SEAL RING |
| Repalced by: A 0009978648 | ||
| 124 | A 0009978648 | SEAL RING |
| SHIFTING ROD TO SHIFT LEVER | ||
| 126 | A 3852680353 | SPACER TUBE |
| Repalced by: A 3852680153 | ||
| 126 | A 3852680153 | SPACER TUBE |
| SHIFTING ROD TO SHIFT LEVER | ||
| 128 | N 900055018001 | SPRING WASHER |
| 130 | N 000931010268 | SCREW |
| Repalced by: N 910105010010 | ||
| 130 | N 910105010010 | SCREW |
| Repalced by: N 000931010283 | ||
| 130 | N 000931010283 | SCREW |
| Repalced by: N 000931010357 | ||
| 130 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 130 | A 0019909404 | SCREW |
| 132 | N 912004010102 | LOCK WASHER |
| 134 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 134 | N 913023010003 | NUT |
| 138 | A 4252601295 | BEARING |
| WITH SHIFT LEVER | ||
| 140 | A 4252602095 | BEARING |
| Repalced by: A 4252602495 | ||
| 140 | A 4252602495 | BEARING |
| Repalced by: A 4252604439 | ||
| 140 | A 4252604439 | SHIFT LEVER |
| Repalced by: A 4252605039 | ||
| 140 | A 4252605039 | SHIFT LEVER |
| Repalced by: A 4372600039 | ||
| 140 | A 4372600039 | SHIFT LEVER |
| Repalced by: A 4372605239 | ||
| 140 | A 4372605239 | SHIFT LEVER |
| 144 | A 4252601995 | BEARING |
| Repalced by: A 4252602595 | ||
| 144 | A 4252602595 | BEARING |
| Repalced by: A 4252604539 | ||
| 144 | A 4252604539 | SHIFT LEVER |
| Repalced by: A 4252605139 | ||
| 144 | A 4252605139 | SHIFT LEVER |
| 146 | A 4372600439 | SHIFT LEVER |
| Repalced by: A 4372605139 | ||
| 146 | A 4372605139 | SHIFT LEVER |
| 150 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 150 | N 304035010001 | NUT |
| 151 | A 0009971077 | HANDLE |
| 151 | A 4259970077 | HANDLE |
| TO 437 260 00 39,437 260 04 39 | ||
| 152 | A 0002600340 | HANDLE |
| SHIFT LEVER | ||
| TO 437 260 52 39,51 39 | ||
| 153 | A 0002671214 | CAP |
| SHIFT LEVER | ||
| TO 437 260 52 39,51 39 | ||
| 154 | A 4372600095 | BEARING |
| TO 437 260 00 39,52 39 | ||
| 154 | A 4372600095 | BEARING |
| TO 437 260 04 39,51 39 | ||
| 155 | N 912009014101 | SNAP RING |
| TO 437 260 00 39,52 39 | ||
| 155 | N 912009014101 | SNAP RING |
| TO 437 260 04 39,51 39 | ||
| 156 | A 0069971248 | SEAL RING |
| 157 | A 4252670297 | BOOT |
| 157 | A 4252670397 | BOOT |
| 160 | A 4252670797 | BOOT |
| 163 | A 4252600662 | BRACKET |
| 166 | N 000931008244 | SCREW |
| 168 | N 912004008102 | LOCK WASHER |
| 173 | A 4252651605 | SHIFTING ROD |
| 176 | A 4252651805 | SHIFTING ROD |
| 177 | A 4252652305 | SHIFTING ROD |
| Repalced by: A 4252670703 | ||
| 177 | A 4252652605 | SHIFTING ROD |
| Repalced by: A 4252670703 | ||
| 177 | A 4252670703 | SHIFTING SHAFT |
| 177 | A 4372650705 | SHIFTING ROD |
| 178 | A 0009916522 | BALL SOCKET |
| Repalced by: A 0009916622 | ||
| 178 | A 0009916622 | BALL SOCKET |
| Repalced by: A 0019910822 | ||
| 178 | A 0019910822 | BALL SOCKET |
| Repalced by: A 0019911422 | ||
| 178 | A 0019911422 | BALL SOCKET |
| TO 425 267 07 03 | ||
| 179 | N 900050010001 | LOCK PLATE |
| SHIFTING ROD TO SHIFT LEVER | ||
| 180 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 180 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 180 | N 913023010002 | NUT |
| SHIFTING ROD TO SHIFT LEVER | ||
| 181 | N 001479008003 | TURNBUCKLE |
| 181 | A 4252670069 | TURNBUCKLE |
| TO 425 265 23 05,425 265 26 05 | ||
| 182 | N 304032008006 | NUT |
| 183 | N 000936012005 | NUT |
| Repalced by: N 308675012000 | ||
| 183 | N 308675012000 | NUT |
| TO 425 265 23 05,425 265 26 05 | ||
| 183 | N 308675012000 | NUT |
| TO 425 267 07 03 | ||
| 184 | N 000934008035 | NUT |
| 184 | N 000439012215 | NUT |
| TO 425 265 23 05,425 265 26 05 | ||
| 187 | A 0009914422 | BALL SOCKET |
| 187 | A 0009915722 | BALL SOCKET |
| TO 425 265 23 05,425 265 26 05 | ||
| 190 | A 4259970586 | PLUG |
| Repalced by: A 4089870044 | ||
| 190 | A 4089870044 | EXPANSION PLUG |
| 190 | A 4089870044 | EXPANSION PLUG |
| 190 | A 4089870044 | EXPANSION PLUG |
| TO PLUG SHIFTING PLATE BORE | ||

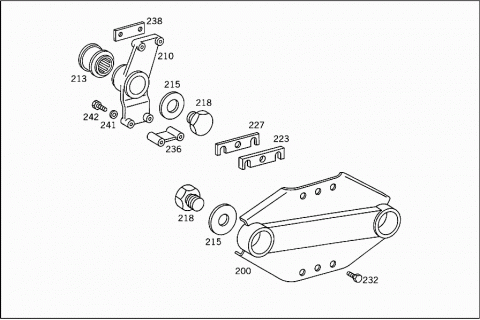

| 200 | A 4252601060 | SUPPORT |
| Repalced by: A 4252600360 | ||
| 200 | A 4252600360 | SUPPORT |
| LEFT | ||
| 210 | A 4252600260 | SUPPORT |
| Repalced by: A 4252601360 | ||
| 210 | A 4252601360 | SUPPORT |
| Repalced by: A 4252660403 | ||
| 210 | A 4252660403 | MOUNTING |
| Repalced by: A 4252660803 | ||
| 210 | A 4252660803 | MOUNTING |
| Repalced by: A 4252661003 | ||
| 210 | A 4252661003 | MOUNTING |
| RIGHT | ||
| 213 | A 0009888910 | RUBBER MOUNTING |
| 215 | A 4252660062 | THRUST WASHER |
| RIGHT TRANSMISSION MOUNTING TO FRAME | ||
| 215 | A 4252660062 | THRUST WASHER |
| LEFT TRANSMISSION MOUNTING TO FRAME | ||
| 218 | A 4259905201 | SCREW |
| RIGHT TRANSMISSION MOUNTING TO FRAME | ||
| 218 | A 4259905201 | SCREW |
| LEFT TRANSMISSION MOUNTING TO FRAME | ||
| 223 | A 4252660284 | SHIM |
| TRANSMISSION MOUNTING TO TRANSMISSION, LEFT | ||
| 227 | A 4252410126 | INTERMEDIATE PIECE |
| Repalced by: A 4252410226 | ||
| 227 | A 4252410226 | INTERMEDIATE PIECE |
| TRANSMISSION MOUNTING TO TRANSMISSION, LEFT | ||
| N 912004016101 | LOCK WASHER | |
| 232 | N 914140016000 | SCREW |
| Repalced by: A 0009907504 | ||
| 232 | A 0009907504 | SCREW |
| TRANSMISSION MOUNTING TO TRANSMISSION, LEFT | ||
| 232 | N 914140012003 | SCREW |
| TRANSMISSION MOUNTING TO TRANSMISSION, RIGHT | ||
| TO 425 266 08 03,425 266 10 03 | ||
| 236 | A 4252600175 | CONNECTOR |
| Repalced by: A 4252600575 | ||
| 236 | A 4252600575 | CONNECTOR |
| TO 425 266 04 03 | ||
| 238 | A 4252600675 | CONNECTOR |
| Repalced by: A 4252660495 | ||
| 238 | A 4252660495 | WEB |
| TRANSMISSION MOUNTING TO TRANSMISSION, RIGHT | ||
| TO 425 266 08 03, 425 266 10 03 | ||
| N 912004012100 | LOCK WASHER | |
| 241 | N 006916013000 | WASHER |
| TO 425 266 04 03 | ||
| 242 | N 914125012208 | SCREW |
| TO 425 266 04 03 | ||
| 242 | N 914125012219 | SCREW |
| TO 425 266 04 03 | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
