Transporto priemonė: U 1700; VIN numerio dalis: 435110
Grupė: 52 CHASSIS SHEET METAL - 001 SHEET METAL,AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SEE ALSO SA: | ||
| 36 200/01 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SEE ALSO SA: | ||
| 36 200/02 | ||

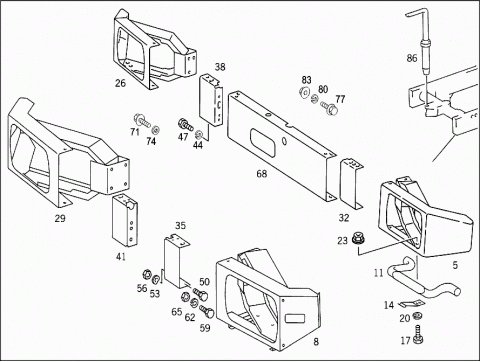

| 005 | A 4255201841 | BUMPER |
| LEFT | ||
| 008 | A 4355200770 | BUMPER |
| LEFT | ||
| 011 | A 4255200031 | RUNNING BOARD |
| Repalced by: A 4255200731 | ||
| 011 | A 4255200731 | RUNNING BOARD |
| Repalced by: A 4255230536 | ||
| 011 | A 4255230536 | PIPE |
| 014 | A 4259930025 | SPRING |
| Repalced by: A 4259930225 | ||
| 014 | A 4259930225 | SPRING |
| Repalced by: A 4259930325 | ||
| 014 | A 4259930325 | SPRING |
| 014 | A 4259930425 | SPRING |
| 017 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 017 | N 304017006018 | SCREW |
| 017 | N 304017006018 | SCREW |
| 017 | N 304017006018 | SCREW |
| 017 | N 000933006127 | SCREW |
| 020 | N 912004006102 | LOCK WASHER |
| 023 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 023 | N 913023006002 | NUT |
| Repalced by: N 913023006001 | ||
| 023 | N 913023006001 | NUT |
| 026 | A 4255201941 | BUMPER |
| RIGHT | ||
| 029 | A 4355200870 | BUMPER |
| RIGHT | ||
| 032 | A 4255251239 | BRACKET |
| LEFT | ||
| 035 | A 4355250439 | BRACKET |
| LEFT | ||
| 038 | A 4255251139 | BRACKET |
| RIGHT | ||
| 041 | A 4355250339 | BRACKET |
| RIGHT | ||
| 044 | N 912004012100 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 047 | N 000961012056 | SCREW |
| Repalced by: N 910105012003 | ||
| 047 | N 910105012003 | SCREW |
| BRACKET TO FRAME | ||
| M 12X22 | ||
| 050 | N 000961016142 | SCREW |
| BRACKET TO FRAME | ||
| M 16X30 | ||
| 053 | N 000137016202 | SPRING WASHER |
| BRACKET TO FRAME | ||
| 056 | N 000934016011 | NUT |
| Repalced by: N 913023016001 | ||
| 056 | N 913023016001 | NUT |
| BRACKET TO FRAME | ||
| Repalced by: N 000000005738 | ||
| 056 | N 000000005738 | NUT |
| BRACKET TO FRAME | ||
| 059 | N 000960014061 | SCREW |
| BRACKET TO FRAME | ||
| 062 | N 912004014100 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 065 | N 000934014019 | NUT |
| Repalced by: N 910112014000 | ||
| 065 | N 910112014000 | NUT |
| Repalced by: N 913023014003 | ||
| 065 | N 913023014003 | NUT |
| BRACKET TO FRAME | ||
| M14X1.5 | ||
| 068 | A 4255250201 | BUMPER |
| Repalced by: A 4255251301 | ||
| 068 | A 4255251301 | BUMPER |
| CENTRAL | ||
| 071 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 071 | N 910105010006 | SCREW |
| BUMPER TO BRACKET | ||
| 071 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 071 | N 910105010009 | SCREW |
| 074 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 074 | N 007349010007 | WASHER |
| BUMPER TO BRACKET | ||
| 077 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 077 | N 910105010009 | SCREW |
| 080 | N 912004010102 | LOCK WASHER |
| BUMPER TO FRAME | ||
| 083 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 083 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 083 | N 913023010002 | NUT |
| BUMPER TO BRACKET | ||
| 086 | A 4255240274 | PIN |
| Repalced by: A 4255240474 | ||
| 086 | A 4255240474 | PIN |
| COUPLING PIN | ||
| 086 | A 4255240974 | PIN |

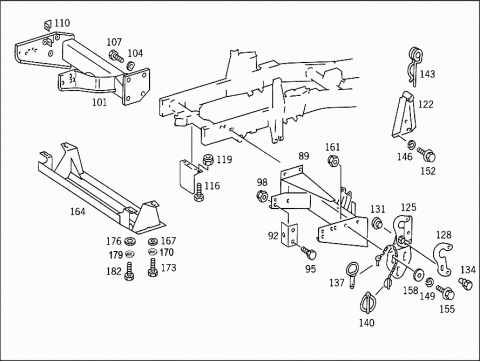

| 089 | A 4255200792 | BEARING BRACKET |
| Repalced by: A 4255202292 | ||
| 089 | A 4255202092 | BEARING BRACKET |
| Repalced by: A 4255202292 | ||
| 089 | A 4255202292 | BEARING BRACKET |
| LEFT | ||
| 092 | A 4355240110 | MOUNTING ANGLE |
| Repalced by: A 4255241340 | ||
| 092 | A 4255241340 | BRACKET |
| Repalced by: A 3604280243 | ||
| 092 | A 3604280243 | ANGLE |
| HORN | ||
| 095 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 095 | N 304017008016 | SCREW |
| HORN | ||
| 098 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 098 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 098 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 098 | N 913023008002 | NUT |
| HORN | ||
| 101 | A 4255200692 | BEARING BRACKET |
| Repalced by: A 4255202192 | ||
| 101 | A 4255202192 | BEARING BRACKET |
| RIGHT | ||
| 104 | N 000137010201 | SPRING WASHER |
| BEARING BRACKET TO FRAME | ||
| 107 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 107 | N 910105010001 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO FRAME | ||
| 110 | A 4255241340 | BRACKET |
| Repalced by: A 3604280243 | ||
| 110 | A 3604280243 | ANGLE |
| HORN | ||
| A 4255510725 | PROTECTIVE PLATE | |
| 116 | N 000961012052 | SCREW |
| Repalced by: N 910105012013 | ||
| 116 | N 910105012013 | SCREW |
| COVER PLATE TO CROSS MEMBER | ||
| 119 | N 913004012008 | NUT |
| Repalced by: N 913023012003 | ||
| 119 | N 913023012003 | NUT |
| COVER PLATE TO CROSS MEMBER | ||
| 122 | A 4255202341 | BRACKET |
| CAB IN TILTED POSITION | ||
| 125 | A 4355200692 | BEARING BRACKET |
| LEFT | ||
| 125 | A 4355200692 | BEARING BRACKET |
| LEFT | ||
| 125 | A 4355200792 | BEARING BRACKET |
| RIGHT | ||
| 125 | A 4355200792 | BEARING BRACKET |
| RIGHT | ||
| 128 | A 4355240065 | LATCH |
| 128 | A 4355240065 | LATCH |
| 131 | A 4355240050 | BUSHING |
| 131 | A 4355240050 | BUSHING |
| 134 | A 4355240074 | PIN |
| 134 | A 4355240074 | PIN |
| 137 | A 4255200974 | PIN |
| 137 | A 4255200974 | PIN |
| 140 | A 4425500275 | LOCK |
| 140 | A 4425500275 | LOCK |
| 143 | N 011024004000 | SPRING RETAINING PIN |
| 146 | N 912004010102 | LOCK WASHER |
| 149 | N 912004012100 | LOCK WASHER |
| 149 | N 912004012100 | LOCK WASHER |
| 152 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 152 | N 910105010009 | SCREW |
| 155 | N 000961012151 | SCREW |
| Repalced by: N 910105012007 | ||
| 155 | N 910105012007 | SCREW |
| BEARING BRACKET TO CONSOLE | ||
| 155 | N 910105012007 | SCREW |
| BEARING BRACKET TO CONSOLE | ||
| 158 | N 009021013200 | WASHER |
| BEARING BRACKET TO CONSOLE | ||
| 161 | N 913004012008 | NUT |
| Repalced by: N 913023012003 | ||
| 161 | N 913023012003 | NUT |
| BEARING BRACKET TO CONSOLE | ||
| 164 | A 4255500154 | MOUNTING PLATE |
| Repalced by: A 4255501054 | ||
| 164 | A 4255501054 | MOUNTING PLATE |
| 167 | N 000125013008 | WASHER |
| 170 | N 912004012100 | LOCK WASHER |
| MOUNTING PLATE TO FRAME | ||
| 173 | N 000961012122 | SCREW |
| MOUNTING PLATE TO FRAME | ||
| 176 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 176 | N 000125017016 | WASHER |
| MOUNTING PLATE TO FRAME | ||
| 179 | N 912004016101 | LOCK WASHER |
| MOUNTING PLATE TO FRAME | ||
| 182 | N 000960016052 | SCREW |
| Repalced by: N 000960016138 | ||
| 182 | N 000960016138 | SCREW |
| MOUNTING PLATE TO FRAME | ||
| Repalced by: N 000961016122 | ||
| 182 | N 000961016122 | SCREW |
| MOUNTING PLATE TO FRAME | ||
| 182 | N 308676016022 | SCREW |
| Repalced by: N 910105016004 | ||
| 182 | N 910105016004 | SCREW |
| MOUNTING PLATE TO FRAME | ||
| 200 | A 4255200530 | SUPPORT |
| LEFT | ||
| 200 | A 4255200230 | SUPPORT |
| LEFT | ||
| 203 | A 4355200031 | RUNNING BOARD |
| Repalced by: A 4355200131 | ||
| 203 | A 4355200131 | RUNNING BOARD |
| LEFT | ||
| 203 | A 4255200431 | RUNNING BOARD |
| Repalced by: A 4255200931 | ||
| 203 | A 4255200931 | RUNNING BOARD |
| LEFT | ||
| 203 | A 4255200931 | RUNNING BOARD |
| LEFT | ||
| 212 | A 4255200330 | SUPPORT |
| Repalced by: A 4245200331 | ||
| 212 | A 4245200331 | RUNNING BOARD |
| Repalced by: A 4355200231 | ||
| 212 | A 4355200231 | RUNNING BOARD |
| RIGHT | ||
| 218 | A 4255200430 | SUPPORT |
| RIGHT | ||
| 221 | A 4355200631 | RUNNING BOARD |
| RIGHT | ||
| 221 | A 4355200631 | RUNNING BOARD |
| Repalced by: A 4255200630 | ||
| 221 | A 4255200630 | RUNNING BOARD |
| RIGHT | ||
| 221 | A 4255200630 | RUNNING BOARD |
| RIGHT | ||
| 224 | N 000960014121 | SCREW |
| Repalced by: N 910105014009 | ||
| 224 | N 910105014009 | SCREW |
| Repalced by: N 308676014014 | ||
| 224 | N 308676014014 | SCREW |
| ROCKER PANEL TO FRAME | ||
| 224 | N 000961012151 | SCREW |
| Repalced by: N 910105012007 | ||
| 224 | N 910105012007 | SCREW |
| ROCKER PANEL TO FRAME | ||
| 224 | N 000961012052 | SCREW |
| Repalced by: N 910105012013 | ||
| 224 | N 910105012013 | SCREW |
| ROCKER PANEL TO FRAME | ||
| 227 | N 913004014002 | NUT |
| Repalced by: N 913023014004 | ||
| 227 | N 913023014004 | NUT |
| ROCKER PANEL TO FRAME | ||
| 230 | N 912004012100 | LOCK WASHER |
| ROCKER PANEL TO FRAME | ||
| 233 | N 912004010102 | LOCK WASHER |
| ROCKER PANEL TO FRAME | ||
| 236 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 236 | N 910105010009 | SCREW |
| 239 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 239 | N 000125010532 | WASHER |
| ROCKER PANEL TO FRAME | ||

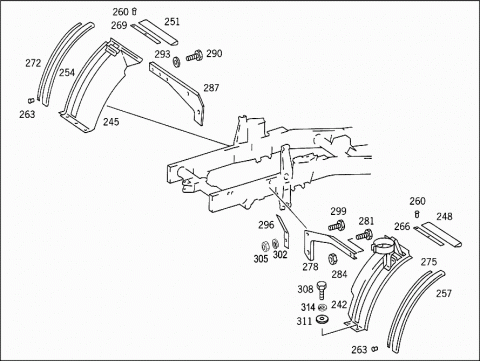

| 242 | A 4255200017 | FENDER |
| Repalced by: A 4355200017 | ||
| 242 | A 4355200017 | FENDER |
| Repalced by: A 4355200117 | ||
| 242 | A 4355200117 | FENDER |
| Repalced by: A 4375200317 | ||
| 242 | A 4375200317 | FENDER |
| LEFT | ||
| 245 | A 4255200018 | FENDER |
| Repalced by: A 4375200318 | ||
| 245 | A 4375200318 | FENDER |
| RIGHT | ||
| 248 | A 4255210084 | LEDGE |
| LEFT | ||
| 251 | A 4255210284 | LEDGE |
| RIGHT | ||
| 254 | A 4255210184 | LEDGE |
| RIGHT | ||
| 257 | A 4255210384 | LEDGE |
| LEFT | ||
| 260 | N 007331004248 | RIVET |
| 260 | N 007331004221 | RIVET |
| 263 | N 910002004122 | RIVET |
| 266 | A 4255221540 | BRACKET |
| LEFT | ||
| 269 | A 4255221640 | BRACKET |
| RIGHT | ||
| 272 | A 4255221440 | BRACKET |
| RIGHT | ||
| 275 | A 4255221840 | BRACKET |
| LEFT | ||
| 278 | A 4255210240 | BRACKET |
| Repalced by: A 4355210440 | ||
| 278 | A 4355210440 | BRACKET |
| LEFT FRONT SPLASH GUARD | ||
| 281 | N 000933006102 | SCREW |
| SPLASH GUARD TO BRACKET | ||
| 281 | N 000933006130 | SCREW |
| Repalced by: N 304017006020 | ||
| 281 | N 304017006020 | SCREW |
| LEFT SPLASH GUARD TO BRACKET | ||
| 284 | N 000934006007 | NUT |
| LEFT SPLASH GUARD TO BRACKET | ||
| 284 | N 000934006007 | NUT |
| RIGHT SPLASH GUARD TO BRACKET | ||
| 287 | A 4255210140 | BRACKET |
| Repalced by: A 4355210540 | ||
| 287 | A 4355210540 | BRACKET |
| Repalced by: A 4355201441 | ||
| 287 | A 4355201441 | BRACKET |
| RIGHT FRONT SPLASH GUARD | ||
| 290 | N 000933006130 | SCREW |
| Repalced by: N 304017006020 | ||
| 290 | N 304017006020 | SCREW |
| RIGHT SPLASH GUARD TO BRACKET | ||
| 293 | N 000125006421 | WASHER |
| RIGHT SPLASH GUARD TO BRACKET | ||
| Repalced by: N 000125006449 | ||
| 293 | N 000125006449 | WASHER |
| RIGHT SPLASH GUARD TO BRACKET | ||
| 293 | N 000125006421 | WASHER |
| LEFT SPLASH GUARD TO BRACKET | ||
| Repalced by: N 000125006449 | ||
| 293 | N 000125006449 | WASHER |
| LEFT SPLASH GUARD TO BRACKET | ||
| 296 | A 4255241540 | BRACKET |
| LEFT FENDER | ||
| 299 | N 000933006130 | SCREW |
| Repalced by: N 304017006020 | ||
| 299 | N 304017006020 | SCREW |
| BRACKET TO LEFT SPLASH GUARD BRACKET | ||
| 302 | N 912004006102 | LOCK WASHER |
| BRACKET TO LEFT SPLASH GUARD BRACKET | ||
| 305 | N 000934006007 | NUT |
| BRACKET TO LEFT SPLASH GUARD BRACKET | ||
| 308 | N 914145006304 | SCREW |
| SPLASH GUARD TO LEFT HEADLAMP CONSOLE | ||
| M 6X16 | ||
| 308 | N 914145006304 | SCREW |
| SPLASH GUARD TO RIGHT HEADLAMP CONSOLE | ||
| M 6X16 | ||
| 308 | N 914145006304 | SCREW |
| BRACKET TO LEFT SHOCK ABSORBER BRACKET | ||
| M 6X16 | ||
| 311 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 311 | N 009021006208 | WASHER |
| SPLASH GUARD TO LEFT HEADLAMP CONSOLE | ||
| 311 | N 009021006208 | WASHER |
| SPLASH GUARD TO RIGHT HEADLAMP CONSOLE | ||
| 314 | N 912004006102 | LOCK WASHER |
| SPLASH GUARD TO LEFT HEADLAMP CONSOLE | ||
| 314 | N 912004006102 | LOCK WASHER |
| SPLASH GUARD TO RIGHT HEADLAMP CONSOLE | ||
| 314 | N 912004006102 | LOCK WASHER |
| BRACKET TO LEFT SHOCK ABSORBER BRACKET | ||
| 314 | N 912004006102 | LOCK WASHER |
| LEFT SPLASH GUARD TO BRACKET | ||
| 314 | N 912004006102 | LOCK WASHER |
| RIGHT SPLASH GUARD TO BRACKET | ||

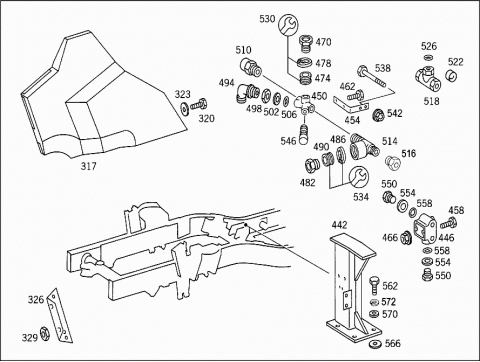

| 317 | A 4355200875 | PANELLING |
| 320 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 320 | N 304017008021 | SCREW |
| SCREENING PLATE TO SHOCK ABSORBER BRACKET AND TO MUD APRONS | ||
| 323 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 323 | N 009021008213 | WASHER |
| SCREENING PLATE TO SHOCK ABSORBER BRACKET AND TO MUD APRONS | ||
| Repalced by: N 000000003250 | ||
| 323 | N 000000003250 | WASHER |
| SCREENING PLATE TO SHOCK ABSORBER BRACKET AND TO MUD APRONS | ||
| 326 | A 4255241440 | BRACKET |
| LINE MOUNTING | ||
| 329 | N 000934006007 | NUT |
| BRACKET TO LEFT SHOCK ABSORBER BRACKET | ||

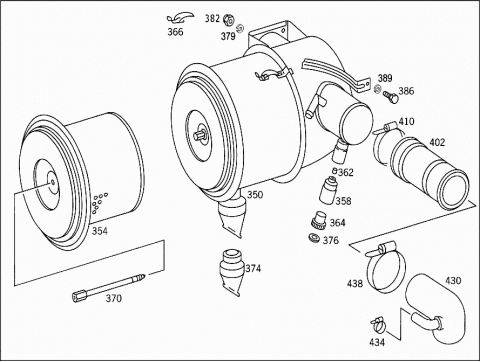

| 350 | A 0090940802 | AIR CLEANER |
| Repalced by: A 0120941202 | ||
| 350 | A 0120941202 | AIR CLEANER |
| MANN & HUMMEL | ||
| 354 | A 0010947304 | FILTER ELEMENT |
| Repalced by: A 0040940804 | ||
| 354 | A 0040940804 | FILTER ELEMENT |
| 358 | A 0000940568 | MAINTENANCE INDICATOR |
| (MAINTENANCE SWITCH) | ||
| TO 009 094 08 02,012 094 12 02 | ||
| 362 | A 0000940676 | WASHER |
| TO 000 094 05 68 | ||
| 362 | A 0000940276 | WASHER |
| 364 | A 0009871645 | LOCKING CAP |
| TO 012 094 12 02 | ||
| 366 | A 0000941255 | FASTENER |
| 370 | A 0000941671 | SCREW |
| 374 | A 0000940665 | VALVE |
| 376 | N 007603010100 | SEAL RING |
| TO 012 094 12 02 | ||
| 379 | N 912004010102 | LOCK WASHER |
| AIR CLEANER TO CAB | ||
| 382 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 382 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 382 | N 913023010002 | NUT |
| AIR CLEANER TO CAB | ||
| 386 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 386 | N 304017008021 | SCREW |
| AIR CLEANER TO CAB | ||
| 389 | N 912004008102 | LOCK WASHER |
| AIR CLEANER TO CAB | ||

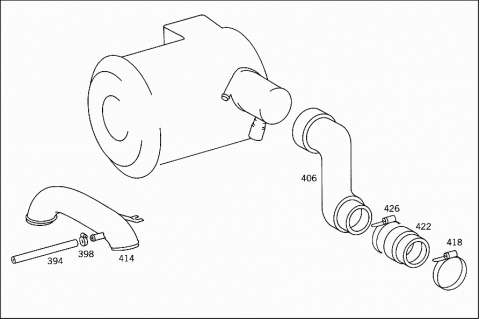

| 394 | A 4255280382 | HOSE |
| Repalced by: A 4255280582 | ||
| 394 | A 4255280582 | HOSE |
| Repalced by: A 3520182182 | ||
| 394 | A 3520182182 | HOSE |
| CRANKCASE VENTILATION FROM ENGINE TO SUCTION PIPE | ||
| 398 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 398 | N 000000000668 | CLAMP |
| CRANKCASE VENTILATION FROM ENGINE TO SUCTION PIPE | ||
| 402 | A 4259870043 | RUBBER SLEEVE |
| 402 | A 4259872043 | RUBBER SLEEVE |
| 402 | A 4259872043 | RUBBER SLEEVE |
| 406 | A 4259871943 | RUBBER SLEEVE |
| Repalced by: A 4255280682 | ||
| 406 | A 4255280682 | HOSE |
| 410 | N 916017110001 | CLAMP |
| Repalced by: A 0059971490 | ||
| 410 | A 0059971490 | HOSE CLAMP |
| RUBBER MOUNTING TO AIR CLEANER | ||
| Repalced by: A 0019951910 | ||
| 410 | A 0019951910 | CLAMP |
| RUBBER MOUNTING TO AIR CLEANER | ||
| 414 | A 4255200406 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 418 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 418 | N 000000000675 | CLAMP |
| Repalced by: A 0059972990 | ||
| 418 | A 0059972990 | CLAMP |
| 422 | A 4255280208 | AIR INTAKE PIPE |
| (REDUCING SLEEVE) | ||
| 426 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 426 | N 000000000674 | CLAMP |
| REDUCING SLEEVE TO INTAKE PIPE | ||
| 430 | A 4255200506 | PIPE ELBOW |
| Repalced by: A 4255200906 | ||
| 430 | A 4255200906 | PIPE ELBOW |
| 434 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 434 | N 000000000668 | CLAMP |
| A 4255280008 | AIR INTAKE PIPE | |
| 438 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 438 | N 000000000675 | CLAMP |
| Repalced by: A 0059972990 | ||
| 438 | A 0059972990 | CLAMP |
| 438 | N 000000000676 | CLAMP |
| Repalced by: N 000000005890 | ||
| 438 | N 000000005890 | CLAMP |
| 442 | A 4255200032 | STAY |
| OECD | ||
| 446 | A 0004294137 | DISTRIBUTOR |
| 450 | A 0009903272 | DISTRIBUTOR |
| DISTRIBUTOR TO OECD STAY | ||
| 454 | A 4244263440 | BRACKET |
| Repalced by: A 3874296740 | ||
| 454 | A 3874296740 | BRACKET |
| DISTRIBUTOR TO OECD STAY | ||
| 454 | A 4374260446 | MOUNTING ANGLE |
| DISTRIBUTOR TO OECD STAY | ||
| 458 | N 304017006026 | SCREW |
| Repalced by: N 304017006026 | ||
| 458 | N 304017006026 | SCREW |
| DISTRIBUTOR TO BRACKET | ||
| M 6X40 | ||
| 462 | N 000933006130 | SCREW |
| Repalced by: N 304017006020 | ||
| 462 | N 304017006020 | SCREW |
| DISTRIBUTOR TO BRACKET | ||
| M 6X18 | ||
| 466 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 466 | N 913023006001 | NUT |
| DISTRIBUTOR TO BRACKET | ||
| 470 | A 0009970834 | UNION SCREW |
| Repalced by: A 0009973734 | ||
| 470 | A 0009973734 | UNION SCREW |
| AT DISTRIBUTOR | ||
| 470 | A 0009970834 | UNION SCREW |
| Repalced by: A 0009973734 | ||
| 470 | A 0009973734 | UNION SCREW |
| AT DISTRIBUTOR | ||
| 474 | A 0009940047 | SEAL RING |
| Repalced by: A 0009940747 | ||
| 474 | A 0009940747 | LOCK RING |
| AT DISTRIBUTOR | ||
| 474 | A 0009940047 | SEAL RING |
| Repalced by: A 0009940747 | ||
| 474 | A 0009940747 | LOCK RING |
| AT DISTRIBUTOR | ||
| 478 | A 0009941248 | LOCK |
| Repalced by: A 0009945448 | ||
| 478 | A 0009945448 | LOCK |
| AT DISTRIBUTOR | ||
| 478 | A 0009941248 | LOCK |
| Repalced by: A 0009945448 | ||
| 478 | A 0009945448 | LOCK |
| AT DISTRIBUTOR | ||
| 482 | A 0009970934 | UNION SCREW |
| AT DISTRIBUTOR | ||
| 482 | A 0009970934 | UNION SCREW |
| AT DISTRIBUTOR | ||
| 486 | A 0009940147 | SEAL RING |
| AT DISTRIBUTOR | ||
| 486 | A 0009940147 | SEAL RING |
| AT DISTRIBUTOR | ||
| 490 | A 0009941448 | LOCK |
| AT DISTRIBUTOR | ||
| 490 | A 0009941448 | LOCK |
| AT DISTRIBUTOR | ||
| 494 | A 0019903971 | ELBOW FITTING |
| Repalced by: A 0039900071 | ||
| 494 | A 0039900071 | ELBOW FITTING |
| AT DISTRIBUTOR | ||
| 498 | N 080705022001 | NUT |
| AT DISTRIBUTOR | ||
| 498 | N 080705016003 | NUT |
| AT DISTRIBUTOR | ||
| 498 | N 080705014002 | NUT |
| AT DISTRIBUTOR | ||
| 502 | A 0004290927 | THRUST RING |
| AT DISTRIBUTOR | ||
| 16X22 MM | ||
| 502 | A 0004290627 | THRUST RING |
| AT DISTRIBUTOR | ||
| 14X18 MM | ||
| 502 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 502 | A 0009940203 | THRUST RING |
| AT DISTRIBUTOR | ||
| 22X27 MM | ||
| 506 | A 0009870446 | O-RING |
| AT DISTRIBUTOR | ||
| 20.3X2.4 | ||
| 506 | A 0009971548 | SEAL RING |
| AT DISTRIBUTOR | ||
| 15X19 MM | ||
| 506 | A 0079974245 | SEAL RING |
| AT DISTRIBUTOR | ||
| 14X17 MM | ||
| 510 | A 0049978272 | FITTING |
| Repalced by: A 6459900470 | ||
| 510 | A 6459900470 | FITTING |
| DISTRIBUTOR,CONNECTION: | ||
| "12" | ||
| 514 | A 0029905270 | T-FITTING |
| DISTRIBUTOR,CONNECTION: | ||
| "20" | ||
| 516 | A 0009905168 | FITTING |
| Repalced by: A 0049903068 | ||
| 516 | A 0049903068 | FITTING |
| DISTRIBUTOR,CONNECTION: | ||
| "20" | ||
| 518 | A 0014292444 | VALVE |
| Repalced by: A 0034294644 | ||
| 518 | A 0034294644 | VALVE |
| AT DISTRIBUTOR | ||
| 522 | A 0004291182 | VALVE BODY |
| TO 001 429 24 44 | ||
| 526 | A 0109973348 | SEAL RING |
| TO 003 429 46 44 | ||
| 530 | A 6739970045 | REPAIR KIT |
| Repalced by: A 0309971748 | ||
| 530 | A 0309971748 | REPAIR KIT |
| O-RING | ||
| TO 000 997 08 34 | ||
| 534 | A 6739970145 | TS SEALING RING |
| O-RING | ||
| TO 000 997 09 34 | ||
| 538 | N 000931006191 | SCREW |
| BRACKET TO OECD STAY | ||
| M 6X55 | ||
| 542 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 542 | N 913023006001 | NUT |
| BRACKET TO OECD STAY | ||
| M 6 | ||
| 546 | A 0009977935 | PLUG |
| DISTRIBUTOR TO OECD STAY | ||
| 550 | N 007604012102 | SCREW PLUG |
| CONNECTIONS: | ||
| 1+5 | ||
| Repalced by: N 007604012105 | ||
| 550 | N 007604012105 | SCREW PLUG |
| CONNECTIONS: | ||
| 1+5 | ||
| 554 | A 0004290827 | THRUST RING |
| Repalced by: A 0009940103 | ||
| 554 | A 0009940103 | THRUST RING |
| CONNECTIONS: | ||
| 1+5 | ||
| 558 | A 0019970845 | SEAL RING |
| CONNECTIONS: | ||
| 1+5 | ||
| 562 | N 000933010260 | SCREW |
| STAY ON TRANSMISSION CASE | ||
| 562 | N 000933010260 | SCREW |
| STAY ON TRANSMISSION CASE | ||
| 562 | N 000933010145 | SCREW |
| Repalced by: N 910105010007 | ||
| 562 | N 910105010007 | SCREW |
| Repalced by: N 000000000428 | ||
| 562 | N 000000000428 | HEXAGON HEAD BOLT |
| STAY ON TRANSMISSION CASE | ||
| 562 | N 000933010157 | SCREW |
| STAY ON TRANSMISSION CASE | ||
| 562 | N 000933010260 | SCREW |
| STAY ON TRANSMISSION CASE | ||
| 566 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 566 | N 007349010007 | WASHER |
| STAY ON TRANSMISSION CASE | ||
| 570 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 570 | N 000125010532 | WASHER |
| STAY ON TRANSMISSION CASE | ||
| 572 | N 912004010102 | LOCK WASHER |
| STAY ON TRANSMISSION CASE | ||

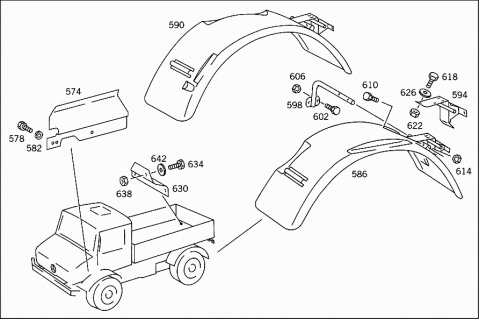

| 574 | A 4252920092 | COVER PLATE |
| 578 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 578 | N 304017008016 | SCREW |
| COVER PLATE TO CROSS MEMBER | ||
| 582 | N 912004008102 | LOCK WASHER |
| COVER PLATE TO CROSS MEMBER | ||
| A 4255201307 | FENDER | |
| Repalced by: A 4255202607 | ||
| 586 | A 4255202007 | FENDER |
| Repalced by: A 4255202607 | ||
| 586 | A 4255202607 | FENDER |
| SEE PLATFORM MODEL CONFIGURATION | ||
| 435.62 | ||
| 590 | A 4255201407 | FENDER |
| Repalced by: A 4255202707 | ||
| 590 | A 4255202707 | FENDER |
| SEE PLATFORM MODEL CONFIGURATION | ||
| 435.62 | ||
| A 4255201741 | BRACKET | |
| LEFT | ||
| 594 | A 4255204241 | BRACKET |
| SEE PLATFORM MODEL CONFIGURATION | ||
| 435.62 | ||
| 594 | A 4255202441 | BRACKET |
| SEE PLATFORM MODEL CONFIGURATION | ||
| 435.62 | ||
| 598 | A 4255203641 | BRACKET |
| Repalced by: A 4255204541 | ||
| 598 | A 4255204541 | BRACKET |
| SEE PLATFORM MODEL CONFIGURATION | ||
| 435.62 | ||
| 598 | A 4255203741 | BRACKET |
| Repalced by: A 4255204641 | ||
| 598 | A 4255204641 | BRACKET |
| SEE PLATFORM MODEL CONFIGURATION | ||
| 435.62 | ||
| 602 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 602 | N 910105010009 | SCREW |
| 606 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 606 | N 913023010003 | NUT |
| SEE PLATFORM MODEL CONFIGURATION | ||
| 435.62 | ||
| 610 | N 000931006084 | SCREW |
| SEE PLATFORM MODEL CONFIGURATION | ||
| 435.62 | ||
| 610 | N 304017006027 | SCREW |
| SEE PLATFORM MODEL CONFIGURATION | ||
| 435.62 | ||
| 614 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 614 | N 913023006001 | NUT |
| SEE PLATFORM MODEL CONFIGURATION | ||
| 435.62 | ||
| 618 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 618 | N 304017008016 | SCREW |
| SEE PLATFORM MODEL CONFIGURATION | ||
| 435.62 | ||
| 622 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 622 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 622 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 622 | N 913023008002 | NUT |
| SEE PLATFORM MODEL CONFIGURATION | ||
| 435.62 | ||
| 626 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 626 | N 009021006208 | WASHER |
| SEE PLATFORM MODEL CONFIGURATION | ||
| 435.62 | ||
| 630 | A 4255222140 | BRACKET |
| Repalced by: A 4355221540 | ||
| 630 | A 4355221540 | BRACKET |
| SEE GROUP: | ||
| "54" | ||
| 634 | N 000961012056 | SCREW |
| Repalced by: N 910105012003 | ||
| 634 | N 910105012003 | SCREW |
| Repalced by: N 308676012038 | ||
| 634 | N 308676012038 | SCREW |
| BRACKET TO REAR FENDER | ||
| M12X1,5X20; TO 425 522 21 40 | ||
| 634 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 634 | N 304017008021 | SCREW |
| BRACKET TO REAR FENDER | ||
| TO 435 522 15 40 | ||
| 638 | N 913004012008 | NUT |
| Repalced by: N 913023012003 | ||
| 638 | N 913023012003 | NUT |
| BRACKET TO REAR FENDER | ||
| TO 425 522 21 40 | ||
| 638 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 638 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 638 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 638 | N 913023008002 | NUT |
| BRACKET TO REAR FENDER | ||
| TO 435 522 15 40 | ||
| 642 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 642 | N 009021008213 | WASHER |
| BRACKET TO REAR FENDER | ||
| TO 435 522 15 40 | ||
| Repalced by: N 000000003250 | ||
| 642 | N 000000003250 | WASHER |
| BRACKET TO REAR FENDER | ||
| TO 435 522 15 40 | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
