Transporto priemonė: U 1700; VIN numerio dalis: 435110
Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SEE ALSO SA: | ||
| 36 200/01 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SEE ALSO SA: | ||
| 36 200/02 | ||

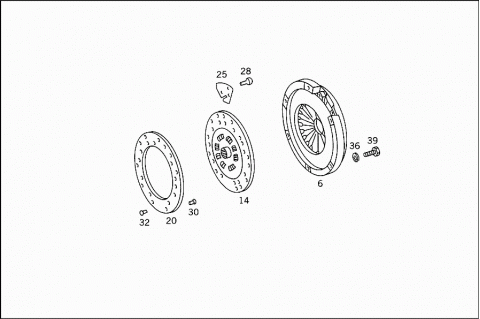

| 006 | A 0022508704 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032505904 | ||
| 006 | A 0032505904 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0042500704 | ||
| 006 | A 0042500704 | CLUTCH PRESSURE PLATE |
| F & S | ||
| 014 | A 0042509803 | CLUTCH DISC |
| Repalced by: A 0062501403 | ||
| 014 | A 0062501403 | CLUTCH DISC |
| Repalced by: A 0092505703 | ||
| 014 | A 0062501403 | CLUTCH DISC |
| Repalced by: A 0092505703 | ||
| 014 | A 0092505703 | CLUTCH DISC |
| ASBESTOS-FREE | ||
| F&S | ||
| 014 | A 0042502603 | CLUTCH DISC |
| 014 | A 0042502703 | CLUTCH DISC |
| Repalced by: A 0112507203 | ||
| 014 | A 0112507203 | CLUTCH DISC |
| ASBESTOS-FREE | ||
| F&S | ||
| 020 | A 0012521210 | CLUTCH LINING |
| Repalced by: A 0012527210 | ||
| 020 | A 0012527210 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| VALEO F 202; TO 009 250 57 03 | ||
| 020 | A 0012521210 | CLUTCH LINING |
| Repalced by: A 0012527210 | ||
| 020 | A 0002529910 | CLUTCH LINING |
| Repalced by: A 0002529510 | ||
| 020 | A 0002529510 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| F & S; TO 011 250 72 03 | ||
| 020 | A 0012524710 | CLUTCH LINING |
| Repalced by: A 0012529010 | ||
| 020 | A 0012529010 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| BERAL K208/1B; TO 011 250 72 03 | ||
| 025 | A 0002522019 | LEAF SPRING |
| TO 006 250 14 03,009 250 57 03 | ||
| 025 | A 0002523019 | LEAF SPRING |
| Repalced by: A 0002523519 | ||
| 025 | A 0002523519 | LEAF SPRING |
| Repalced by: A 0002524719 | ||
| 025 | A 0002524719 | LEAF SPRING |
| 028 | A 0002520375 | RIVET |
| Repalced by: A 0002521275 | ||
| 028 | A 0002521275 | RIVET |
| Repalced by: A 0002524375 | ||
| 028 | A 0002524375 | RIVET |
| 028 | A 0002521475 | RIVET |
| Repalced by: A 0002523875 | ||
| 028 | A 0002523875 | RIVET |
| 028 | A 0002523875 | RIVET |
| TO 009 250 57 03,006 250 14 03 | ||
| 030 | A 0002522175 | RIVET |
| TO 006 250 14 03,009 250 57 03 | ||
| 030 | A 0002522175 | RIVET |
| 032 | A 0002522575 | RIVET |
| Repalced by: A 0002523975 | ||
| 032 | A 0002523975 | RIVET |
| TO 009 250 57 03,006 250 14 03 | ||
| 032 | A 0002520675 | RIVET |
| Repalced by: A 0002522075 | ||
| 032 | A 0002522075 | RIVET |
| Repalced by: N 007338005101 | ||
| 032 | N 007338005101 | RIVET |
| 036 | N 912004008102 | LOCK WASHER |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| 039 | N 000931008311 | SCREW |
| Repalced by: N 304017008030 | ||
| 039 | N 304017008030 | SCREW |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||

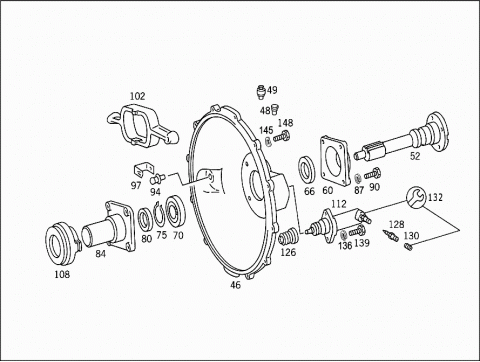

| 046 | A 4252510301 | BELL HOUSING |
| Repalced by: A 4252510801 | ||
| 046 | A 4252510801 | BELL HOUSING |
| 048 | A 3123501090 | VALVE |
| 049 | A 1112600058 | BREATHER |
| TO 425 251 08 01 | ||
| 052 | A 4252520008 | DRIVE SHAFT |
| 060 | A 4252510304 | END COVER |
| Repalced by: A 4252510404 | ||
| 060 | A 4252510404 | END COVER |
| Repalced by: A 4252510504 | ||
| 060 | A 4252510504 | END COVER |
| 066 | A 0059973947 | SEAL RING |
| TO 425 251 04 04 | ||
| 066 | A 0129976247 | SEAL RING |
| TO 425 251 05 04 | ||
| 066 | A 0129975547 | SEAL RING |
| TO 425 251 05 04 | ||
| 066 | A 0129976947 | SEAL RING |
| TO 425 251 05 04 | ||
| 070 | N 000625046009 | GROOVED BALL BEARING |
| Repalced by: A 0059812325 | ||
| 070 | A 0059812325 | BALL BEARING |
| 075 | N 000471045000 | LOCK RING |
| 080 | A 0059973847 | SEAL RING |
| Repalced by: A 0129976147 | ||
| 080 | A 0129976147 | SEAL RING |
| 080 | A 0129975447 | SEAL RING |
| 080 | A 0129976847 | SEAL RING |
| 084 | A 4252520153 | SPACER TUBE |
| Repalced by: A 4252520453 | ||
| 084 | A 4252520453 | SPACER TUBE |
| 087 | N 912004008102 | LOCK WASHER |
| 090 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 090 | N 304017008018 | SCREW |
| BEARING COVER AND GUIDE TUBE TO BELL HOUSING | ||
| 094 | A 4259910220 | BALL PIVOT |
| 097 | A 4252510085 | CLAMP |
| Repalced by: A 4252510385 | ||
| 097 | A 4252510385 | CLAMP |
| 102 | A 4252540208 | RELEASE LEVER |
| 108 | A 0002504415 | RELEASE BEARING |
| 112 | A 0002959307 | SLAVE CYLINDER |
| Repalced by: A 0012957707 | ||
| 112 | A 0012957707 | SLAVE CYLINDER |
| 126 | A 0039977440 | SEAL RING |
| Repalced by: A 0002900267 | ||
| 126 | A 0002953683 | BOOT |
| Repalced by: A 0002954583 | ||
| 126 | A 0002954583 | BOOT |
| TO 000 295 93 07,001 295 77 07 | ||
| 128 | A 0004202155 | BLEEDER VALVE |
| Repalced by: A 0004310265 | ||
| 128 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 128 | A 3075530107 | VALVE |
| TO 000 295 93 07,001 295 77 07 | ||
| 130 | A 0004212687 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 130 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 130 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 130 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 130 | A 0004210887 | PROTECTIVE CAP |
| TO 000 295 93 07,001 295 77 07 | ||
| 132 | A 0002900267 | REPAIR KIT |
| TO 000 295 93 07 | ||
| 132 | A 0002900211 | REPAIR KIT |
| TO 001 295 77 07 | ||
| 136 | N 912004008102 | LOCK WASHER |
| CLUTCH SLAVE CYLINDER TO BELL HOUSING | ||
| 139 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 139 | N 304017008027 | SCREW |
| CLUTCH SLAVE CYLINDER TO BELL HOUSING | ||
| 145 | N 000137010201 | SPRING WASHER |
| BELL HOUSING TO FLYWHEEL HOUSING | ||
| 148 | N 000933010145 | SCREW |
| Repalced by: N 910105010007 | ||
| 148 | N 910105010007 | SCREW |
| Repalced by: N 000000000428 | ||
| 148 | N 000000000428 | HEXAGON HEAD BOLT |
| BELL HOUSING TO FLYWHEEL HOUSING | ||
