Transporto priemonė: U 1700; VIN numerio dalis: 435110

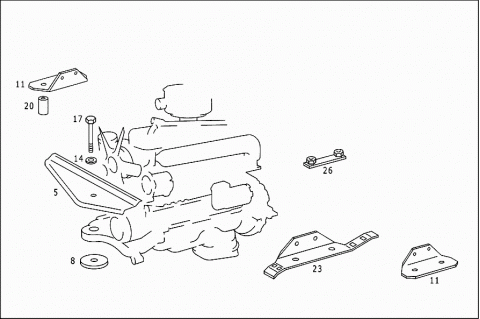

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SEE ALSO SA: | ||
| 36 200/01 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SEE ALSO SA: | ||
| 36 200/02 | ||
| 005 | A 4252410112 | PROTECTIVE COVER |
| Repalced by: A 4252410712 | ||
| 005 | A 4252410712 | PROTECTIVE COVER |
| 008 | A 4242420166 | WASHER |
| Repalced by: A 4428920082 | ||
| 008 | A 4428920082 | WASHER |
| FRONT | ||
| 011 | A 4252400031 | PLATE |
| Repalced by: A 4422420131 | ||
| 011 | A 4252420135 | PLATE |
| Repalced by: A 4422420131 | ||
| 011 | A 4422420131 | MOUNTING PLATE |
| 011 | A 4422420131 | MOUNTING PLATE |
| ENGINE SUPPORT TO FRAME | ||
| 014 | N 007349015003 | WASHER |
| ENGINE SUPPORT TO FRAME | ||
| 017 | N 000961014148 | SCREW |
| ENGINE SUPPORT TO FRAME | ||
| M14X1.5X75 | ||
| 020 | A 3522240053 | SPACER TUBE |
| ENGINE SUPPORT TO FRAME | ||
| 023 | A 4372420031 | MOUNTING PLATE |
| ENGINE SUPPORT TO FRAME | ||
| 026 | A 4373100059 | MOUNTING PLATE |
| ENGINE REAR SUSPENSION | ||
