Transporto priemonė: U 1700; VIN numerio dalis: 435110

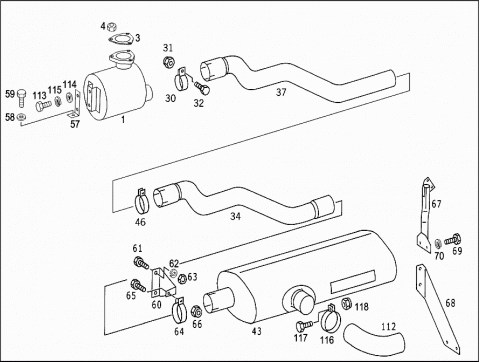

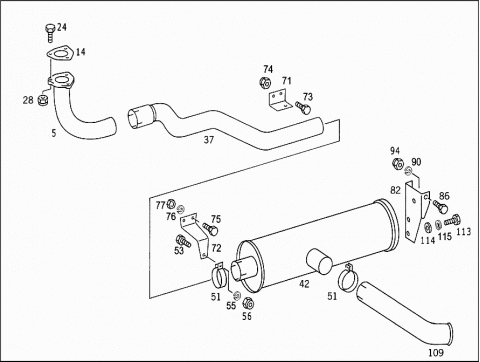

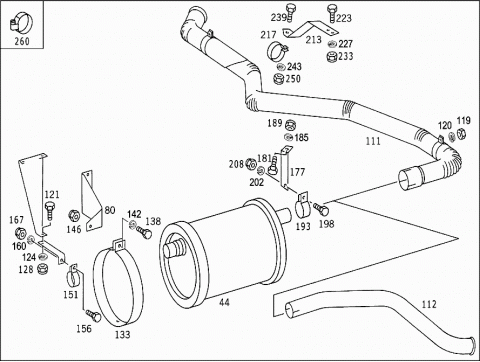

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SEE ALSO SA: | ||
| 36 200/01 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SEE ALSO SA: | ||
| 36 200/02 | ||
| 001 | A 4354901501 | EXHAUST MUFFLER |
| 003 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 003 | A 4424920280 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 004 | N 999901010000 | NUT |
| A 4254900019 | EXHAUST PIPE | |
| Repalced by: A 4354900019 | ||
| 005 | A 4354900019 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 4354900019 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 4254900119 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 4354900119 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 4354900119 | EXHAUST PIPE |
| FRONT | ||
| 014 | N 900244065003 | GASKET |
| Repalced by: A 3124921080 | ||
| 014 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 014 | A 4424920280 | FLANGE GASKET |
| EXHAUST MUFFLER TO EXHAUST MANIFOLD | ||
| 014 | A 3024900080 | FLANGE GASKET |
| Repalced by: A 4424920080 | ||
| 014 | A 4424920080 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 024 | N 000931012051 | SCREW |
| Repalced by: N 304017012019 | ||
| 024 | N 304017012019 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 024 | N 000931010089 | SCREW |
| Repalced by: N 304017010053 | ||
| 024 | N 304017010053 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 028 | N 999901012002 | NUT |
| Repalced by: N 999901012000 | ||
| 028 | N 999901012000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 028 | N 999901010000 | NUT |
| EXHAUST MUFFLER TO EXHAUST MANIFOLD | ||
| 028 | N 999901010000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 030 | N 071555068502 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 030 | N 071555070501 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 031 | N 910113008003 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 031 | N 913023010003 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 032 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 032 | N 304017008027 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| 032 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 032 | N 910105010001 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO MUFFLER | ||
| A 4354920001 | FRONT EXHAUST PIPE | |
| Repalced by: A 4354920301 | ||
| 034 | A 4354920301 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 034 | A 4354920301 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 034 | A 4354923001 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 034 | A 4354920601 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 034 | A 4354920101 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 037 | A 4354920401 | CENTRAL EXHAUST PIPE |
| 037 | A 4354920401 | CENTRAL EXHAUST PIPE |
| 037 | A 4354921001 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 037 | A 4354922901 | FRONT EXHAUST PIPE |
| Repalced by: A 4354922801 | ||
| 037 | A 4354922801 | FRONT EXHAUST PIPE |
| 042 | A 4254900101 | EXHAUST MUFFLER |
| 042 | A 4254900101 | EXHAUST MUFFLER |
| 042 | A 4254900101 | EXHAUST MUFFLER |
| 042 | A 4254900101 | EXHAUST MUFFLER |
| 042 | A 4254900101 | EXHAUST MUFFLER |
| 043 | A 4354901401 | EXHAUST MUFFLER |
| 044 | A 4354900201 | EXHAUST MUFFLER |
| 044 | A 4354900201 | EXHAUST MUFFLER |
| 046 | N 071555068502 | CLAMP |
| 051 | N 071555078502 | CLAMP |
| BRACKET TO FRAME | ||
| 053 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 053 | N 910105010001 | HEXAGON HEAD BOLT |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 053 | N 910105010001 | HEXAGON HEAD BOLT |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 055 | N 912004010102 | LOCK WASHER |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 055 | N 912004010102 | LOCK WASHER |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 056 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 056 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 056 | N 913023010002 | NUT |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 056 | N 913023010002 | NUT |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 057 | A 4354910541 | BRACKET |
| Repalced by: A 3834929141 | ||
| 057 | A 3834929141 | BRACKET |
| Repalced by: A 3464910541 | ||
| 057 | A 3464910541 | BRACKET |
| PRE-MUFFLER TO ENGINE MOUNTING | ||
| 058 | N 000433015005 | WASHER |
| PRE-MUFFLER TO ENGINE MOUNTING | ||
| 058 | A 4359917125 | WASHER |
| PRE-MUFFLER TO ENGINE MOUNTING | ||
| 059 | N 900170014046 | SCREW |
| PRE-MUFFLER TO ENGINE MOUNTING | ||
| 060 | A 4364920541 | BRACKET |
| Repalced by: A 4354925141 | ||
| 060 | A 4354925141 | BRACKET |
| EXHAUST MUFFLER AND CENTRAL EXHAUST PIPE TO FRAME | ||
| 061 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 061 | N 910105010009 | HEXAGON HEAD BOLT |
| 062 | N 912004010102 | LOCK WASHER |
| EXHAUST MUFFLER AND CENTRAL EXHAUST PIPE TO FRAME | ||
| 063 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 063 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 063 | N 913023010002 | NUT |
| EXHAUST MUFFLER AND CENTRAL EXHAUST PIPE TO FRAME | ||
| 064 | N 071555078502 | CLAMP |
| EXHAUST MUFFLER AND CENTRAL EXHAUST PIPE TO FRAME | ||
| 065 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 065 | N 910105010001 | HEXAGON HEAD BOLT |
| EXHAUST MUFFLER AND CENTRAL EXHAUST PIPE TO FRAME | ||
| 066 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 066 | N 913023010003 | NUT |
| EXHAUST MUFFLER AND CENTRAL EXHAUST PIPE TO FRAME | ||
| 067 | A 4364900040 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 067 | A 4364900040 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 068 | A 4354925341 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 069 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 069 | N 910105010006 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| 070 | N 912004010102 | LOCK WASHER |
| EXHAUST MUFFLER TO BRACKET | ||
| 071 | A 4354920041 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 071 | A 4354920041 | BRACKET |
| FRONT MUFFLER TO FRAME | ||
| 071 | A 4354920041 | BRACKET |
| FRONT MUFFLER TO FRAME | ||
| 071 | A 4354920041 | BRACKET |
| FRONT MUFFLER TO FRAME | ||
| 071 | A 4354920041 | BRACKET |
| FRONT MUFFLER TO FRAME | ||
| 072 | A 4354921041 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 072 | A 4354921041 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 073 | N 000961014148 | SCREW |
| BRACKET TO FRAME | ||
| 073 | N 000961014154 | SCREW |
| Repalced by: N 308676014018 | ||
| 073 | N 308676014018 | SCREW |
| Repalced by: N 308676014004 | ||
| 073 | N 308676014004 | SCREW |
| BRACKET TO FRAME | ||
| 074 | N 913004014002 | NUT |
| Repalced by: N 913023014004 | ||
| 074 | N 913023014004 | NUT |
| 075 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 075 | N 910105010009 | HEXAGON HEAD BOLT |
| 076 | N 912004010102 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 077 | N 913004014002 | NUT |
| Repalced by: N 913023014004 | ||
| 077 | N 913023014004 | NUT |
| BRACKET TO FRAME | ||
| A 4354922141 | BRACKET | |
| EXHAUST MUFFLER TO FRAME | ||
| A 4354922141 | BRACKET | |
| EXHAUST MUFFLER TO FRAME | ||
| A 4354922241 | BRACKET | |
| EXHAUST MUFFLER TO FRAME | ||
| A 4354922241 | BRACKET | |
| EXHAUST MUFFLER TO FRAME | ||
| 080 | A 4354921341 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 080 | A 4354921341 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| A 4354920141 | BRACKET | |
| Repalced by: A 4354900040 | ||
| A 4354920241 | BRACKET | |
| Repalced by: A 4354900040 | ||
| 082 | A 4354900040 | BRACKET |
| EXHAUST MUFFLER TO SPRING BRACKET | ||
| 082 | A 4354900040 | BRACKET |
| EXHAUST MUFFLER TO SPRING BRACKET | ||
| 082 | A 4354900040 | BRACKET |
| EXHAUST MUFFLER TO SPRING BRACKET | ||
| 082 | A 4354900040 | BRACKET |
| EXHAUST MUFFLER TO SPRING BRACKET | ||
| 082 | A 4354900040 | BRACKET |
| EXHAUST MUFFLER TO SPRING BRACKET | ||
| 086 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 086 | N 910105010009 | HEXAGON HEAD BOLT |
| 090 | N 912004010102 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 094 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 094 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 094 | N 913023010002 | NUT |
| BRACKET TO FRAME | ||
| 109 | A 4254920206 | REAR EXHAUST PIPE |
| A 4254920206 | REAR EXHAUST PIPE | |
| Repalced by: A 4354920006 | ||
| A 4354920706 | REAR EXHAUST PIPE | |
| Repalced by: A 4354900319 | ||
| 111 | A 4354900319 | EXHAUST PIPE |
| TAIL PIPE | ||
| 111 | A 4354900319 | EXHAUST PIPE |
| TAIL PIPE | ||
| A 4354910156 | PIPE | |
| A 4354910256 | PIPE | |
| 111 | A 4354900619 | EXHAUST PIPE |
| TAIL PIPE | ||
| 112 | A 4244920006 | REAR EXHAUST PIPE |
| 112 | A 4354920306 | REAR EXHAUST PIPE |
| TAIL PIPE | ||
| 112 | A 4354920306 | REAR EXHAUST PIPE |
| 113 | N 000933010128 | SCREW |
| Repalced by: N 910105010006 | ||
| 113 | N 910105010006 | SCREW |
| BRACKET TO EXHAUST MUFFLER | ||
| 114 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 114 | N 000125010532 | WASHER |
| BRACKET TO EXHAUST MUFFLER | ||
| 115 | N 912004010102 | LOCK WASHER |
| BRACKET TO EXHAUST MUFFLER | ||
| 116 | N 071555078502 | CLAMP |
| 117 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 117 | N 910105010001 | HEXAGON HEAD BOLT |
| 117 | N 910105010001 | HEXAGON HEAD BOLT |
| CLAMP TO BRACKET | ||
| 118 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 118 | N 913023010003 | NUT |
| 119 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 119 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 119 | N 913023010002 | NUT |
| CLAMP TO BRACKET | ||
| 120 | N 912004010102 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 121 | N 000933010105 | SCREW |
| Repalced by: N 910105010009 | ||
| 121 | N 910105010009 | HEXAGON HEAD BOLT |
| 124 | N 912004010102 | LOCK WASHER |
| BRACKET TO BRACKET | ||
| 128 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 128 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 128 | N 913023010002 | NUT |
| BRACKET TO BRACKET | ||
| 133 | A 3354910040 | CLAMP |
| Repalced by: A 3874900041 | ||
| 133 | A 3874900041 | CLAMP |
| 138 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 138 | N 910105010001 | HEXAGON HEAD BOLT |
| CLAMP TO BRACKET | ||
| 138 | N 910105010001 | HEXAGON HEAD BOLT |
| CLAMP TO BRACKET | ||
| 138 | N 910105010001 | HEXAGON HEAD BOLT |
| CLAMP TO BRACKET | ||
| 142 | N 912004010102 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 146 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 146 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 146 | N 913023010002 | NUT |
| CLAMP TO BRACKET | ||
| 151 | N 071555078502 | CLAMP |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 156 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 156 | N 910105010001 | HEXAGON HEAD BOLT |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 160 | N 912004010102 | LOCK WASHER |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 167 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 167 | N 913023010003 | NUT |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 177 | A 4354922041 | BRACKET |
| 177 | A 4354922341 | BRACKET |
| A 4354923441 | BRACKET | |
| SPRING BRACKET | ||
| 181 | N 000961014154 | SCREW |
| Repalced by: N 308676014018 | ||
| 181 | N 308676014018 | SCREW |
| Repalced by: N 308676014004 | ||
| 181 | N 308676014004 | SCREW |
| CLAMP TO BRACKET | ||
| 185 | N 912004014100 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 189 | N 000934014019 | NUT |
| Repalced by: N 910112014000 | ||
| 189 | N 910112014000 | NUT |
| Repalced by: N 913023014003 | ||
| 189 | N 913023014003 | NUT |
| CLAMP TO BRACKET | ||
| M14X1.5 | ||
| 193 | N 071555075502 | CLAMP |
| CLAMP TO BRACKET | ||
| 193 | A 4374930143 | CLAMP |
| 198 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 198 | N 910105010001 | HEXAGON HEAD BOLT |
| CLAMP TO BRACKET | ||
| 202 | N 912004010102 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 208 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 208 | N 913023010003 | NUT |
| CLAMP TO BRACKET | ||
| 213 | A 4354921941 | BRACKET |
| 217 | N 071555075502 | CLAMP |
| EXHAUST PIPE TO VALVE BRACKET | ||
| 223 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 223 | N 304017008021 | SCREW |
| BRACKET TO VALVE BRACKET | ||
| 227 | N 912004008102 | LOCK WASHER |
| BRACKET TO VALVE BRACKET | ||
| 233 | N 304032008006 | NUT |
| BRACKET TO VALVE BRACKET | ||
| 239 | N 000933010129 | SCREW |
| Repalced by: N 910105010001 | ||
| 239 | N 910105010001 | HEXAGON HEAD BOLT |
| CLAMP TO BRACKET | ||
| 239 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO SPRING BRACKET | ||
| 243 | N 912004010102 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 250 | N 000934010014 | NUT |
| Repalced by: N 910112010001 | ||
| 250 | N 910112010001 | NUT |
| Repalced by: N 913023010002 | ||
| 250 | N 913023010002 | NUT |
| CLAMP TO BRACKET | ||
| 250 | N 913023010003 | NUT |
| BRACKET TO SPRING BRACKET | ||
| A 4354921841 | BRACKET | |
| A 4164230194 | BRACKET | |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| N 000933006102 | SCREW | |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| N 912004006102 | LOCK WASHER | |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| N 009021008205 | WASHER | |
| Repalced by: N 009021008213 | ||
| N 009021008213 | WASHER | |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| Repalced by: N 000000003250 | ||
| N 000000003250 | WASHER | |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| N 000934006007 | NUT | |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
| 260 | N 916017060000 | CLAMP |
| Repalced by: N 000000000673 | ||
| 260 | N 000000000673 | CLAMP |
| Repalced by: N 916017060001 | ||
| 260 | N 916017060001 | CLAMP |
| Repalced by: N 000000000673 | ||
| 260 | N 000000000673 | CLAMP |
| PROTECTIVE PLATE TO EXHAUST PIPE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
